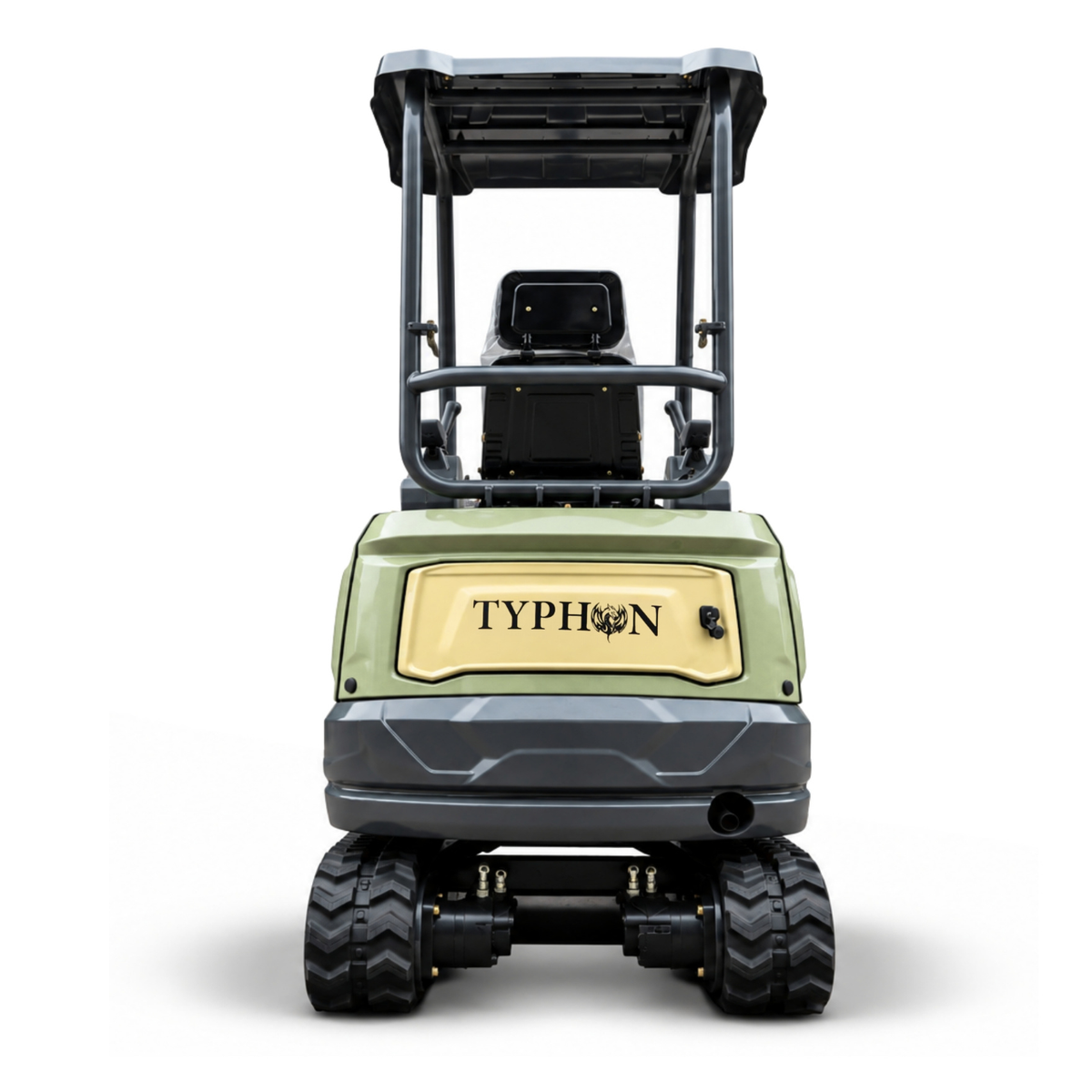

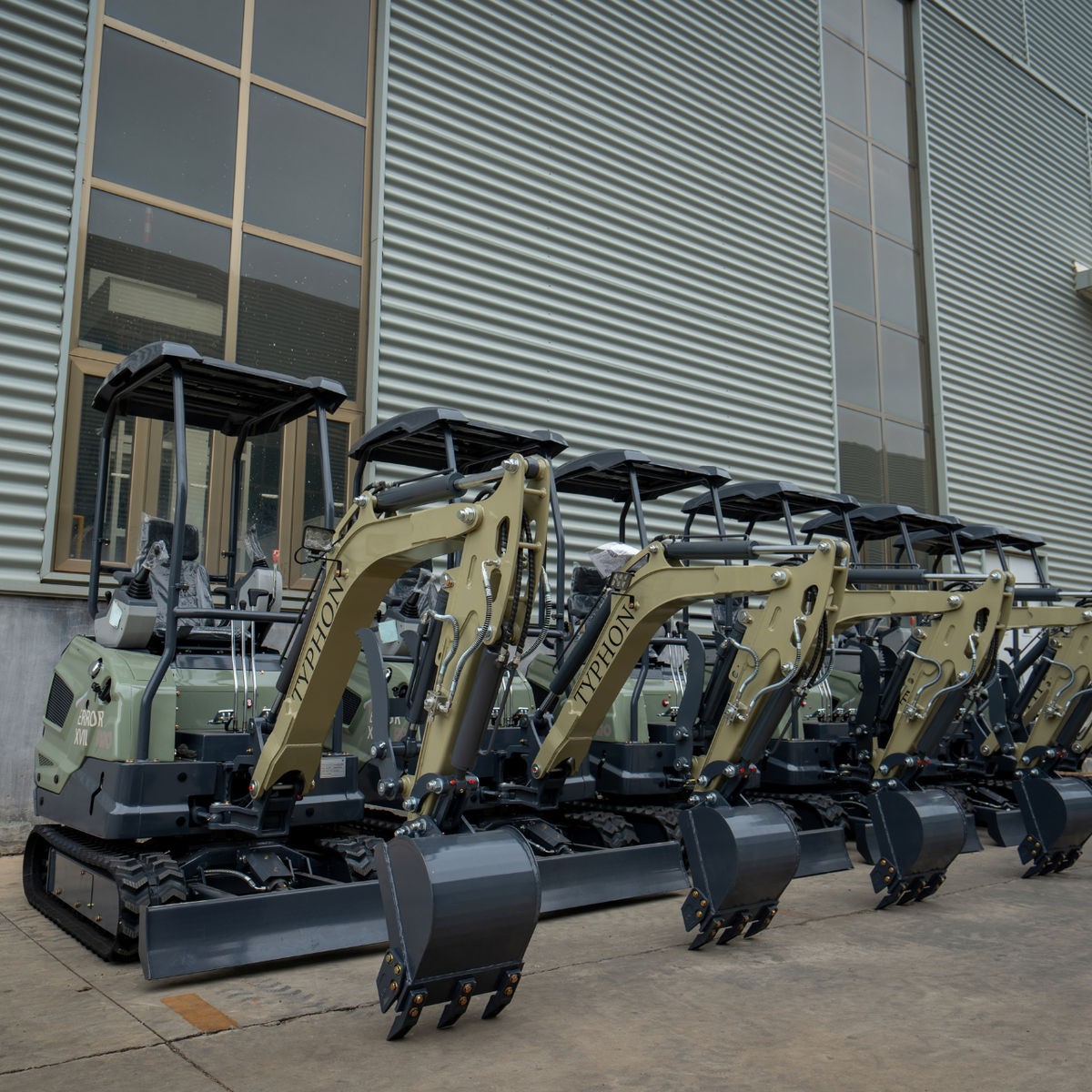

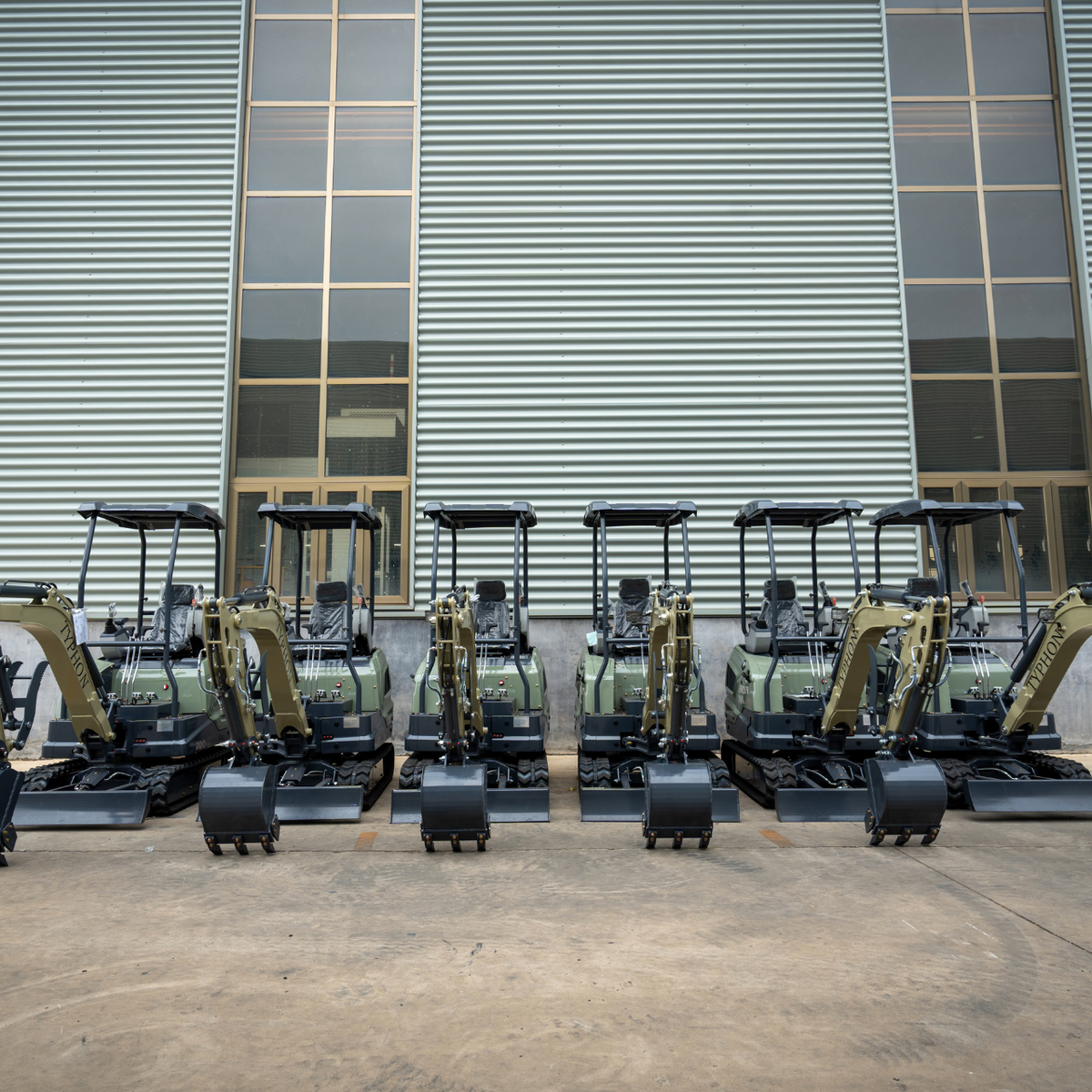

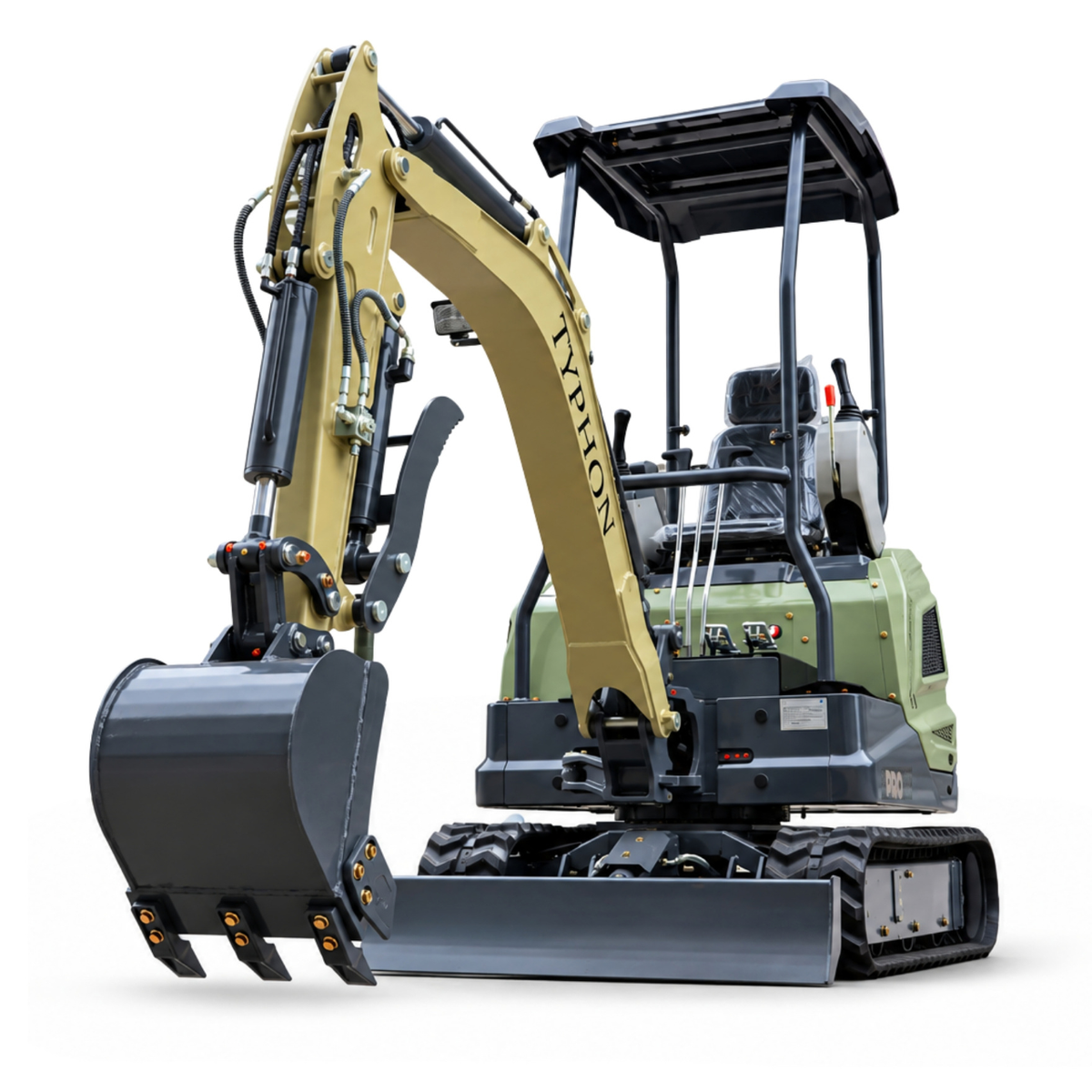

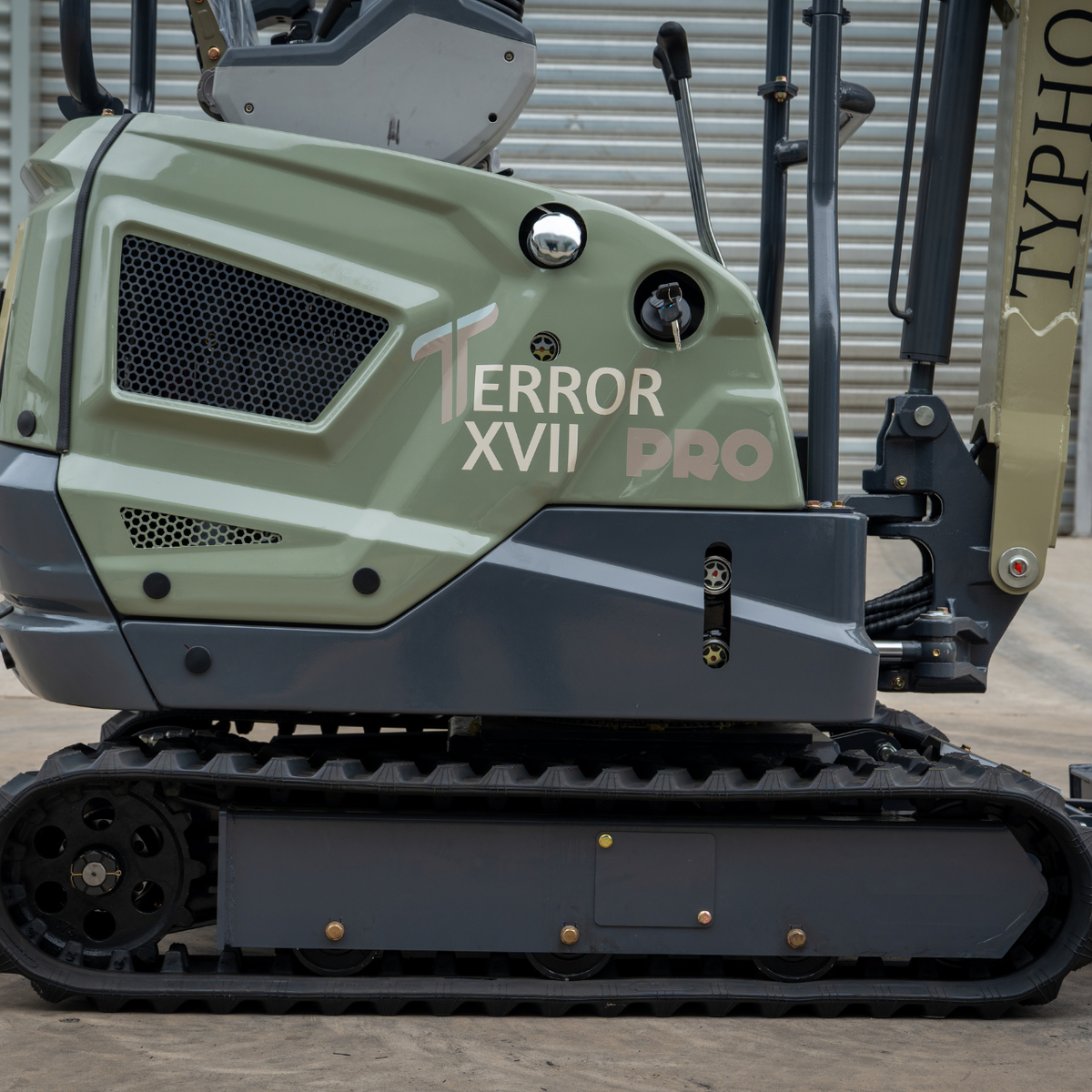

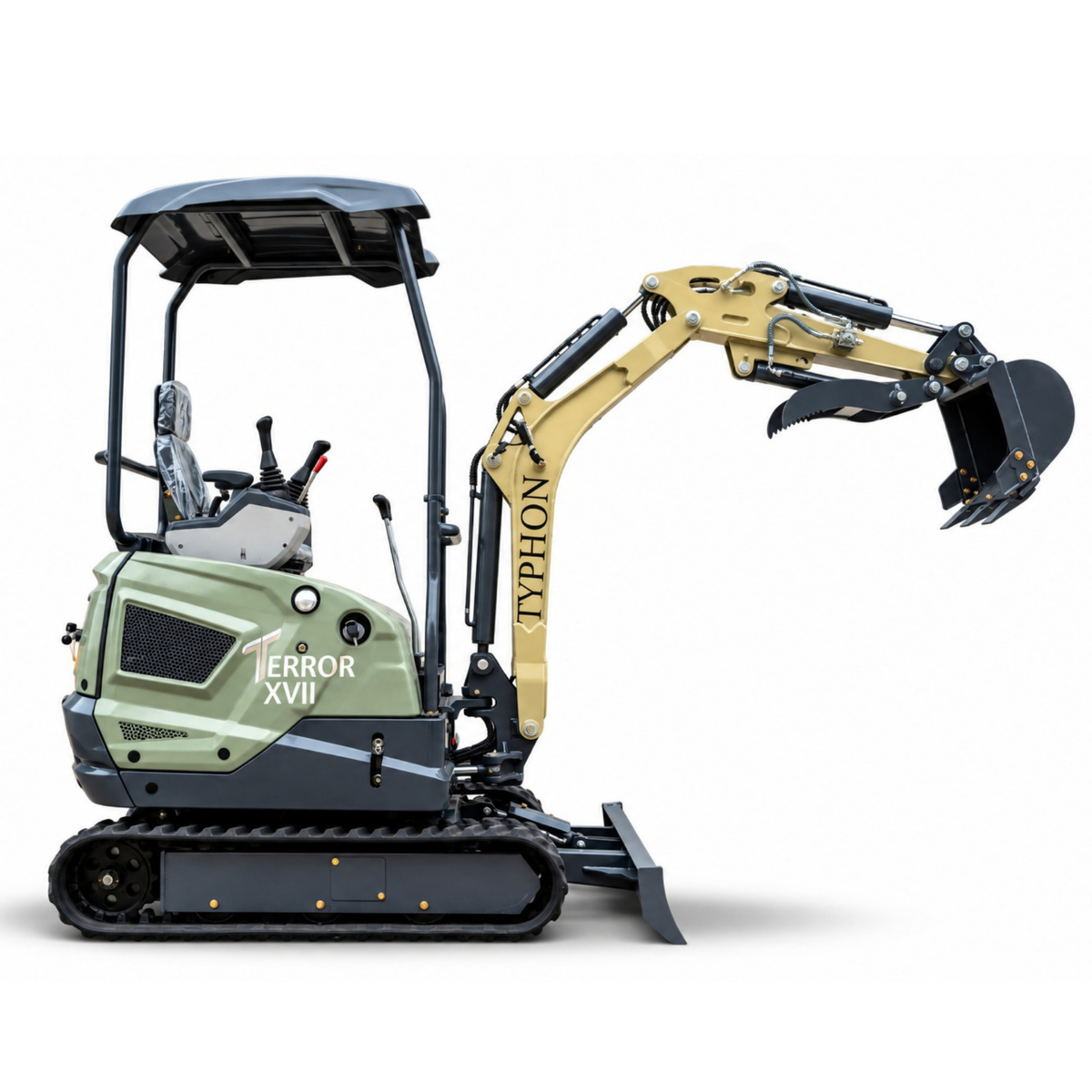

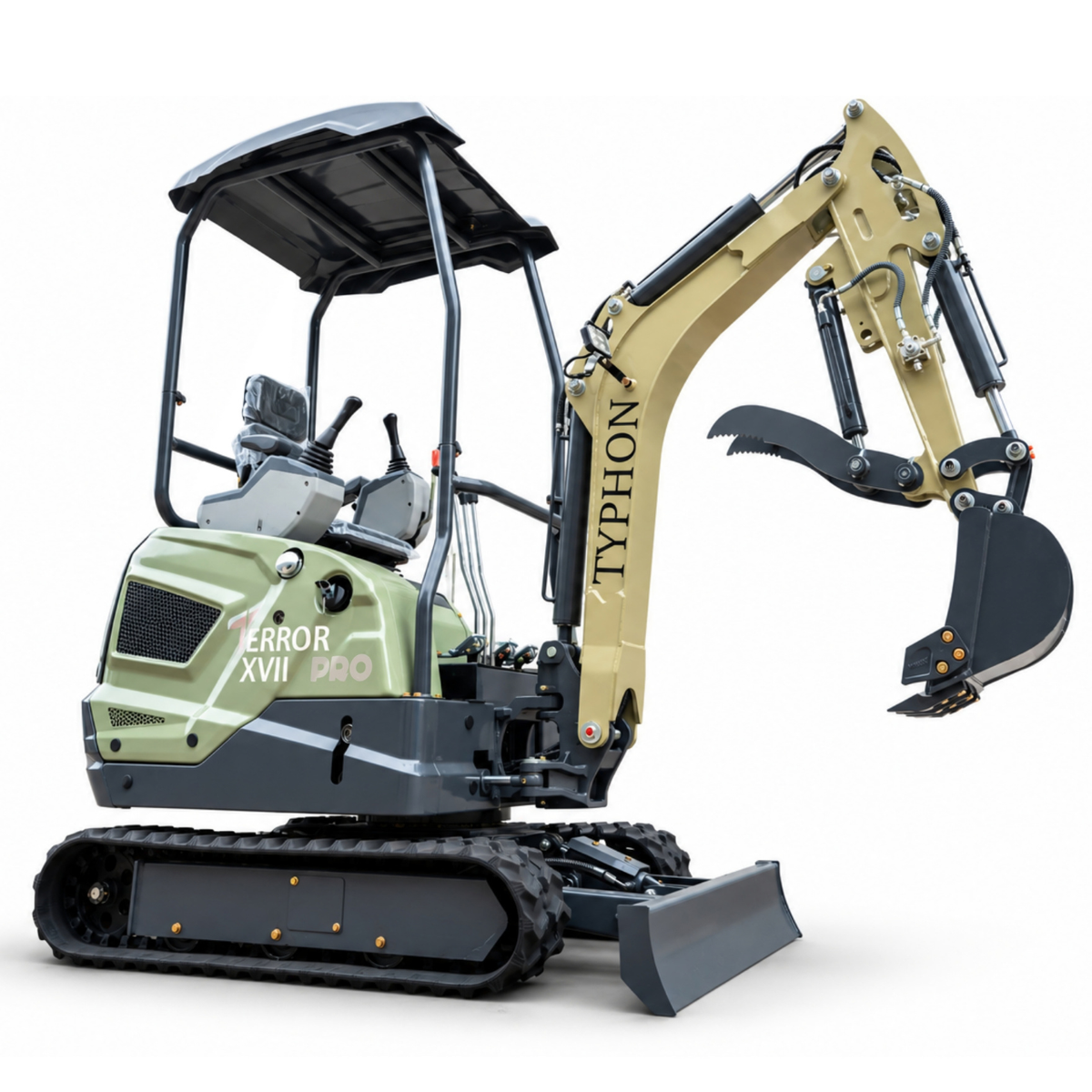

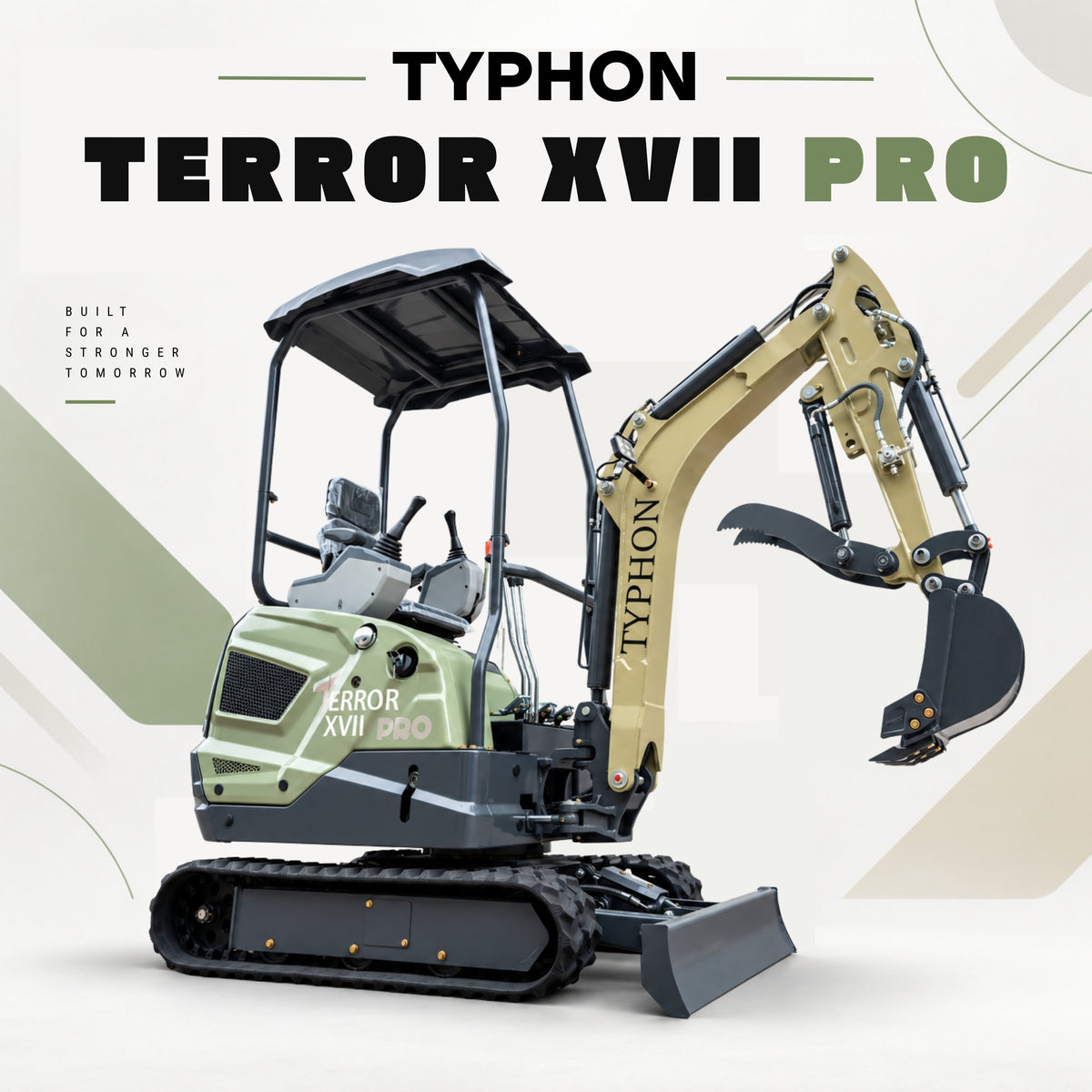

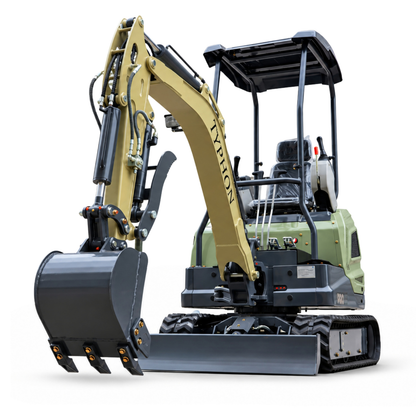

TYPHON TERROR XVII PRO 3,800 lb mini excavator with a Kubota D902 diesel engine, 360° swing, hydraulic thumb, and dozer blade.

Take on demanding excavation, grading, trenching, and cleanup work with the TYPHON TERROR XVII PRO. With a 3,800 lb operating weight, EPA-certified Kubota power, full hydraulic control, and a versatile attachment package, this mini excavator is built to deliver dependable performance in tight spaces and challenging terrain.

Built for Serious Jobsite Performance

The TYPHON TERROR XVII PRO combines a stable undercarriage, protected hydraulic components, responsive controls, and strong digging capability in a compact machine. Its design helps operators work efficiently around foundations, walls, landscaping features, and other confined areas where larger equipment cannot maneuver as easily.

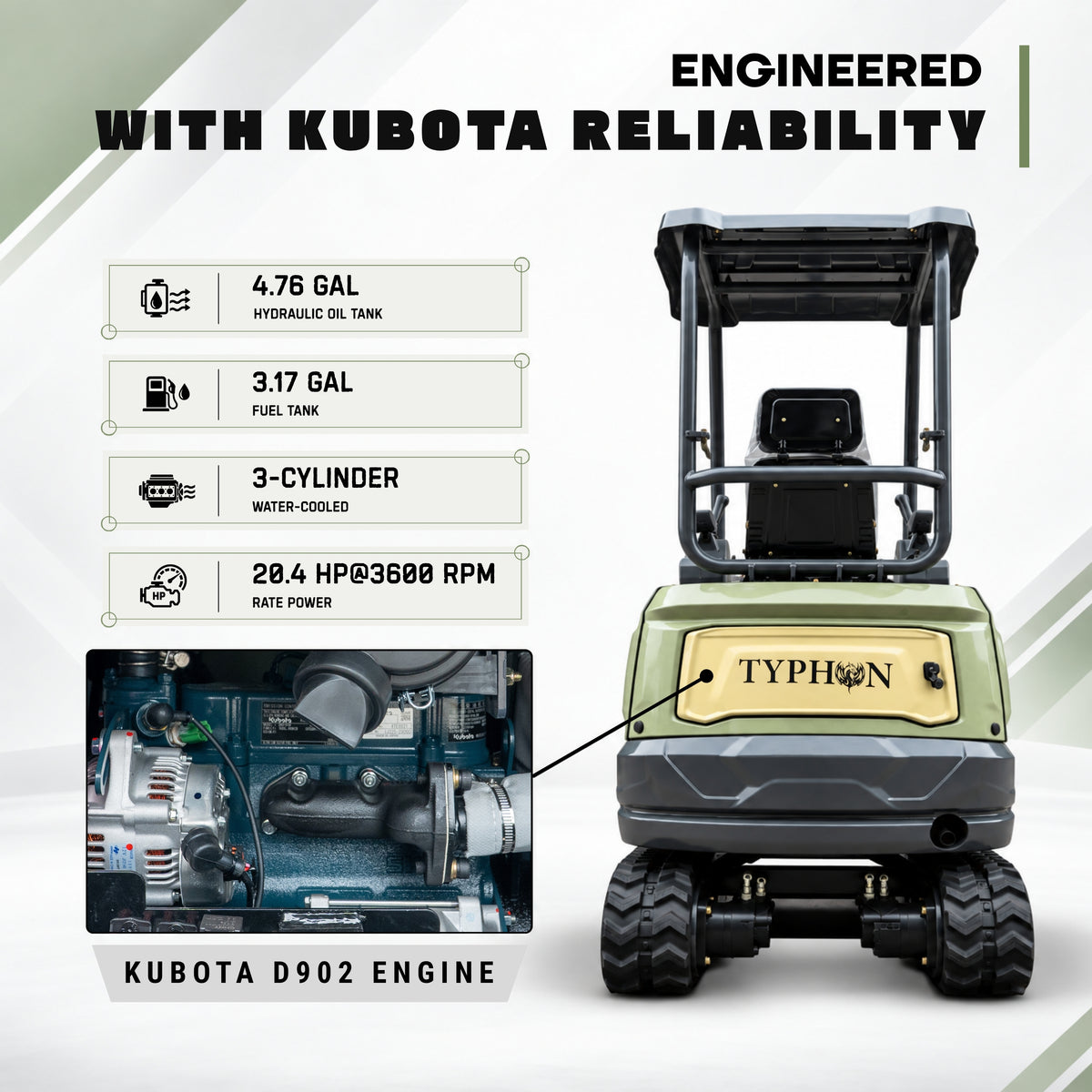

EPA-Certified Kubota D902 Diesel Engine

At the heart of the TERROR XVII PRO is a Japanese-built Kubota D902 vertical three-cylinder, four-cycle diesel engine. It produces 15.8 HP at 2,200 RPM and up to 20.4 HP at 3,600 RPM for smooth, consistent power delivery.

The EPA-certified engine is designed for efficient operation and long-term durability. A 3.17-gallon fuel tank and 4.76-gallon hydraulic oil reservoir help support extended work sessions with fewer interruptions for refueling and service.

Hydraulic Power for Digging and Attachments

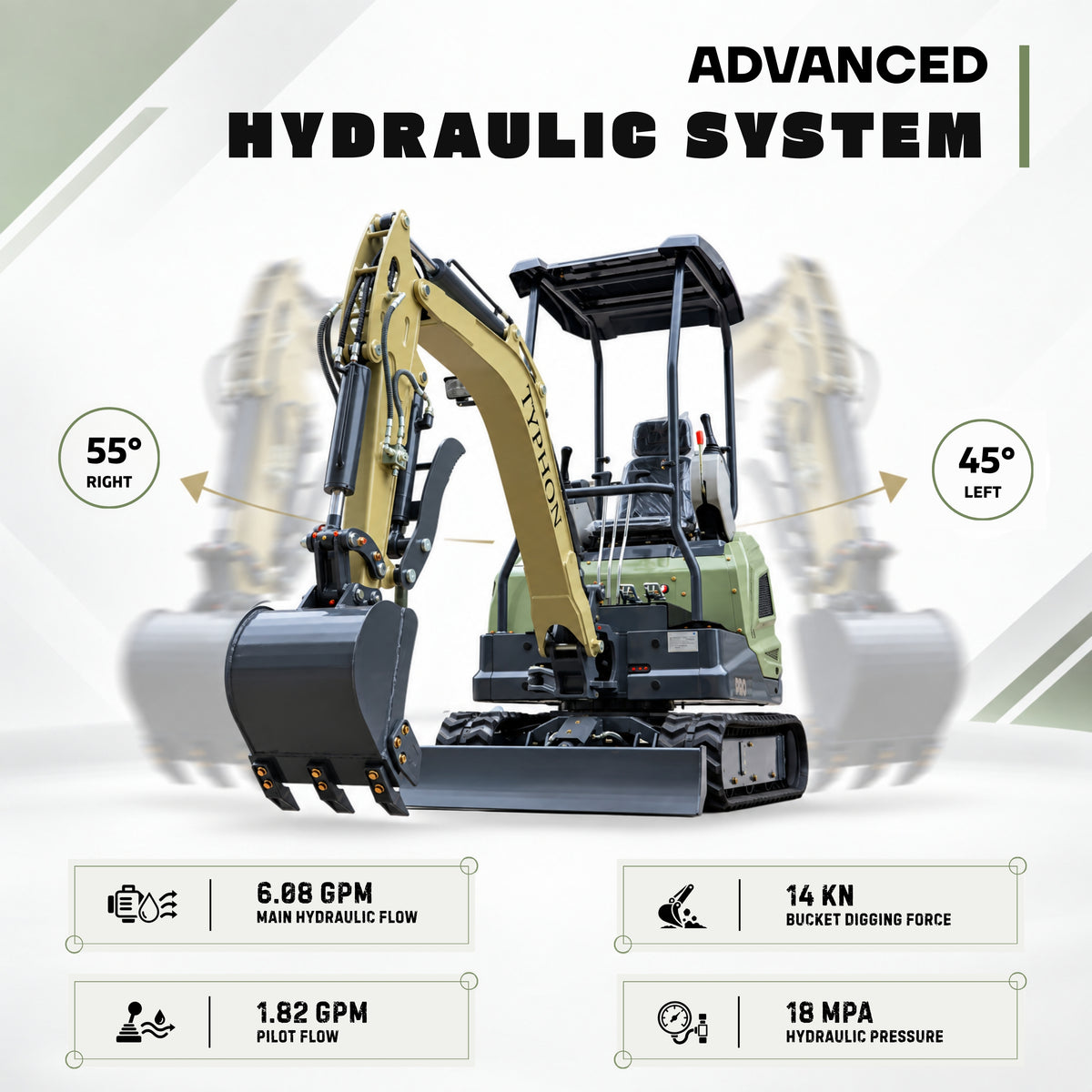

With hydraulic pressure of 18 MPa, or 2,610.68 PSI, the TYPHON TERROR XVII PRO provides the force needed for excavation and demanding attachment work. The 1.82 GPM pilot flow supports smooth, precise operation for trenching, grading, and finish work.

• Dual auxiliary circuits: Double-sided auxiliary throttle valves allow the machine to supply hydraulic flow to a powered attachment and the hydraulic thumb simultaneously.
• 6.07 GPM main hydraulic flow: Supports smooth implement response, efficient positioning, and productive work cycles.
• Hydraulic oil cooler: Helps control operating temperatures during continuous use and hot-weather applications.

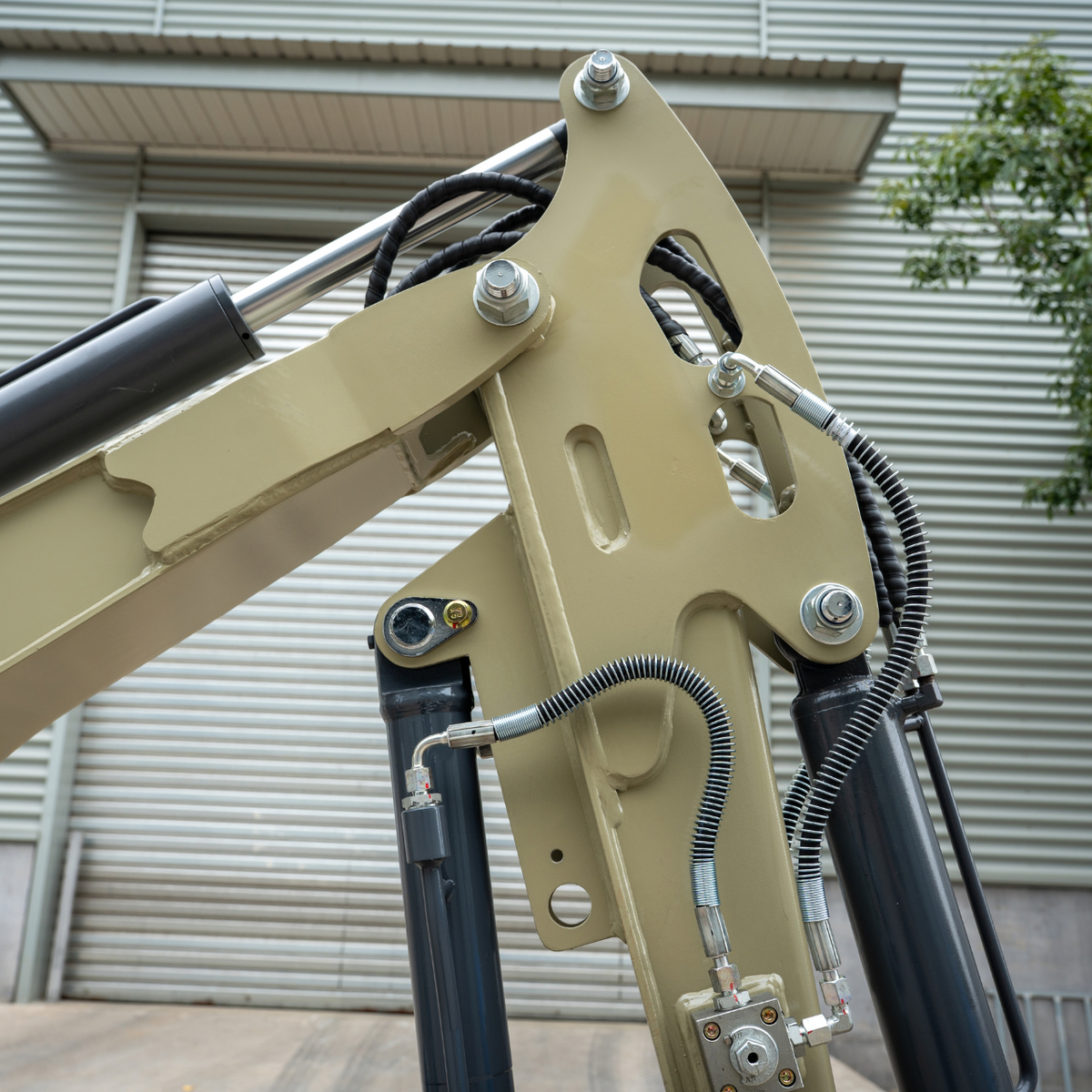

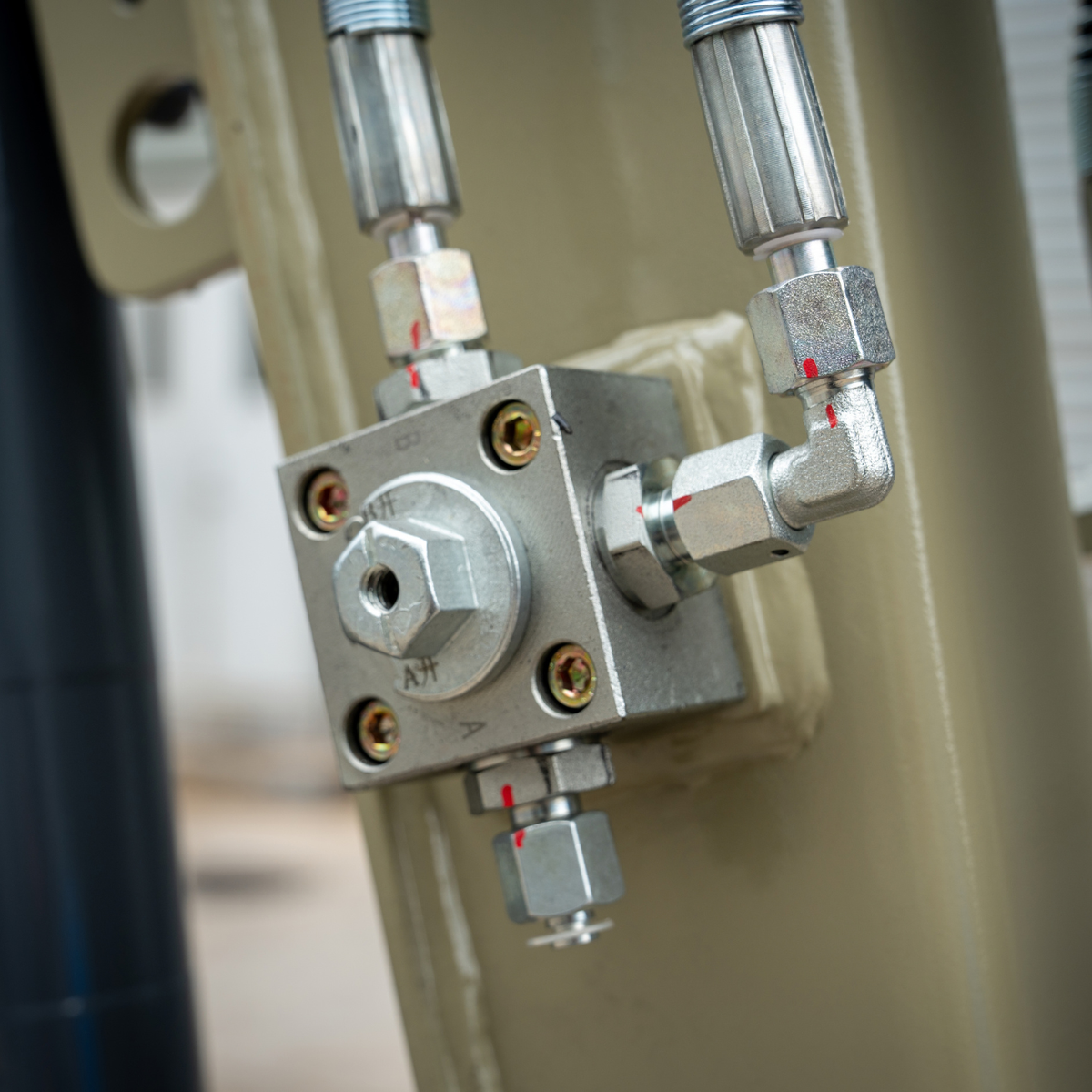

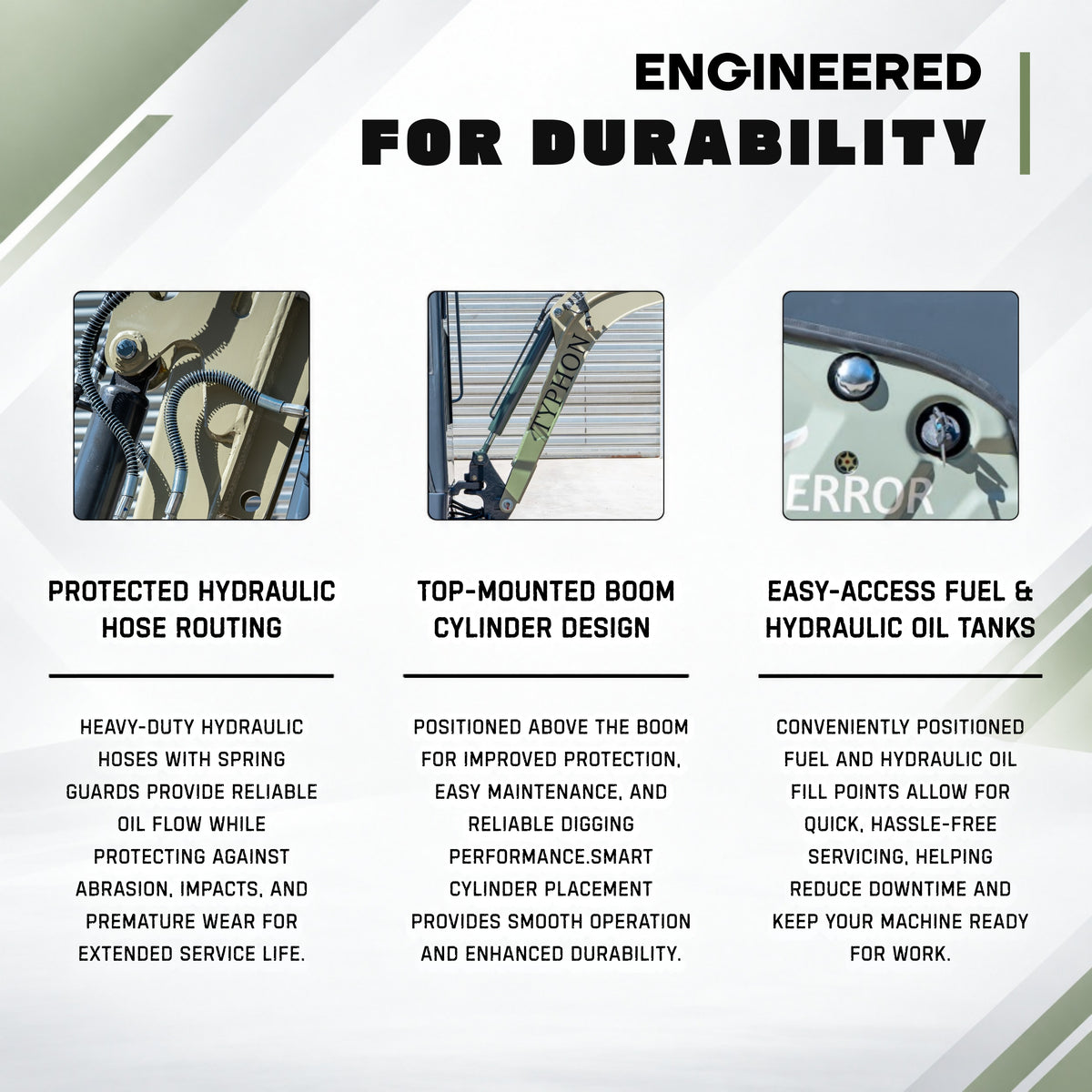

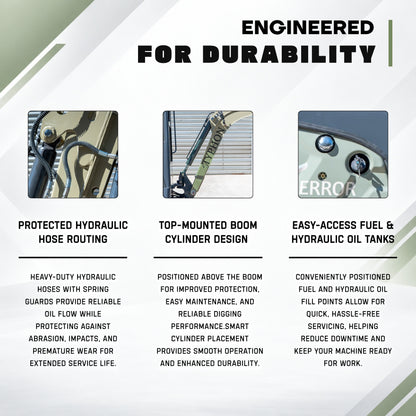

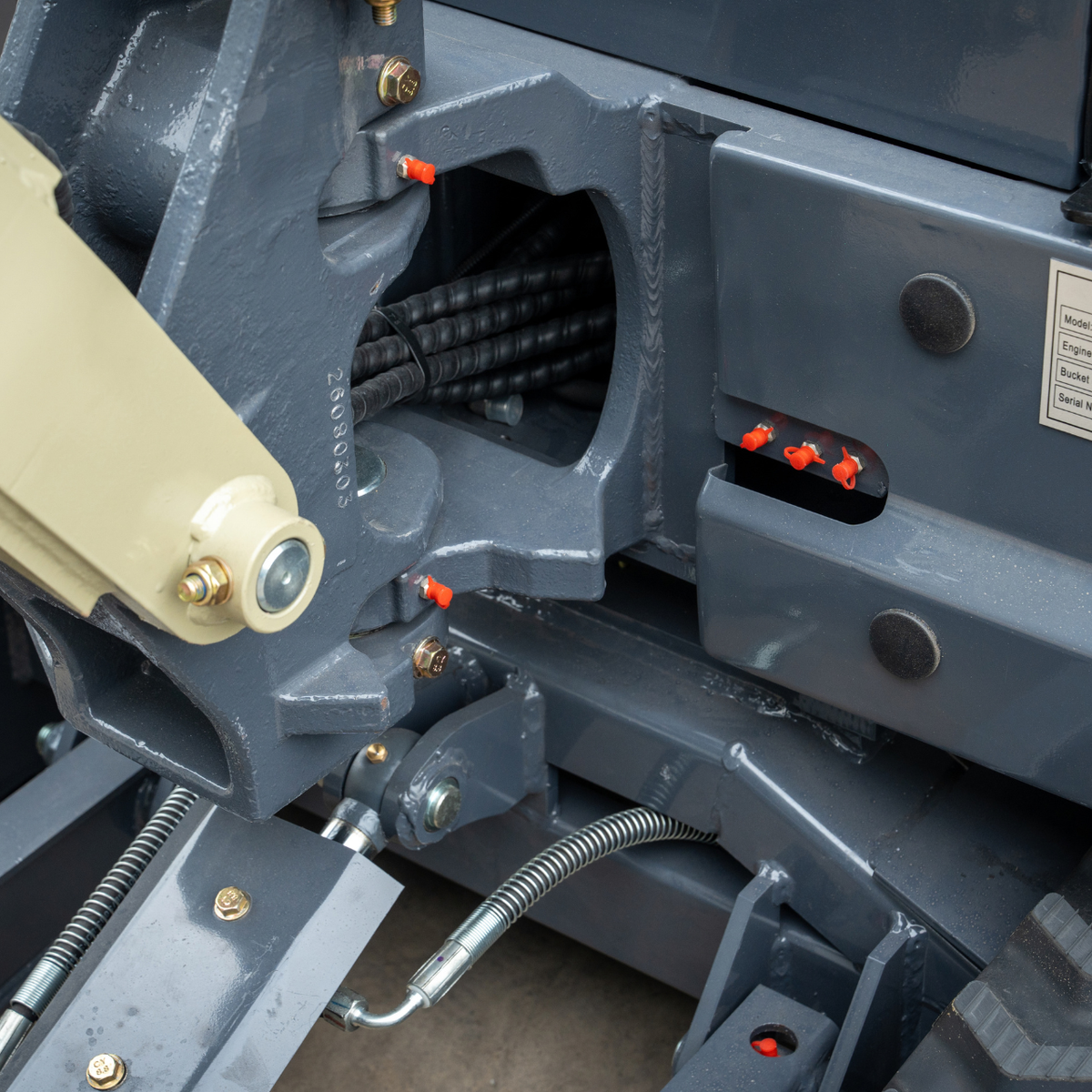

• Armored hoses and protected valves: Added protection helps defend critical hydraulic components against abrasion, impacts, and harsh jobsite conditions.

Reach More Without Constant Repositioning

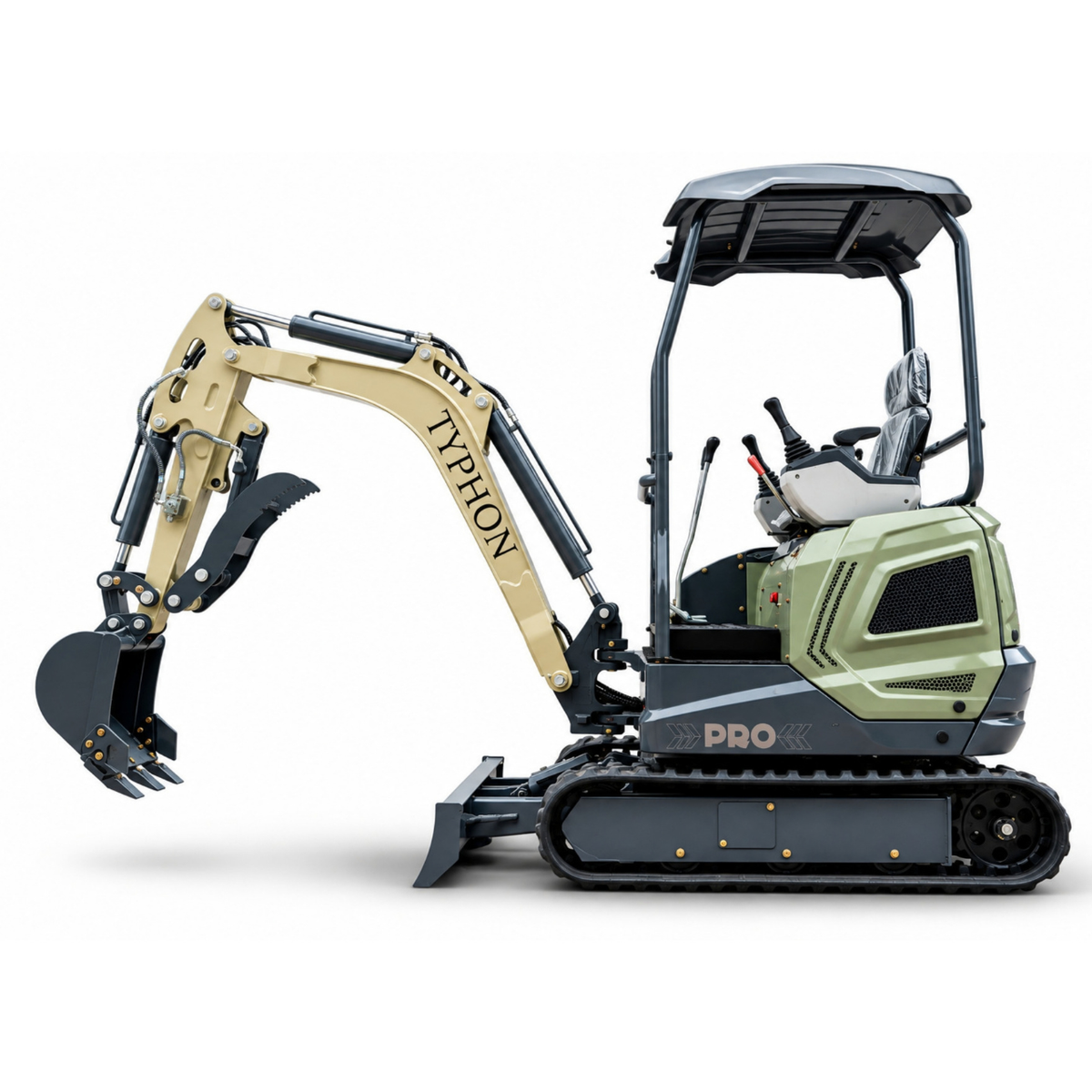

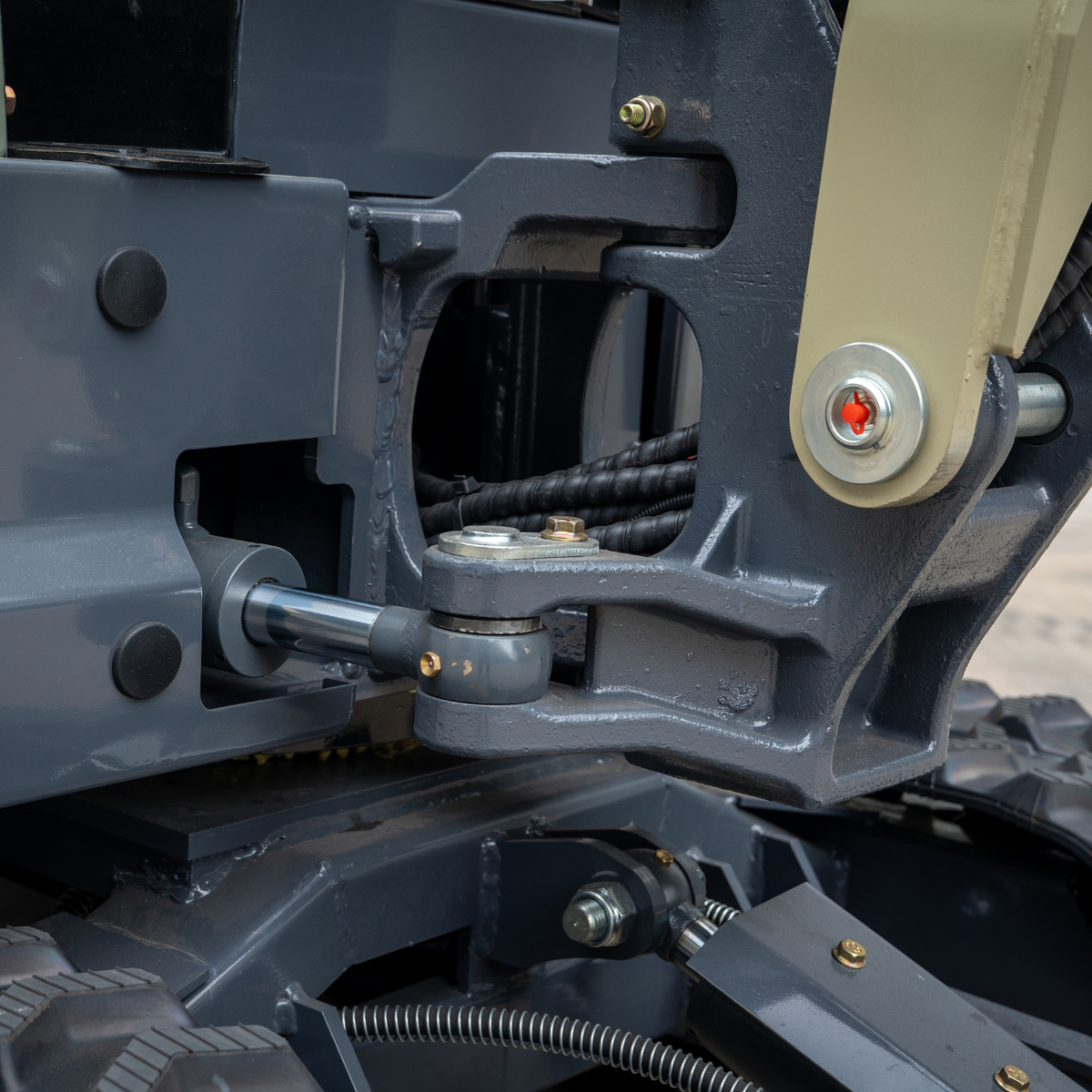

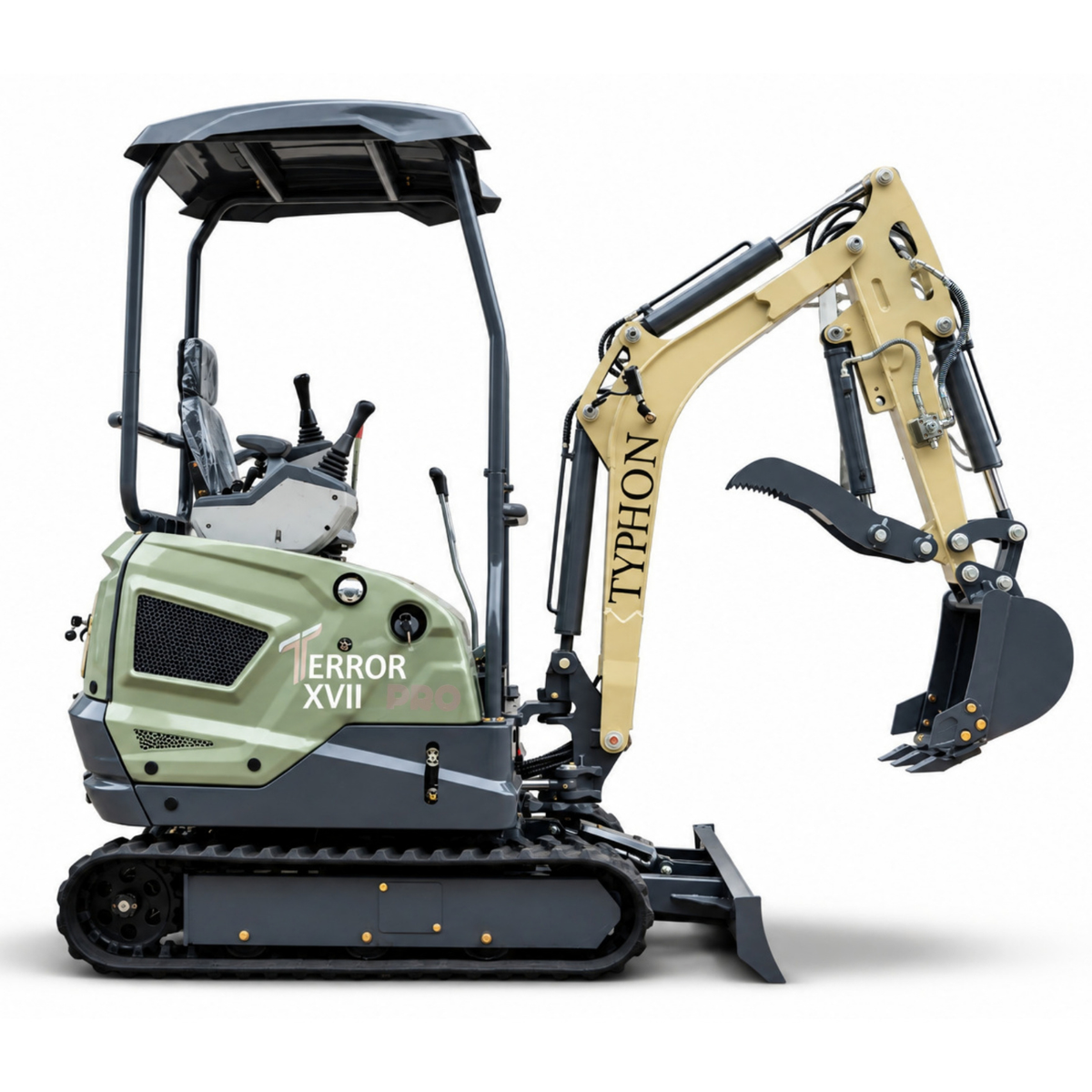

The offset boom swings 45° to the left and 55° to the right, helping the operator dig close to structures and work accurately in restricted areas. The upper structure rotates a full 360°, making it easier to position the bucket for excavation, loading, backfilling, and material handling.

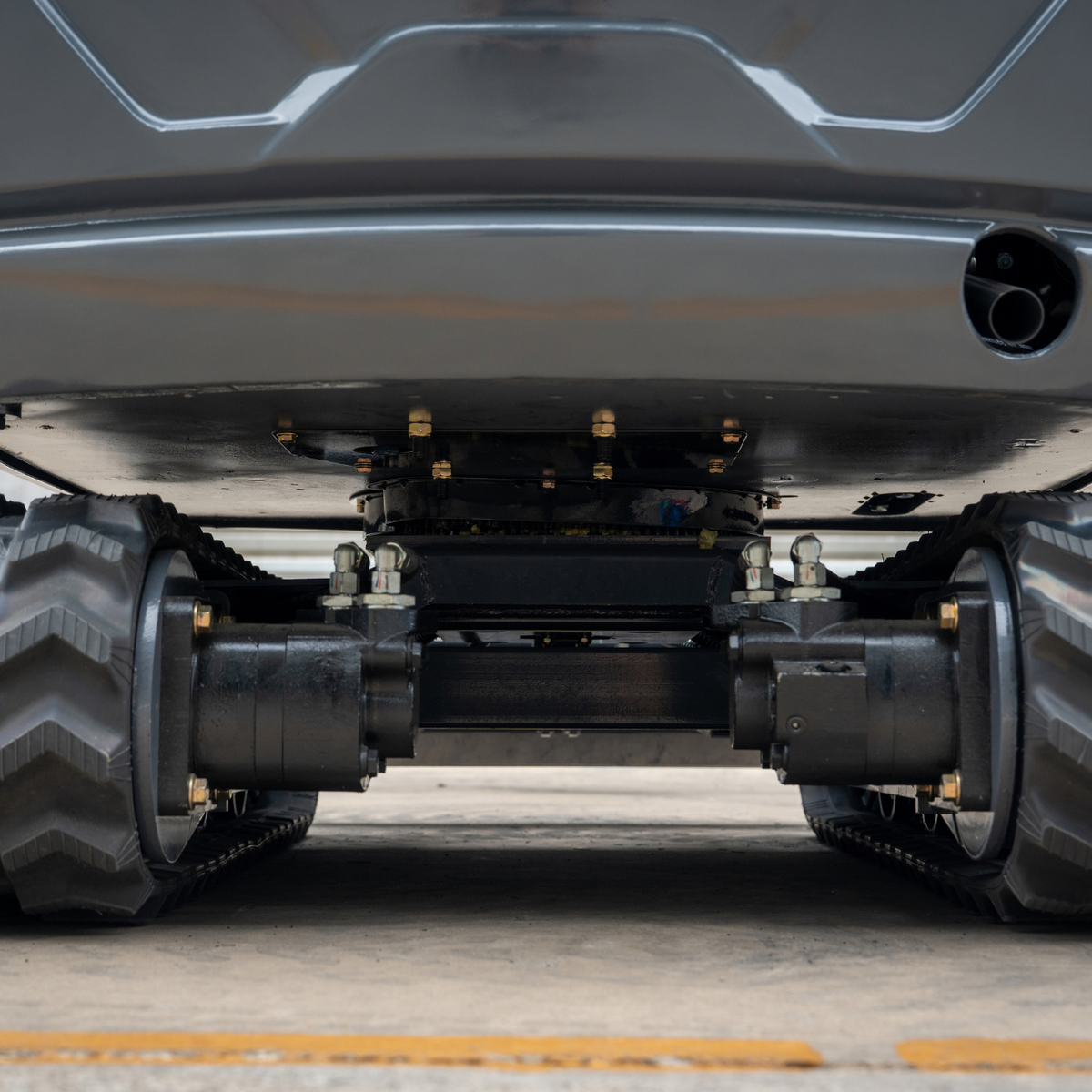

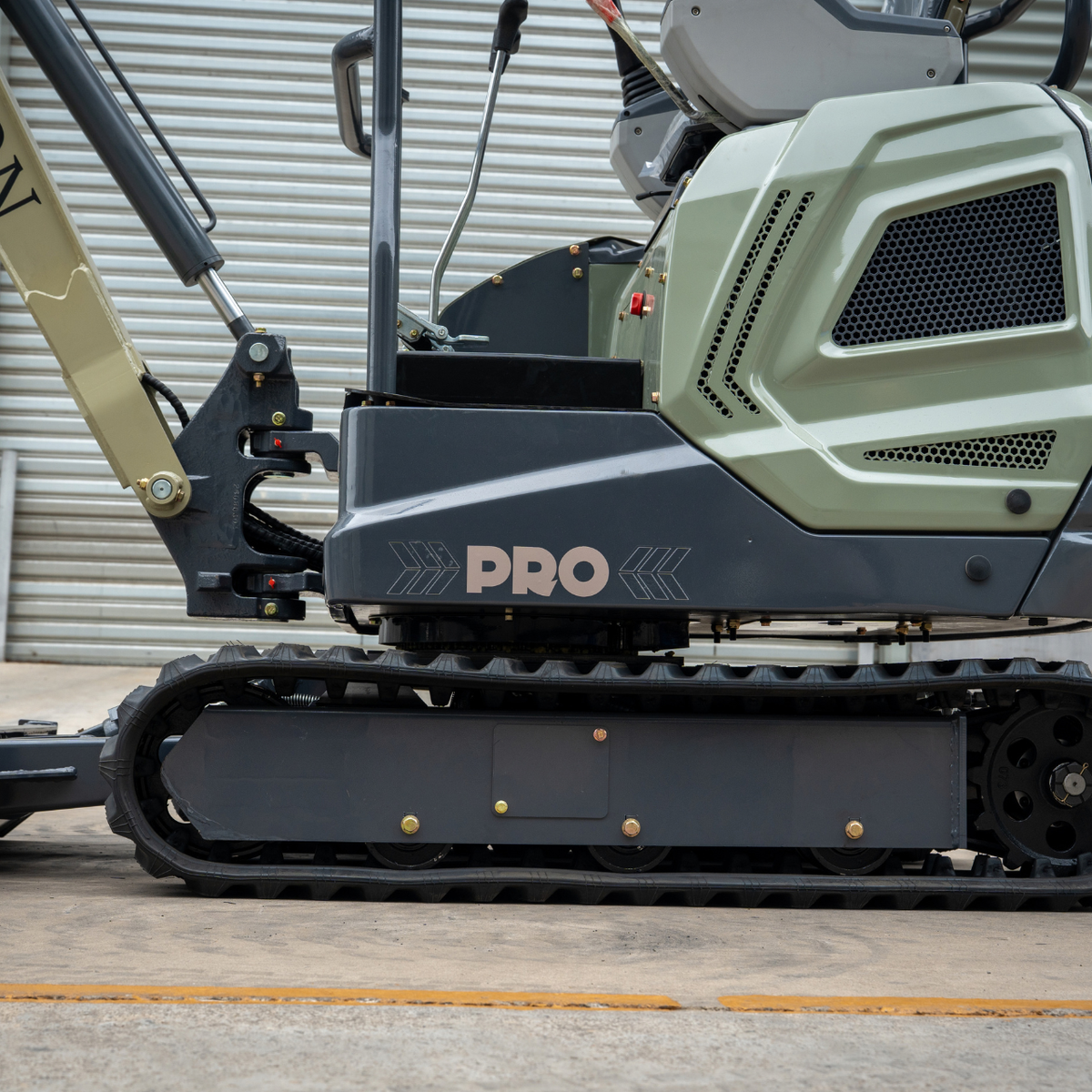

Travel speeds up to 1.30 MPH support smooth movement around the worksite. Wide 9.06-inch rubber tracks provide traction, flotation, and stability across soft, muddy, and uneven ground.

One Machine for Multiple Tasks

The TYPHON TERROR XVII PRO delivers 14 kN of digging force to break through hard soil, compacted ground, and roots. Its included work package gives contractors the tools to handle more of the job with one compact excavator:

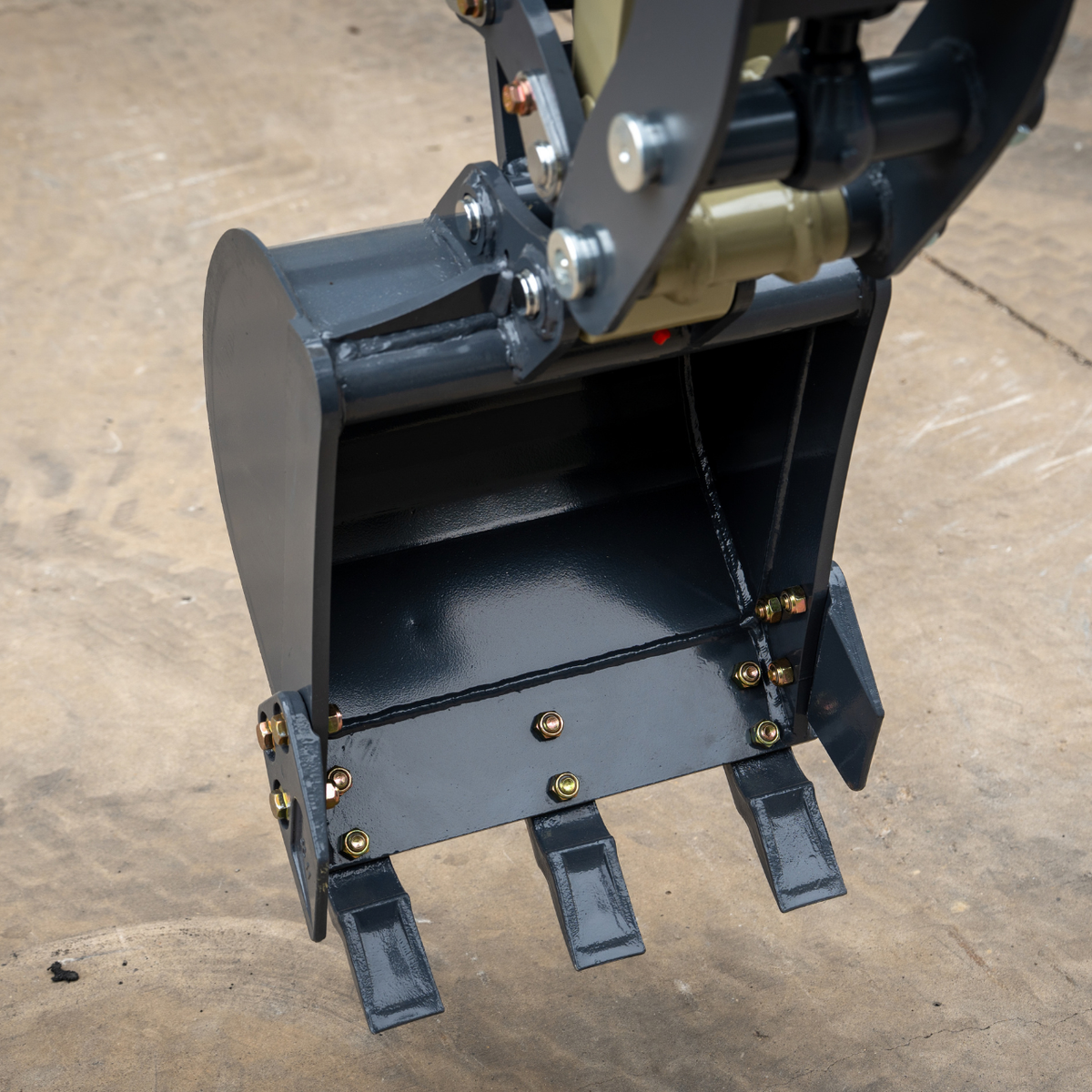

• 16.54-inch bucket
• 0.04 m³ bucket capacity
• 86.50-inch maximum digging depth
• Standard dozer blade

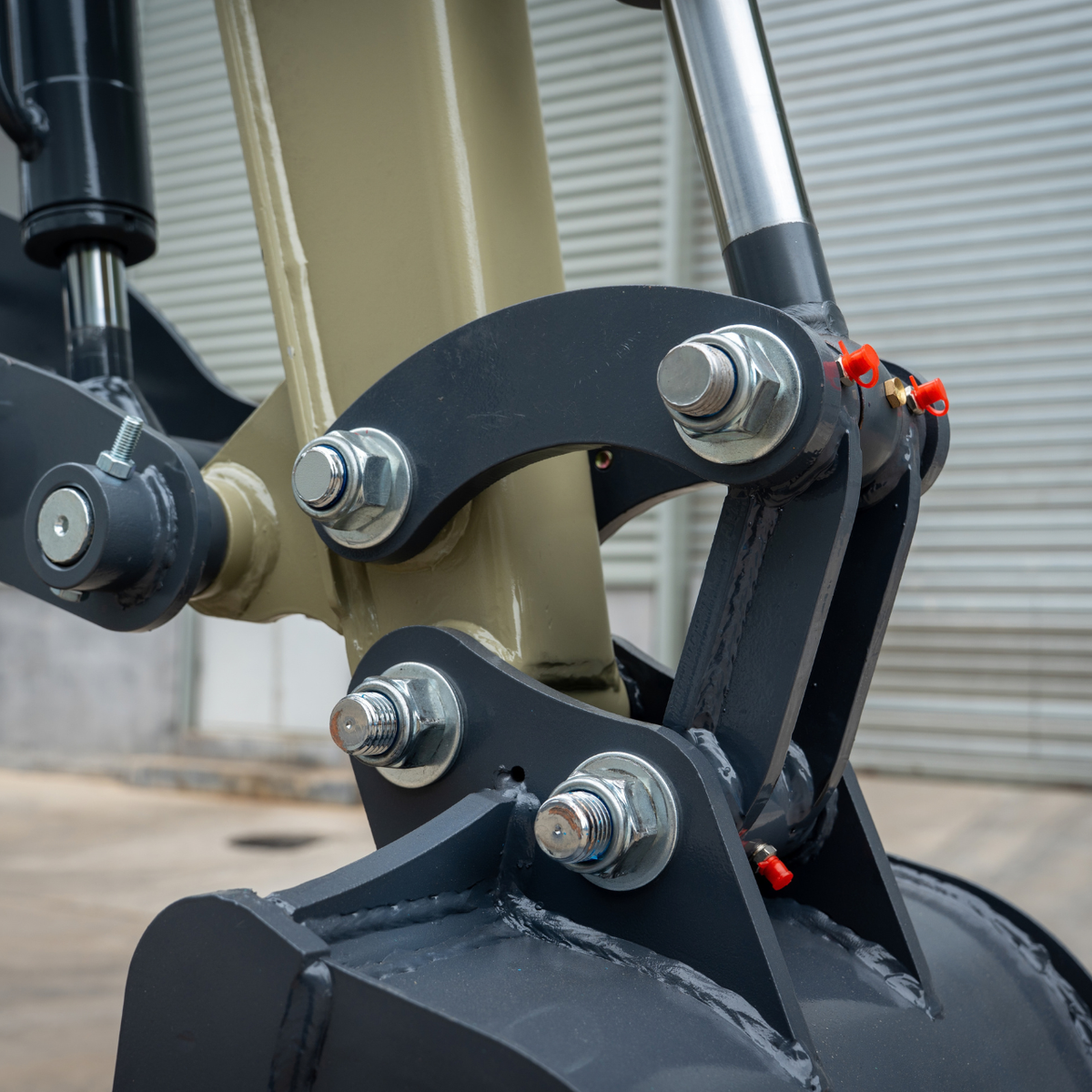

• Hydraulic thumb clip

Dig trenches, shape grades, move material, collect debris, and prepare surfaces with a practical combination of excavation and cleanup capability.

Comfort That Supports Long Shifts

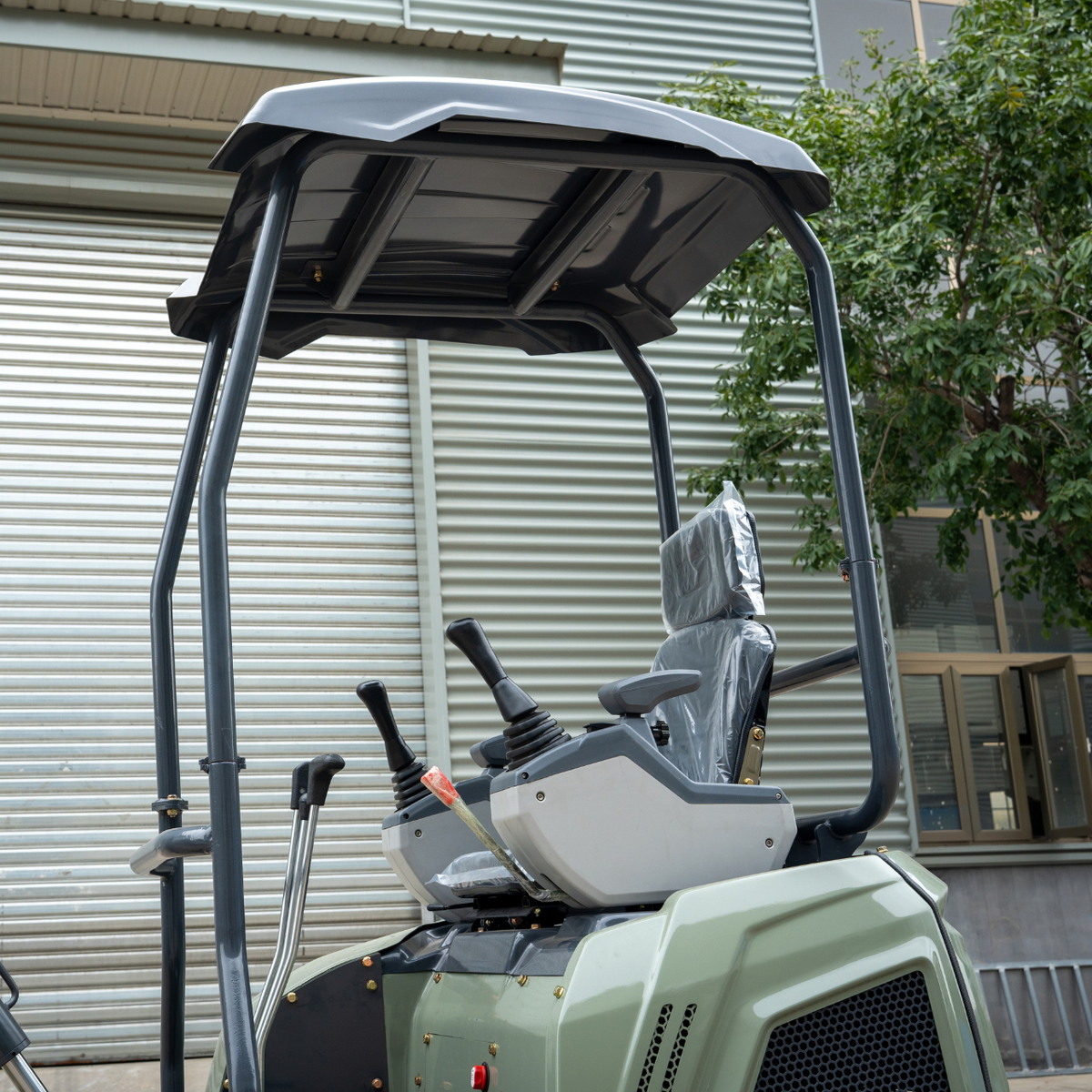

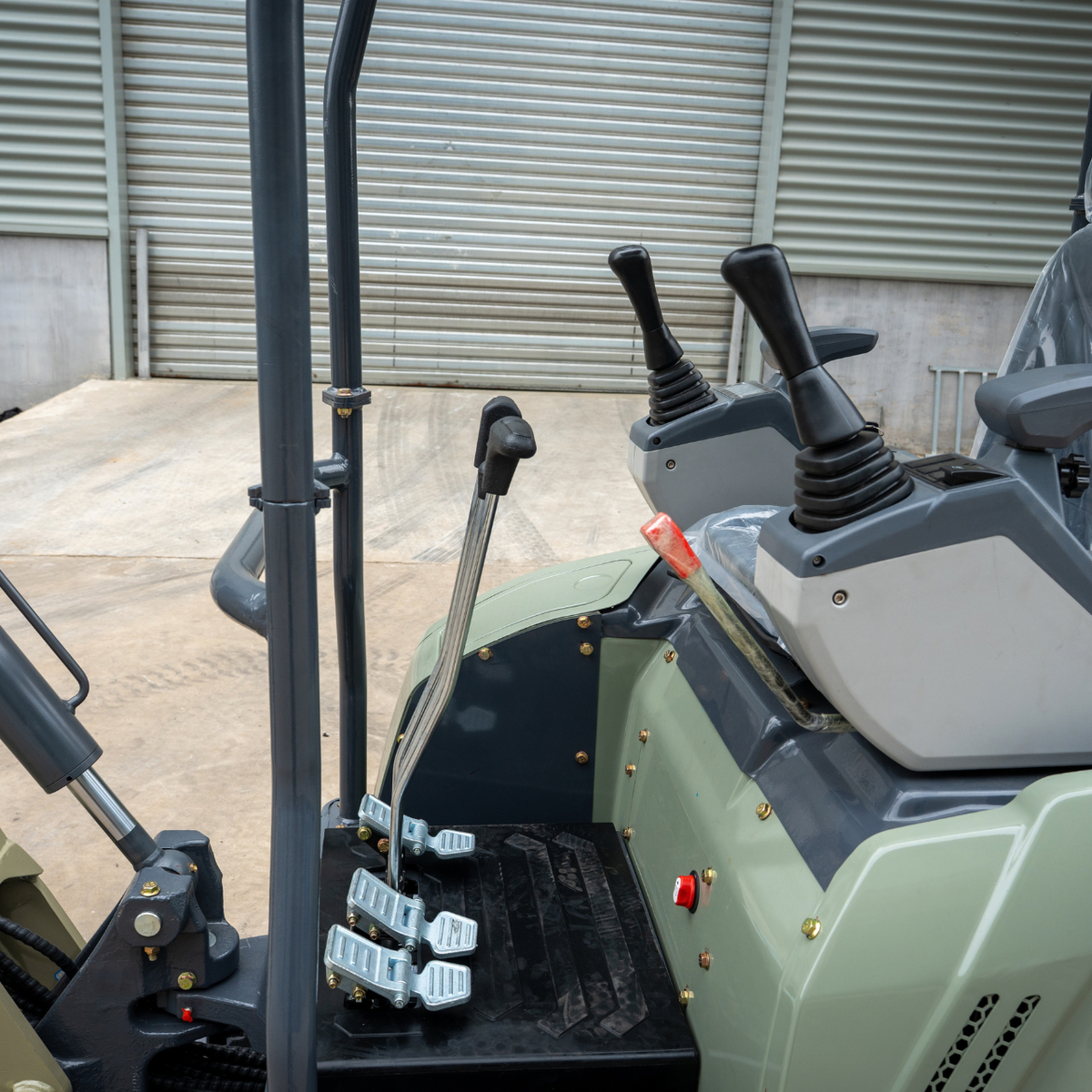

The redesigned operator station gives the TERROR XVII PRO a practical, operator-focused interior. The ergonomic seat includes a headrest and armrests for added support during extended operation.

With 41.34 inches of interior height and 20.08 inches of interior width, the operator station provides useful room to work while helping reduce fatigue. Centralized access to the diesel fuel tank and hydraulic oil reservoir makes routine refilling and servicing more convenient.

From construction and landscaping to agriculture, forestry, demolition, and property maintenance, the TYPHON TERROR XVII PRO gives you the compact size, hydraulic versatility, protected components, and Kubota-powered performance to take on demanding work with confidence.
