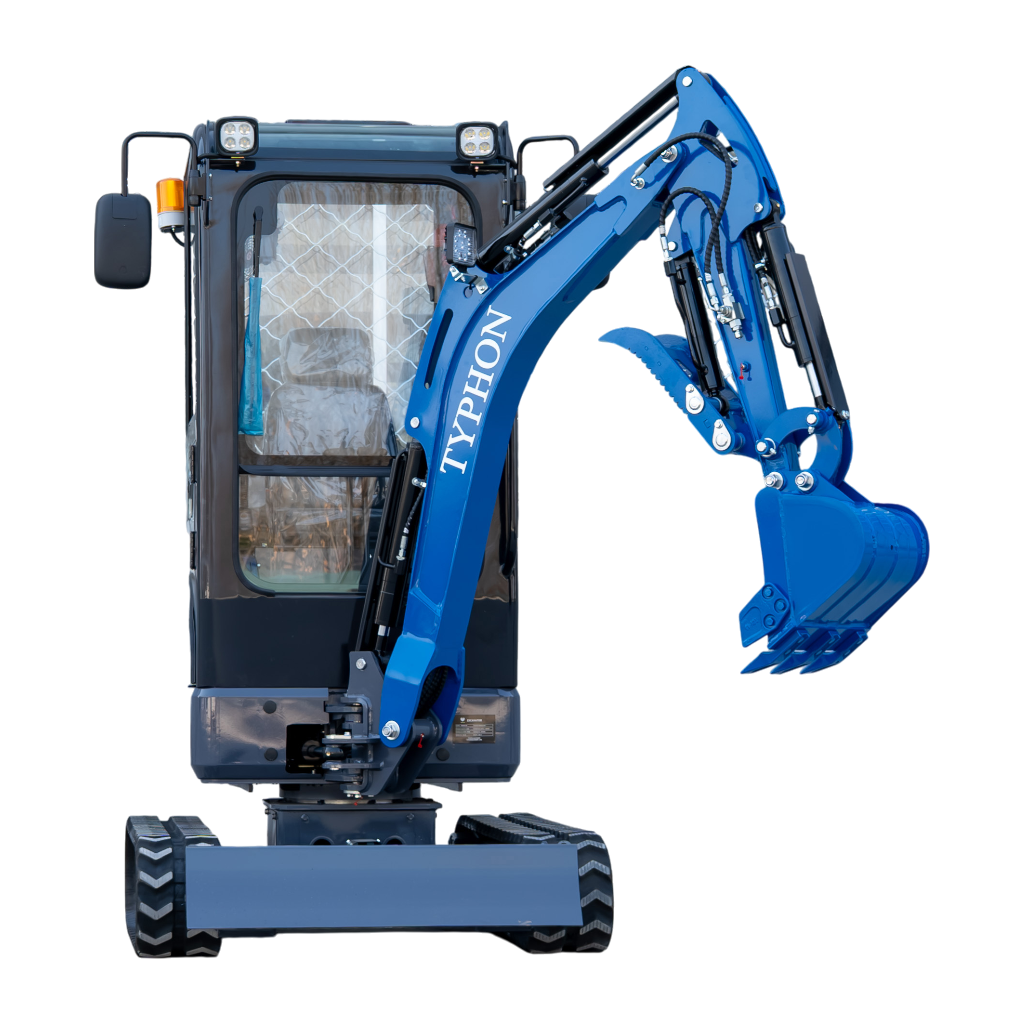

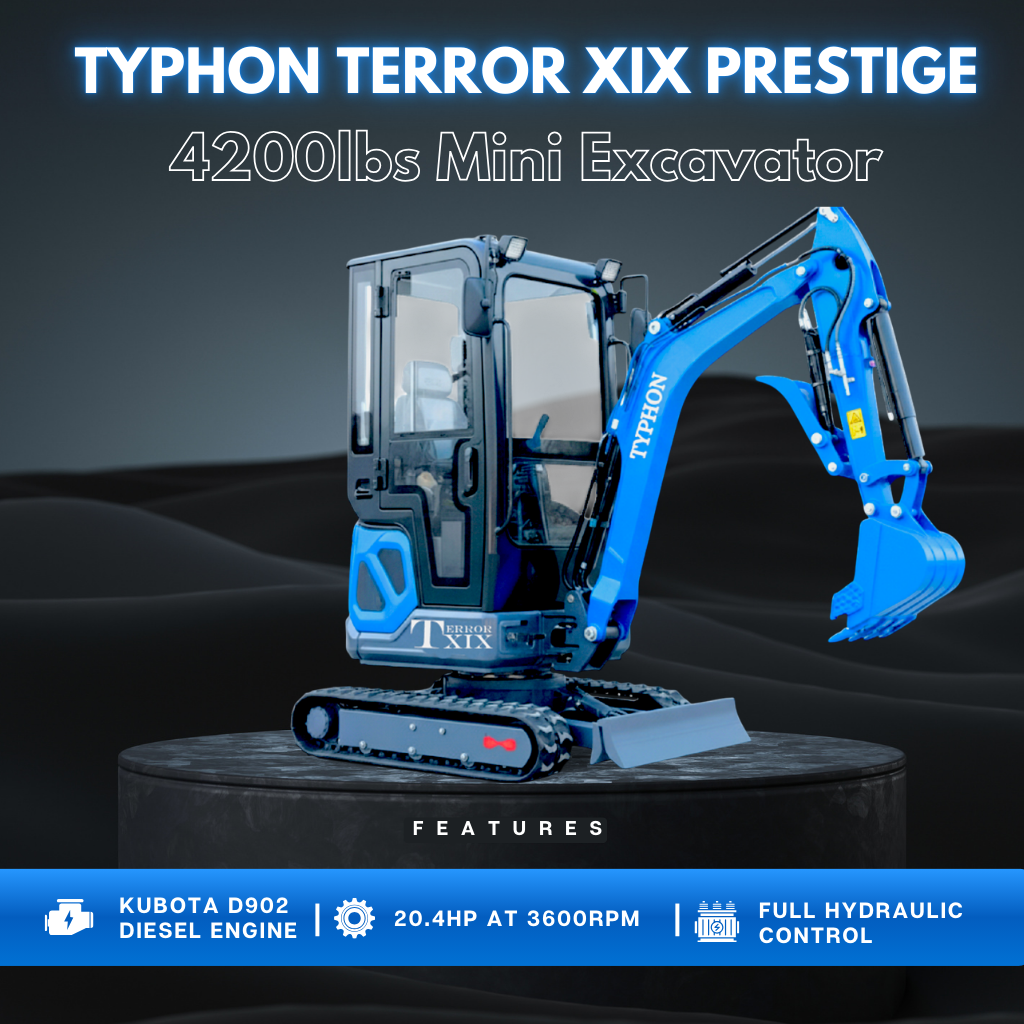

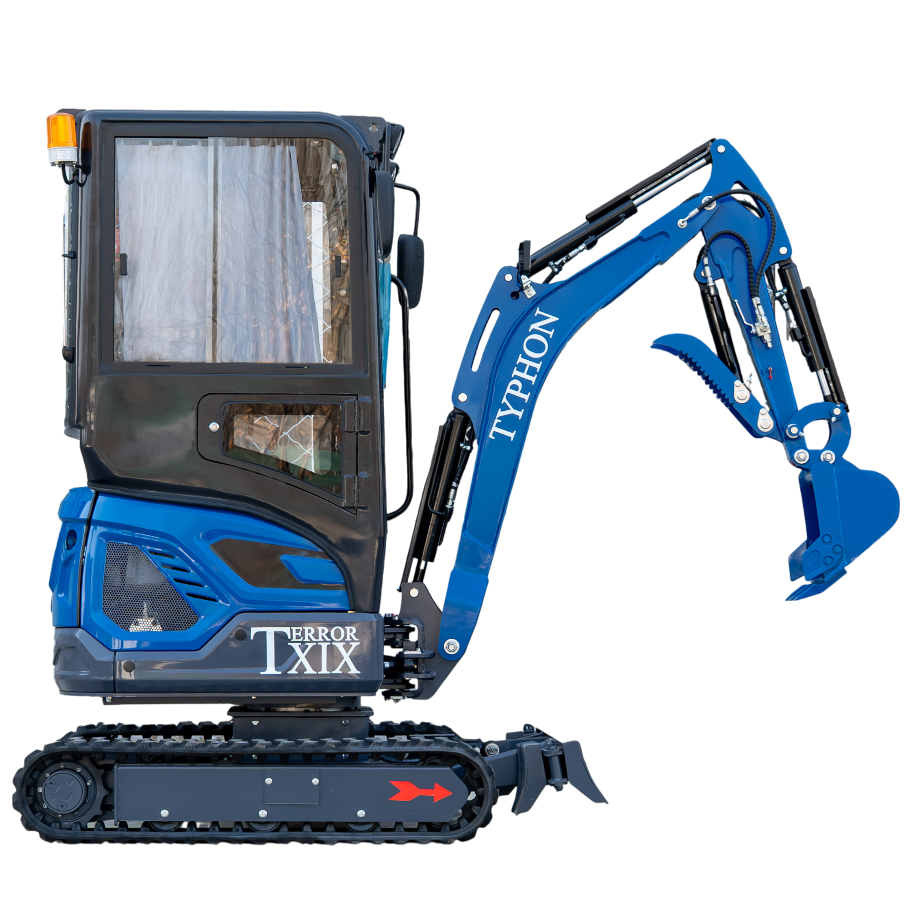

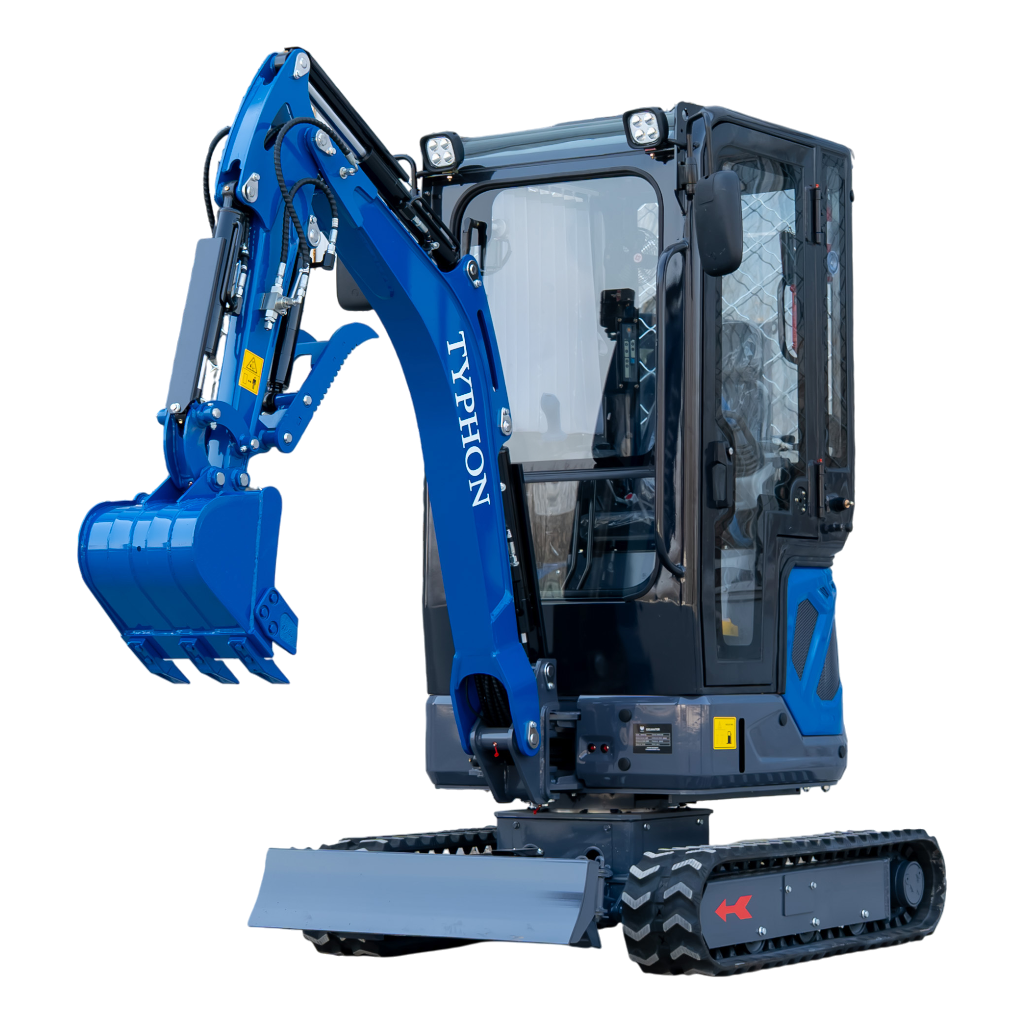

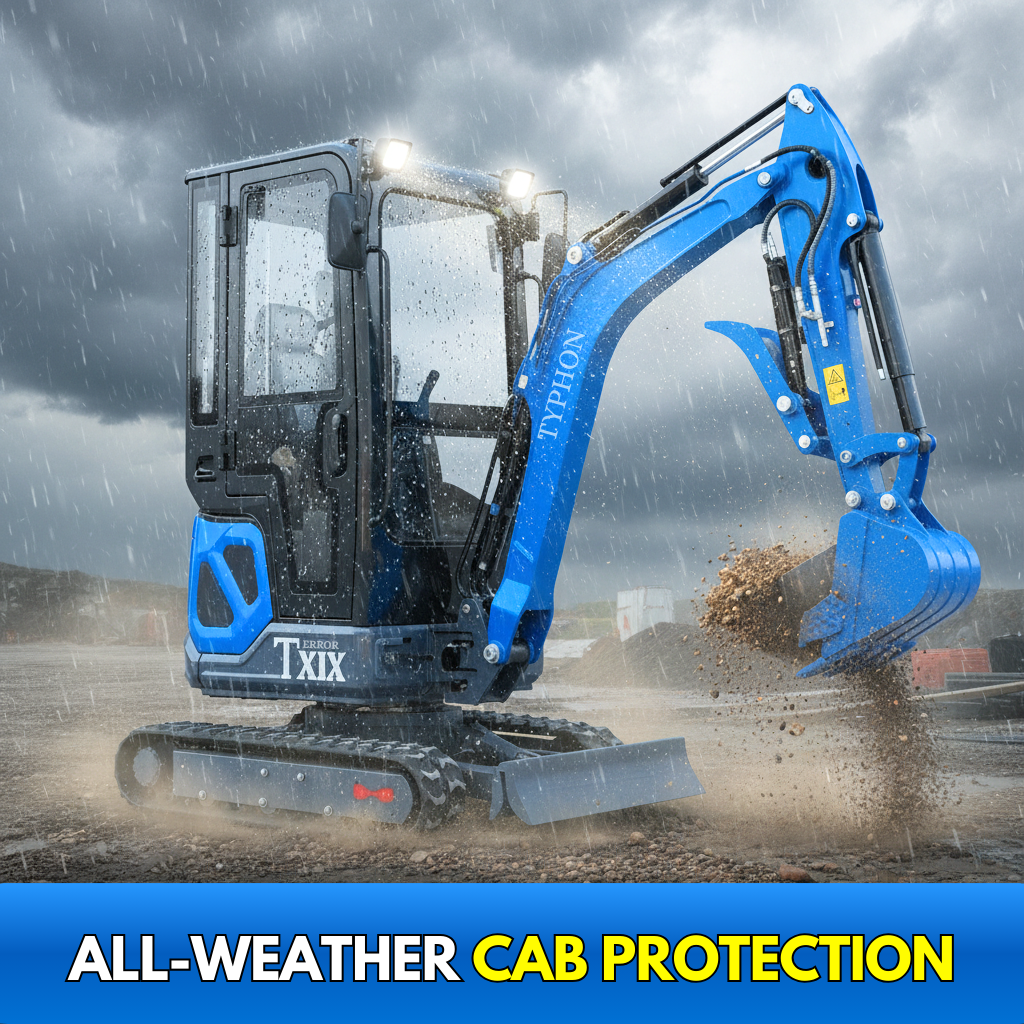

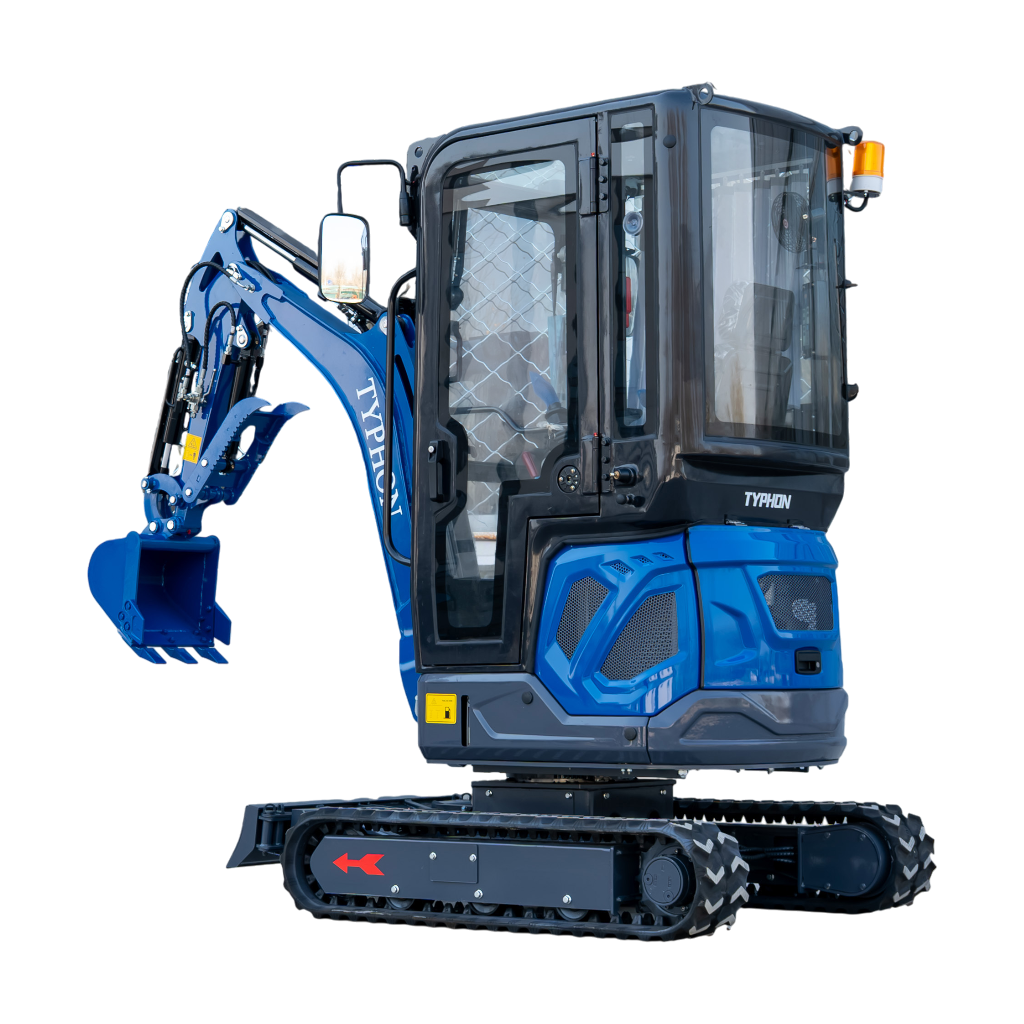

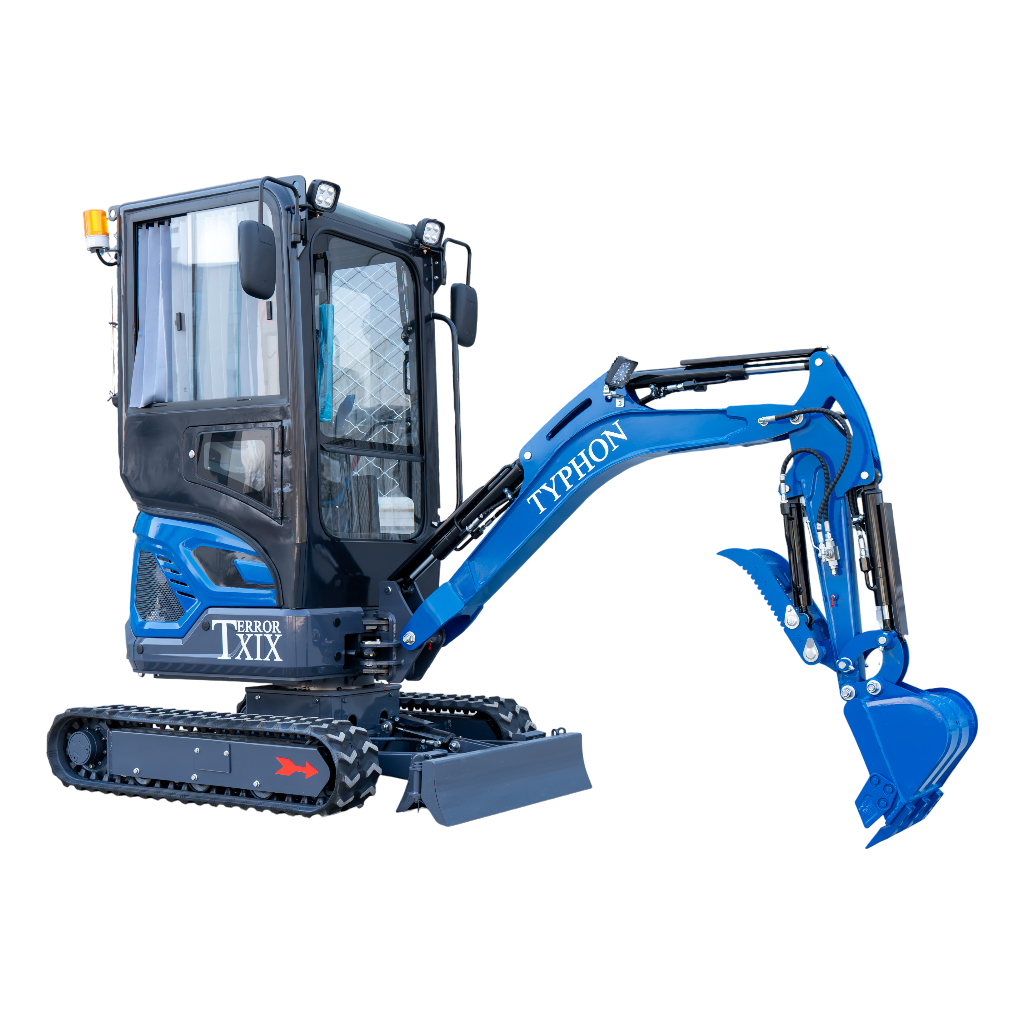

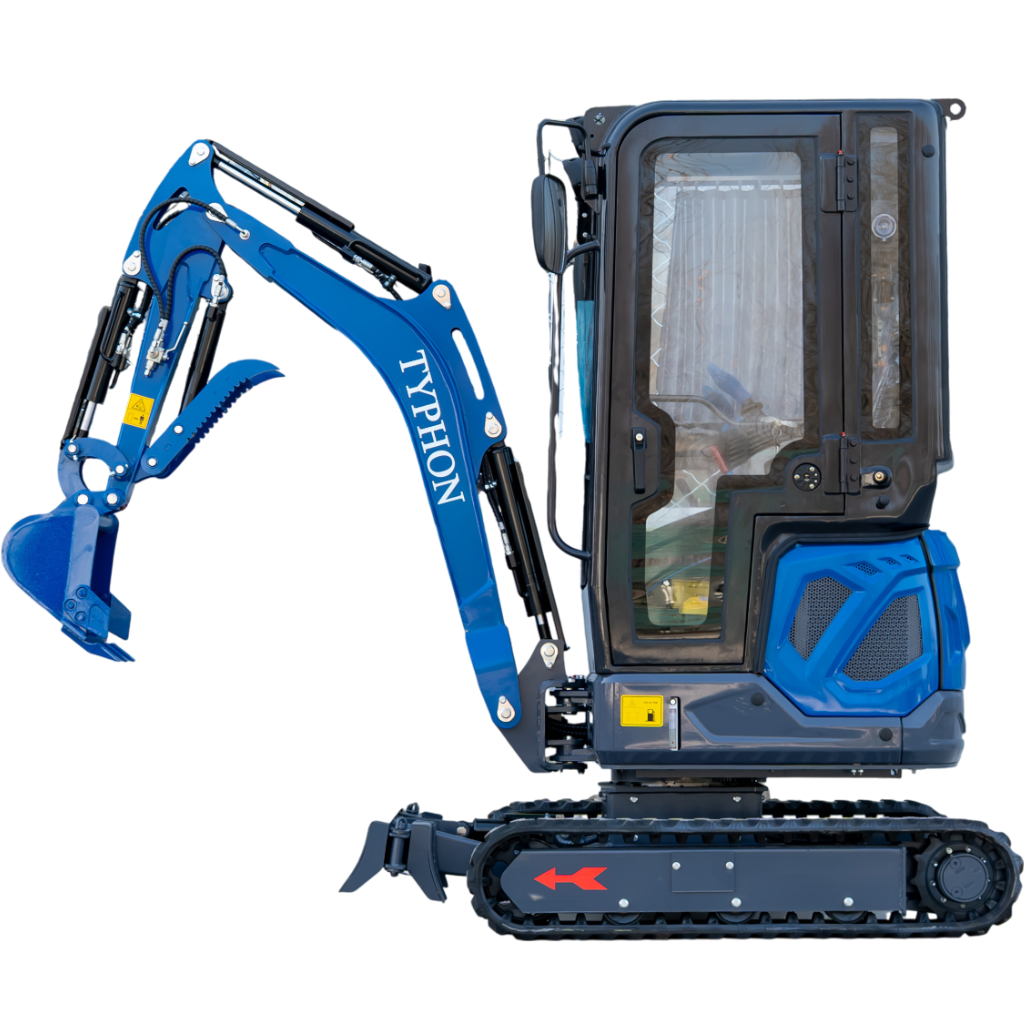

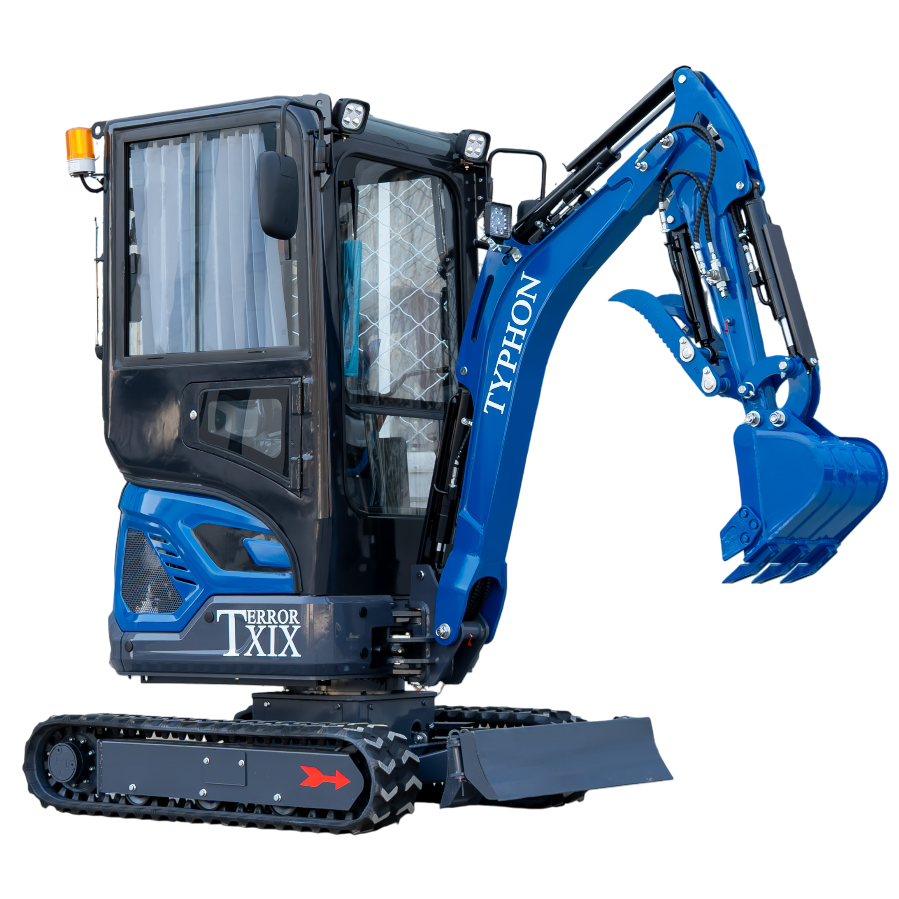

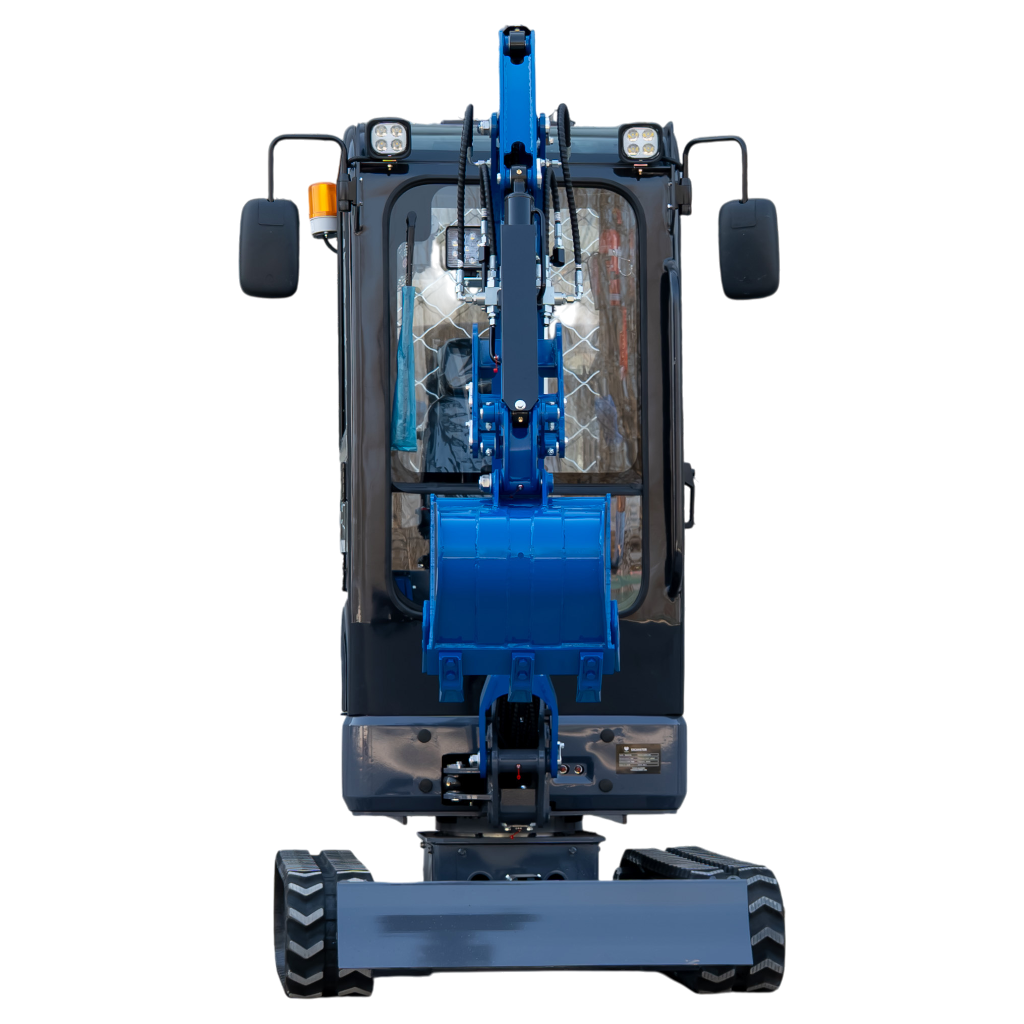

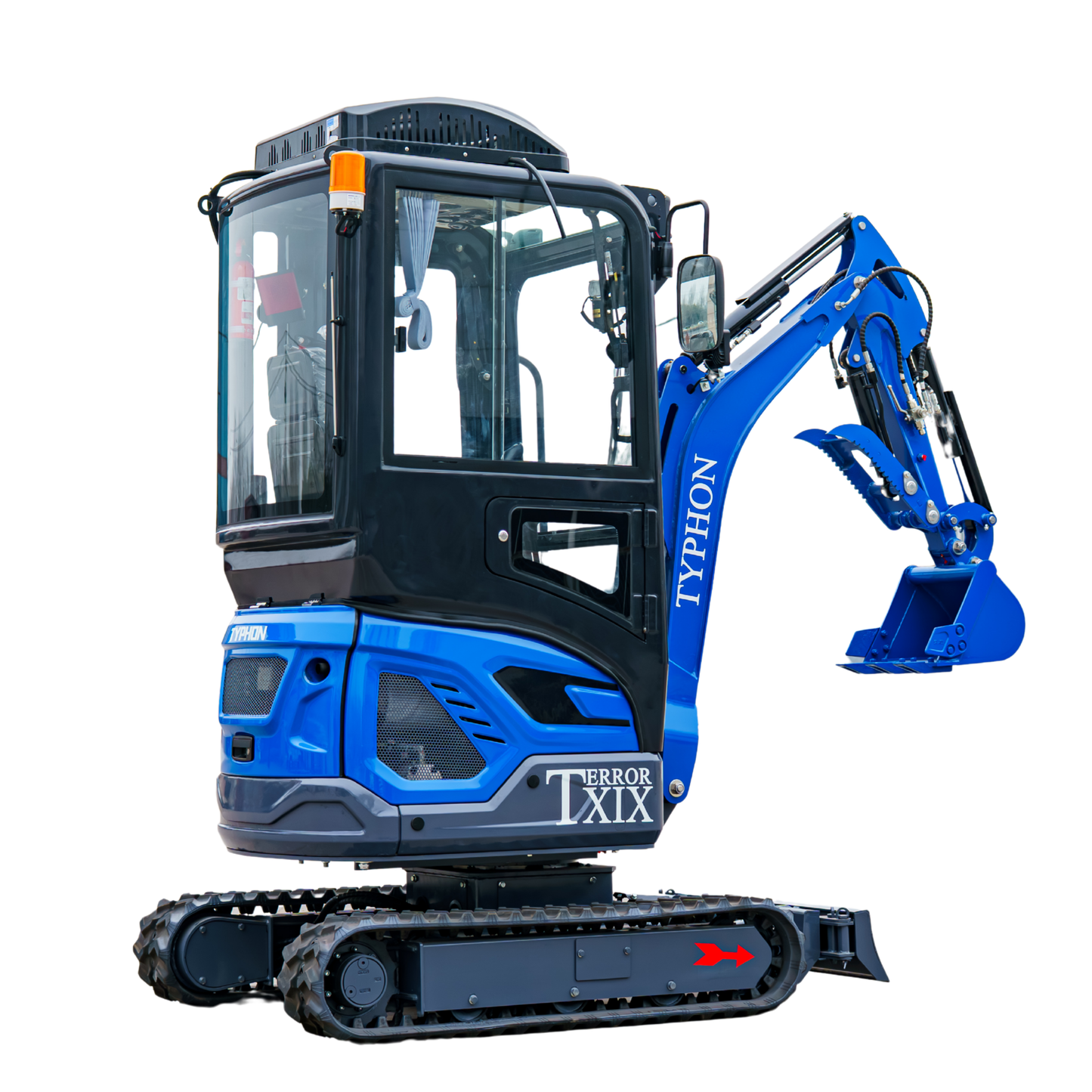

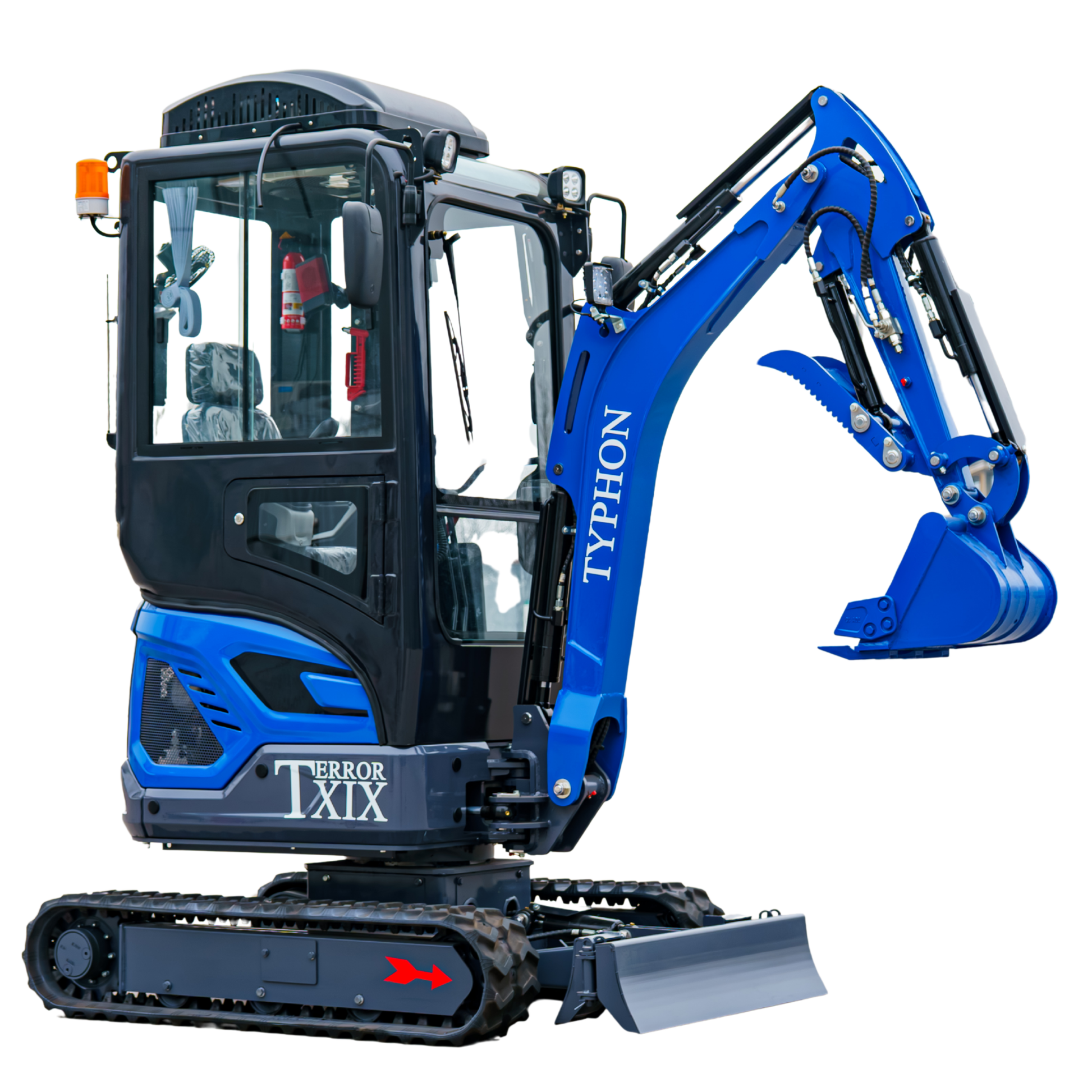

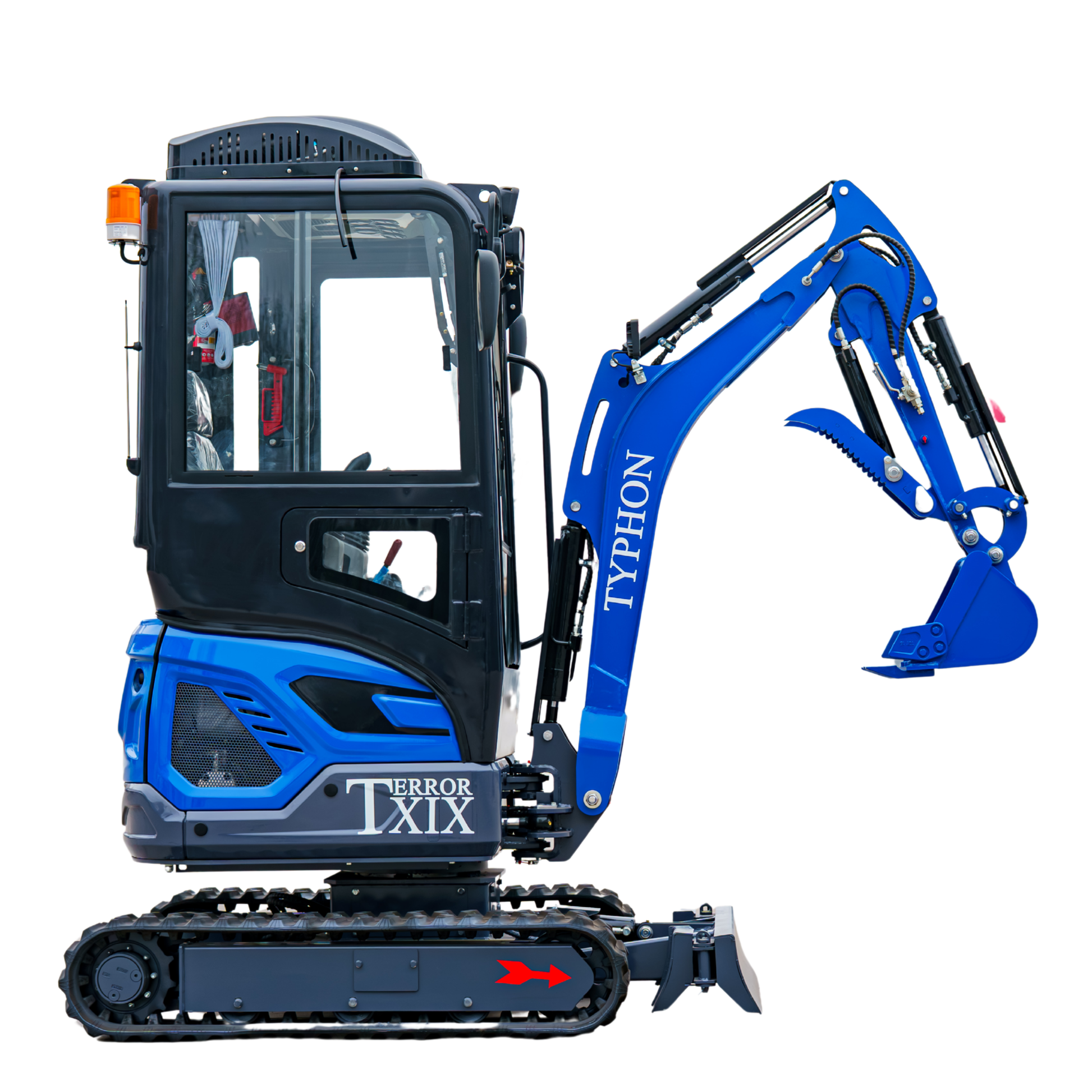

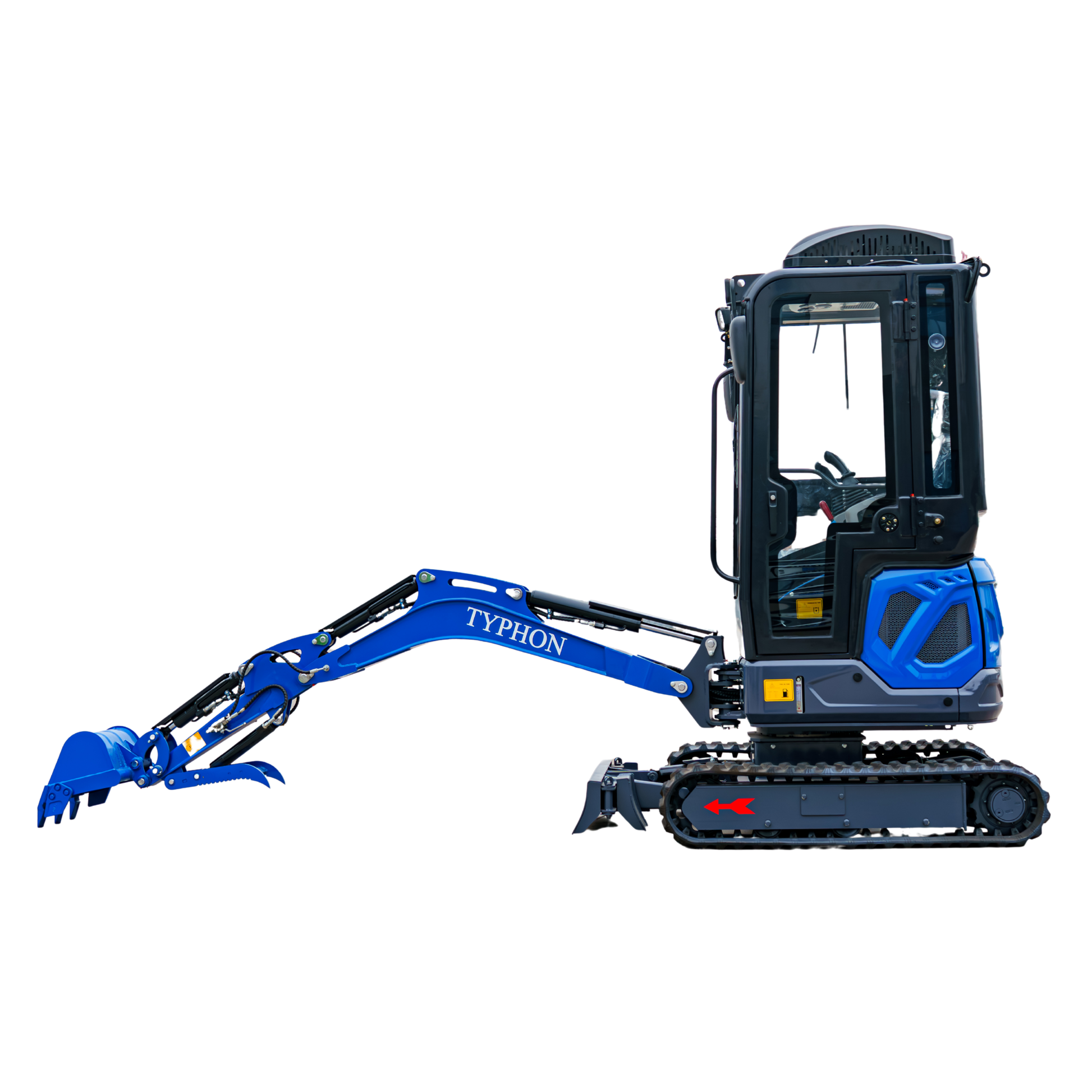

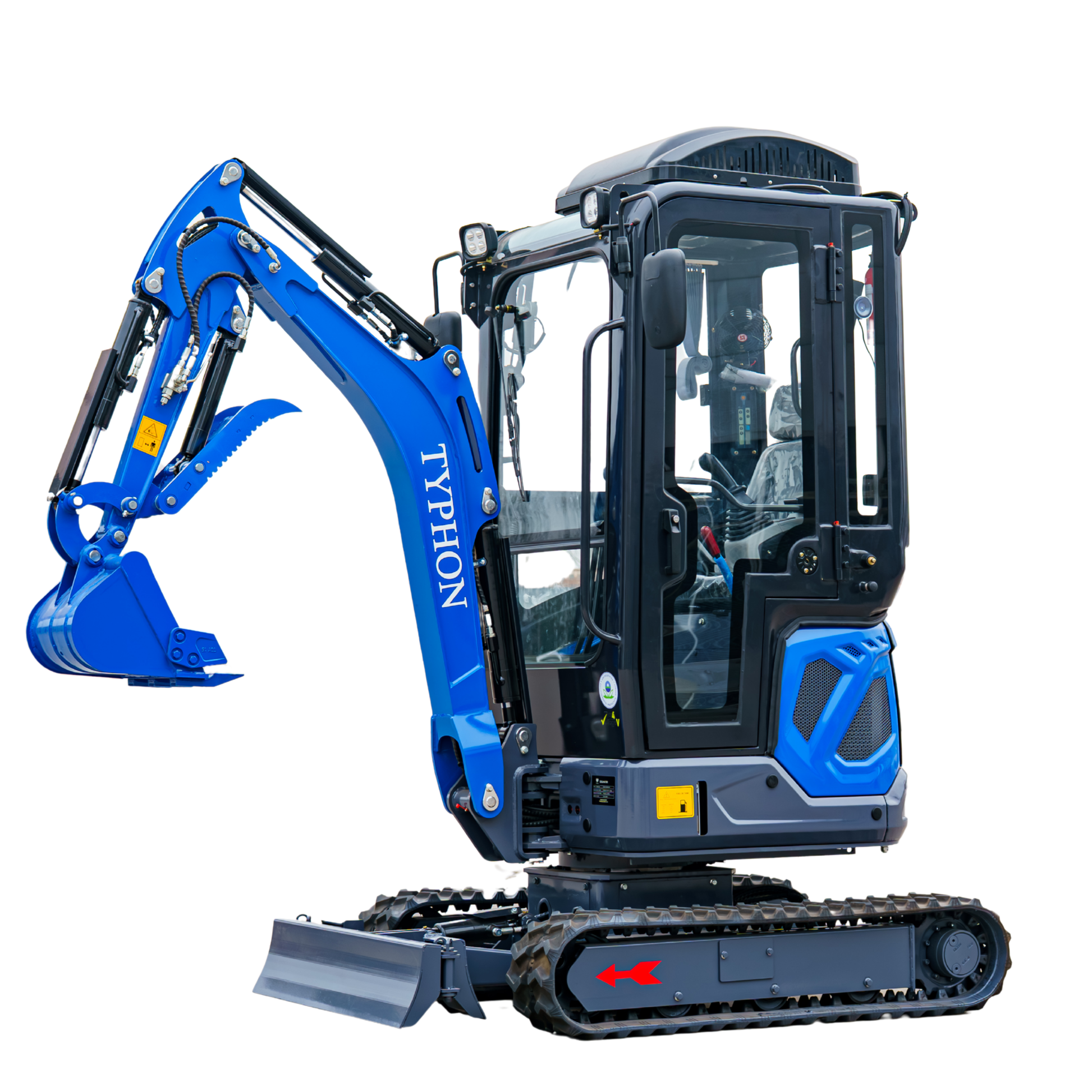

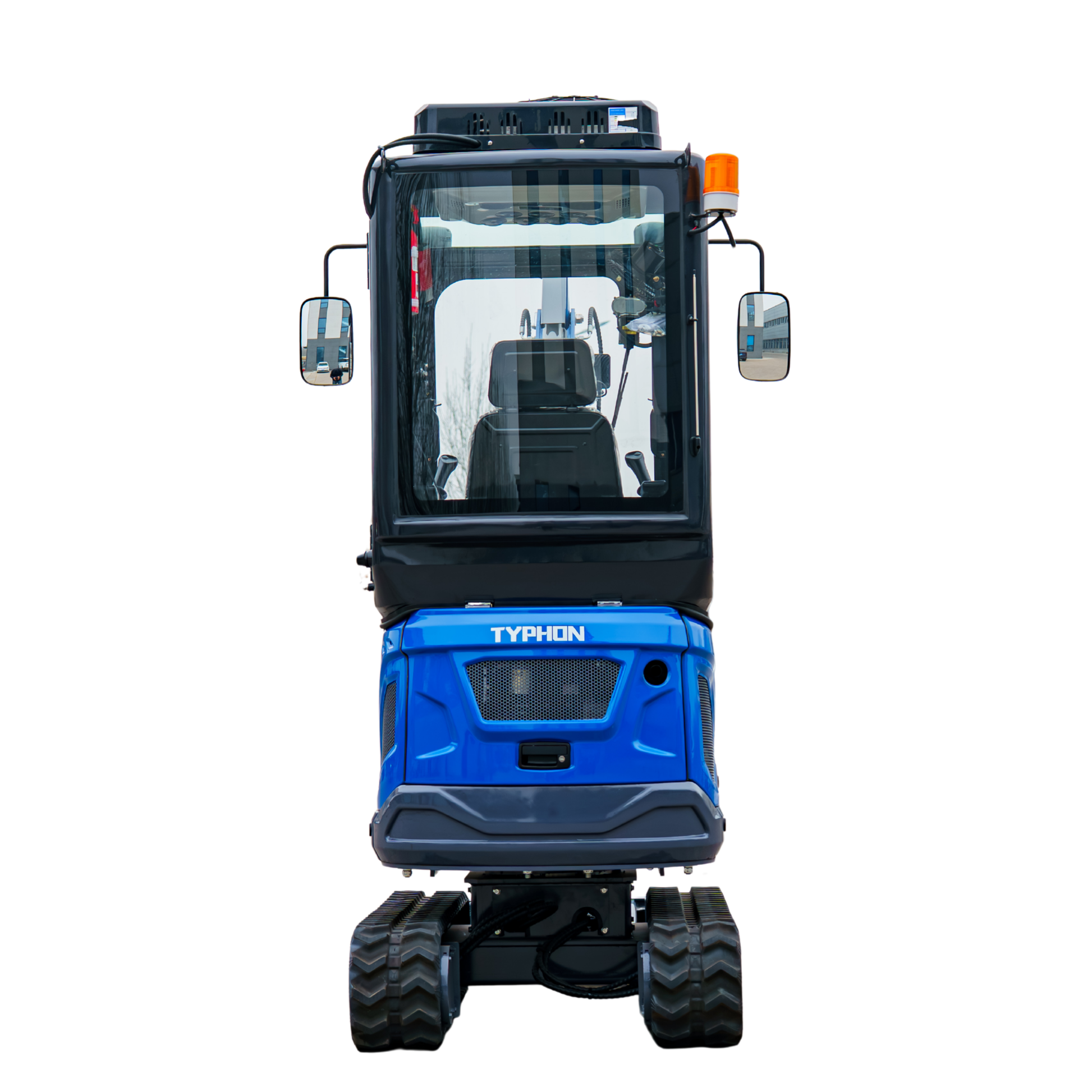

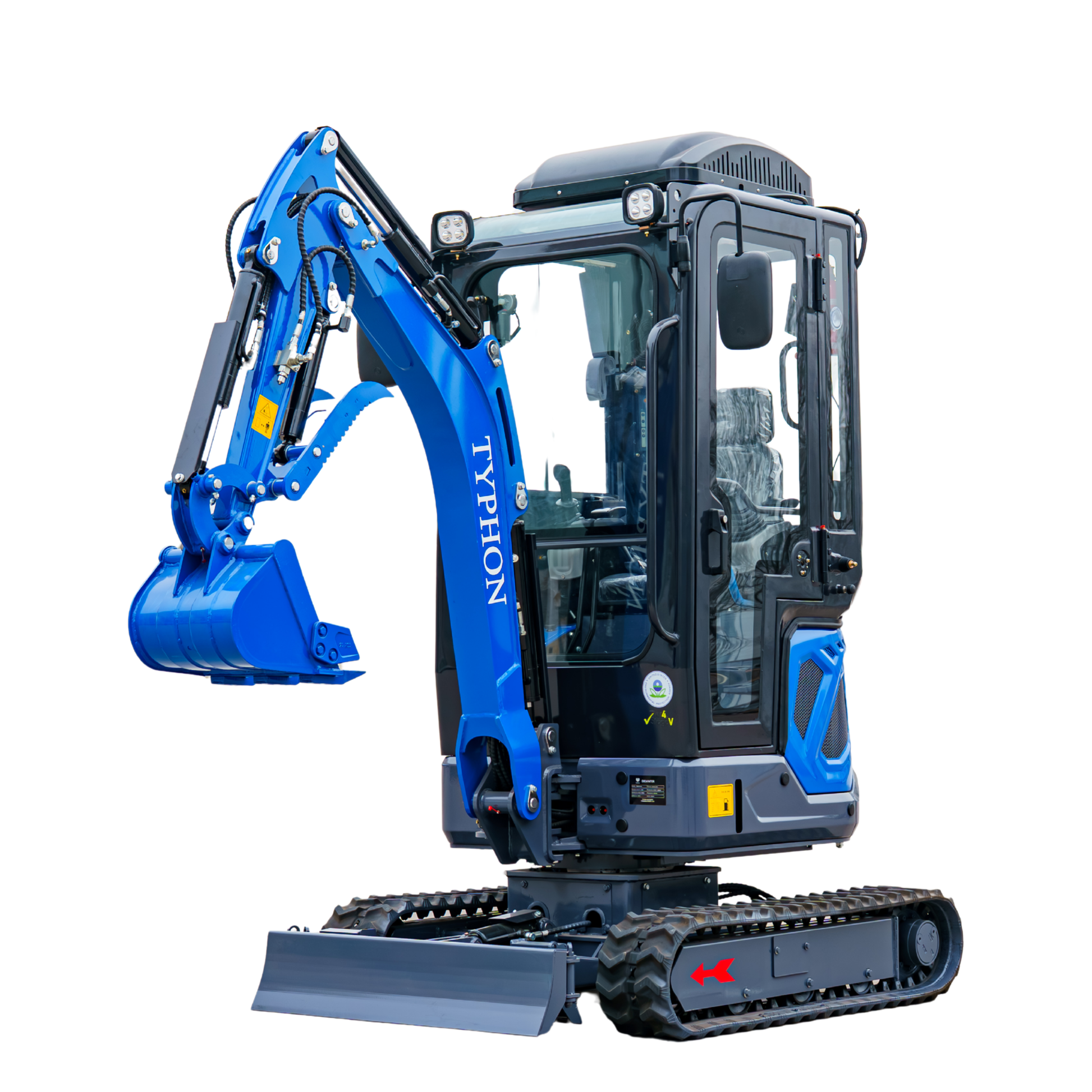

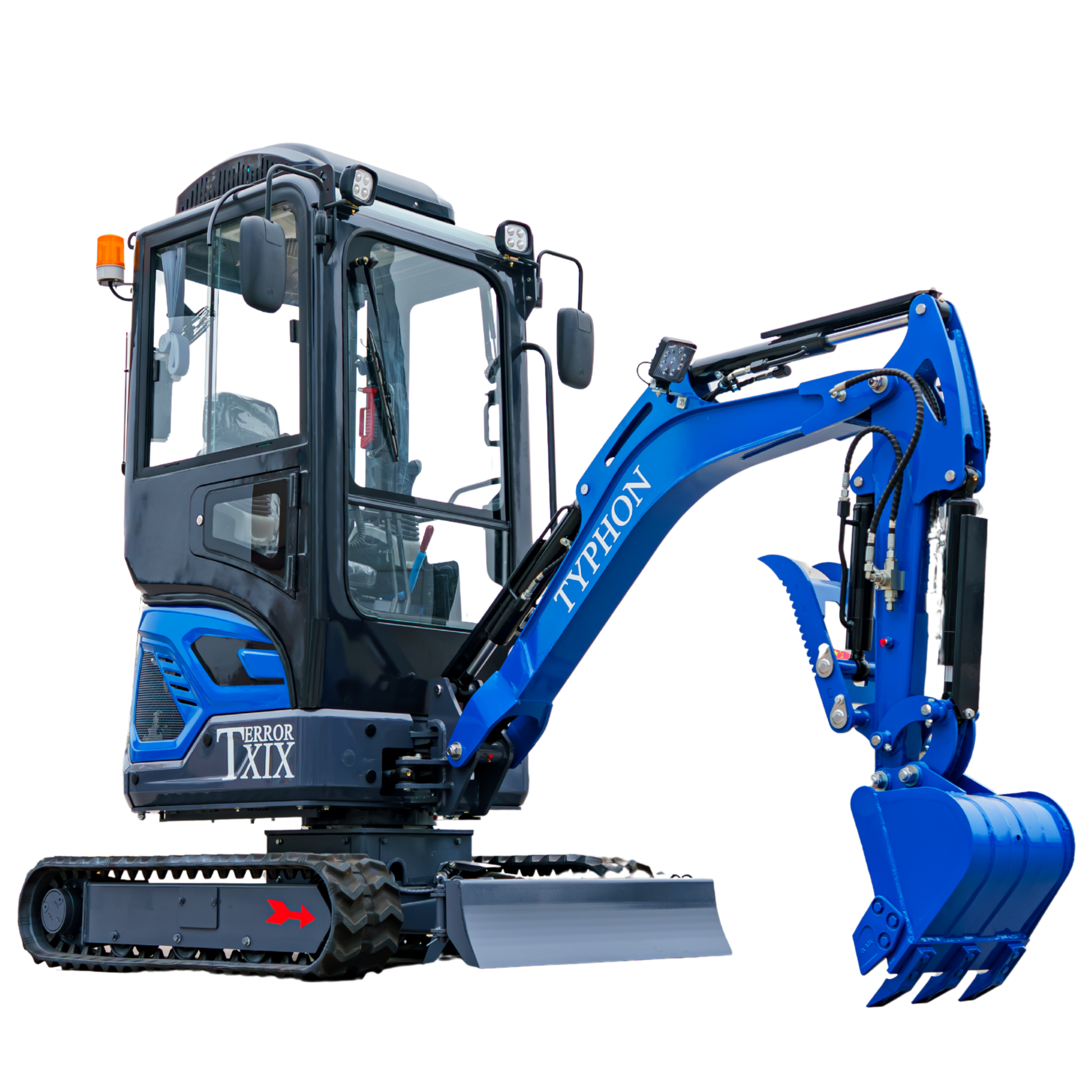

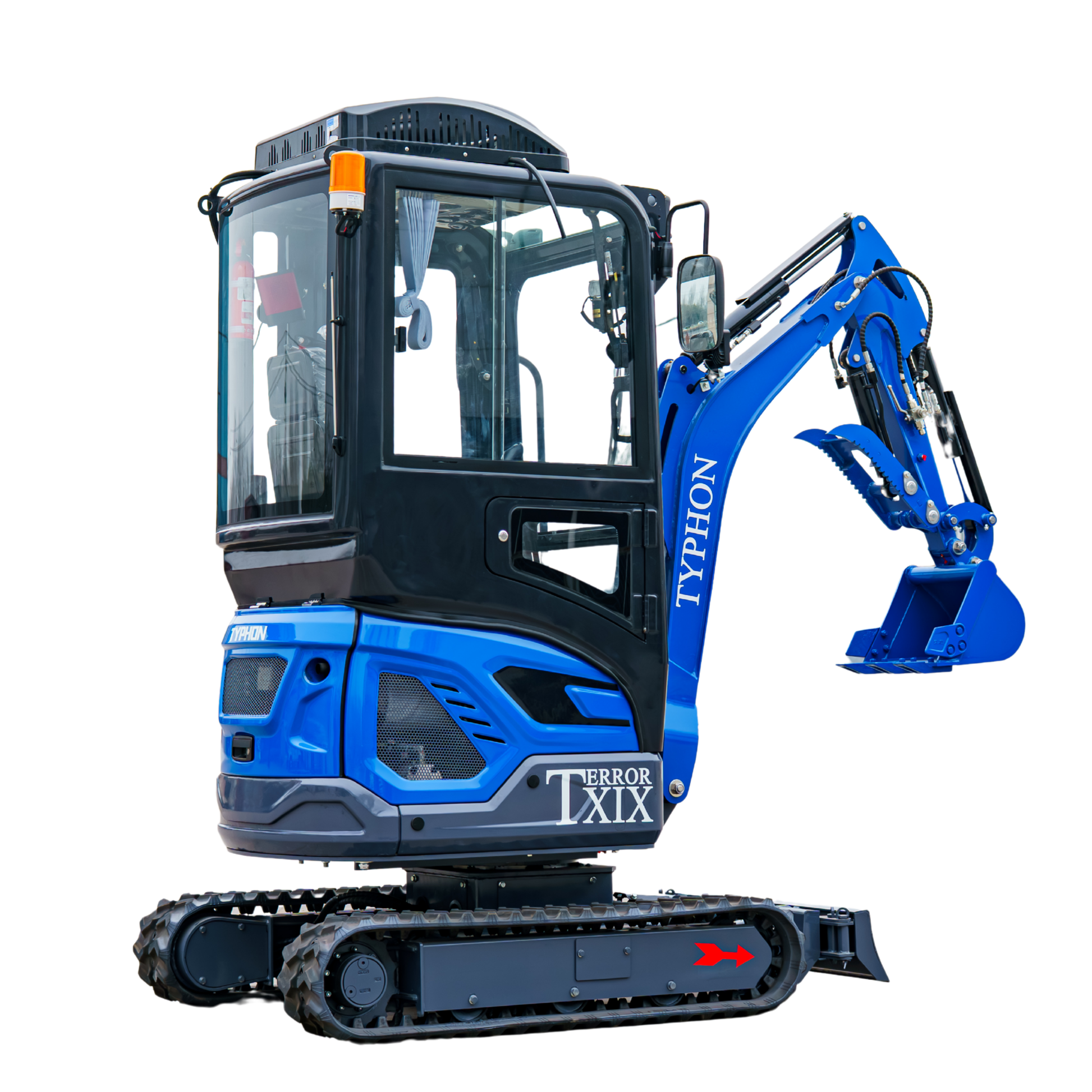

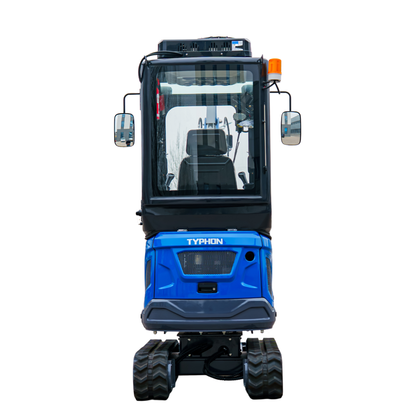

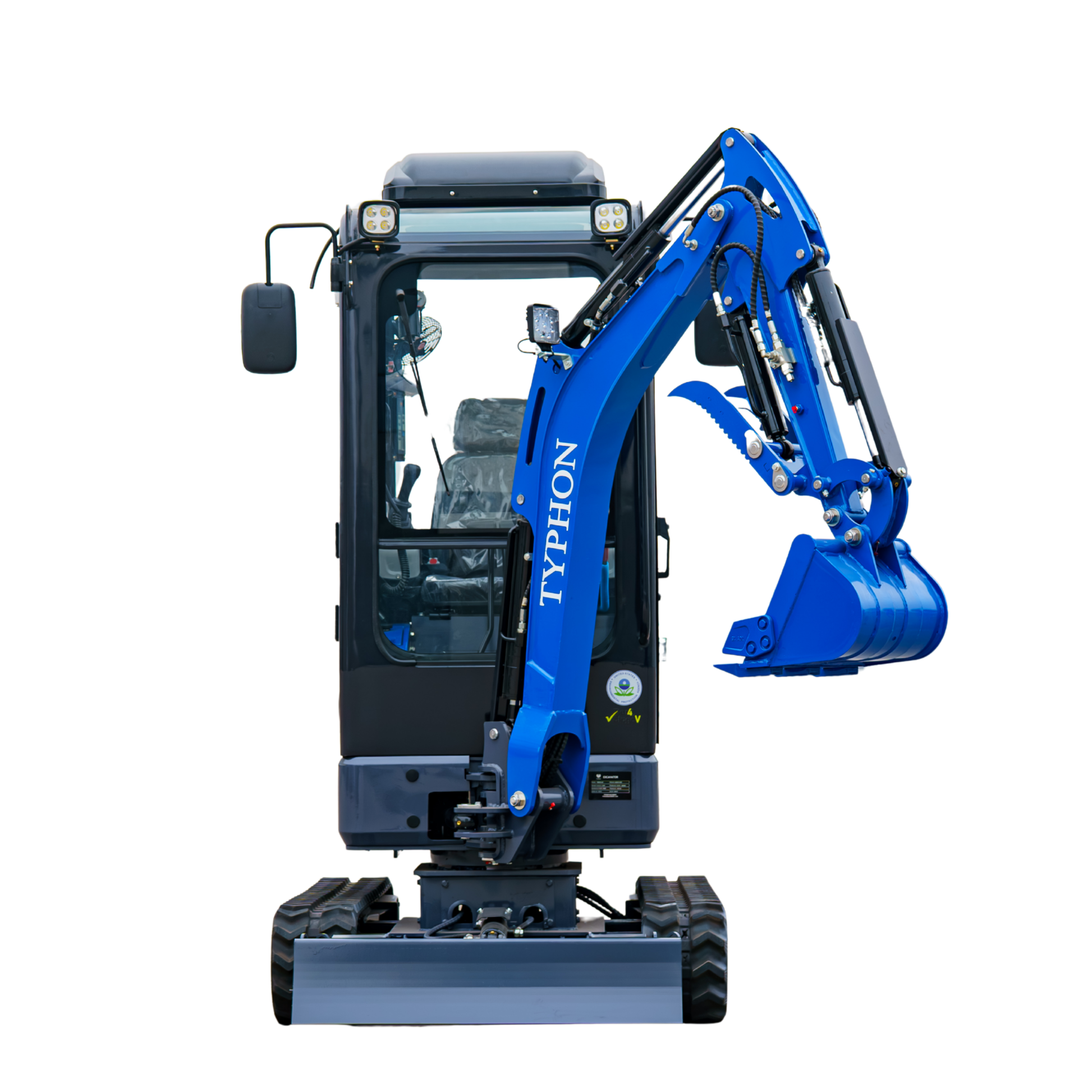

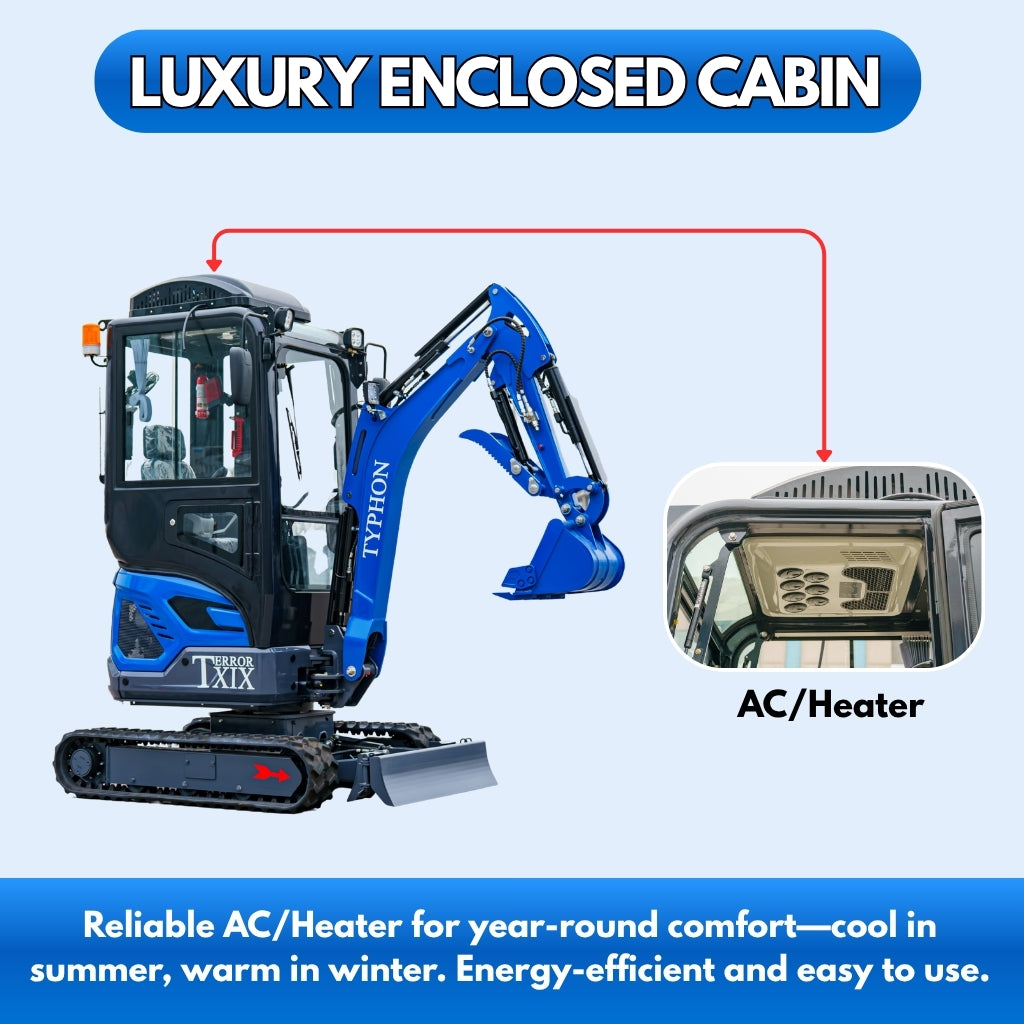

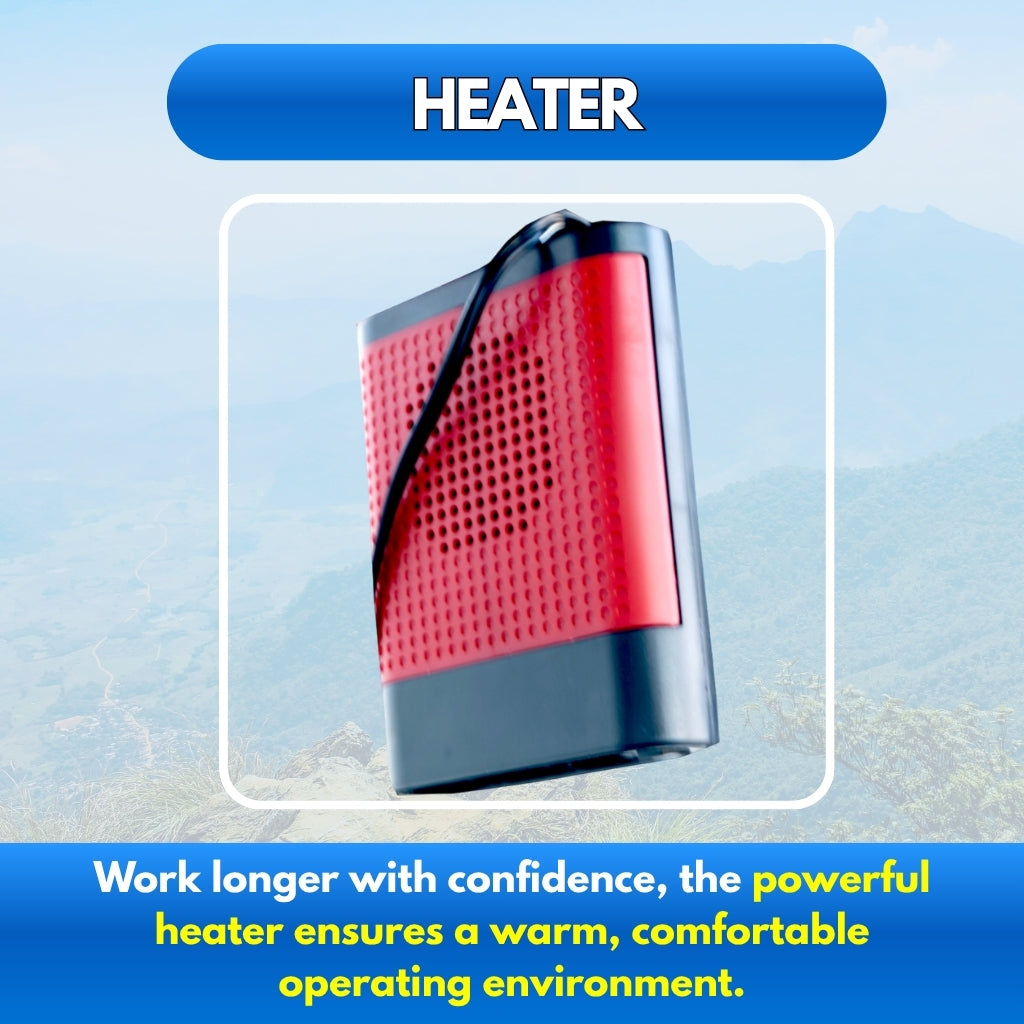

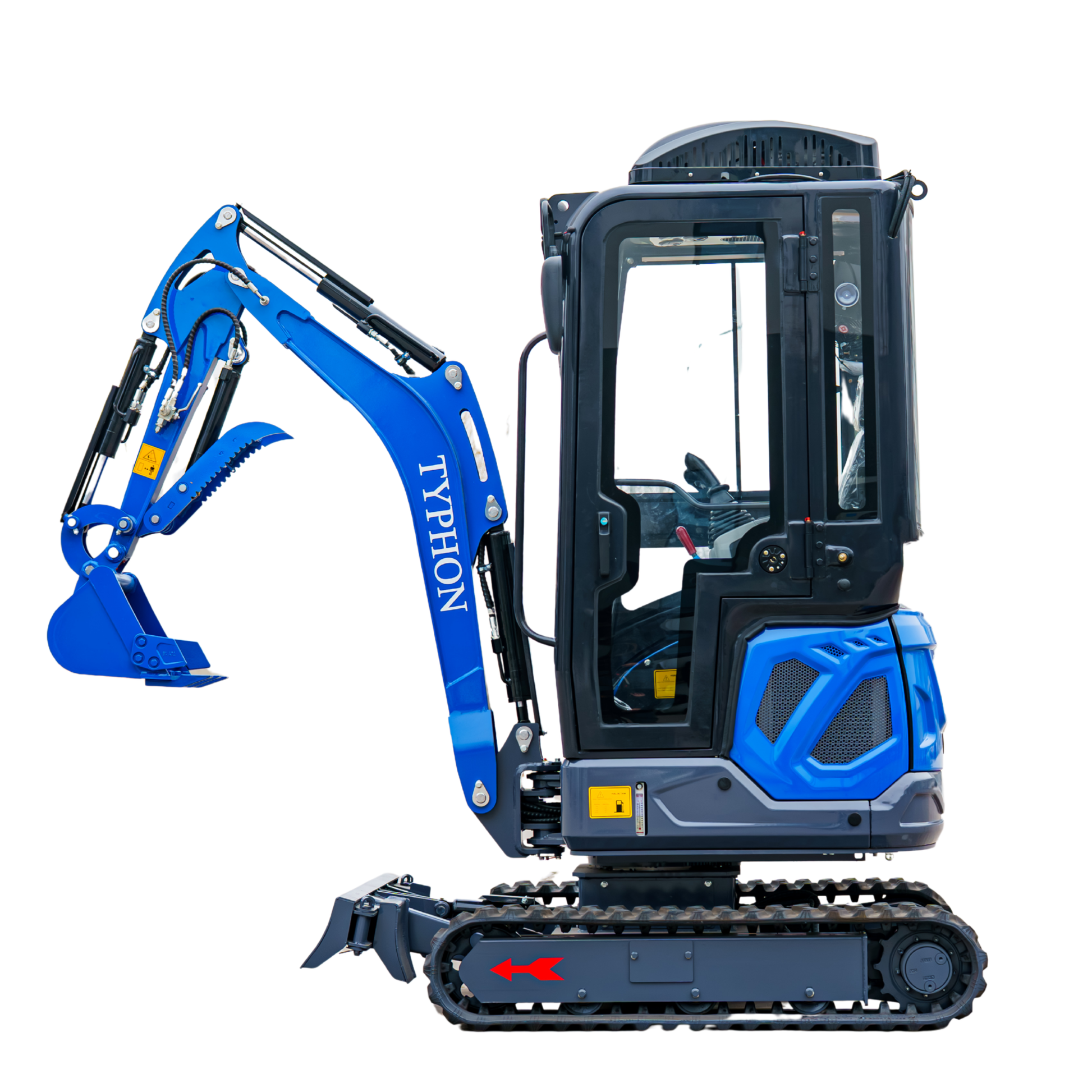

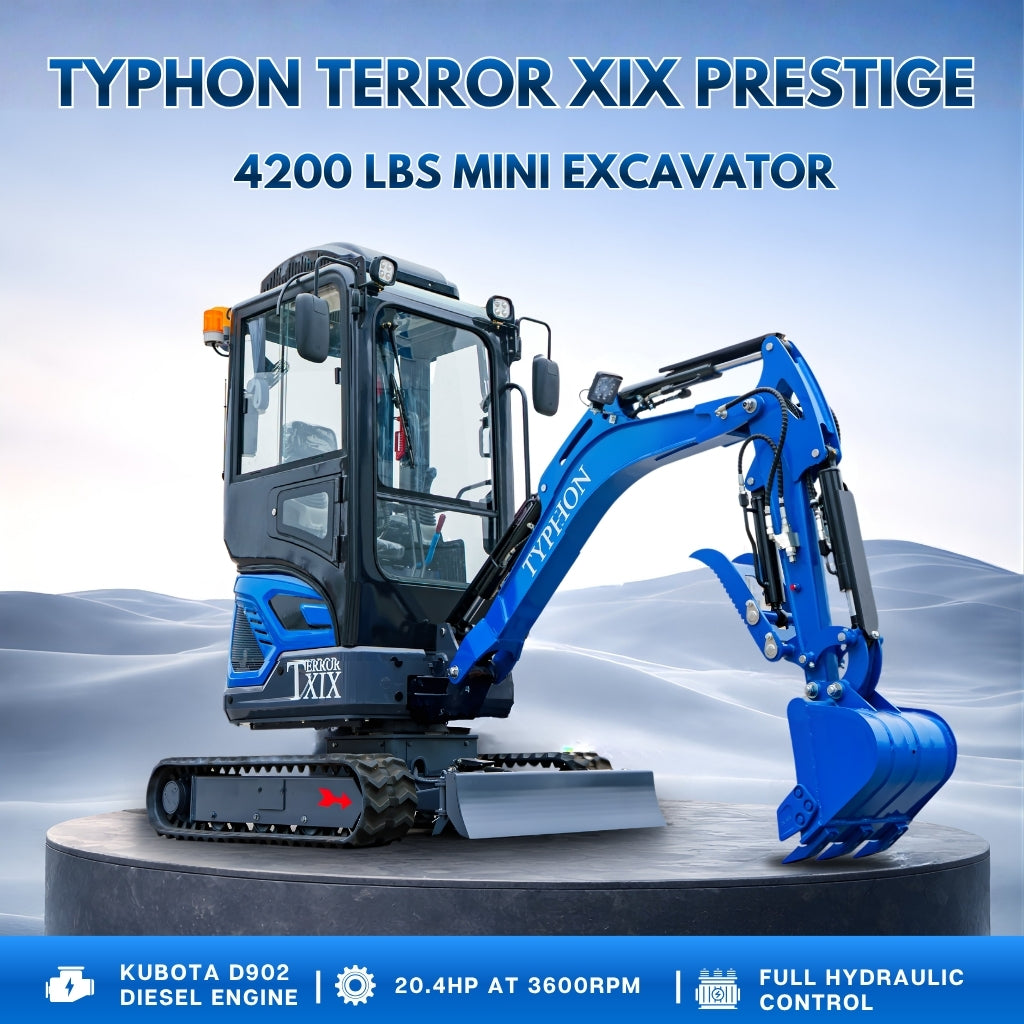

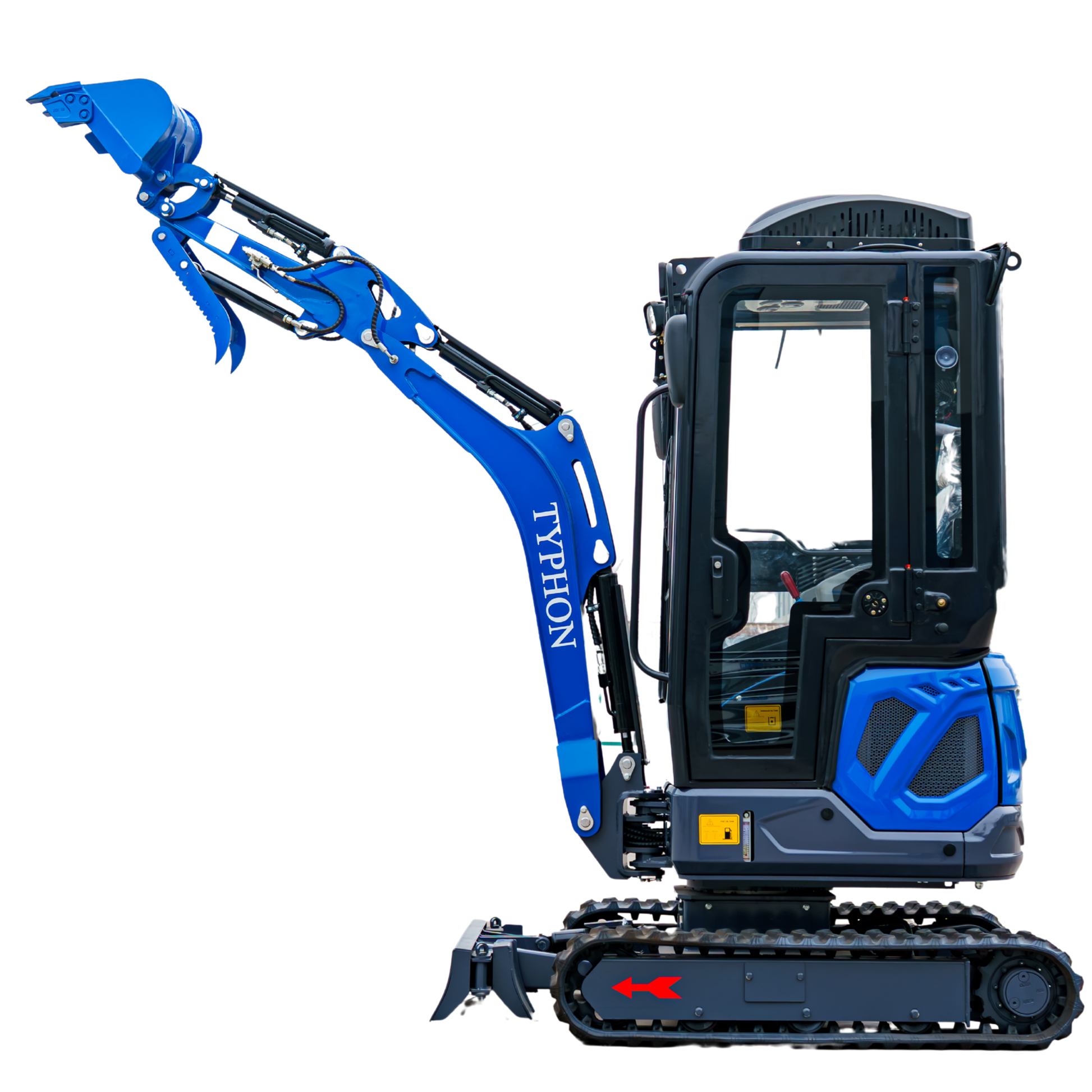

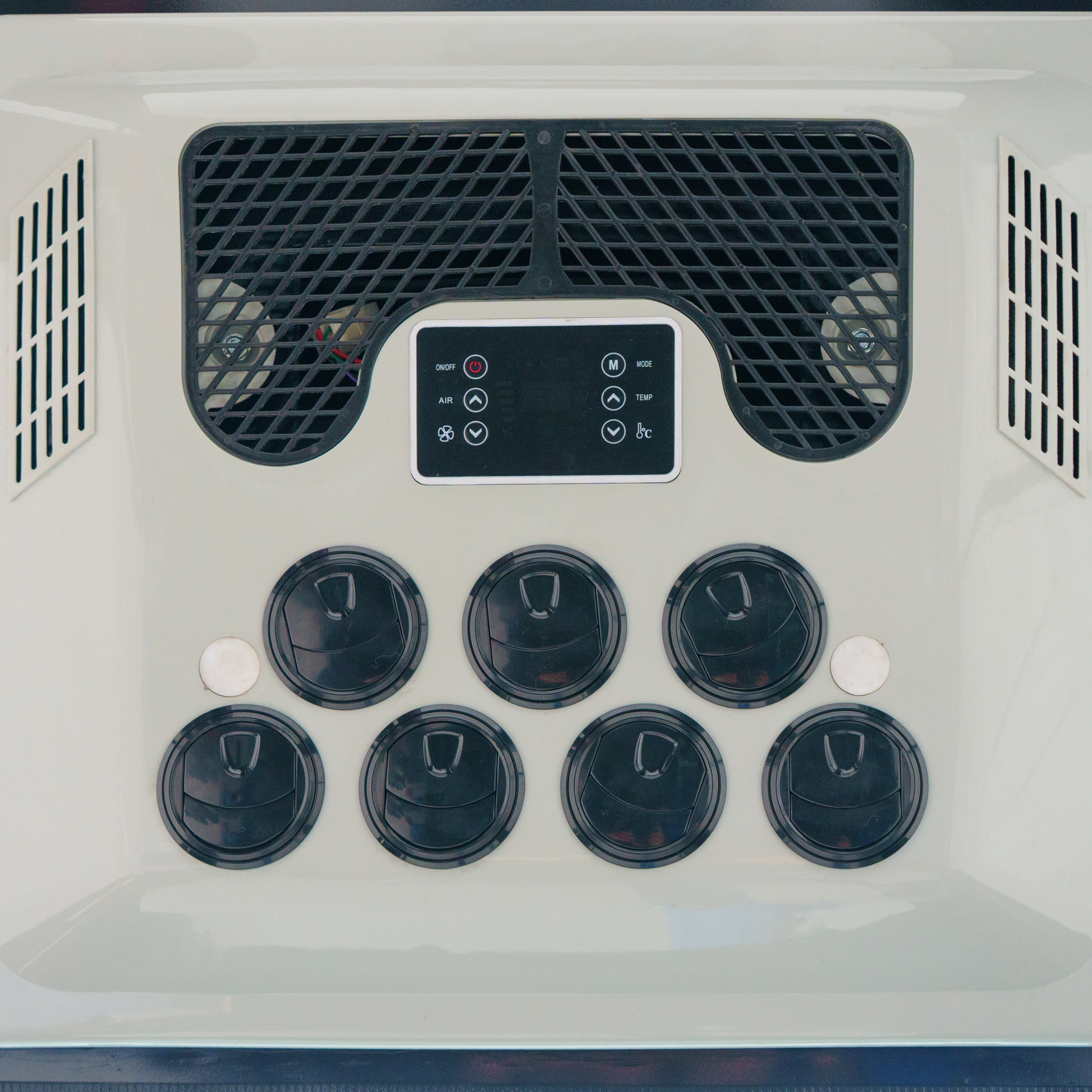

TYPHON TERROR XIX Prestige, 20.4 HP Kubota D902 4200lbs Mini Excavator with Boom Swing, Retractable Tracks, and Heater Cabin

GTIN: 5061030741689

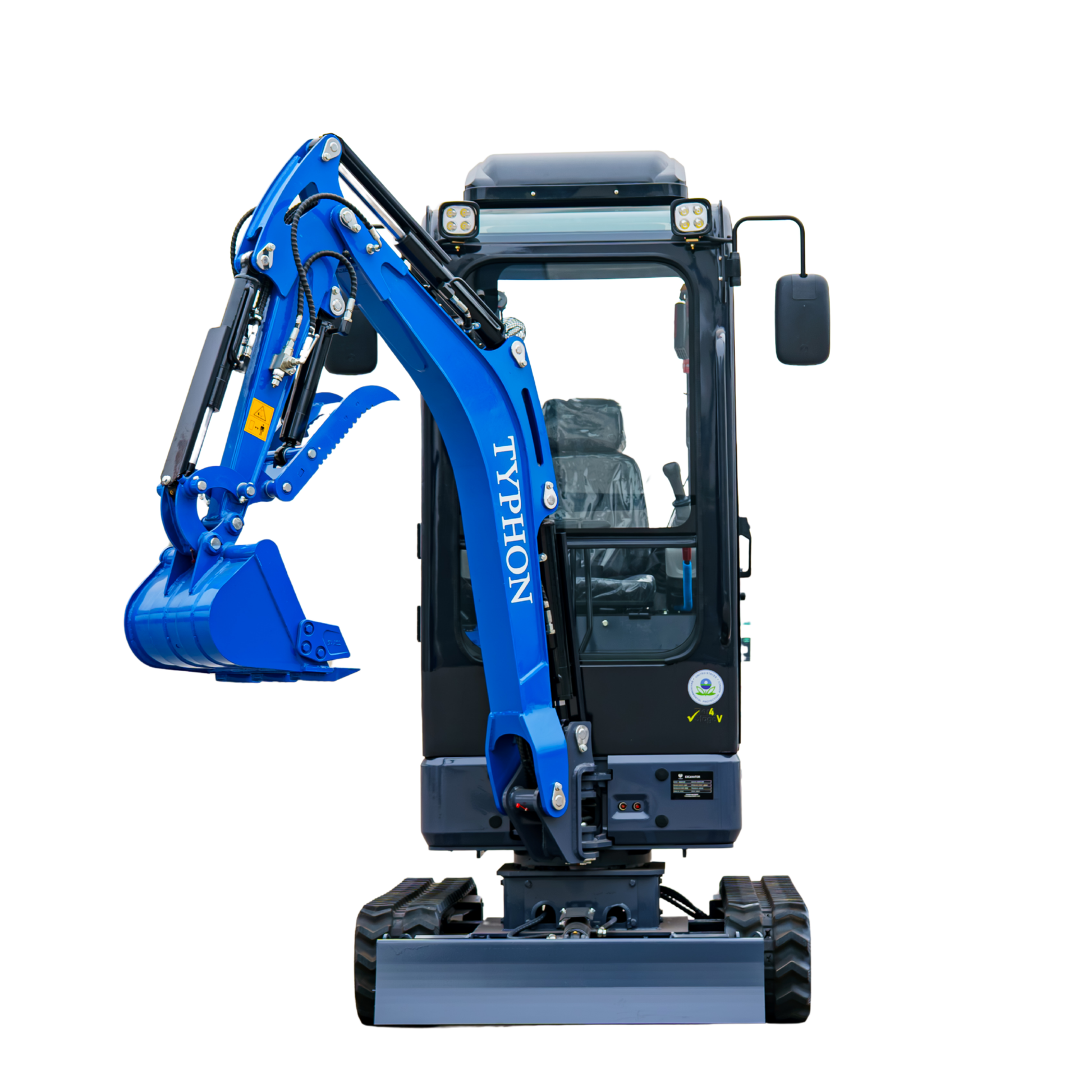

The mini excavator 4200lbs TYPHON TERROR XIX Prestige excavator is made for precise work in confined areas like farms, gardens, and small building sites. Powered by a Kubota D902 3-cylinder diesel engine, it delivers vigorous digging, smooth hydraulic response, and reliable performance. Its 415 mm bucket, retractable tracks (1000–1300 mm), boom swing, and hydraulic thumb give adaptability for trenching, grading, drilling, and landscaping, all while assuring operator comfort in a clean cabin.

TYPHON TERROR XIX Prestige Key Feature:

1. Designed for small project :

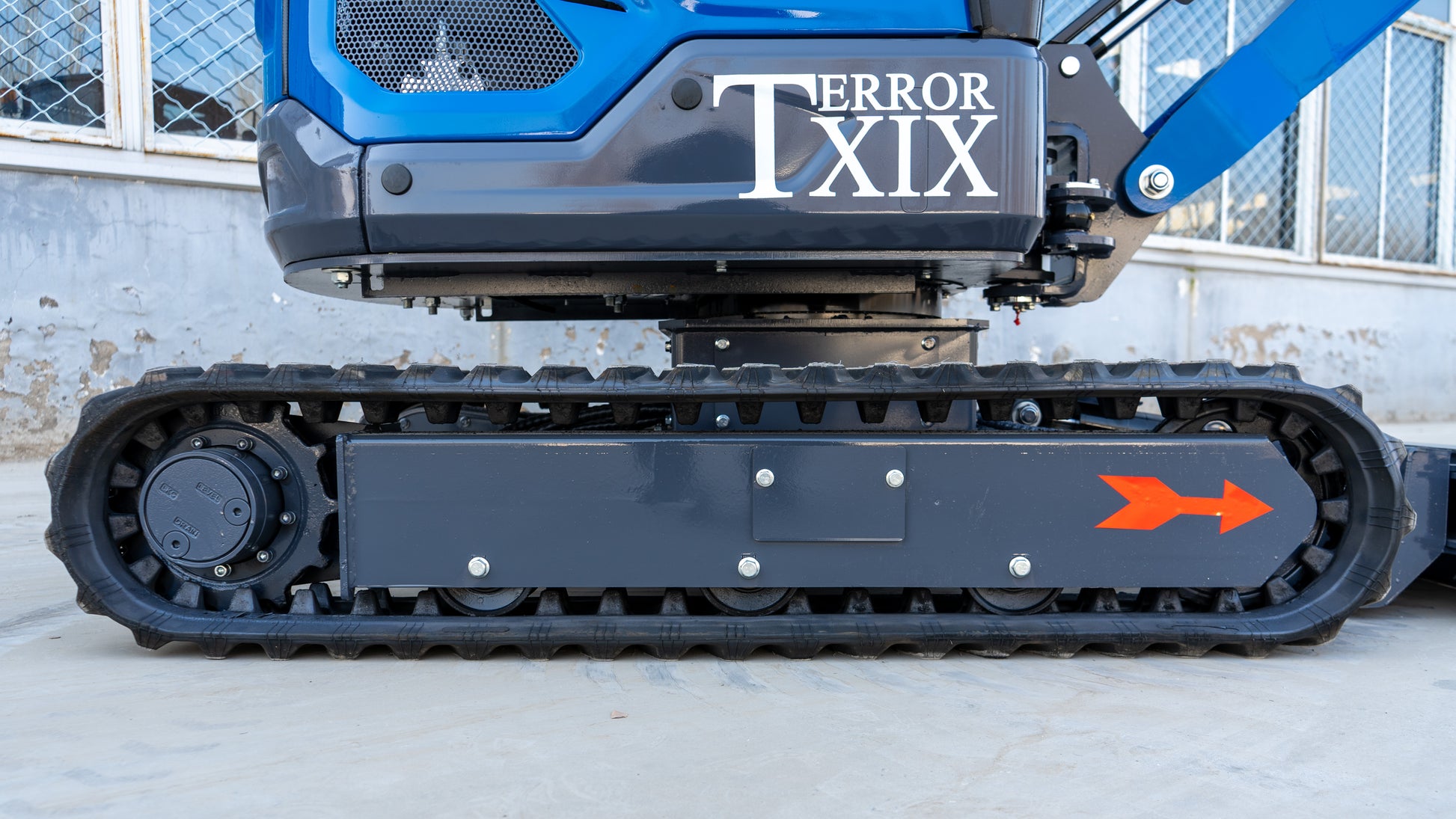

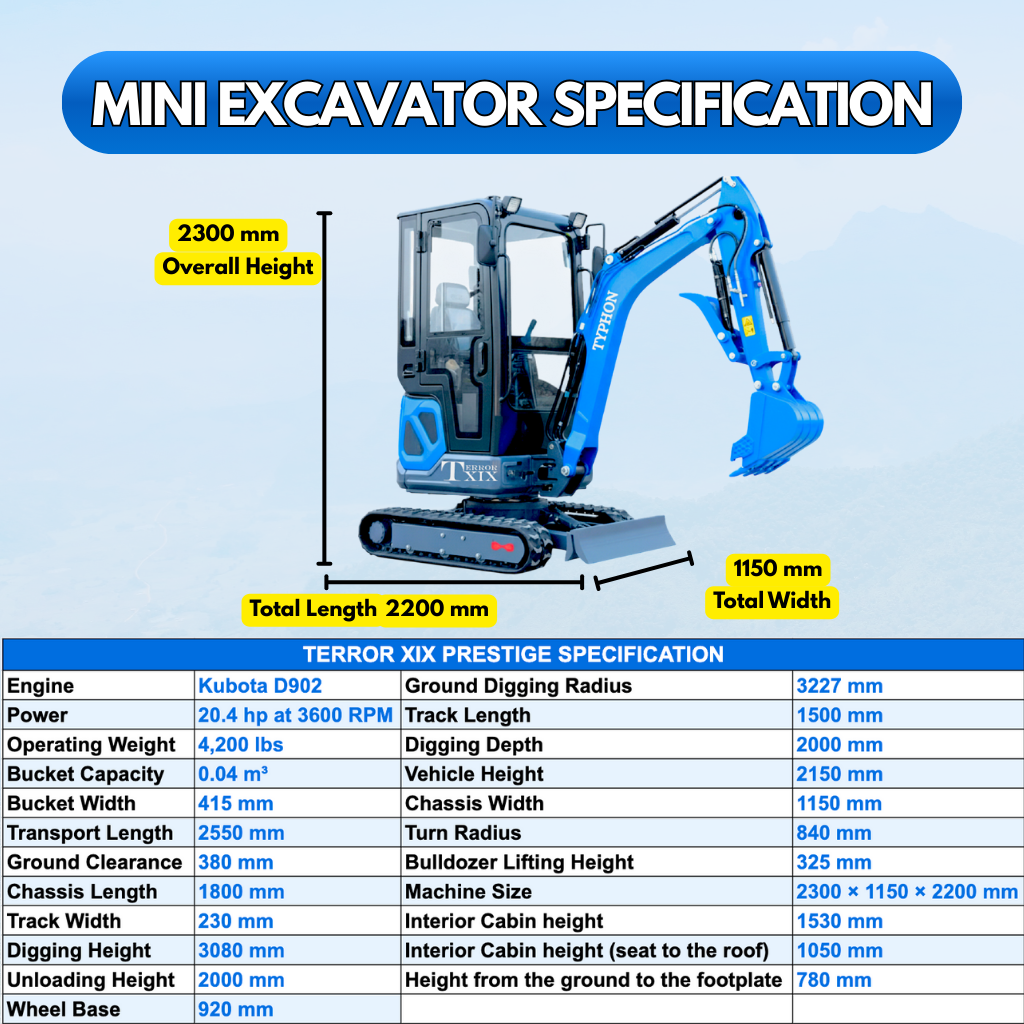

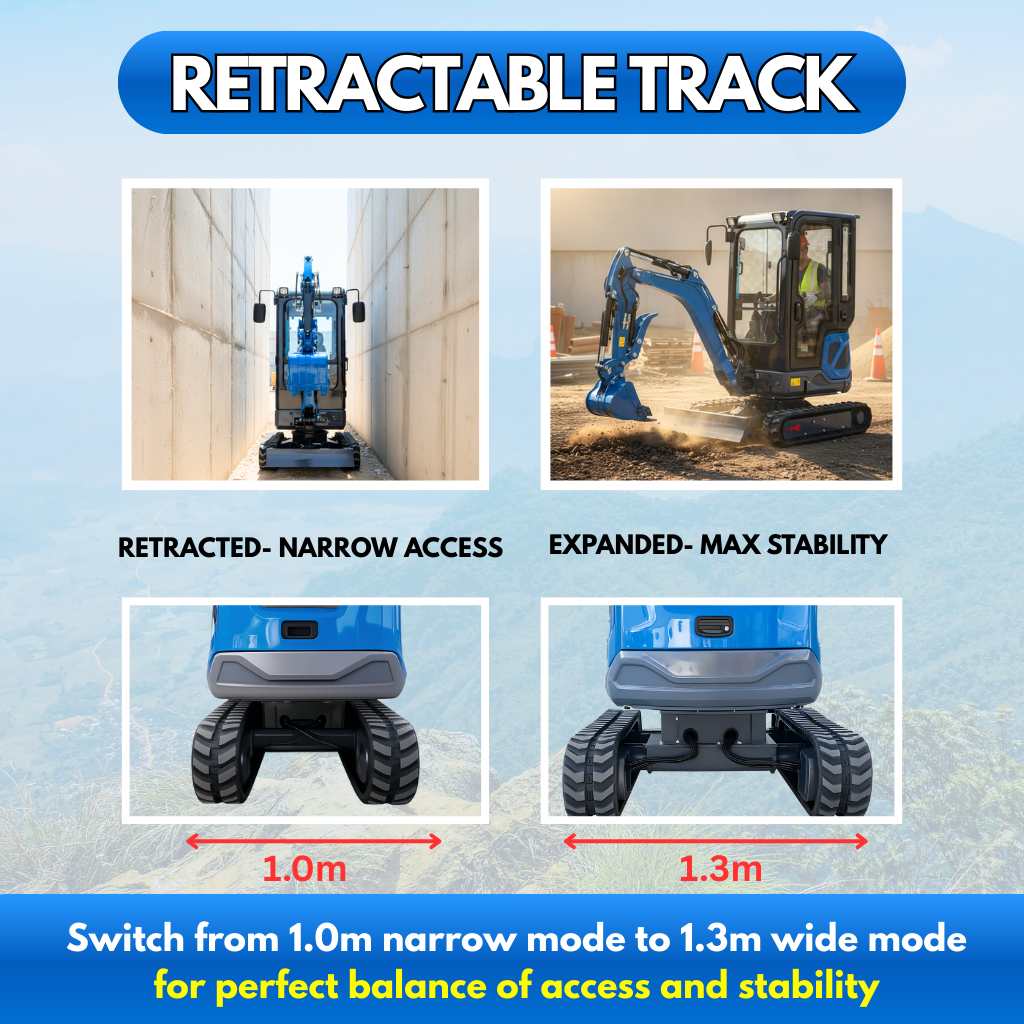

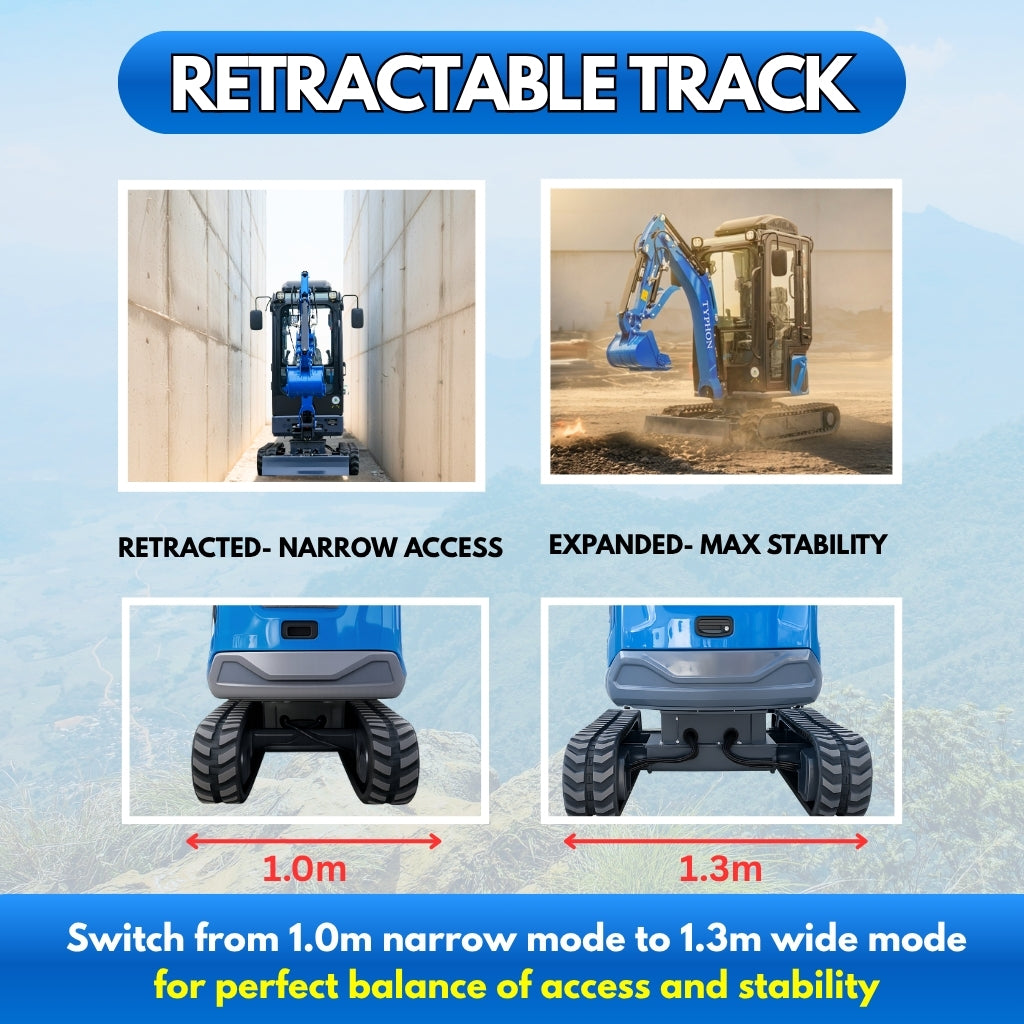

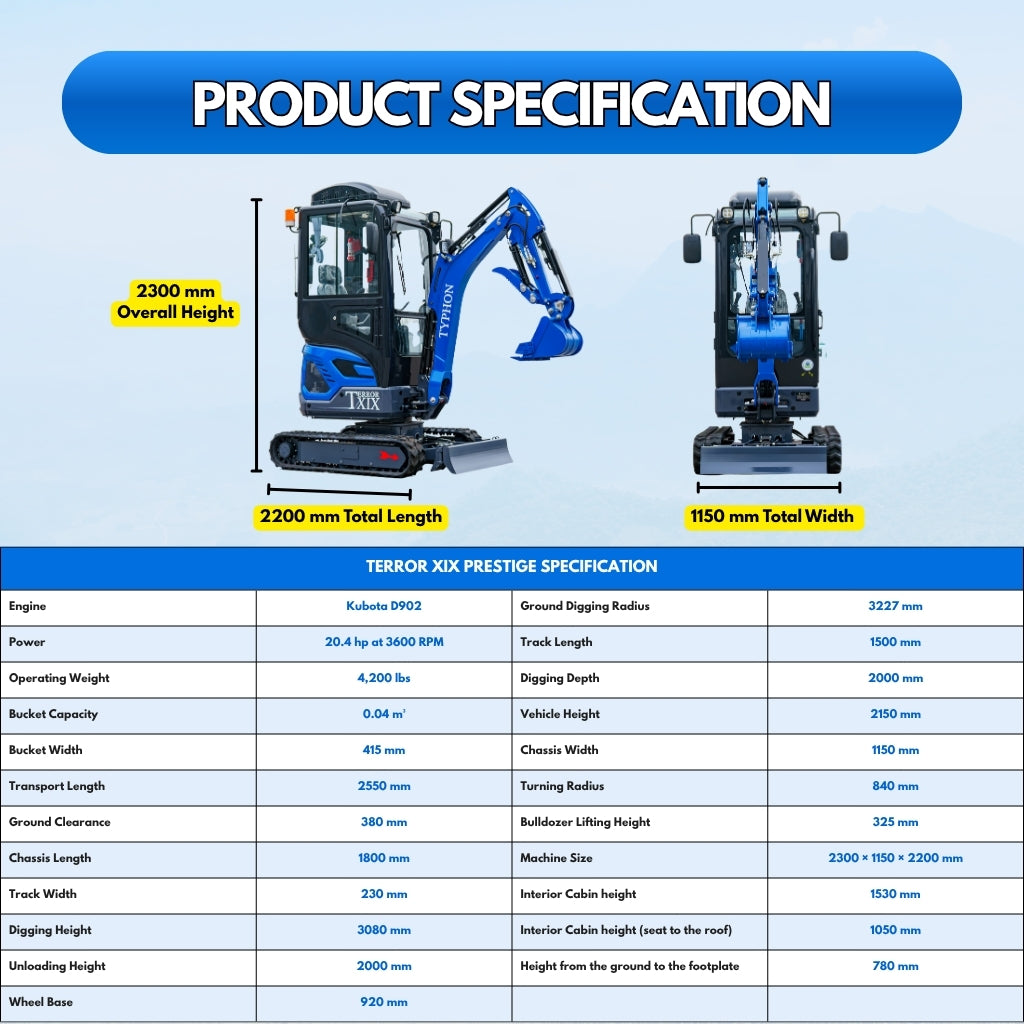

The TYPHON TERROR XIX Prestige is designed to perform precision work in situations where larger equipment cannot. It weighs approximately 4,200 pounds and has a small footprint (Overall Length 2200 mm, Width 1150 mm, Height 2300 mm). It is ideal for earthmoving operations in gardens, orchards, yards, plantations, and confined construction zones. Its retractable track width (1000-1300 mm) and boom swing allow operators to confidently navigate confined corridors while maintaining stability and precision.

2. Wide range of use :

Versatility is central to the TERROR XIX Prestige. It powers a variety of attachments, including augers, breakers, hydraulic thumbs, and more, thanks to its powerful hydraulic performance and three-way stop valves. This tiny excavator is excellent for trenching, drilling, ditch cleaning, stump removal, rock breaking, grading, and general landscaping. The boom-swing mechanism and fully integrated hydraulic controls ensure smooth, regulated operation in all job types.

3. Compact tough :

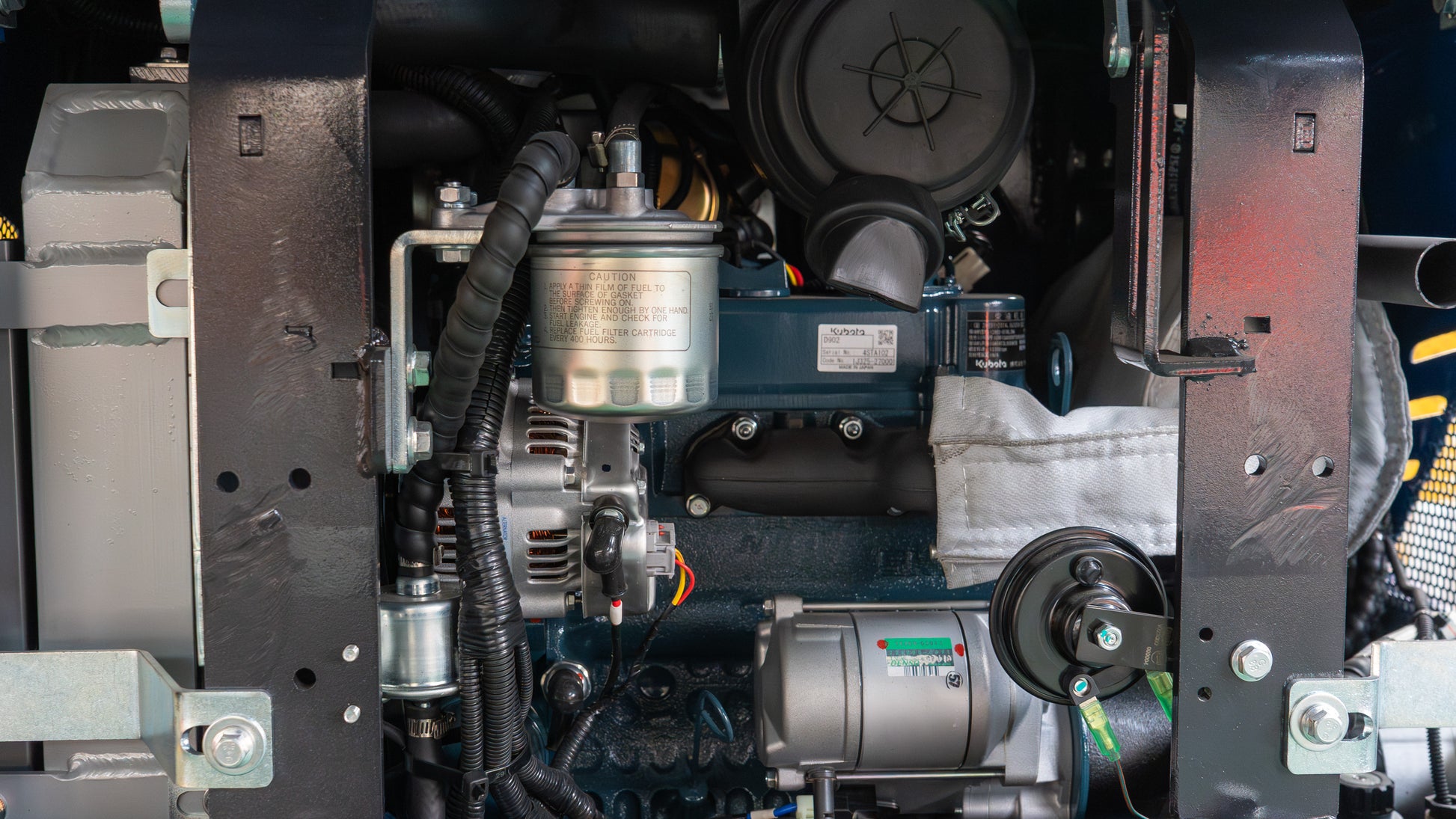

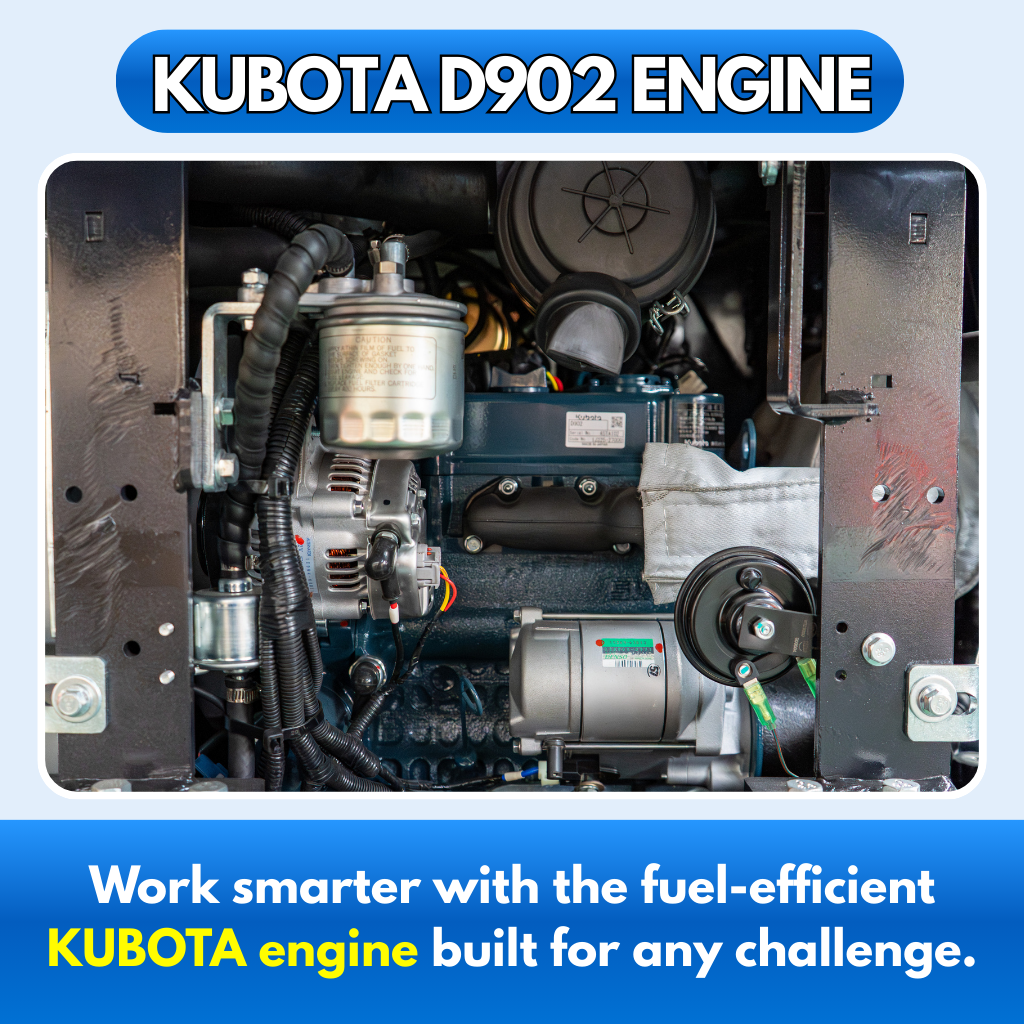

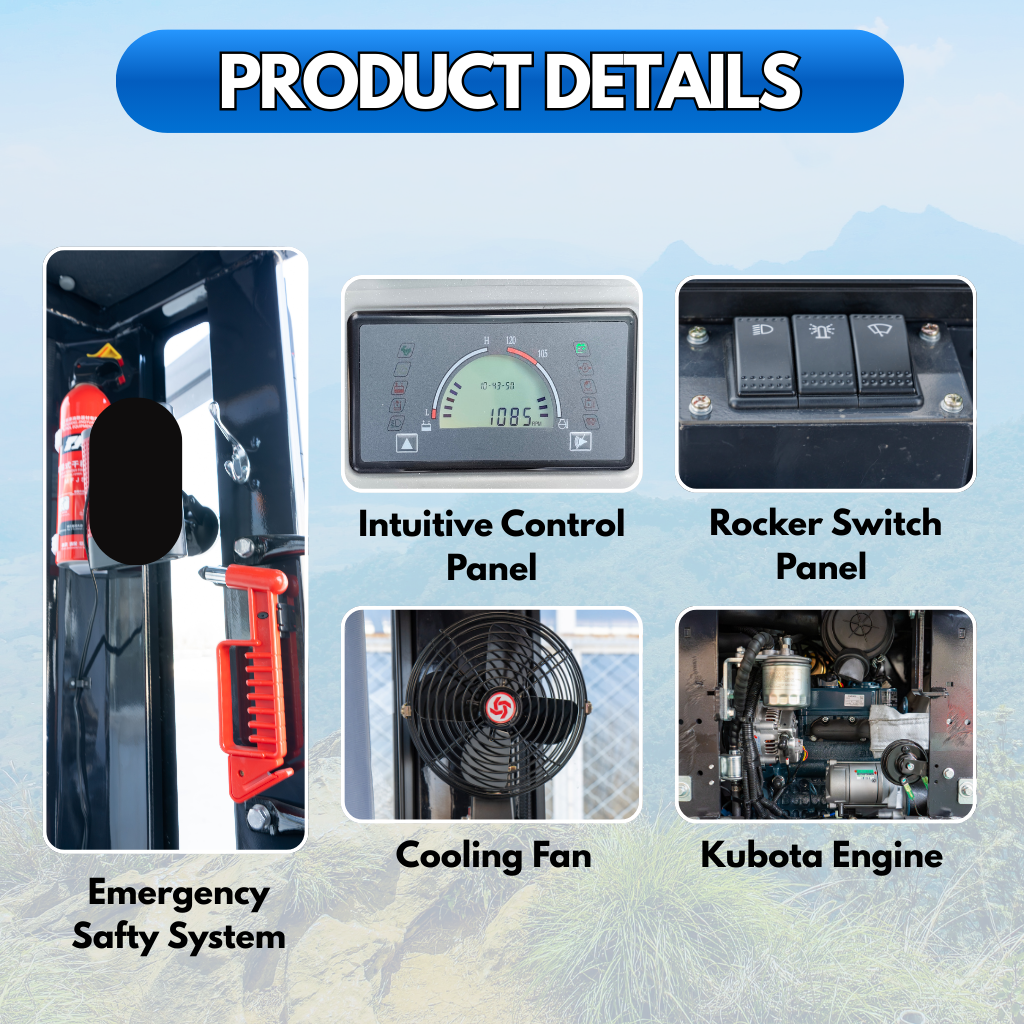

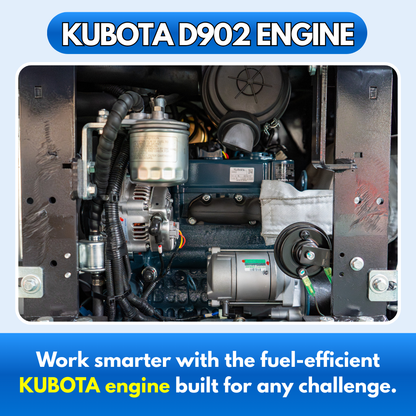

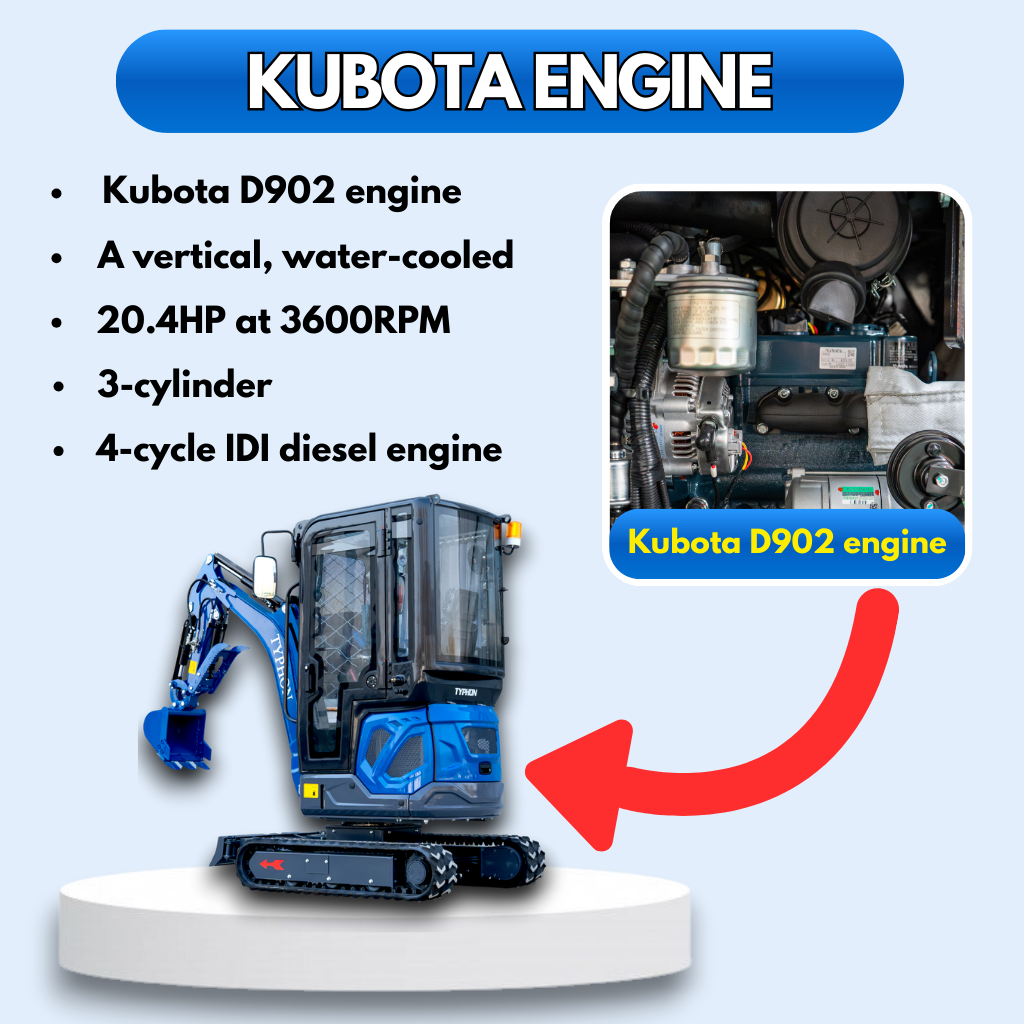

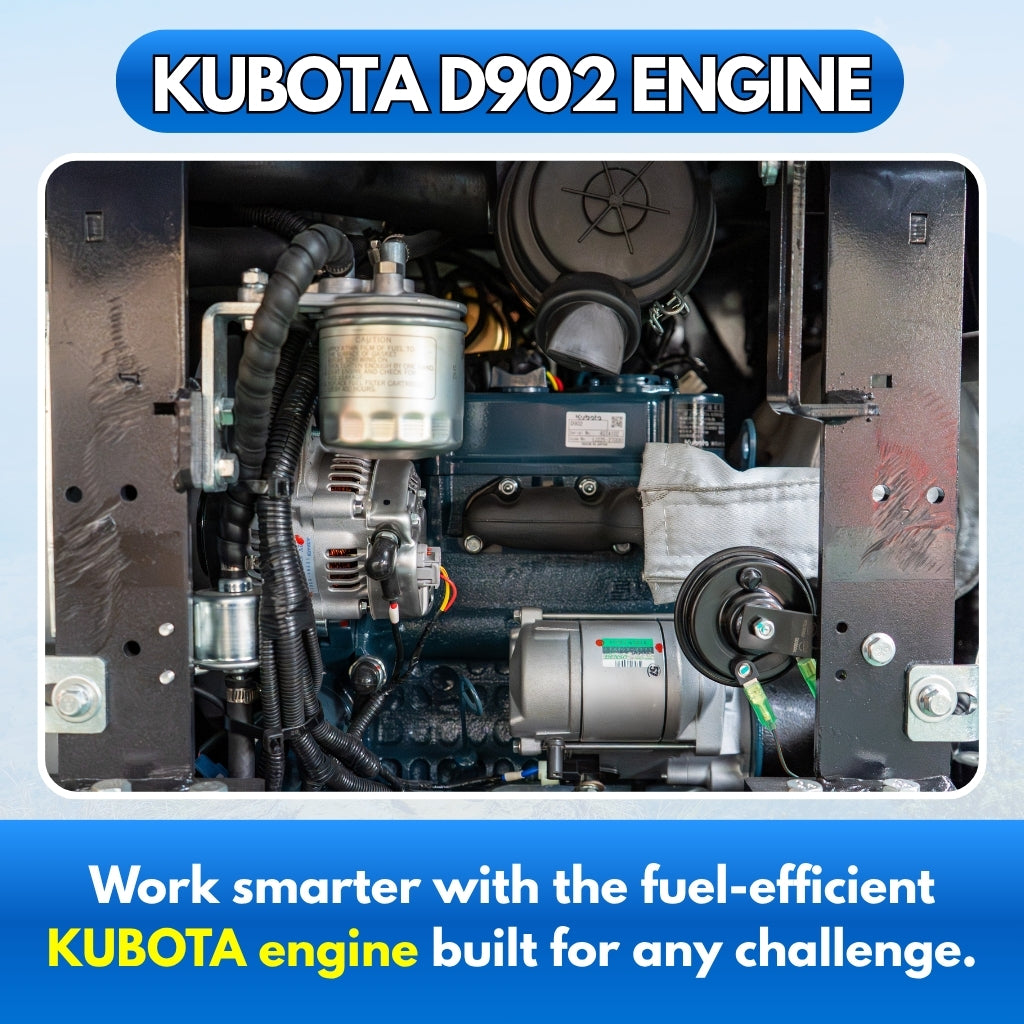

Powered by the Kubota D902 diesel engine, a 3-cylinder, water-cooled system, 4-cycle IDI engine rated at 15.8 HP at 2300 RPM and 20.4 HP at 3600 RPM, this 4200lbs compact excavator is designed for extended working hours and tough field conditions.A reinforced structural frame, hydraulic protection layers, and upgraded components provide durability without sacrificing maneuverability. Its compact profile ensures high mobility while maintaining strong digging performance and stability.

4. User-friendly Design :

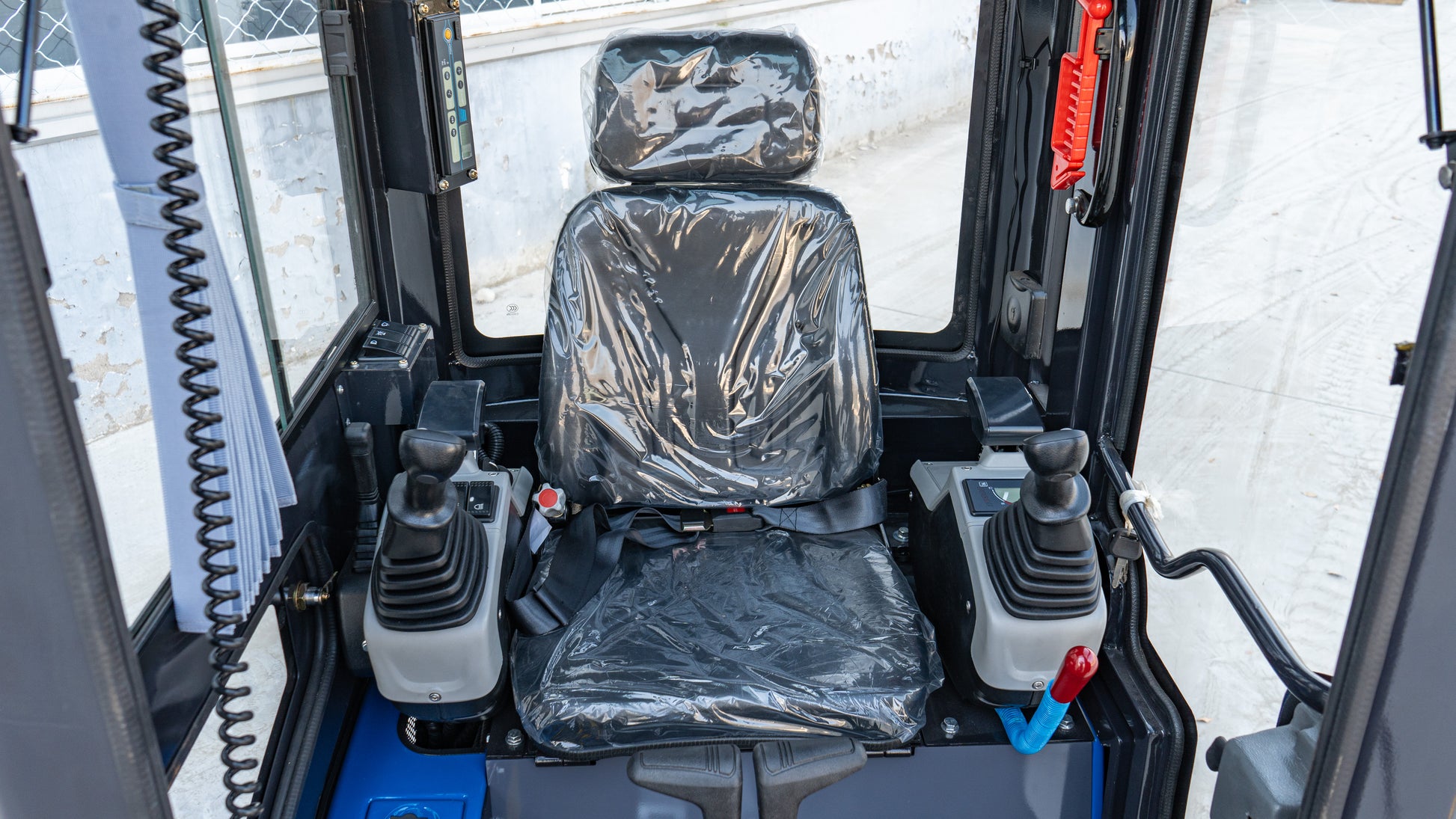

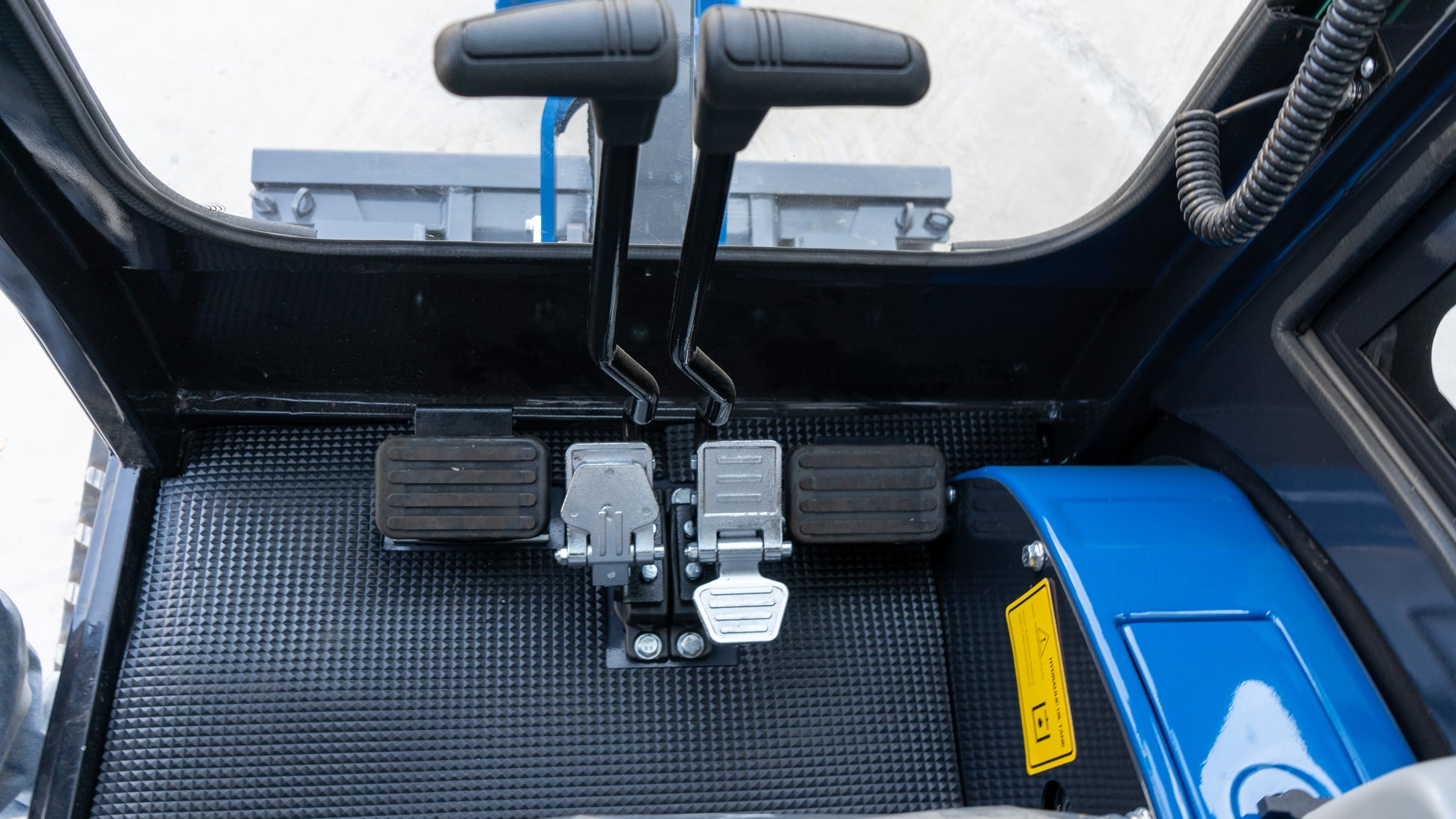

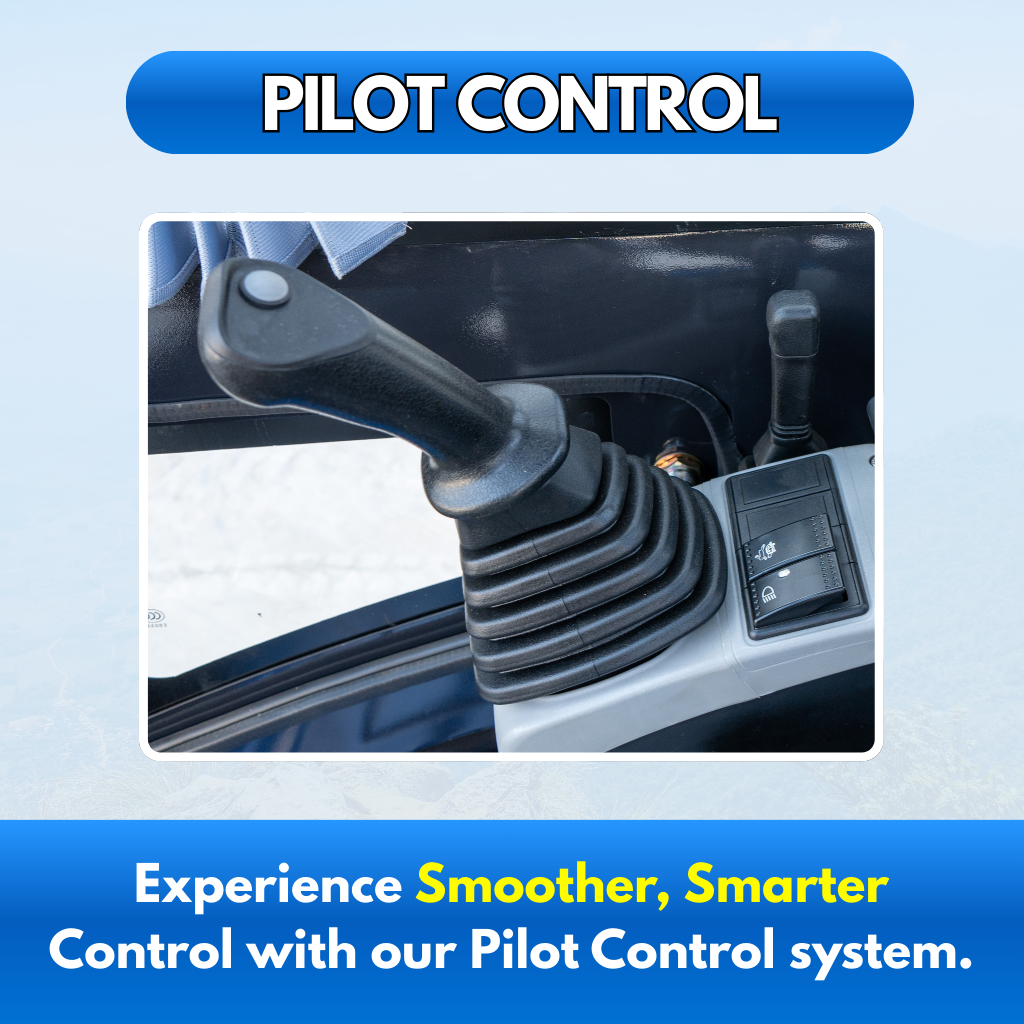

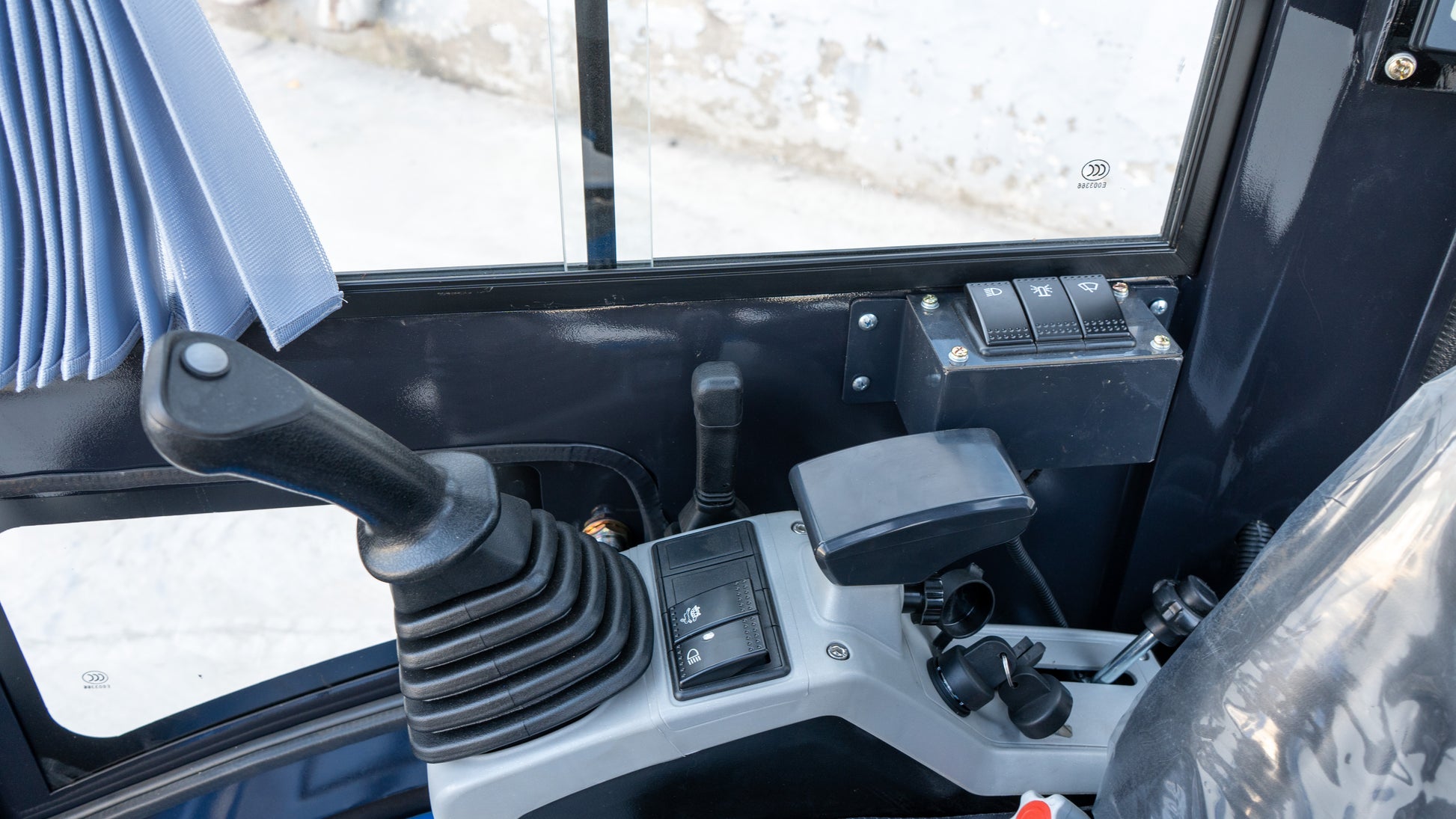

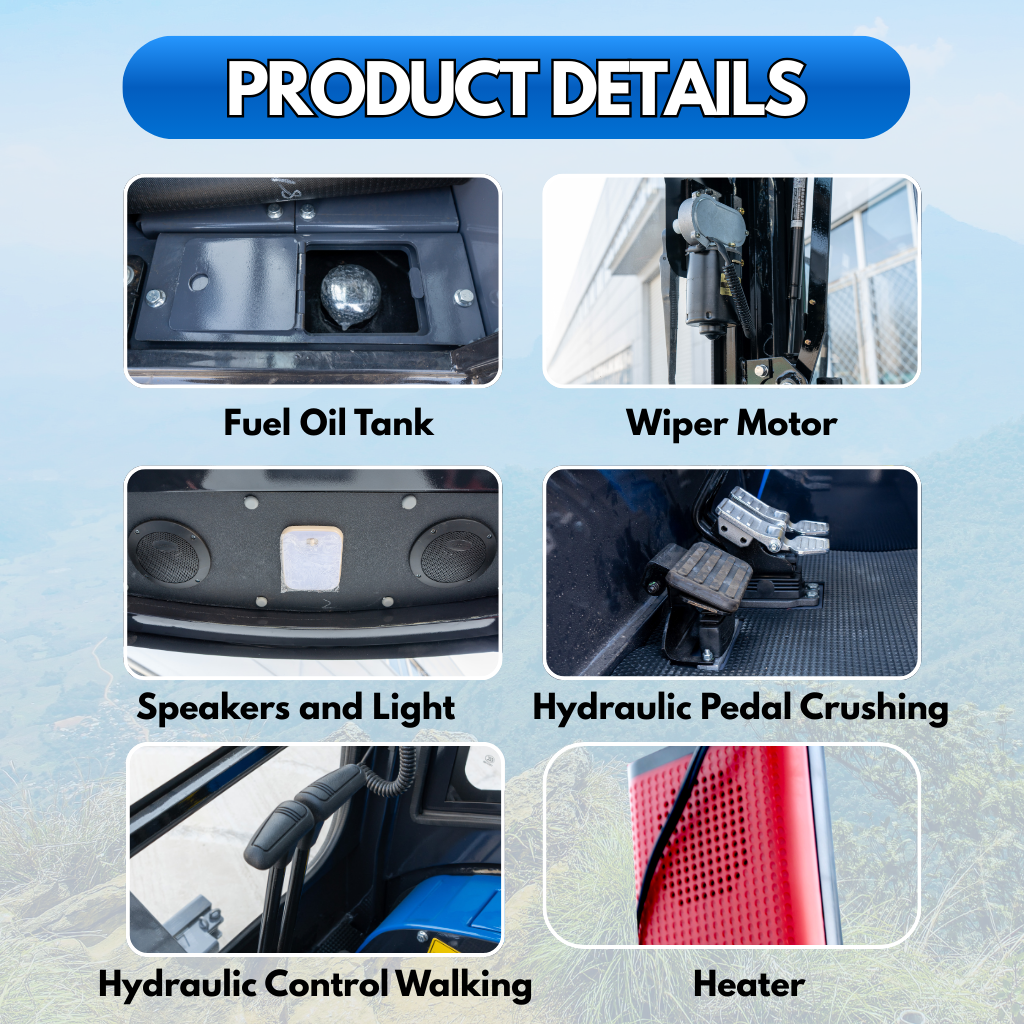

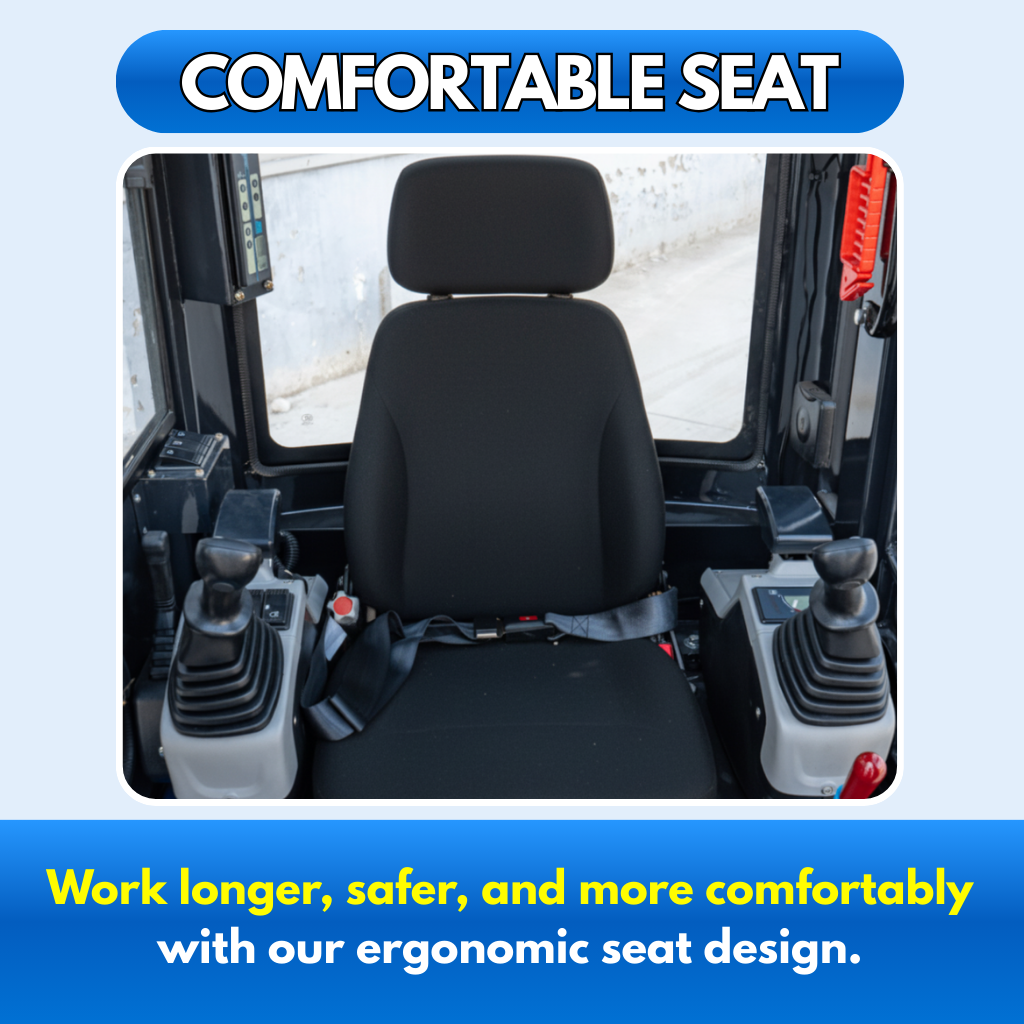

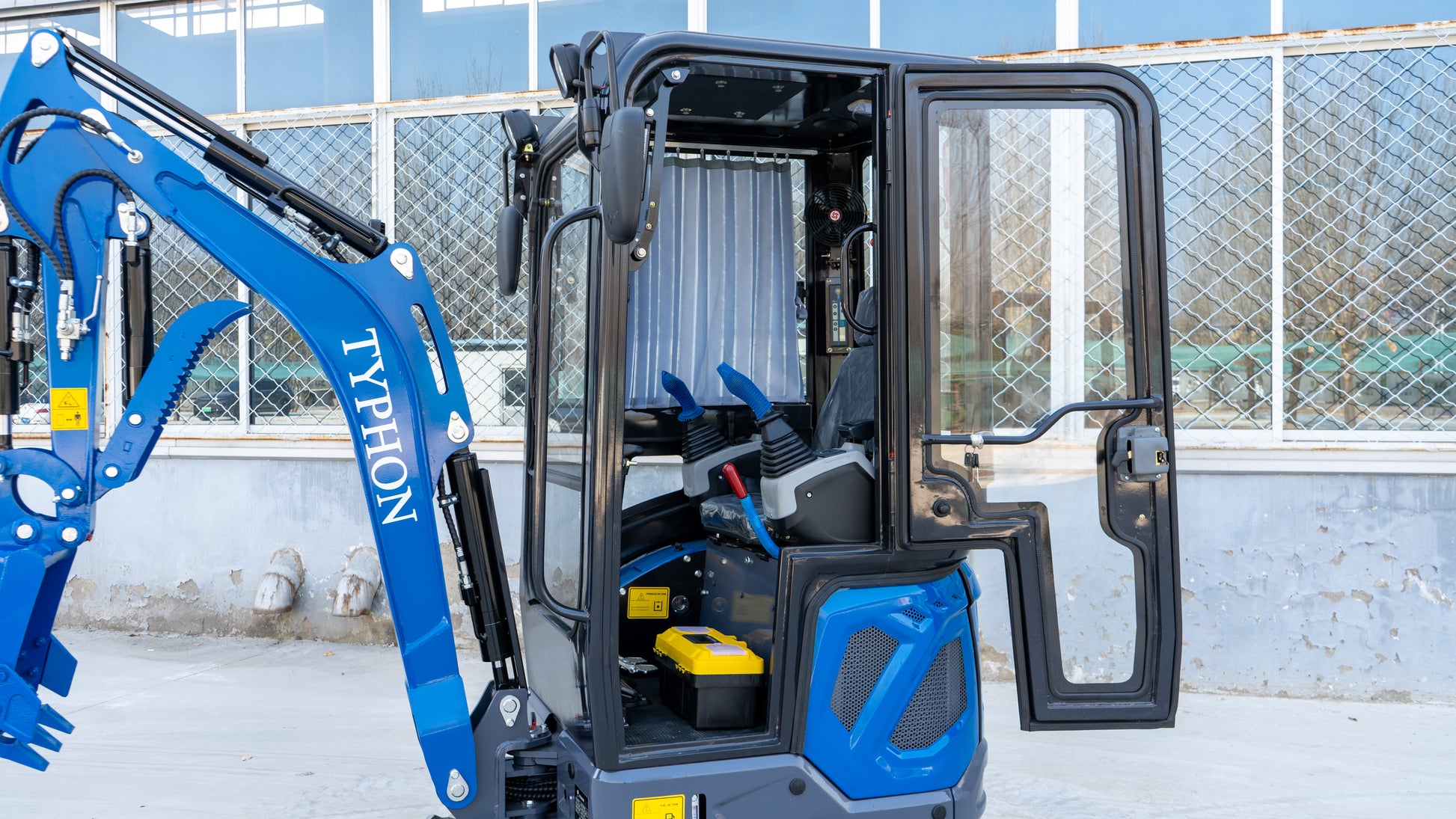

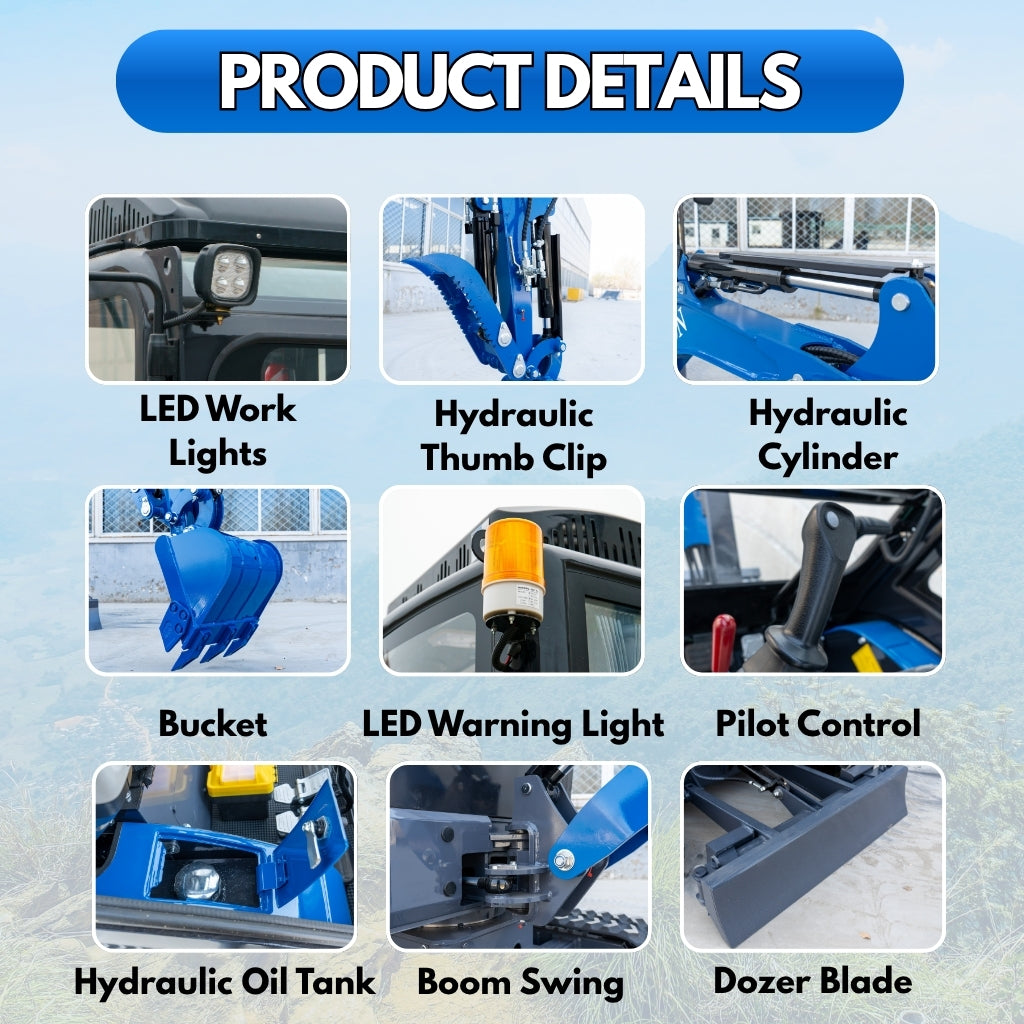

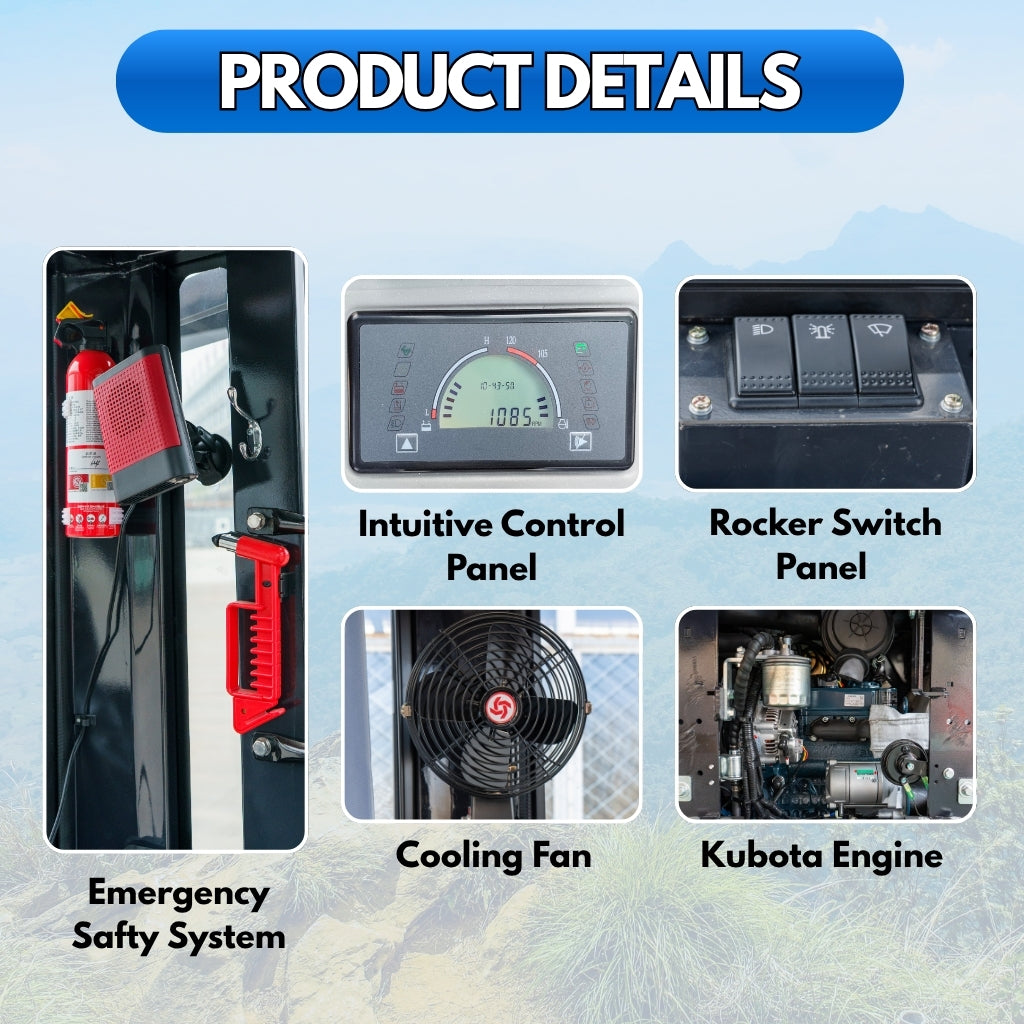

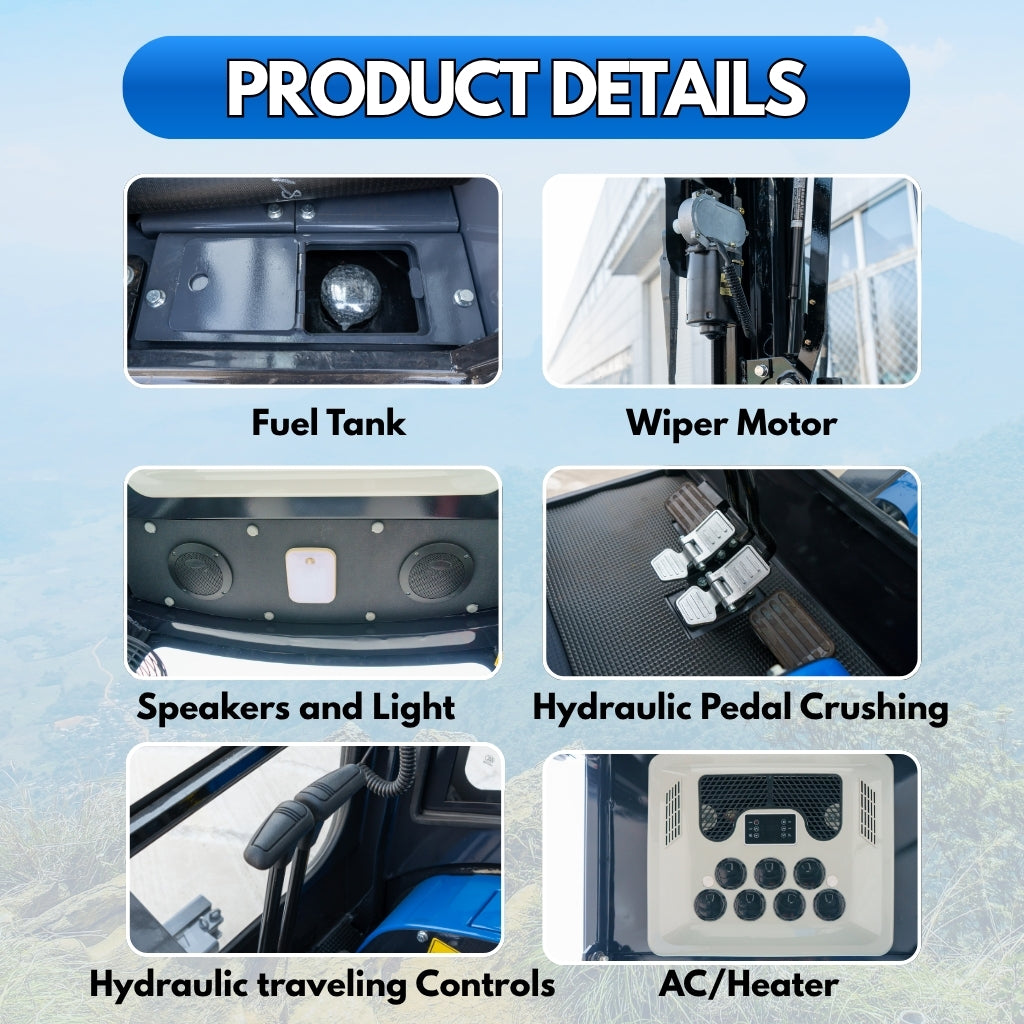

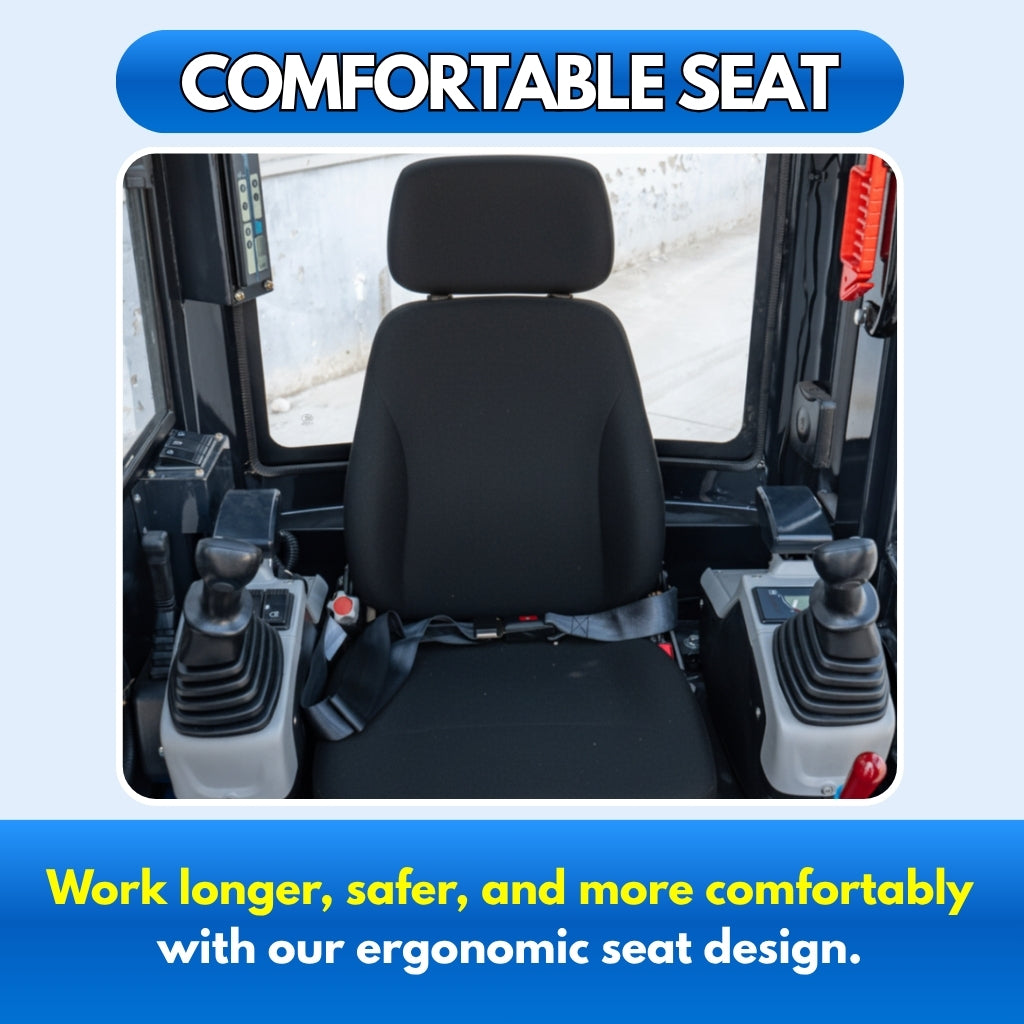

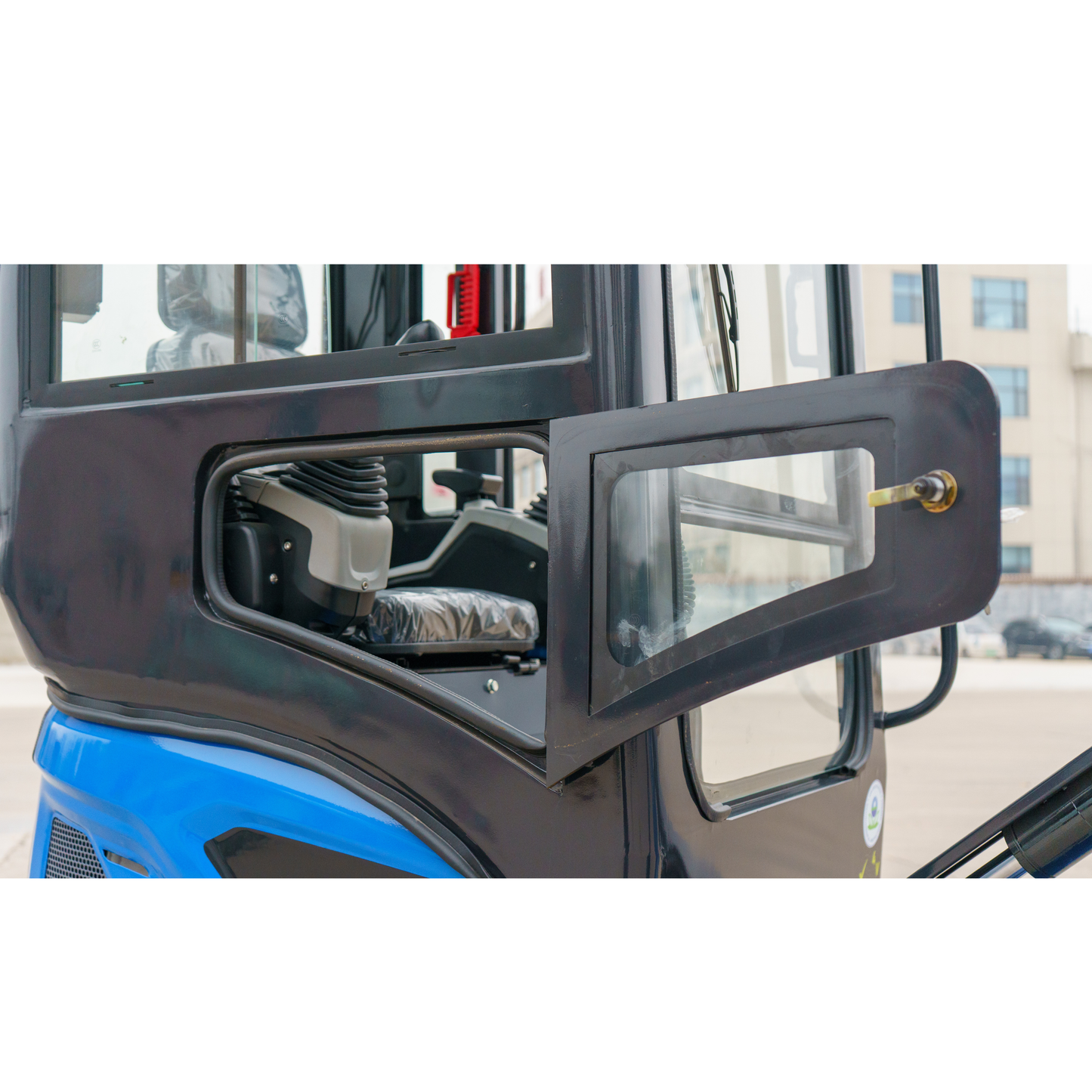

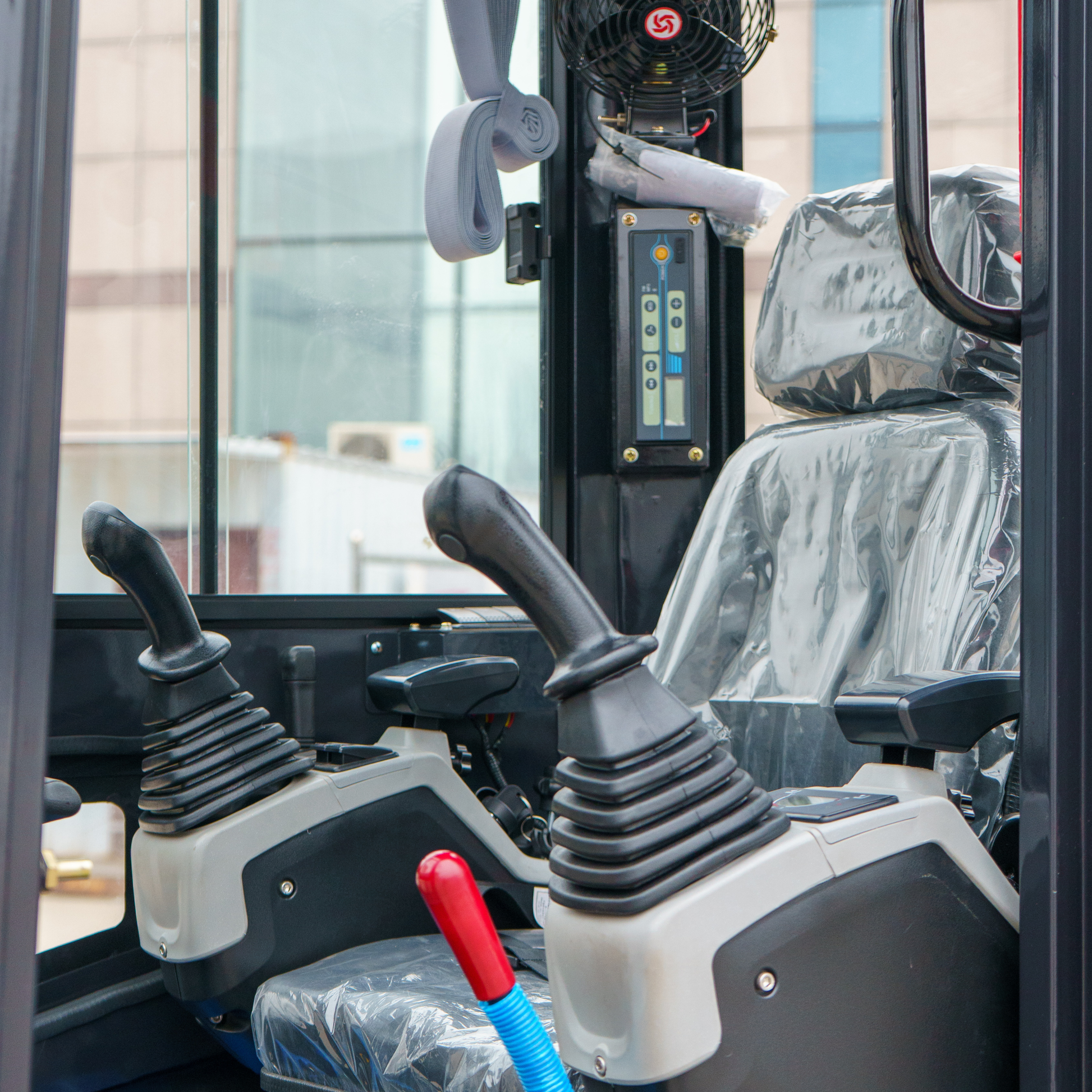

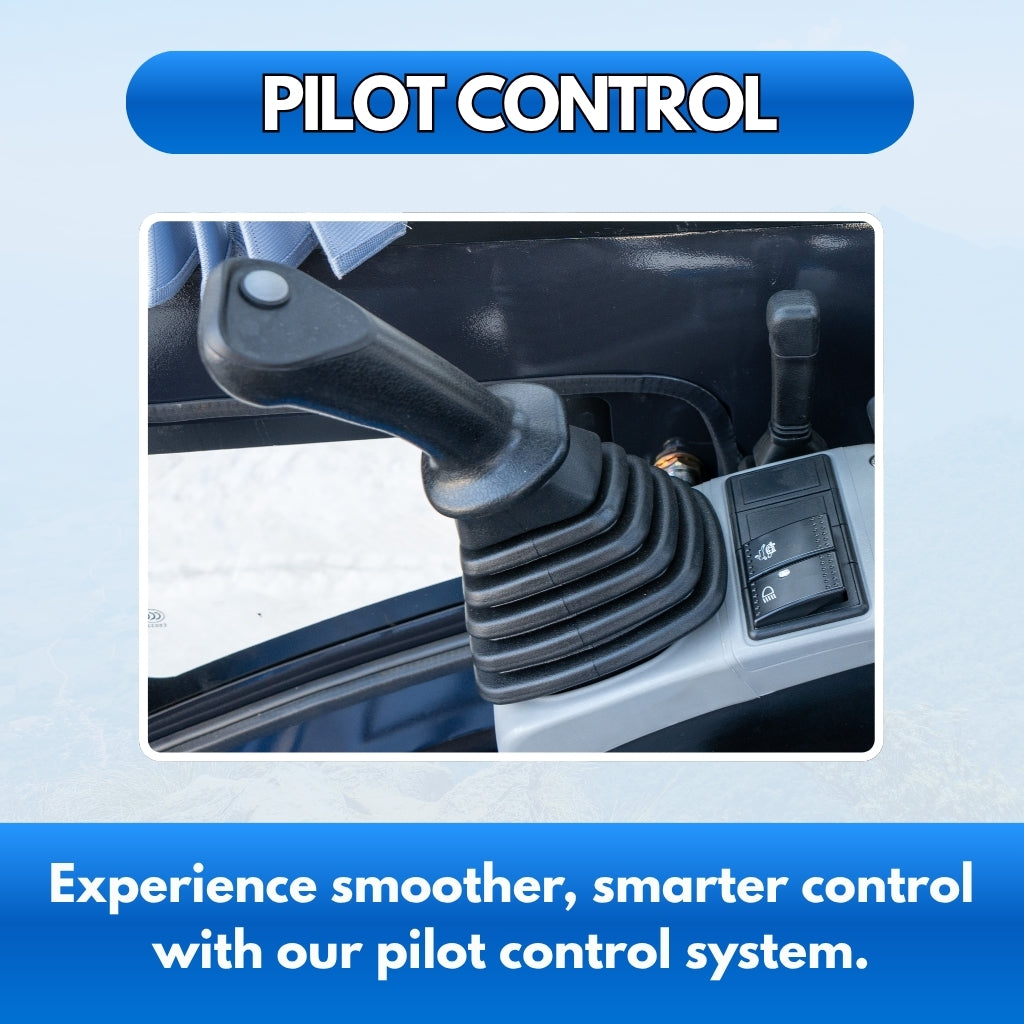

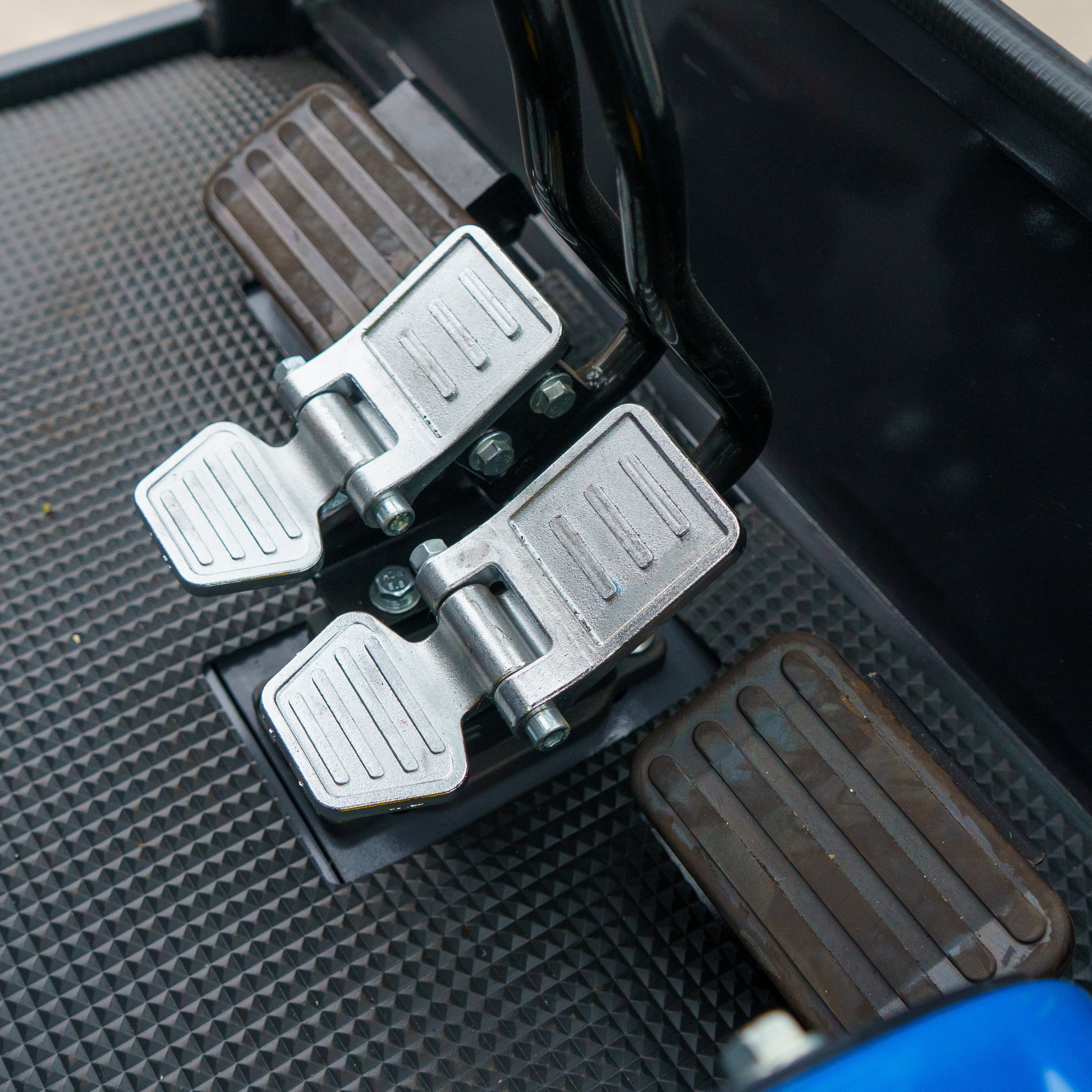

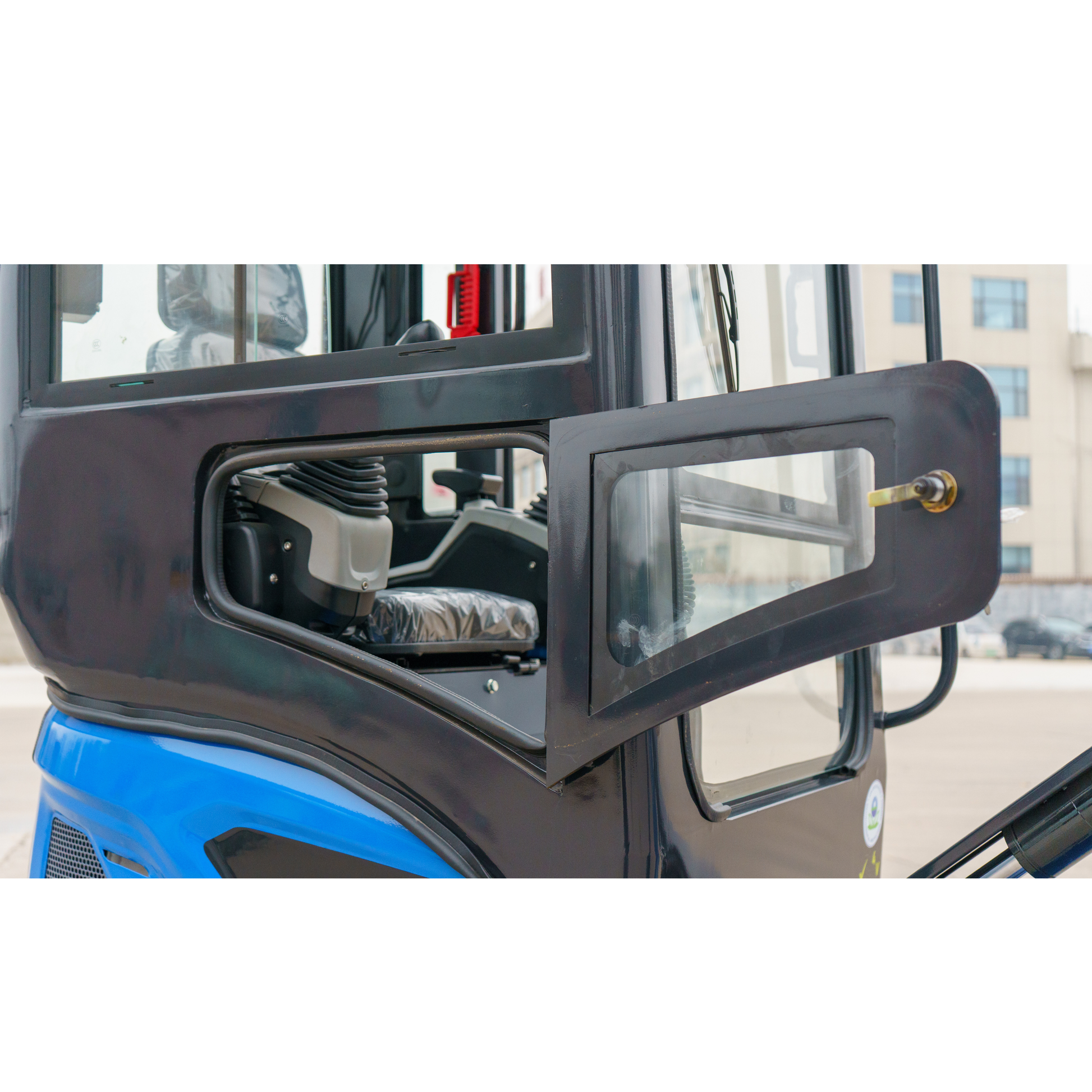

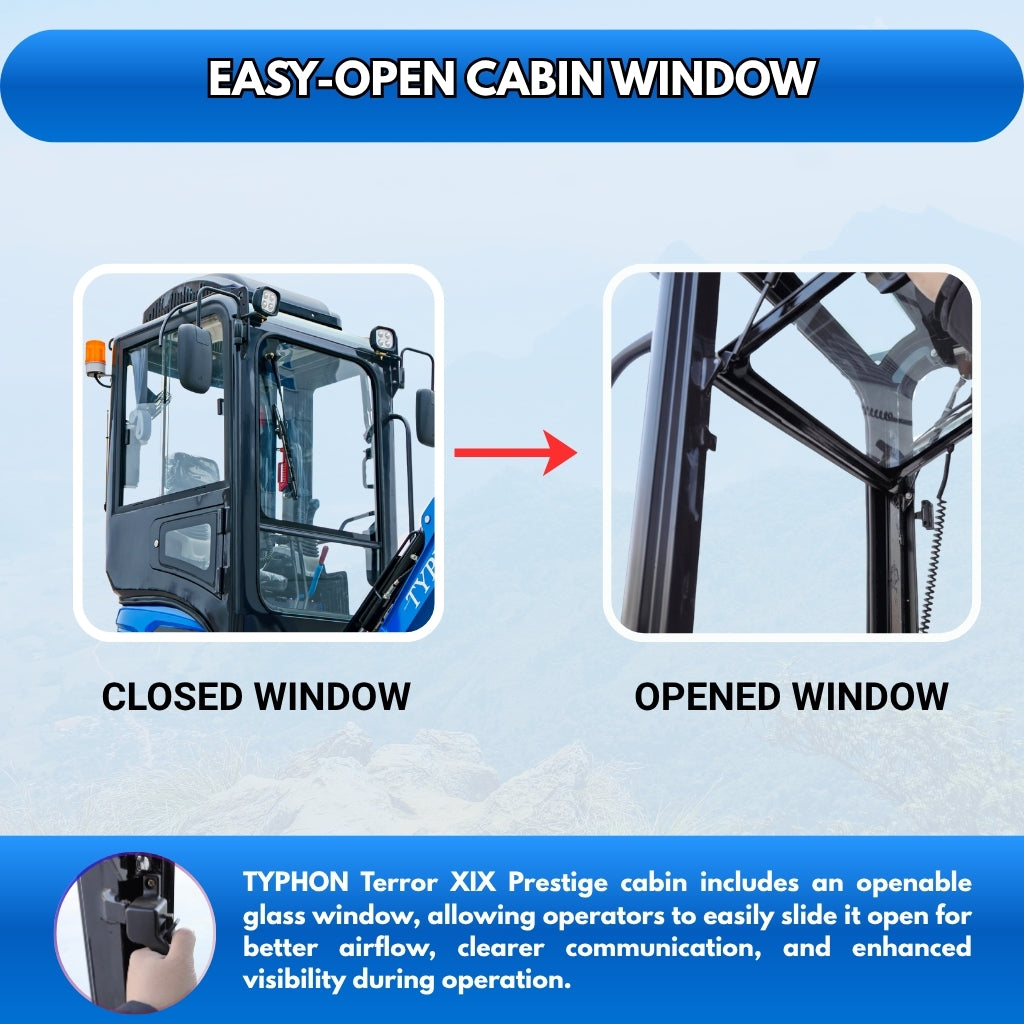

The operator environment is built for smooth, intuitive control. Pilot joystick controls, a hydraulic pedal system, and hydraulic-driven travel provide precise movement during digging, lifting, or maneuvering. The 415 mm bucket, 230 mm wide tracks, and hydraulic thumb clip improve stability and material handling, giving the operator confident control in any task. Inside the cabin, the tall interior height of 1530 mm and the 1050 mm seat-to-roof clearance create a comfortable workspace that supports long hours of operation without fatigue.

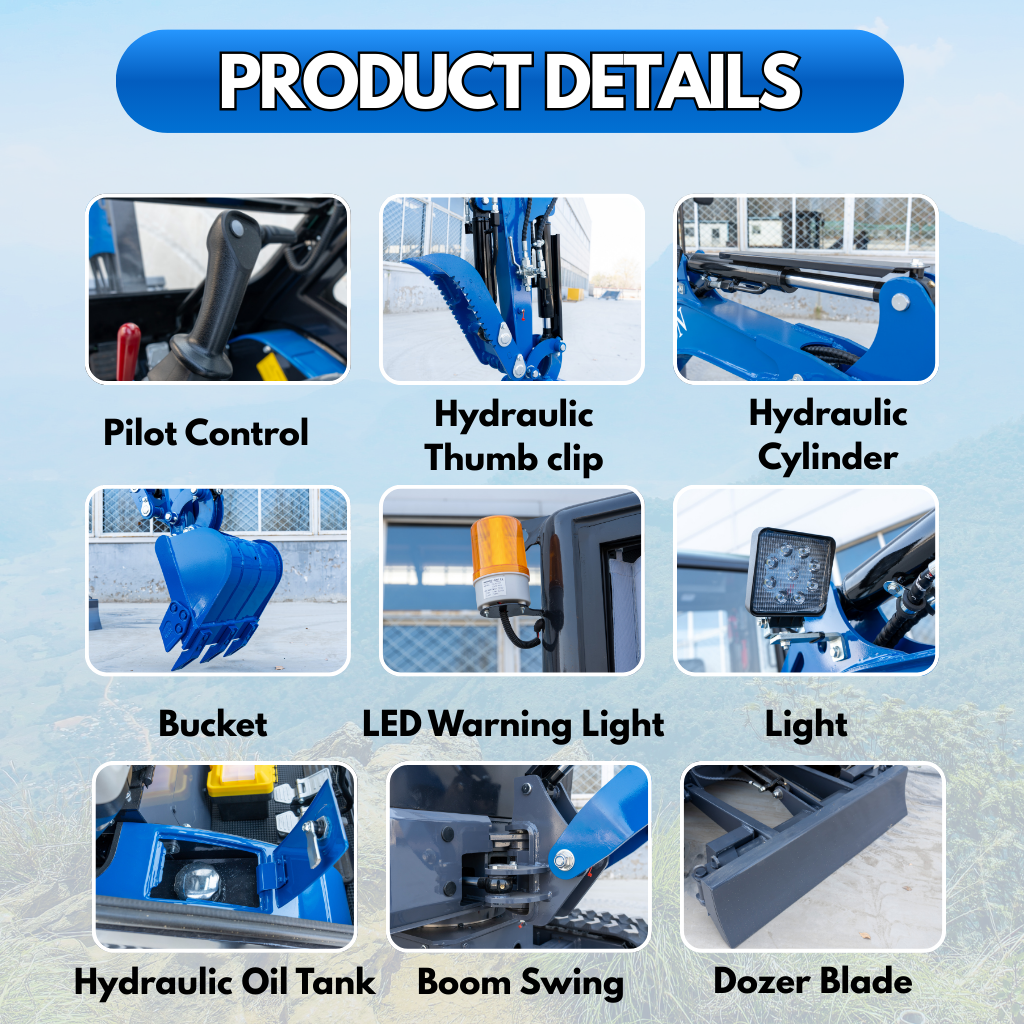

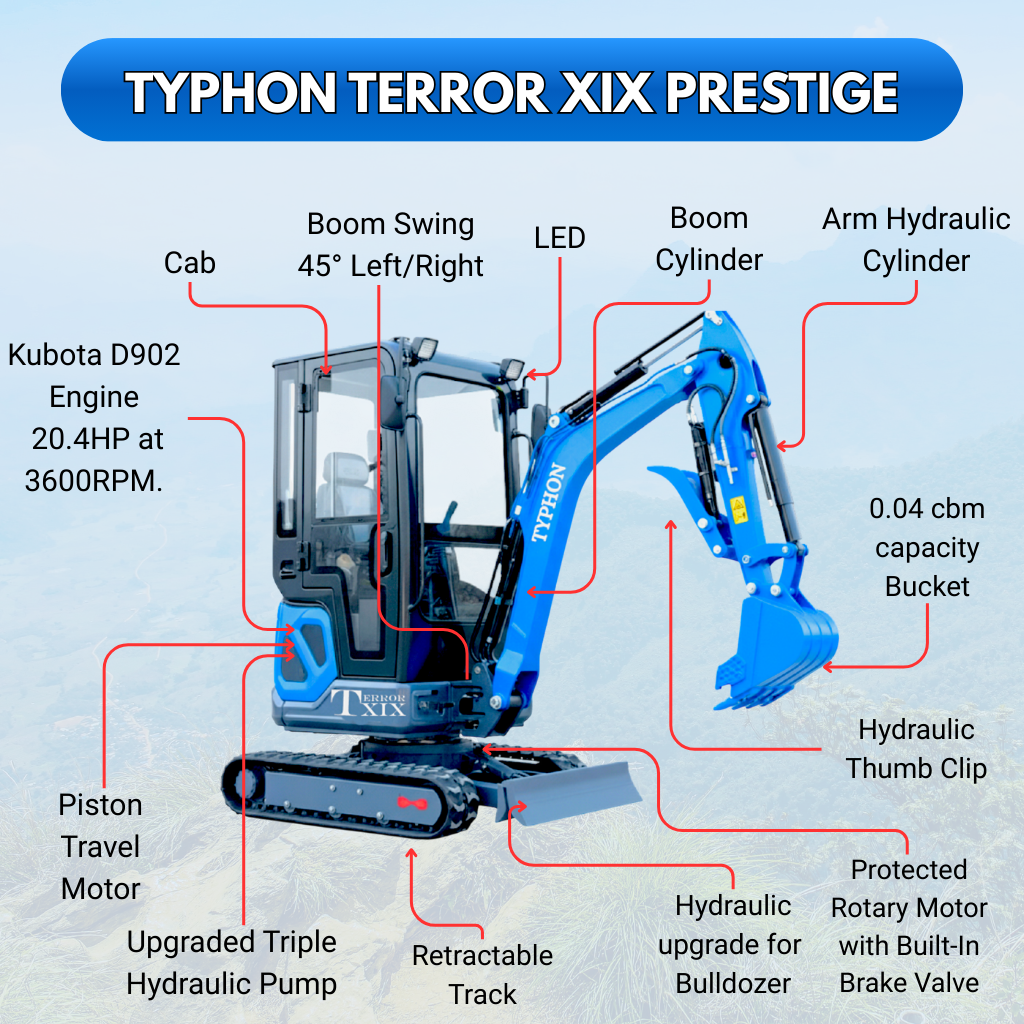

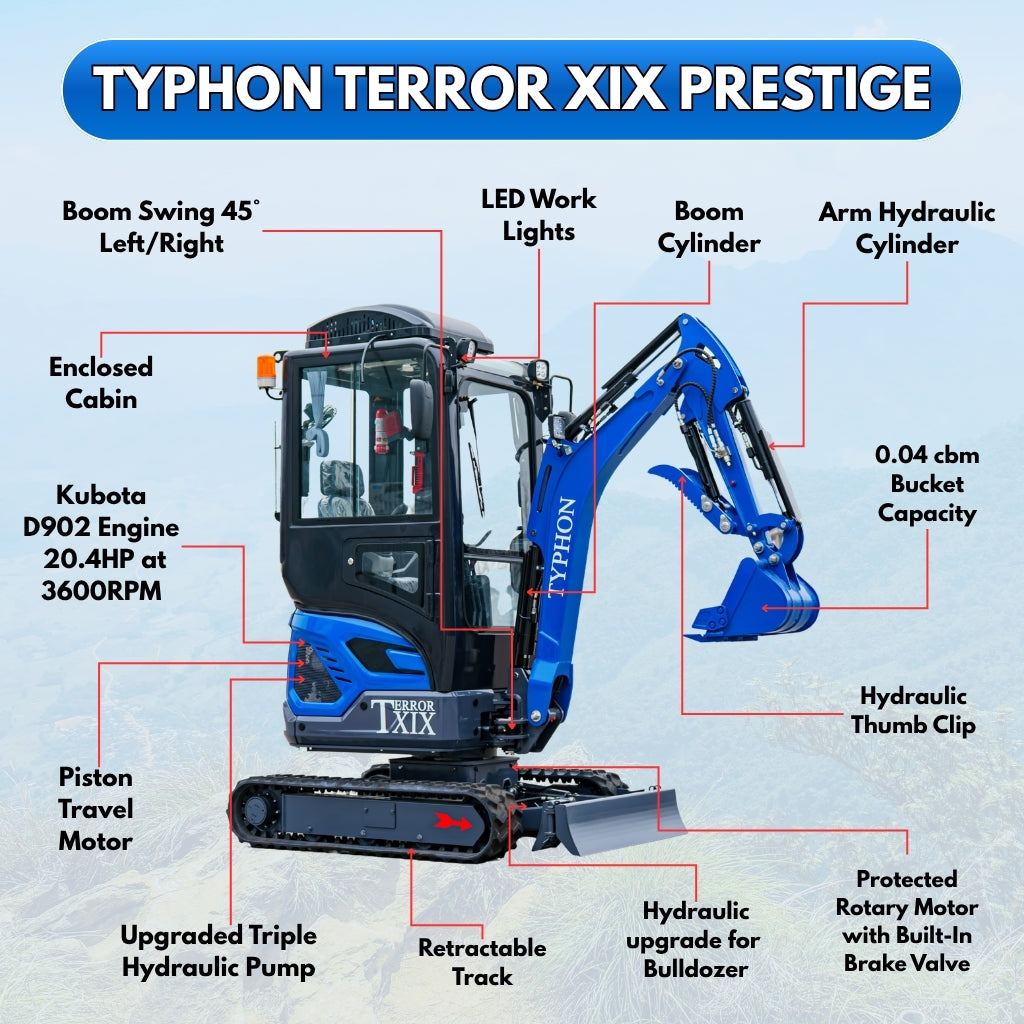

5. Premium Components :

• Rotary motors have a two-way relief valve that acts as a brake and prevents excessive back pressure.

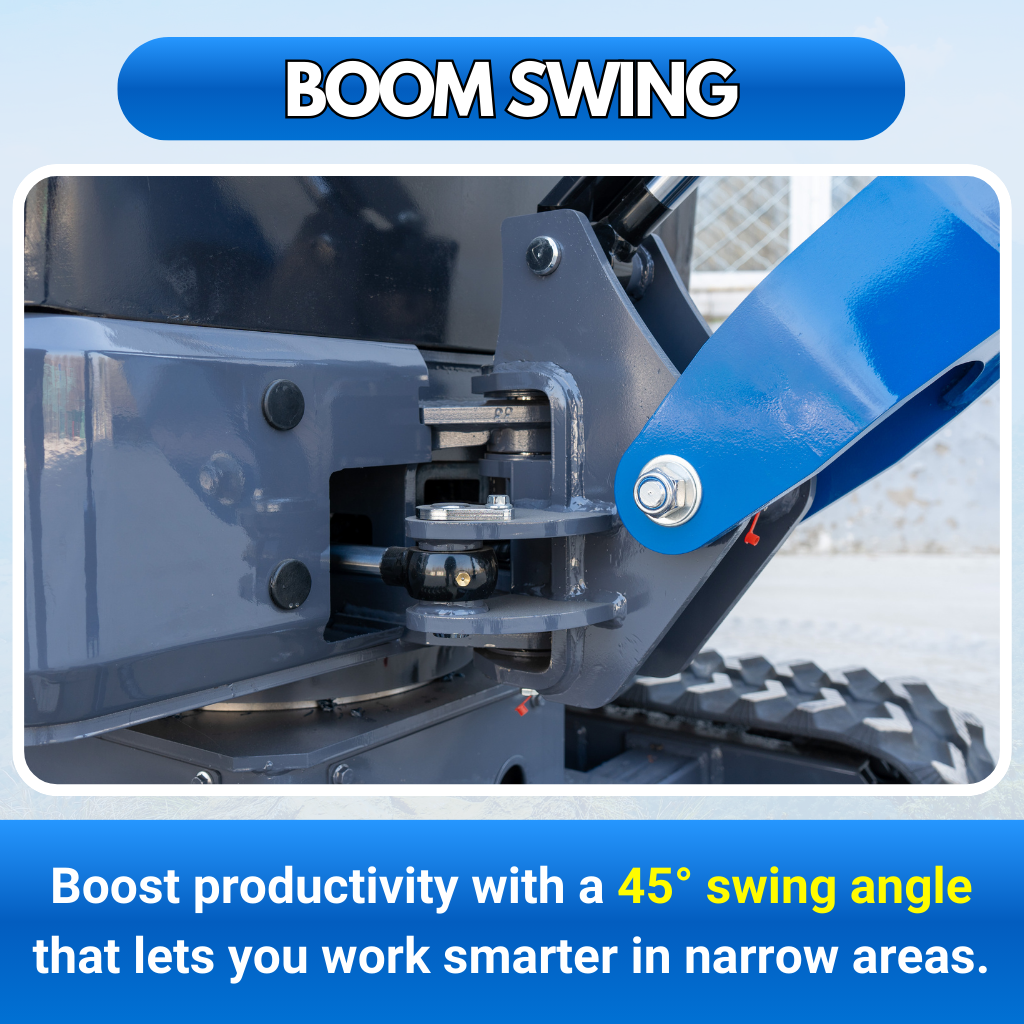

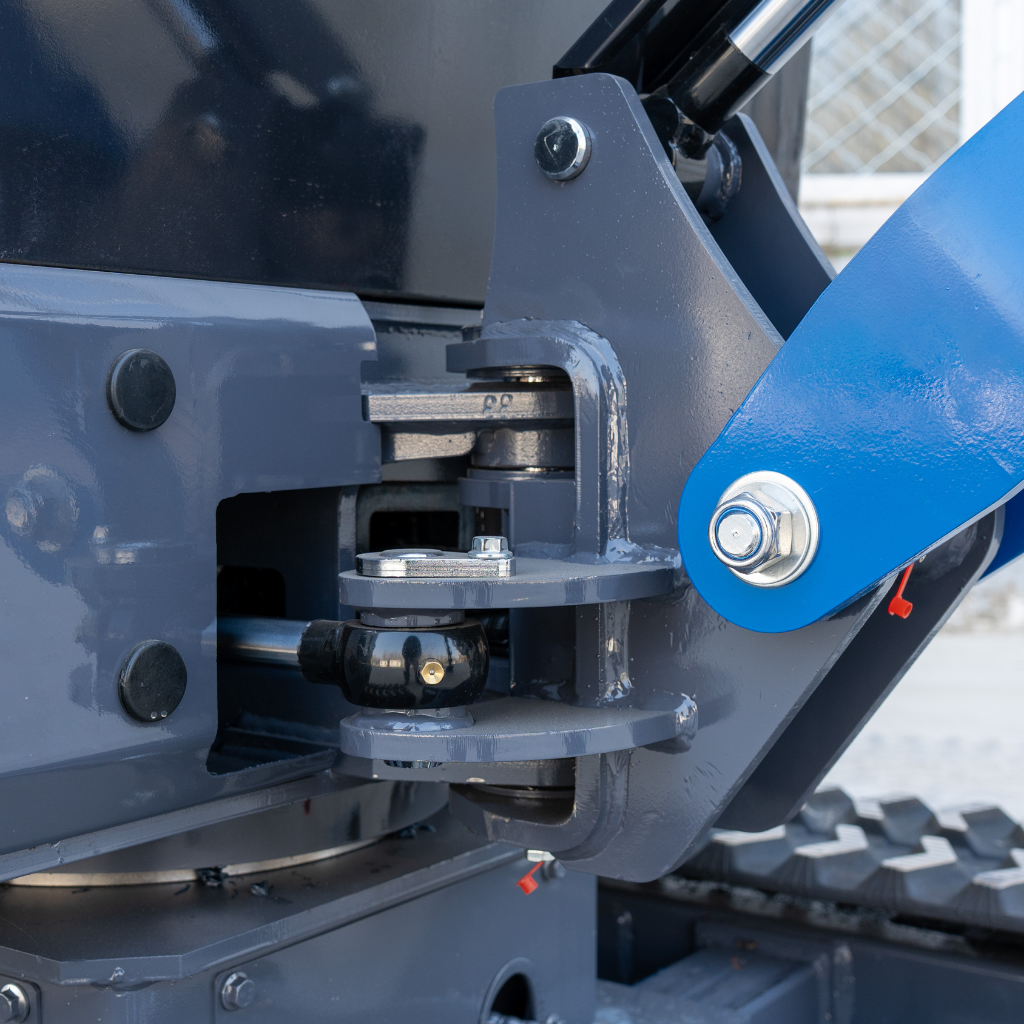

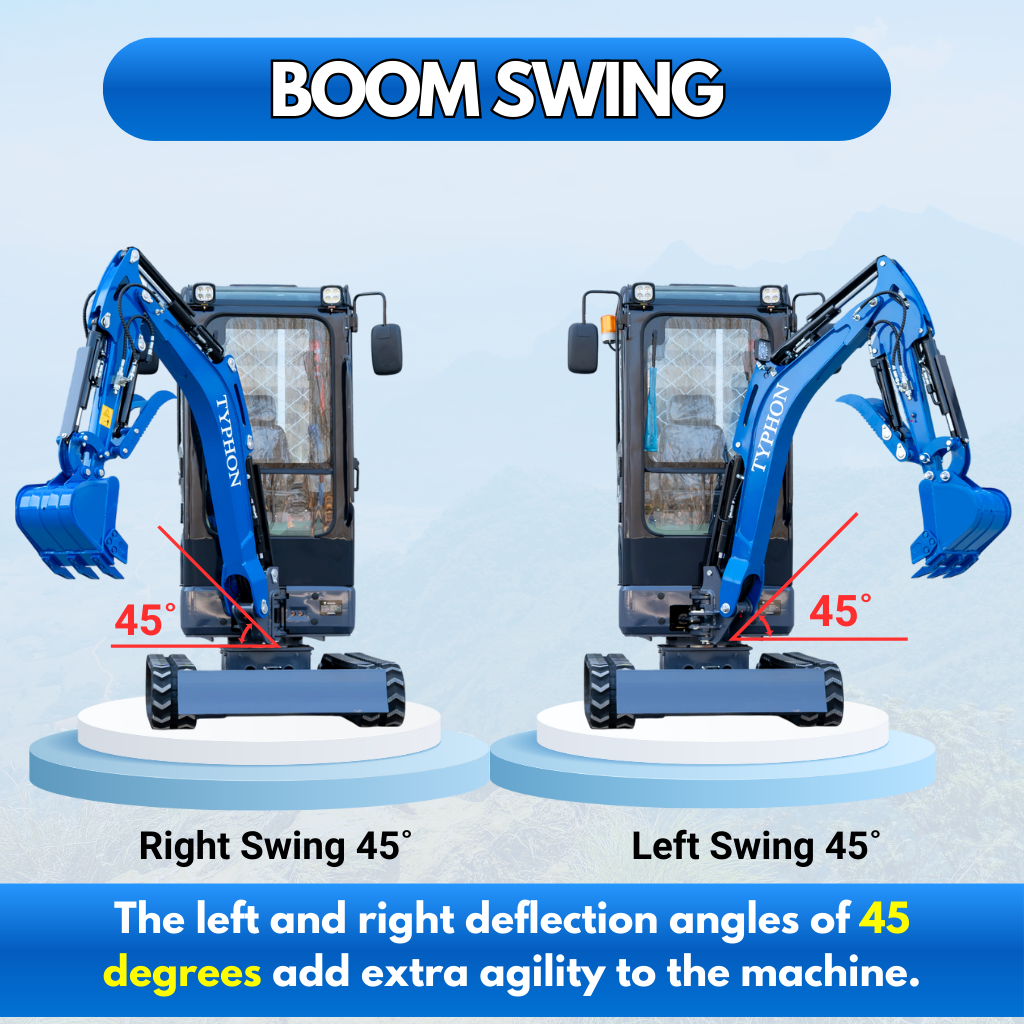

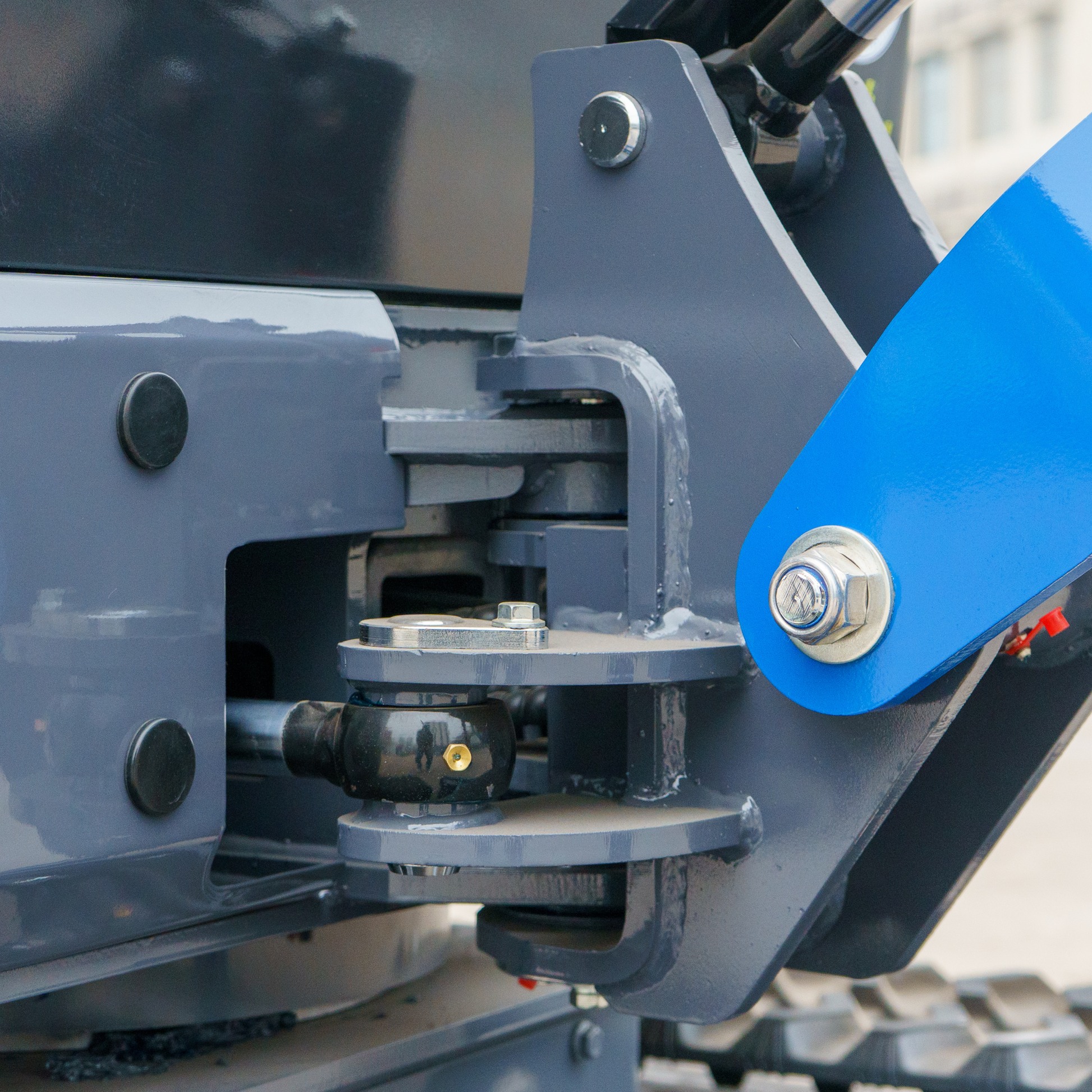

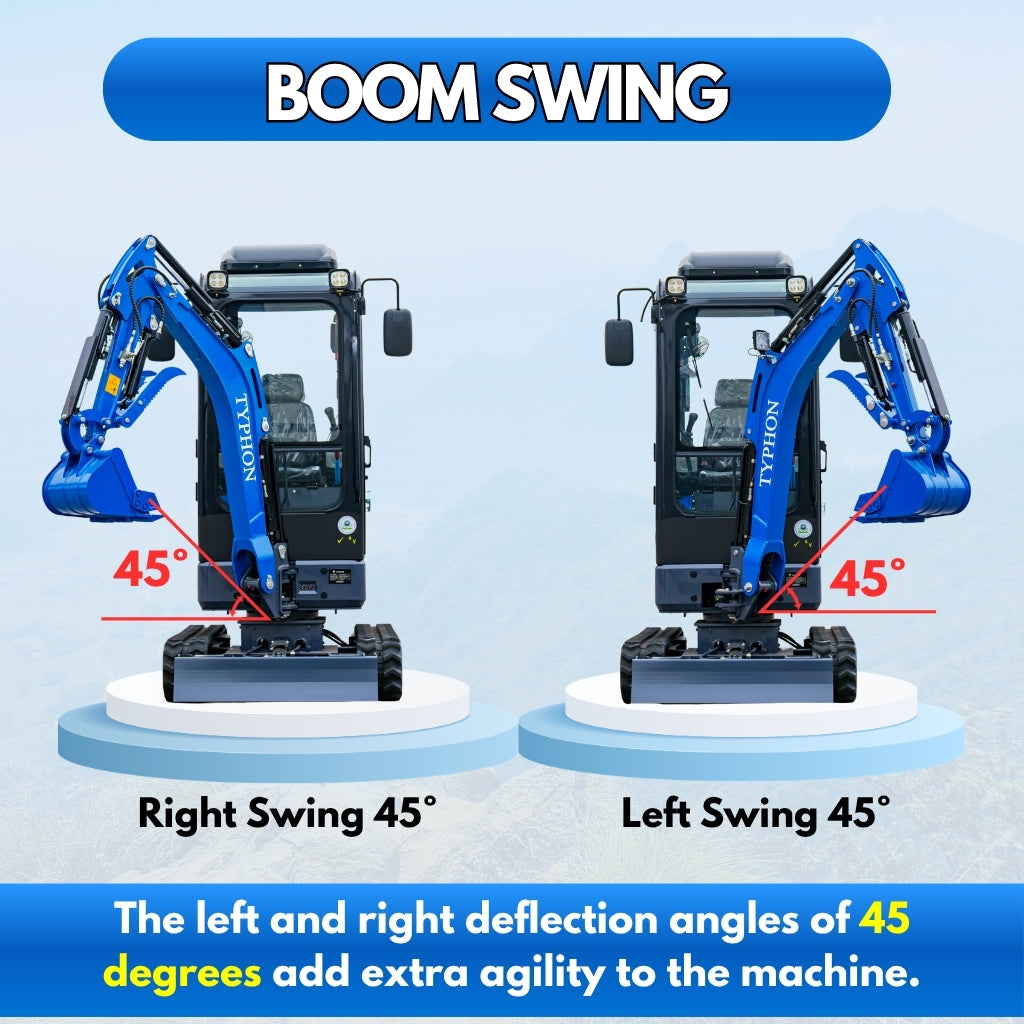

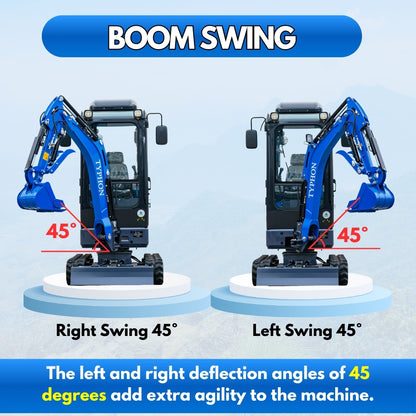

• Boom Swing the machine's agility is enhanced by 45-degree deflection angles to the left and right.

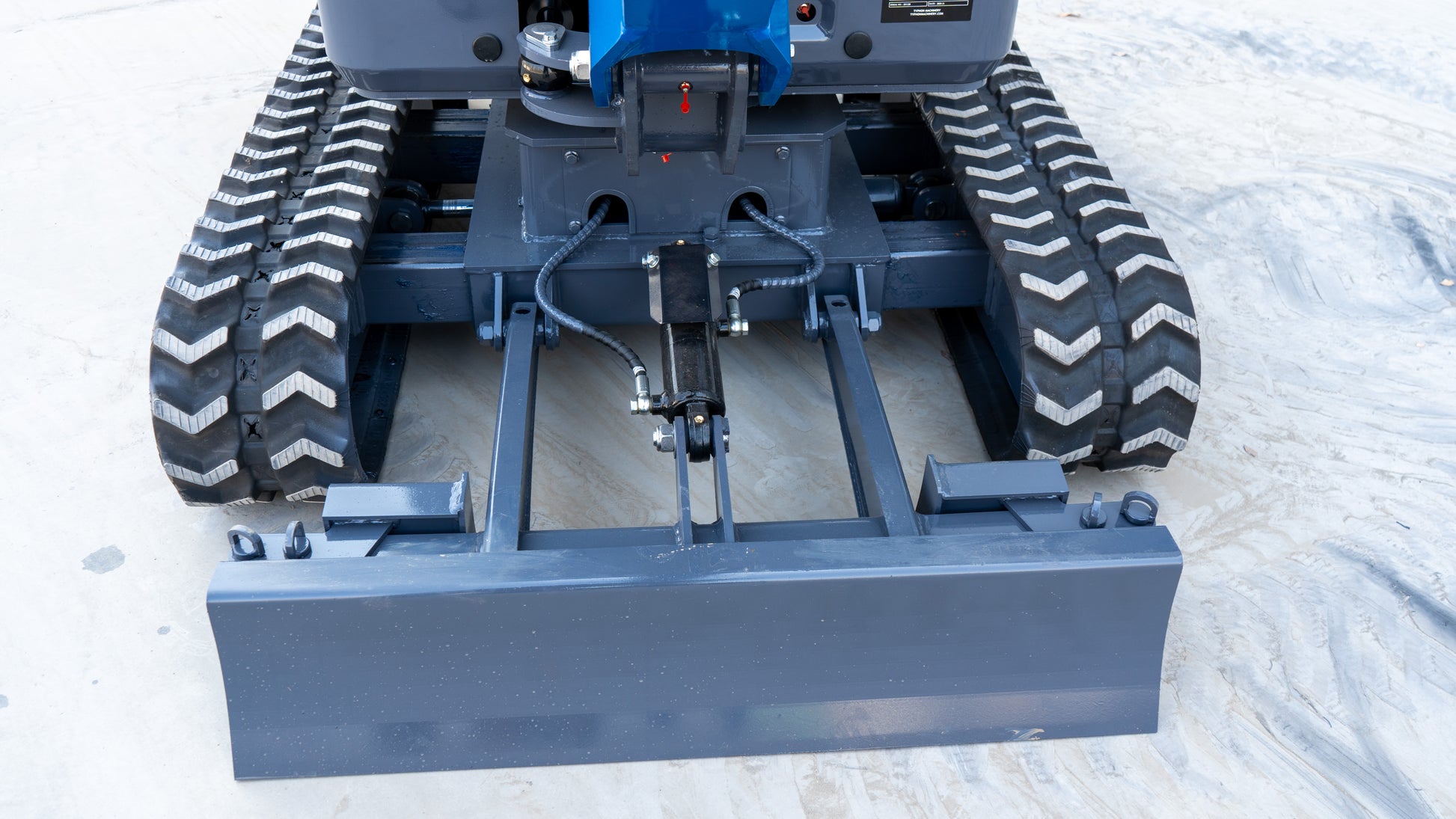

• The Bulldozer controlling handle now has hydraulic control, providing more precise height adjustments while in motion.
• Upgraded Triple Hydraulic pump provides 15% faster hydraulic flow than conventional two-ton excavators. Increased hydraulic flow can boost operating speed and make processes more efficient.
• Three-way stop valves These valves reroute the flow of an existing hydraulic line to add a hydraulic function, such as an auger or thumb clip attachment.
• Hidden single-speed motors work with a sprocket-integrated final drive motor assembly. This style has a slimmer profile and can enable smoother ride. Single-speed variants are better suited for situations requiring continuous, regulated speed rather than fast action.
• has a plunger pump instead of the typical gear pump. Long service life, simple maintenance, and steady hydraulic flow and pressure are characteristics of plunger pumps.

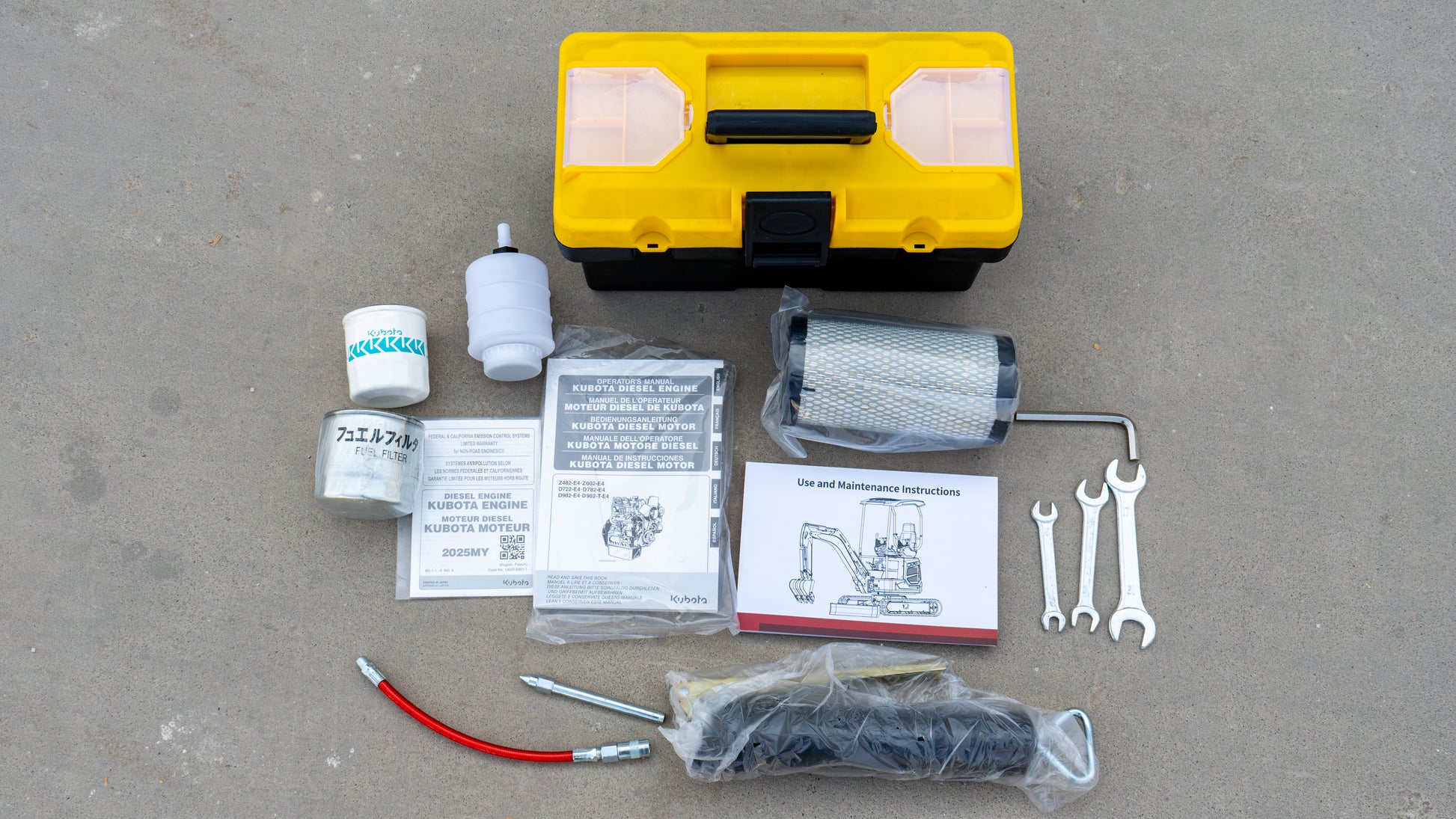

6. Included Accessories :

Every TYPHON TERROR XIX Prestige comes fully equipped with:

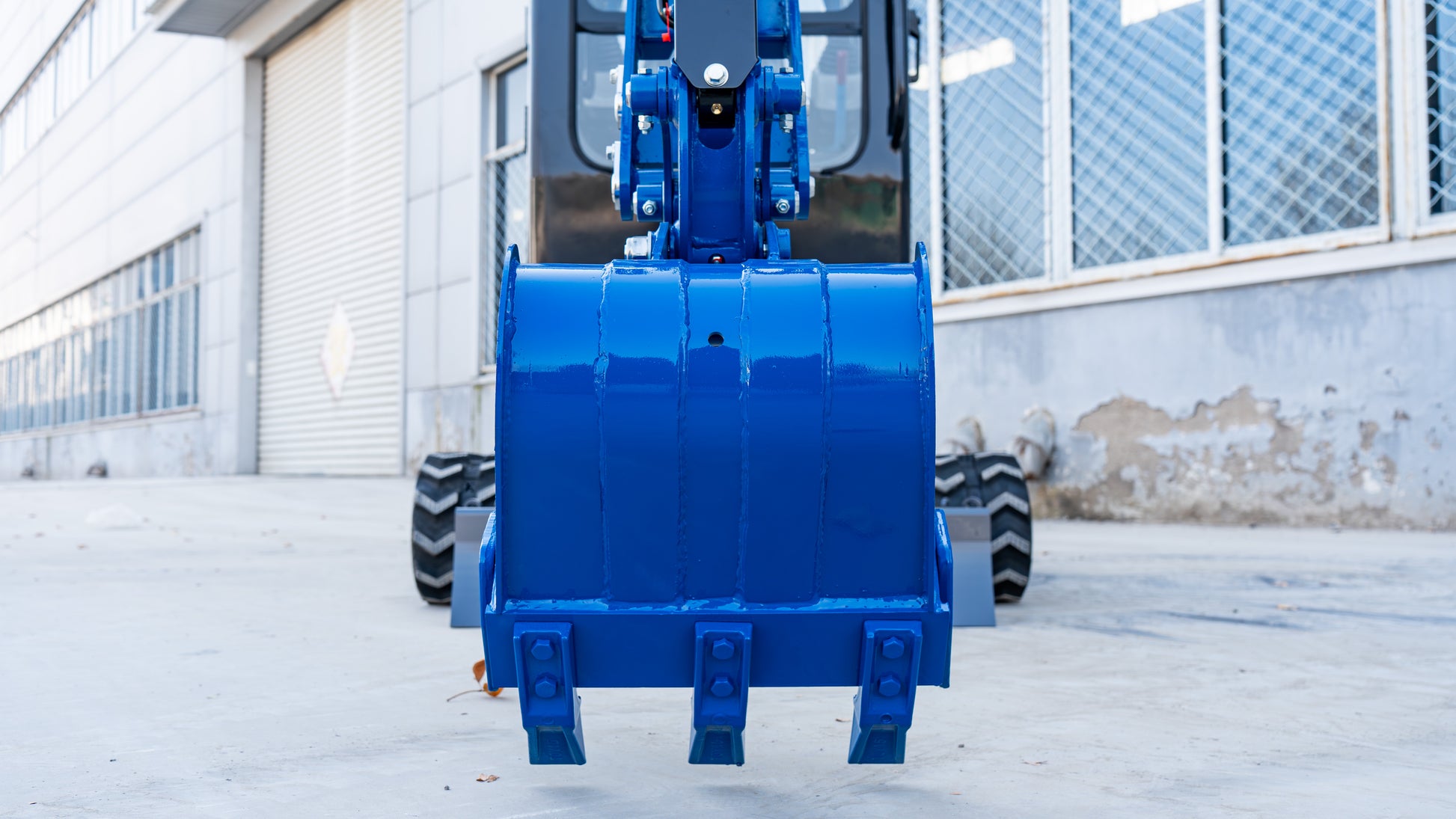

• 1 x Standard Digging Bucket (415 mm)

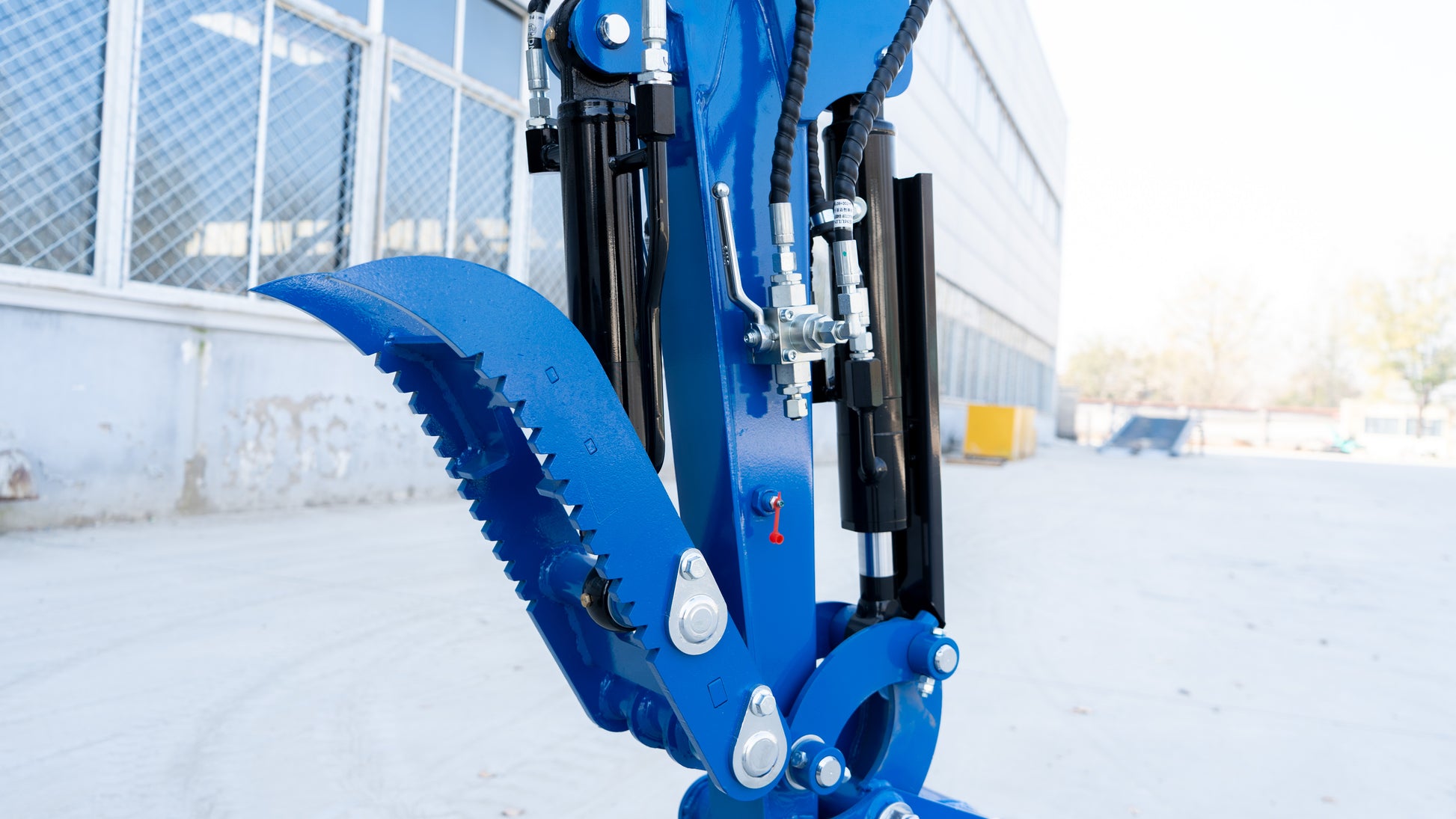

• 1 x Hydraulic Thumb Clip
• 1 x Toolbox

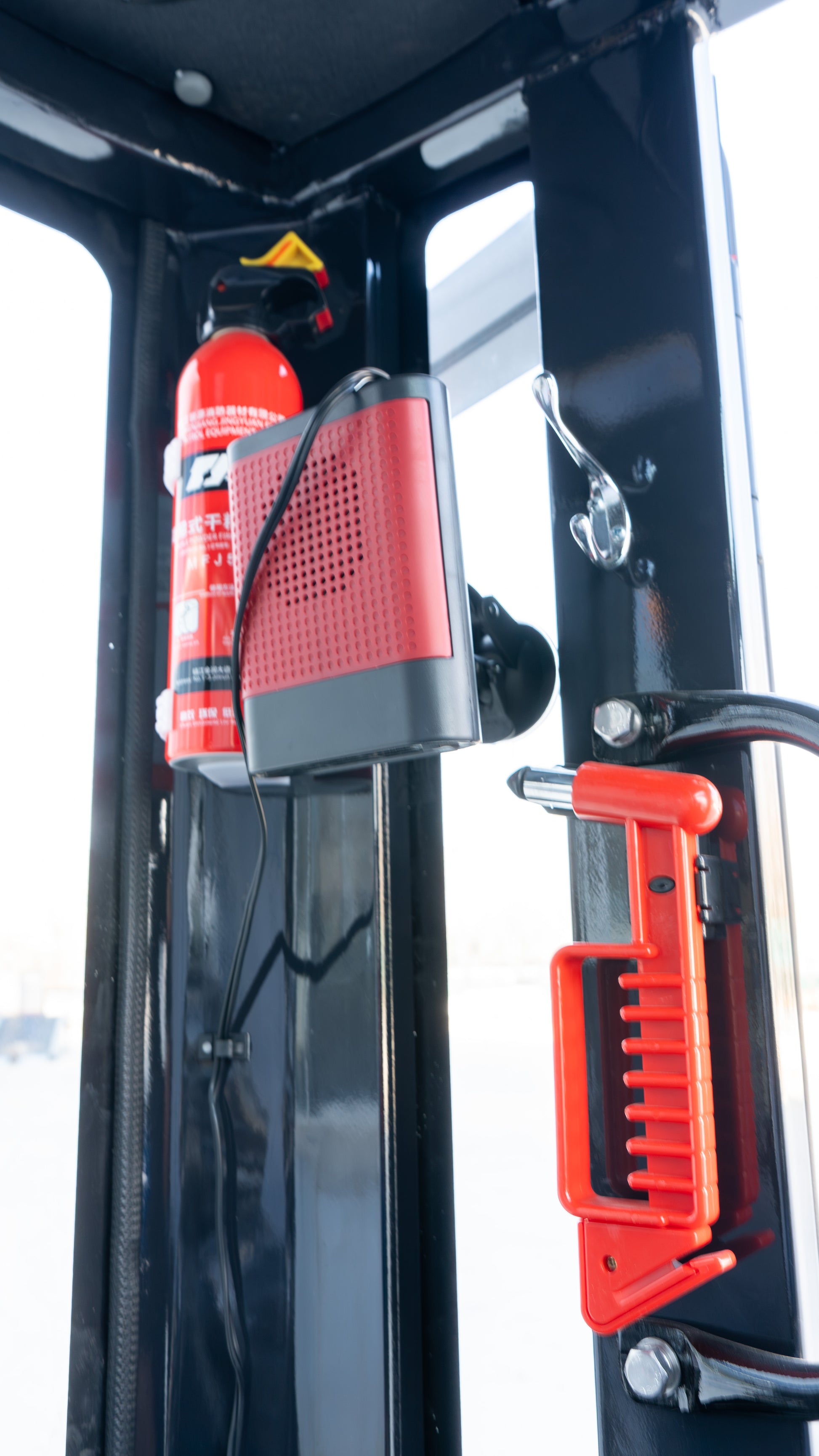

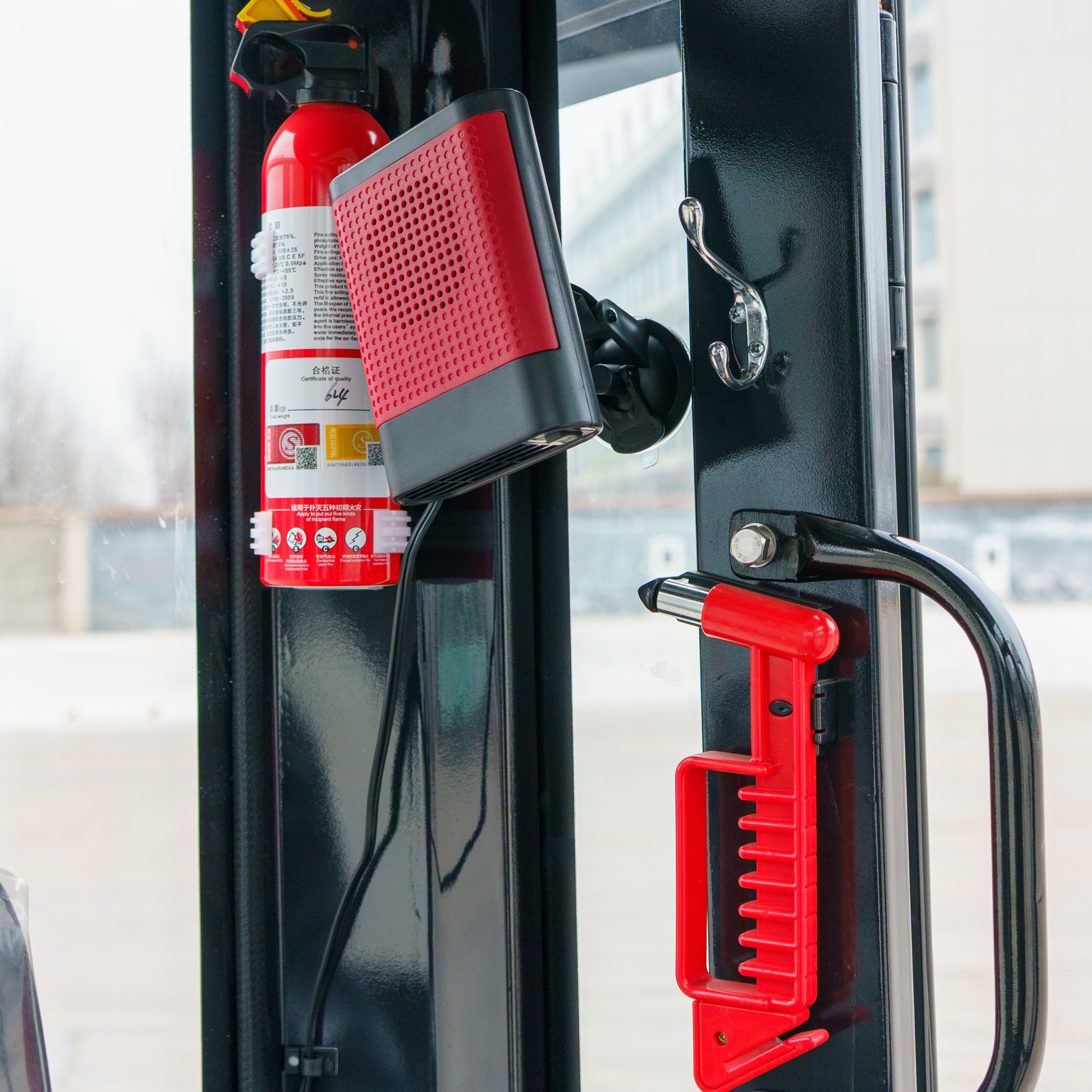

• 1 x Fire Extinguisher
• 1 x breaking windows & cutting seatbelts
• 1 x Digital instruction manual

+Summary :

The TYPHON TERROR XIX Prestige is compact, efficient, and designed for serious work. It allows you to operate heavy machinery in tight locations without sacrificing strength. With modern hydraulics, retractable tracks, a boom swing, and Kubota diesel dependability, this compact excavator is a top-tier machine for construction, agriculture, and landscaping.
