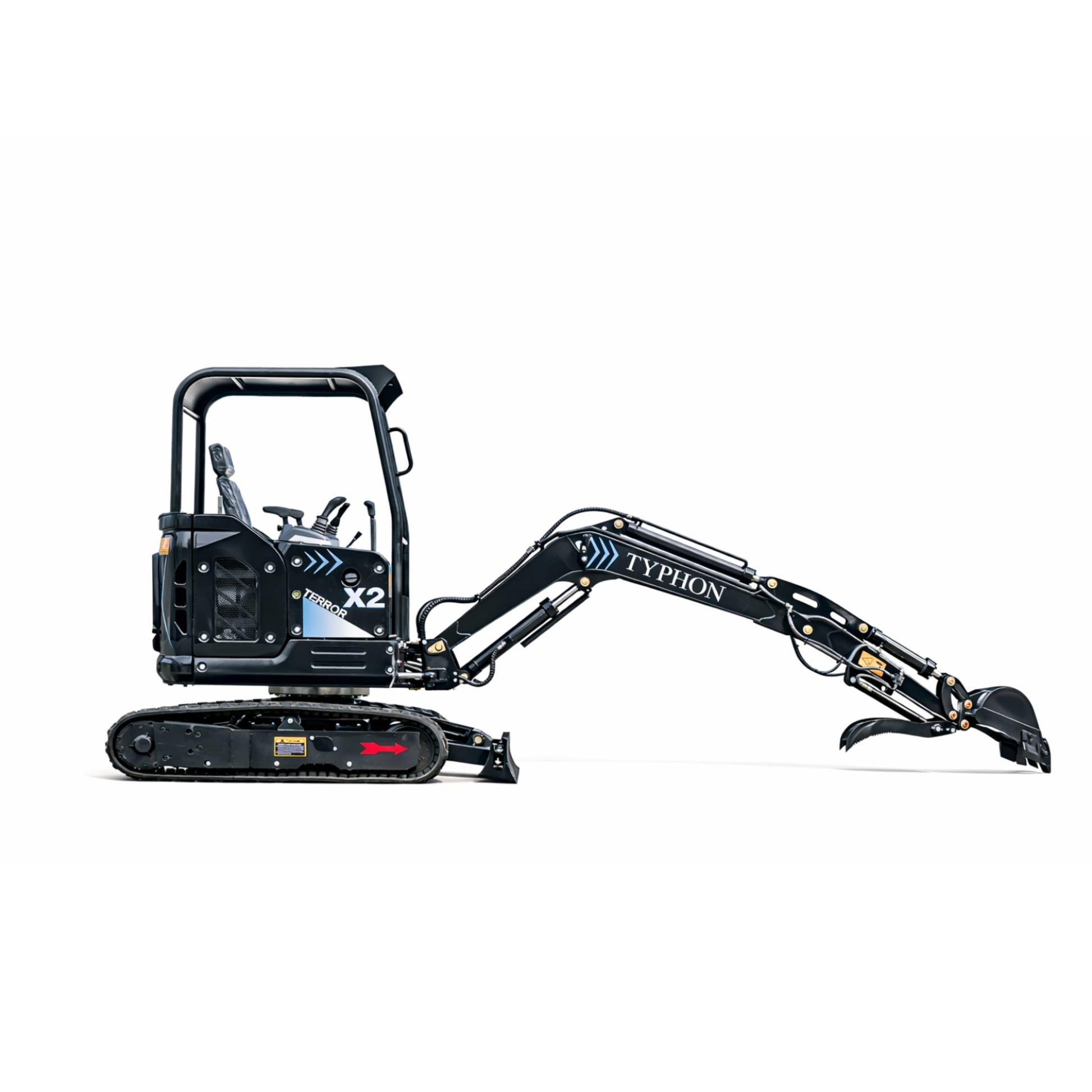

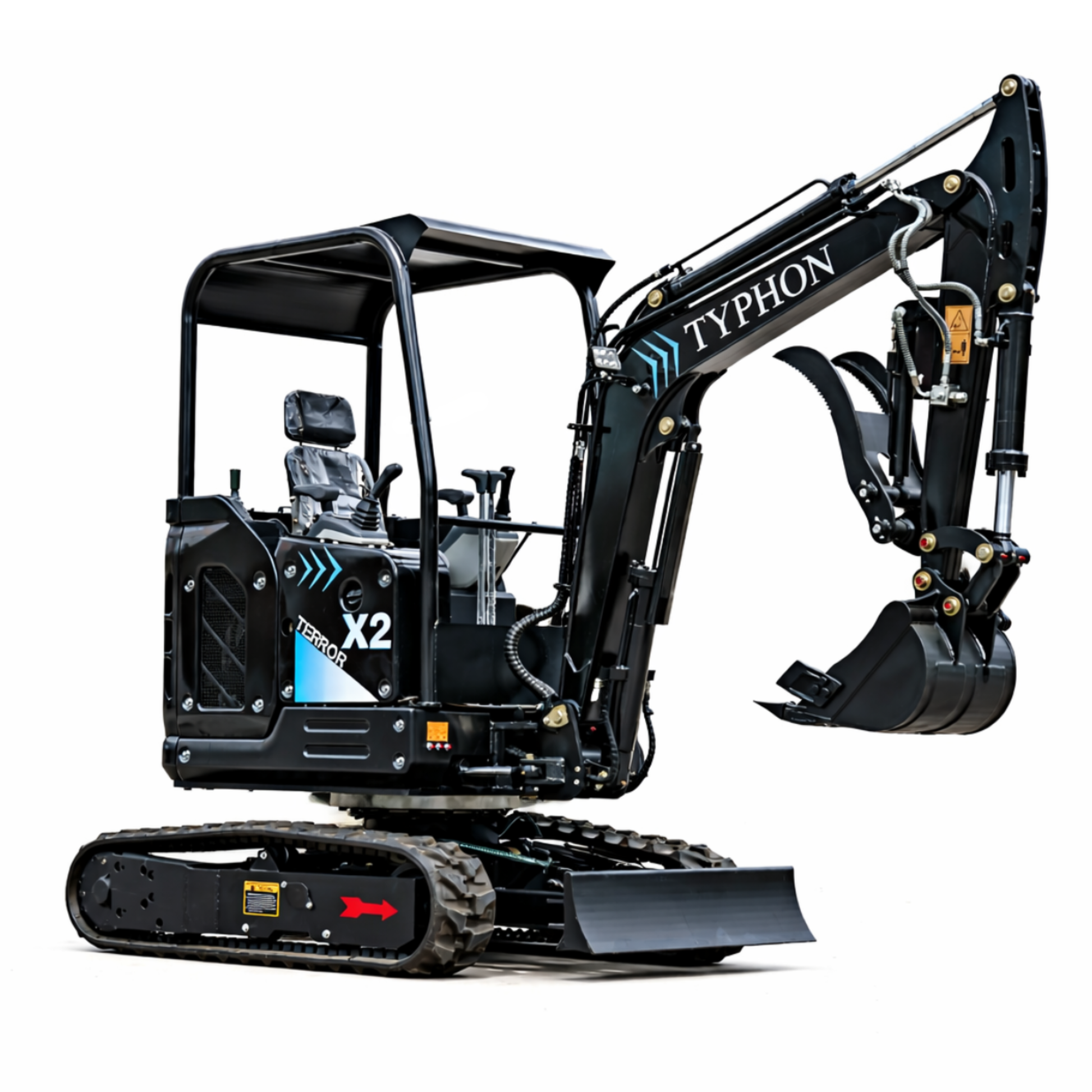

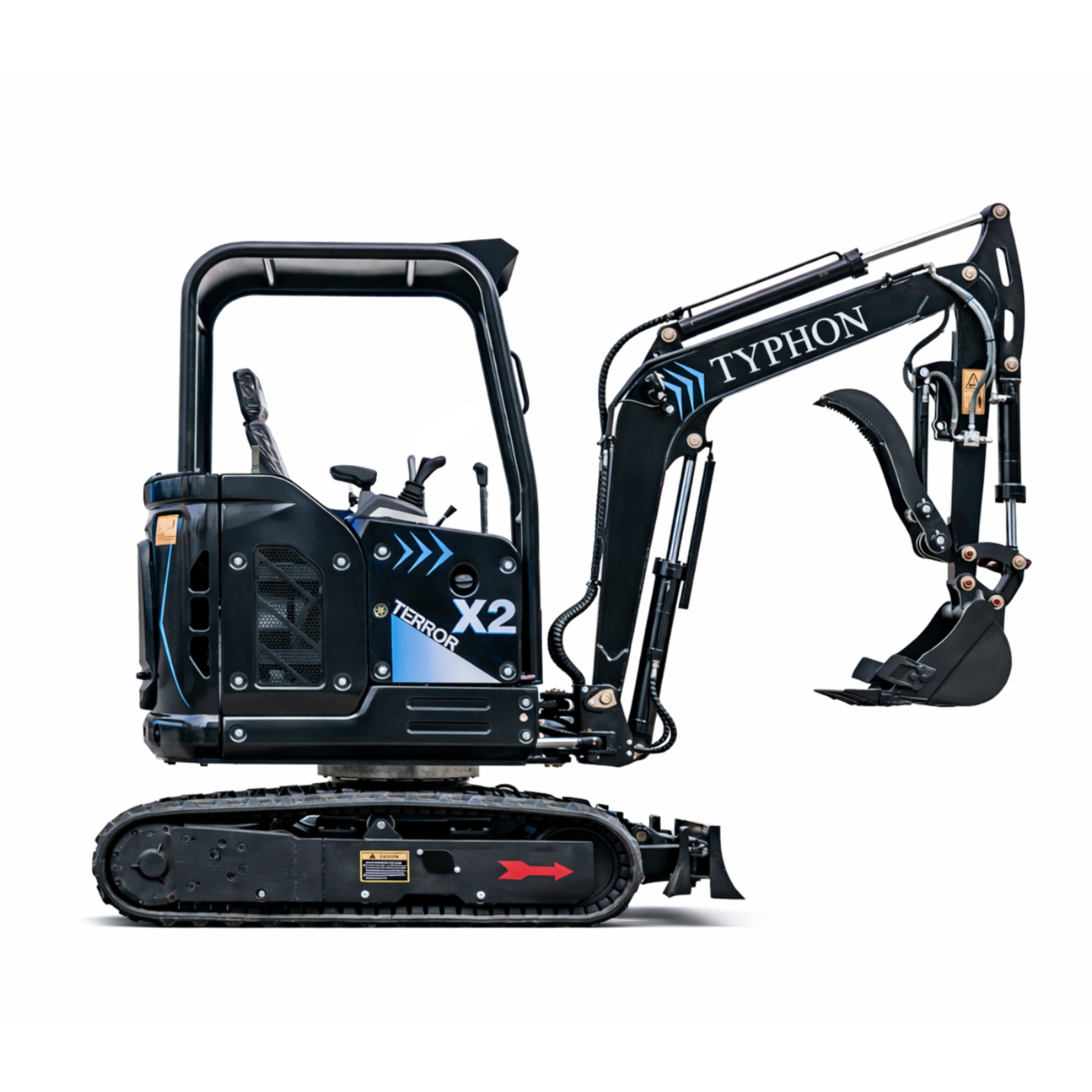

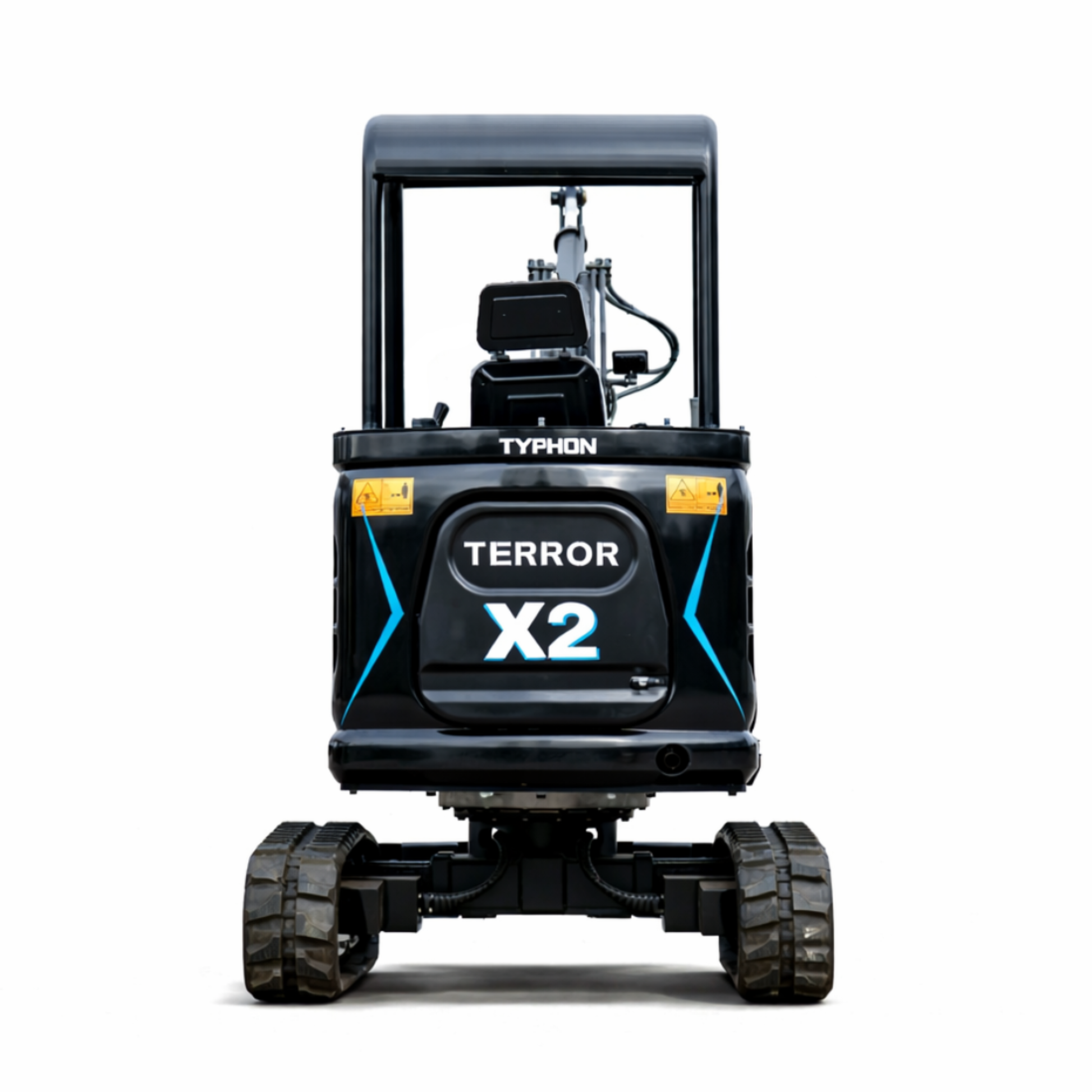

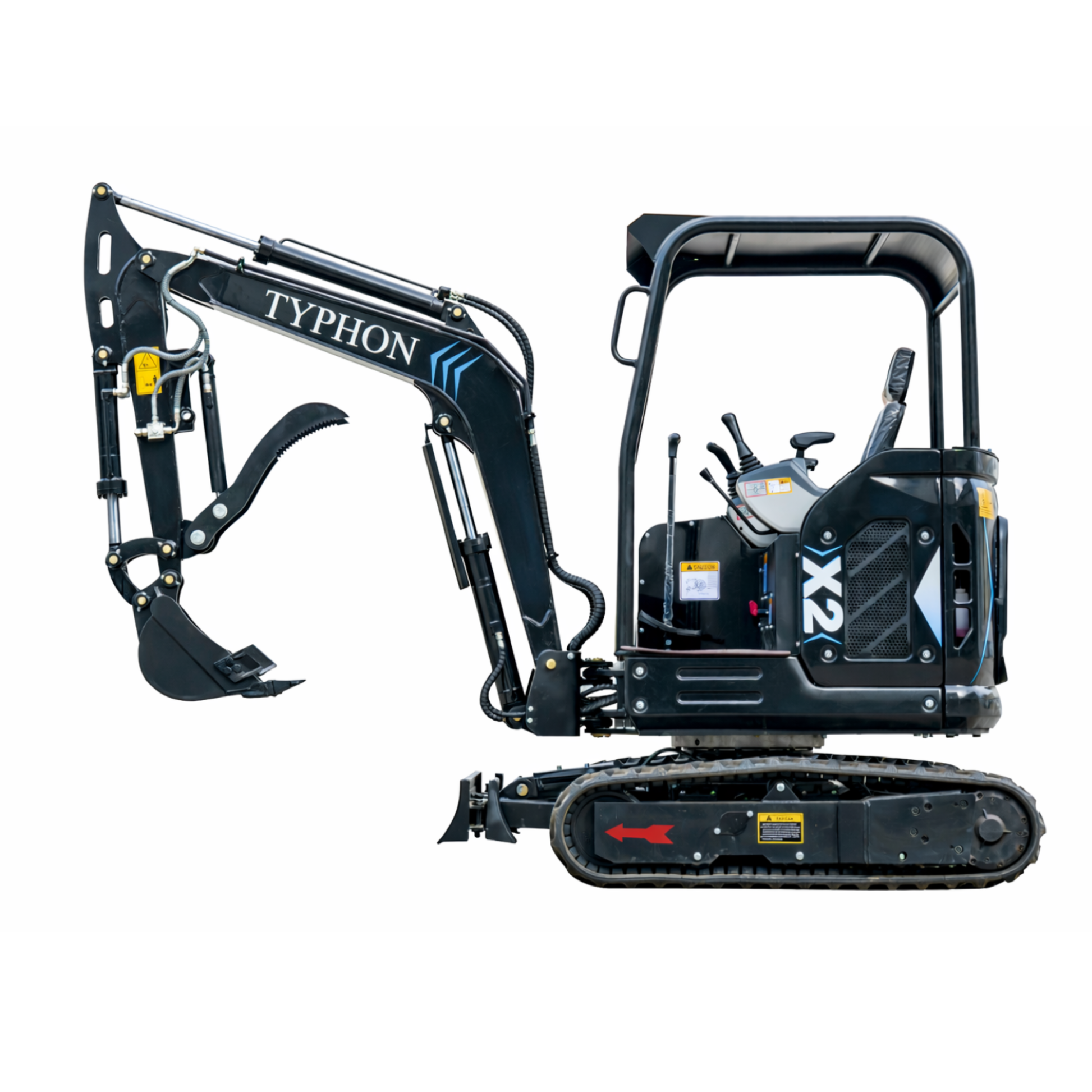

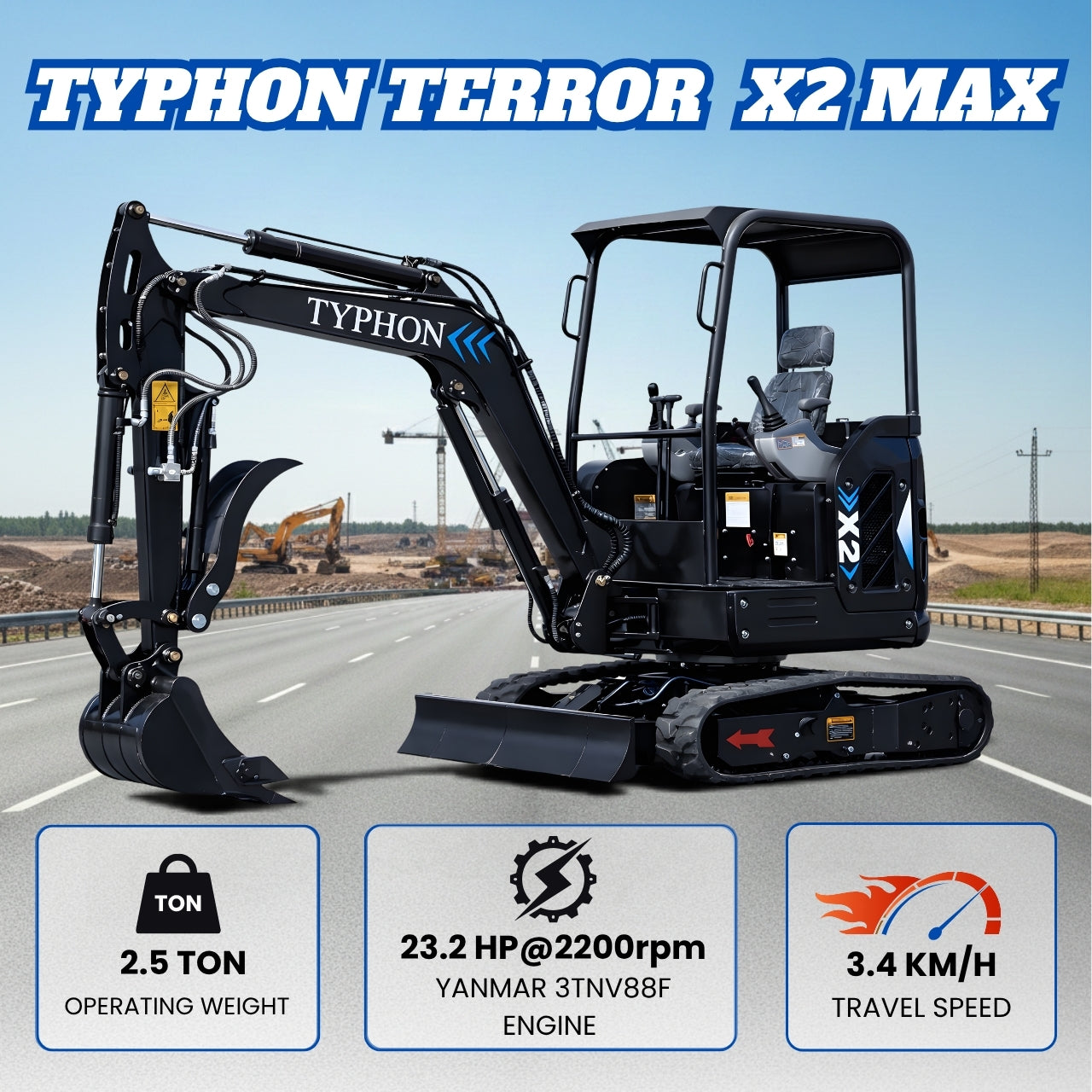

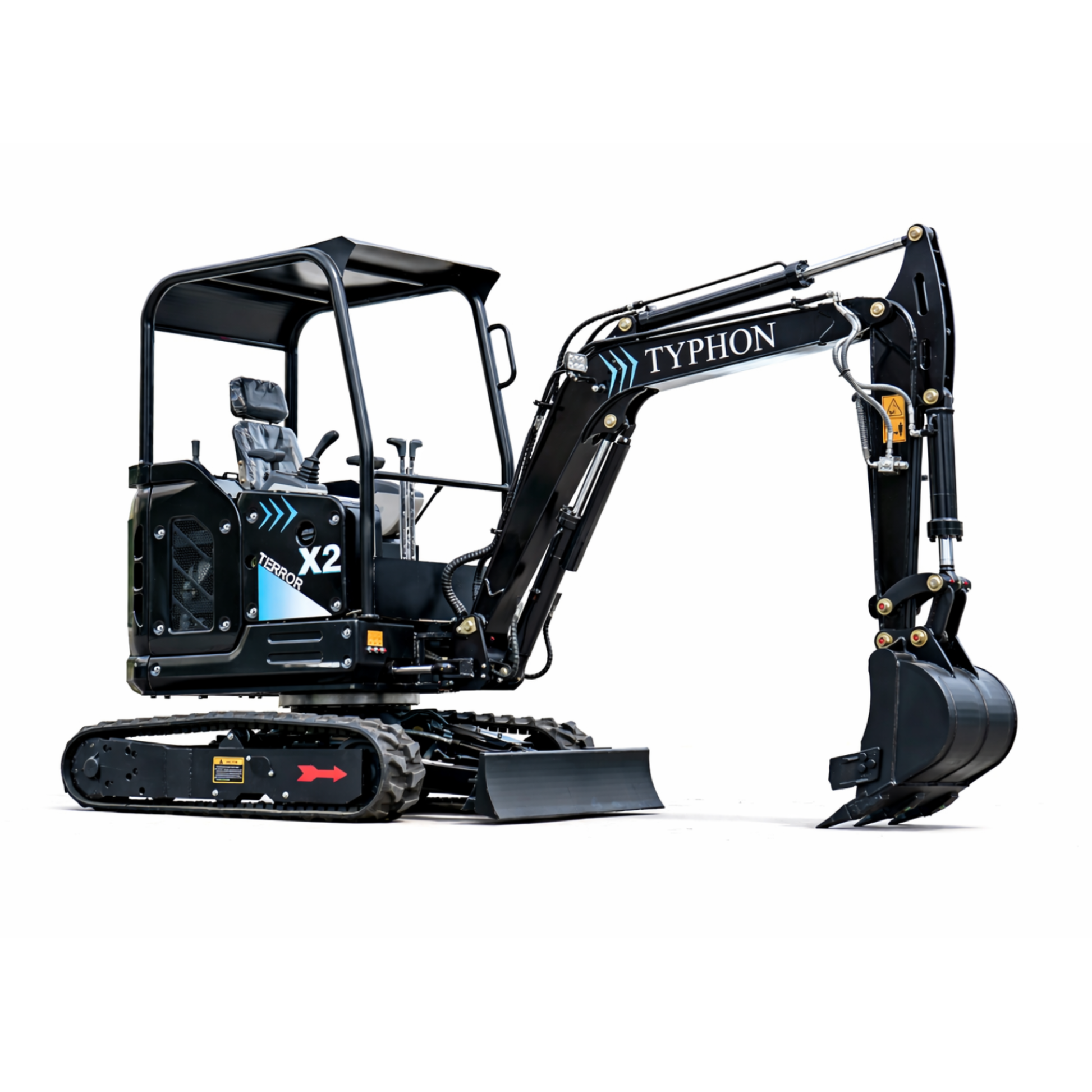

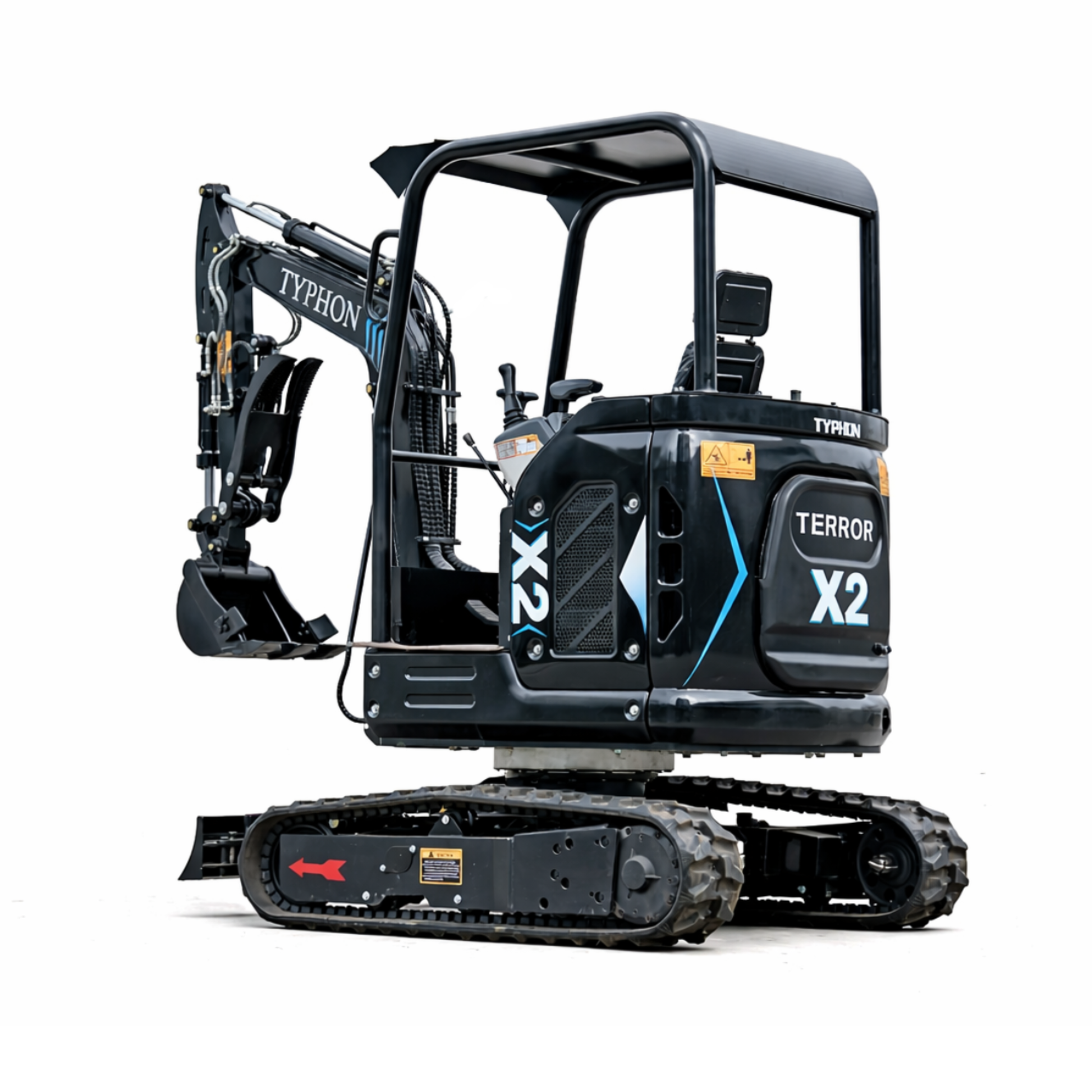

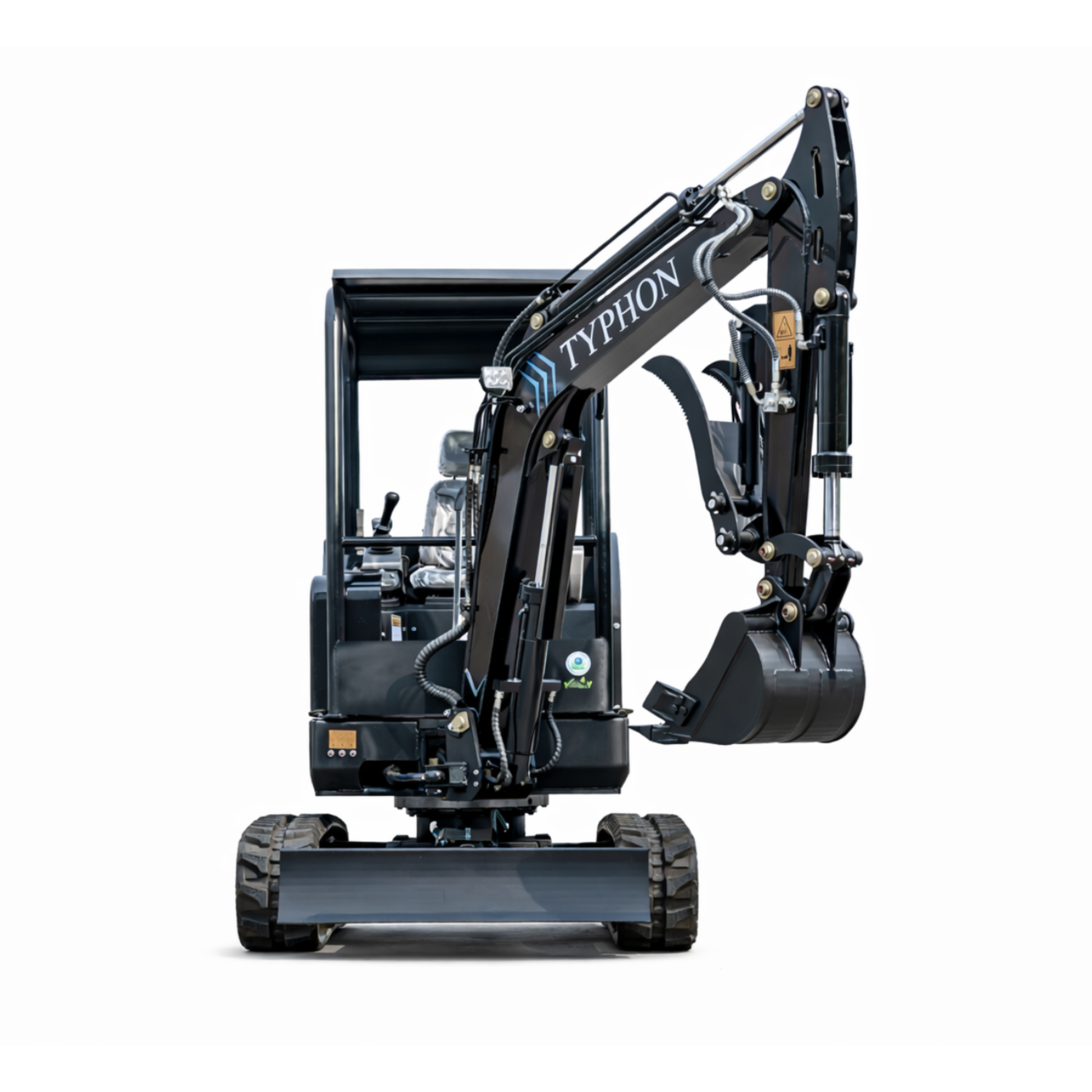

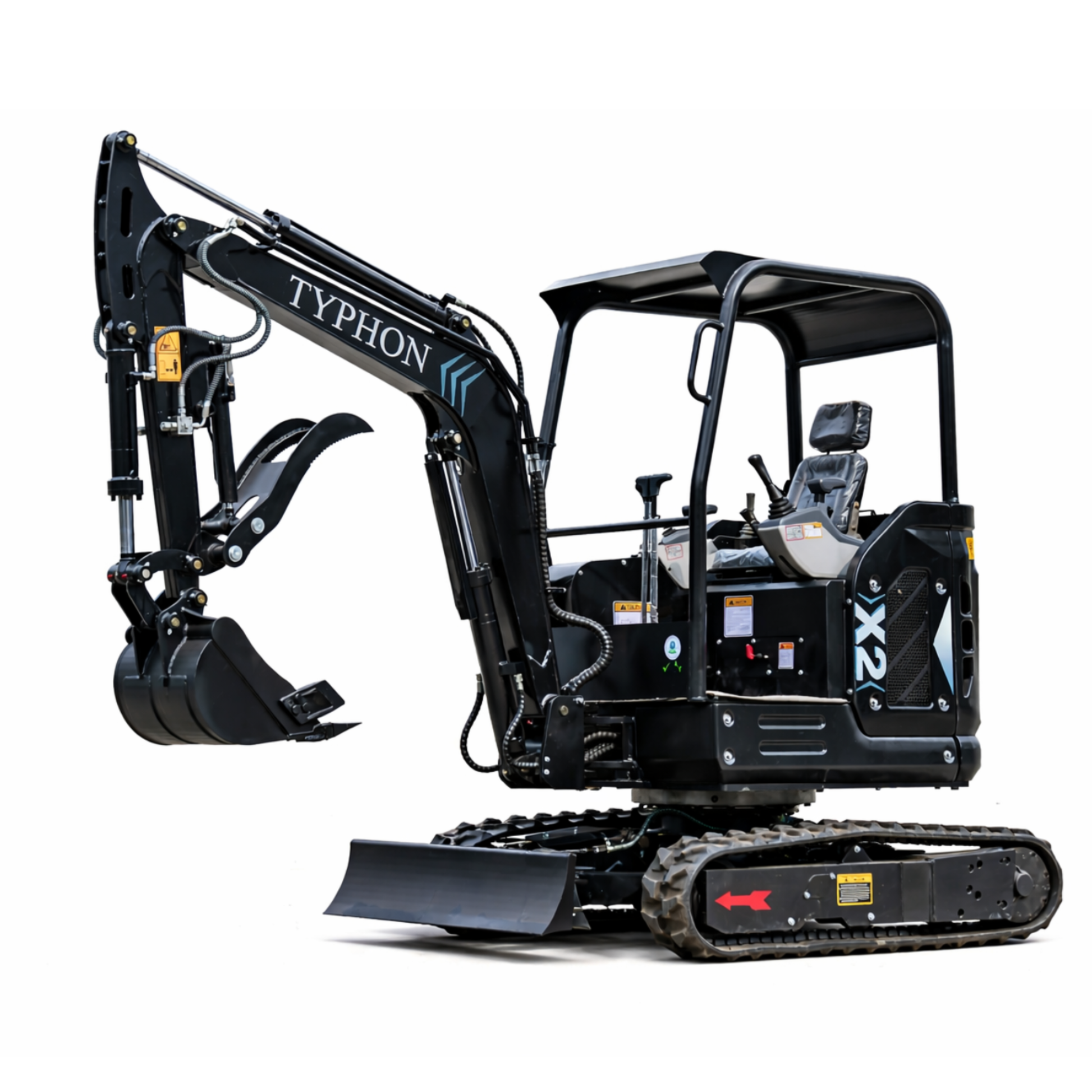

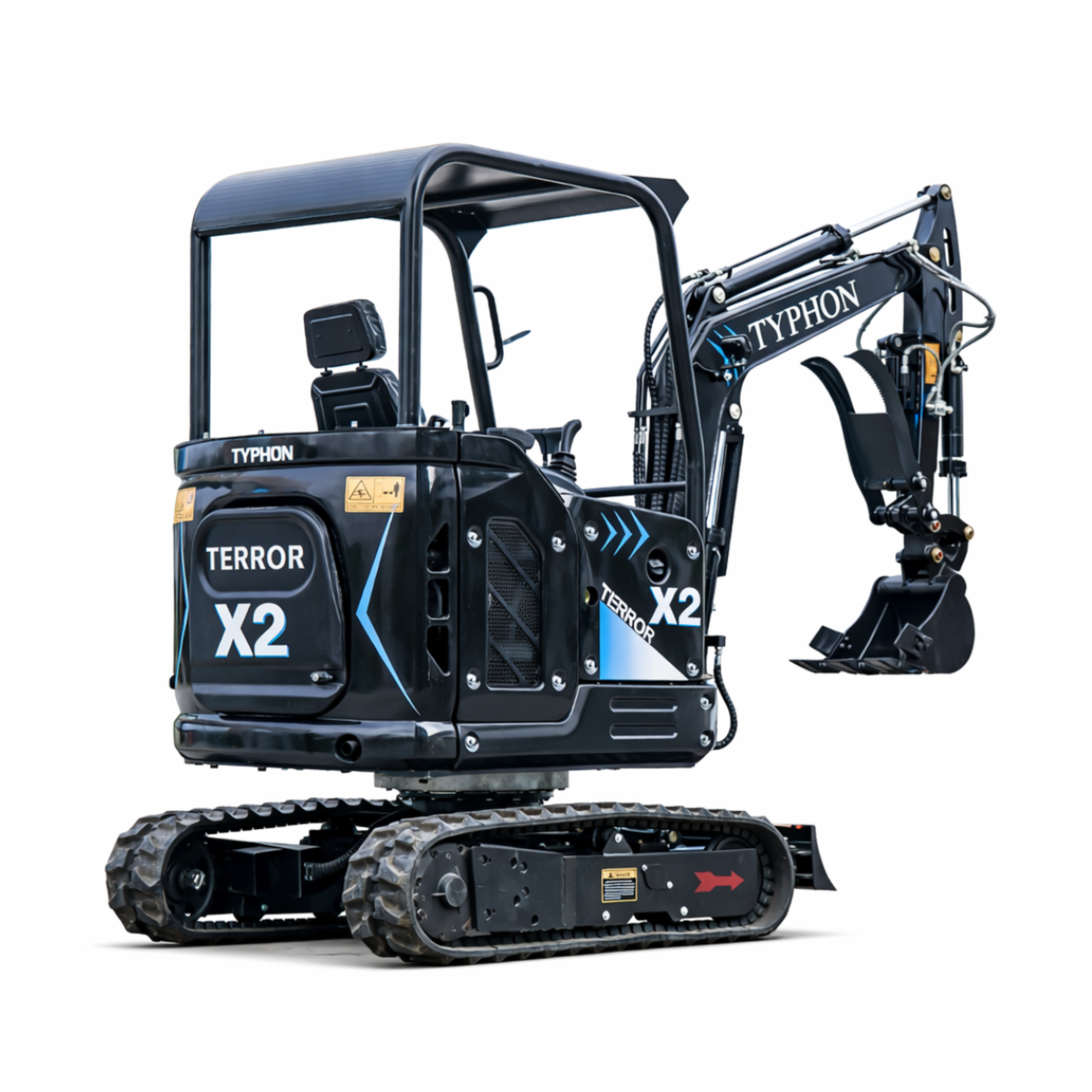

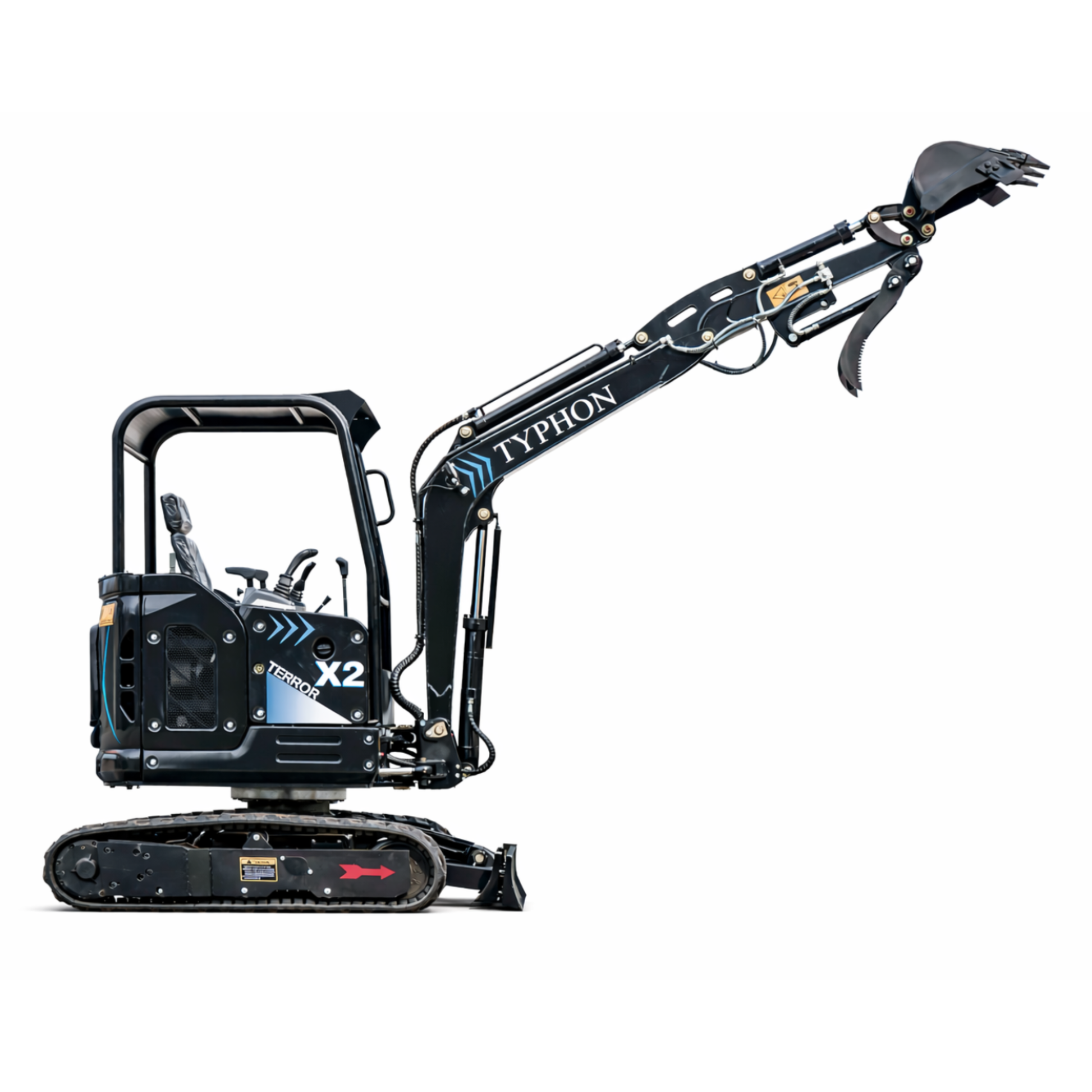

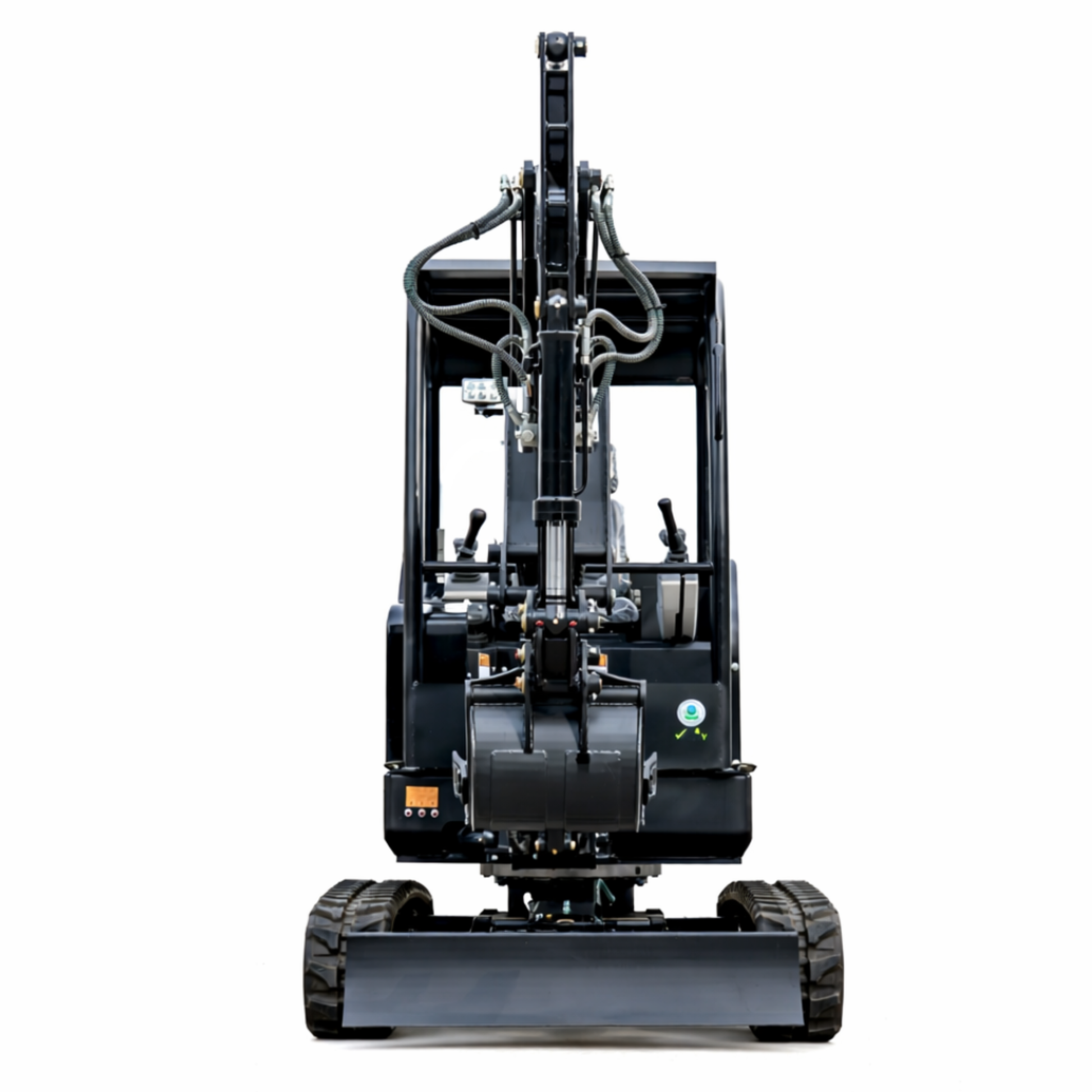

TYPHON TERROR X2 MAX 2.5Ton Mini Excavator  Yanmar Engine, Hydraulic Oil-Cooled, Boom Swing, Retractable Tracks

When you need serious digging power in confined spaces, the TYPHON X2 Max Canopy Mini Excavator delivers unparalleled reliability and precision. We understand that tight job sites demand equipment that can maneuver flawlessly without sacrificing strength. Engineered with a premium Yanmar 3TNV88F engine (23.2 HP at 2200 rpm, 24.4 HP at 2400 rpm) and highly adaptable telescopic tracks, this 2.5-ton machine gives you the professional-grade performance required to tackle demanding jobs with total confidence.

TYPHON X2 Max Canopy Key Feature:

1. Designed for a small project

TYPHON TERROR X2 MAX is a compact 2.5-ton mini excavator designed for small projects and tight job sites. With overall dimensions of 4000 × 1350 × 2280 mm, it delivers excellent maneuverability and access. Featuring a full 360° body swing, 45°/55° boom swing, and a minimum swing radius of 2027 mm, it ensures precise operation in confined spaces. The retractable track range (1060–1350 mm) provides adjustable stability and flexibility, making it ideal for landscaping, trenching, and residential construction tasks.

2. Wide range of use

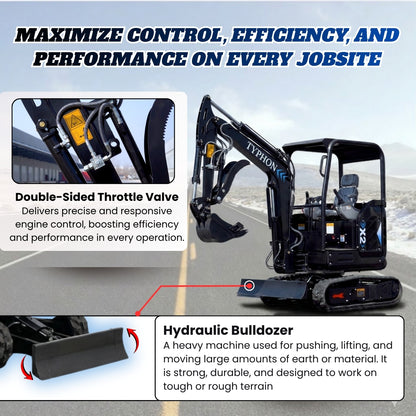

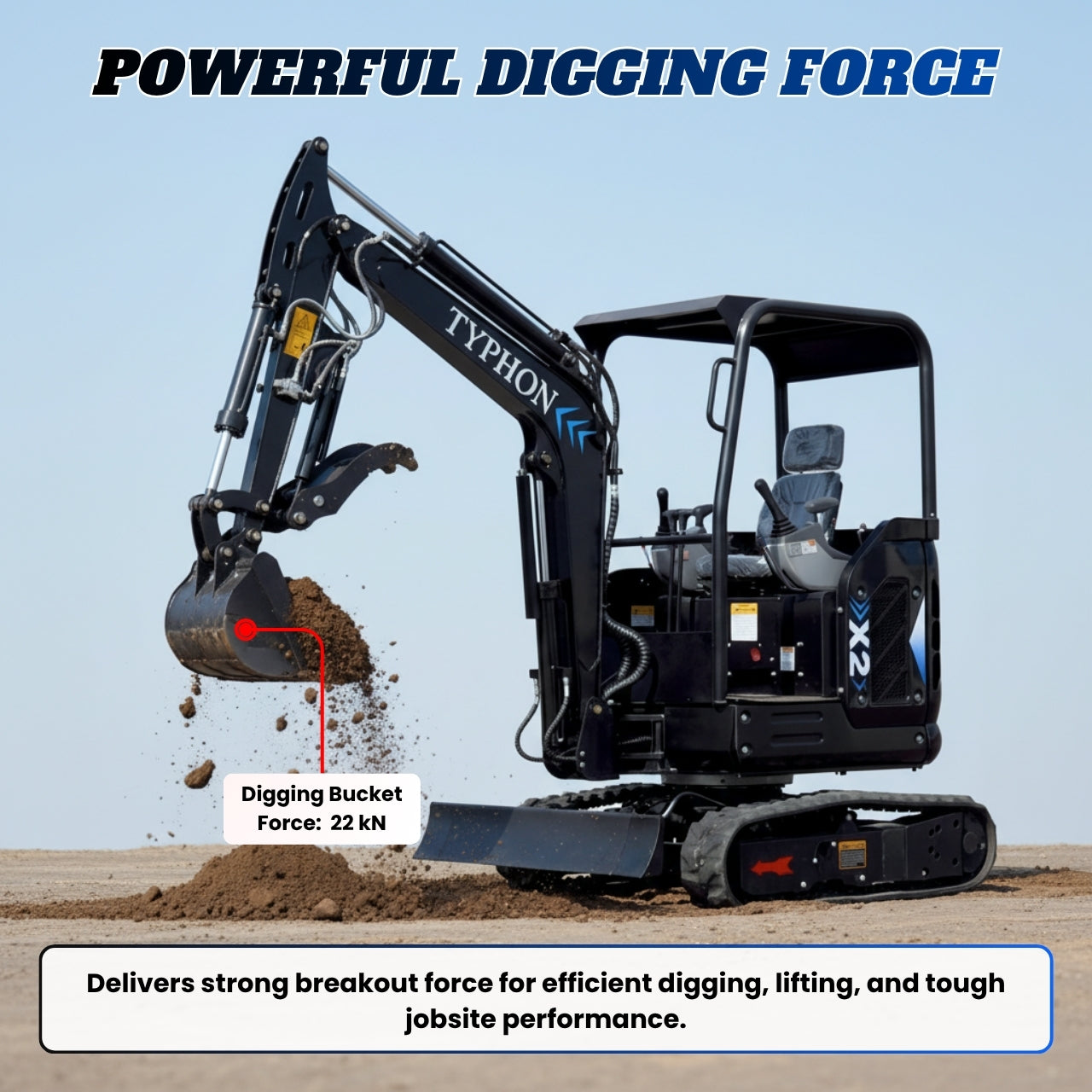

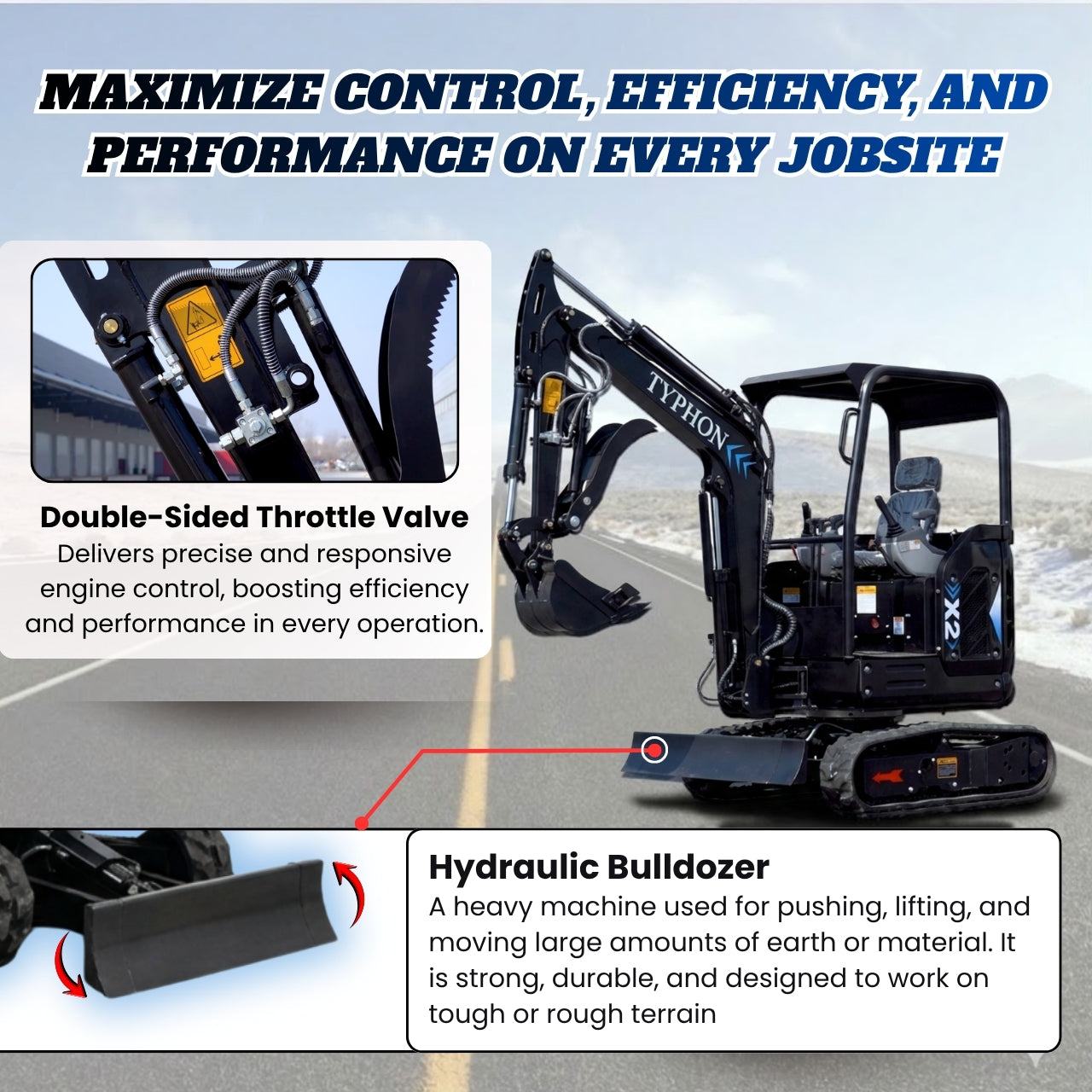

Delivers strong and reliable performance with a digging force of 22 kN and a 0.07 m³ bucket capacity, making it suitable for trenching, landscaping, and light construction. It offers a maximum digging depth of 2915 mm and a digging height of 3530 mm for excellent reach and efficiency. With a lifting capacity of 400 kg, it also handles light lifting tasks with ease. Equipped with a hydraulic thumb clip and a double-sided throttle valve, it ensures smooth control, while a 35° gradeability provides stability on uneven terrain.

3. Compact tough

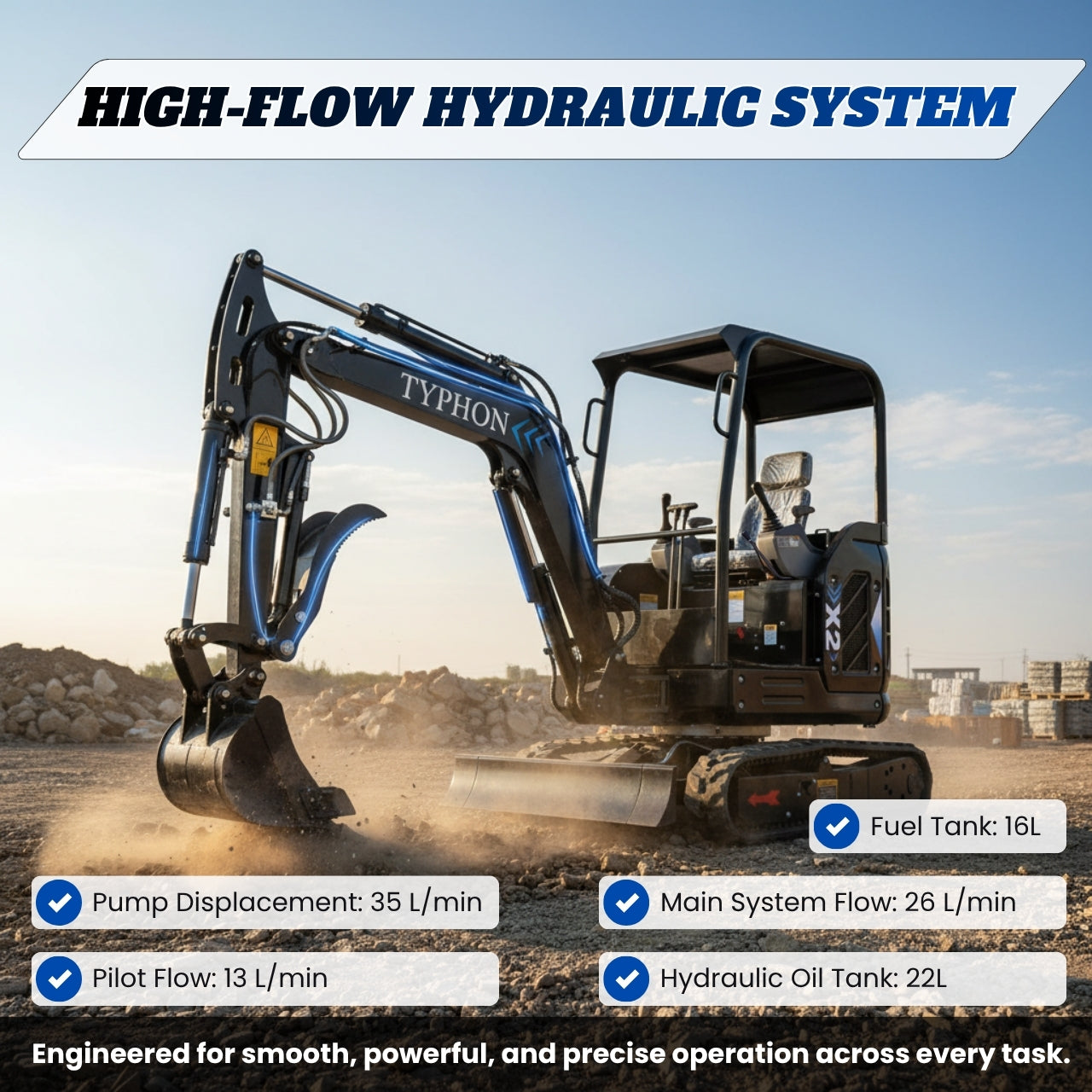

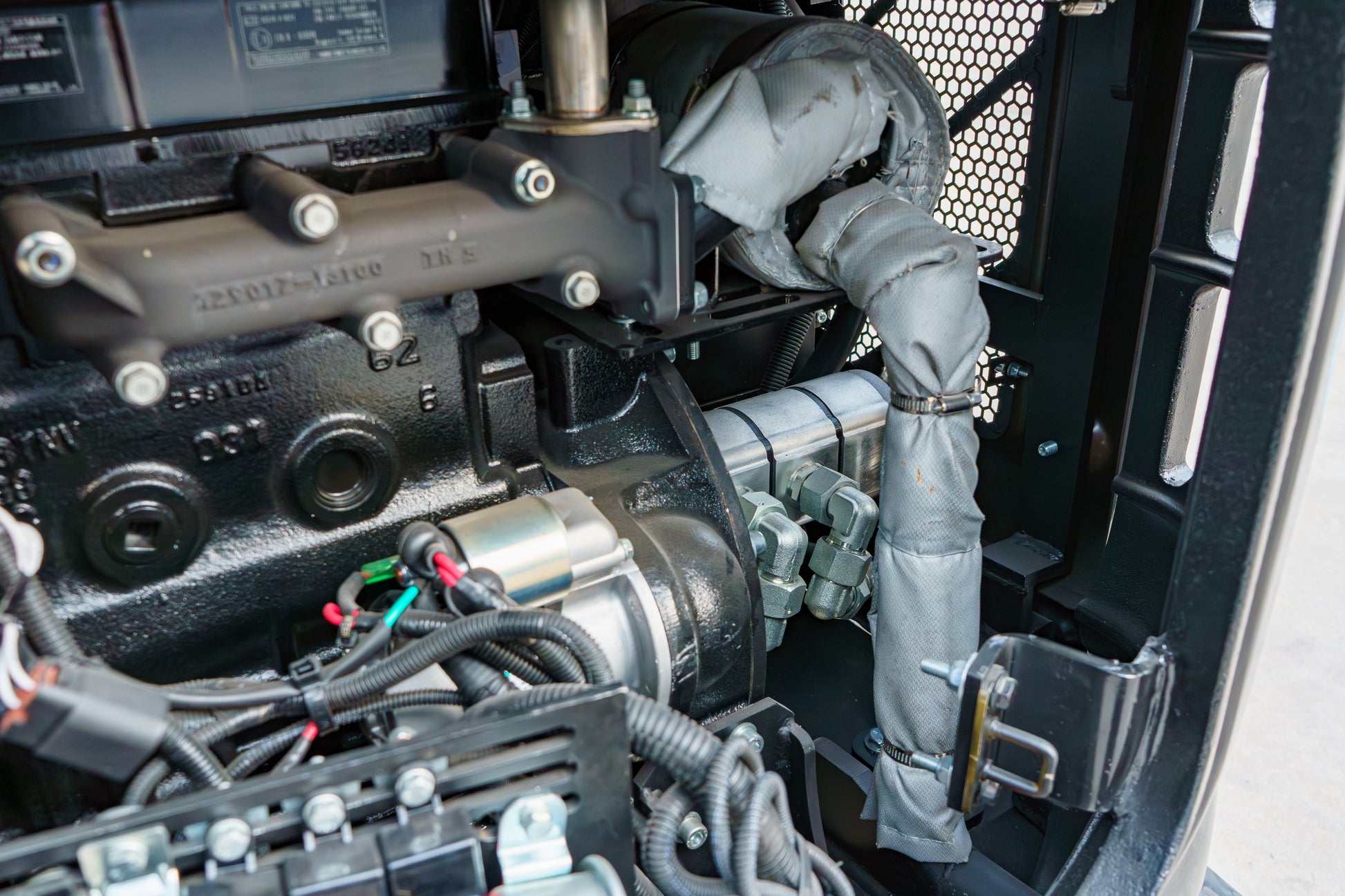

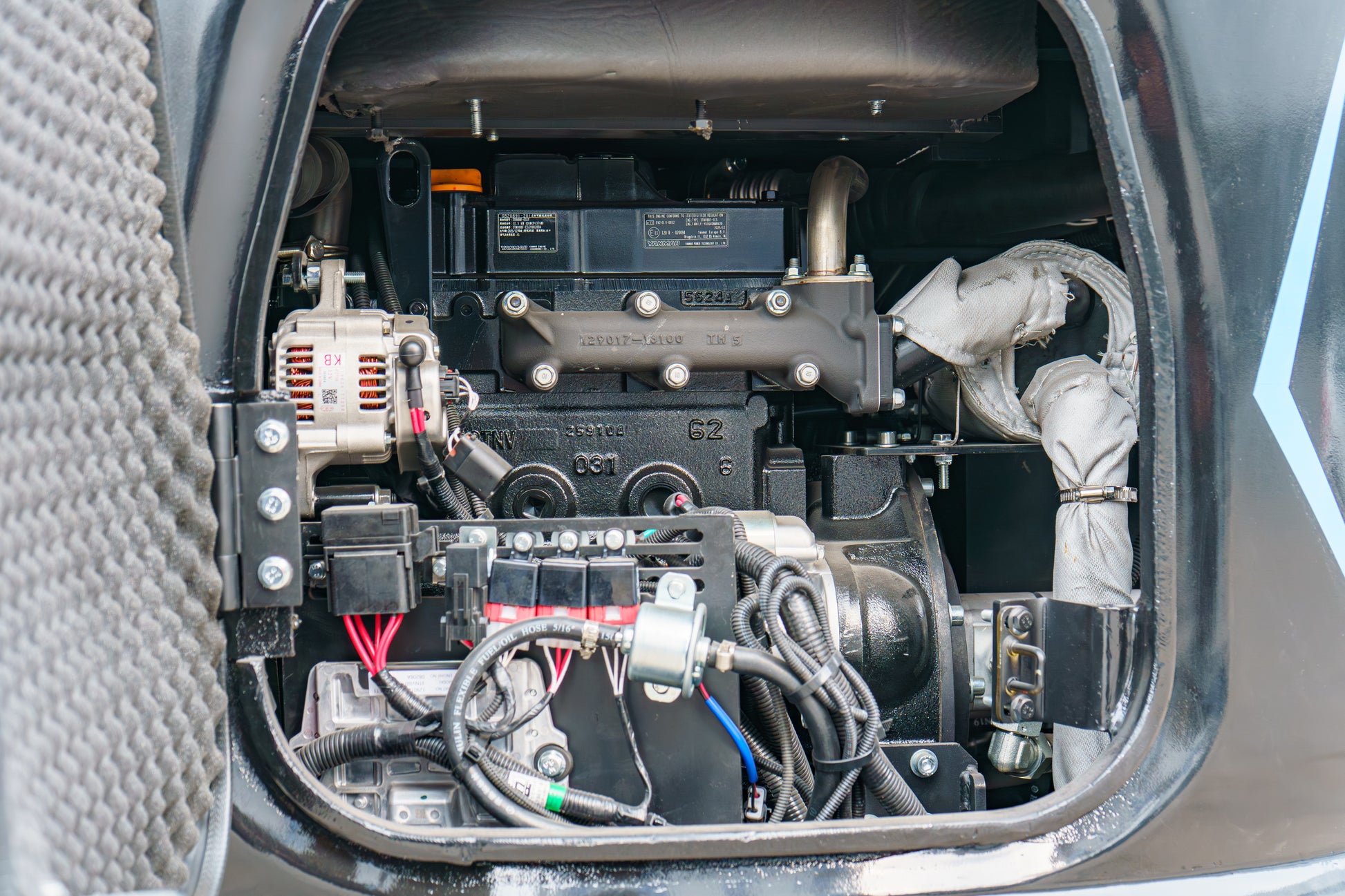

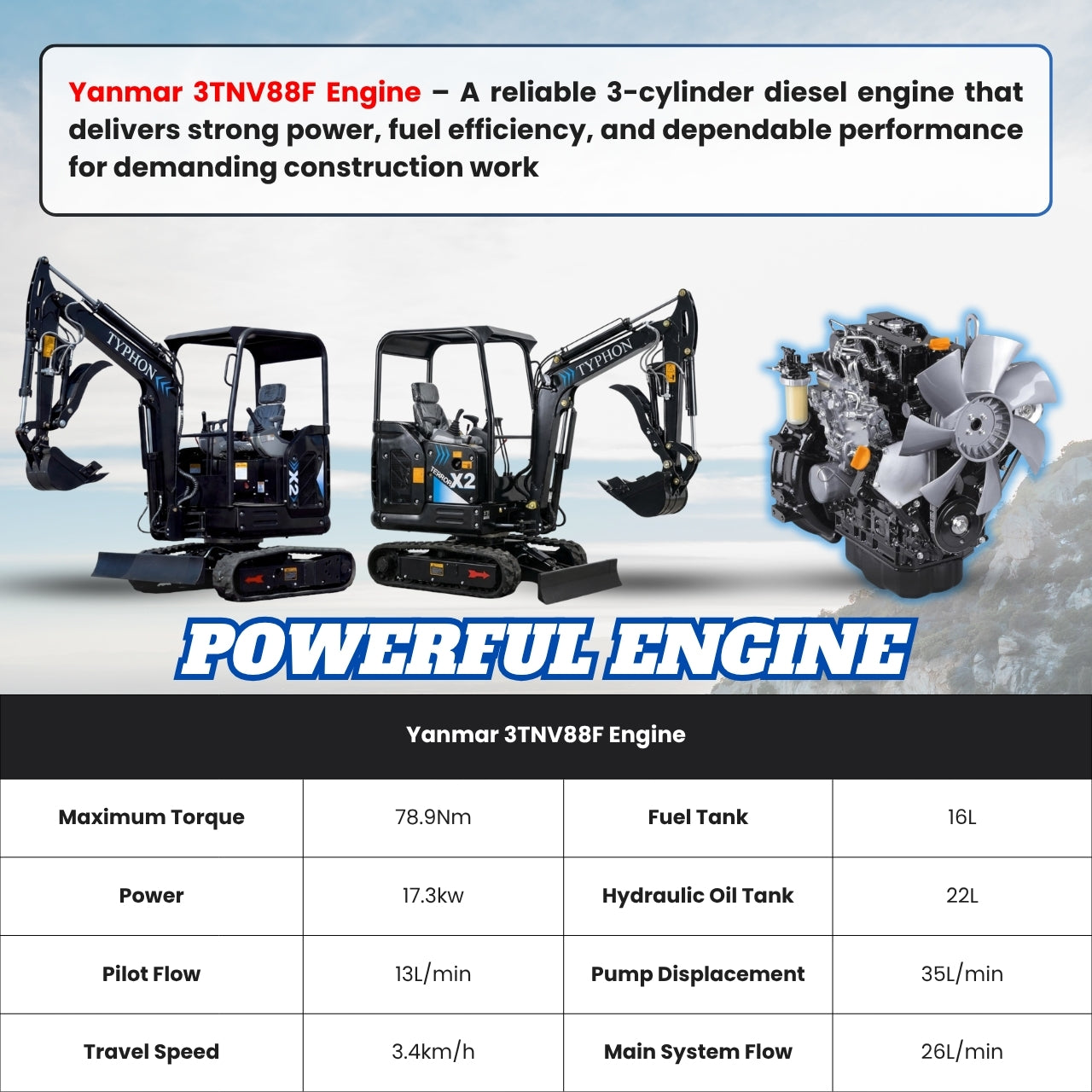

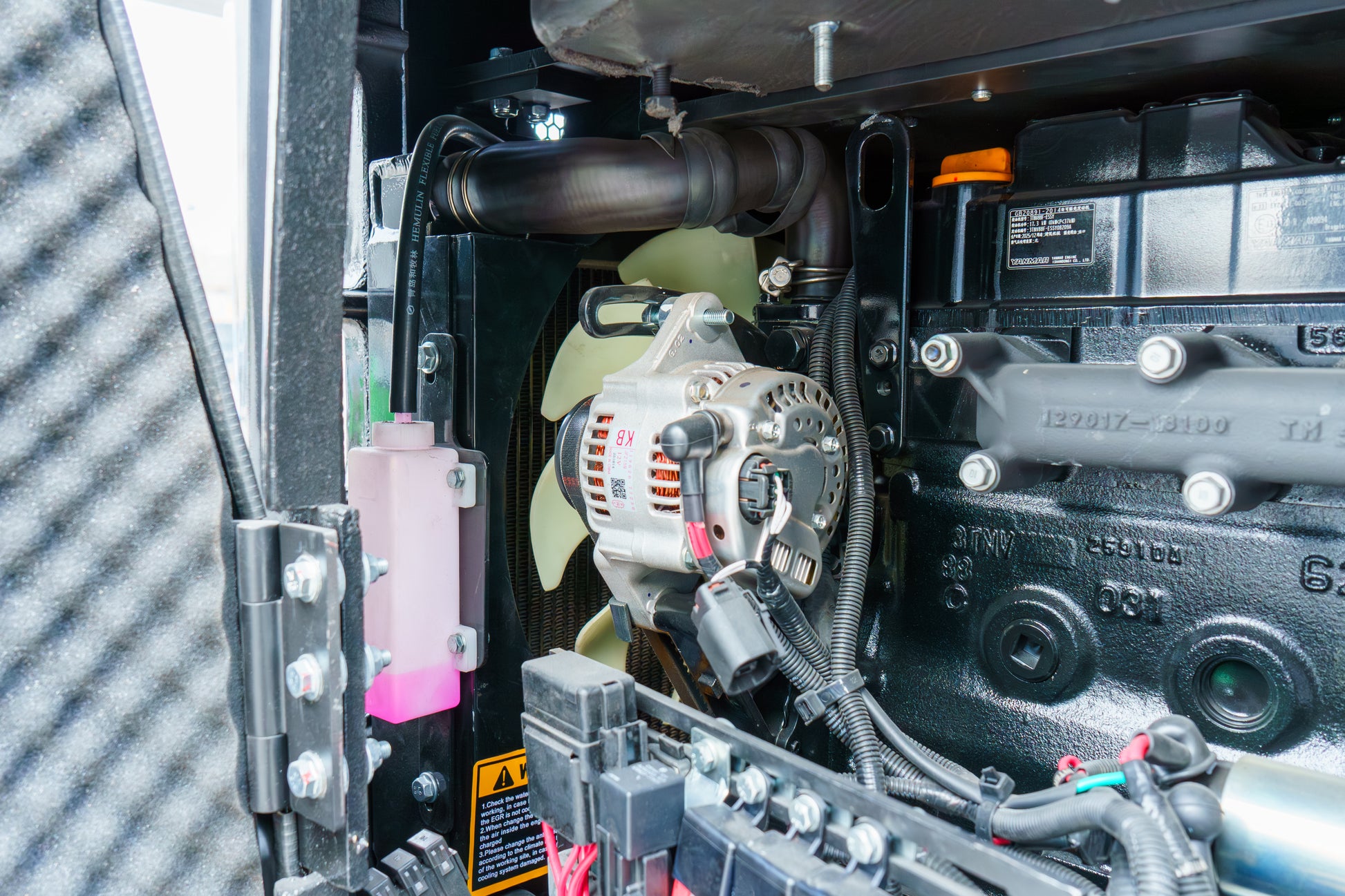

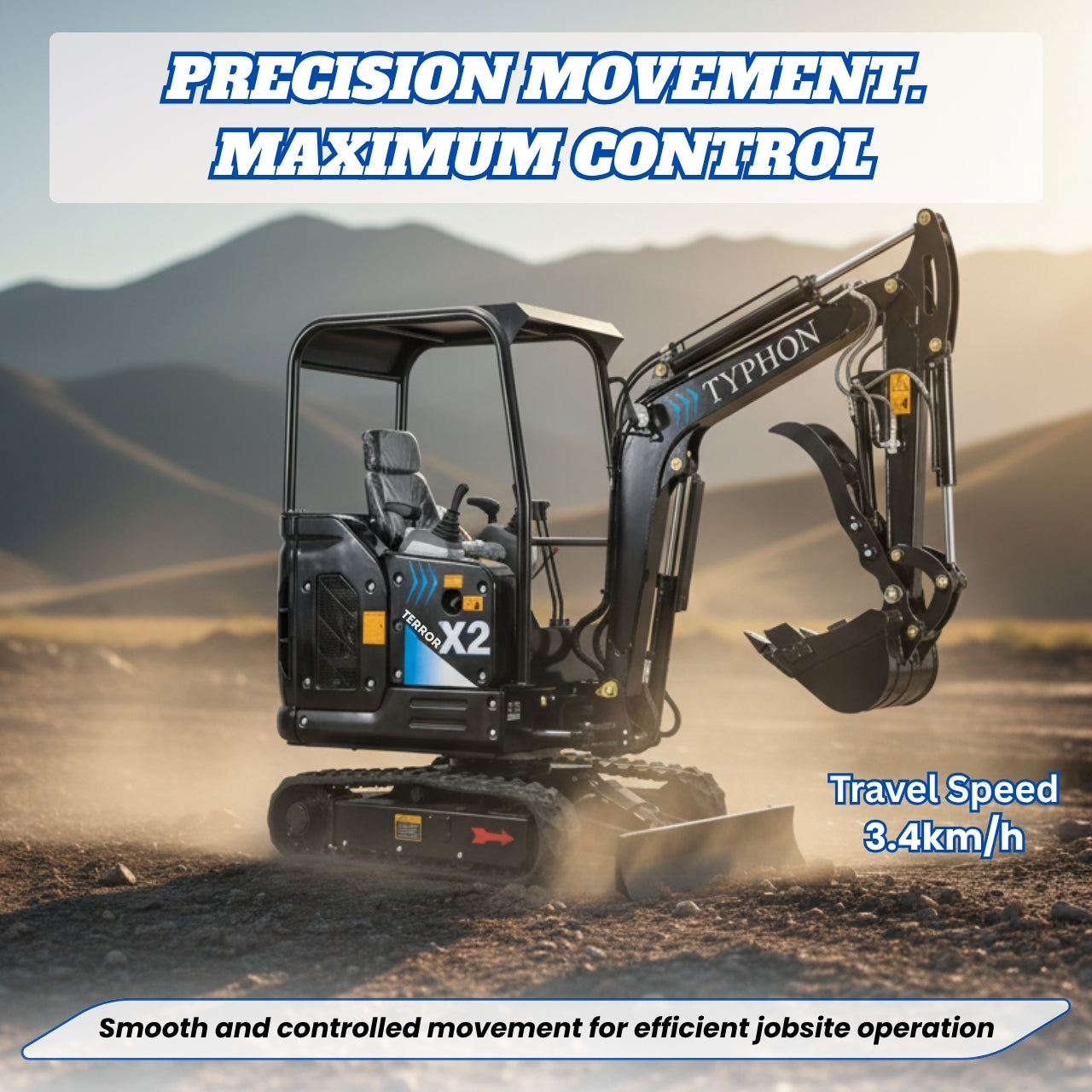

Powered by the reliable Yanmar 3TNV88F engine, the TYPHON TERROR X2 MAX delivers strong output ranging from 23.2 HP at 2200 rpm to 24.4 HP at 2400 rpm, ensuring consistent performance across demanding tasks. Its efficient hydraulic oil-cooled system features a pump displacement of 35 L/min, with a main system flow of 26 L/min and pilot flow of 13 L/min for smooth and precise control. With a travel speed of 3.4 km/h, a 16 L fuel tank, and 22 L hydraulic oil capacity, this compact machine is built for durability, efficiency, and extended operation on the job site.

4. User-friendly Design

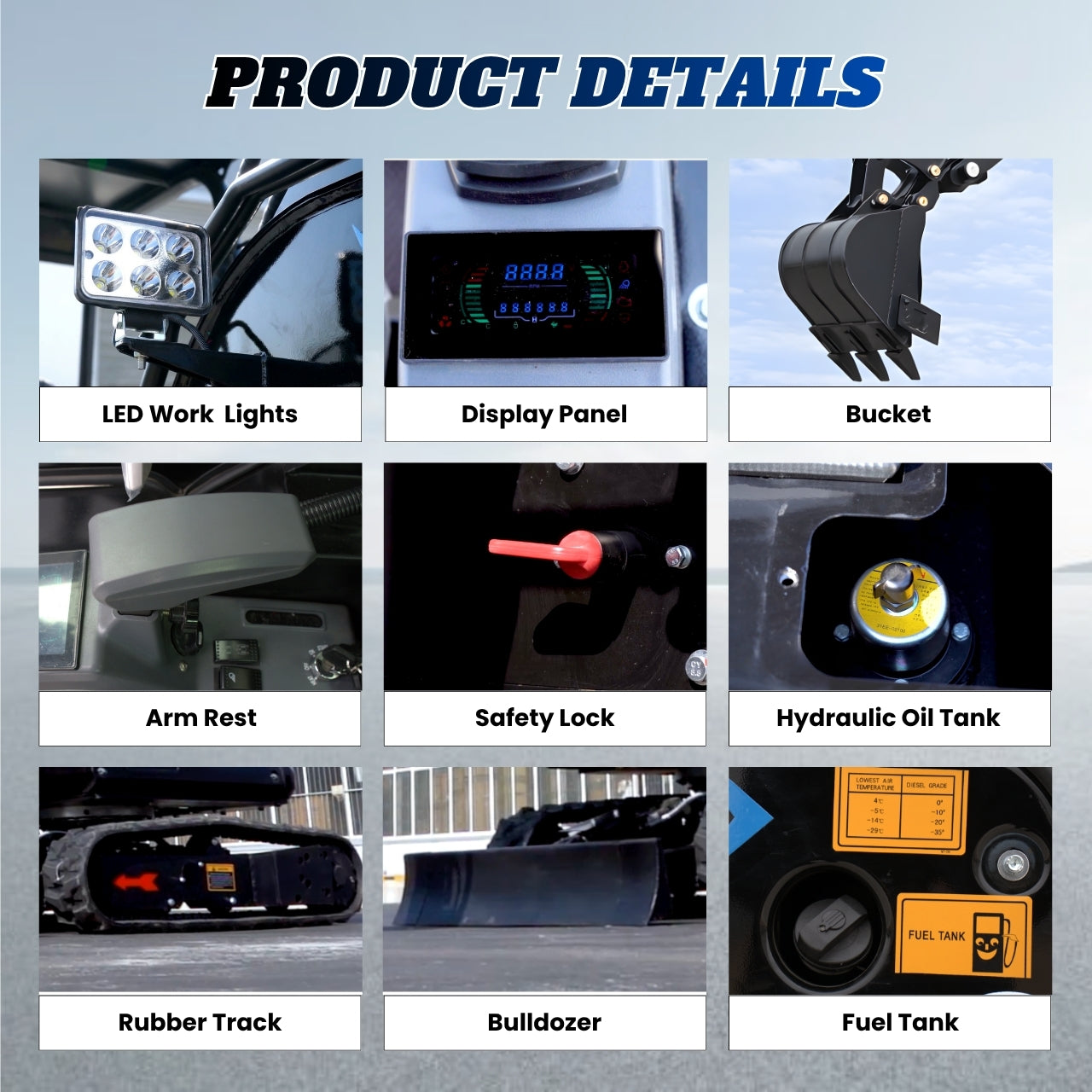

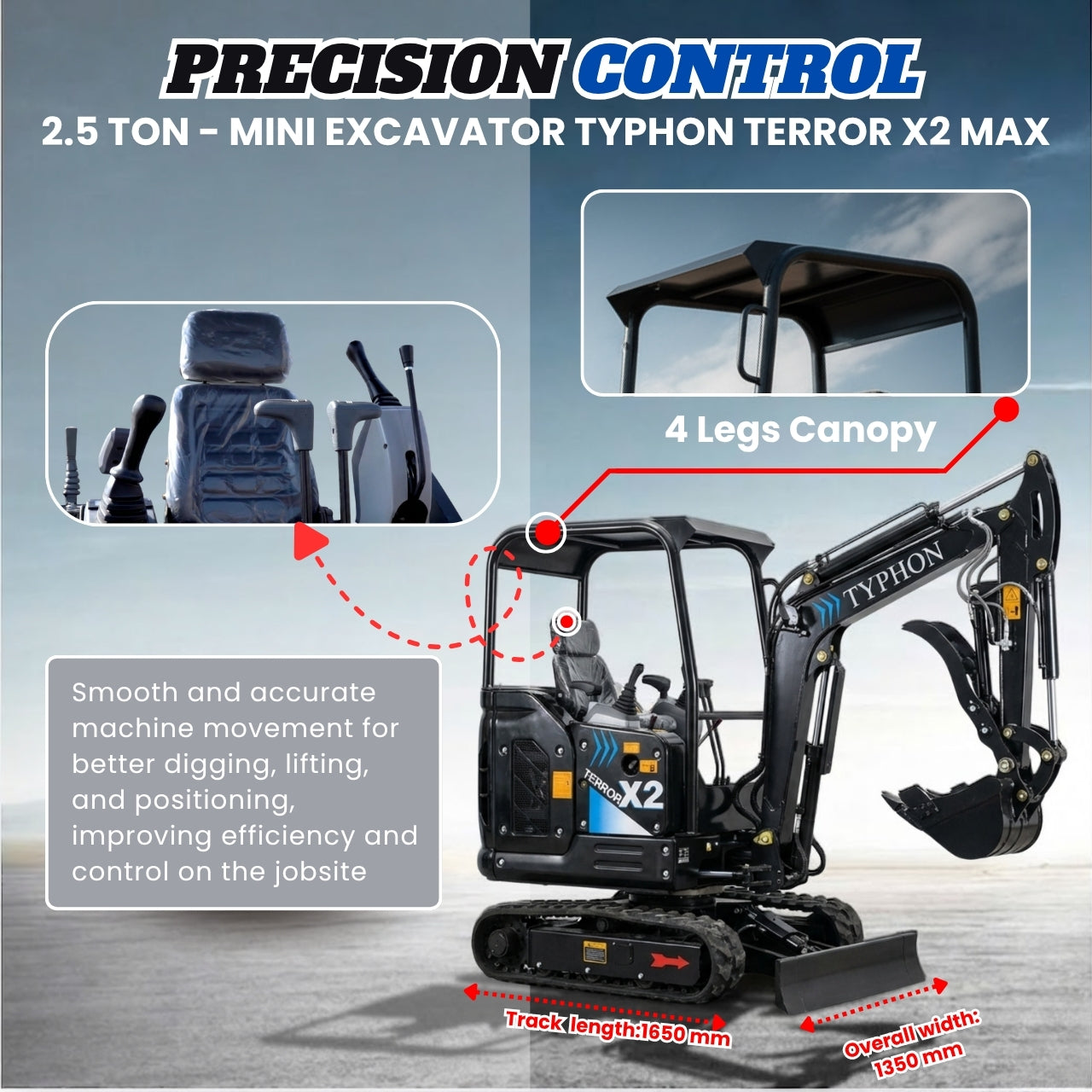

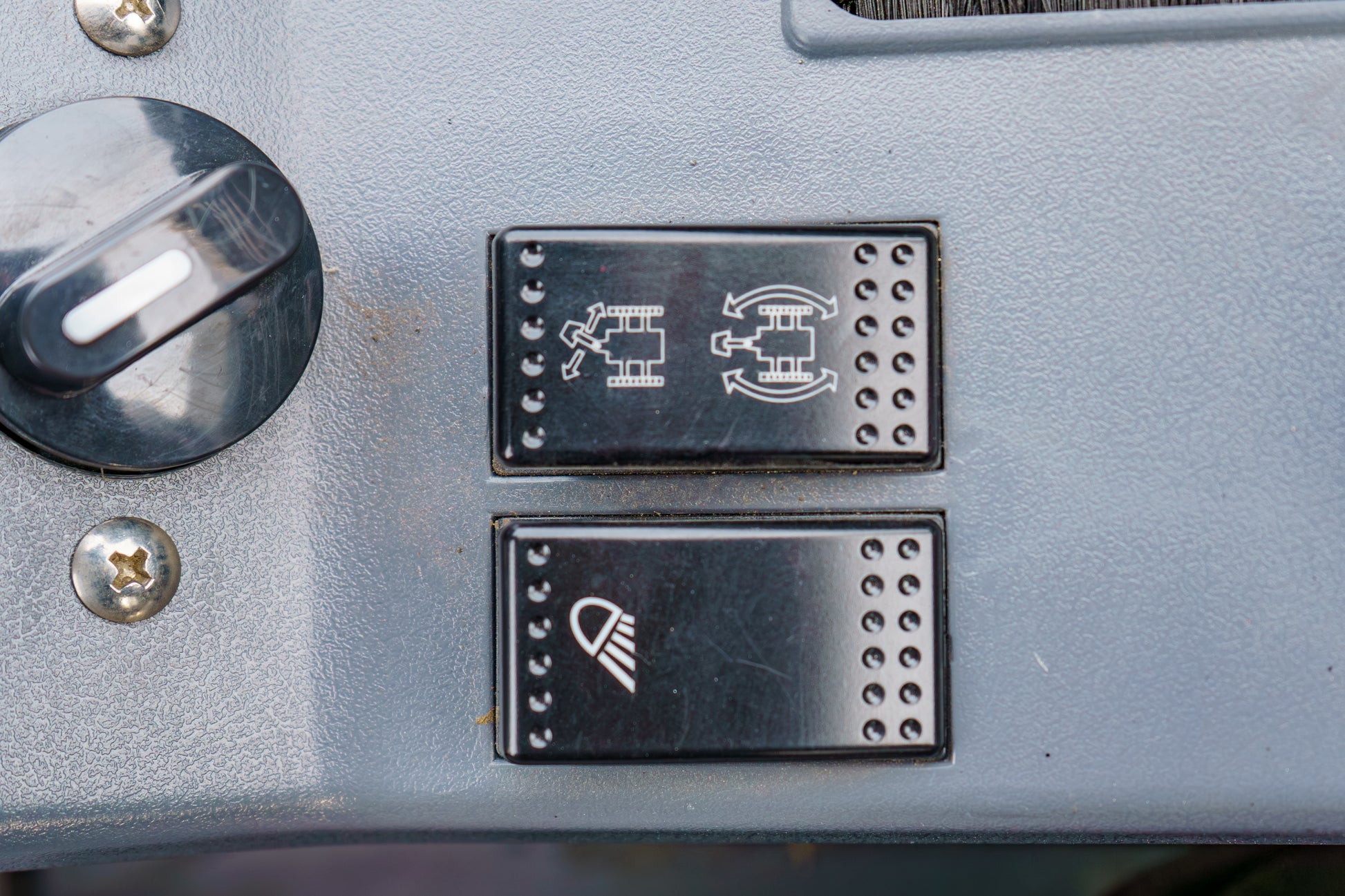

Built for operator comfort and ease of use. It features responsive pilot controls for smooth operation, a clear display panel for real-time machine monitoring, and a comfortable operator seat with armrests to reduce fatigue during long working hours. LED work lights ensure safe operation in low-light conditions, while the durable 4-leg canopy provides reliable protection for the operator on the job site.

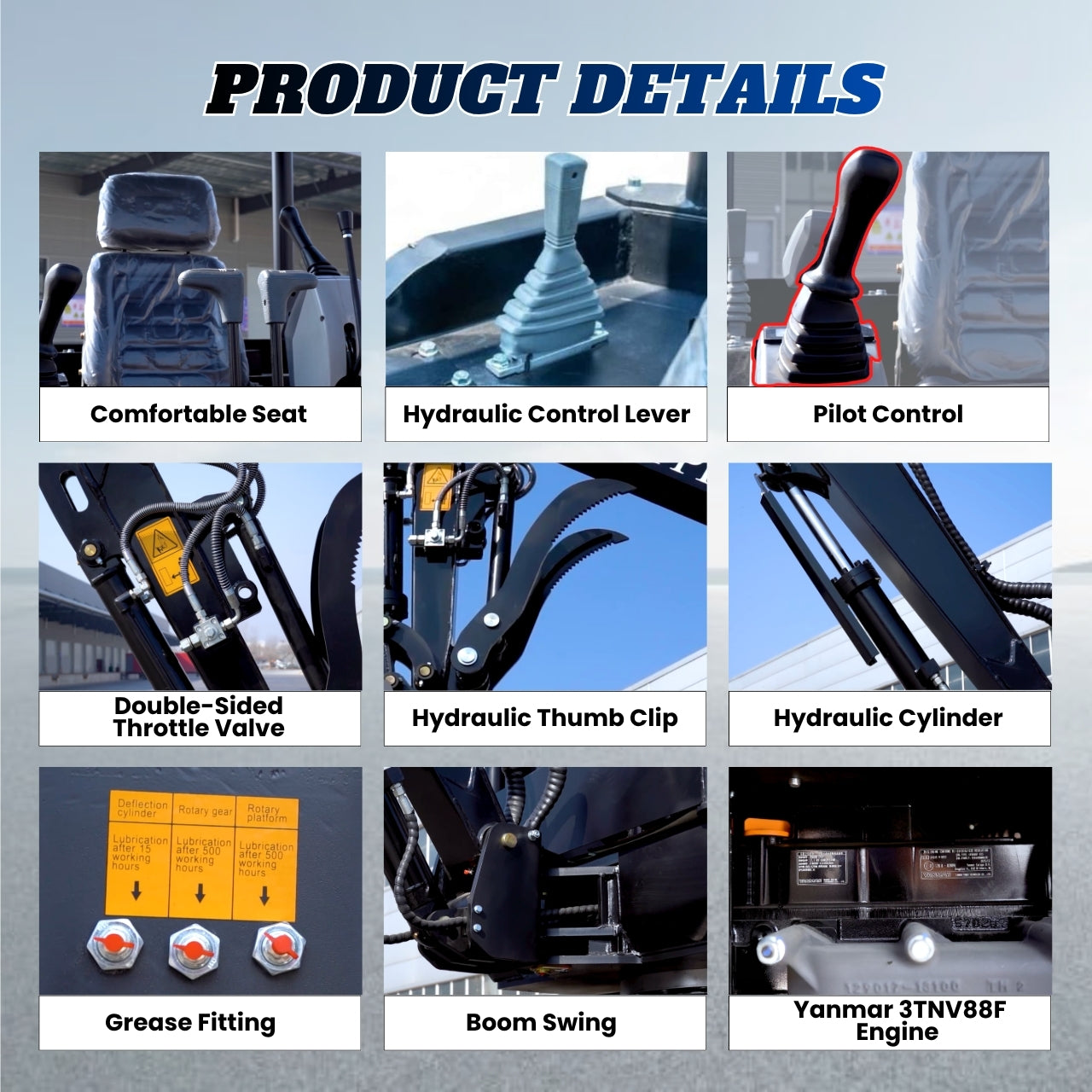

5. Premium Components

• Powered by a reliable Yanmar 3TNV88F engine delivering 23.2 HP at 2200 rpm to 24.4 HP at 2400, this machine delivers strong digging force, smooth operation, and excellent fuel efficiency.

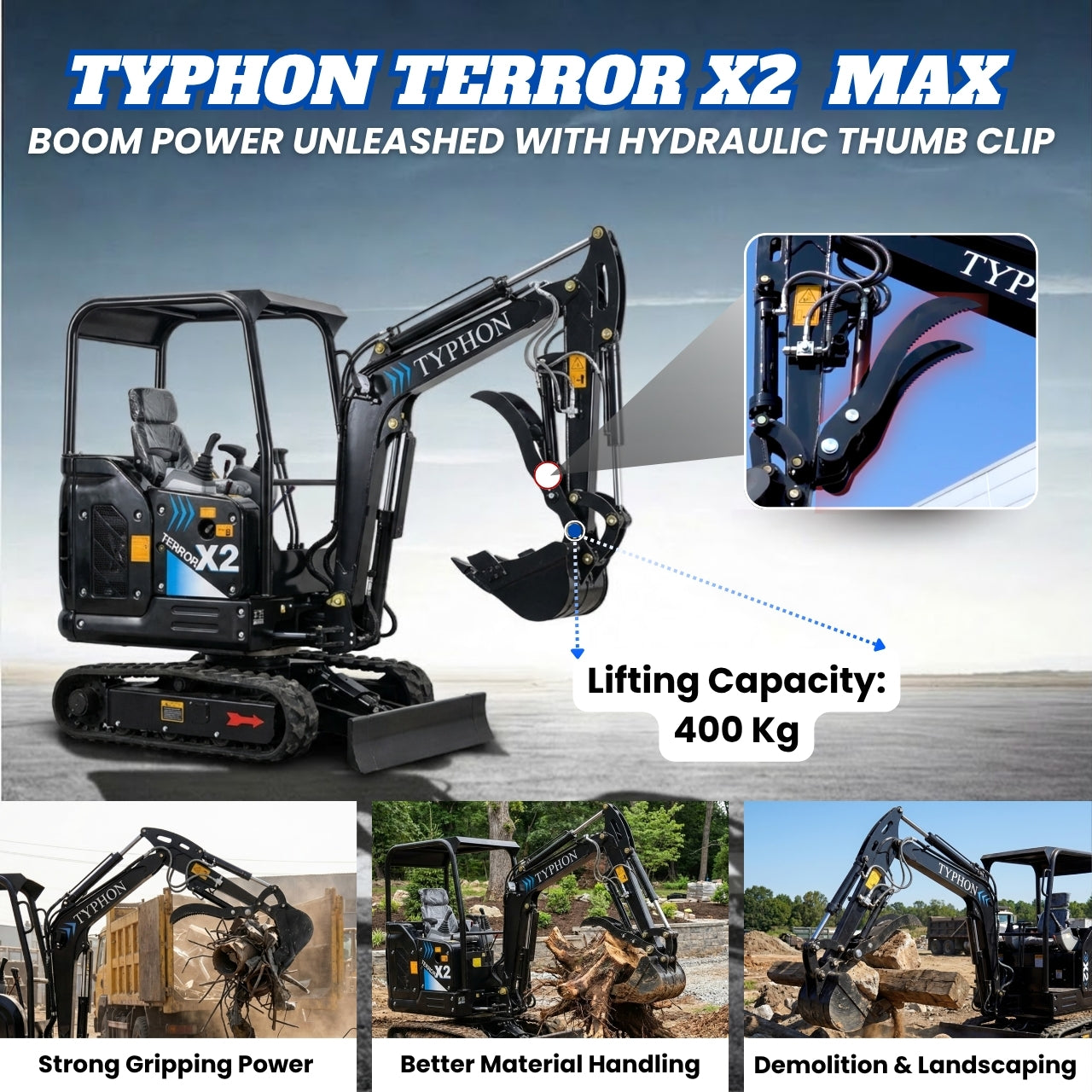

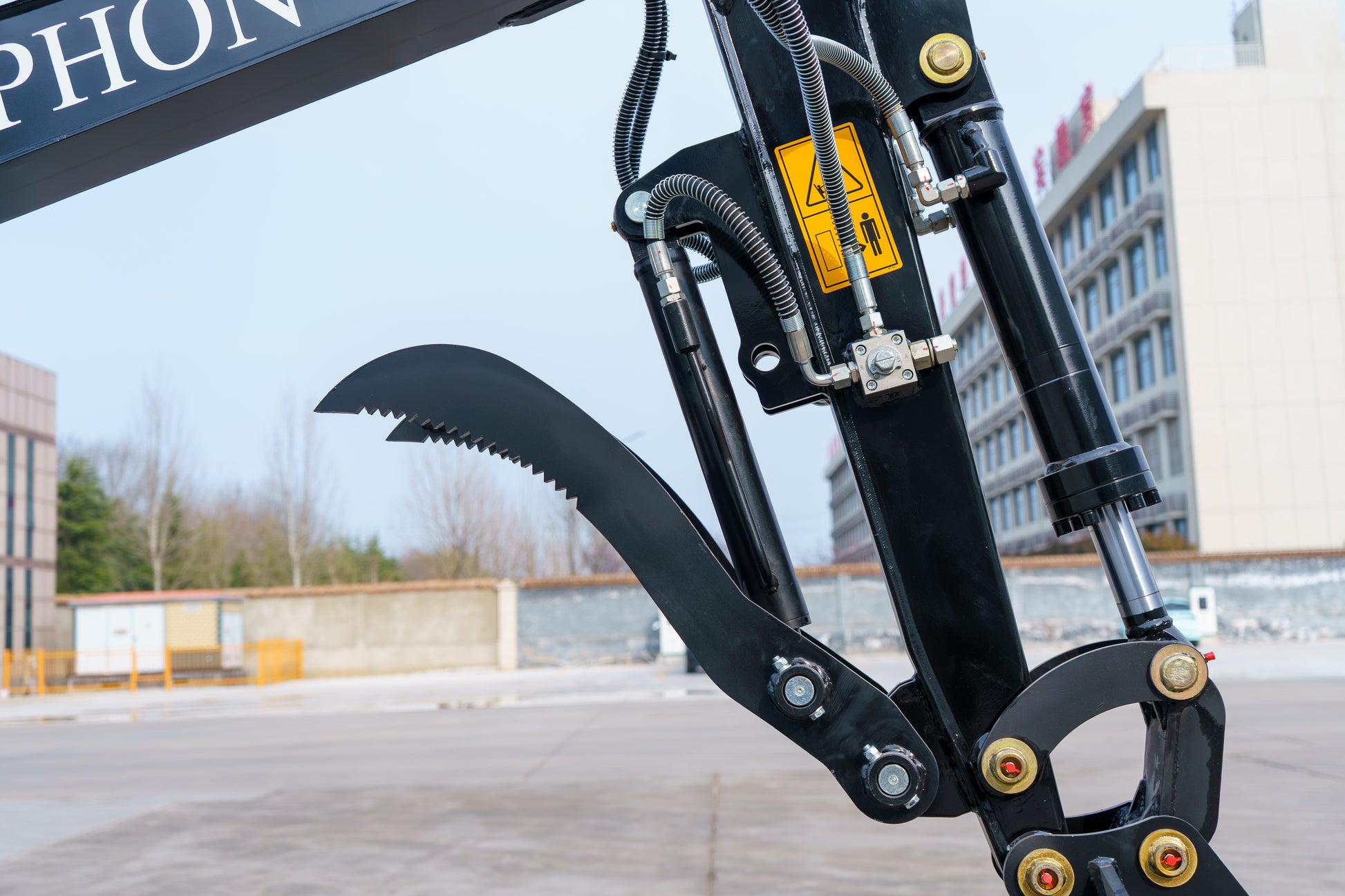

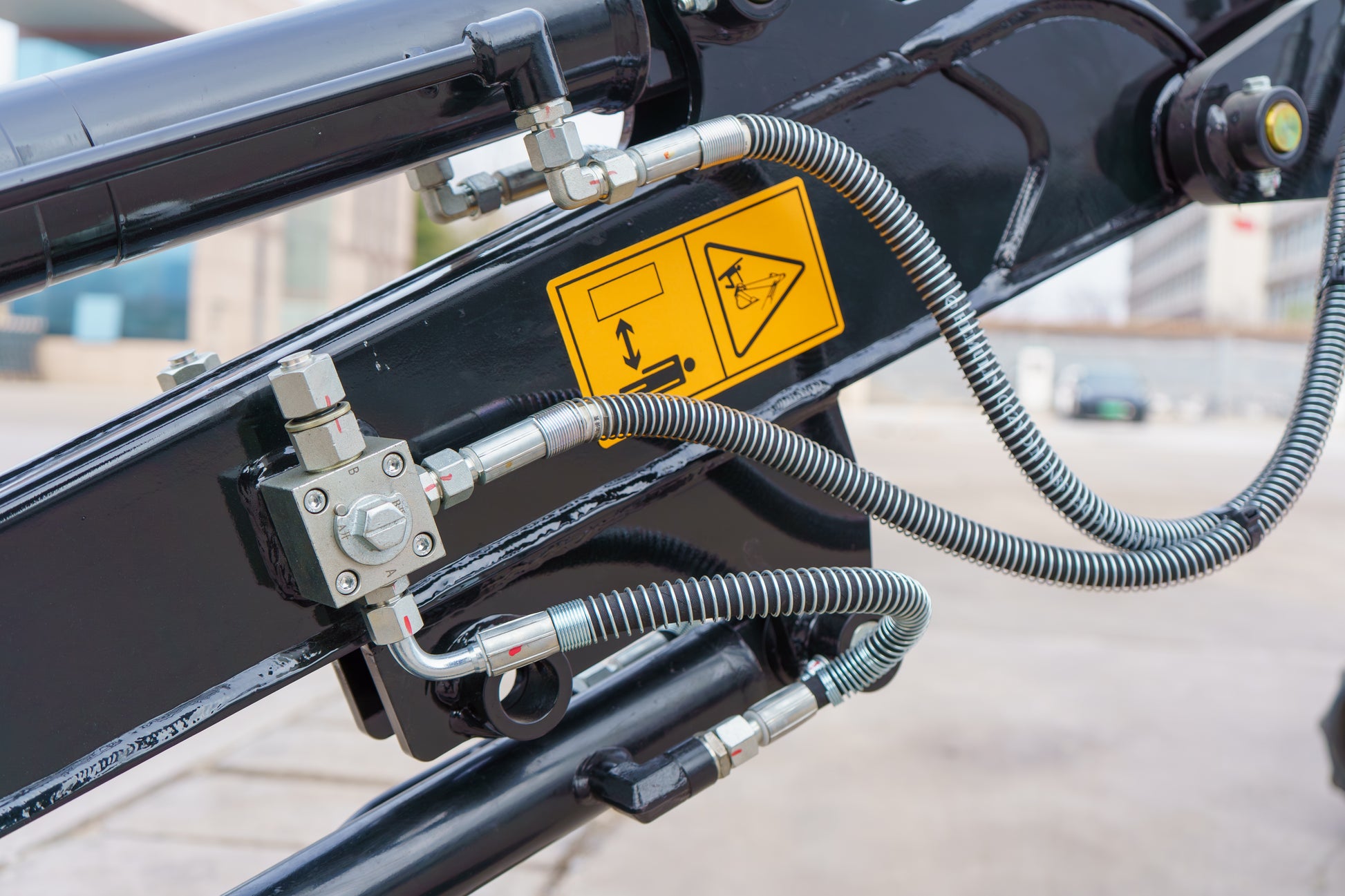

• Hydraulic Thumb Clip – Enhances material handling efficiency for logs, rocks, debris, and demolition tasks.

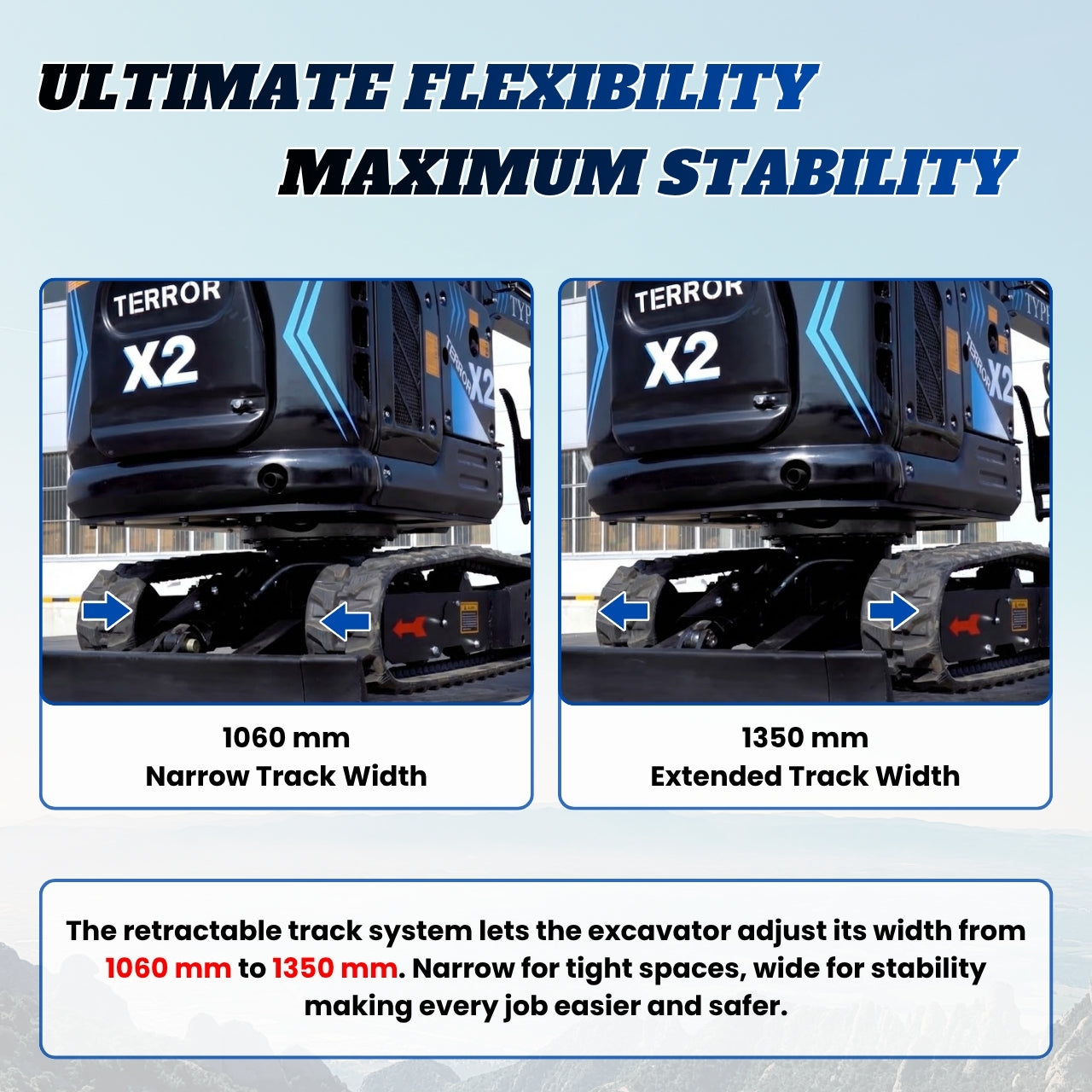

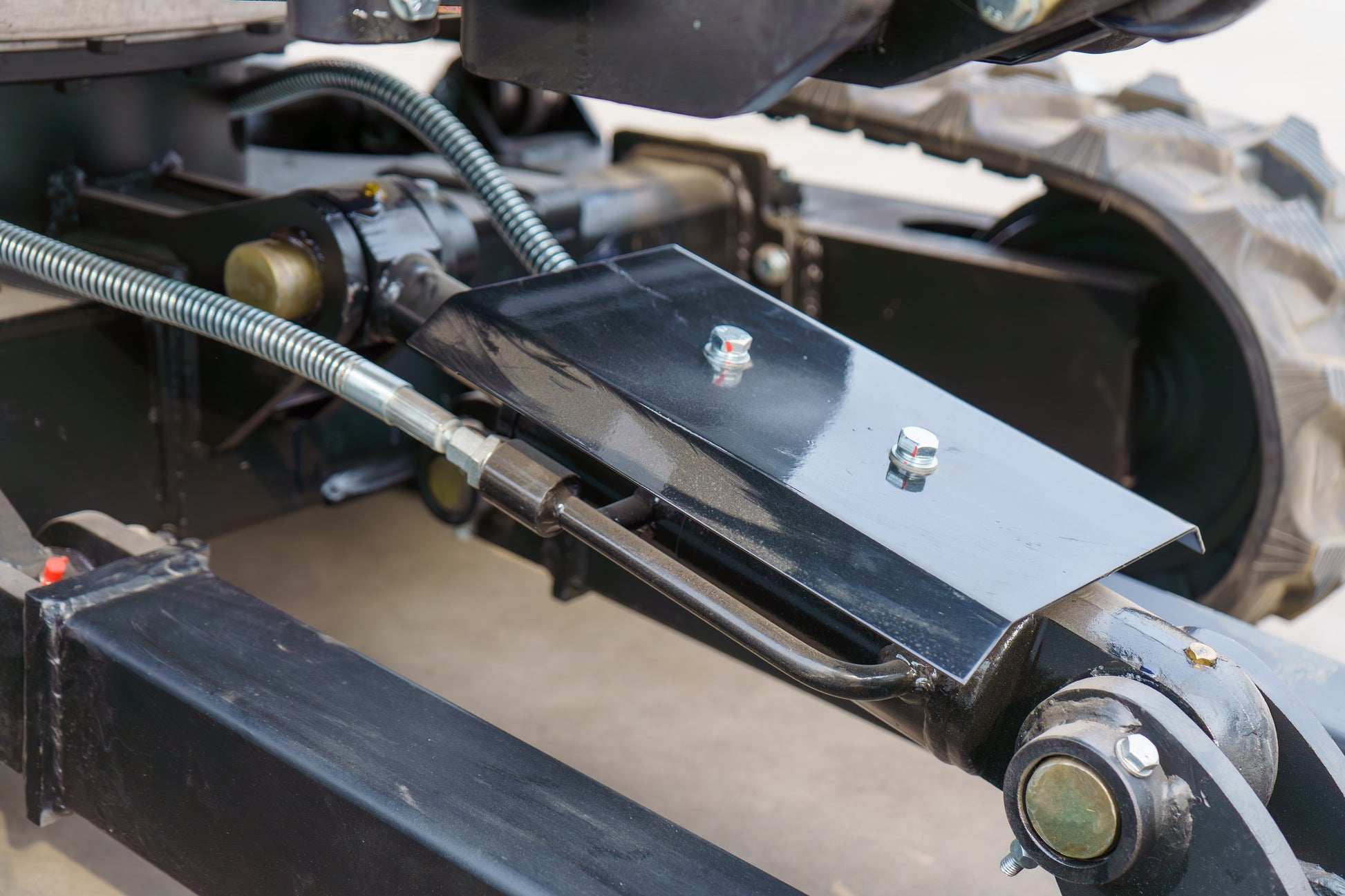

• Telescopic Undercarriage – Adjustable track width (1060–1350 mm) for improved stability during operation and easy access through narrow spaces.

• 360° Rotation – The Danfoss swing motor ensures precise, continuous rotation for faster cycle times.

• Boom swing provides enhanced working flexibility with an angle of 55° to the left and 45° to the right, allowing precise digging alongside walls, fences, and confined areas without repositioning the machine

• Oil-Cooled Hydraulic System – Maintains stable performance and prevents overheating during extended operation.

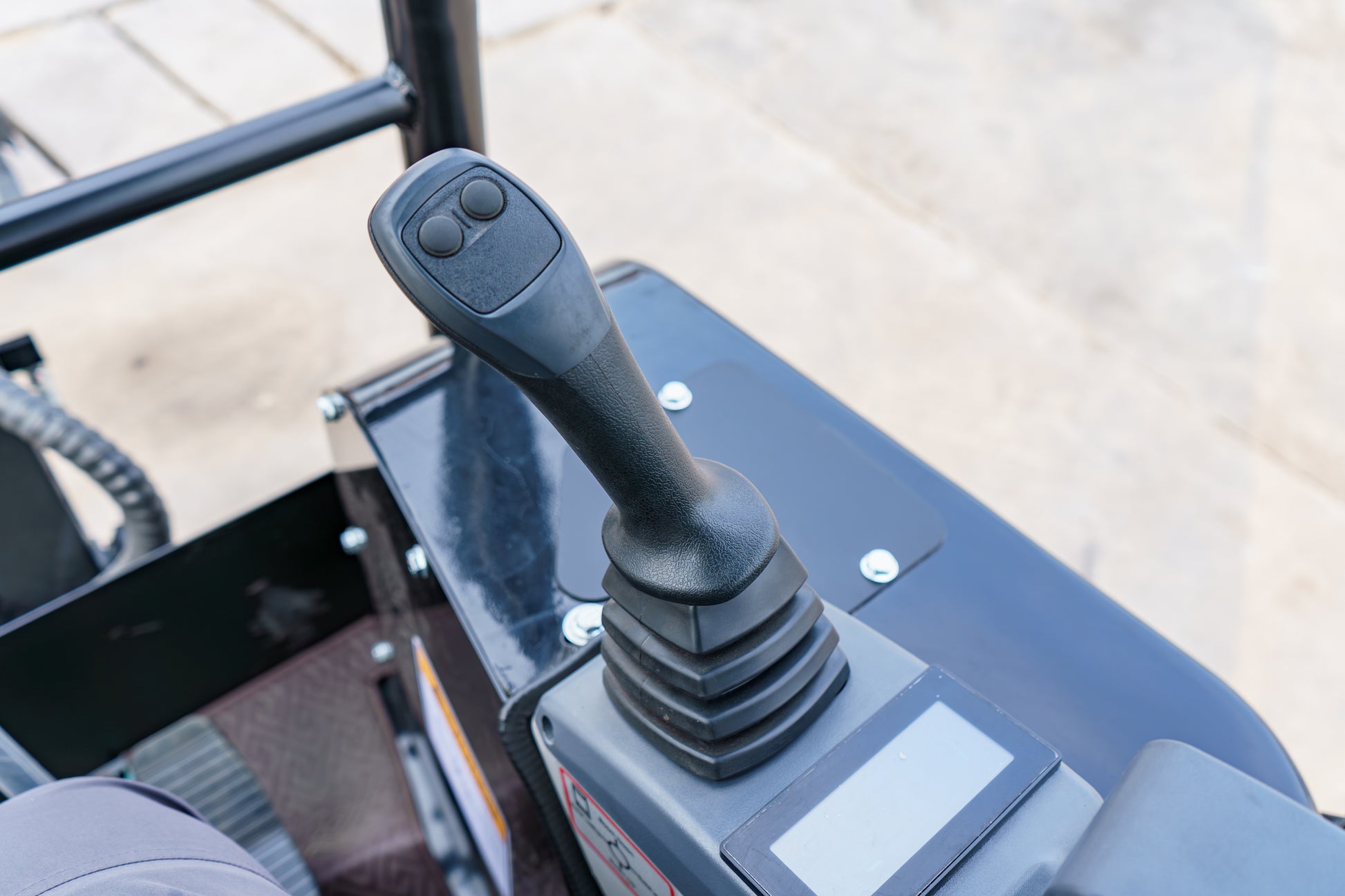

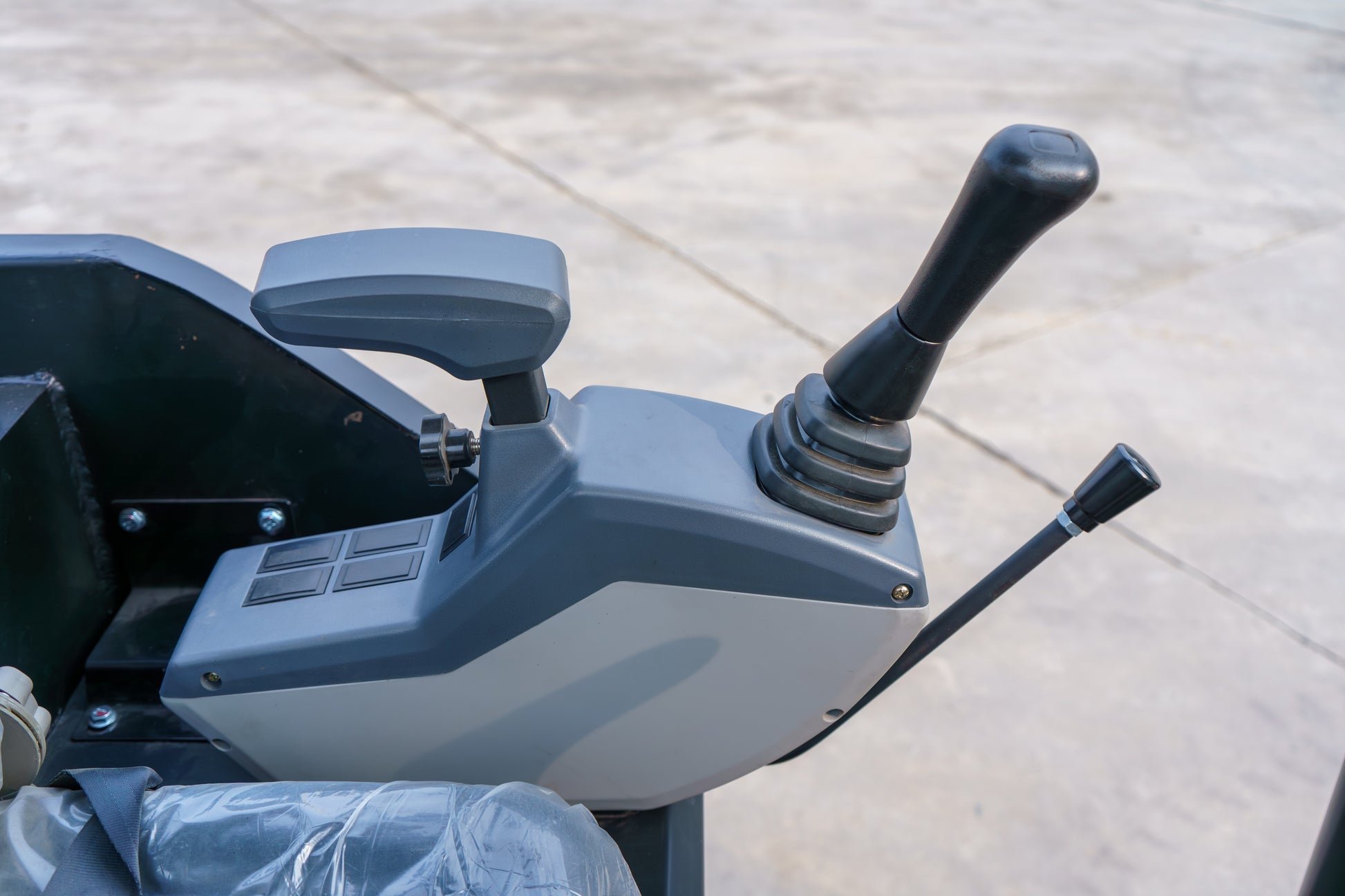

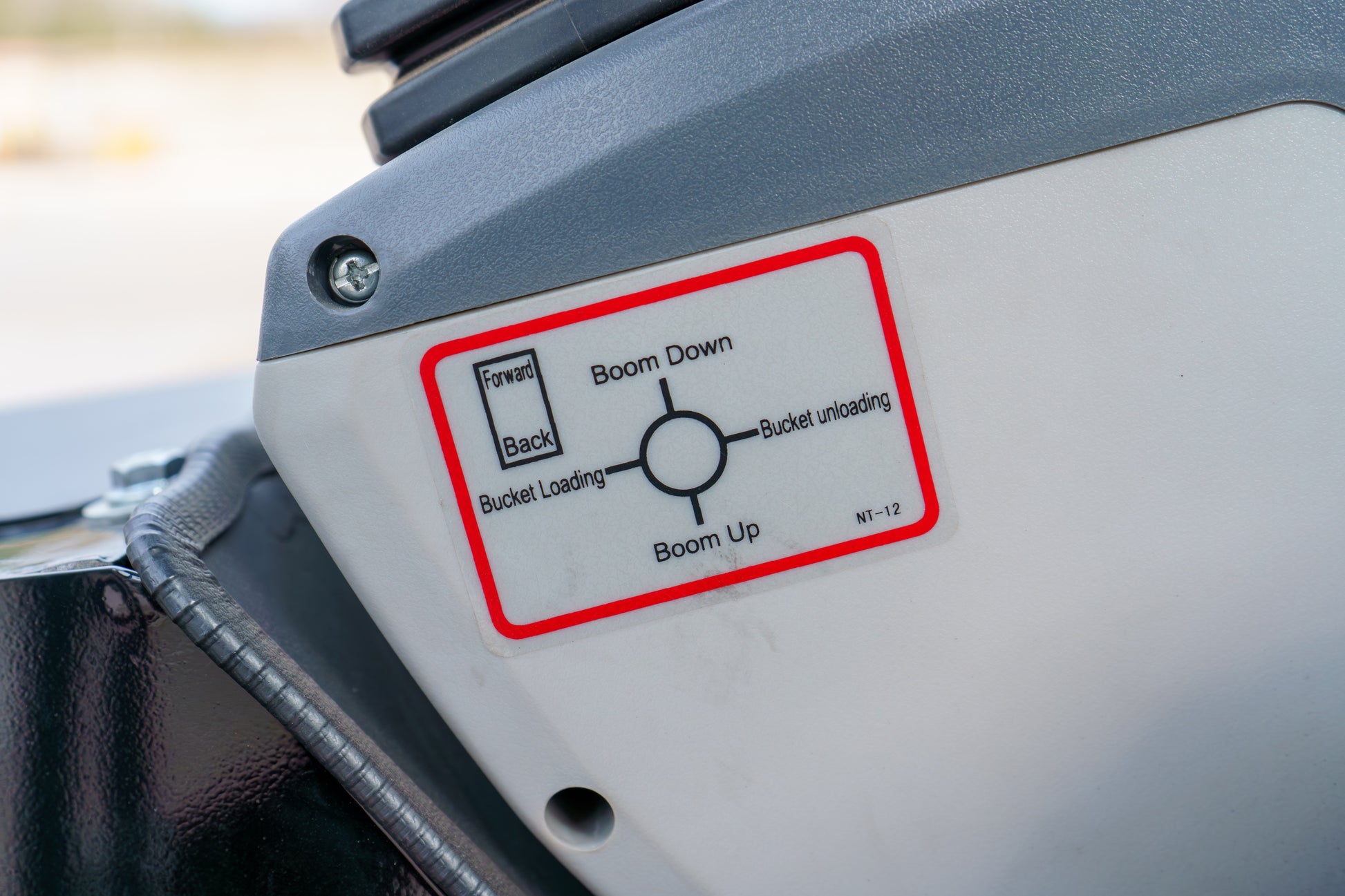

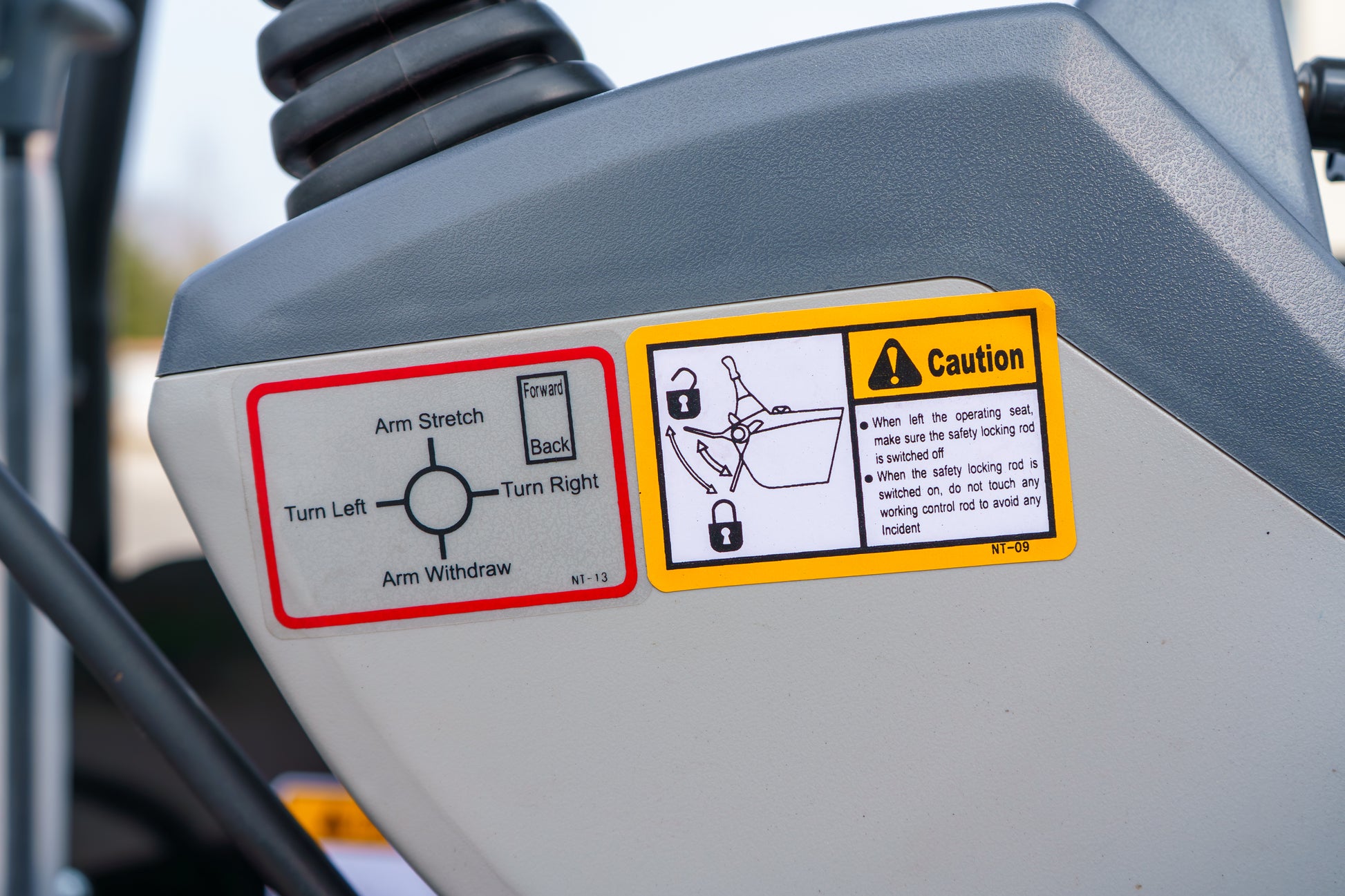

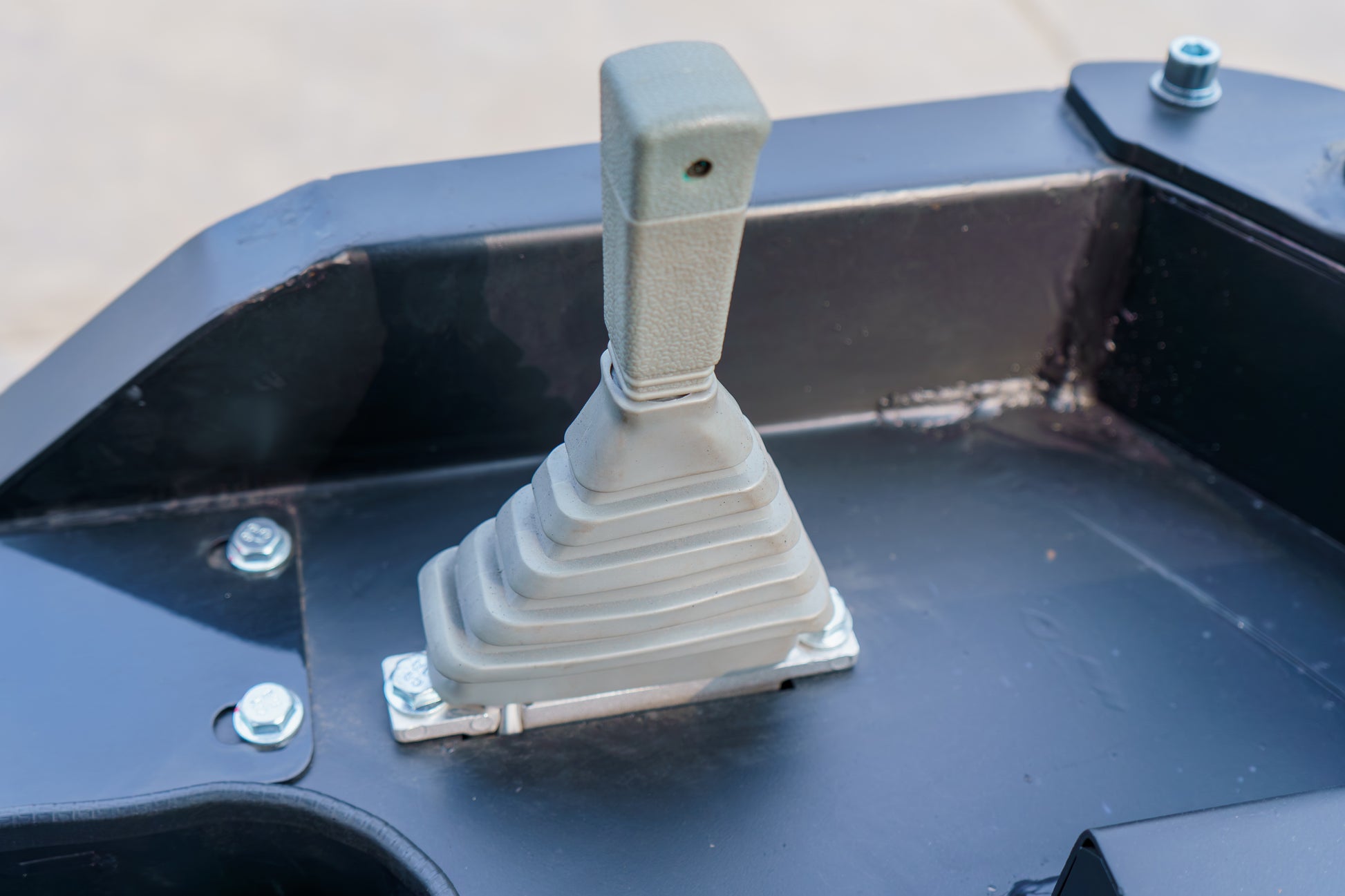

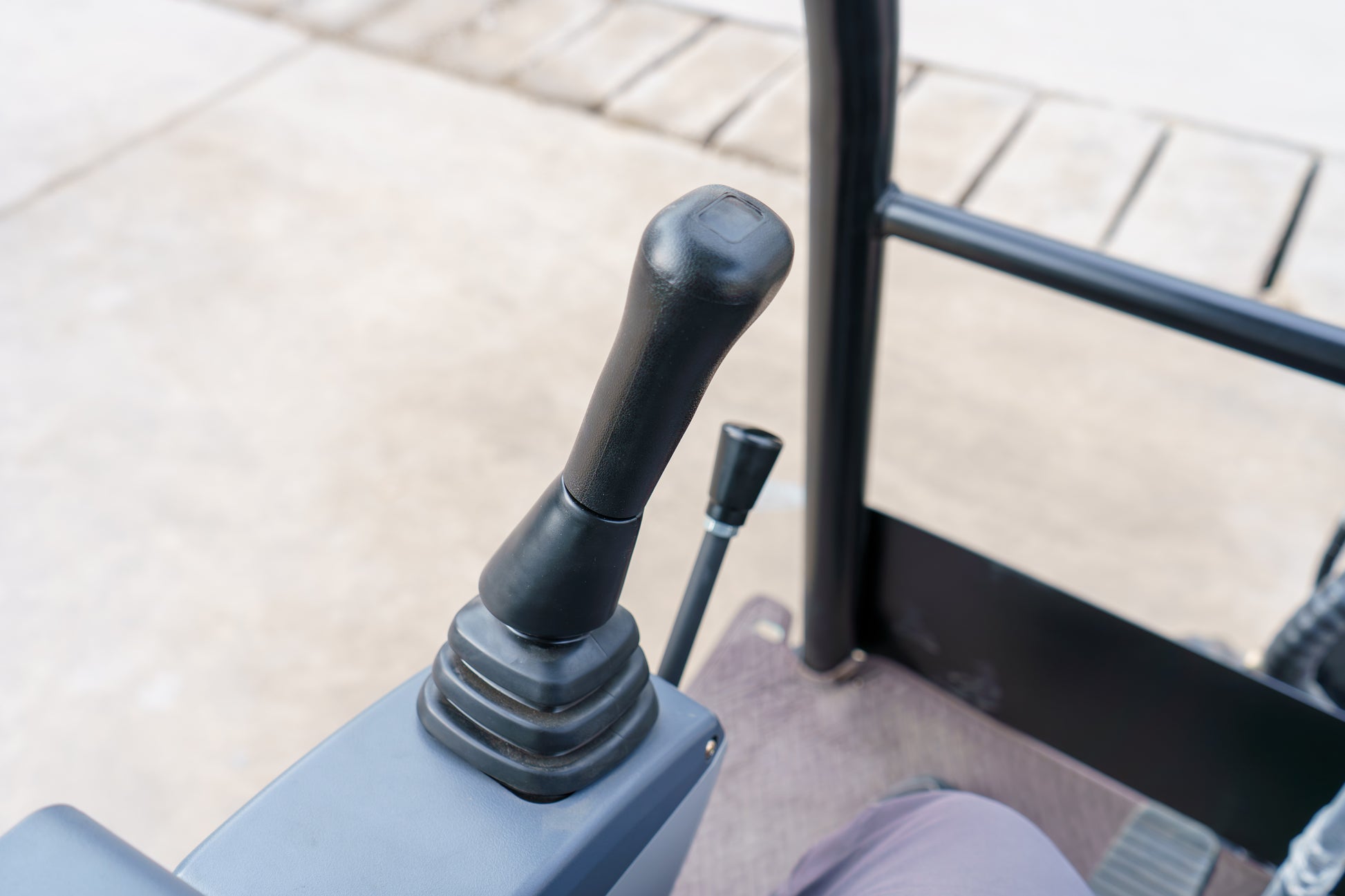

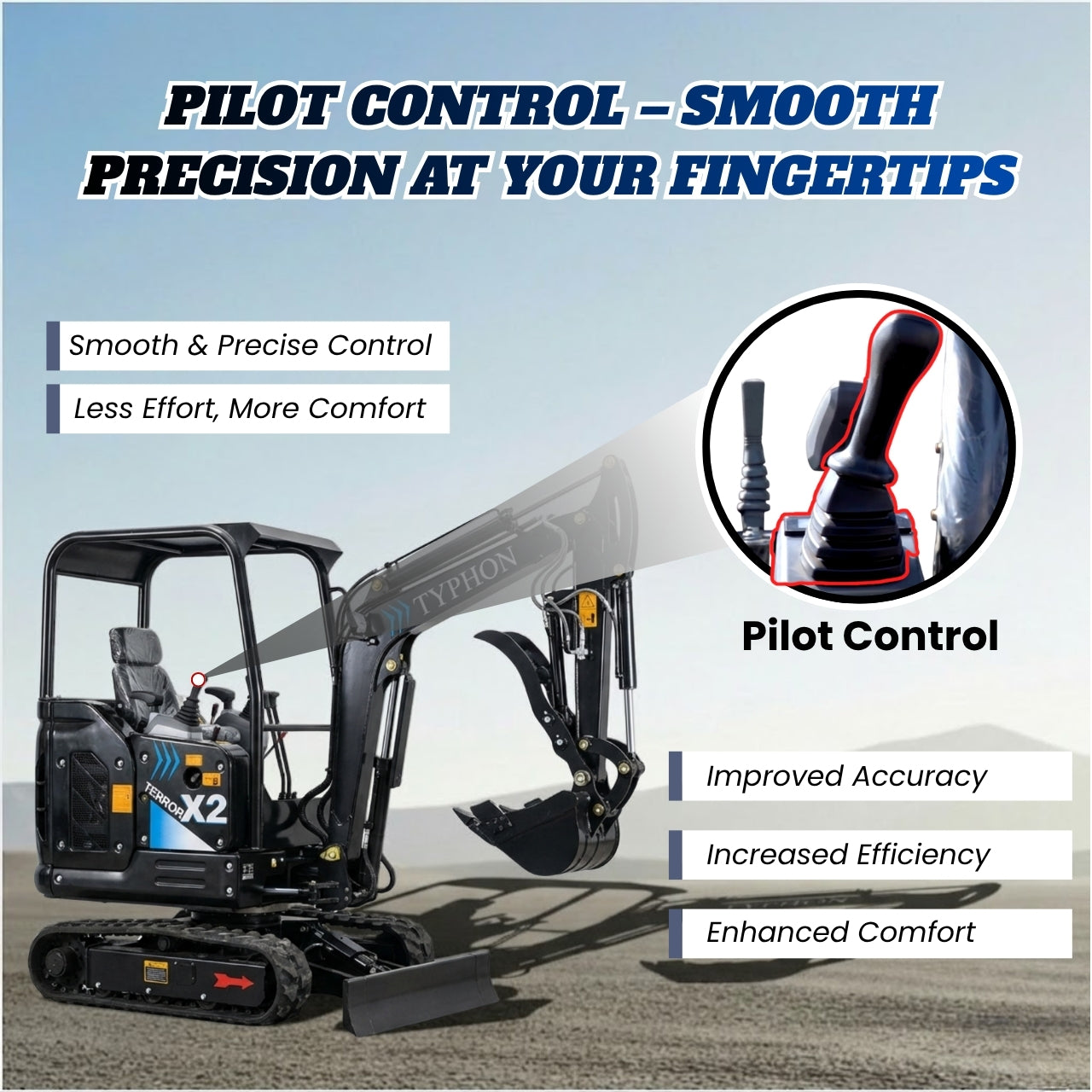

• Pilot Control System – Provides smooth, responsive, and accurate handling for maximum operator confidence.

• LED Work Lights – Improves visibility in low-light or nighttime job conditions.

• Operator Comfort Design – Ergonomic armrests, adjustable seat, and user-friendly display panel reduce fatigue.

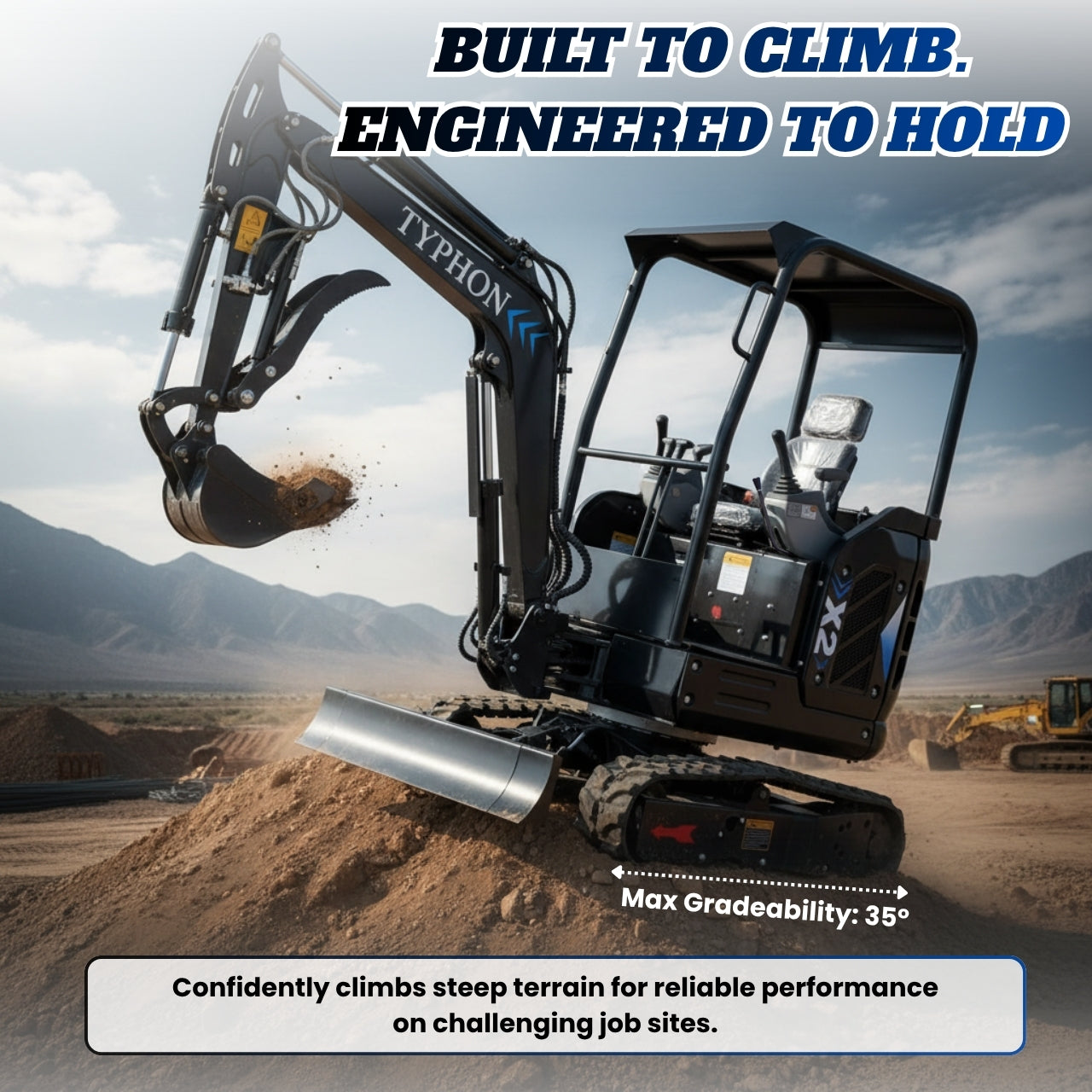

• Excellent Gradeability (35°) – Strong climbing capability for uneven and challenging terrain.

• Easy Maintenance Access – Simplified service points for reduced downtime and lower maintenance costs.

6. Included Accessories

• Comes with 1 x standard bucket, 1 x hydraulic oil cooler, and 1 x hydraulic thumb clip.

• Includes 1 x toolbox and 1 x digital manual with comprehensive instructions.

Summary

The TYPHON TERROR X2 MAX Canopy Mini Excavator is a 2.5-ton compact powerhouse, ideal for small projects and tight job sites. With 360° body swing, 45°/55° boom swing, and telescopic tracks (1060–1350 mm), it offers precise maneuverability. Delivering 22 kN digging force, 0.07 m³ bucket capacity, 400 kg lifting, and 35° gradeability, it handles digging, lifting, and trenching with ease. Operator-friendly features include pilot controls, LED lights, a comfortable seat with armrest, a display panel, and a protective 4-leg canopy.
