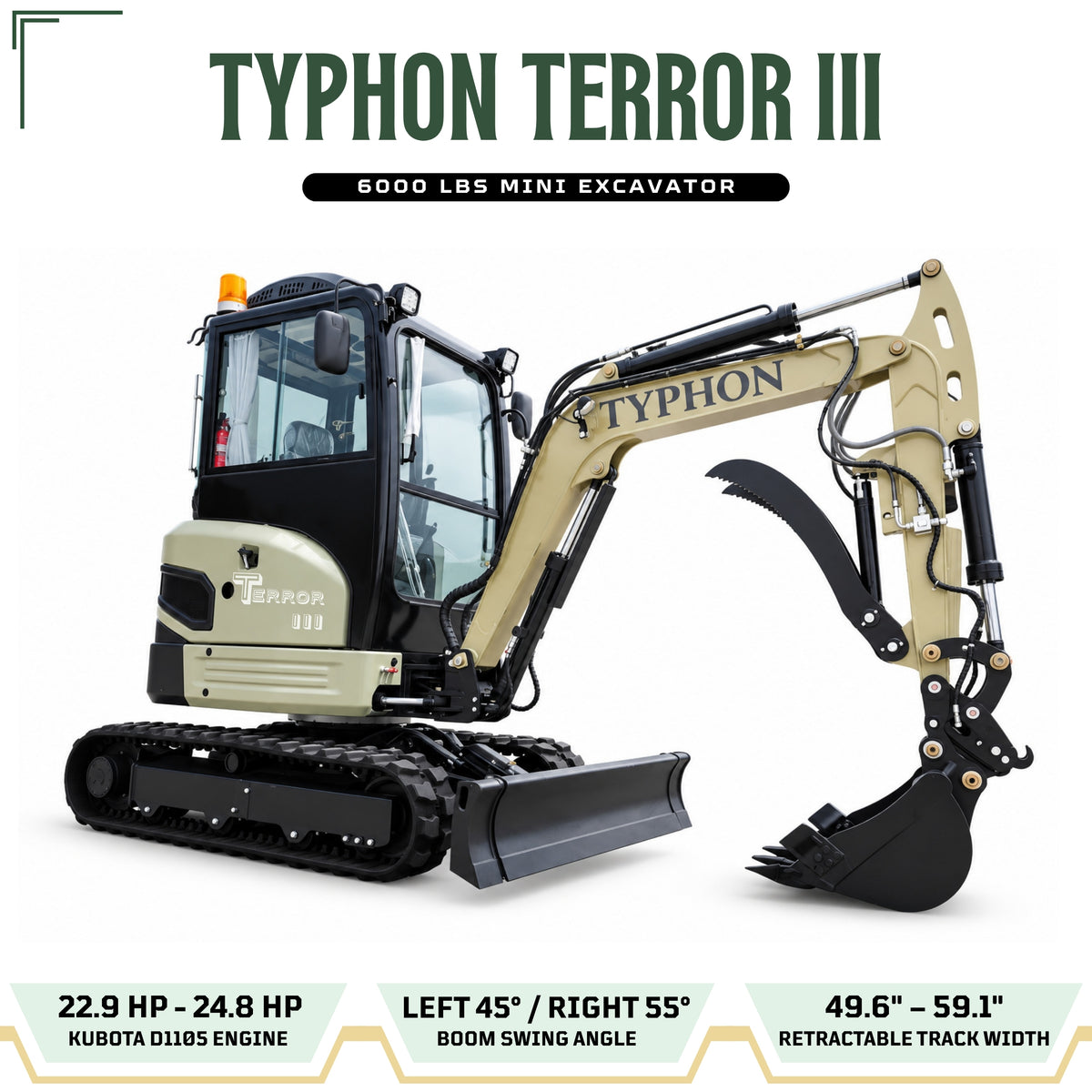

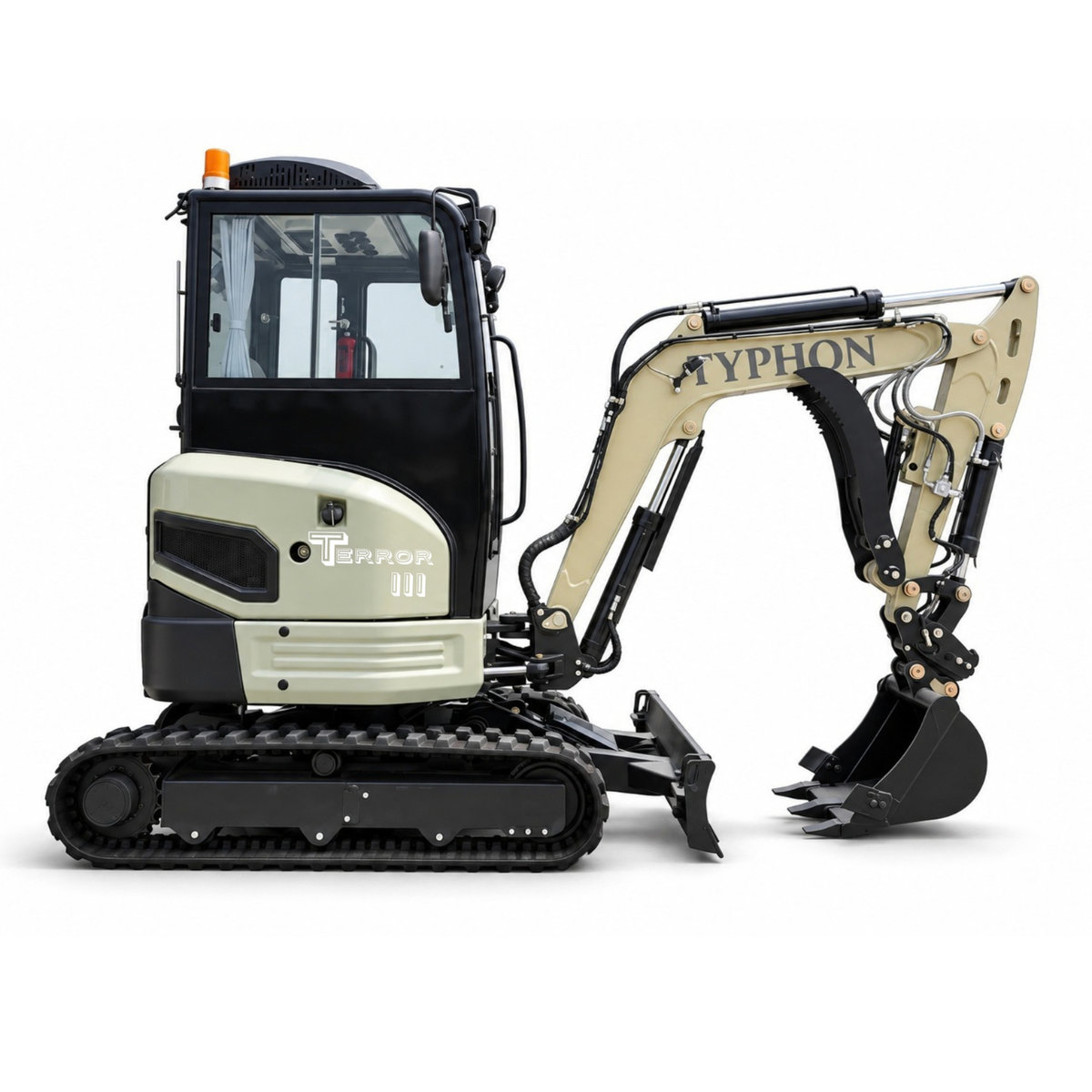

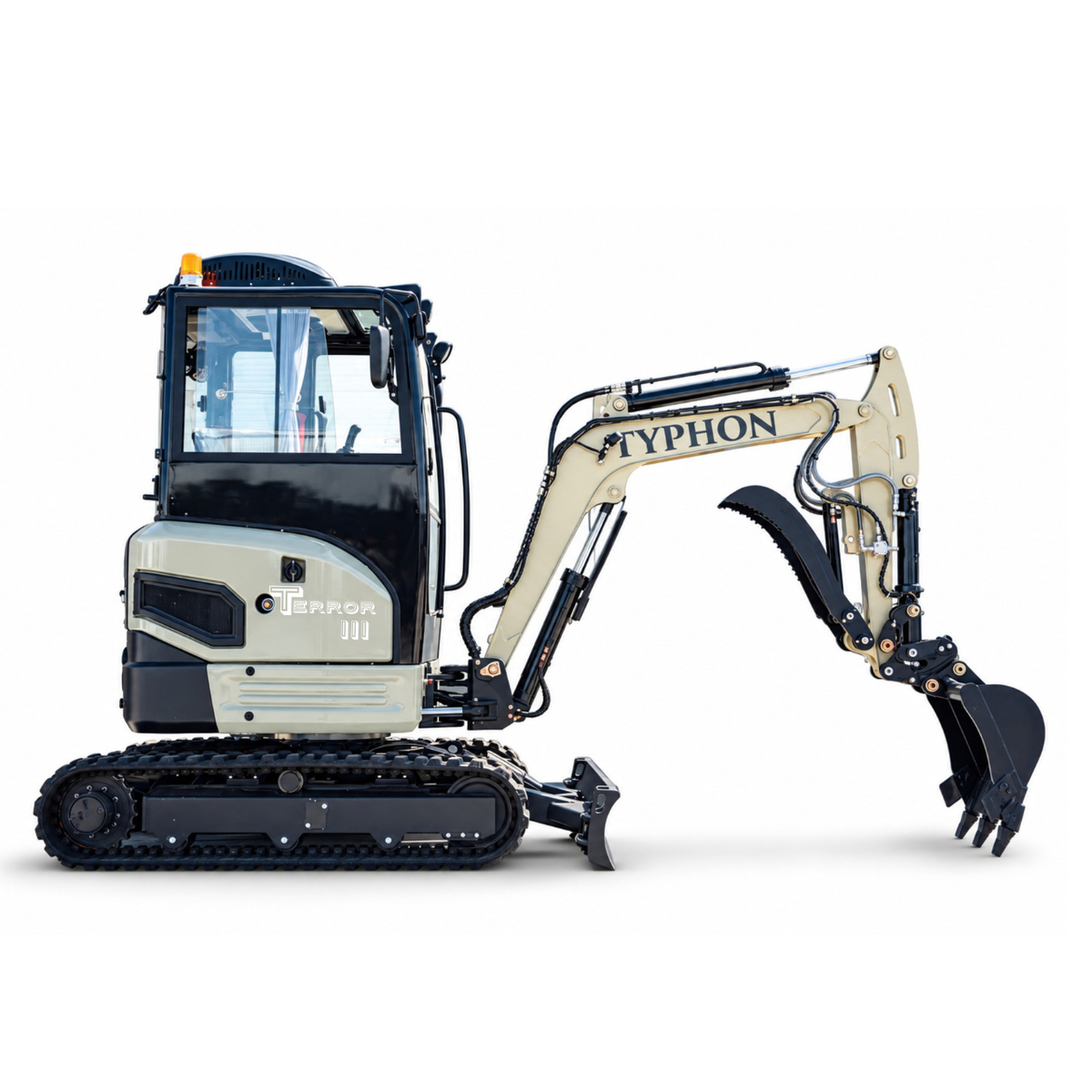

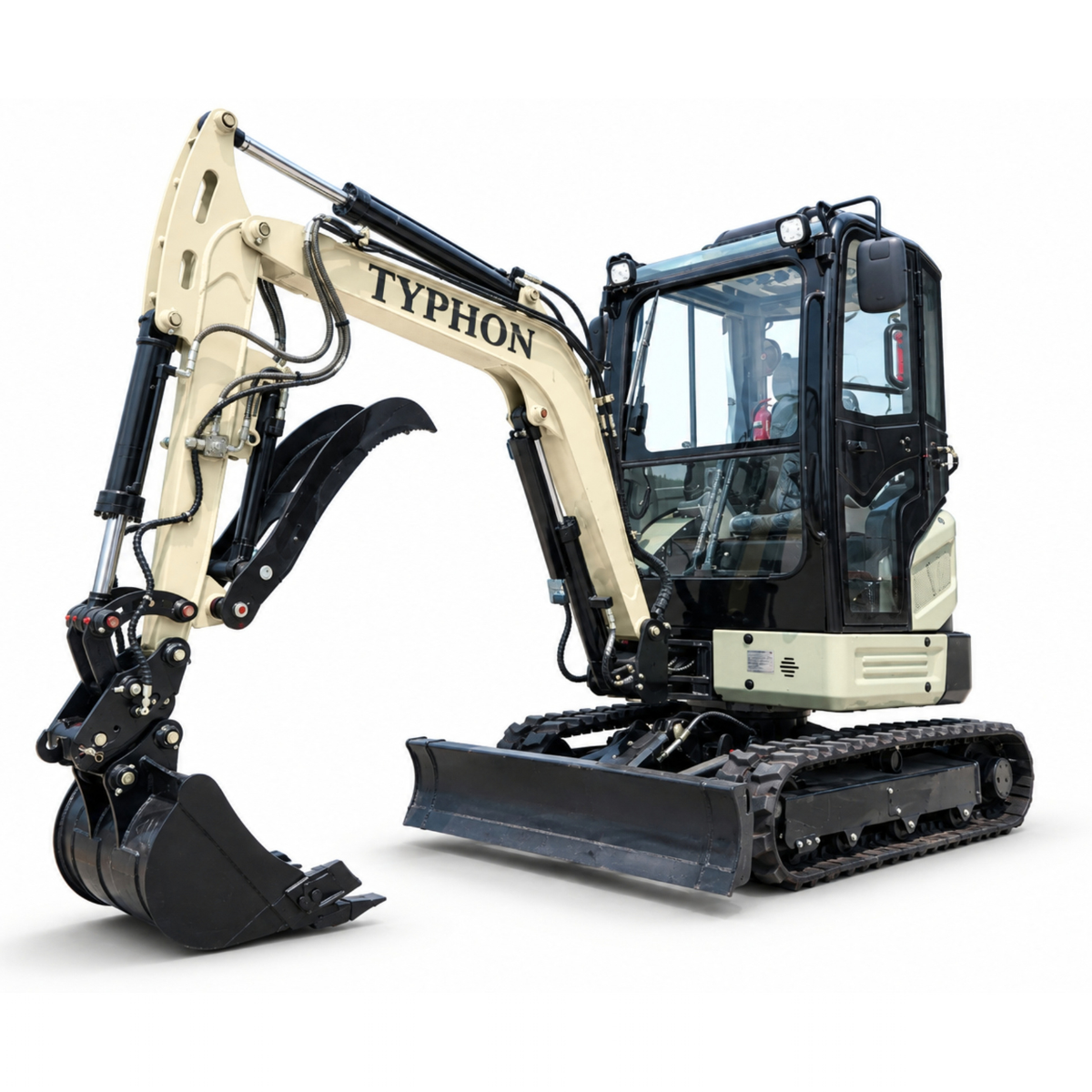

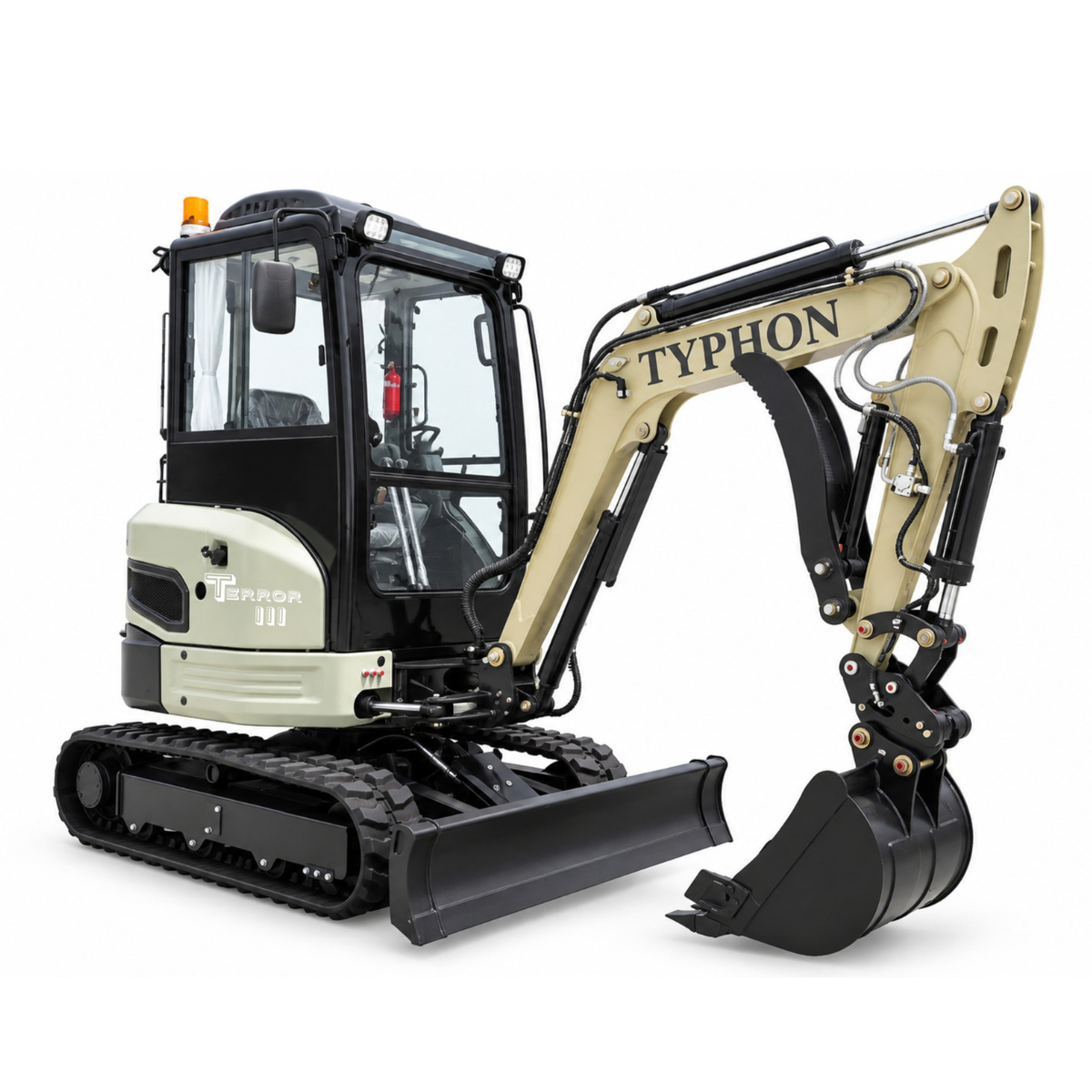

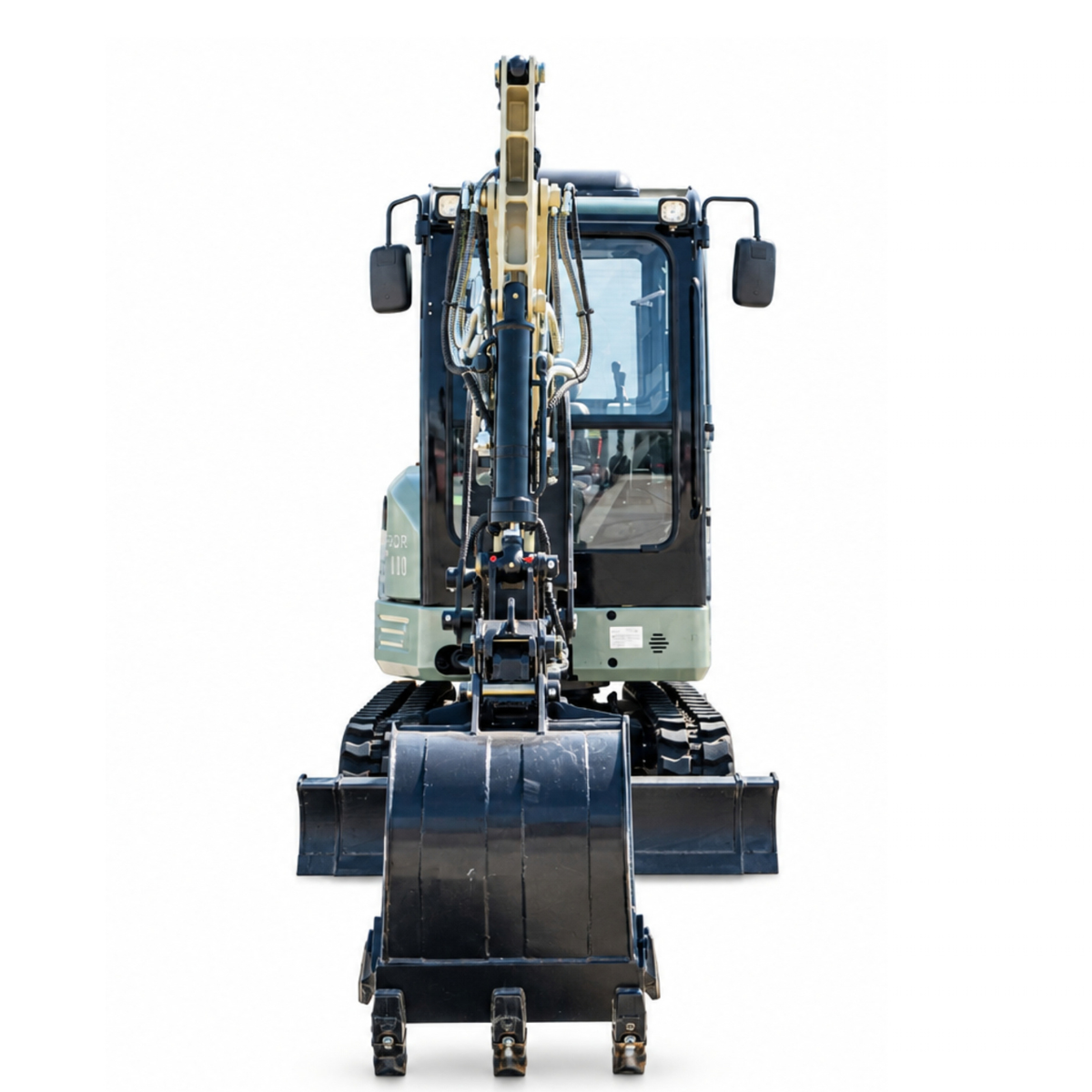

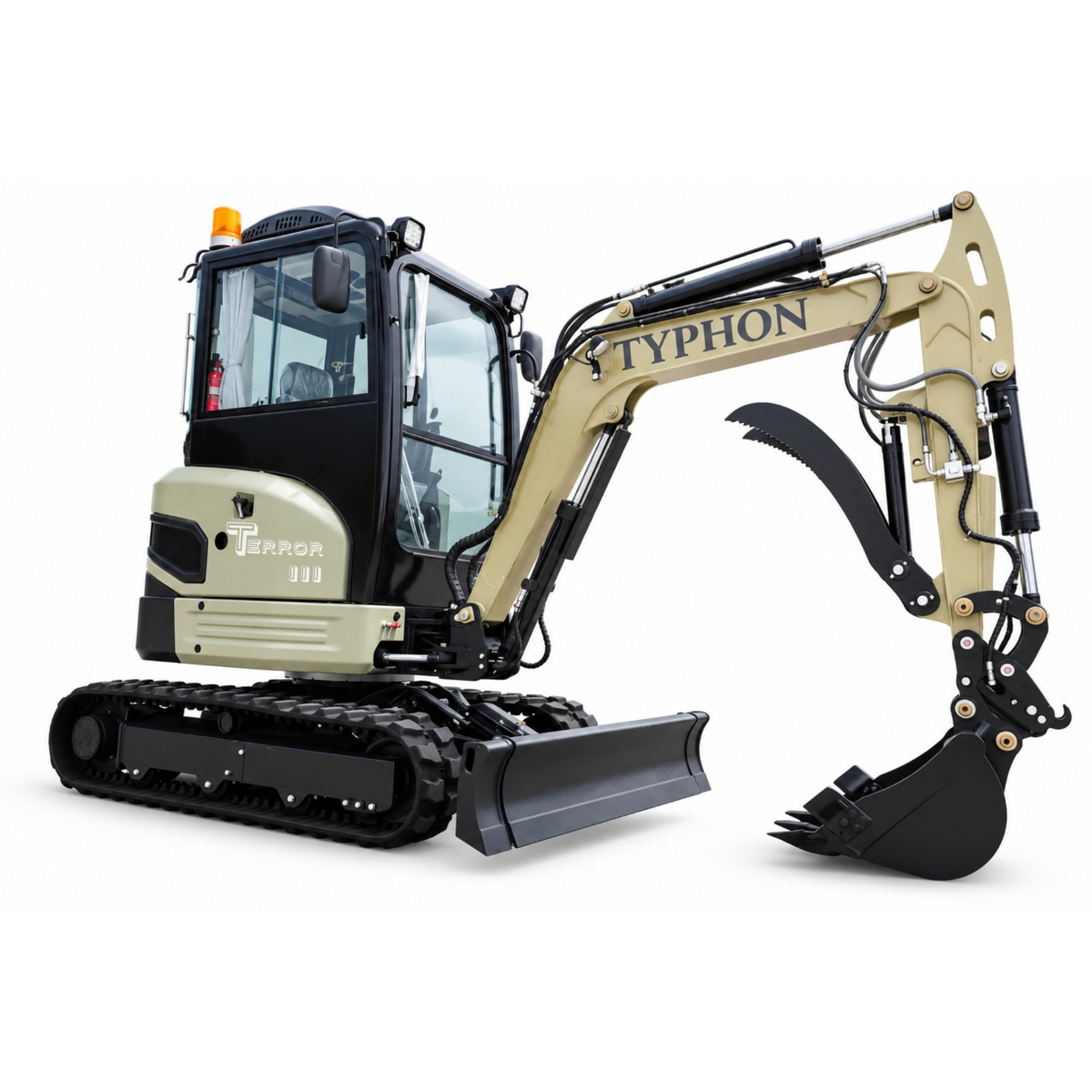

TYPHON TERROR III PROPACT Series Mini Excavator 6,000 lb Kubota D1105, Zero Tail Swing, AC/Heater

Take on demanding excavation work where access, space, and maneuverability matter most. The TYPHON TERROR III PROPACT Series is a 6,000 lb compact mini excavator designed for residential construction, utility work, trenching, foundation jobs, landscaping, grading, and site preparation.

Built with a Kubota D1105 diesel engine, full hydraulic controls, zero-tail-swing operation, hydraulic boom swing, and a retractable rubber track system, the TERROR III PROPACT Series can move through narrow access points and operate confidently in confined jobsites. Its enclosed AC and heater cabin also provides a more comfortable working environment for longer operating shifts.

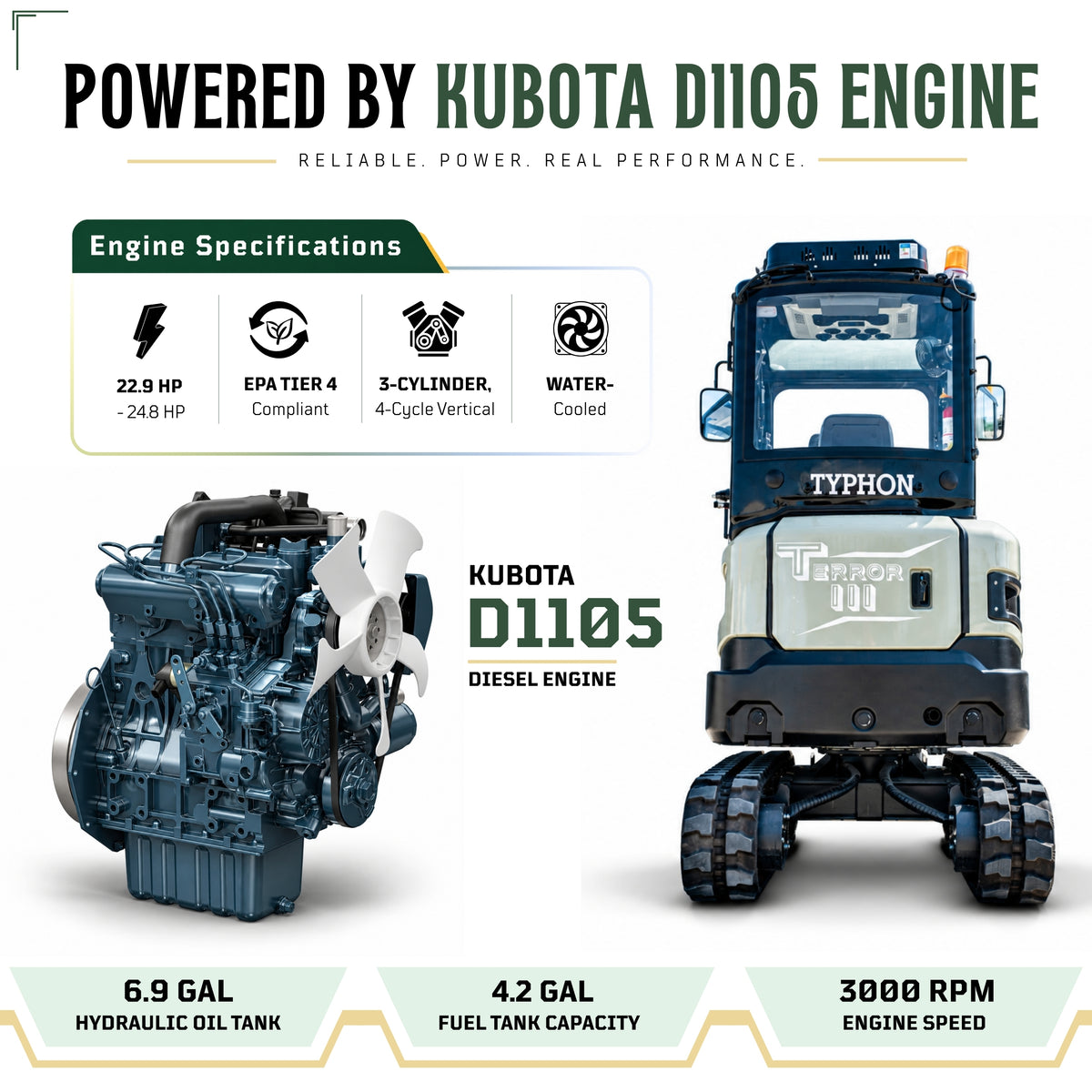

01. Kubota D1105 Diesel Engine

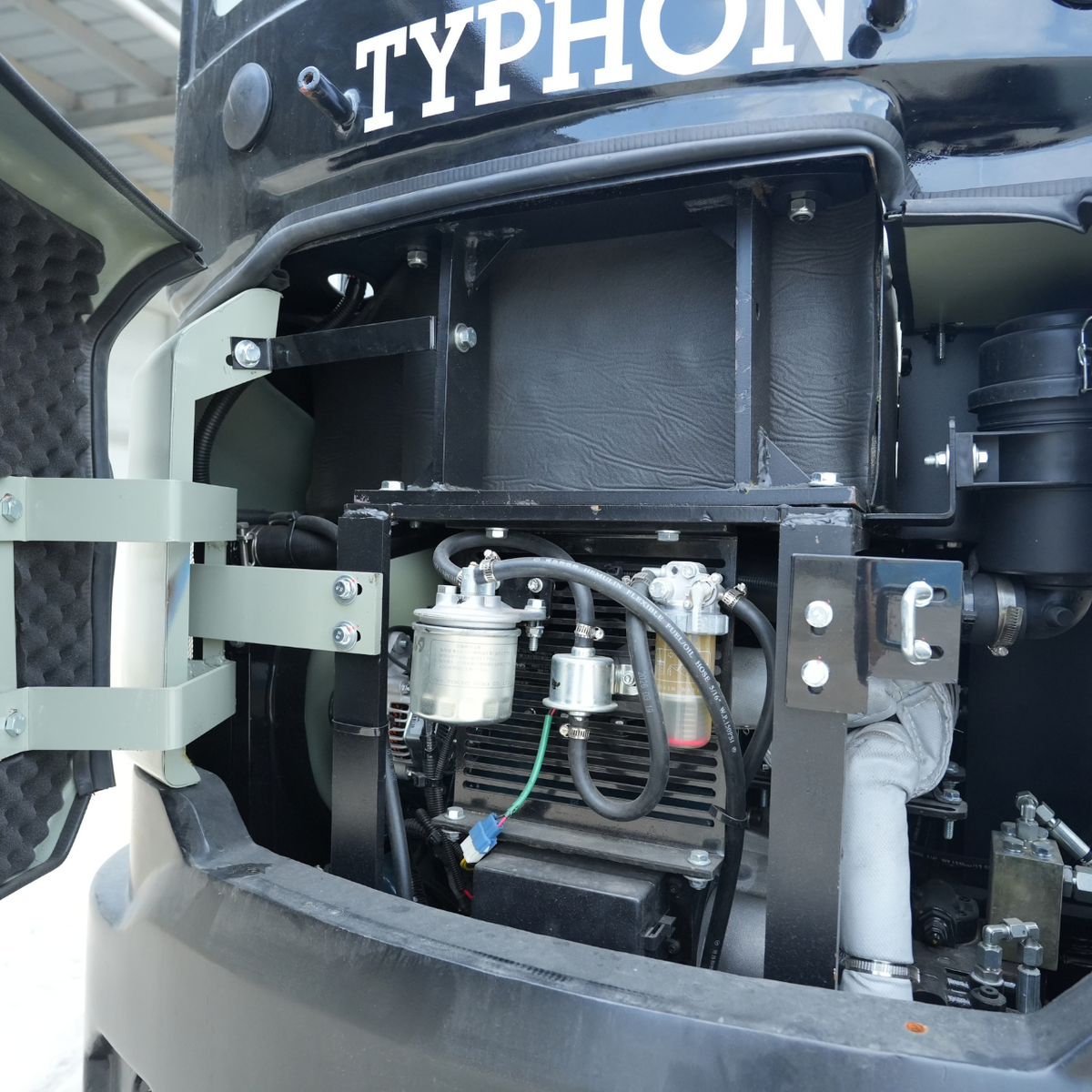

The TYPHON TERROR III PROPACT Series is powered by a Kubota D1105 vertical, water-cooled, 3-cylinder, 4-cycle industrial diesel engine rated at 22.9–24.8 HP. Its proven design delivers steady power for digging, travel, swing, and hydraulic functions across demanding work conditions.

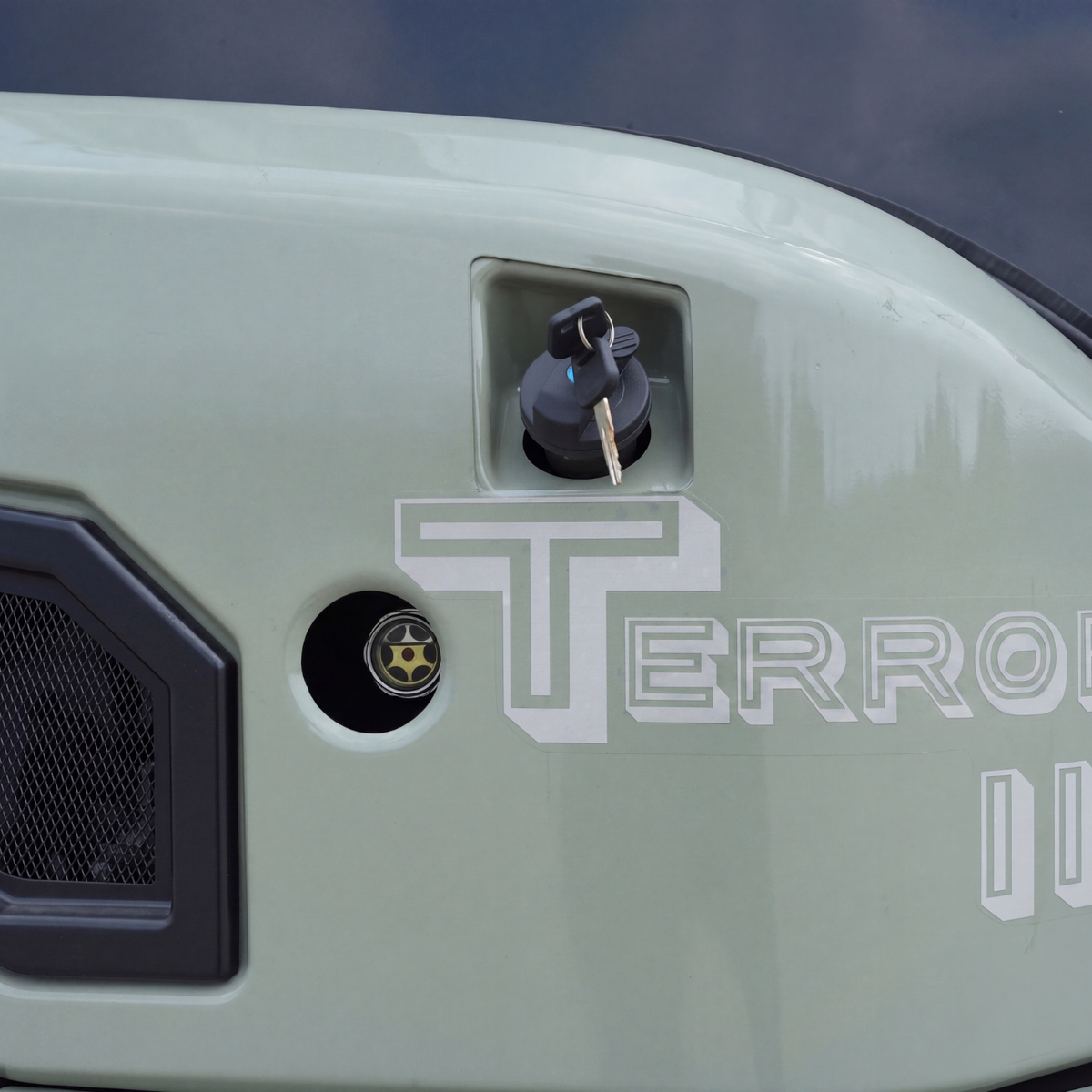

A dedicated cooling system helps manage engine temperature during extended operation, while the 4.2-gallon (16 L) fuel tank supports longer working periods between refueling. The machine also uses a 6.9-gallon (26 L) hydraulic oil reservoir to support continuous hydraulic operation and routine jobsite productivity.

02. Full Hydraulic System for Smooth Machine Control

The TERROR III PROPACT Series uses a full hydraulic system to operate the boom, arm, bucket, swing, and travel functions with coordinated control.

Key Hydraulic Advantages

• Piston Pump & Load-Sensing Valve: Hydraulic flow responds to operating demand for smoother multi-function operation and efficient power management.
• Dual-Speed Travel: Choose 2.4 km/h for controlled, high-torque movement or 3.6 km/h for faster travel between work areas.
• Integrated Hydraulic Operation: Supports responsive movement across digging, grading, swinging, and travel functions.

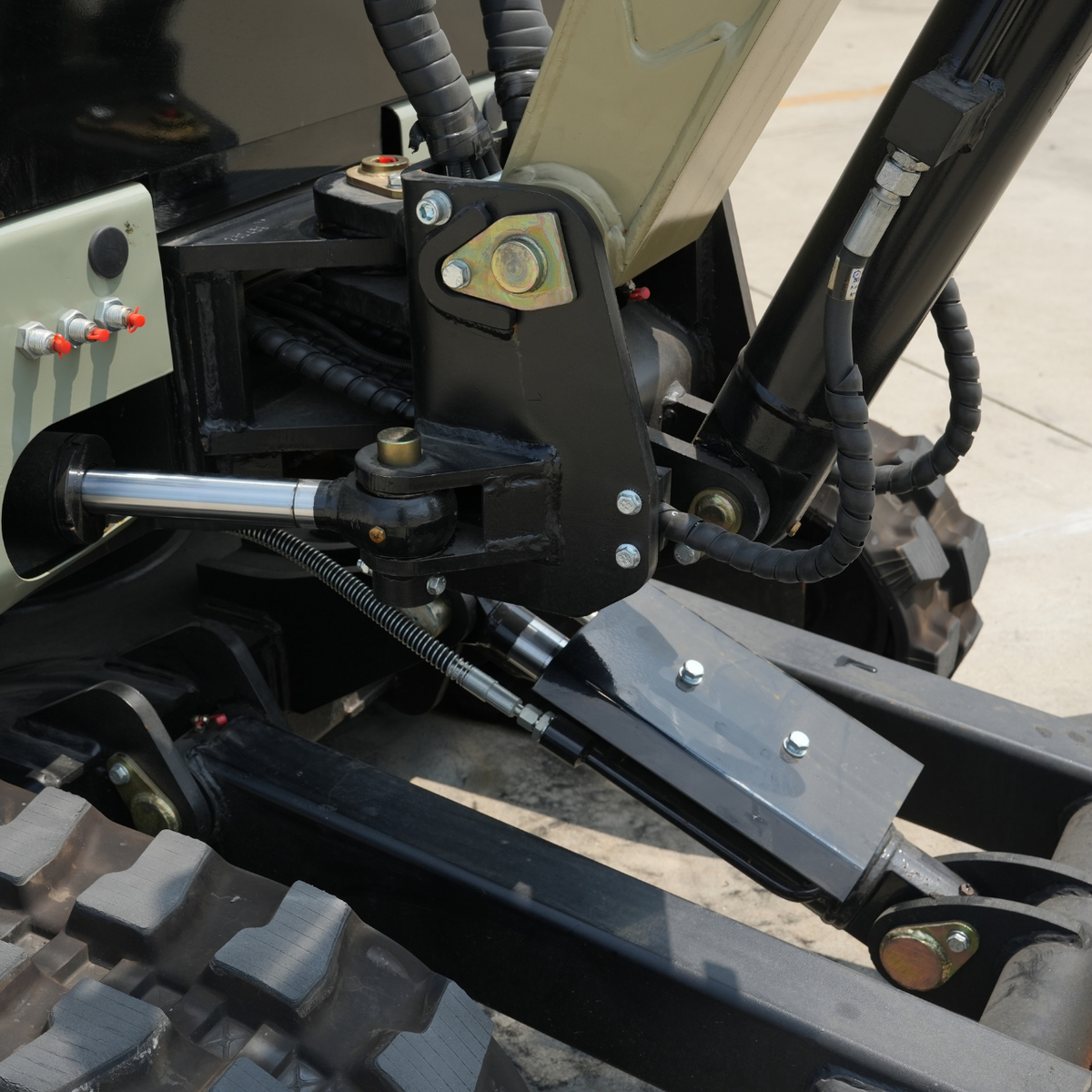

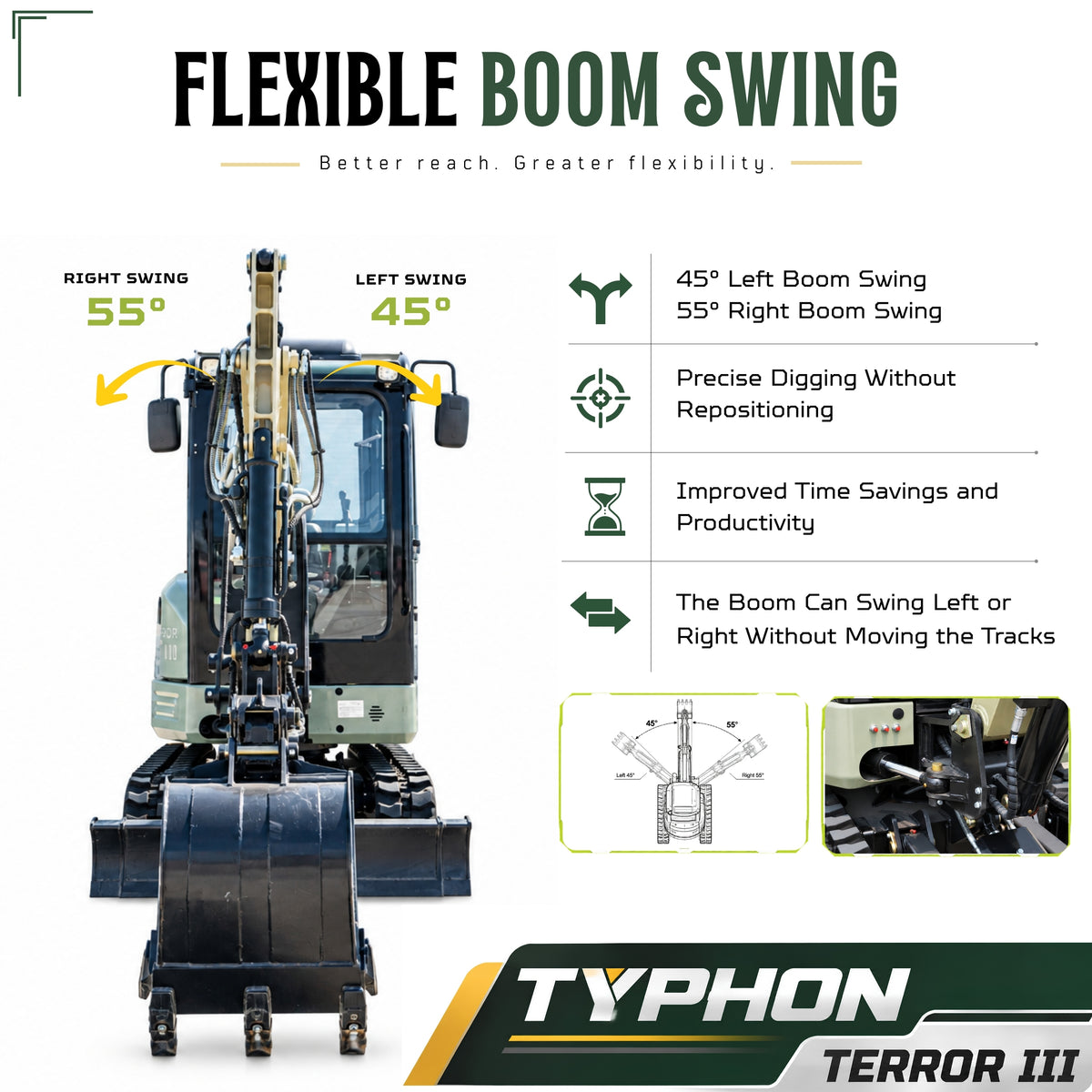

03. Hydraulic Boom Swing for Offset Excavation

The boom can swing 45° left and 55° right, allowing the operator to dig alongside walls, foundations, curbs, and other obstacles without constantly repositioning the excavator.

This side-shift capability is especially useful when working in narrow trenches, along property lines, and in restricted excavation zones.

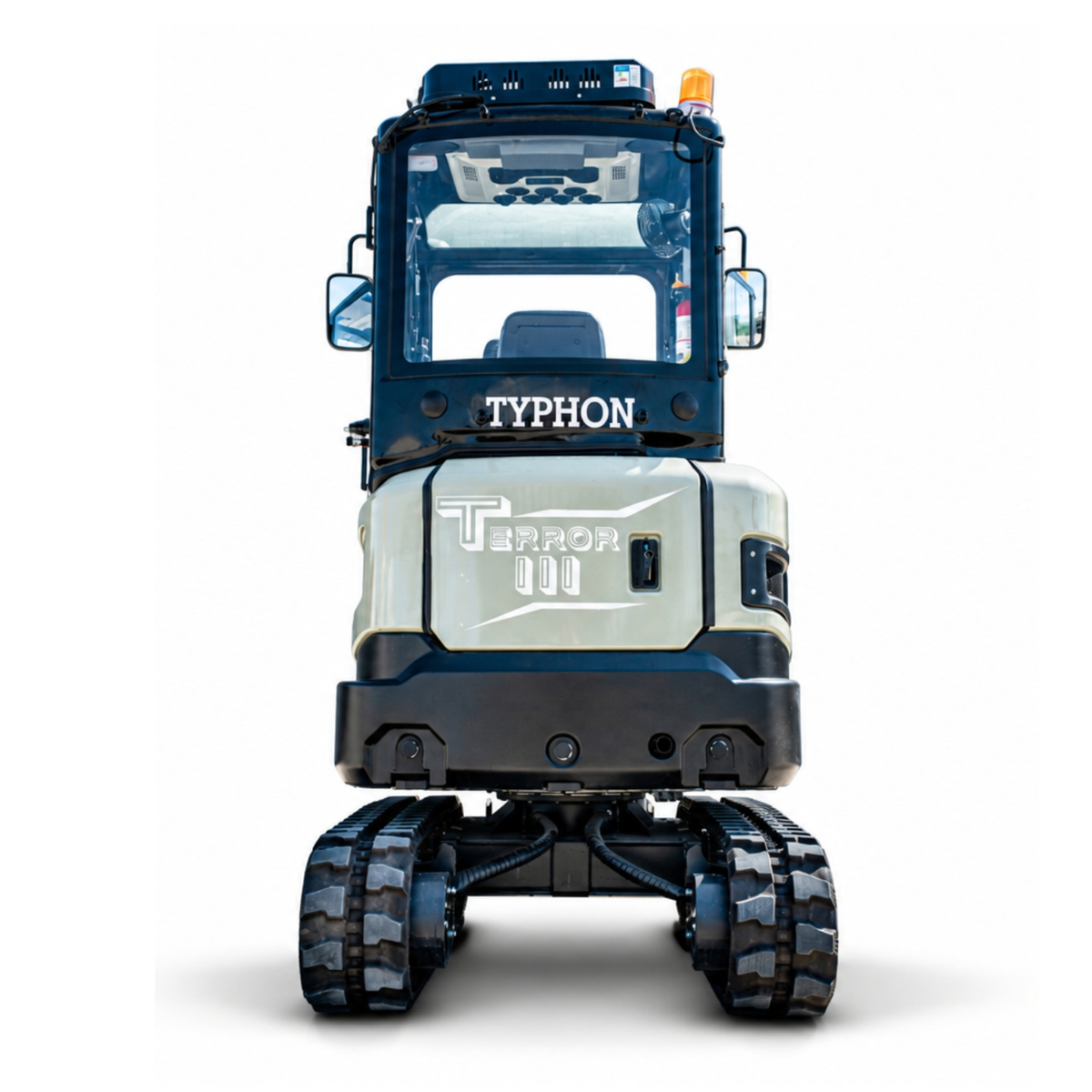

04. Zero-Tail-Swing & 360° Upper-Body Rotation

The TERROR III PROPACT Series is built for tight-space operation with a zero-tail-swing configuration that keeps the upper structure within the track footprint during rotation.

Its upper structure provides 360° continuous rotation at 10 rpm, allowing efficient digging, loading, and repositioning without a mechanical stop.

A minimum swing radius of 7 ft 1 inch (2,159 mm) further helps reduce the space required when operating near buildings, fences, walls, and other obstacles.

05. Strong Digging Performance with Integrated Dozer Blade

Despite its compact size, the TERROR III PROPACT Series offers a useful combination of digging depth, working reach, and bucket force for everyday excavation jobs.

• Maximum Digging Depth: 9 ft (2,745 mm)
• Maximum Digging Radius: 14 ft 3 inch (4,350 mm)
• Maximum Digging Height: 11 ft 4 inch (3,457 mm)
• Bucket Digging Force: 23 kN (5,170 lbf)

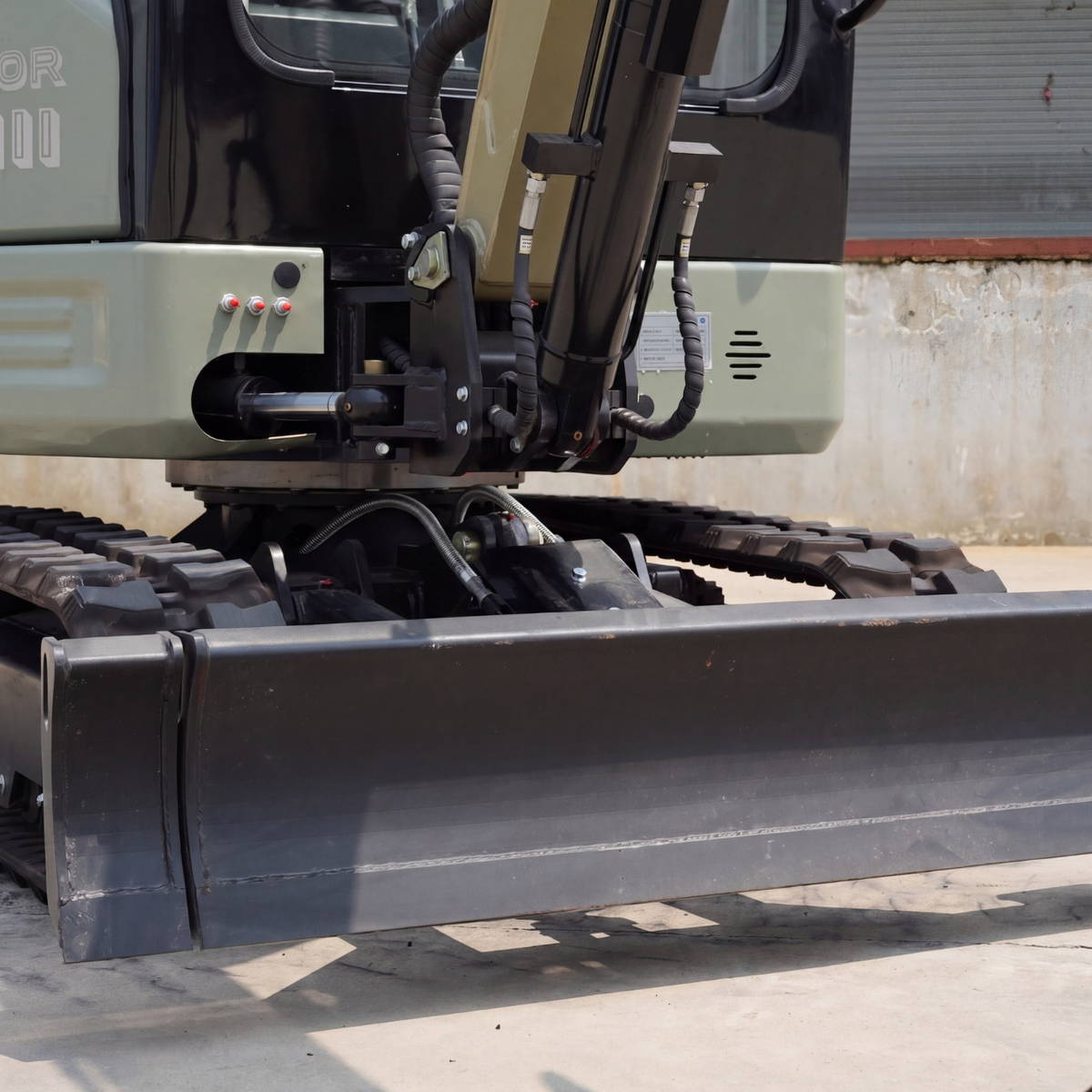

The front dozer blade adds another layer of jobsite versatility, providing 7.5 in (191 mm) above-grade and 11.5 in (293 mm) below-grade travel. Use it for backfilling trenches, leveling soil, stabilizing the excavator, and preparing surfaces after digging.

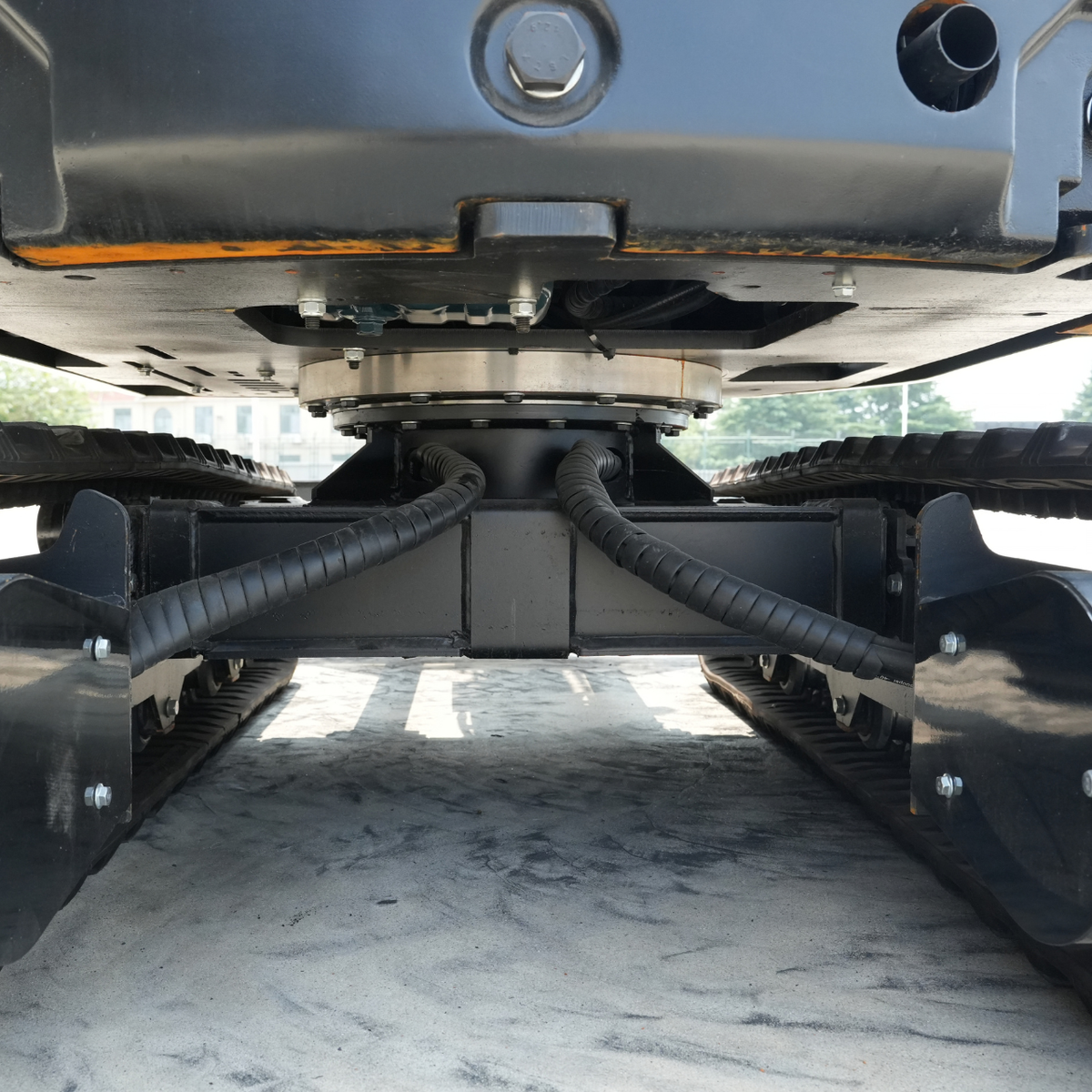

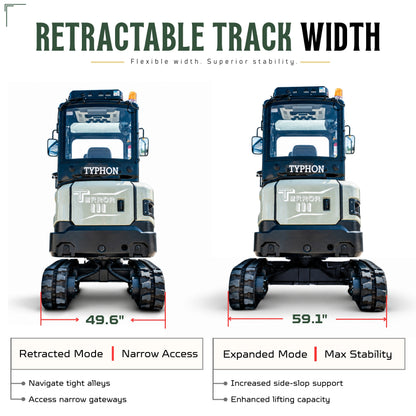

06. Retractable Rubber Tracks for Tight Access

The adjustable undercarriage is designed to make narrow-site access easier without giving up a wider operating stance.

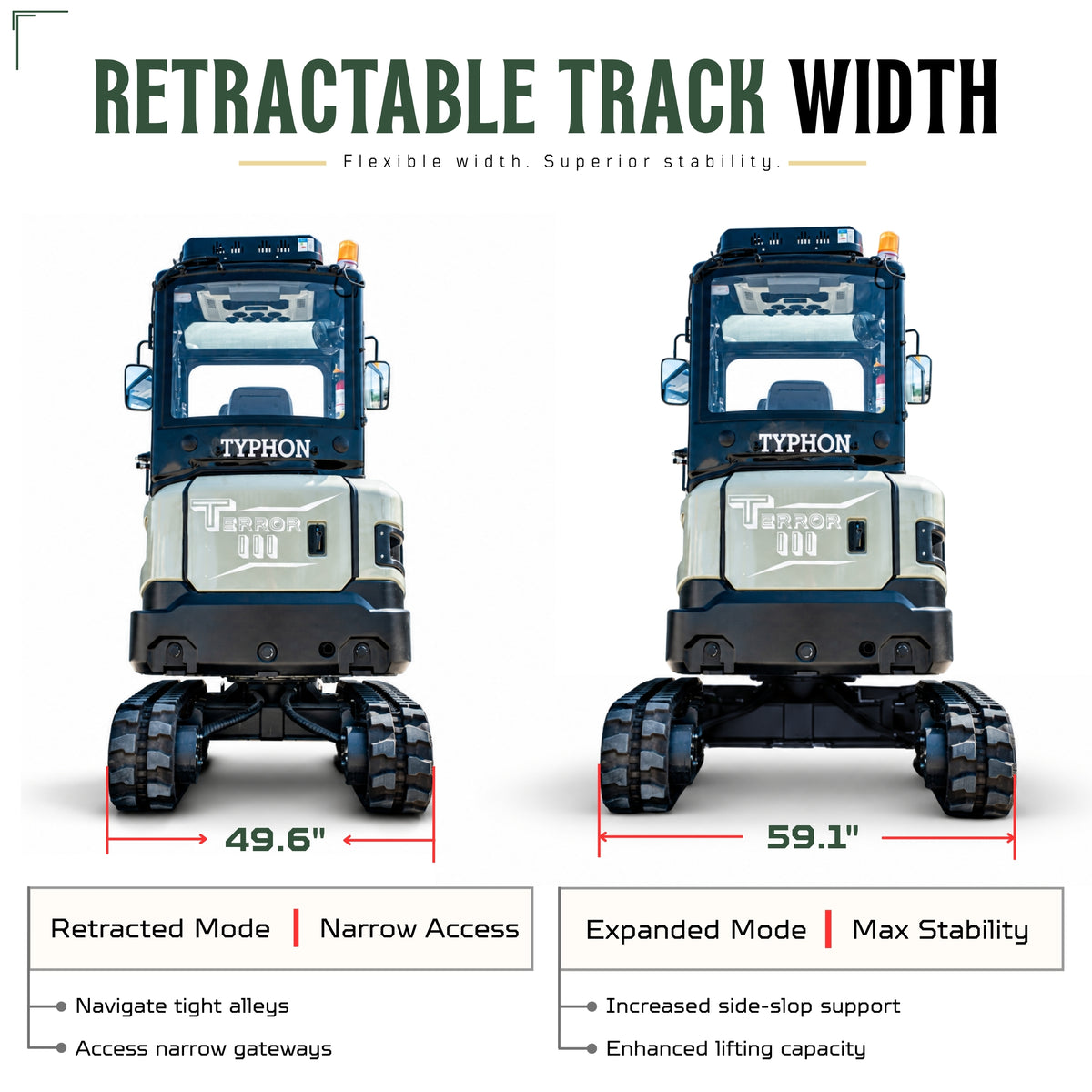

The rubber track width adjusts from:

• Retracted: 49.6 inch (1,260 mm)
• Extended: 59.1 inch (1,500 mm)

Keep the tracks narrow when moving through tight gates, pathways, or restricted entrances, then extend them for a broader stance and improved stability during excavation.

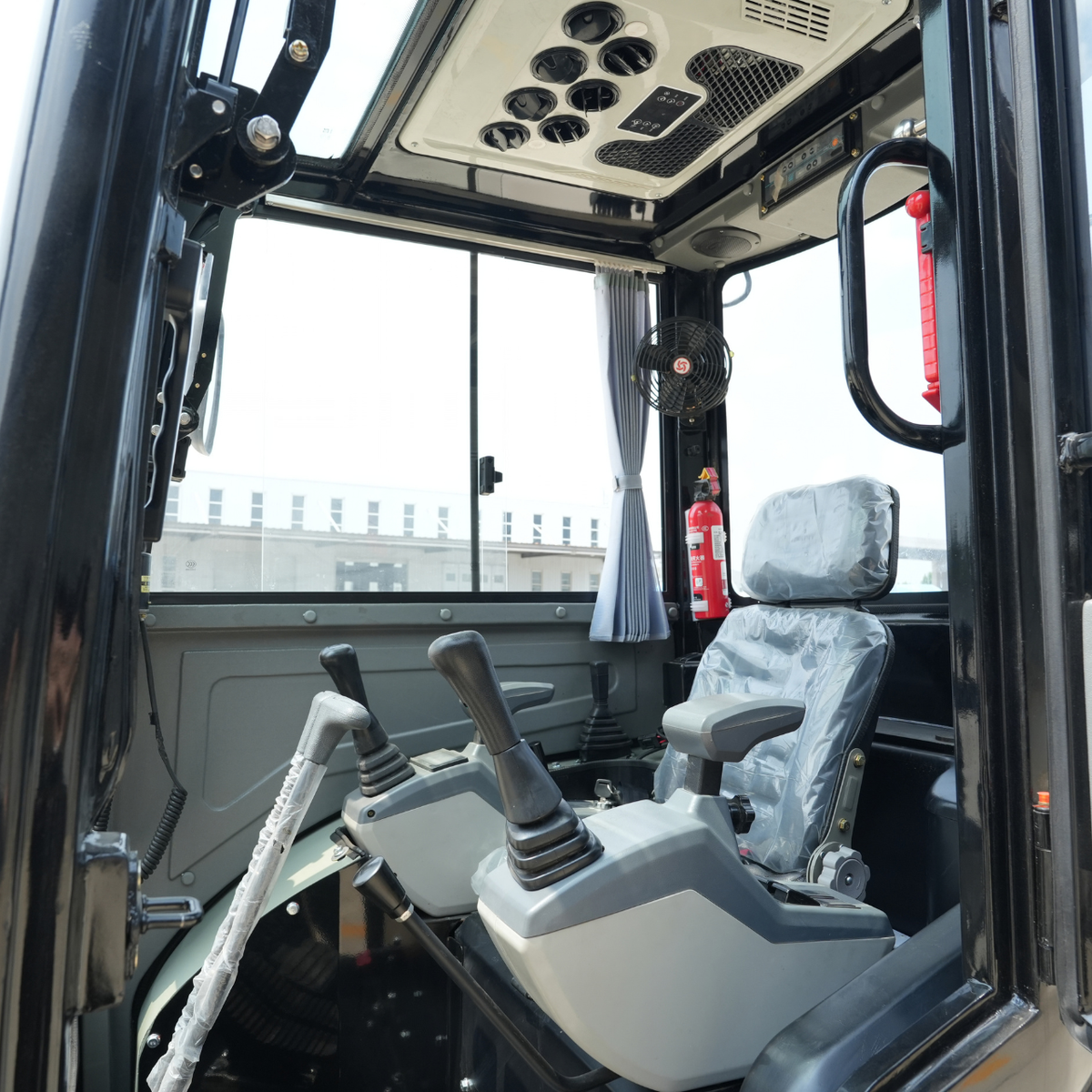

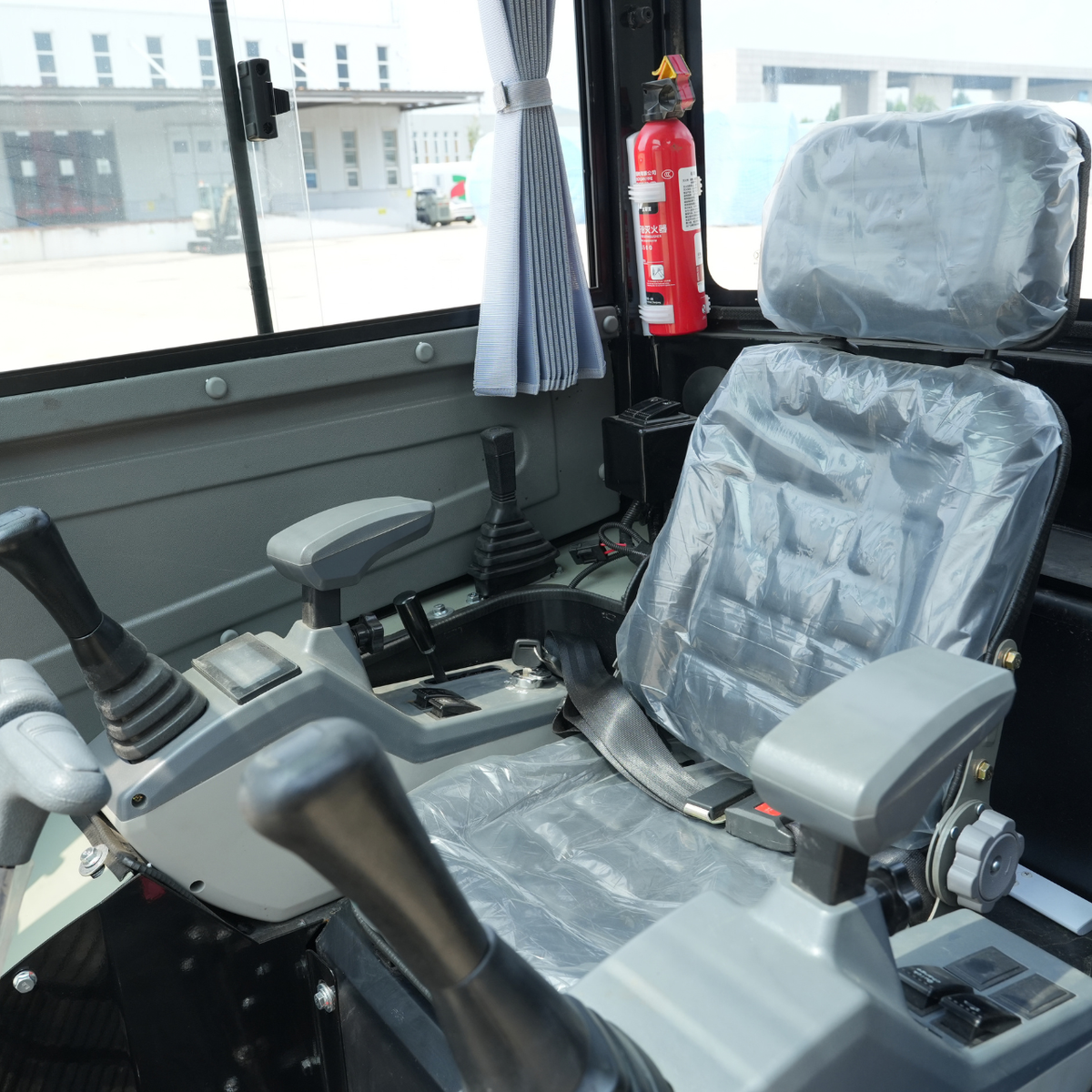

07. Enclosed Cabin with AC & Heater

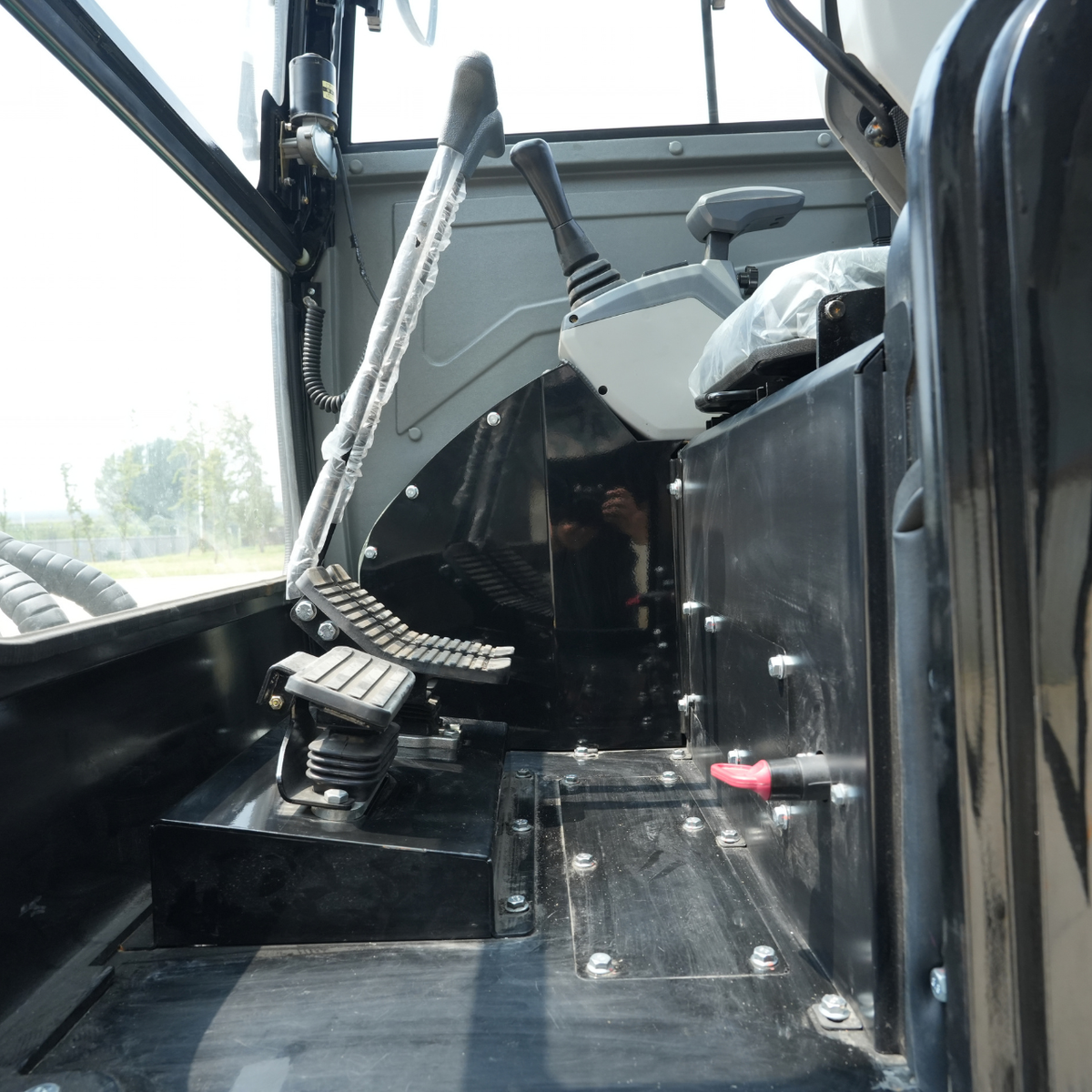

The operator cabin of the TYPHON TERROR III PROPACT Series is designed to provide comfort, visibility, and practical controls during extended working hours.

Operator-Focused Features

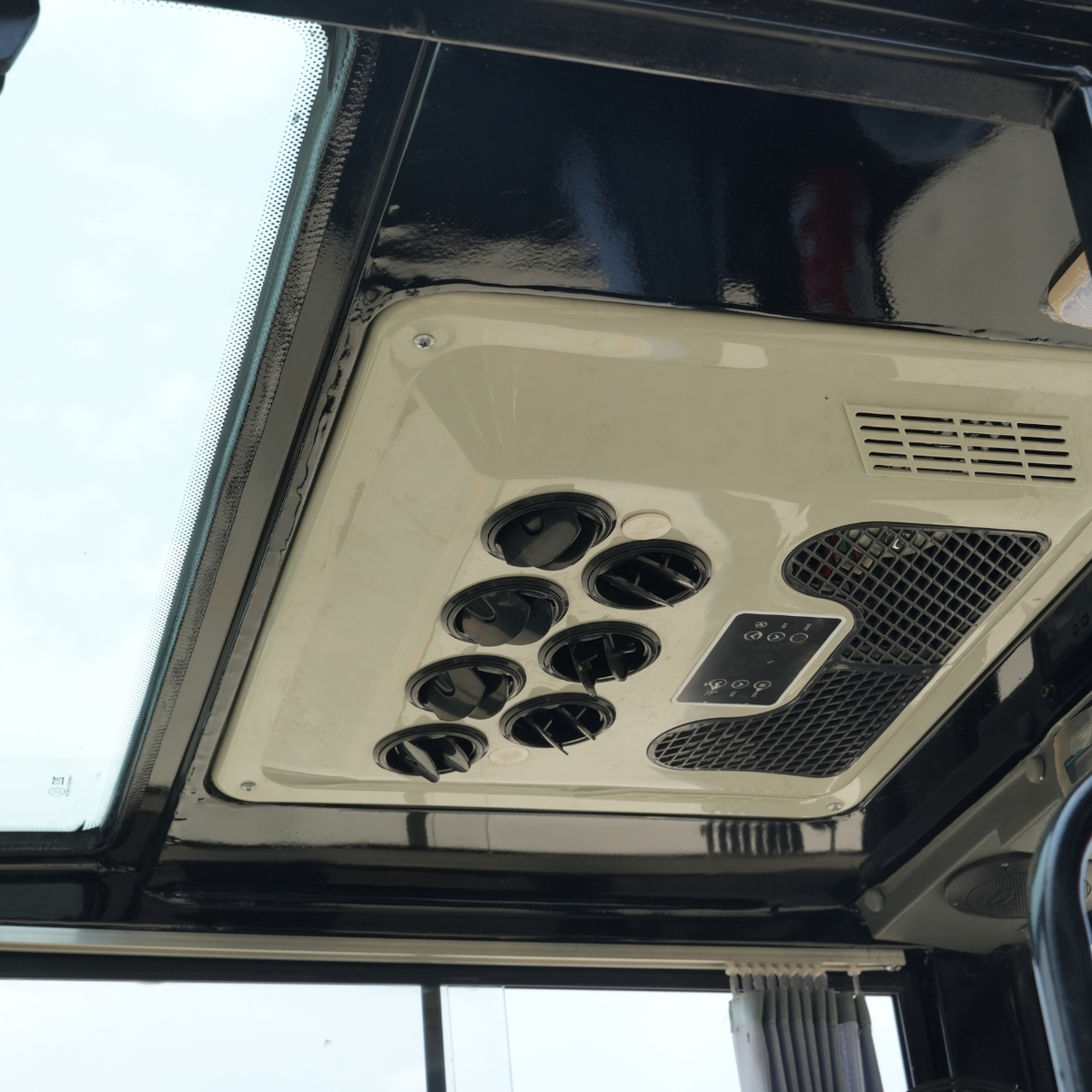

• AC & Heater: Helps maintain a more comfortable cabin temperature across changing weather conditions.
• Enclosed Operator Cabin: Provides a spacious, ergonomic working environment with convenient access to essential controls.

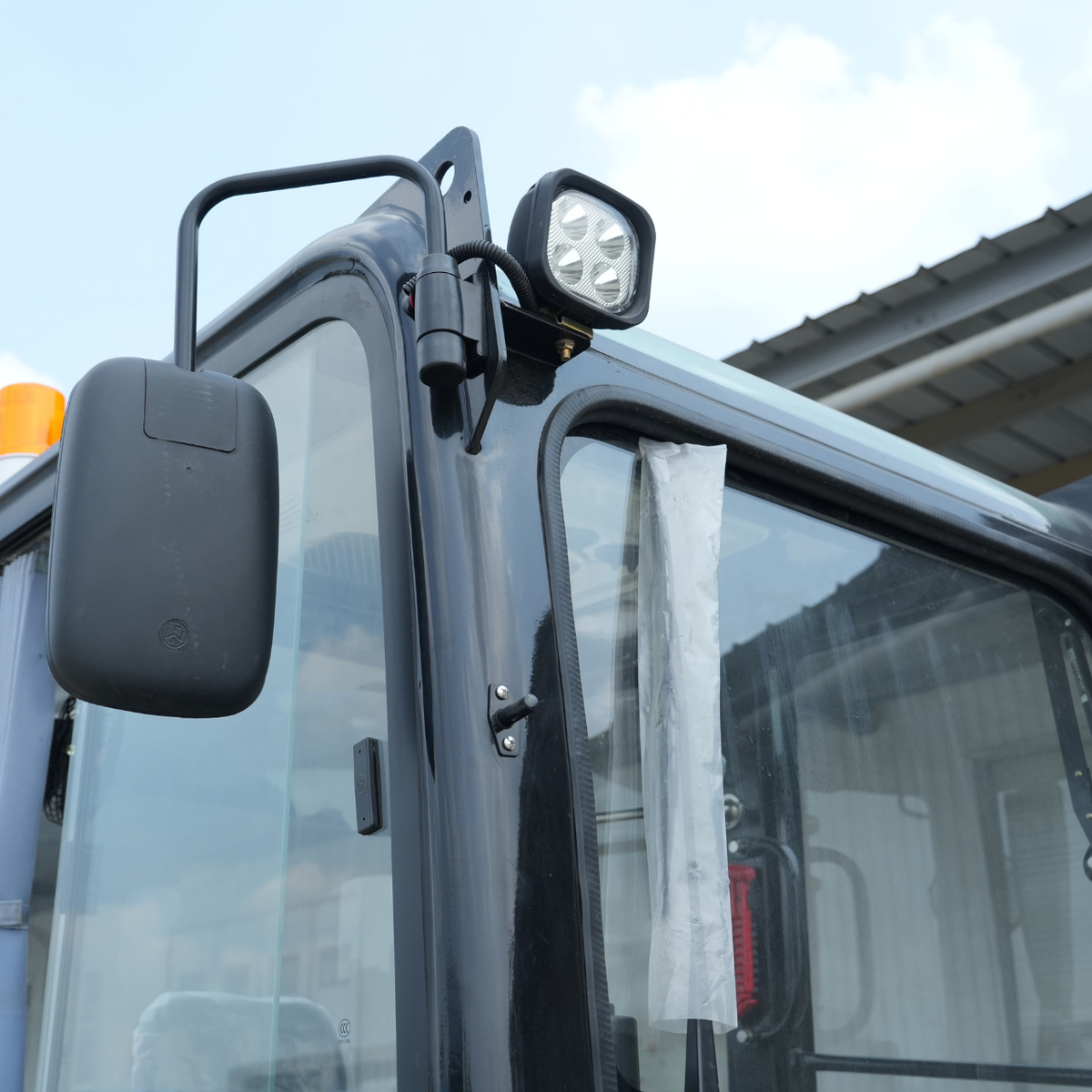

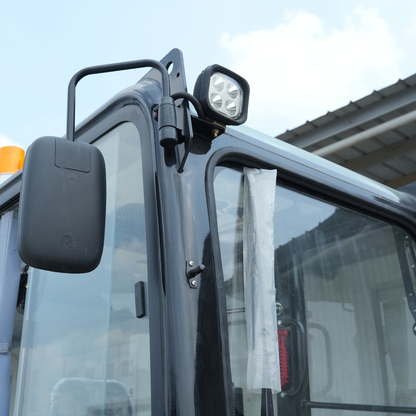

• Front-Mounted Mirrors: Improve rear and side visibility around the machine.
• Openable Right-Side Window: Allows fresh airflow and easier communication with workers outside the machine.
• Integrated Speaker Panel: Adds convenience inside the operator compartment.
• Water Fire Extinguisher: Provides first-response fire protection.
• Emergency Glass Breaker: Allows quick escape through the cabin window during an emergency.

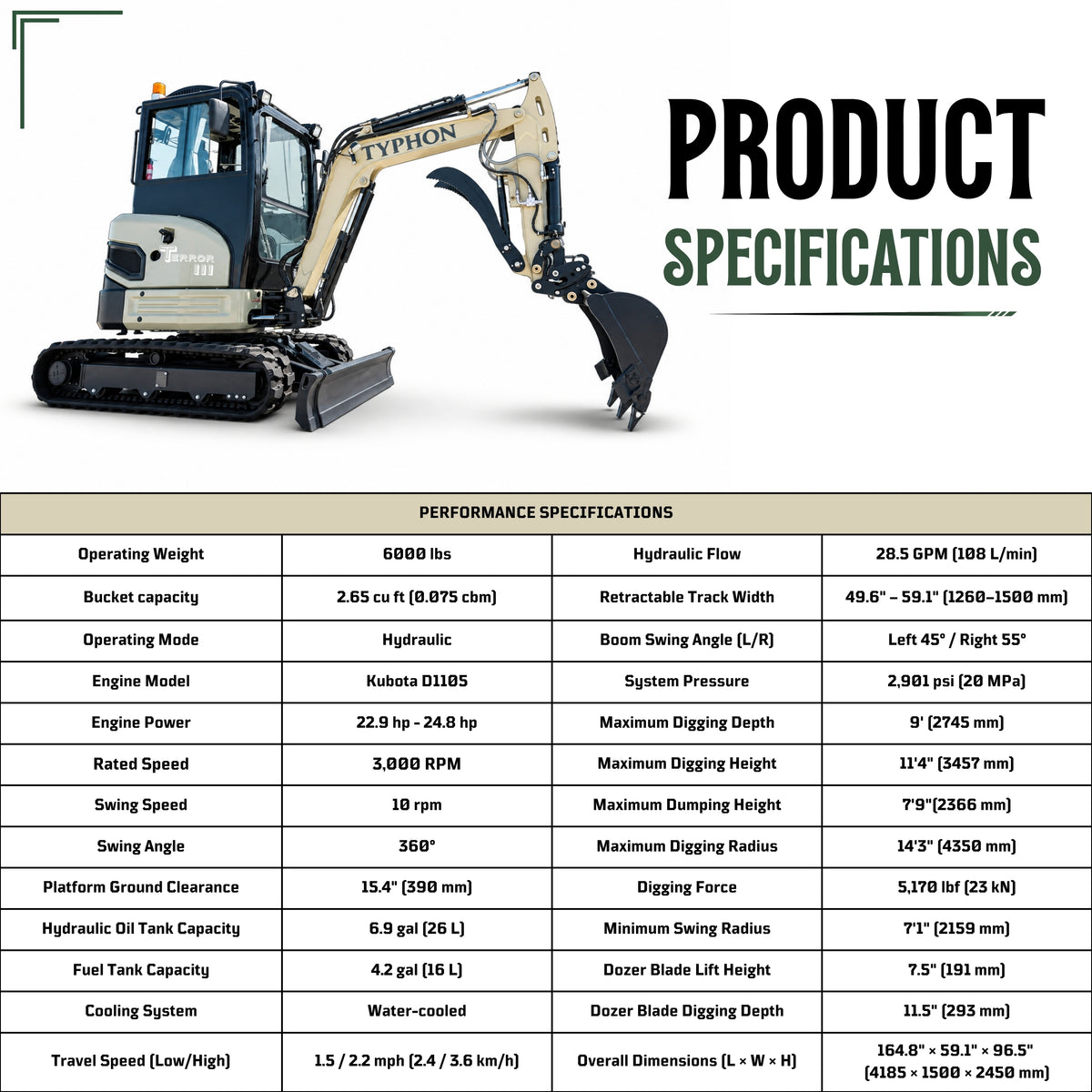

Key Features at a Glance

• 6,000 lb compact mini excavator
• Kubota D1105 water-cooled diesel engine
• 22.9–24.8 HP rated power
• Full hydraulic control system
• Piston pump with load-sensing valve
• Dual travel speeds: 2.4 / 3.6 km/h
• 45° left / 55° right hydraulic boom swing
• Zero-tail-swing configuration
• 360° continuous rotation at 10 rpm
• 7 ft 1 in (2,159 mm) minimum swing radius
• 9 ft (2,745 mm) maximum digging depth
• 14 ft 3 in (4,350 mm) maximum digging radius
• 23 kN (5,170 lbf) bucket digging force
• Adjustable retractable rubber tracks
• 49.6–59.1 in (1,260–1,500 mm) track width
• Integrated front dozer blade
• Enclosed cabin with AC & heater
• Front mirrors and openable side window
• Emergency safety equipment included
