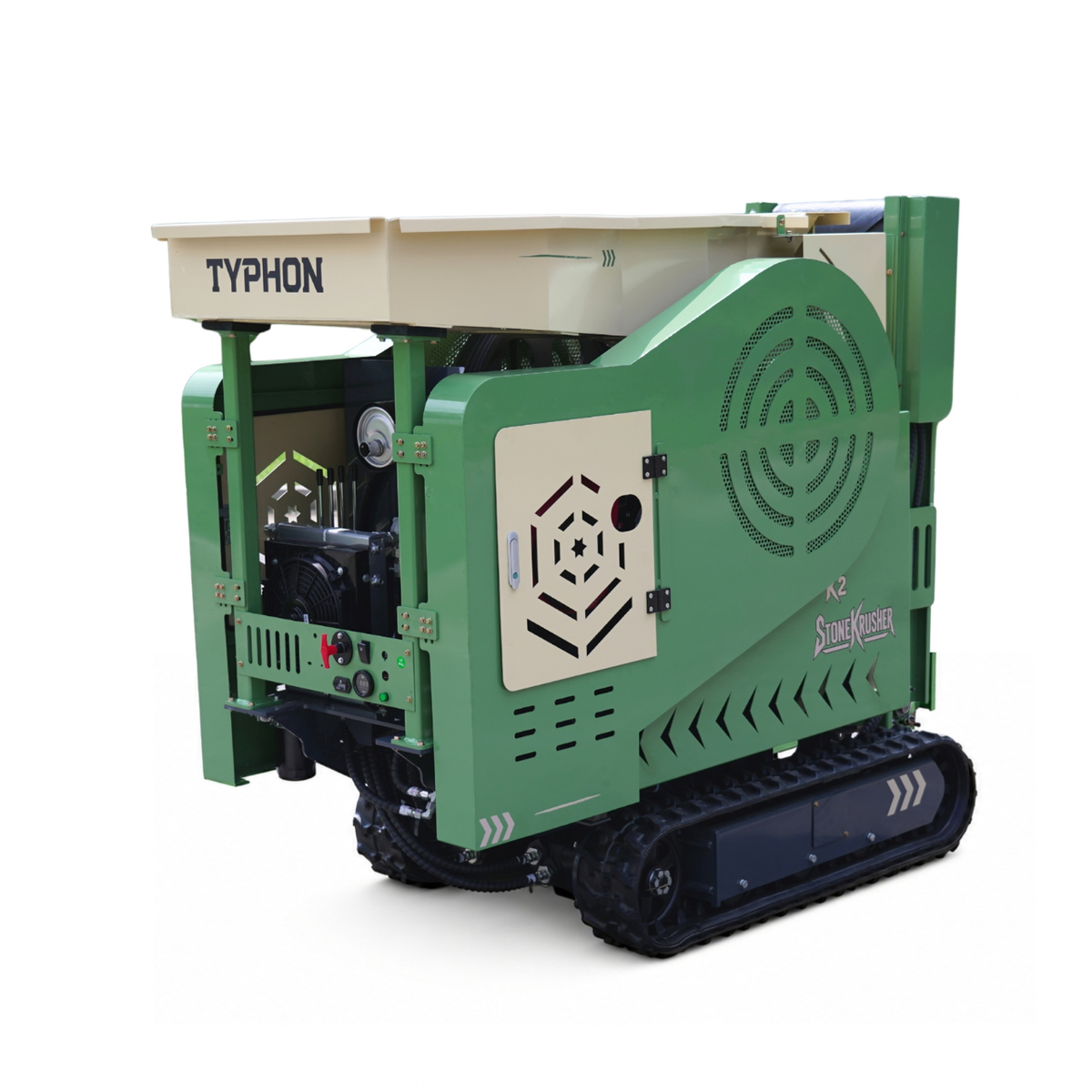

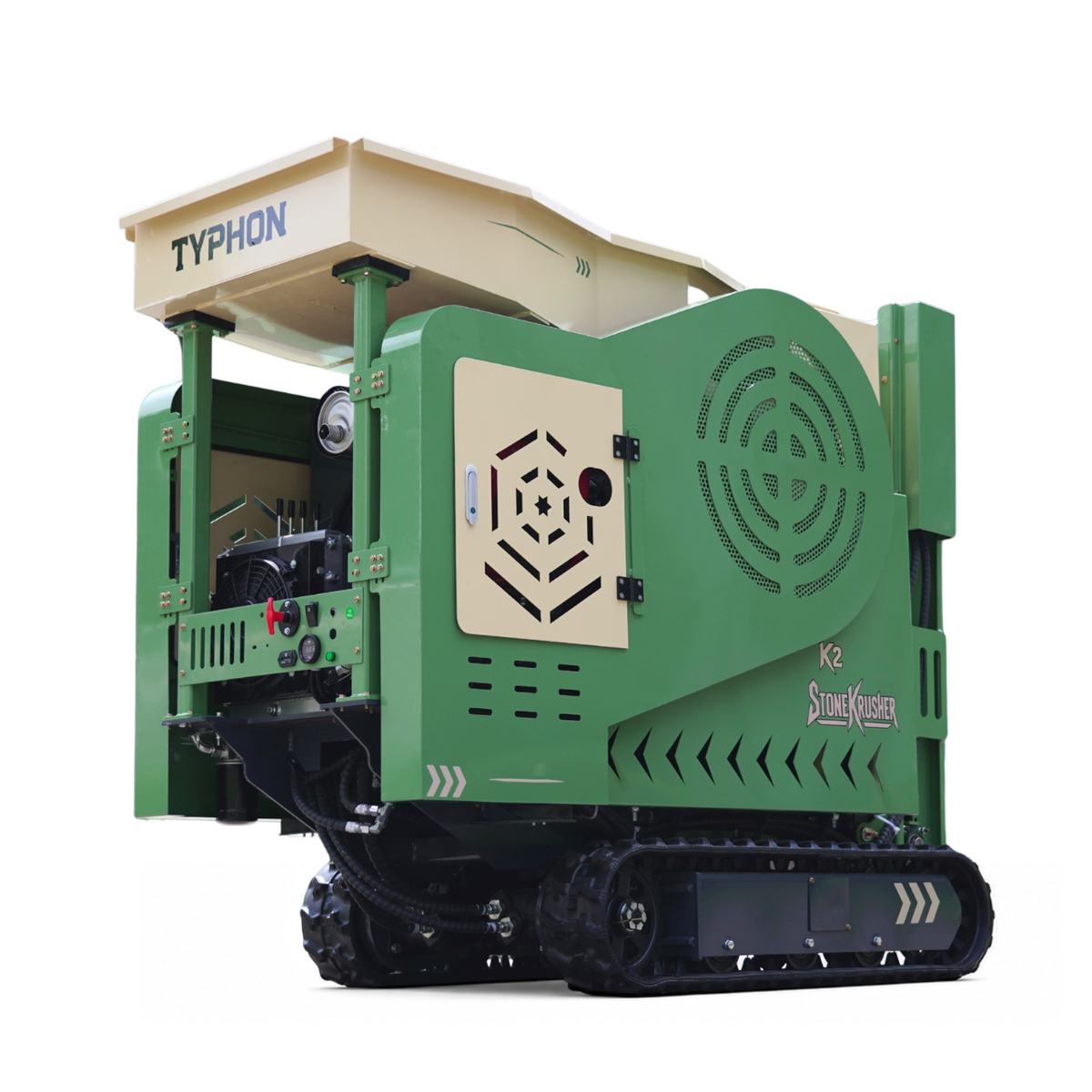

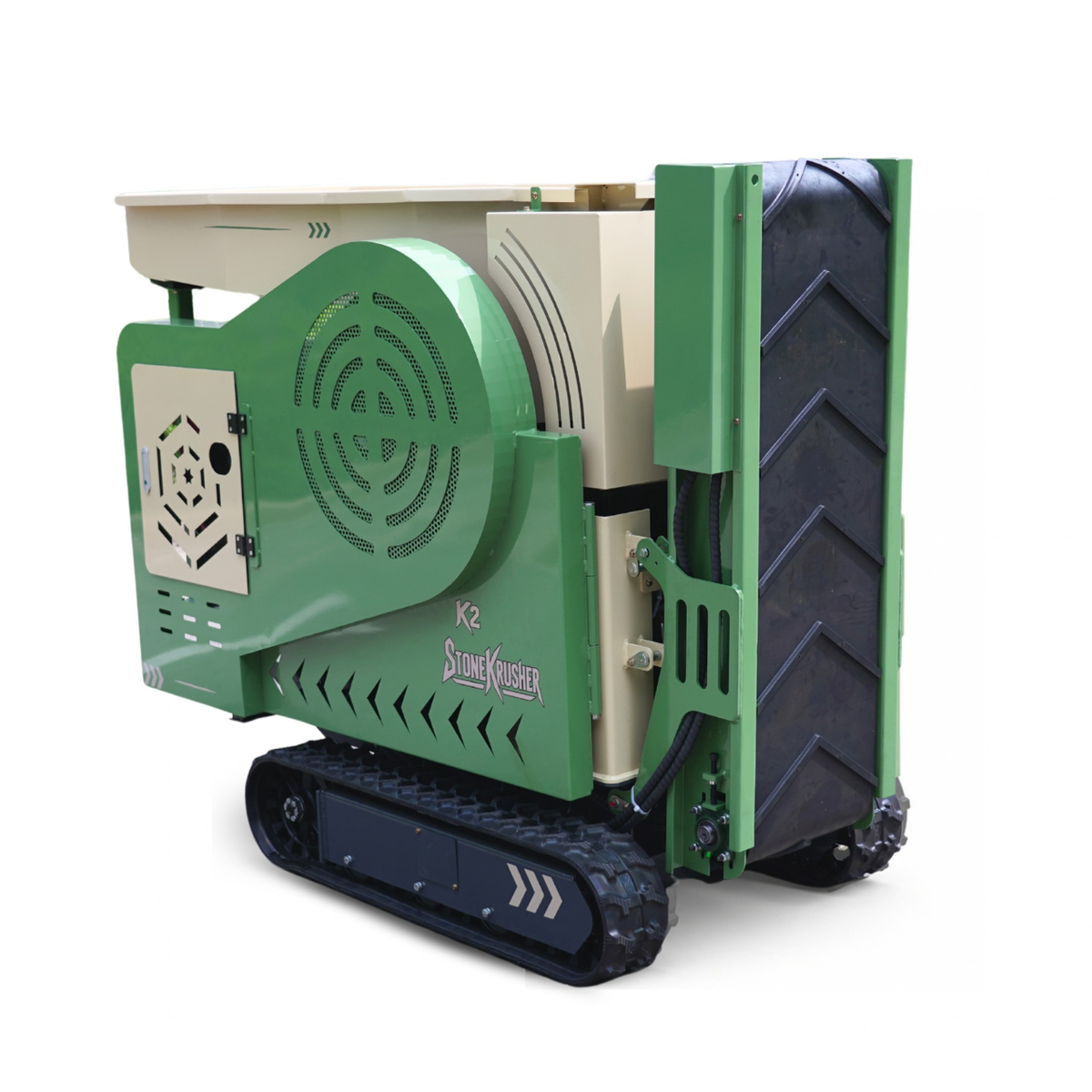

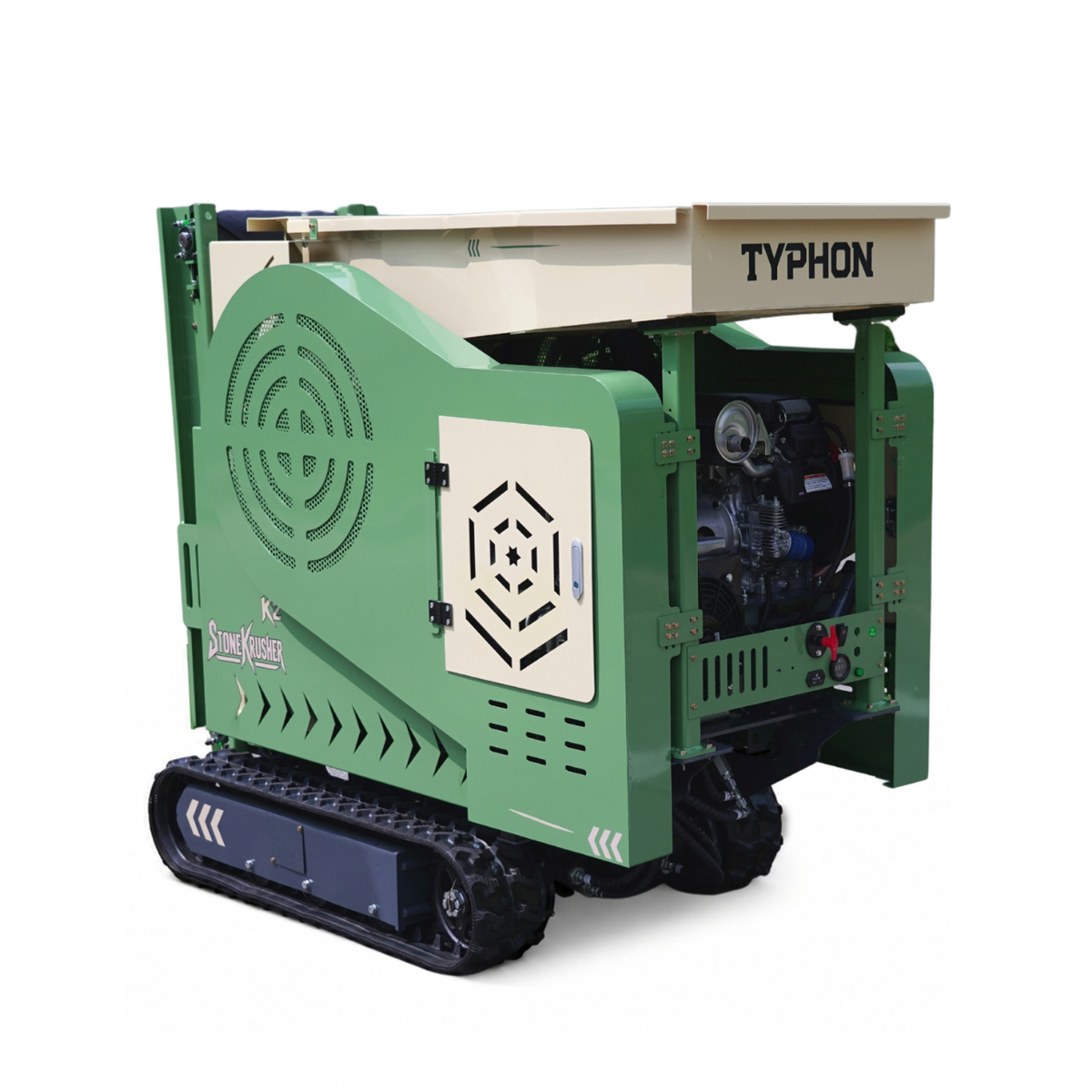

TYPHON STONEKRUSHER K2 Compact Tracked Rock & Concrete Jaw Crusher – 2-5 T/h Honda GX690

Take crushing directly to the jobsite with the TYPHON STONEKRUSHER K2 Konstructz Series, a compact tracked mobile jaw crusher built to process rock, stone, concrete, and other suitable construction materials. Powered by a dependable Honda GX690 V-twin gasoline engine, the K2 delivers an approximate production capacity of 2–5 tons per hour, depending on material type, feed size, and operating conditions.

Its hydraulic crawler drive allows the crusher to move efficiently around the worksite, making it a practical solution for contractors, landscapers, aggregate producers, demolition teams, and material recycling operations.

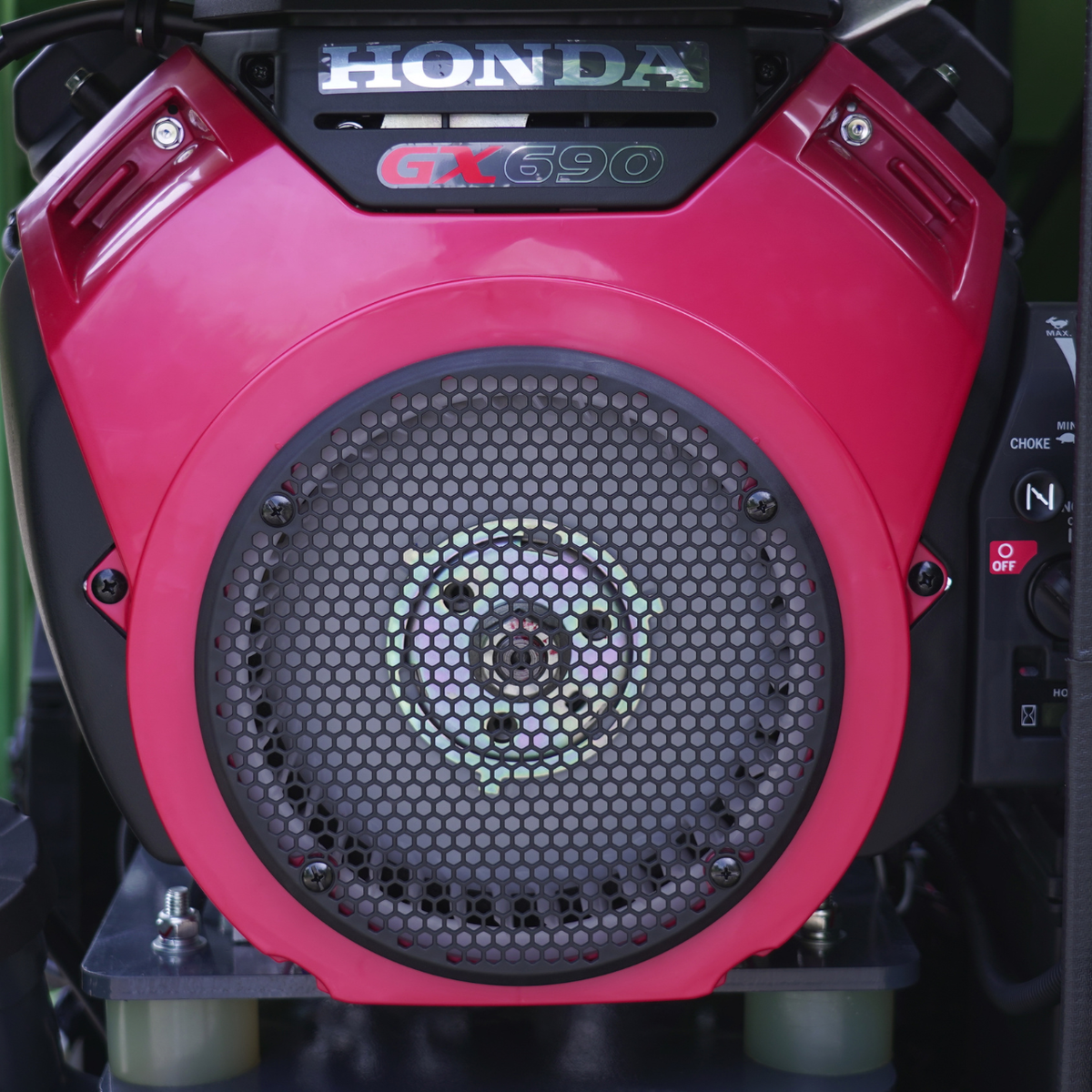

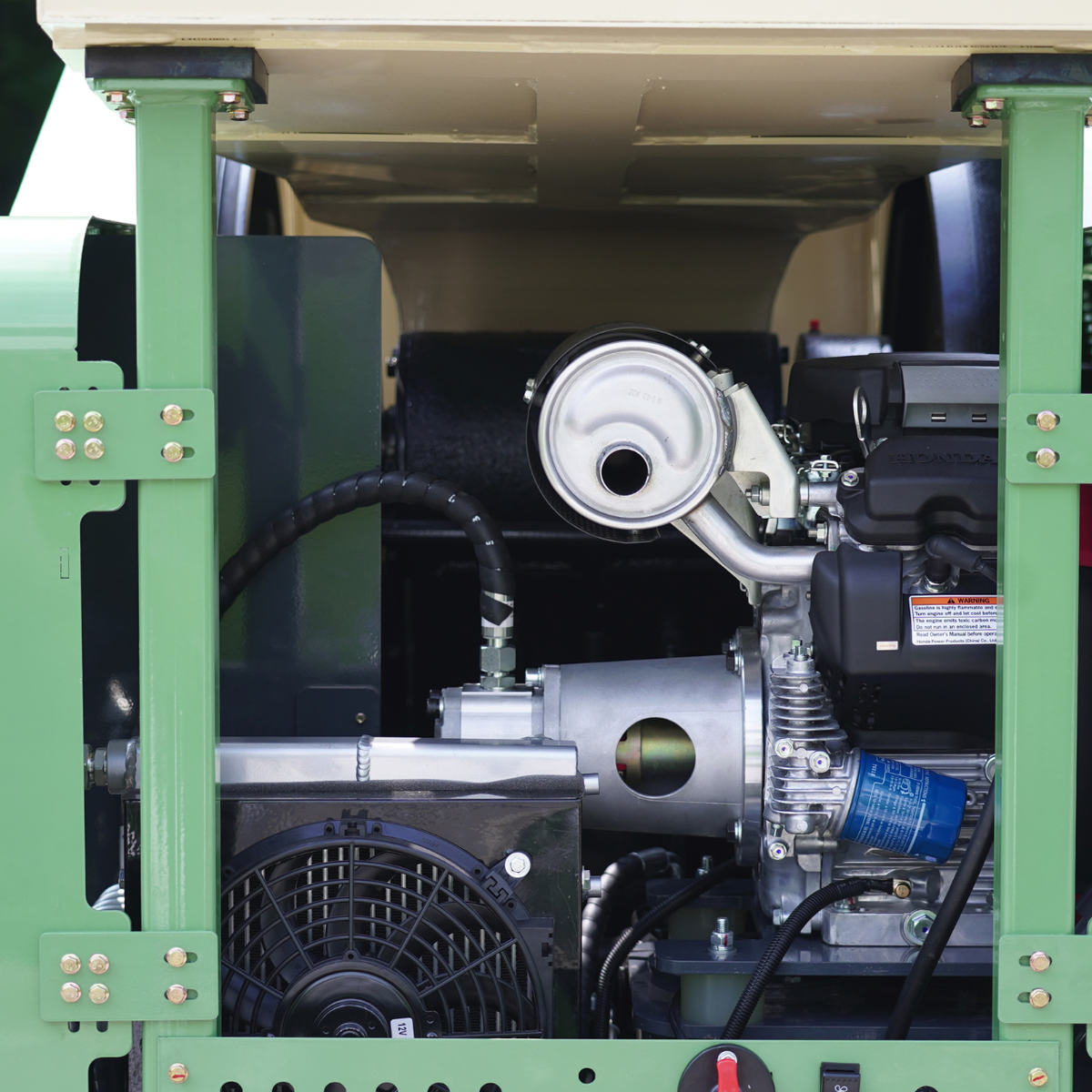

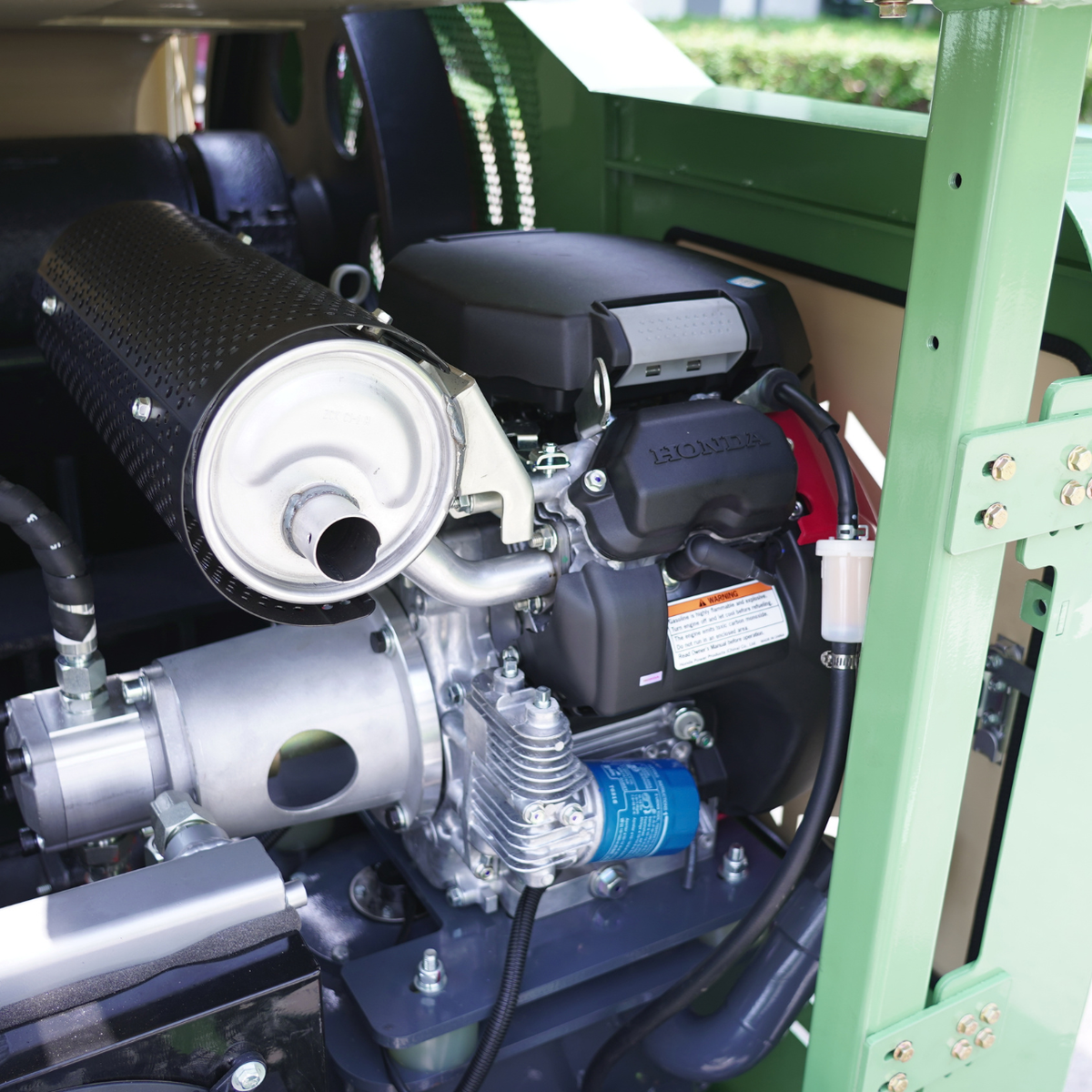

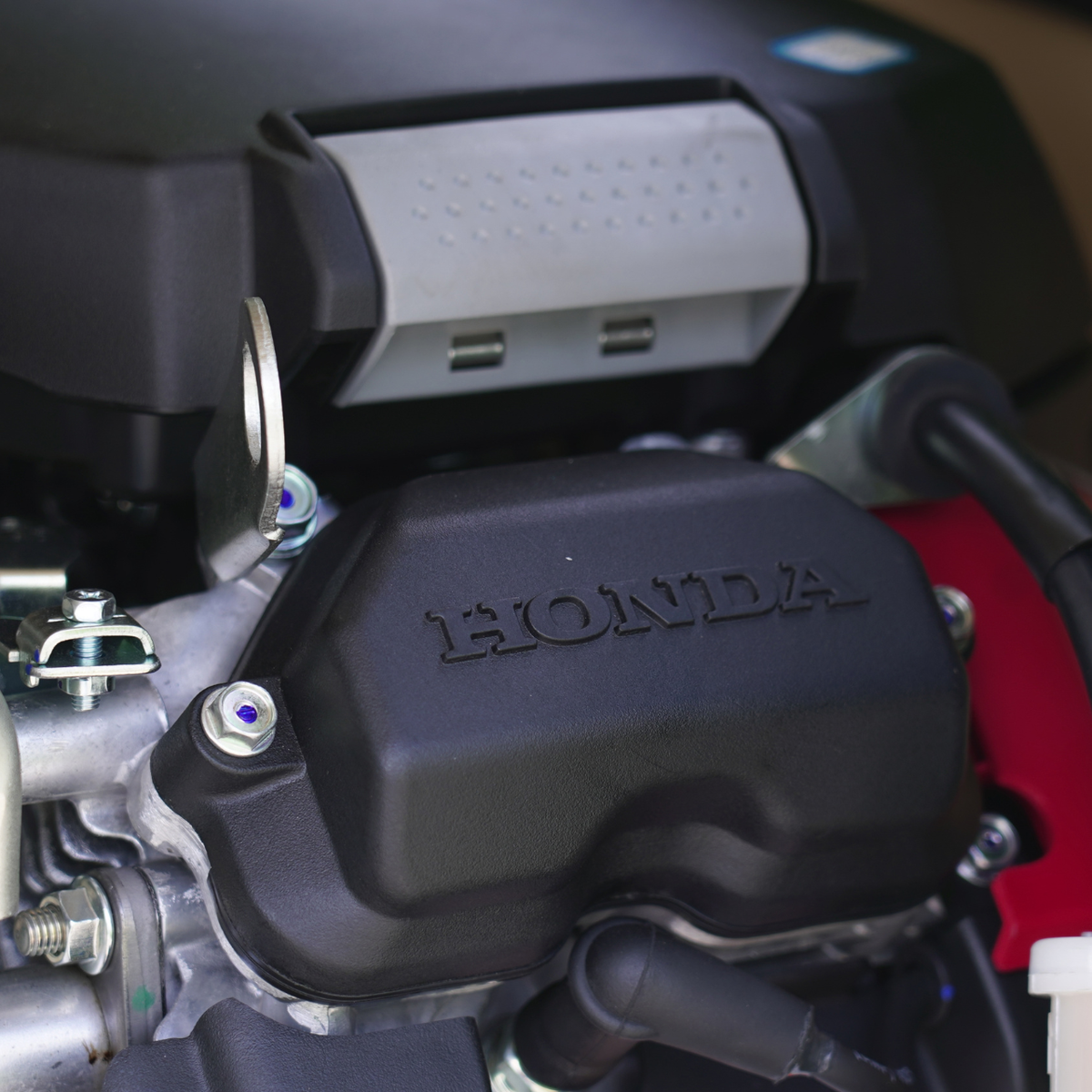

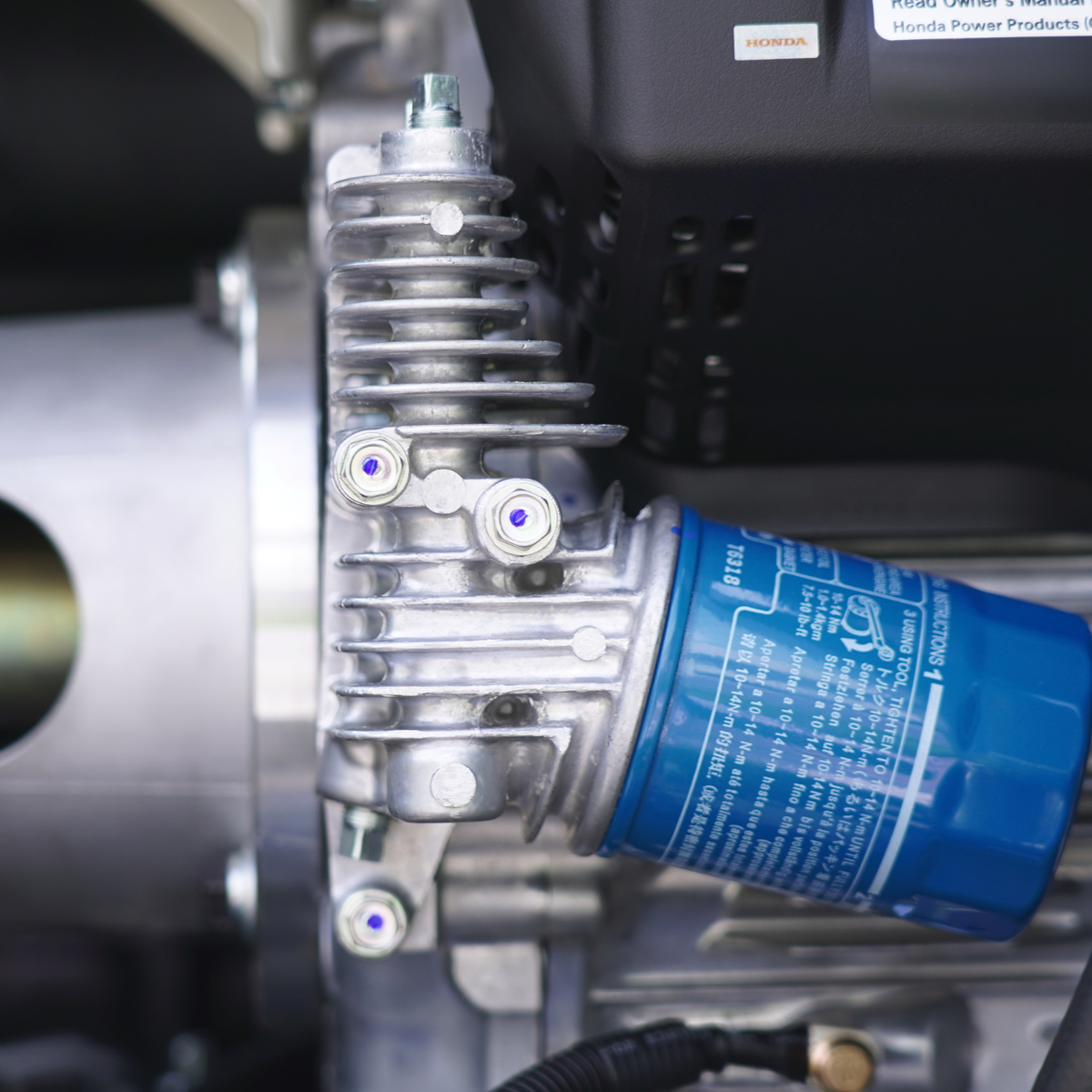

1. Honda GX690 V-Twin Power

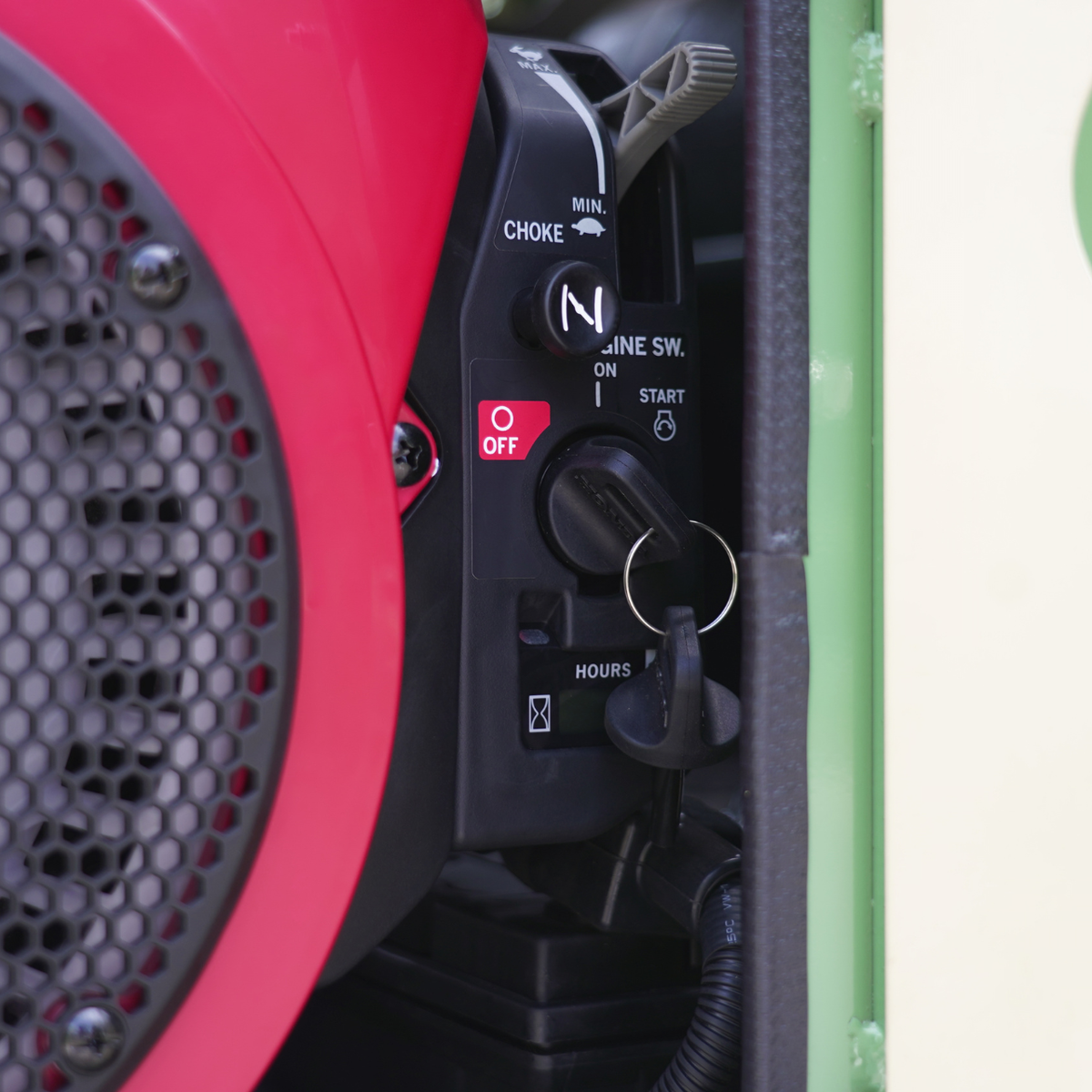

A dependable gasoline engine provides the power needed for crushing and hydraulic operation. Electric start makes the machine quick and convenient to get running, while the air-cooled 4-stroke V-twin design is well suited for demanding jobsite use.

• Honda GX690 4-stroke V-twin
• 22.1 HP / 16.5 kW @ 3,600 RPM
• Air-cooled
• Electric start

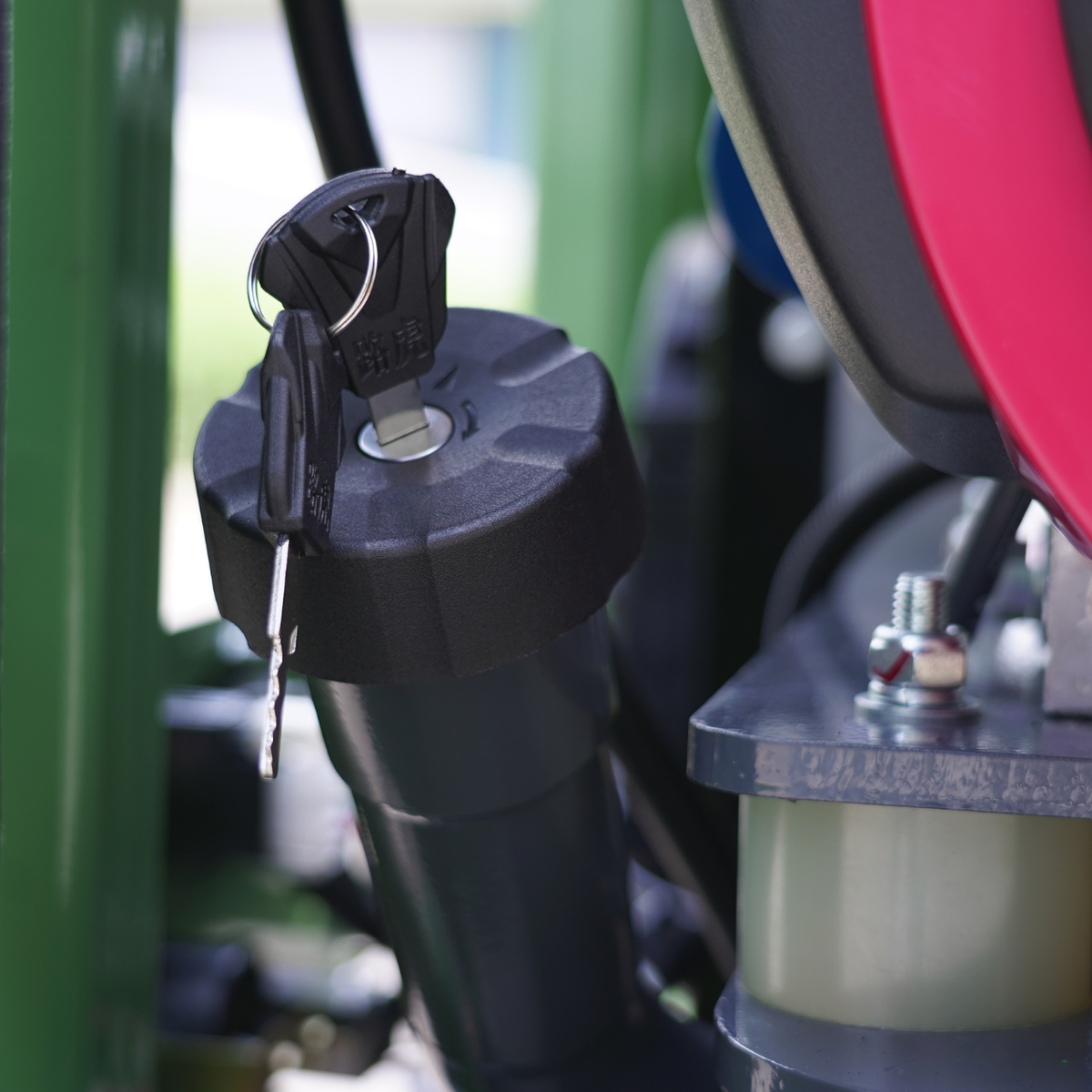

• 1.72-gallon fuel tank

2. EFFICIENT CRUSHING PERFORMANCE

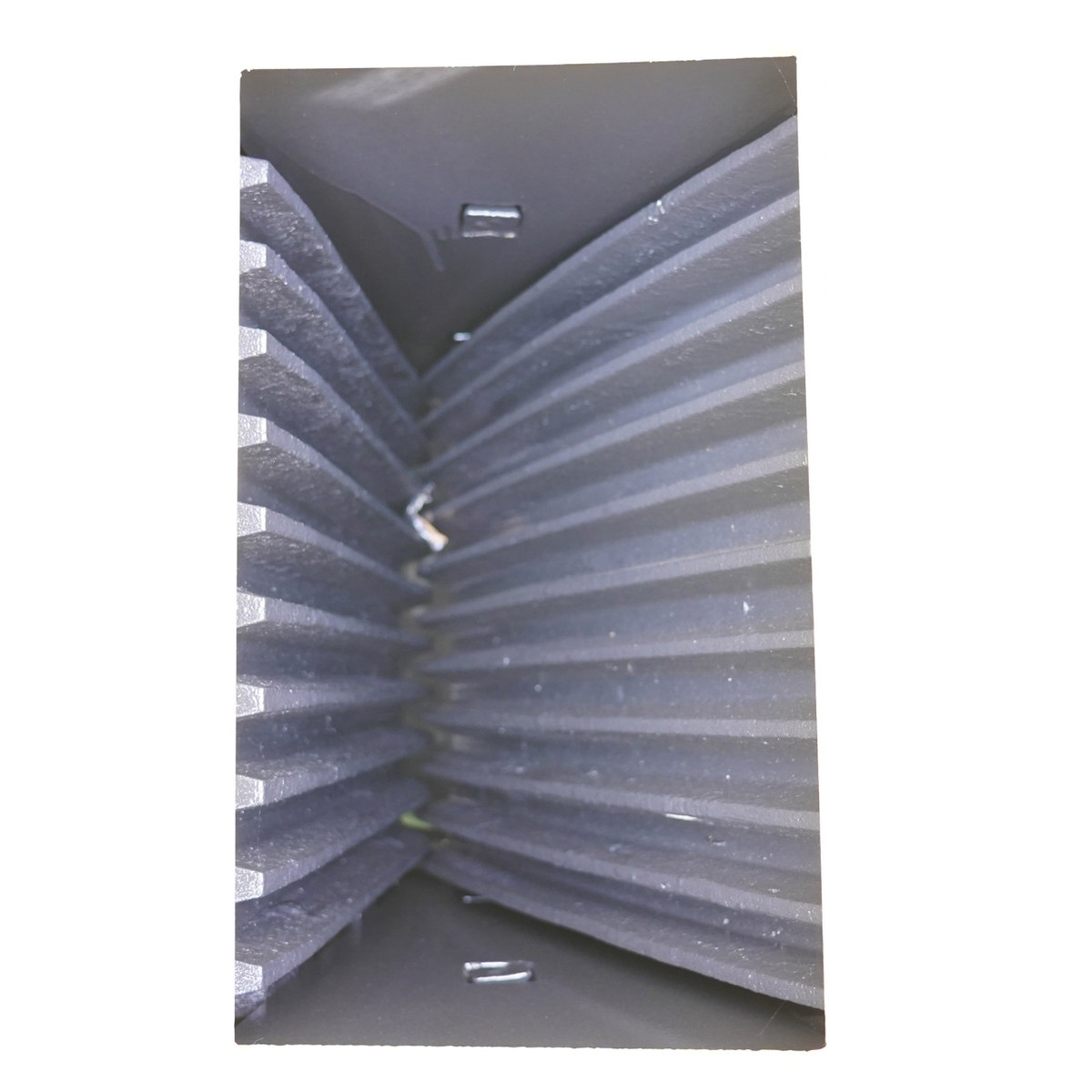

The K2 is designed to reduce suitable rock, concrete, and rubble into smaller, reusable material. Its jaw opening accepts material up to approximately 7.9 inches, while the adjustable crushing output allows operators to produce different material sizes depending on the application.

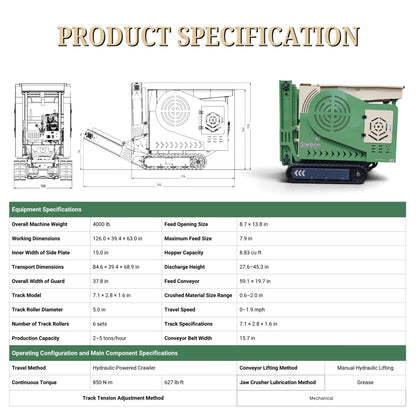

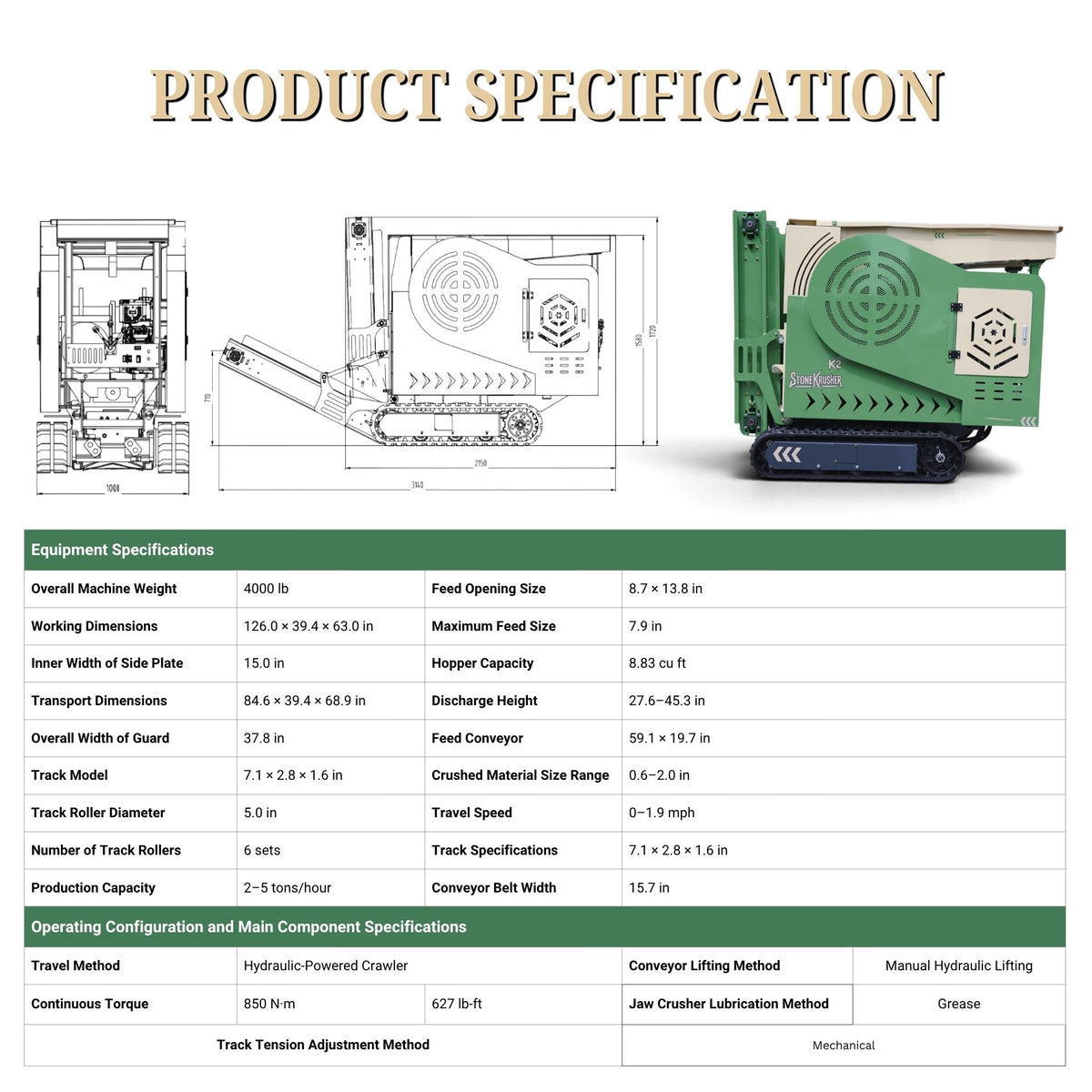

• Production capacity: Approx. 2–5 tons/hour
• Feed opening: 8.7 × 13.8 in
• Maximum feed size: Approx. 7.9 in
• Adjustable output: Approx. 0.6–2.0 in
• Hopper capacity: 8.83 ft³

Actual production will vary according to material type, feed size, moisture, operating conditions, and operator technique.

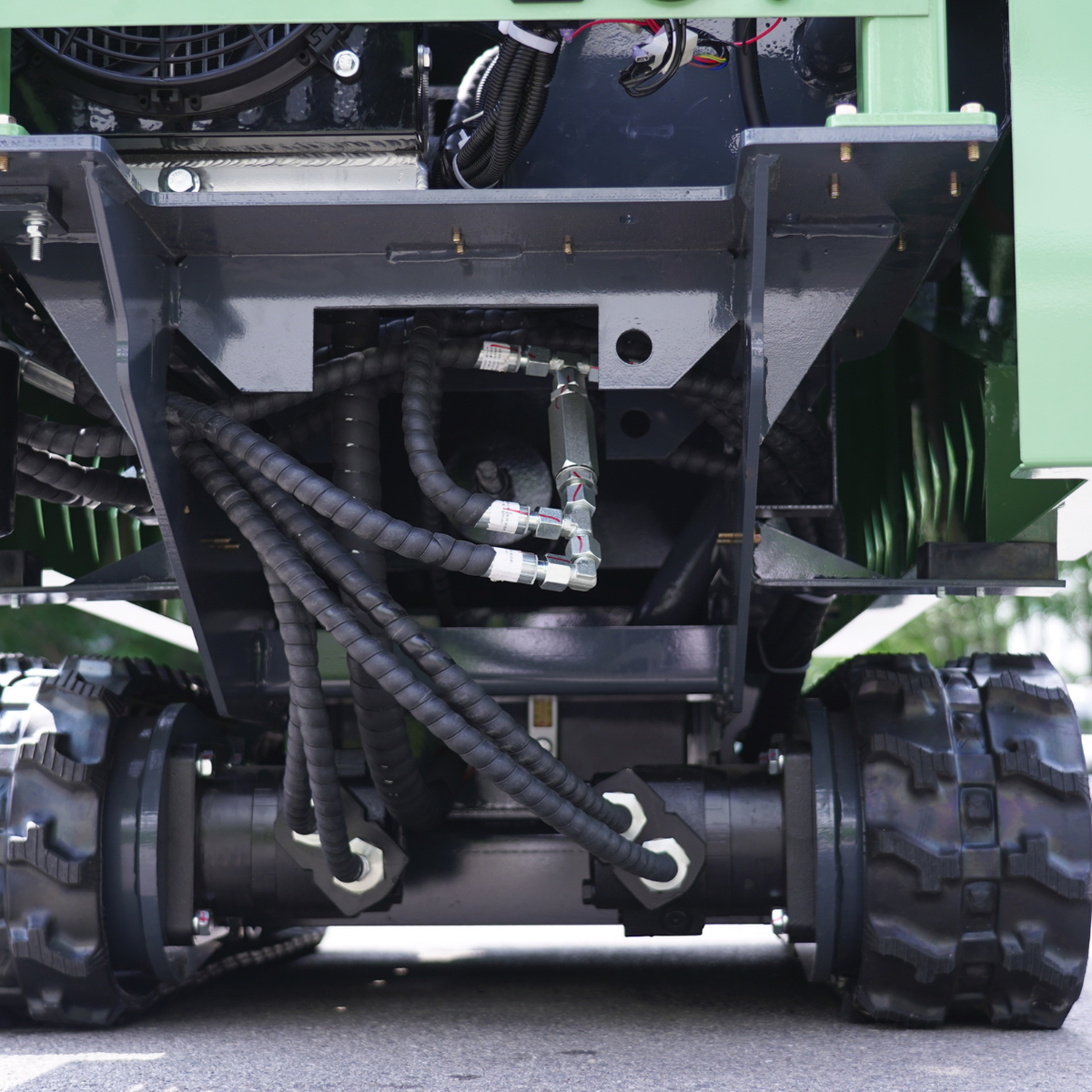

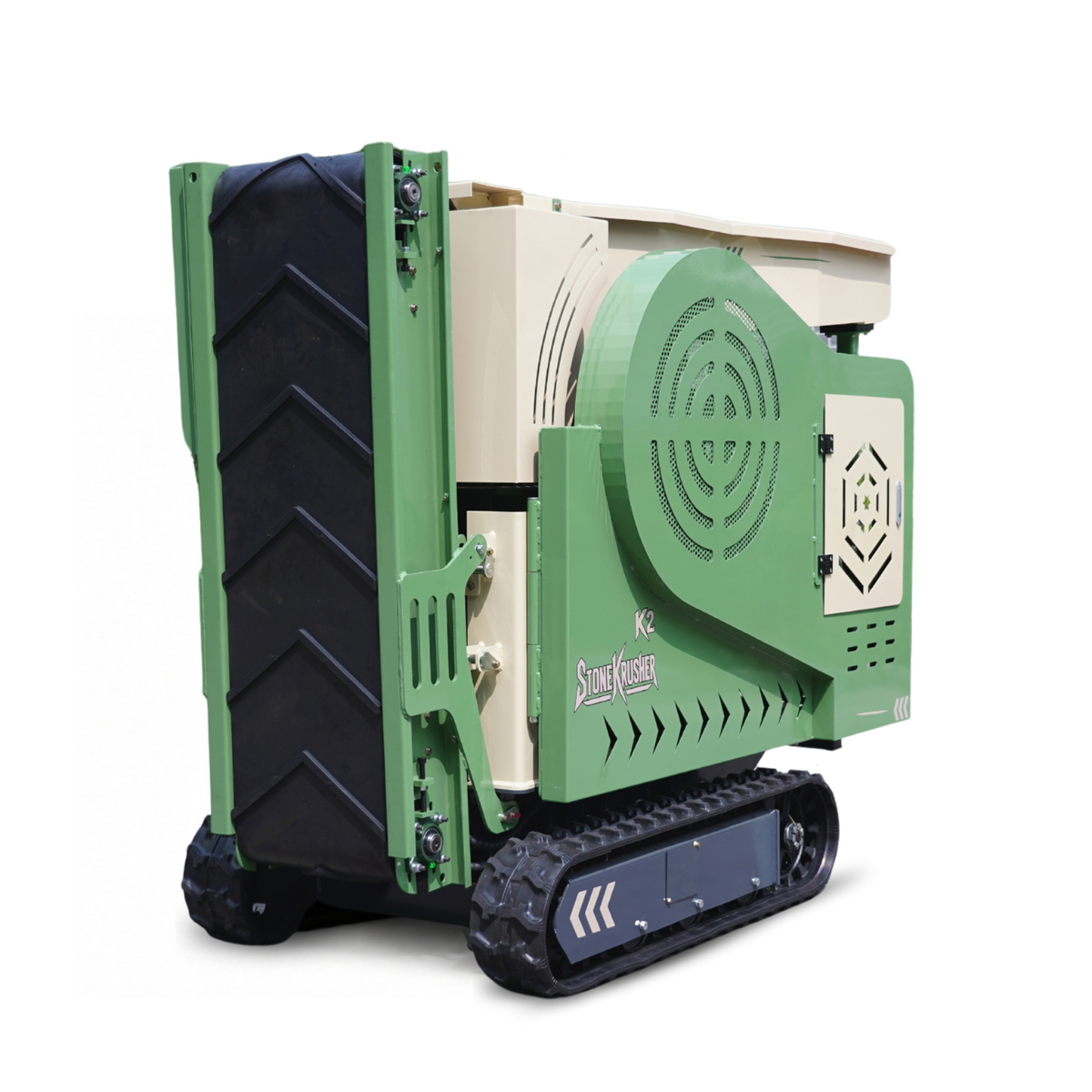

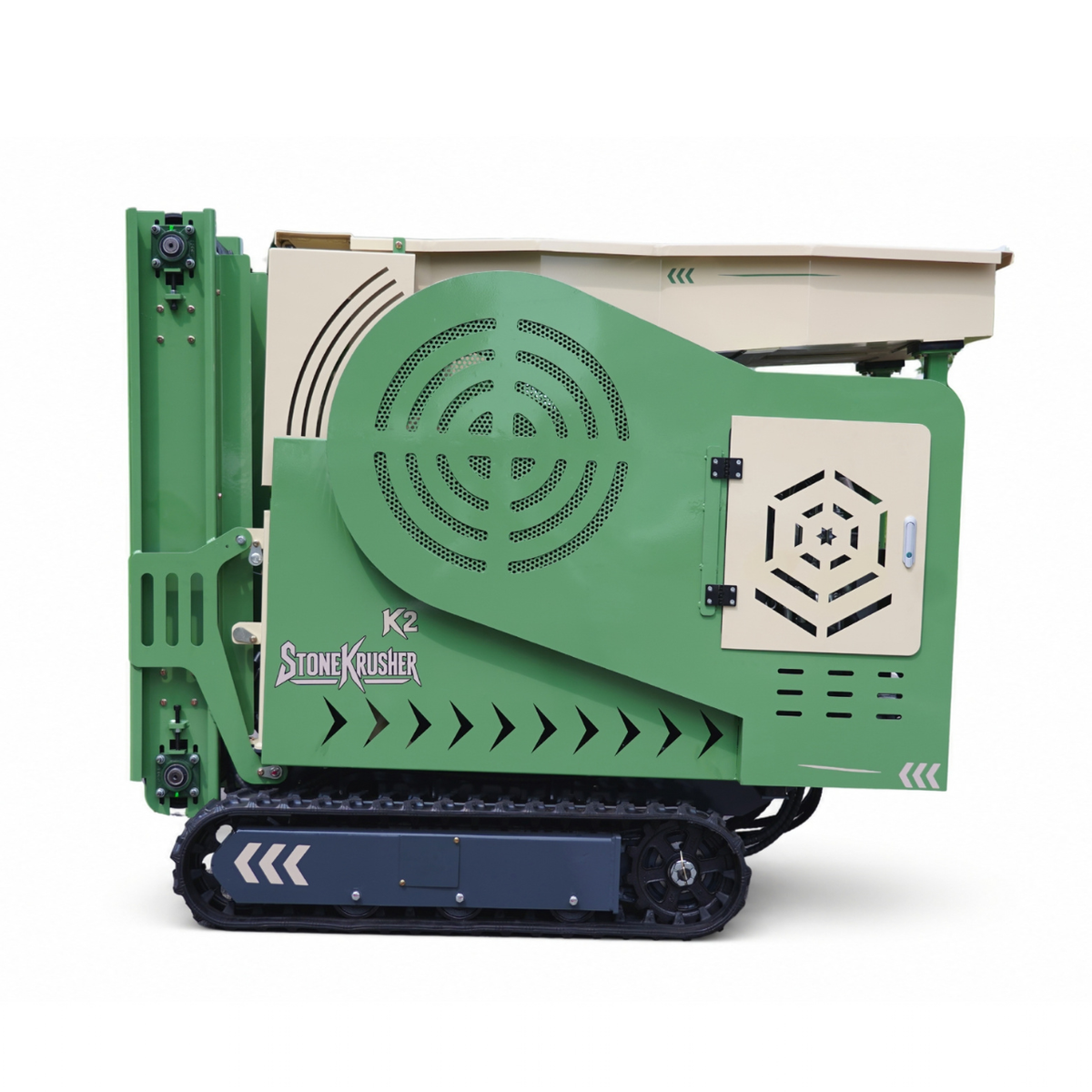

3. COMPACT TRACKED MOBILITY

Moving a crusher around a jobsite does not have to be complicated. The K2 uses hydraulic rubber crawler tracks for controlled movement and easy repositioning. Its approximately 39.4-inch working width helps the machine access areas where larger crushing equipment may not fit.

With an operating weight of approximately 4,000 lb and travel speeds up to 1.9 mph, the K2 provides a practical balance between stability and jobsite mobility.

4. INTEGRATED MATERIAL HANDLING

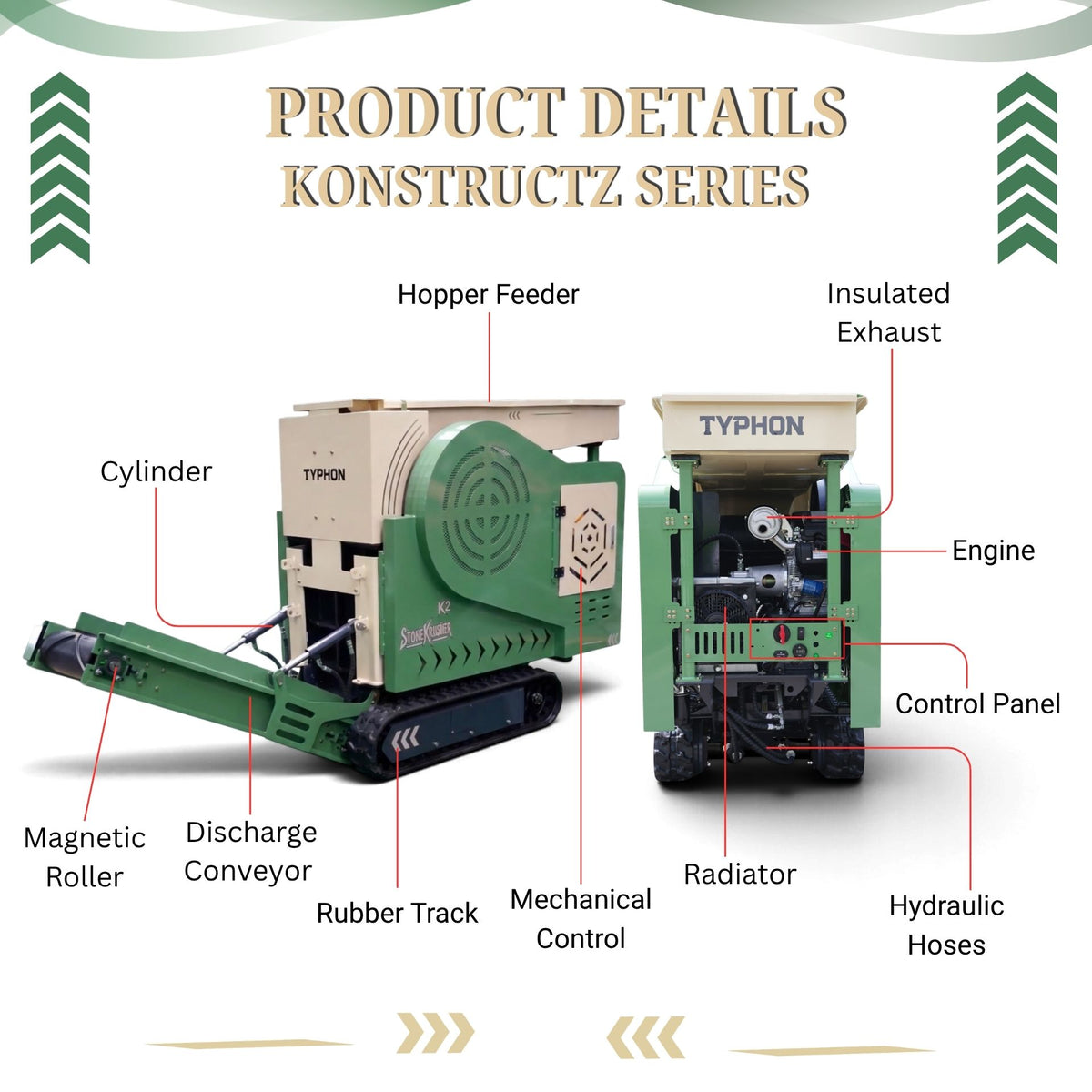

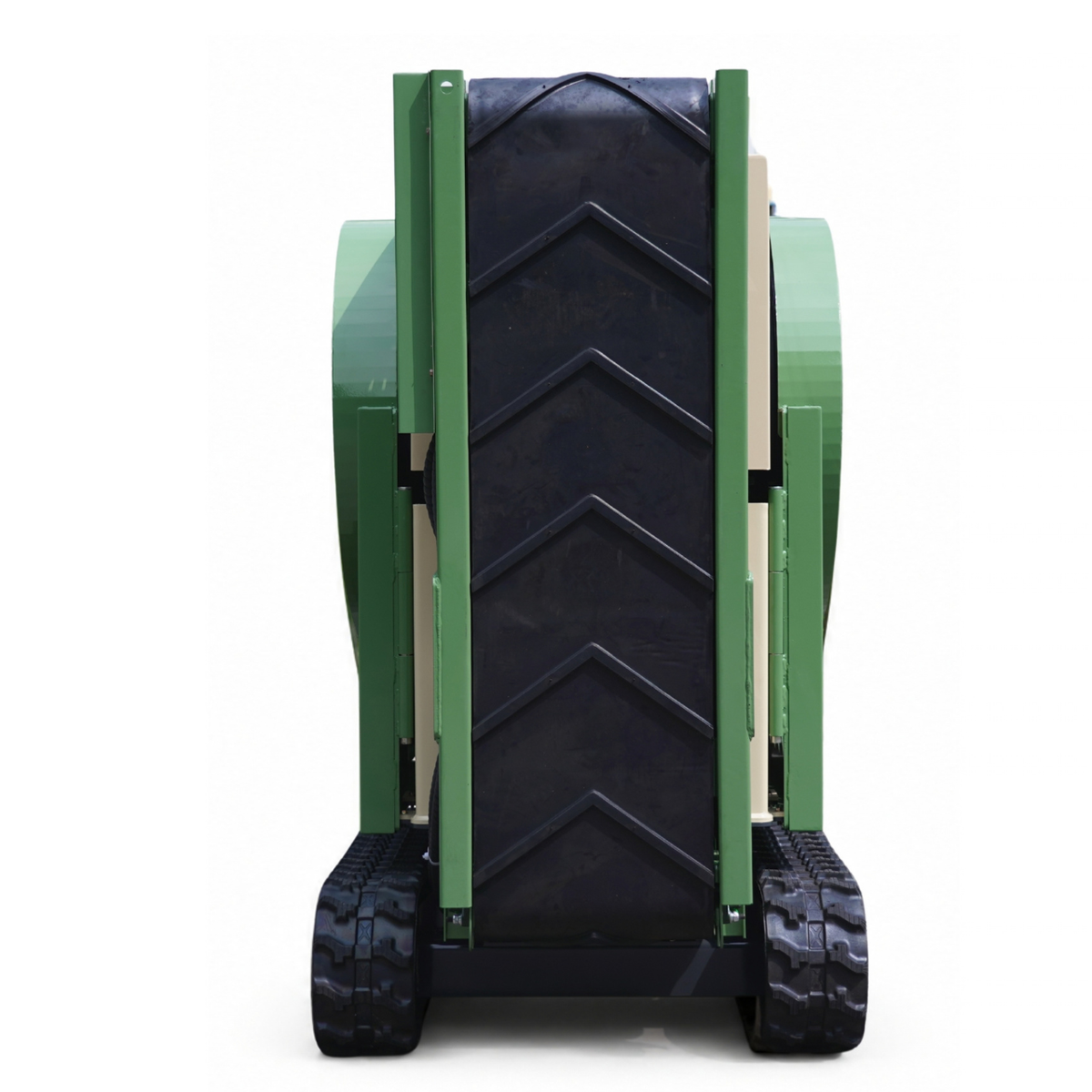

Crushing and material handling are combined into one compact machine. The integrated feed conveyor delivers material into the jaw, while the discharge conveyor moves processed material away from the crusher for stockpiling or further use.

The discharge conveyor provides an adjustable discharge height of approximately 27.6–45.3 inches, with hydraulic lifting for convenient positioning.

• Feed conveyor: 59.1 × 19.7 in
• Discharge conveyor width: 15.7 in
• Adjustable discharge height: 27.6–45.3 in
• Hydraulic conveyor lift

5. SIMPLE HYDRAULIC OPERATION

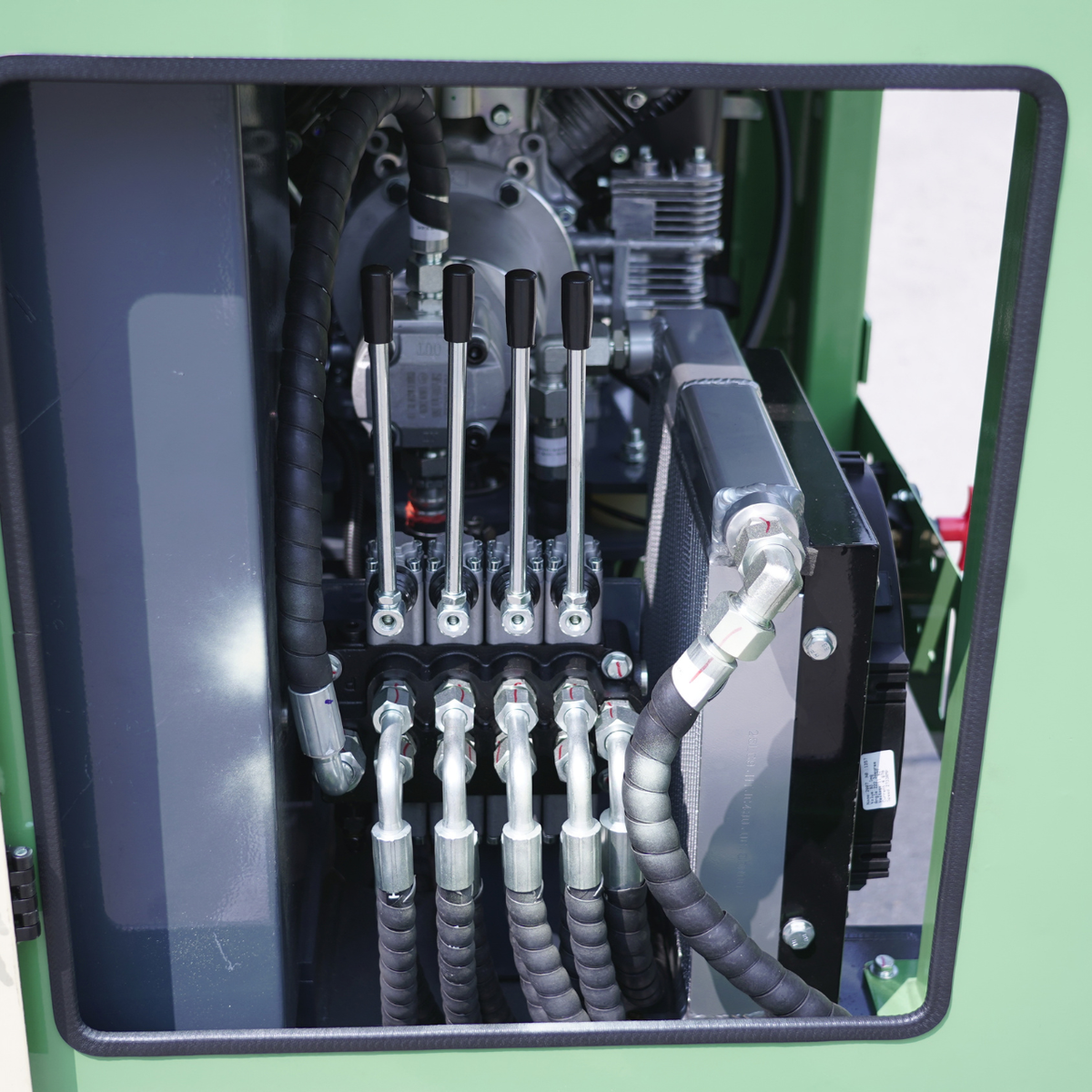

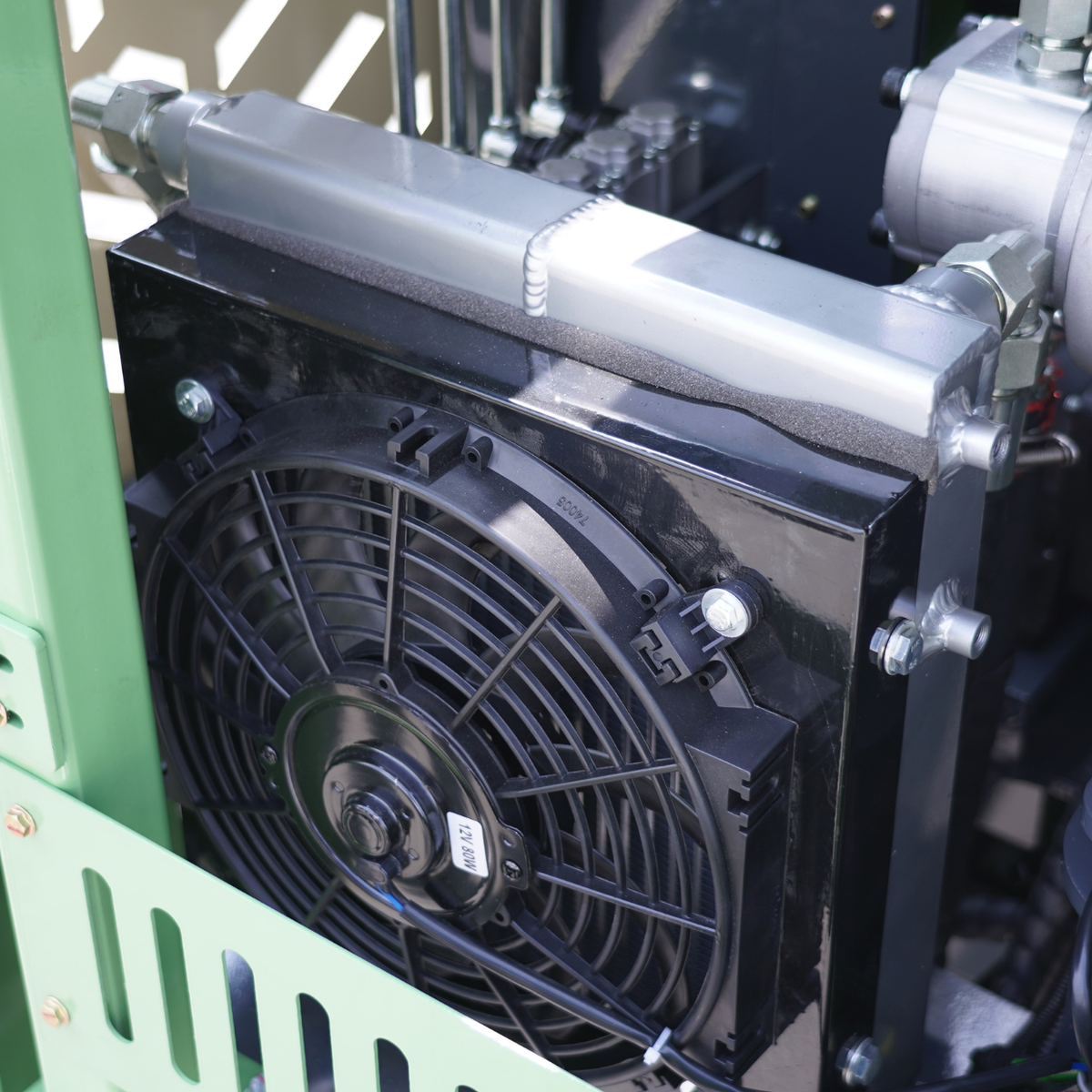

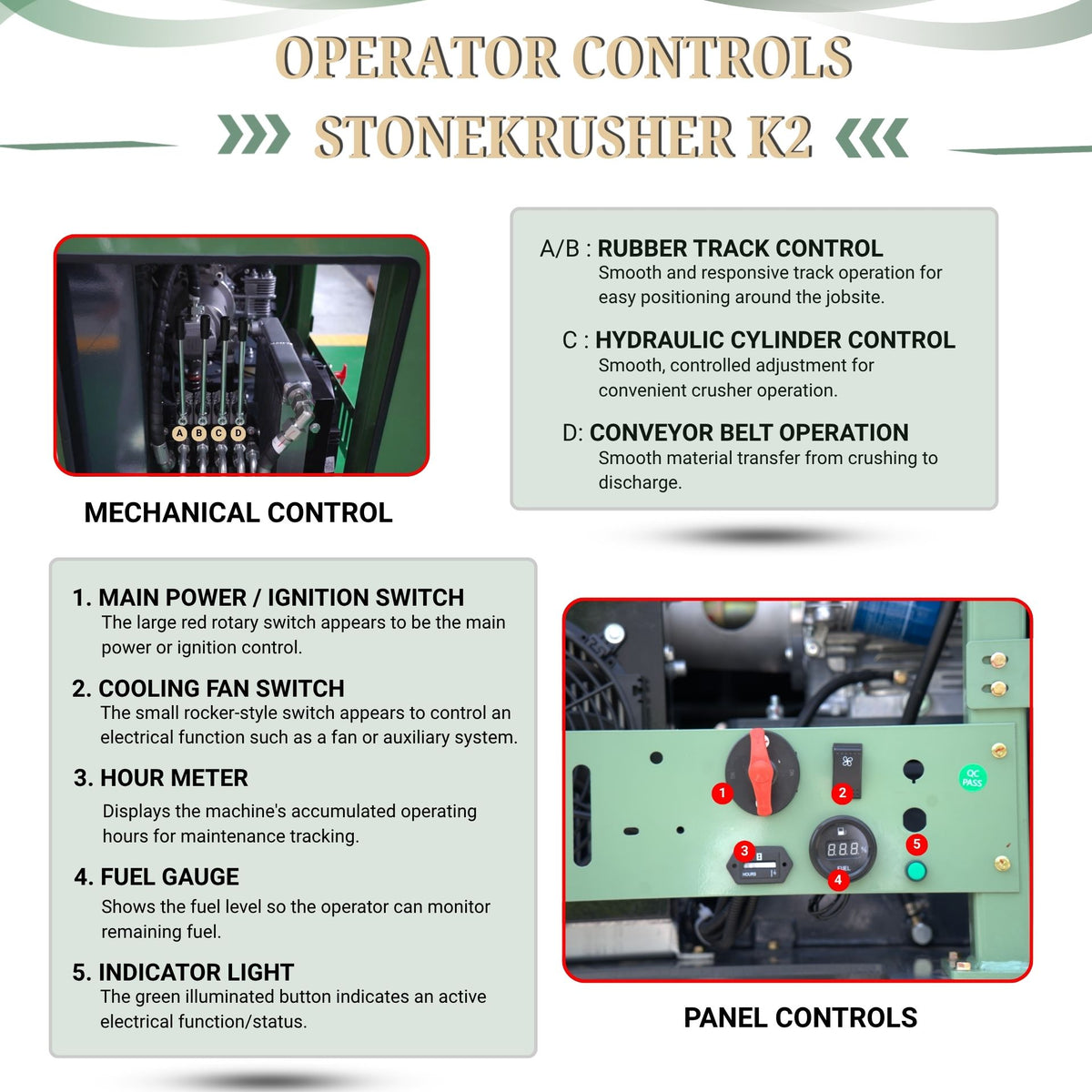

The K2's hydraulic system powers the crawler drive, conveyor, and other working functions. Manual hydraulic valve controls provide straightforward operation, while the hydraulic layout is designed with practical service and maintenance in mind.

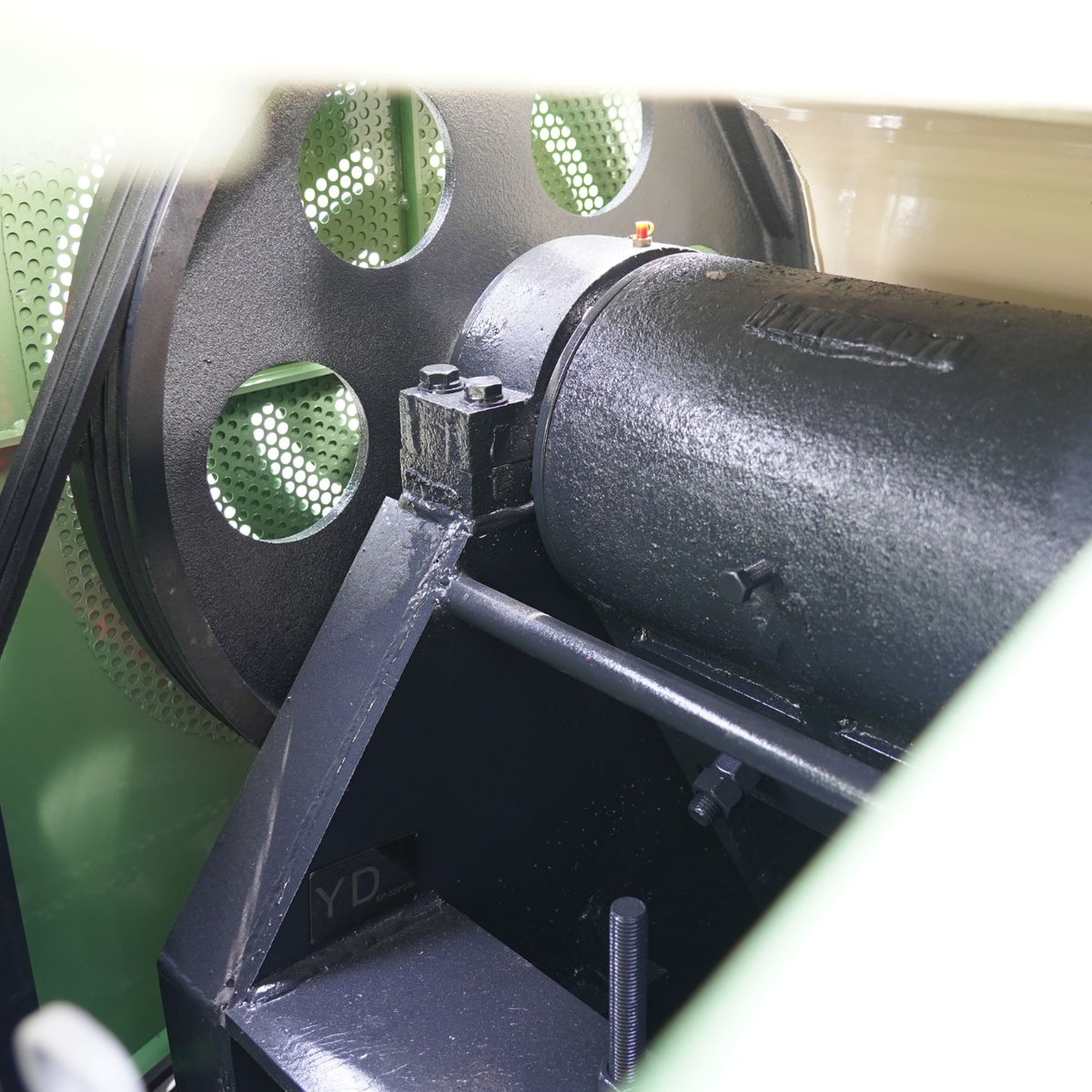

The machine is equipped with a hydraulic pump and a 9.25-gallon hydraulic tank. Grease lubrication is used for the jaw system to support routine maintenance and reliable operation.
