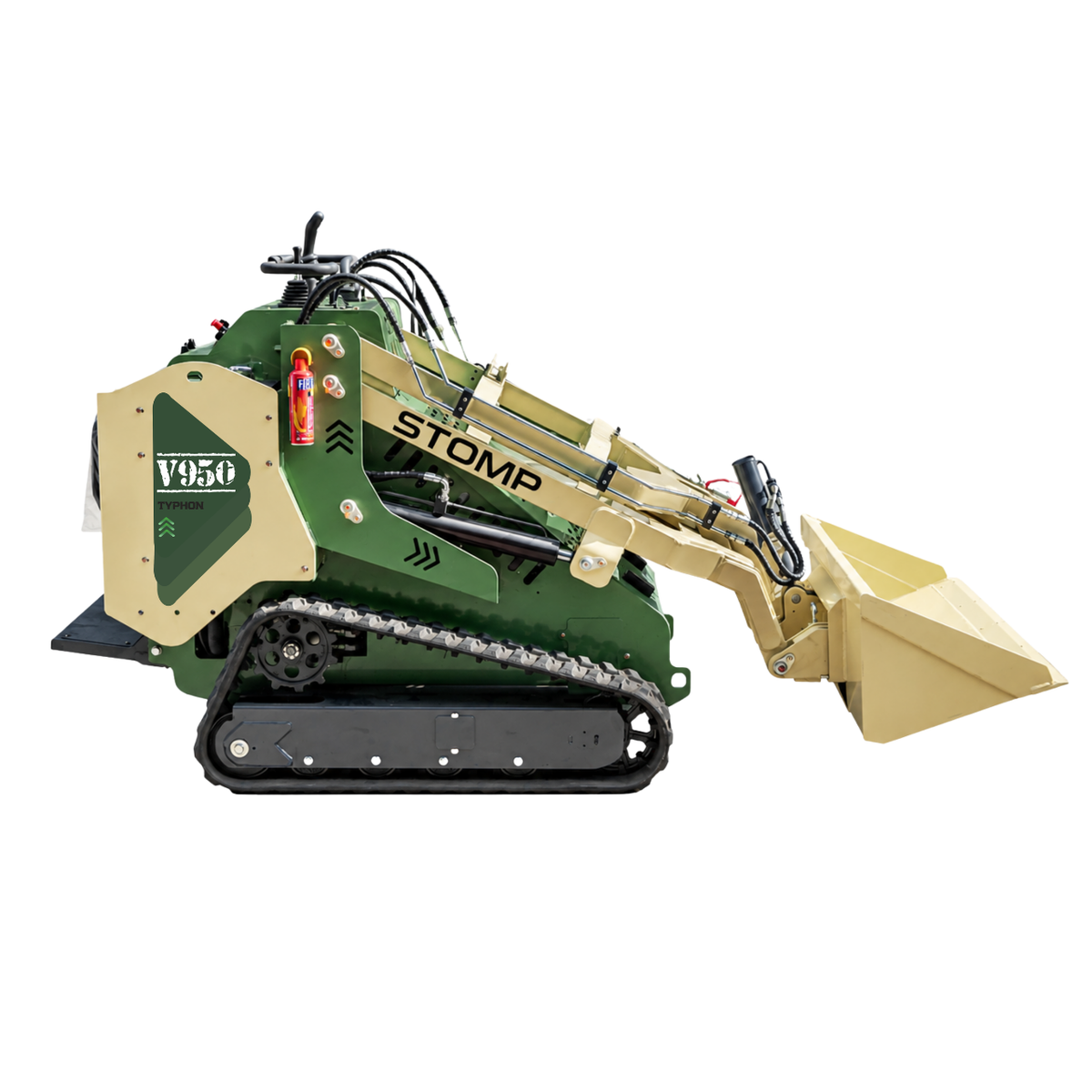

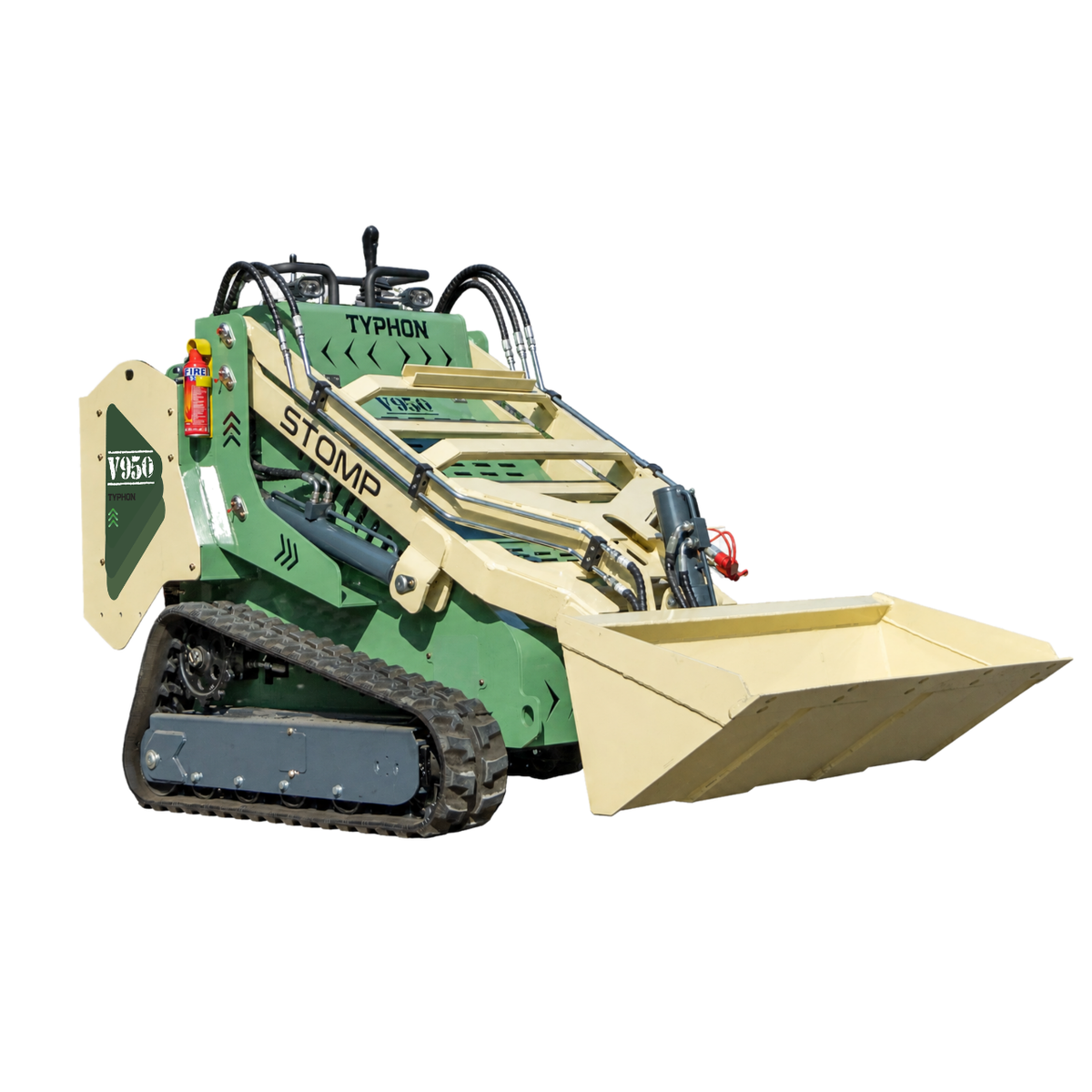

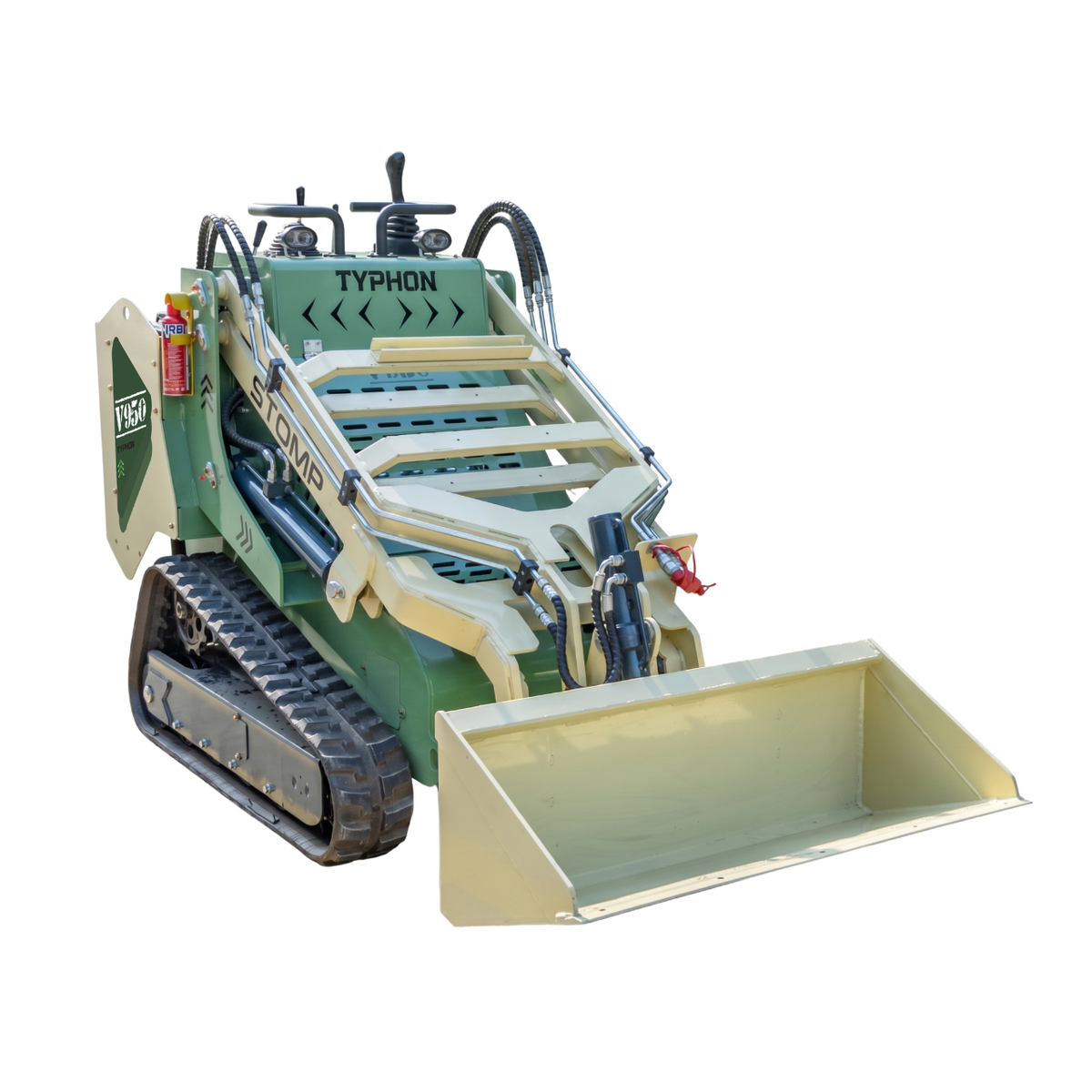

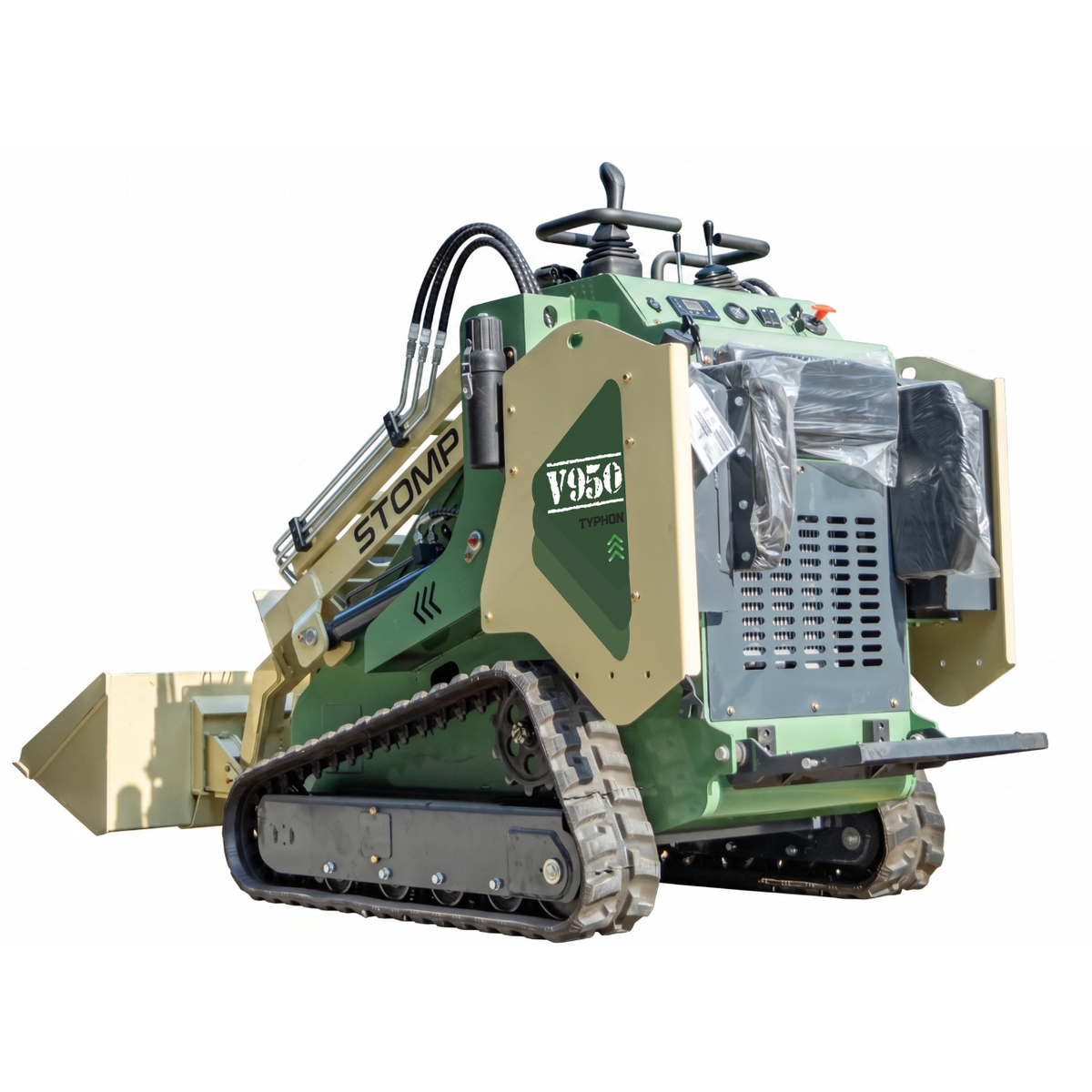

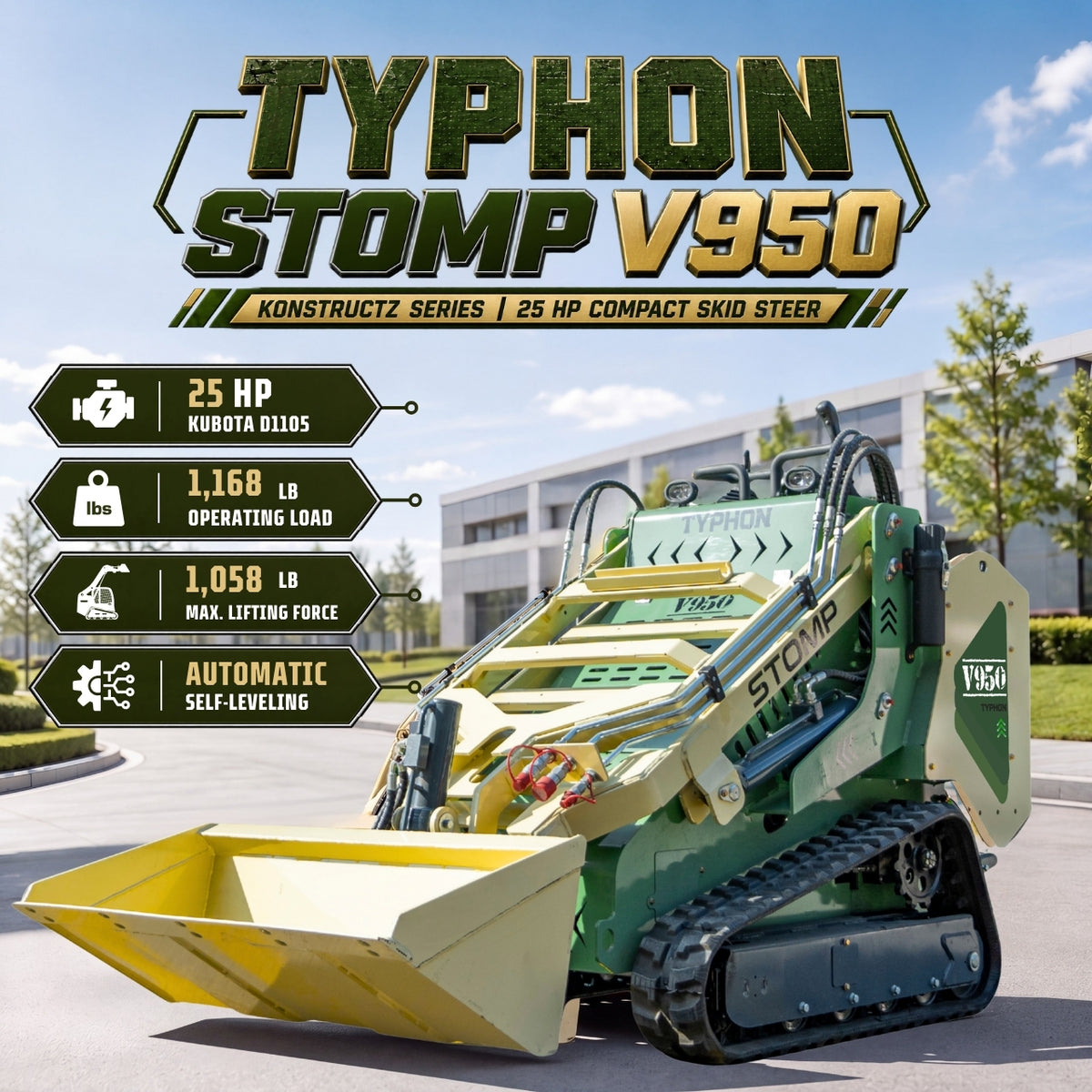

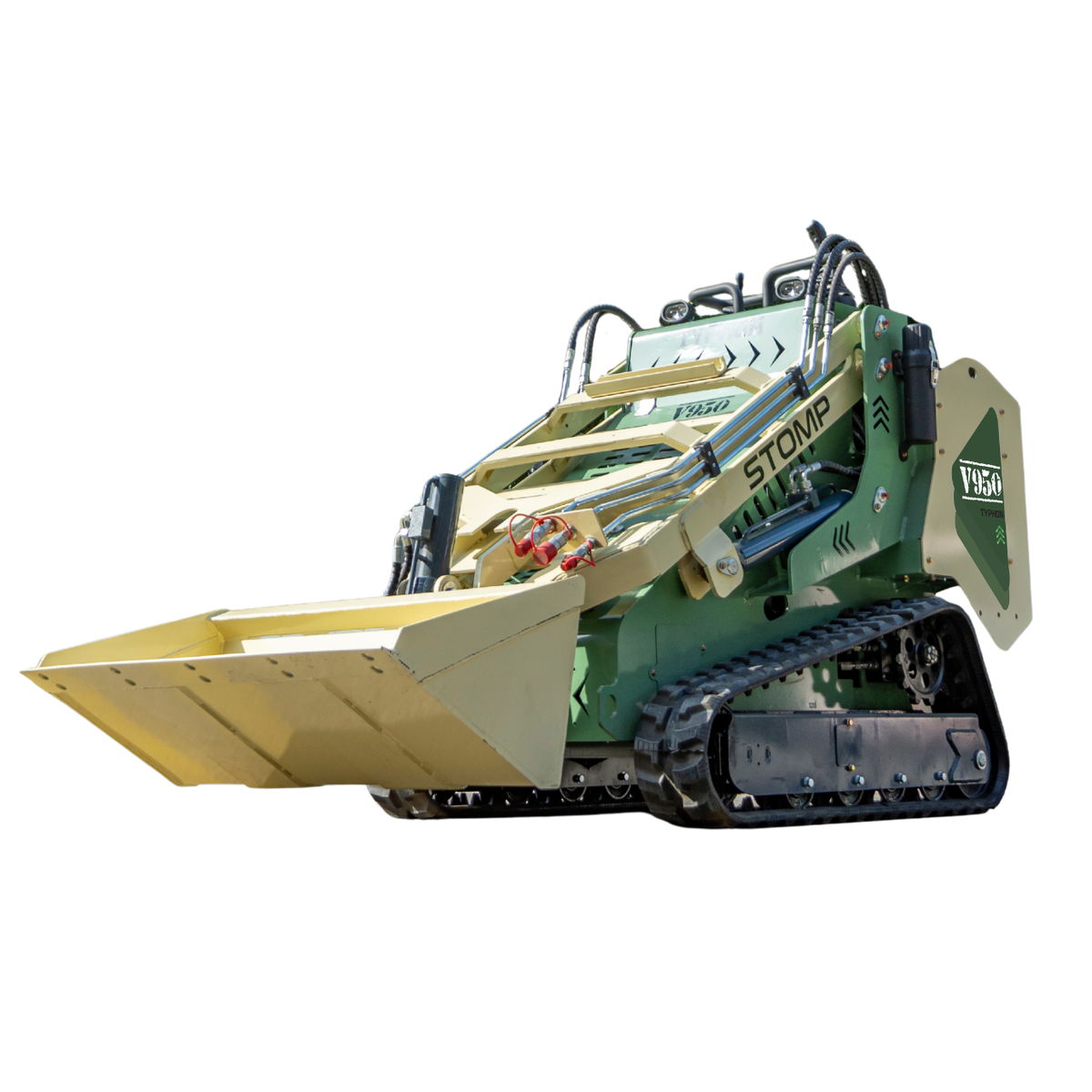

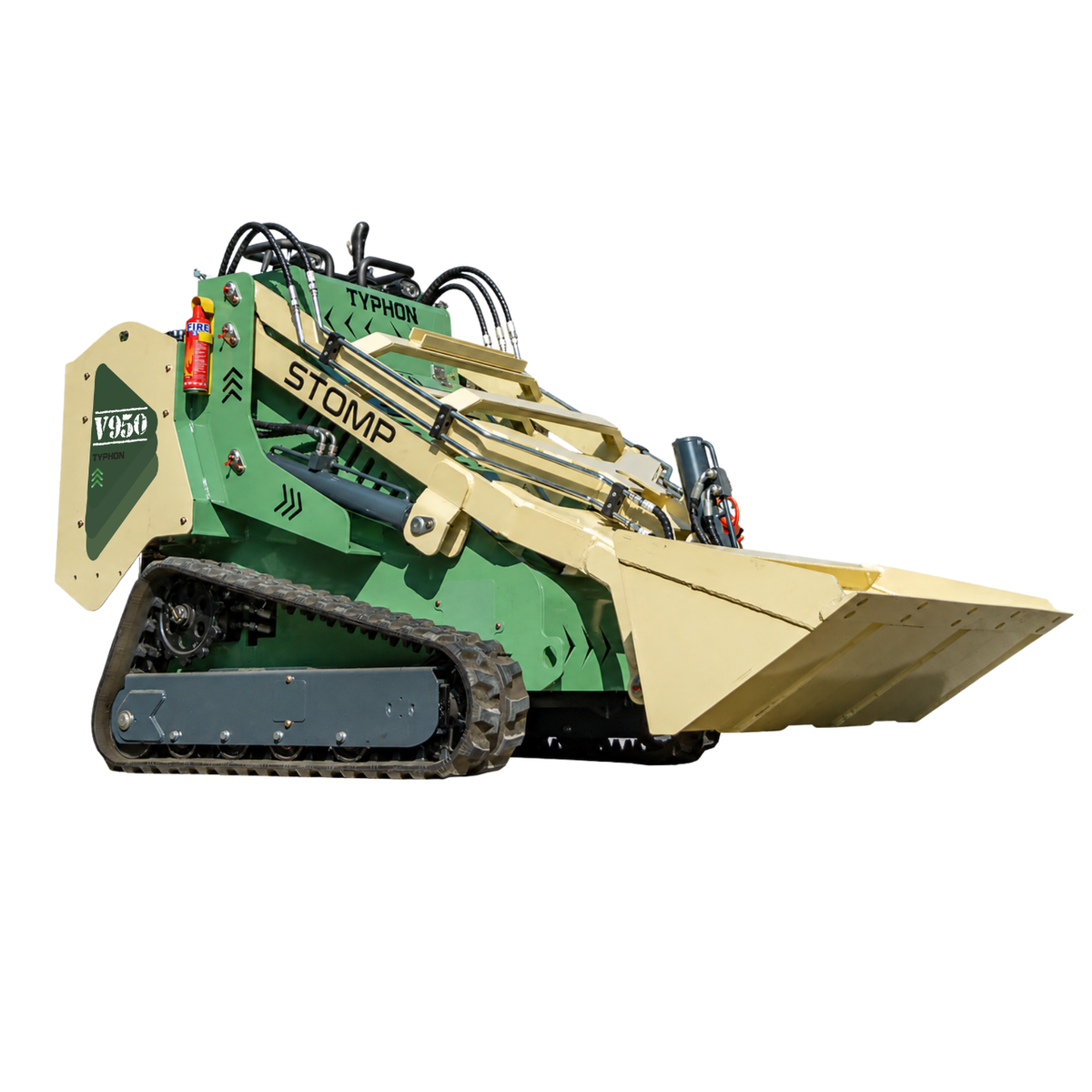

TYPHON STOMP V950 25HP Kubota Diesel Mini Skid Steer Track Loader – Konstructz Series

Unleash industrial-grade power in a compact, cost-effective package with the TYPHON STOMP V950 Mini Track Loader. As detailed in the official manufacturer specifications, this dependable 1.5 Ton machine is purpose-built for precision and adaptability in confined environments. Finished in the Konstructz Series' signature professional green-and-sand color combination, it is an ideal multi-functional solution for earthmoving, land clearing, material handling, and site preparation.

Whether you are operating on a construction site, farm, public park, or indoors, the V950 turns tight corners and obstacles into highly productive workspaces.

 Power Performance

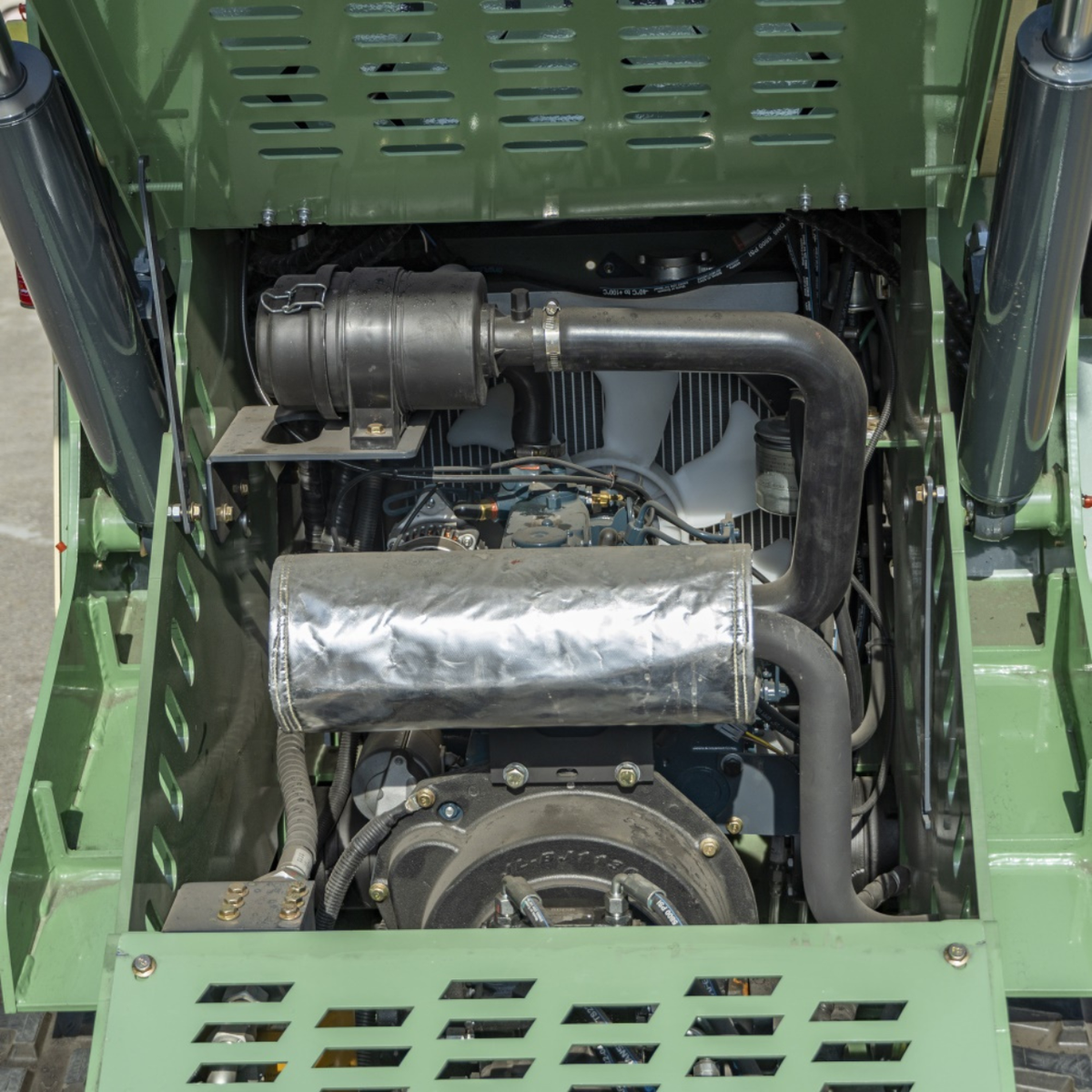

• Engine: Powered by a certified, low-fuel-consumption Kubota D1105 25HP three-cylinder diesel engine.

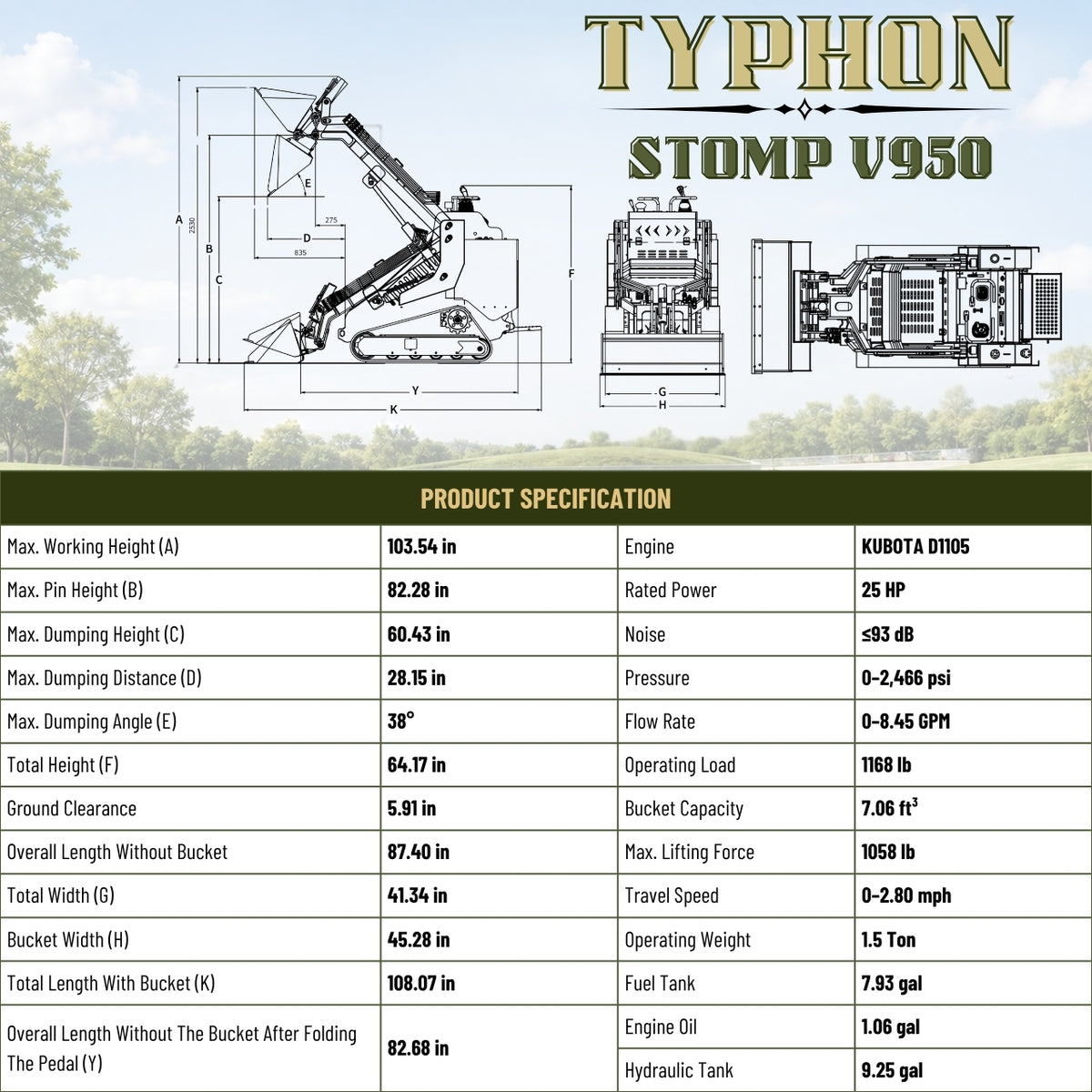

• Weight & Capacity: Features a 1.5 Ton operating weight, an operating load of 530 kg (1,168 lb), and a maximum lifting force of 480 kg (1,058 lb).

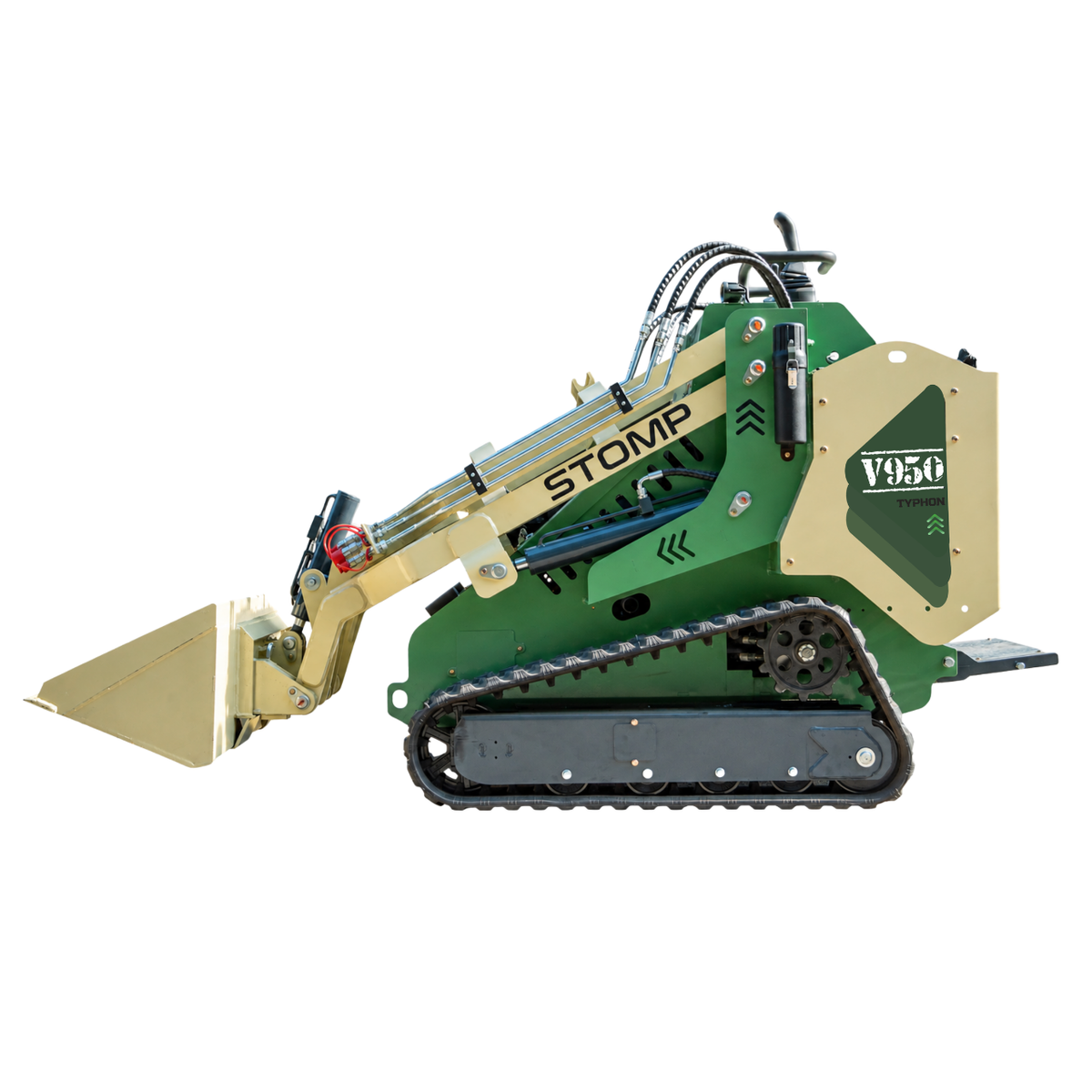

• Ultra-Compact Dimensions: Measures just 1,050mm (41.34 in) wide, 1,630mm (64.17-inch) tall, and 2,220mm (87.40-inch) long without the bucket. Its slim profile allows it to pass effortlessly through standard gates, fence doors, and interior entrances.

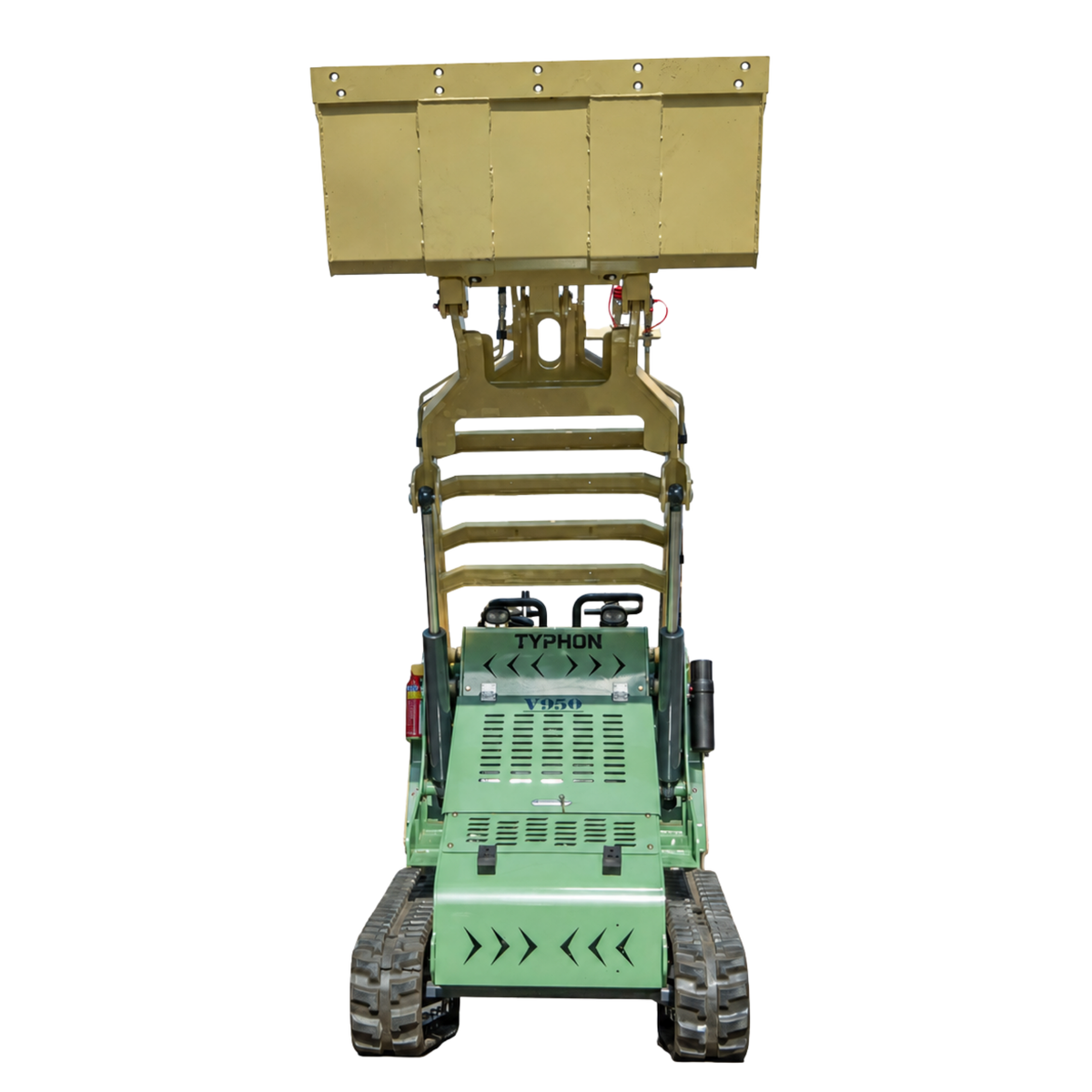

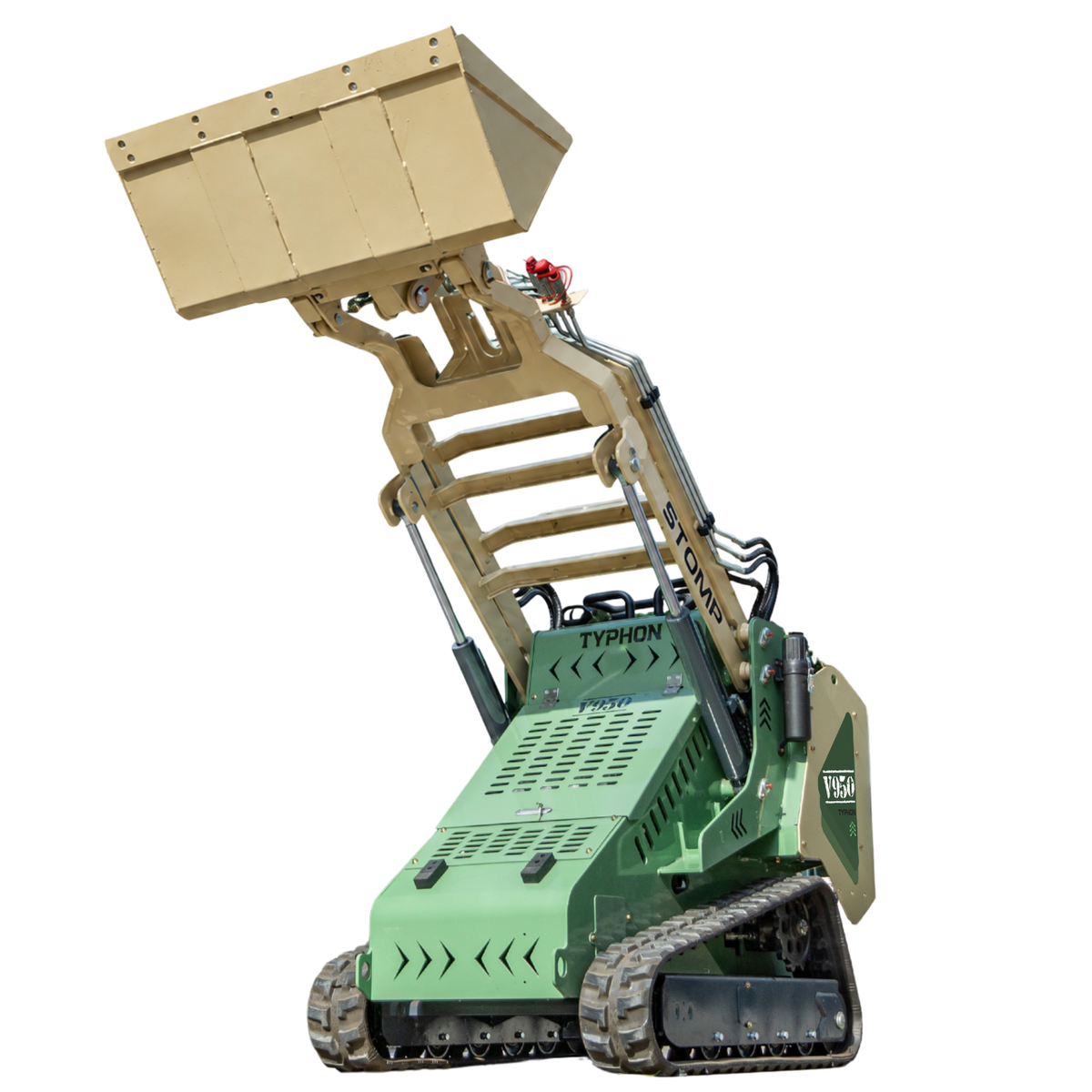

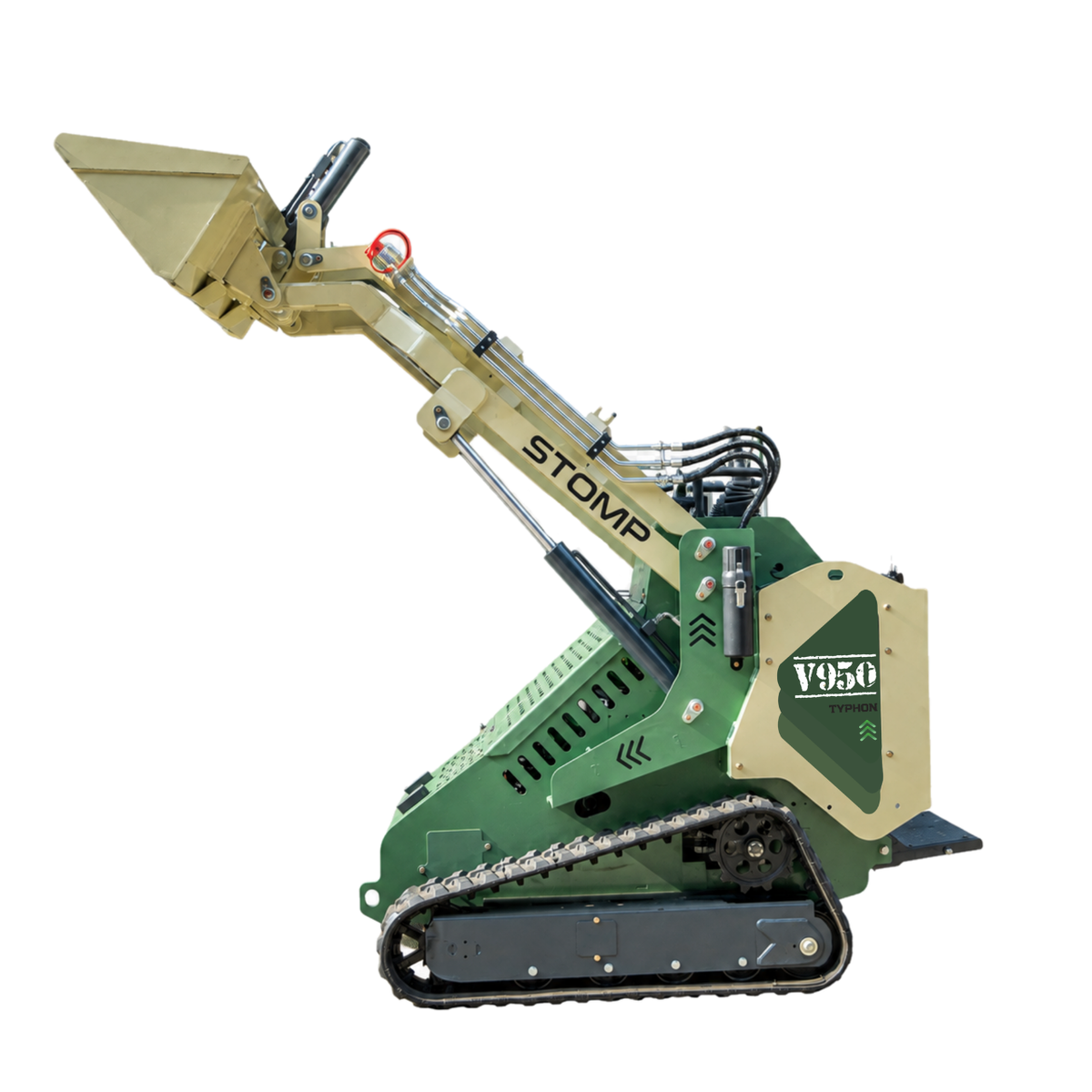

• Working Range: Achieves a highly capable working height of 2,630mm (103.54-inch).

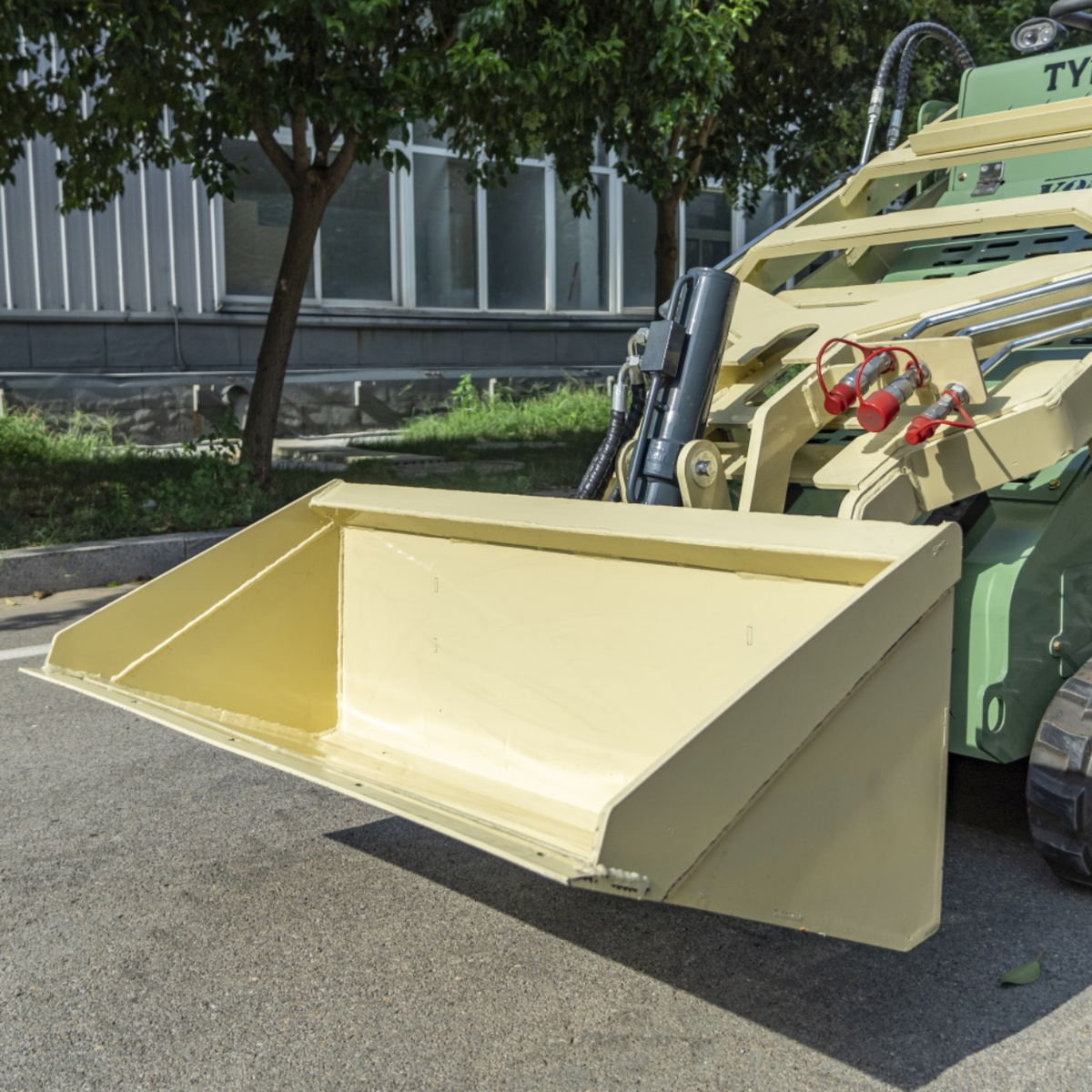

• Included Bucket: Comes with a large-capacity 0.2 m³ (7.06 ft³) bucket built from thickened, rust-resistant steel, which is compatible with multiple interchangeable attachments.
• Advanced Hydraulics & Control

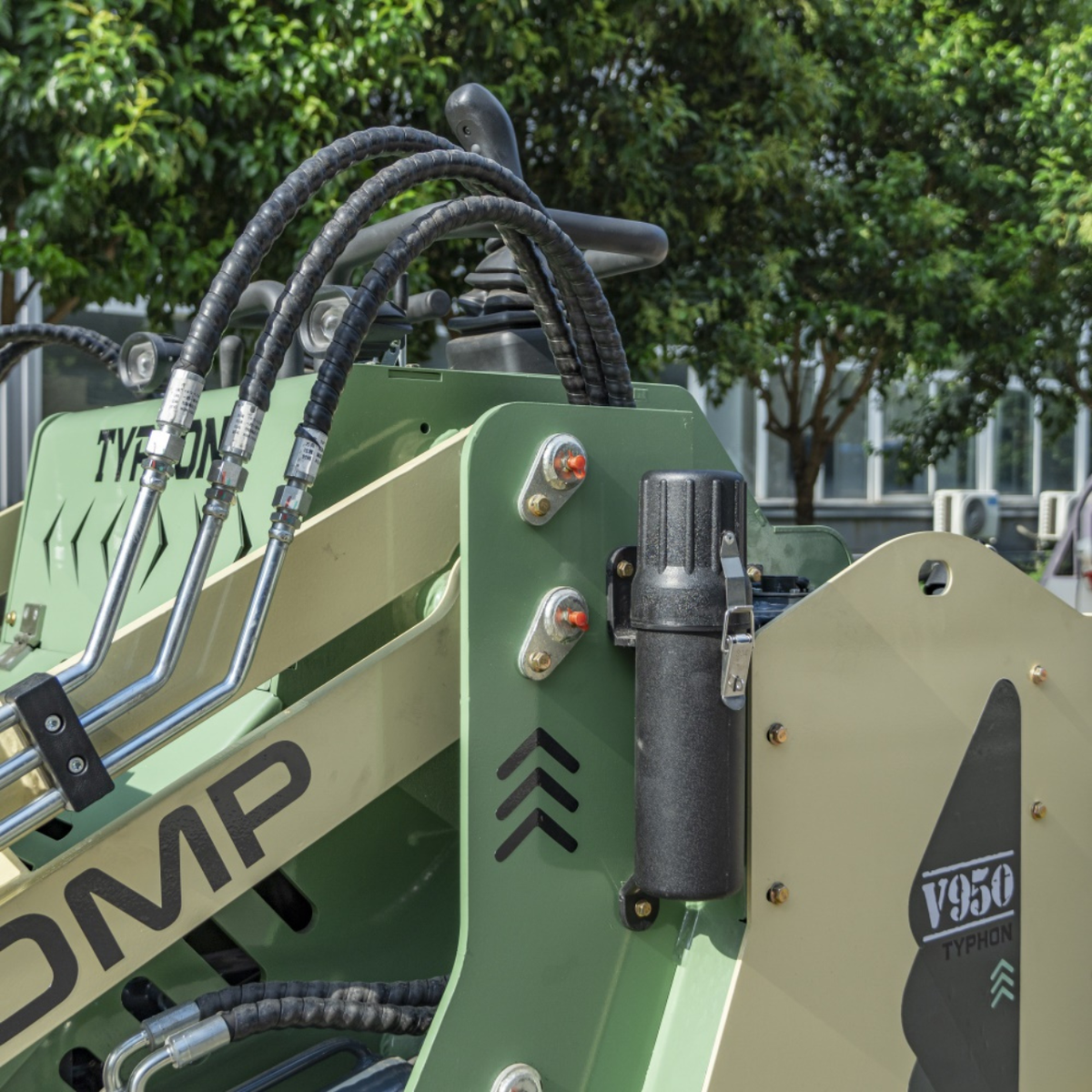

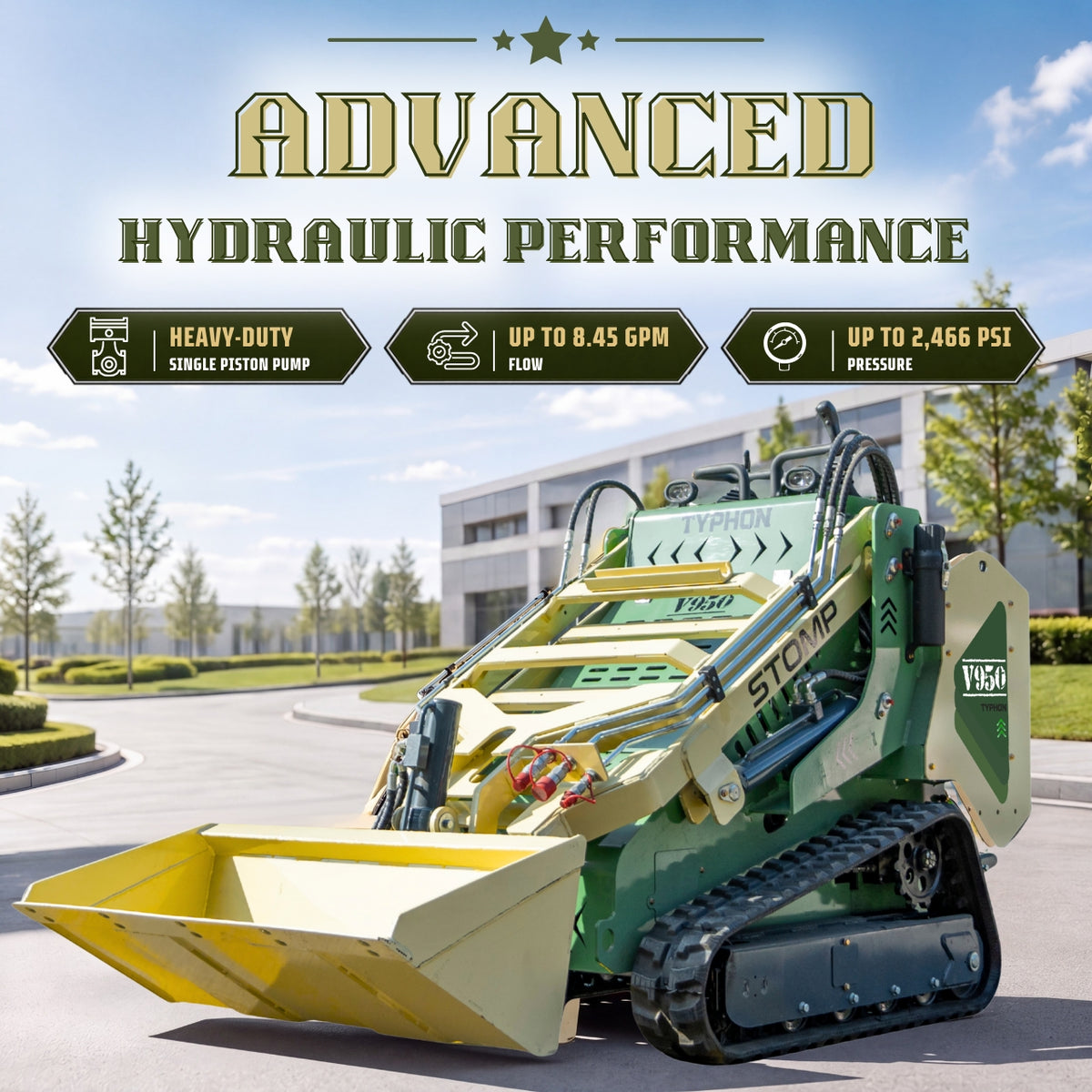

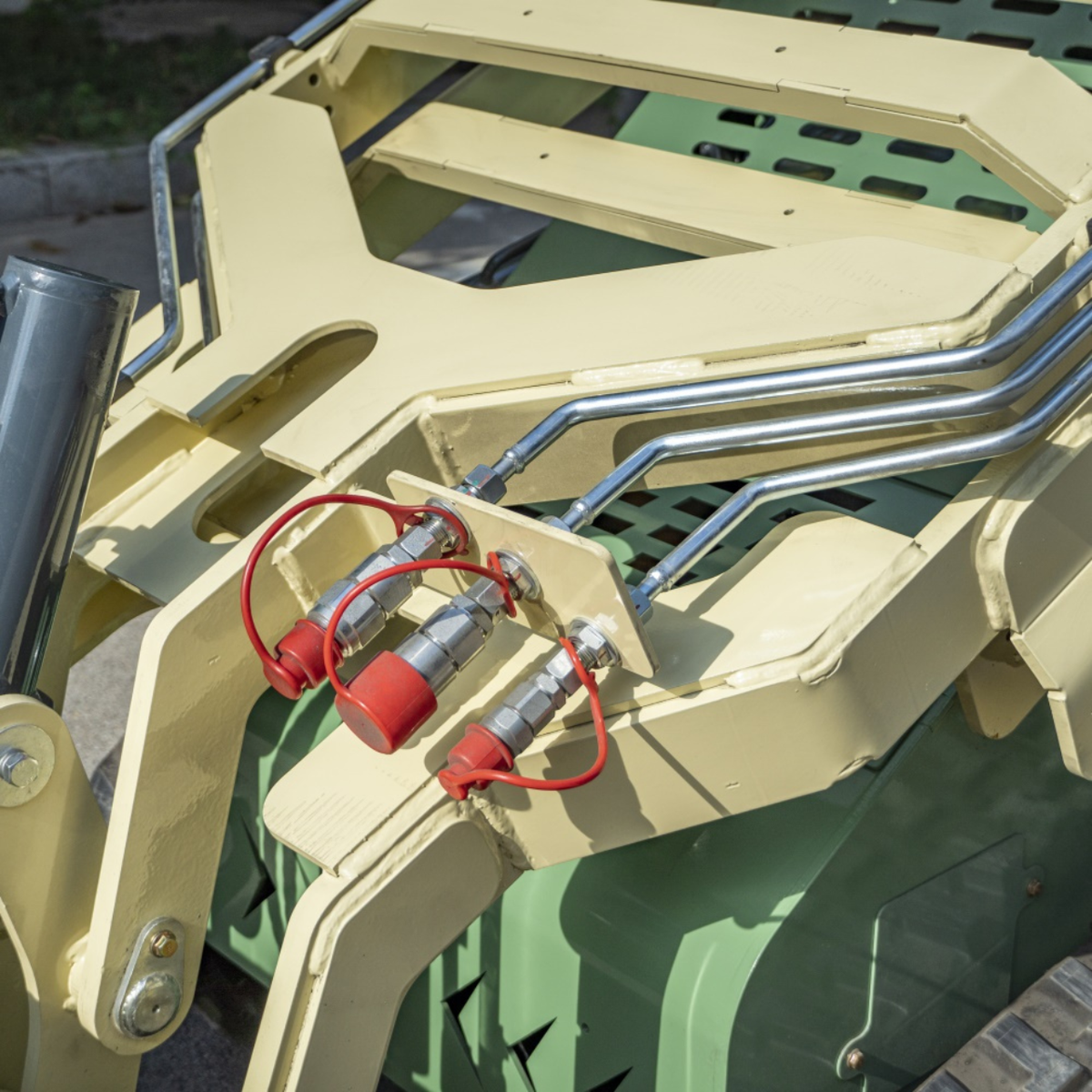

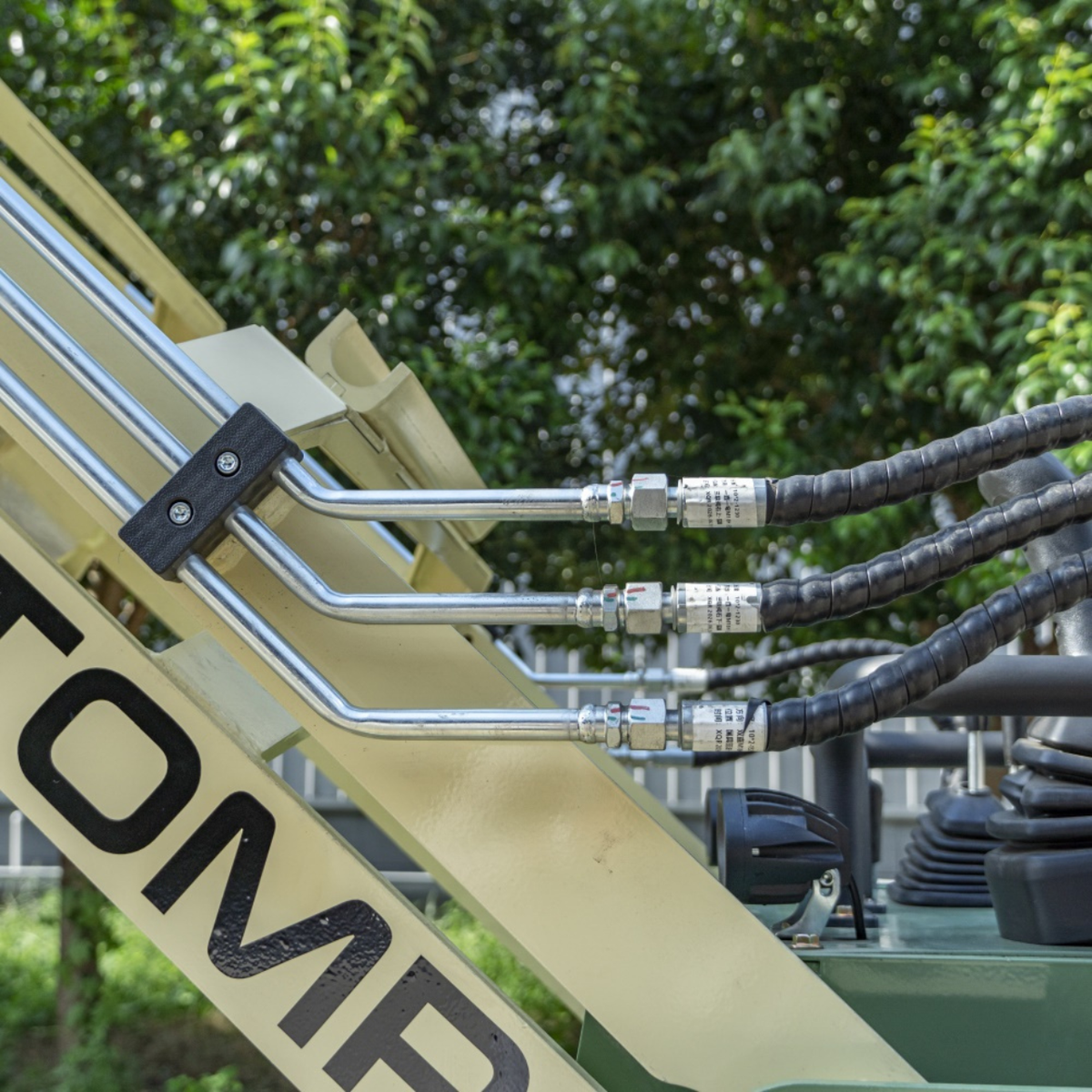

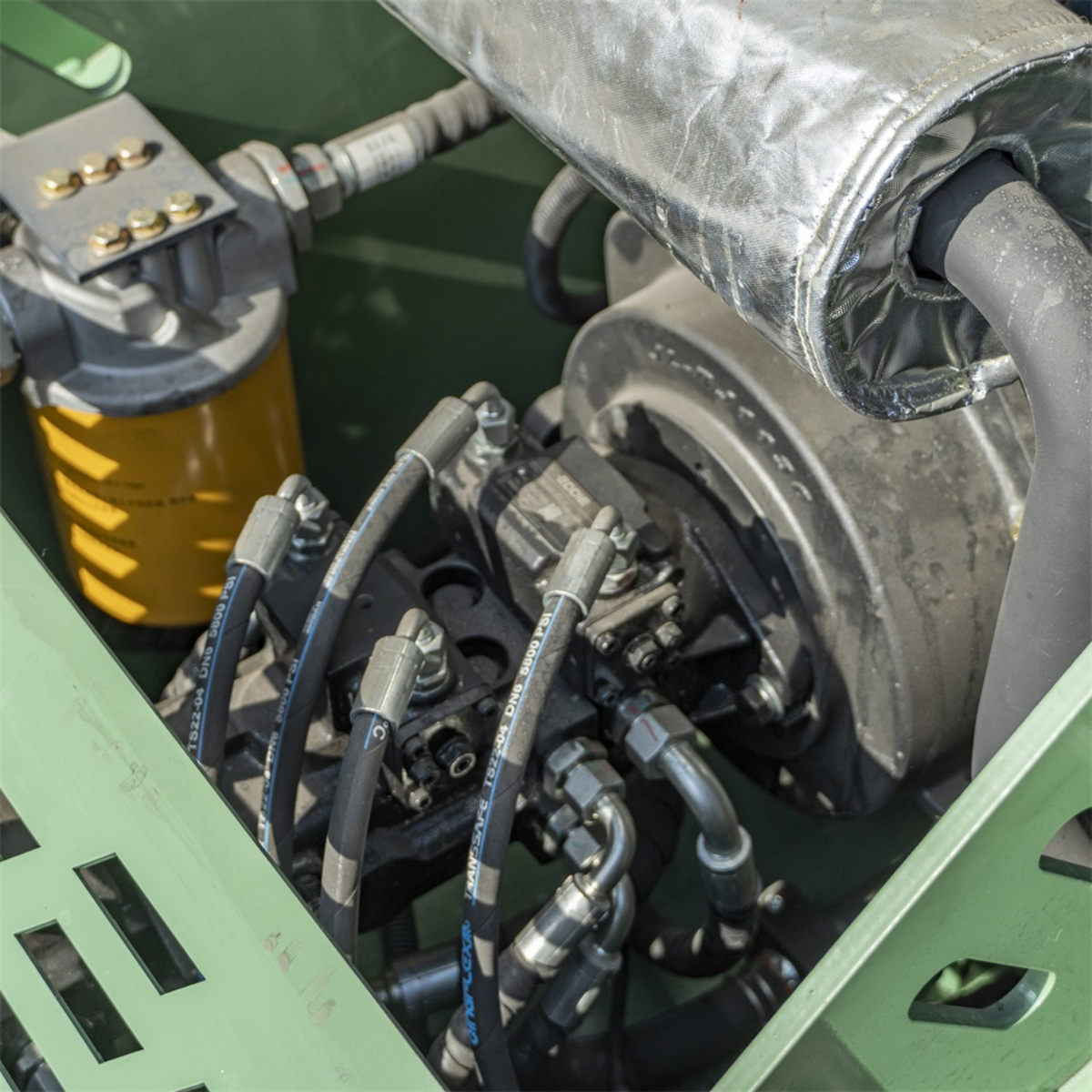

• Premium Hydraulic System: Equipped with a heavy-duty single piston pump engineered for stable, high-pressure output across all functions simultaneously without lag.
• Output Metrics: Hydraulic pressure ranges from 0 to 17 MPa (0–2,466 psi) with a flow rate of 0 to 32 L/min (0–8.45 GPM).

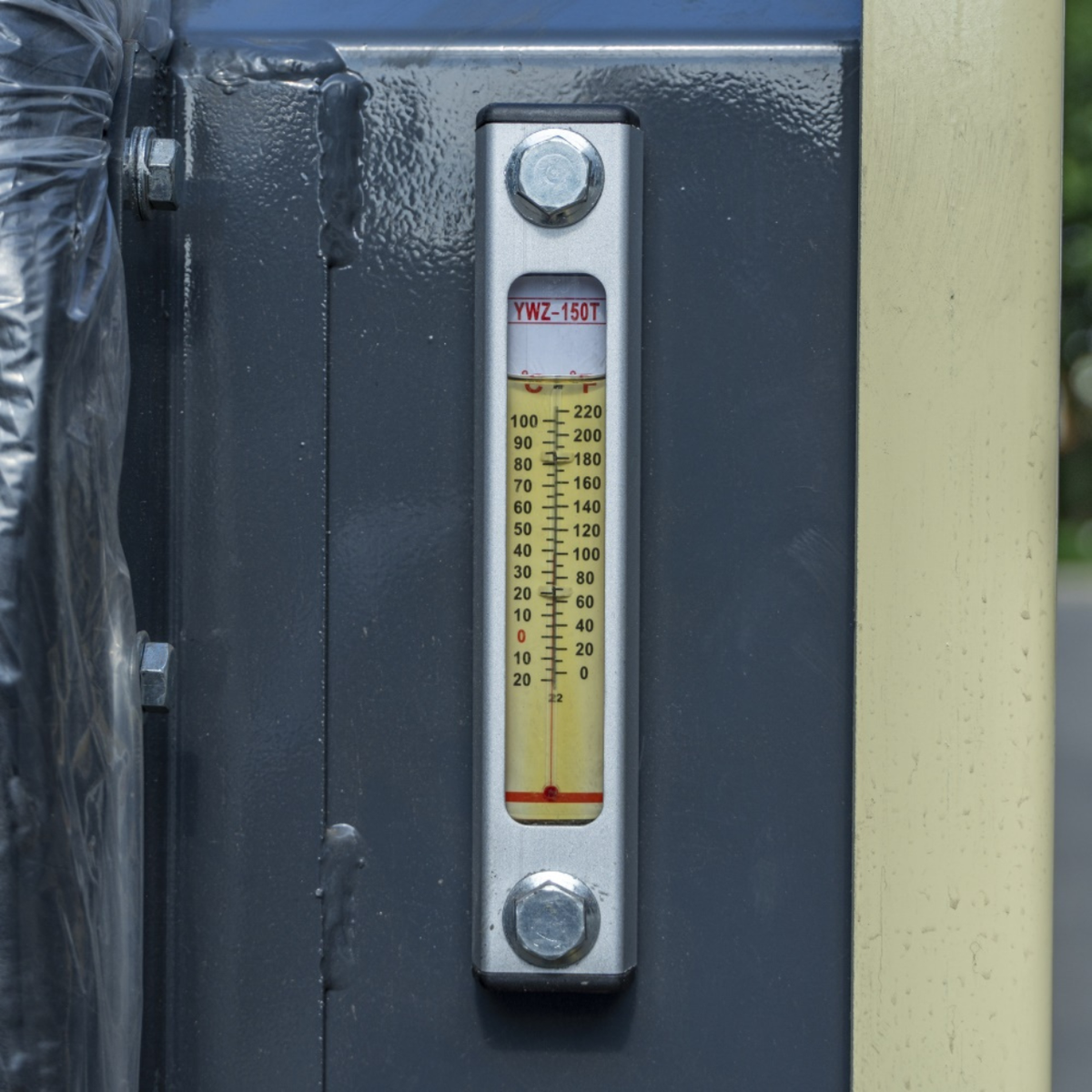

• Smart Temperature Management: Features an independent, thermally isolated hydraulic oil radiator equipped with a temperature sensor to maintain stability during heavy-duty use.

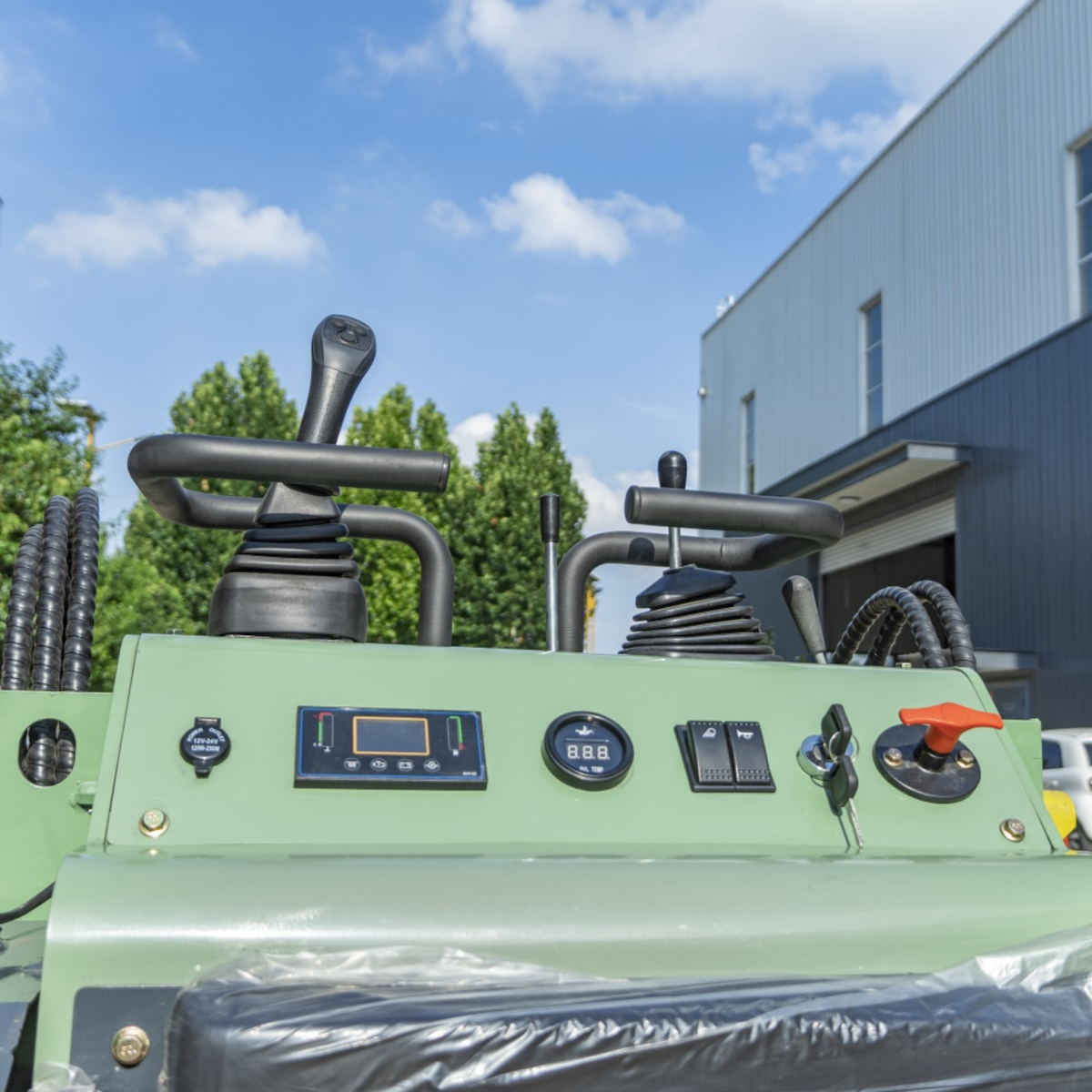

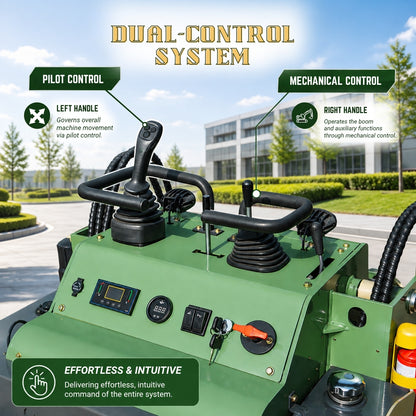

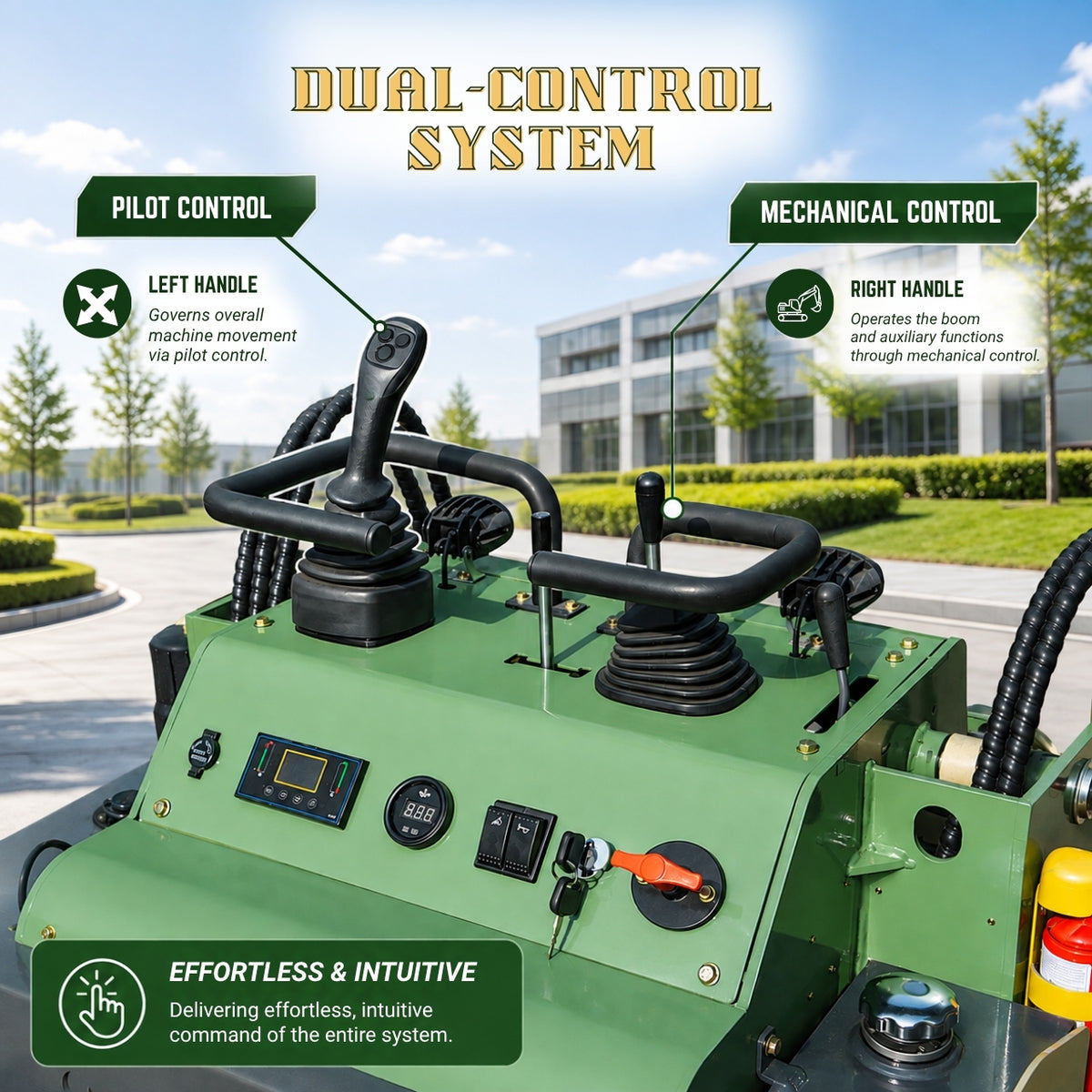

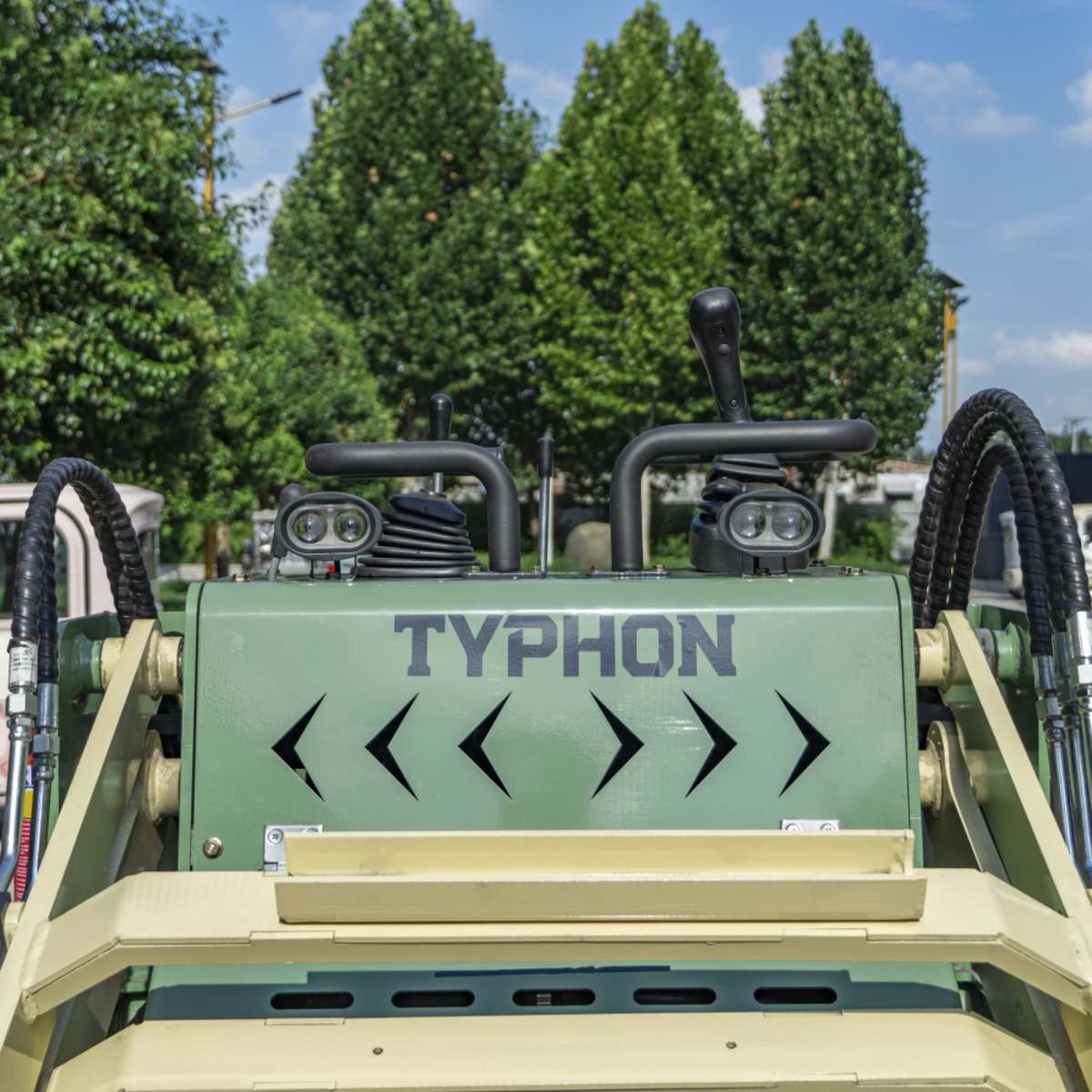

• Dual-Control Interface: The left handle dictates machine movement via pilot control, while the right handle manages the boom and auxiliary functions through effortless mechanical control.

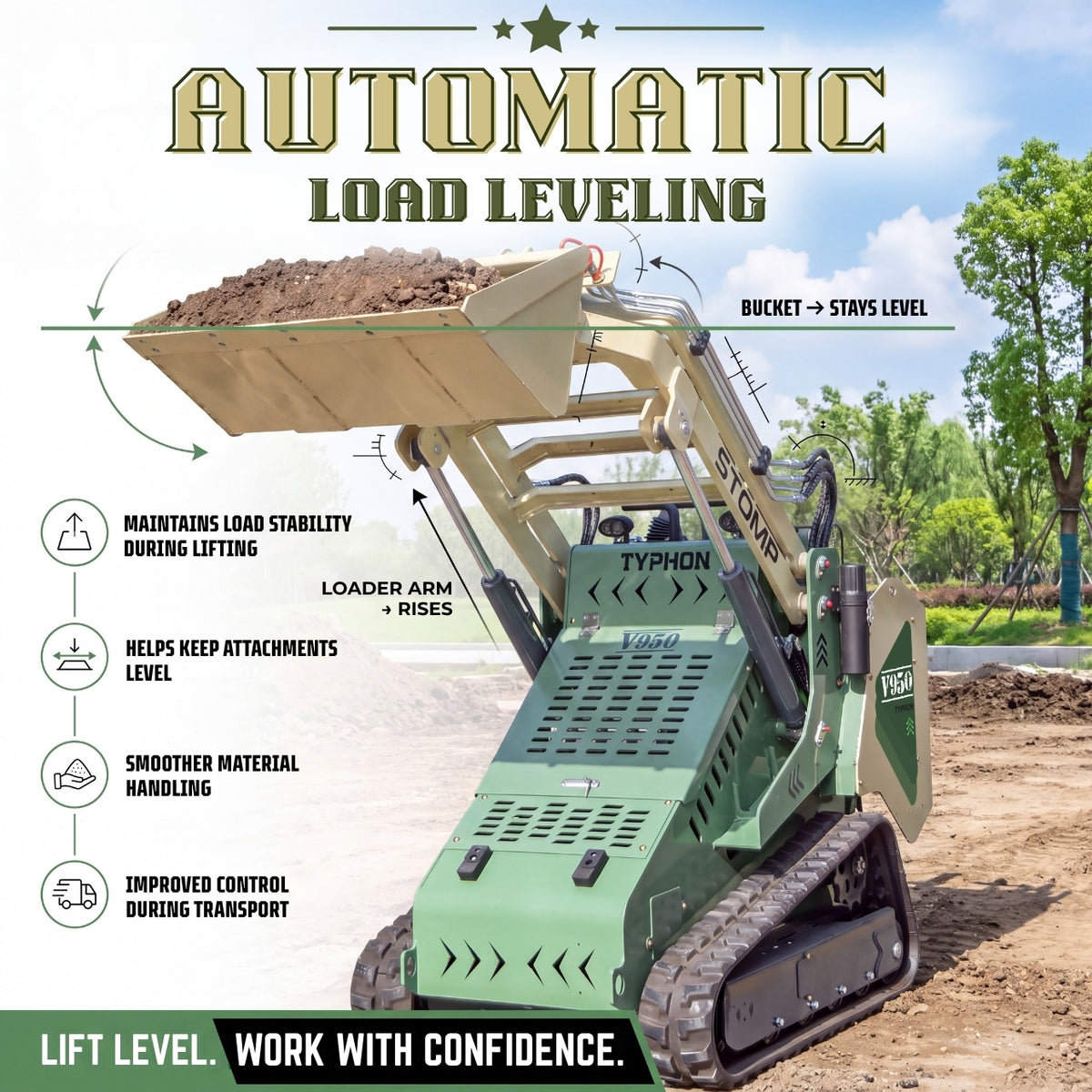

• Automatic Leveling: An integrated auto-leveling system ensures load stability throughout all lifting and transport cycles.

Superior Traction & Maneuverability

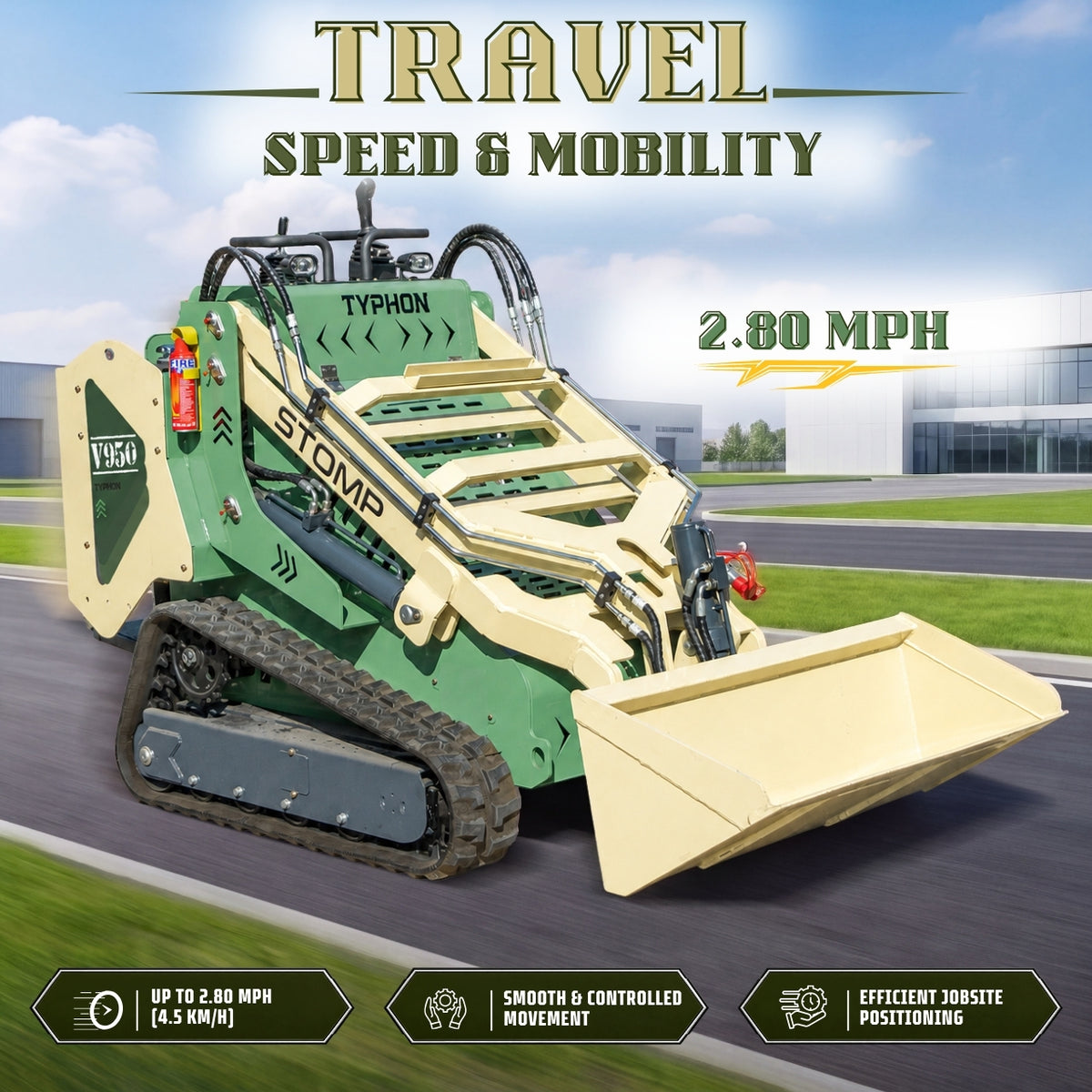

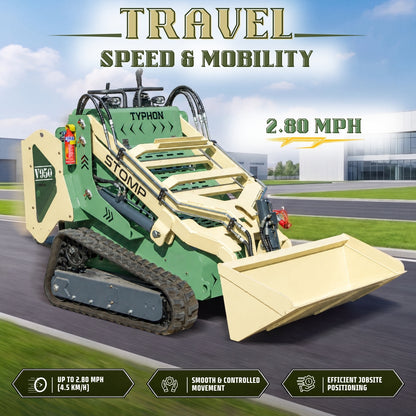

• 360-Degree Turning: Engineered to spin and reposition flawlessly in extremely narrow or enclosed spaces.

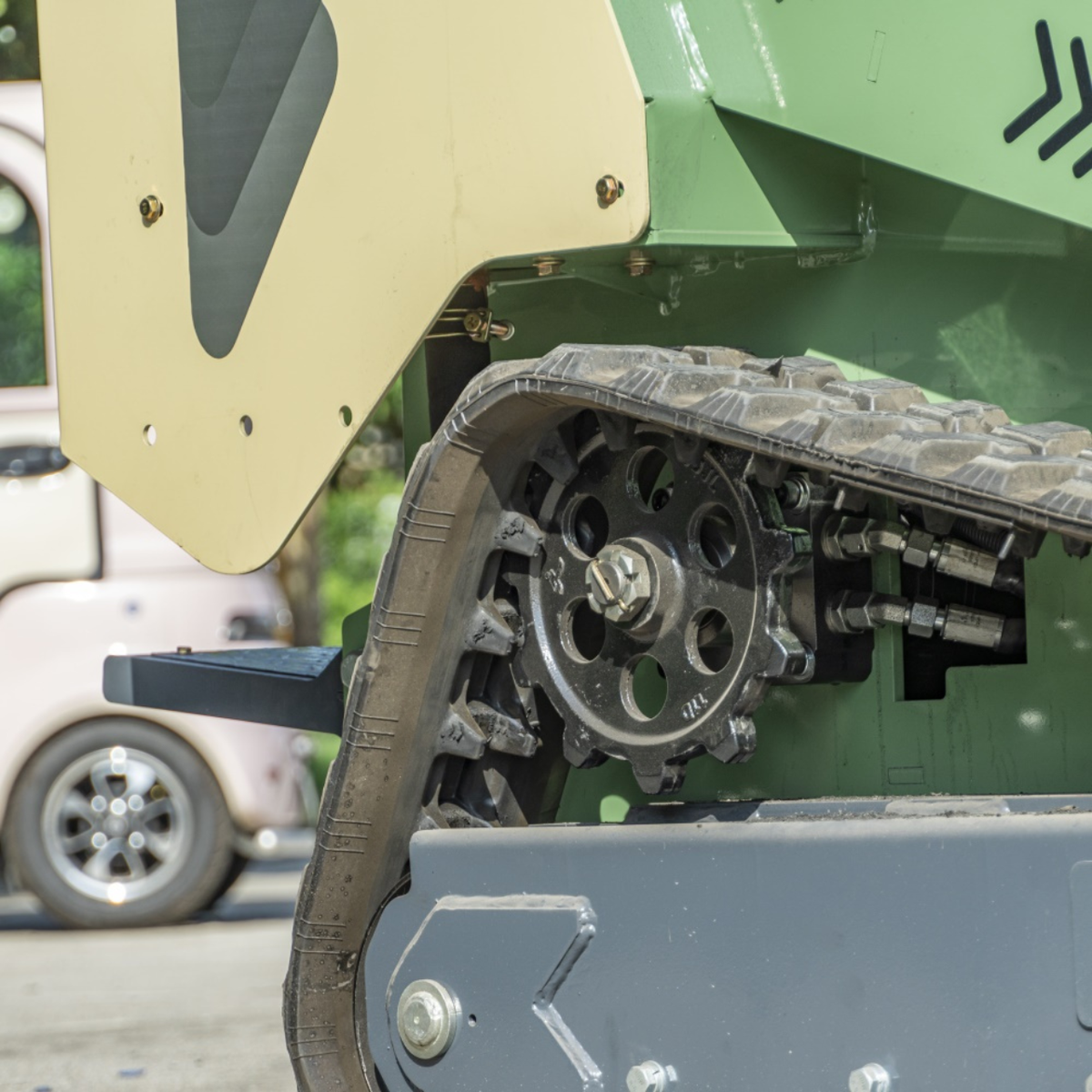

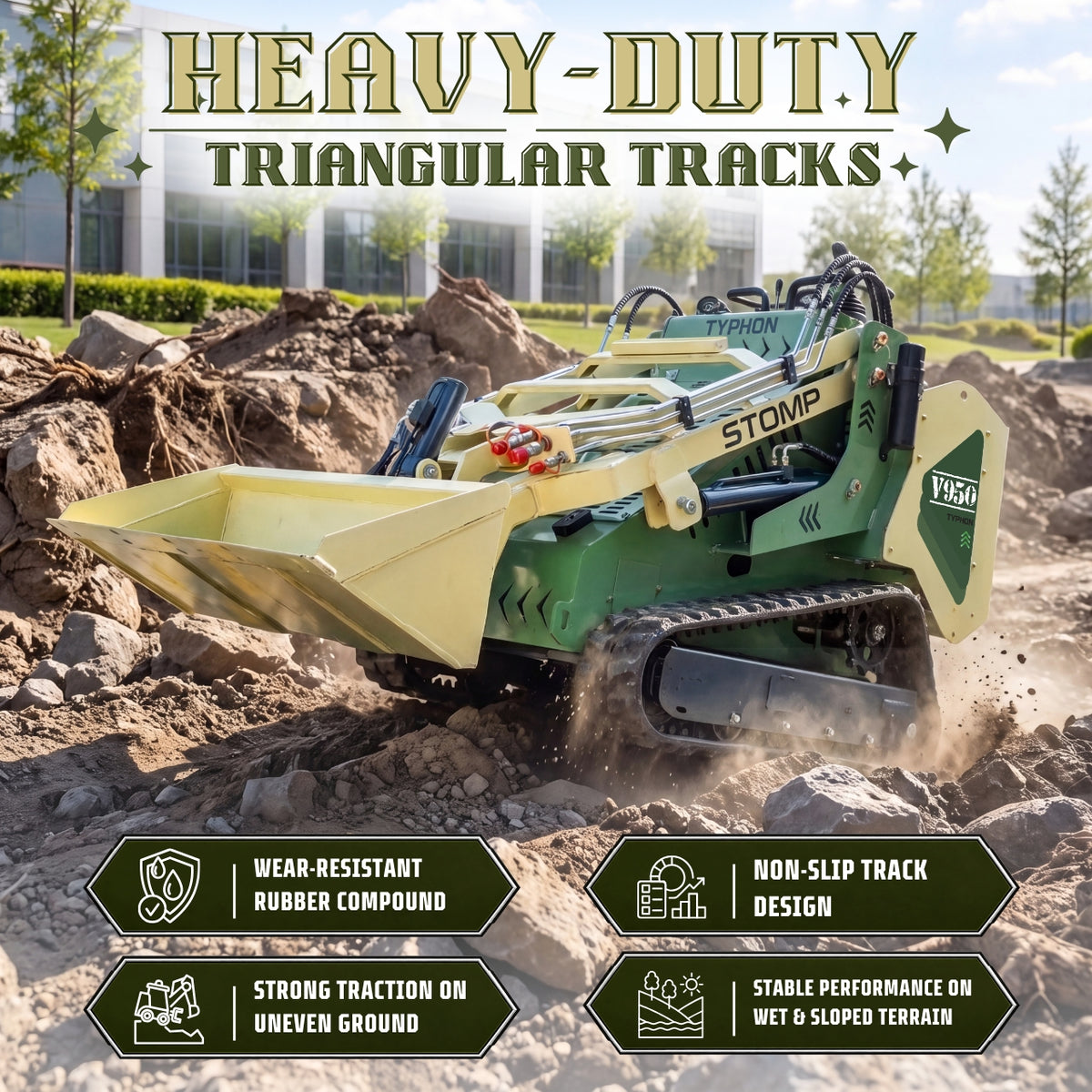

• Track System: High-performance triangular rubber tracks feature a wear-resistant, non-slip, and high-flotation compound for ultimate stability on wet, muddy, or uneven ground.
• Drive Power: Dedicated drive gearboxes sit behind each motor, providing synchronized and powerful traction on difficult terrain and slopes.

Operator Safety & Maintenance

• Comfort Features: The standing operation platform is fitted with an anti-collision sponge for protection and plush cushioning on both sides for sustained comfort during long shifts.

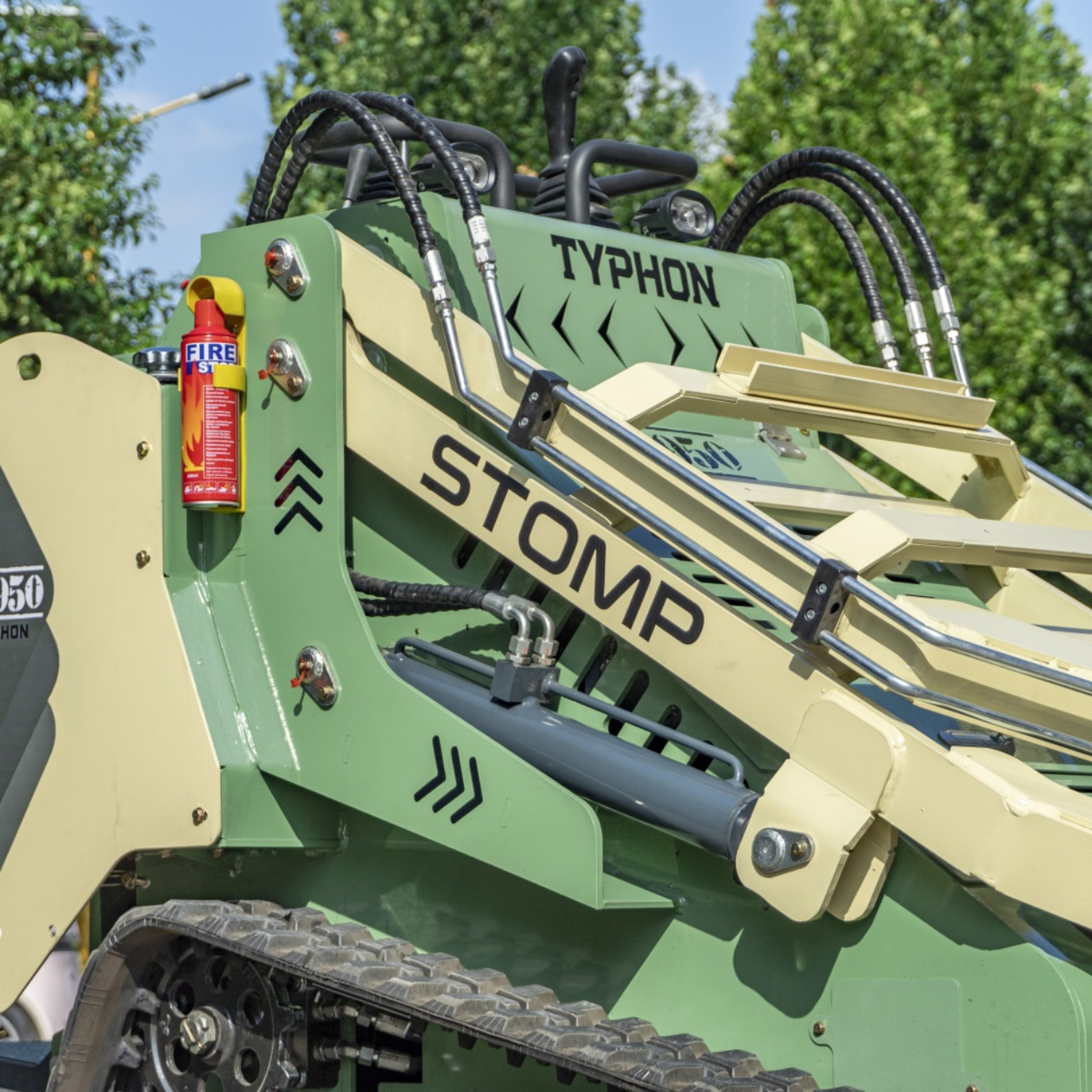

• Safety Equipment included: Comes standard with a fire extinguisher, a storage bucket, and integrated LED lighting to extend productivity into nighttime and low-light conditions.

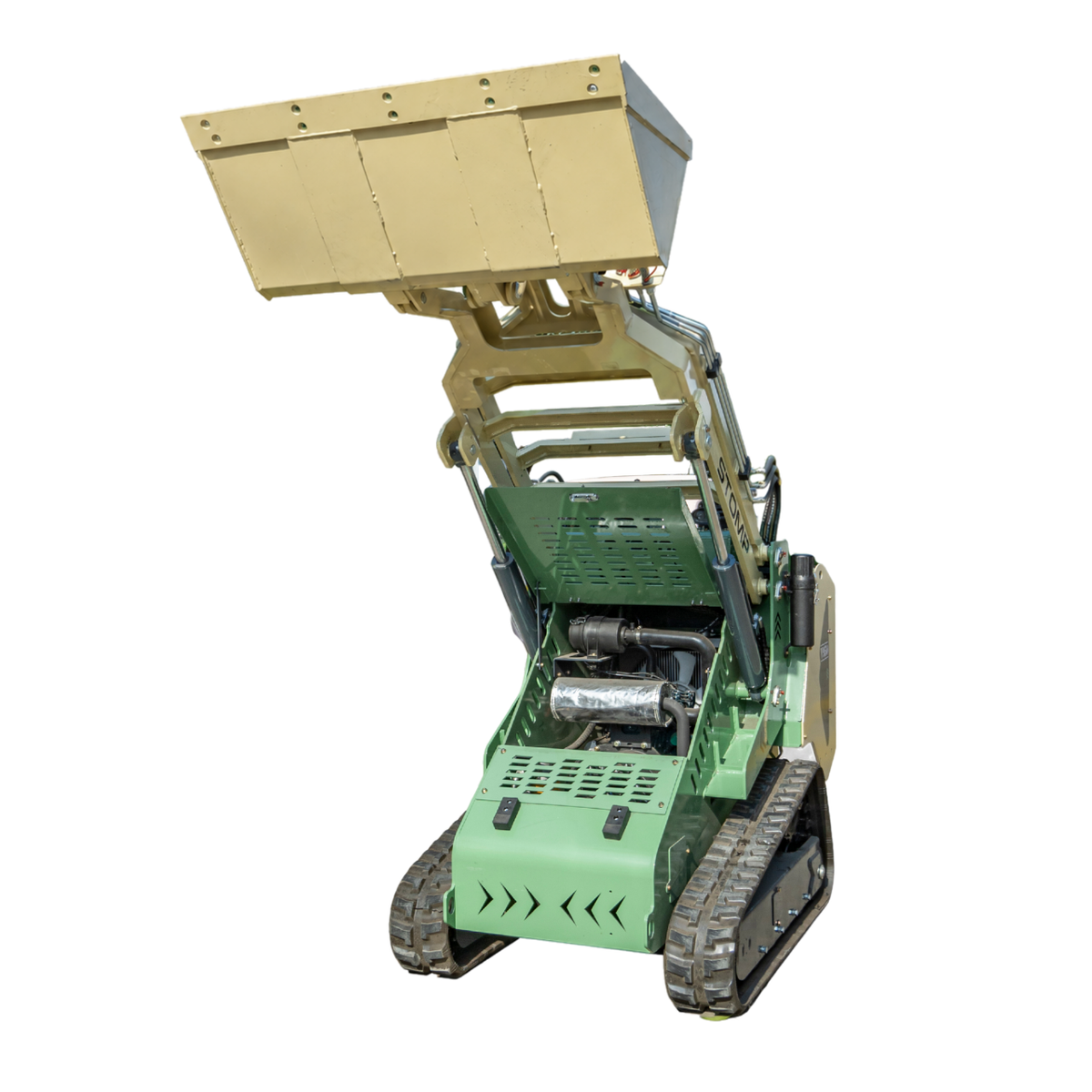

• Easy Maintenance: The front cover plate utilizes a double rod support system, ensuring it opens easily for fast, unobstructed access to key components during routine inspections.
