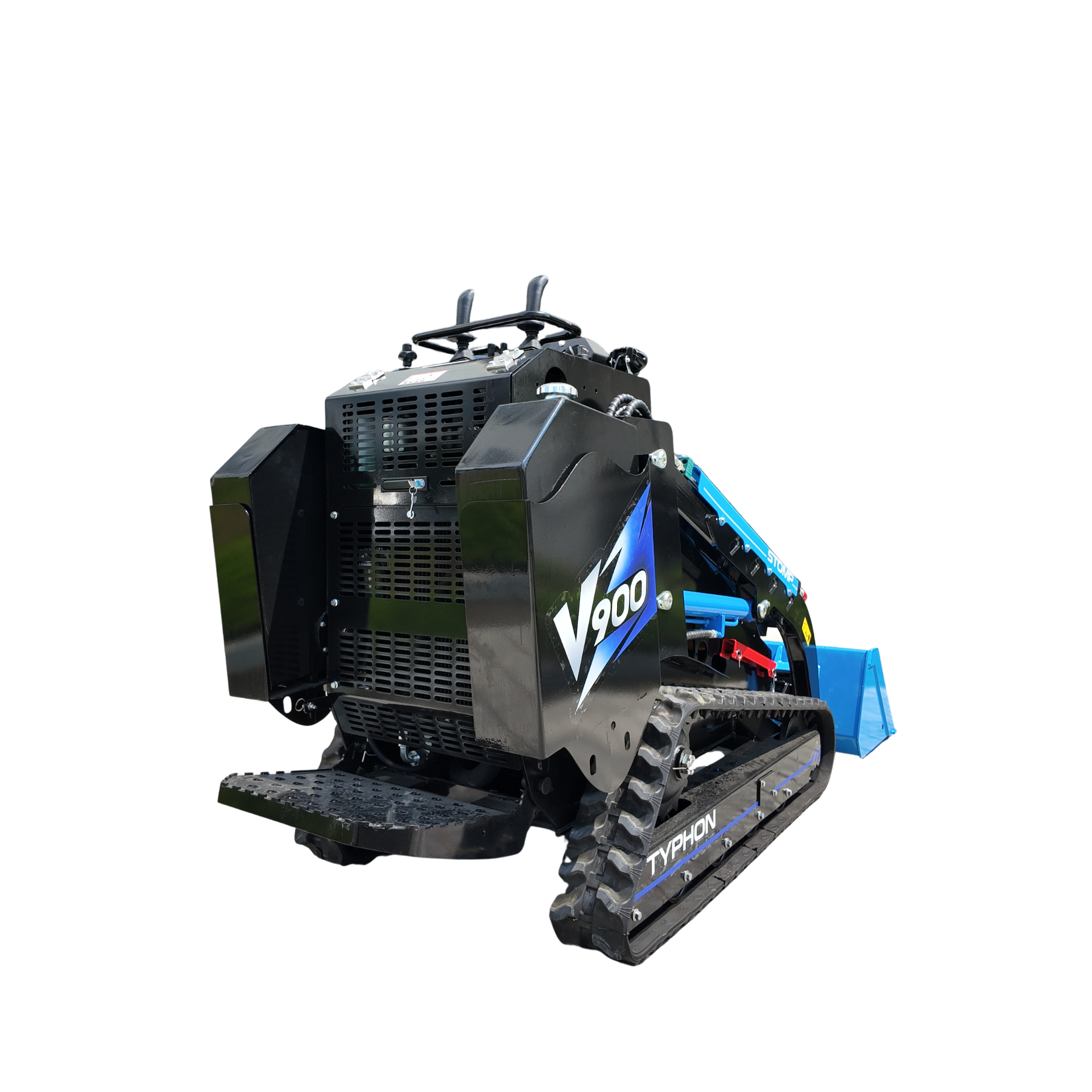

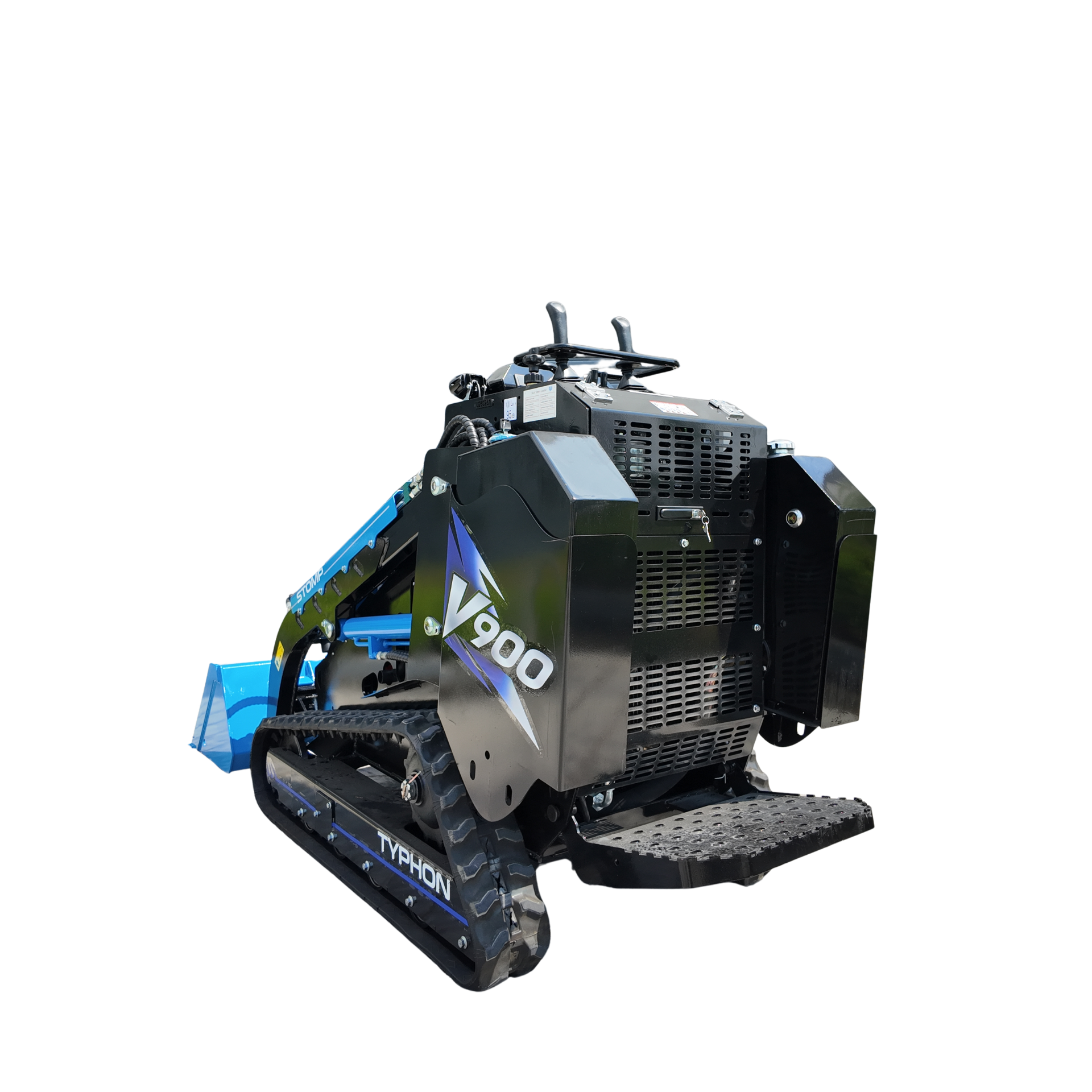

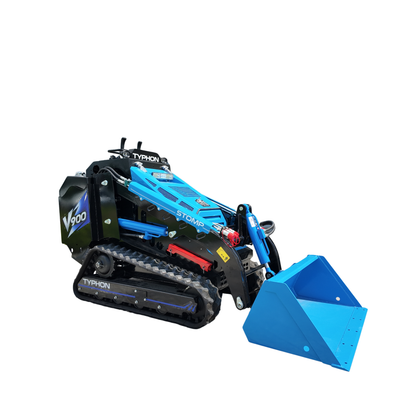

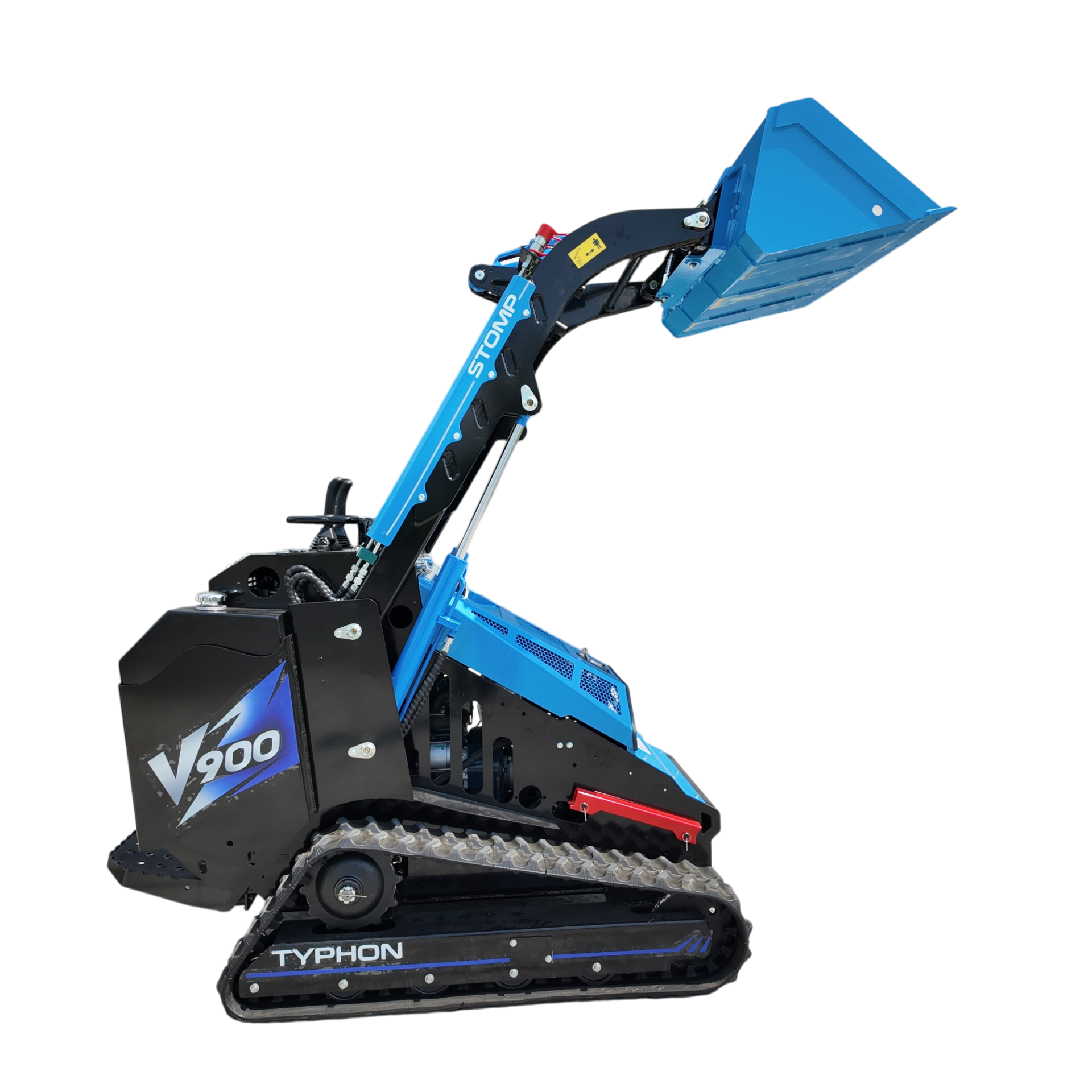

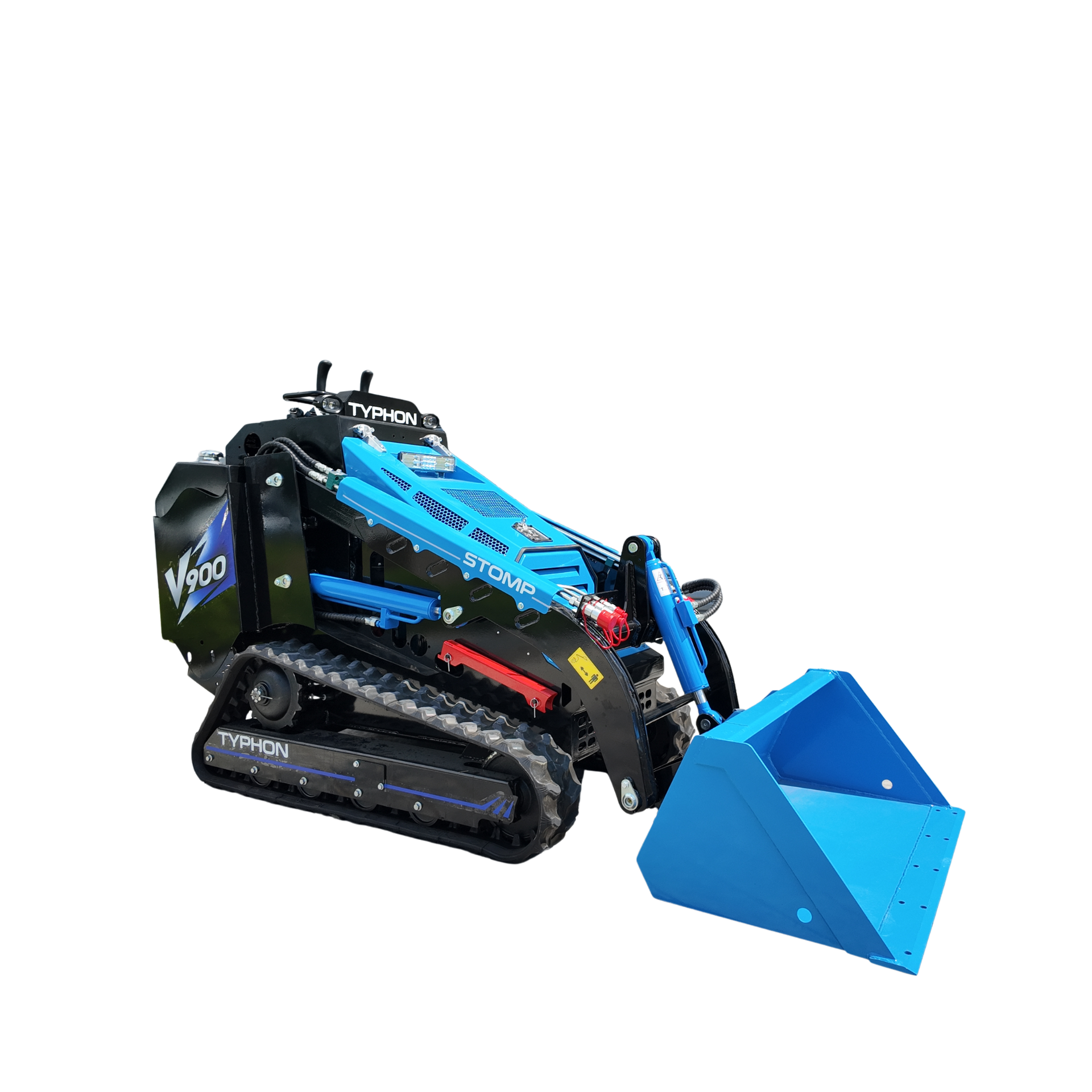

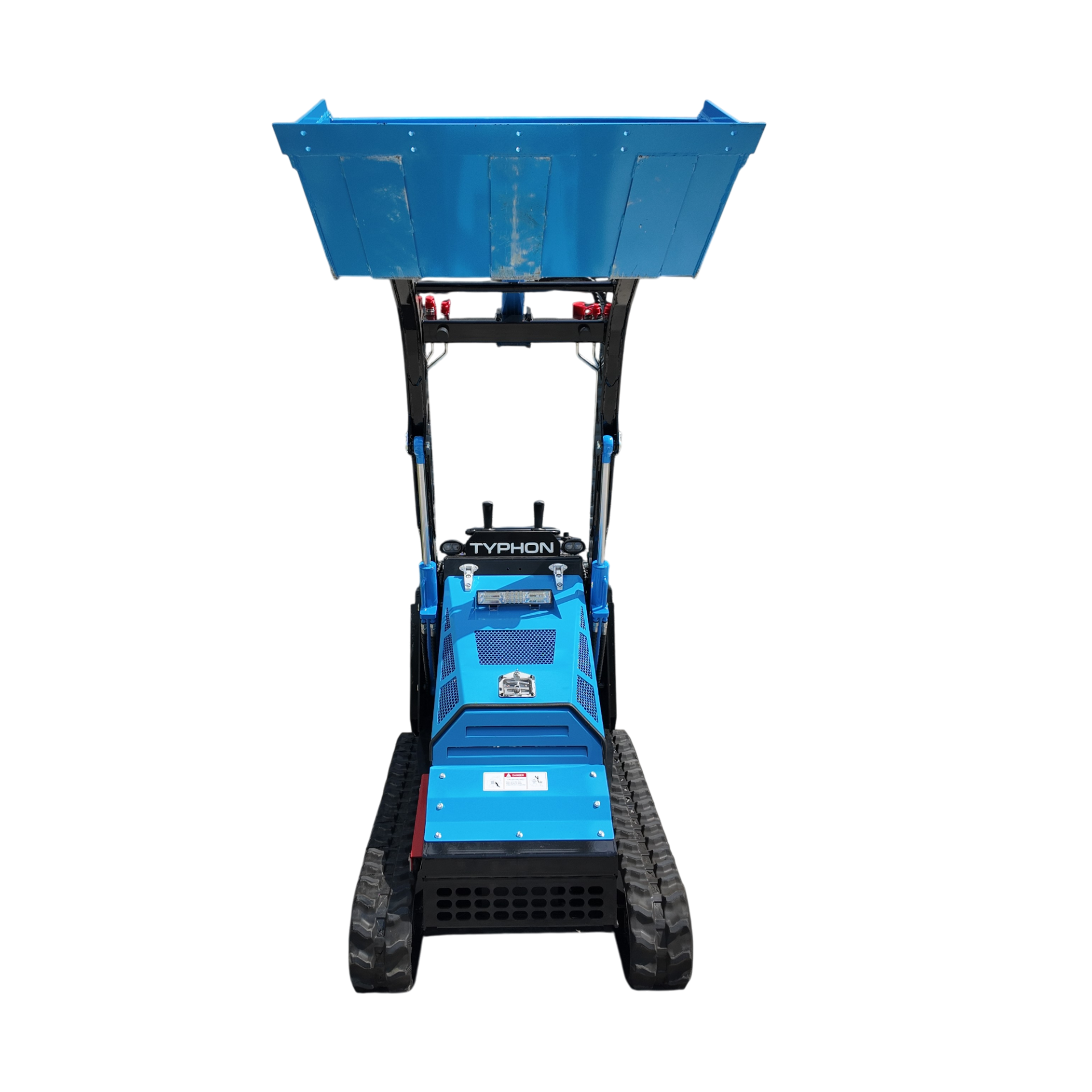

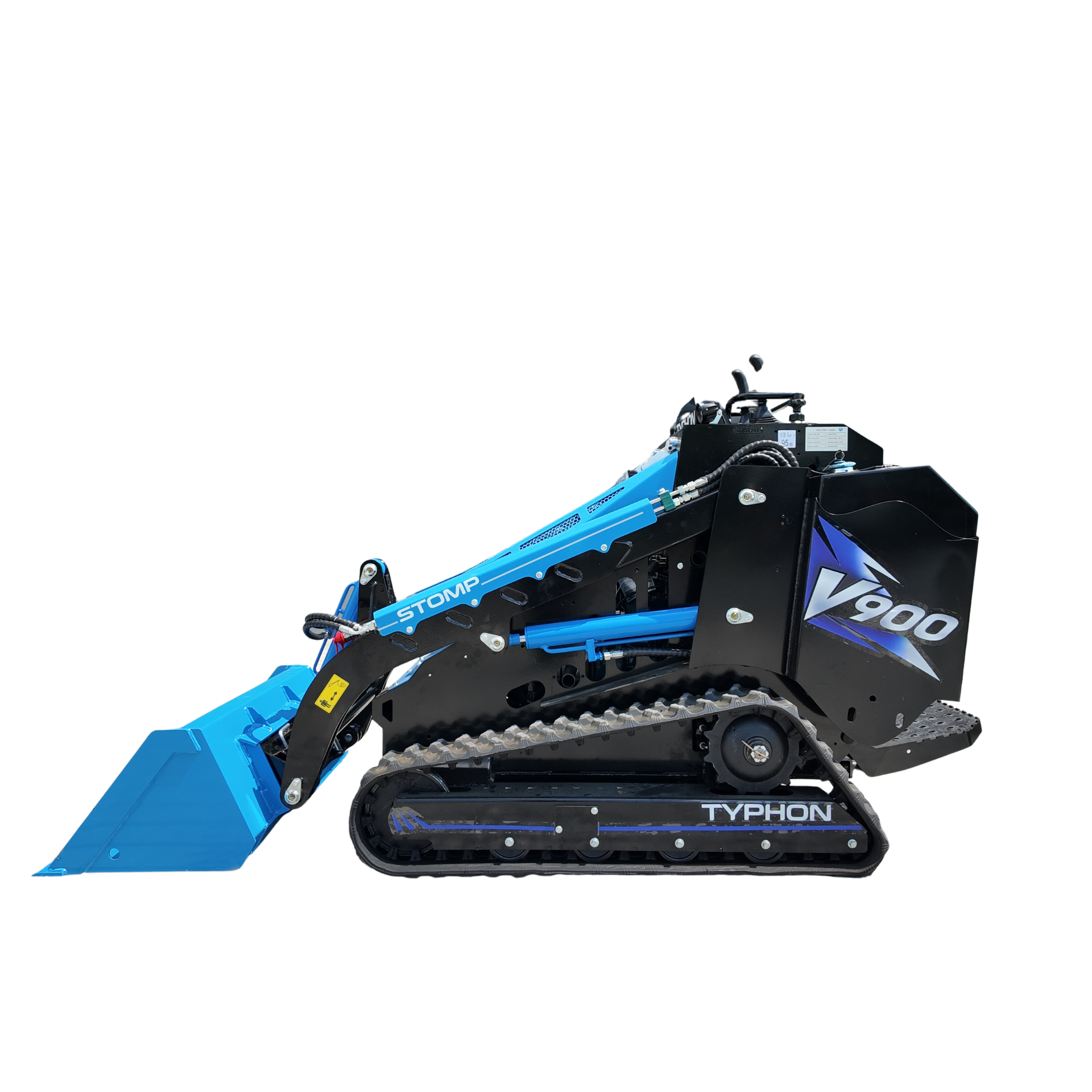

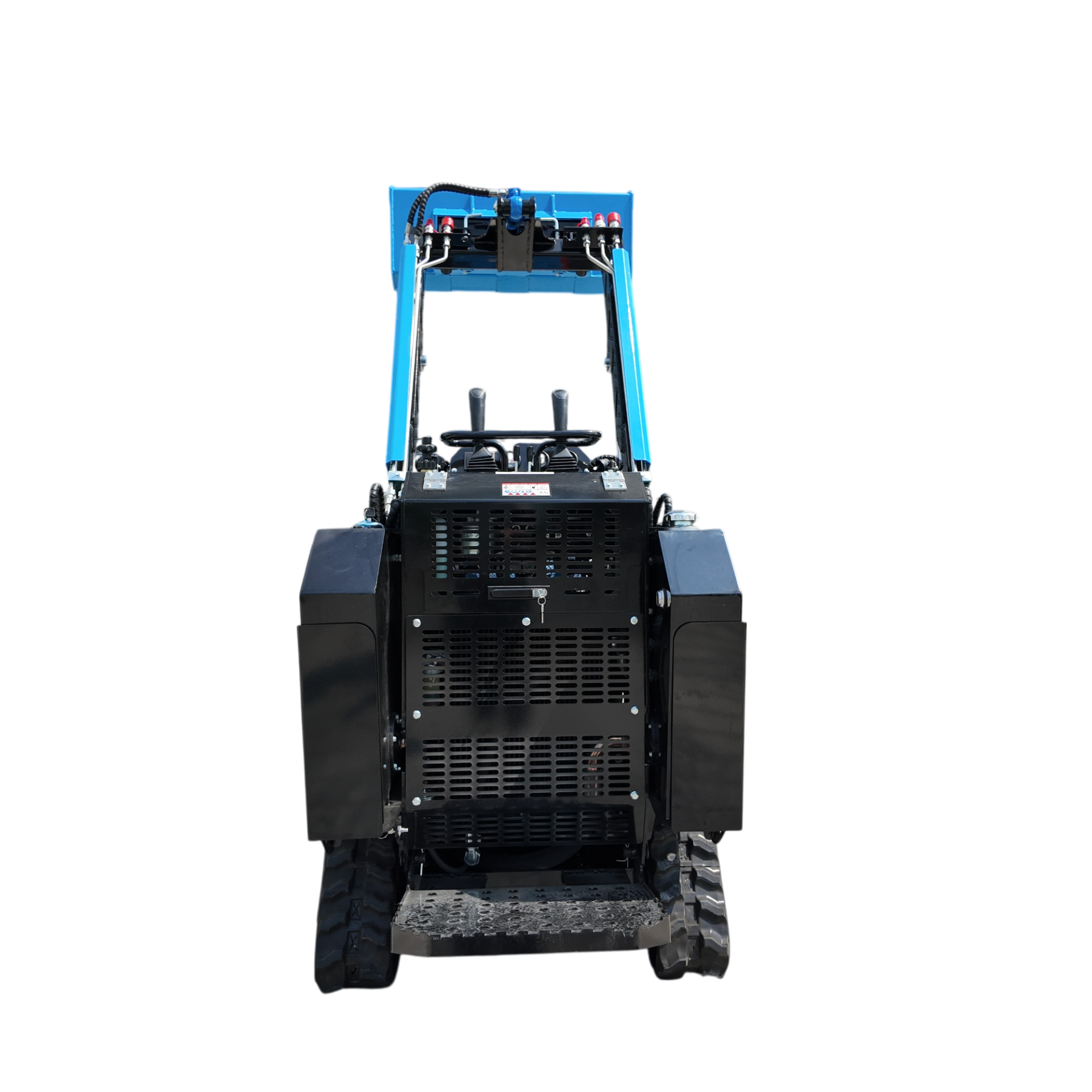

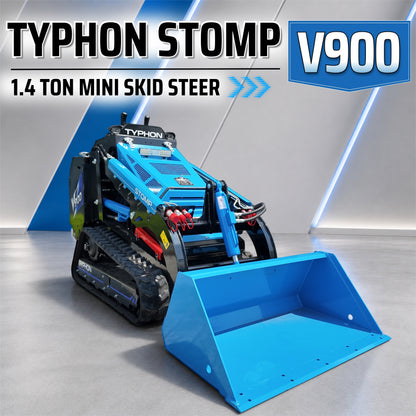

Typhon Stomp V900 25HP Kubota Diesel Mini Track Loader Stand-On Skid Steer EPA/EU Stage V

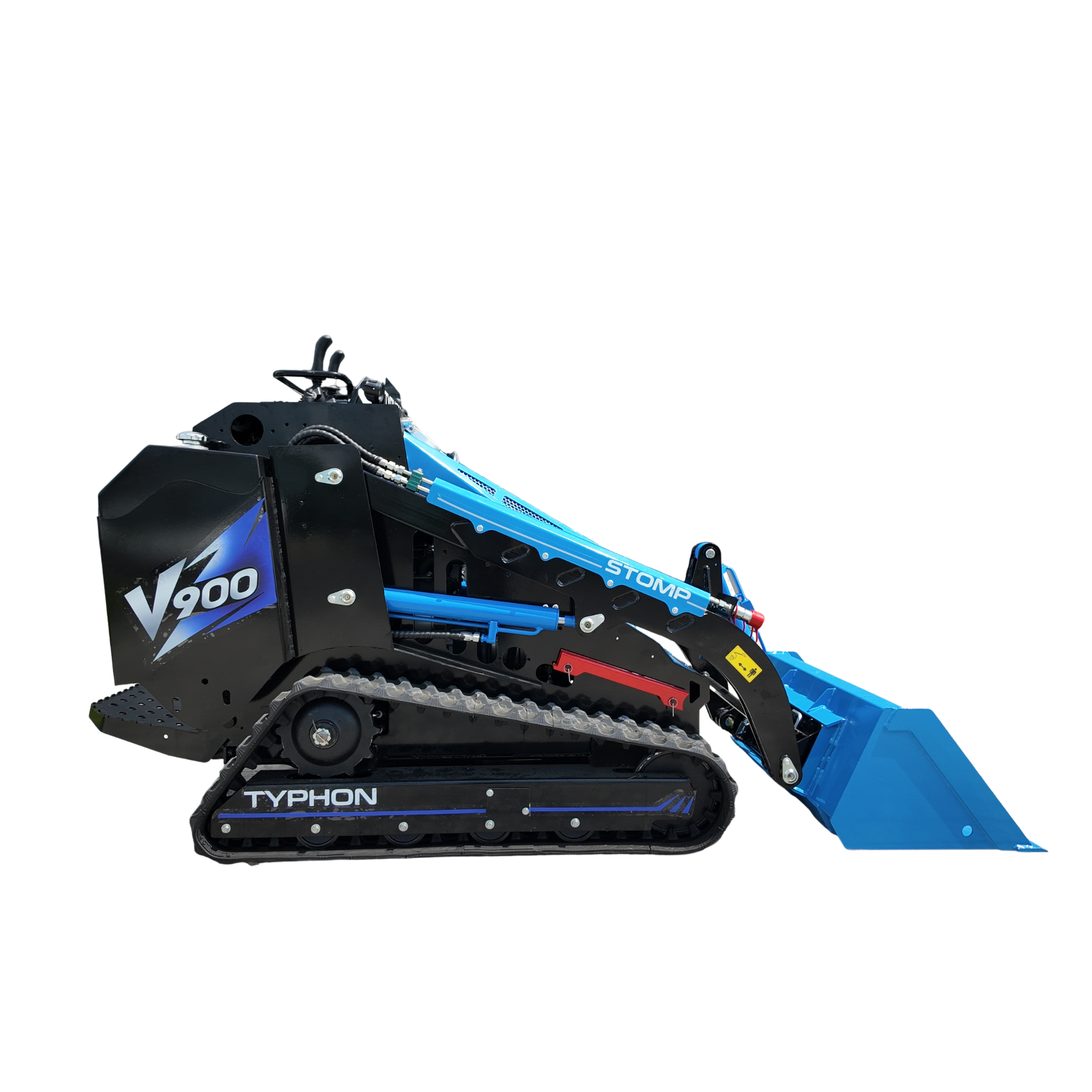

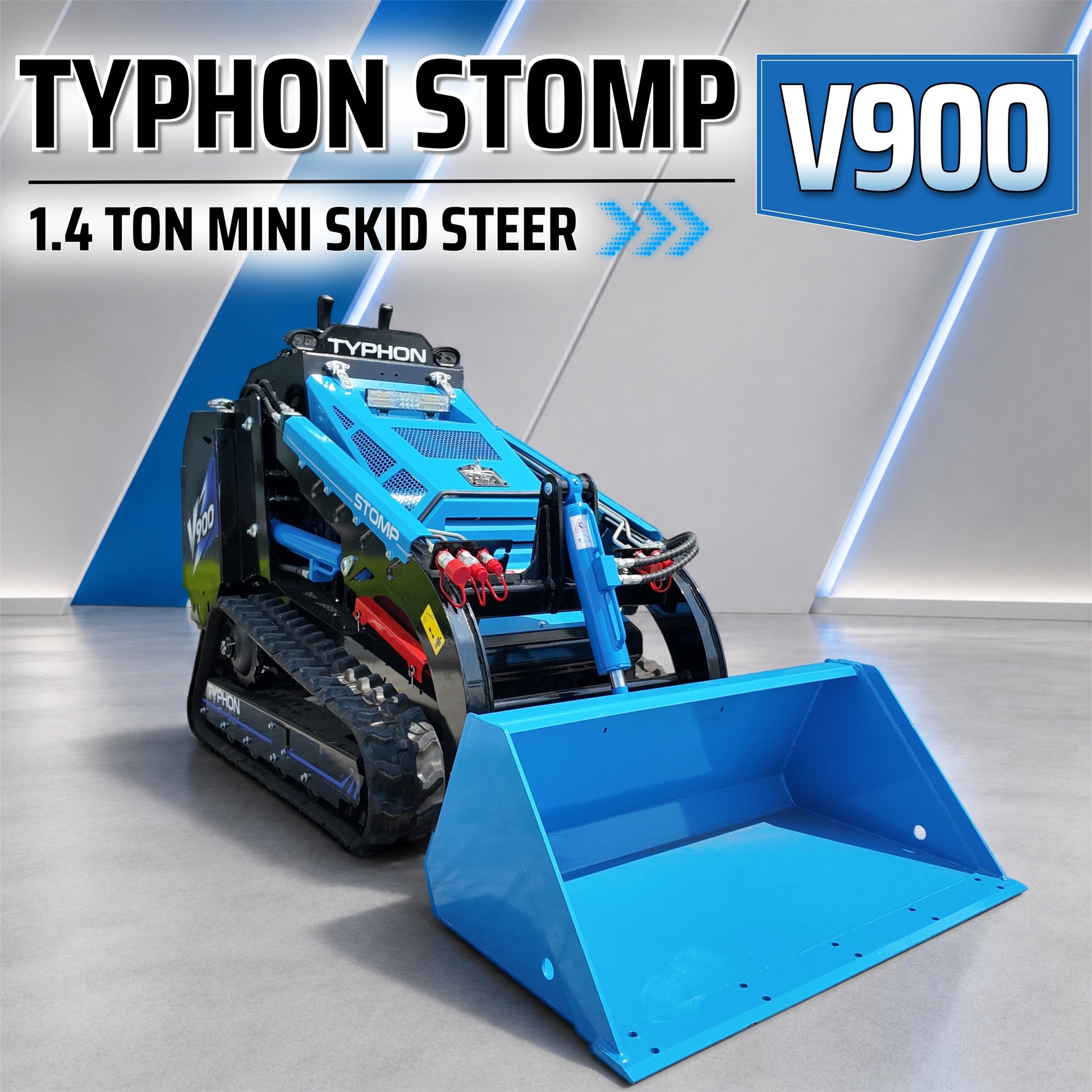

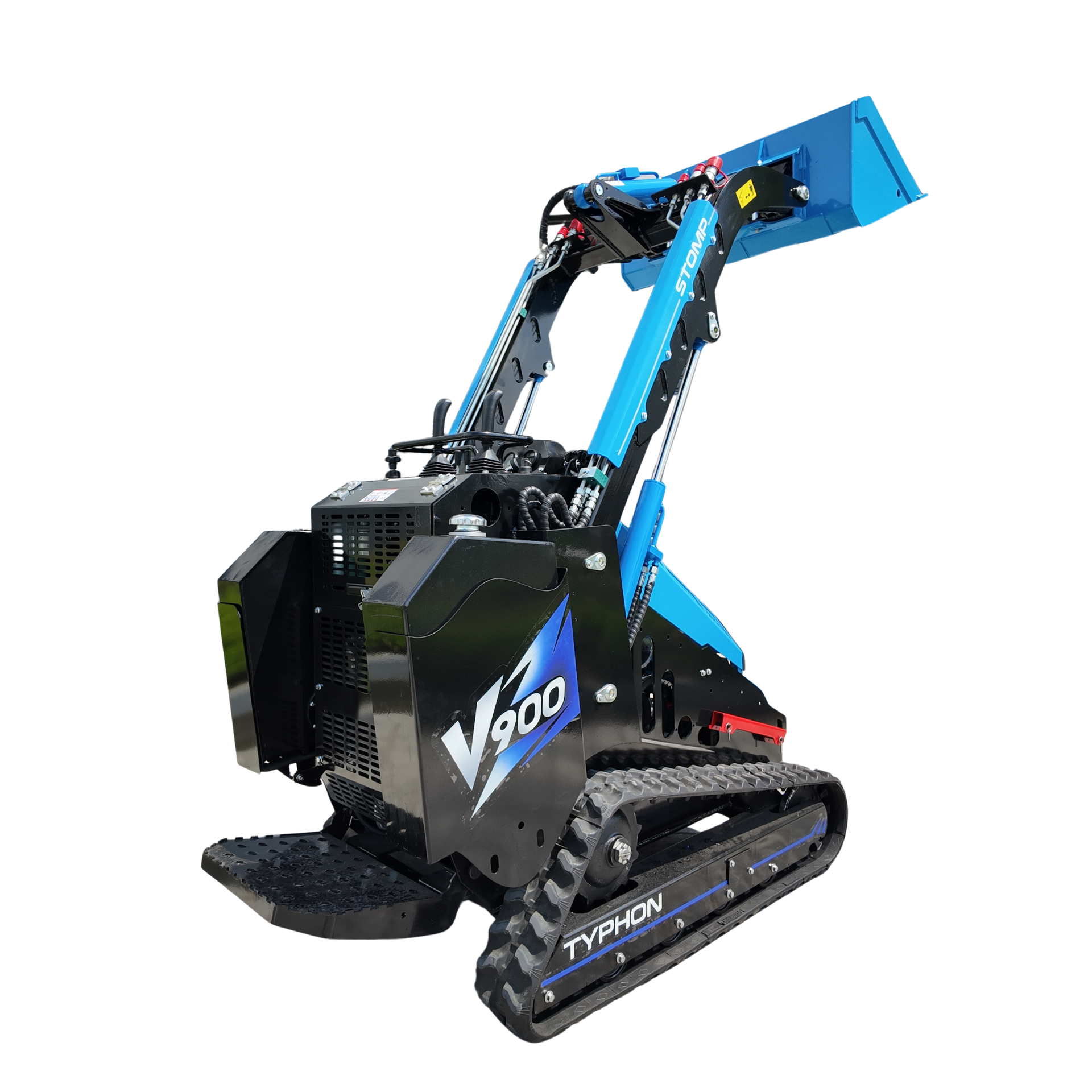

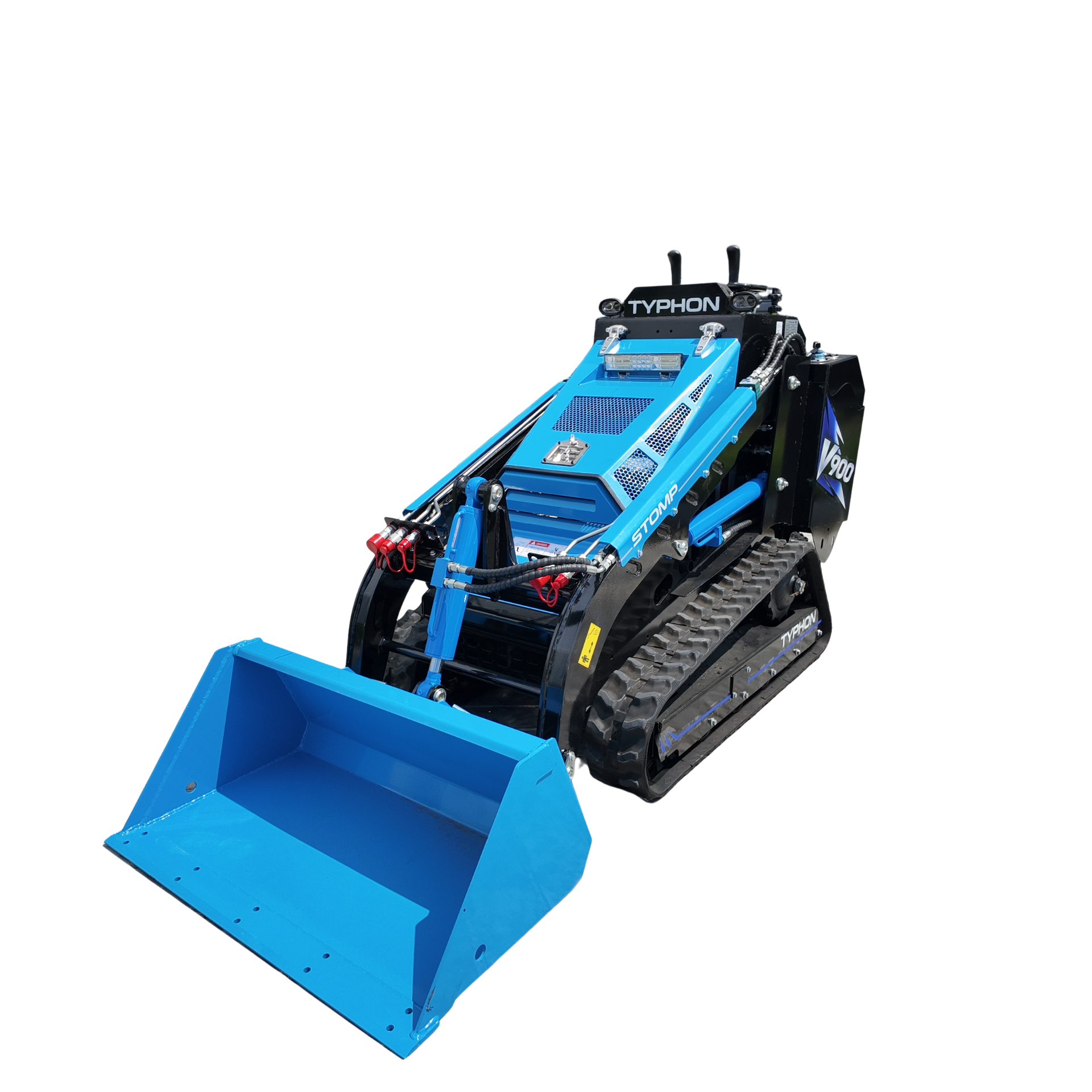

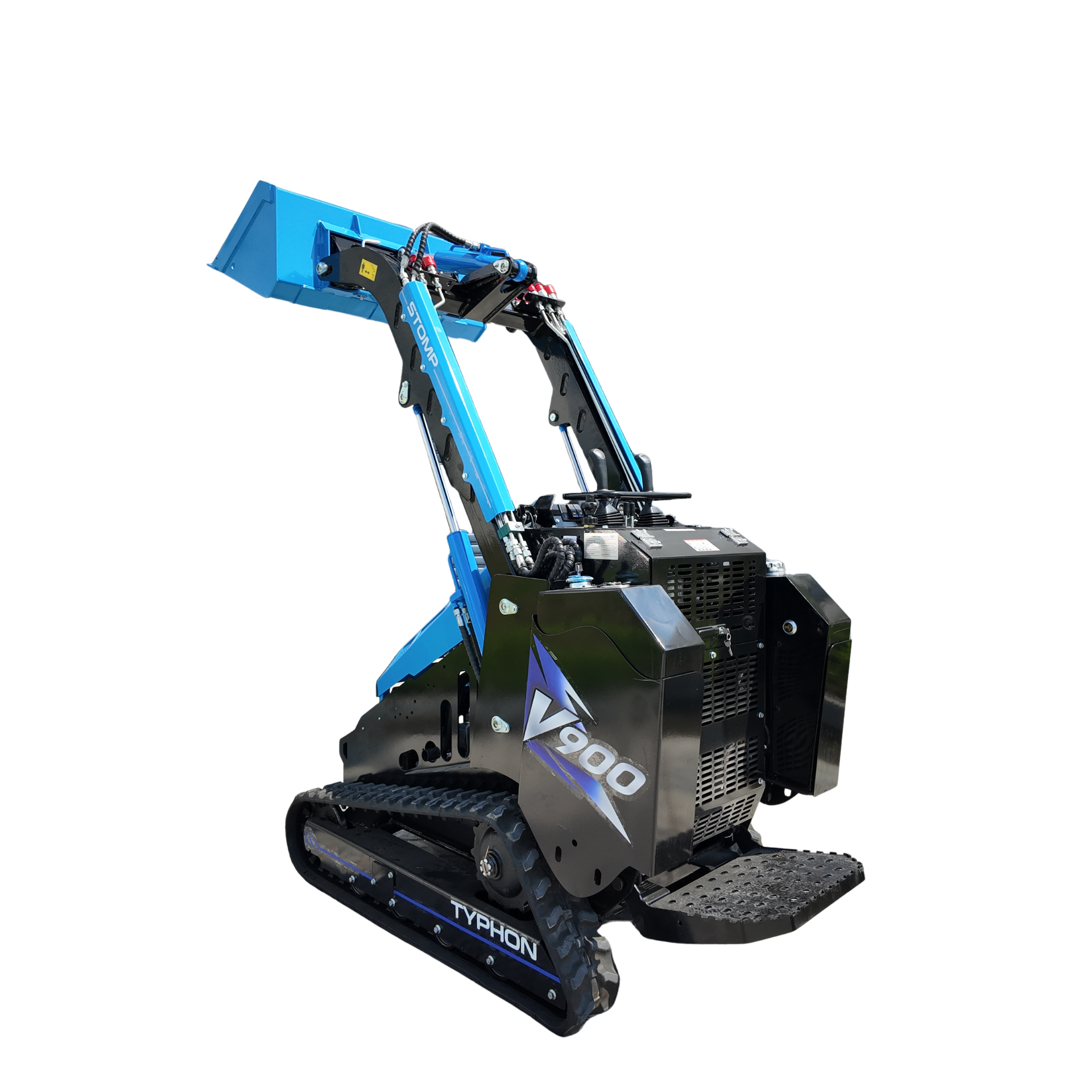

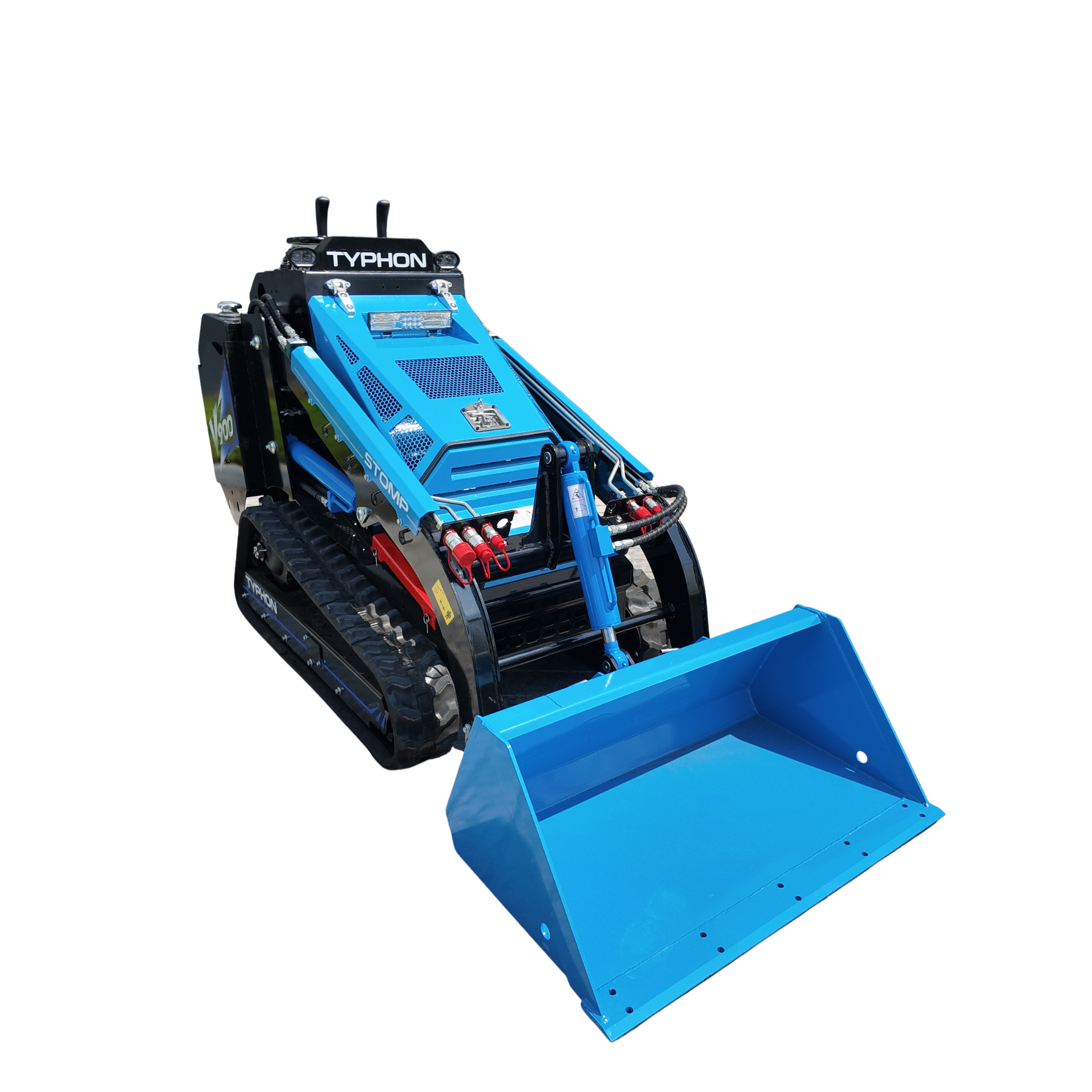

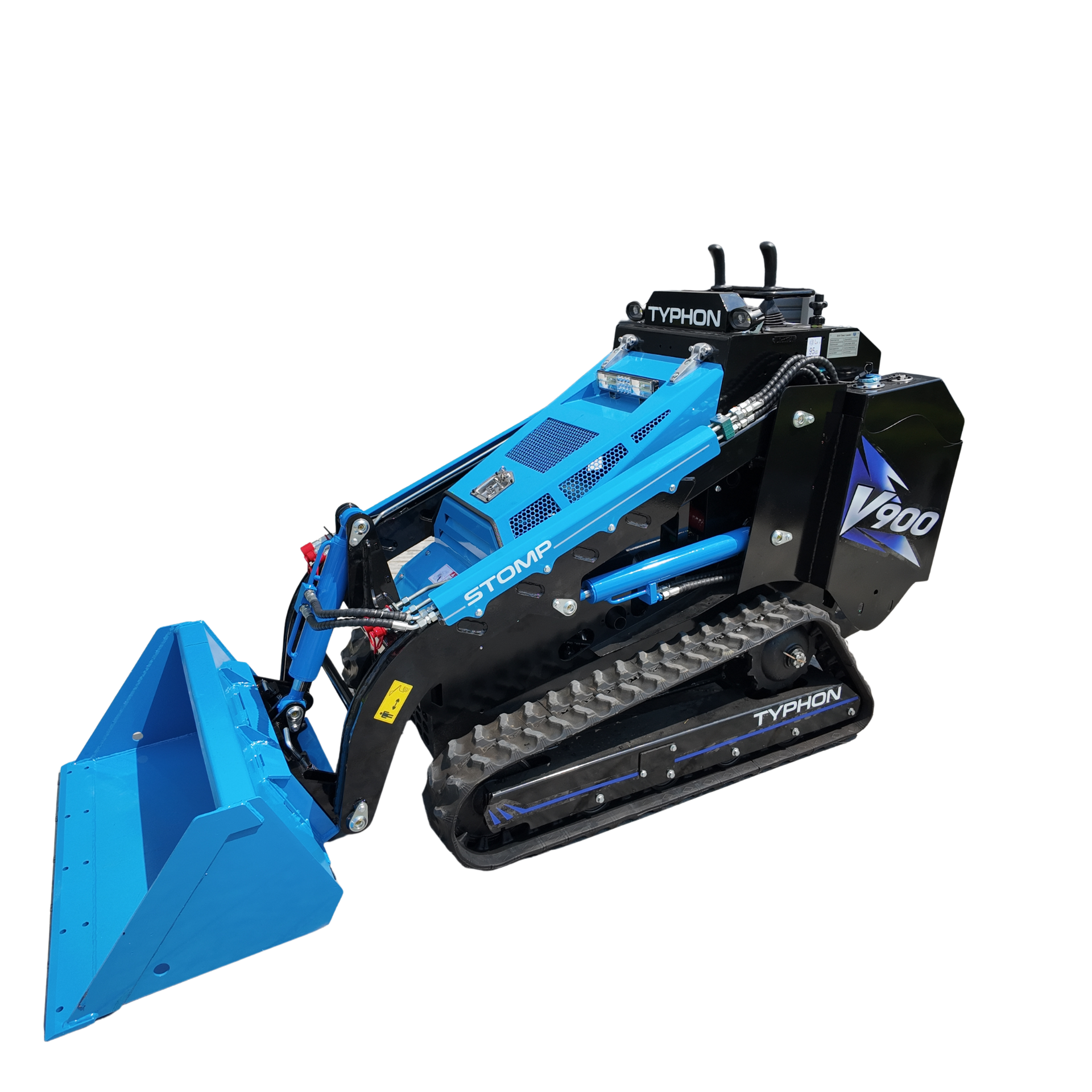

The Typhon Stomp V900 is a professional-grade, stand-on mini track loader designed for high-capacity performance in confined workspaces. Engineered with a 1.4-ton operating weight and an ultra-narrow 35.9-inch (911 mm) chassis, the V900 provides exceptional access to residential properties, interior demolition sites, and narrow agricultural enclosures.

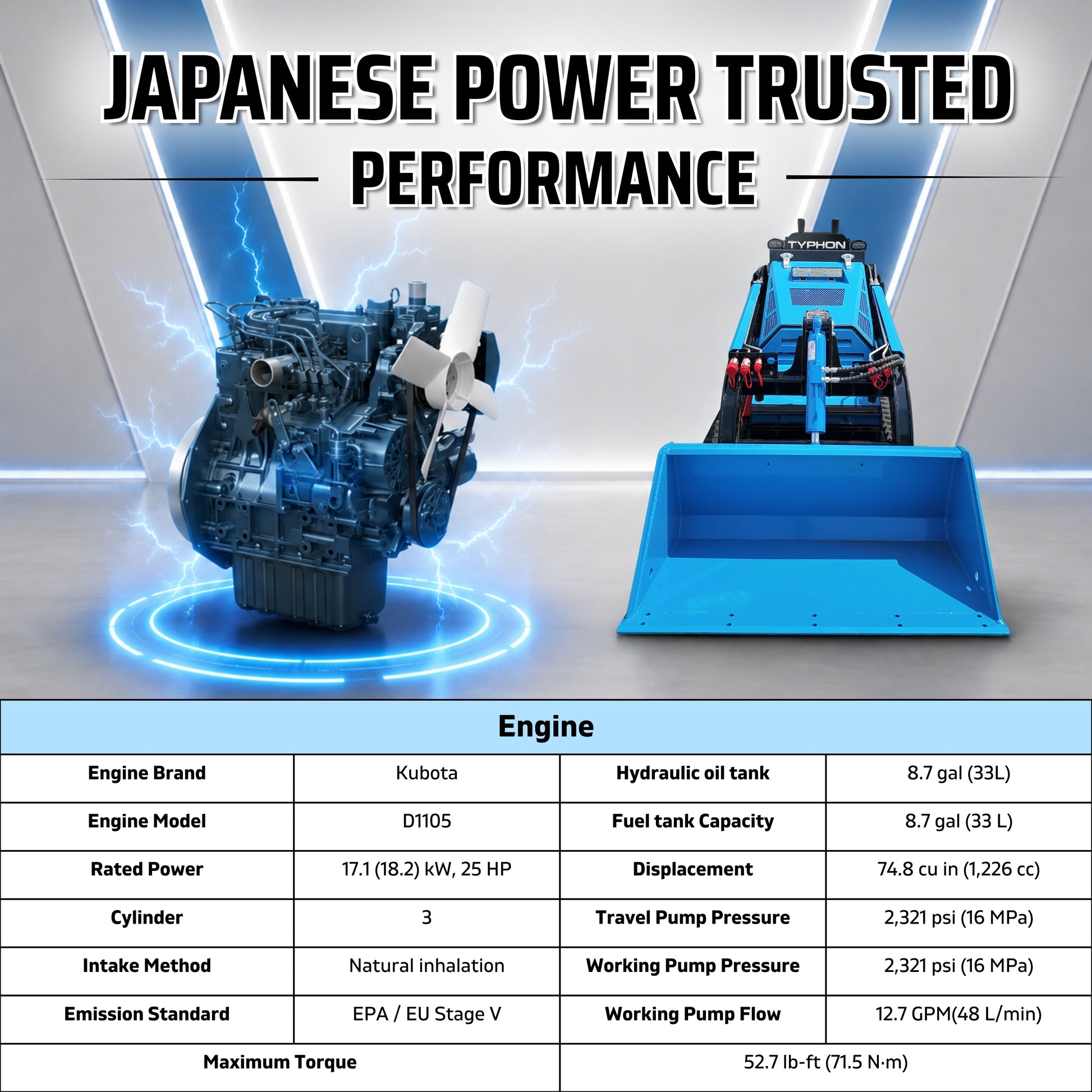

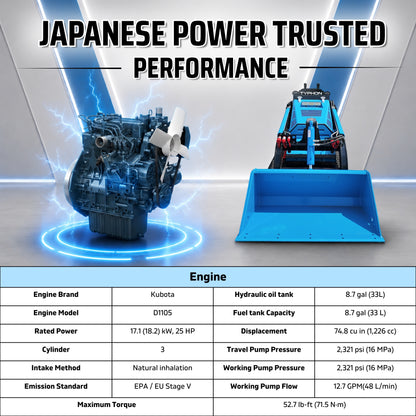

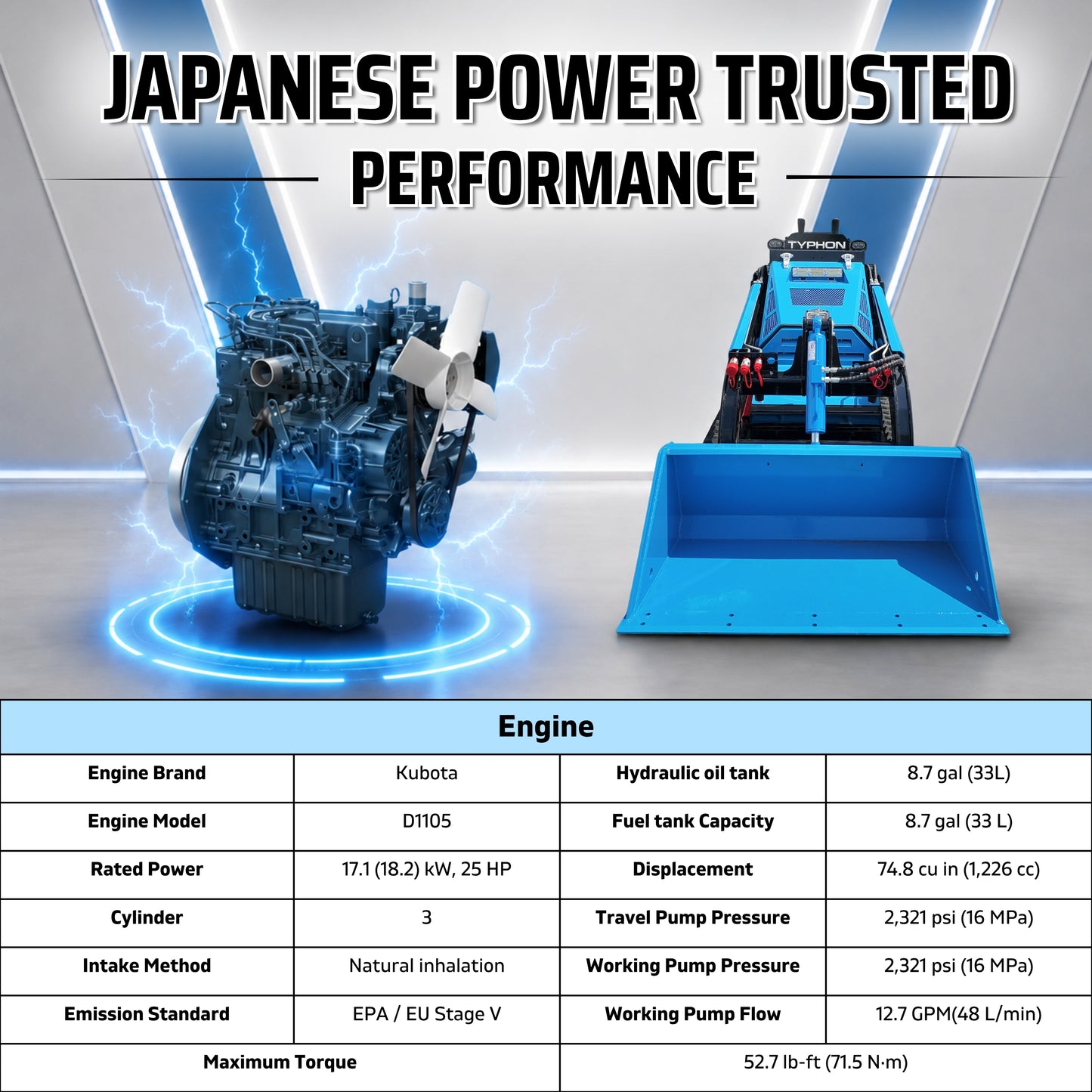

Powertrain & Performance Driven by the highly reliable Kubota D1105 25HP three-cylinder, water-cooled diesel engine, the V900 delivers 71.5 N·m of peak torque. This robust powerplant ensures consistent torque delivery for heavy attachment operation and grading under load.

• Displacement: 1,226 cc

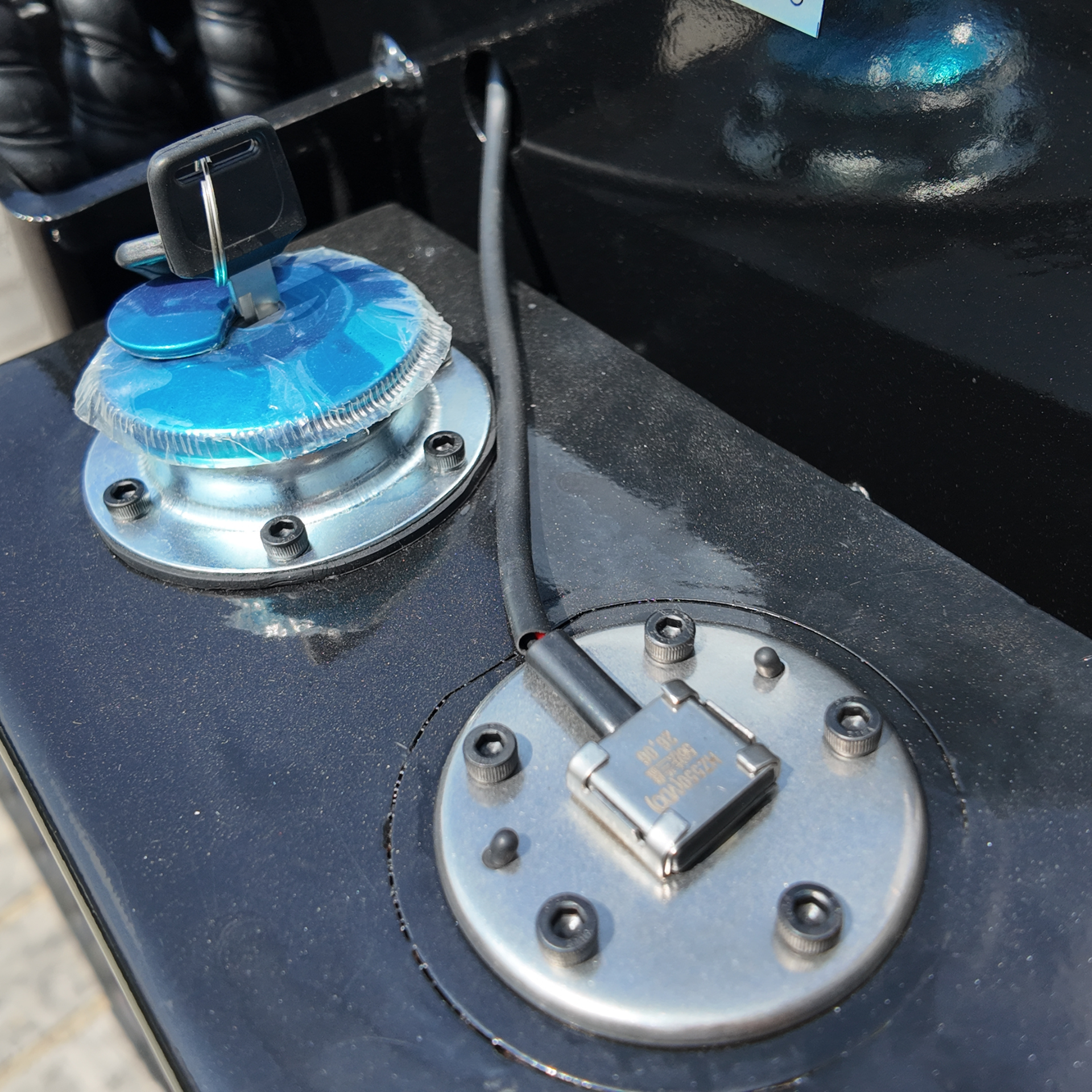

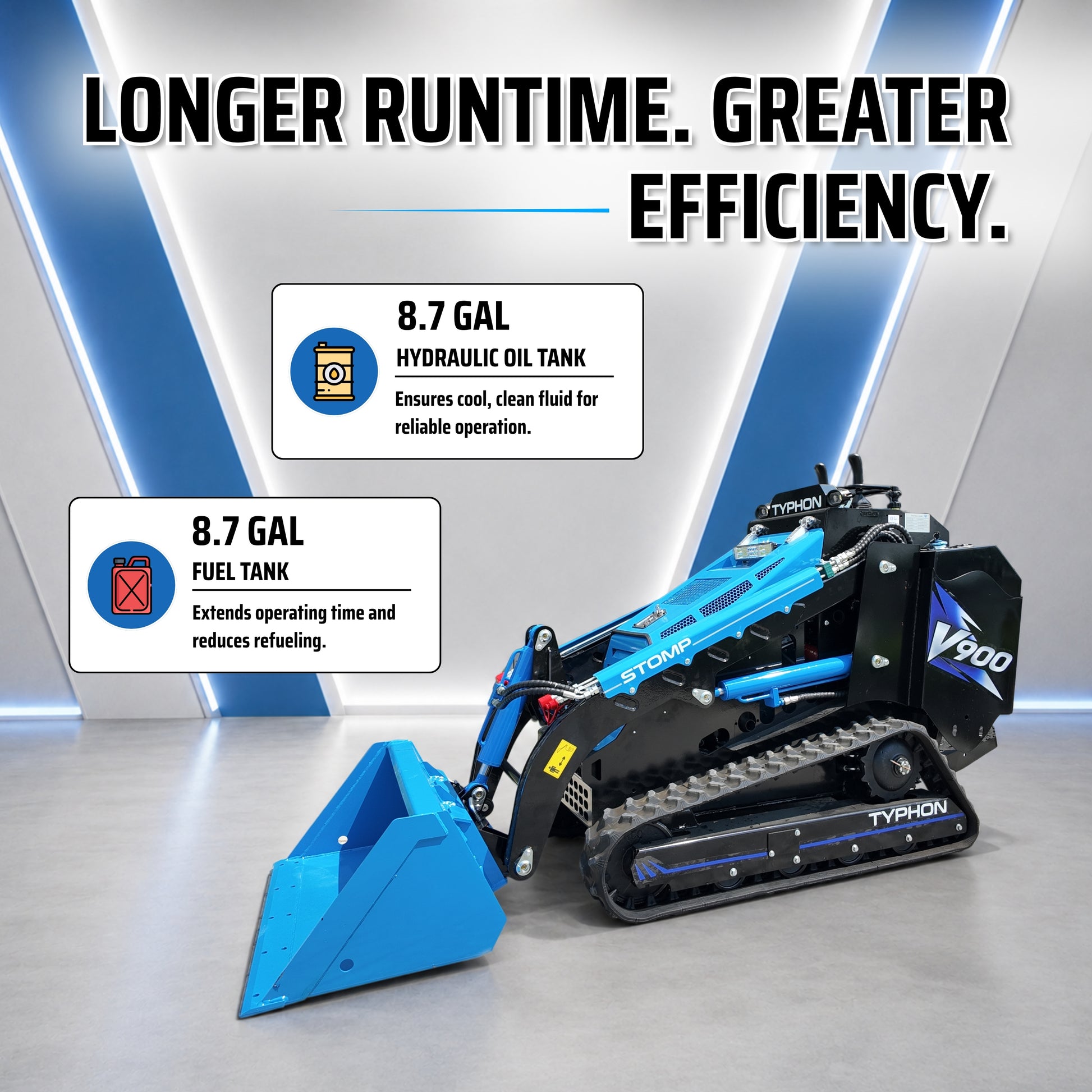

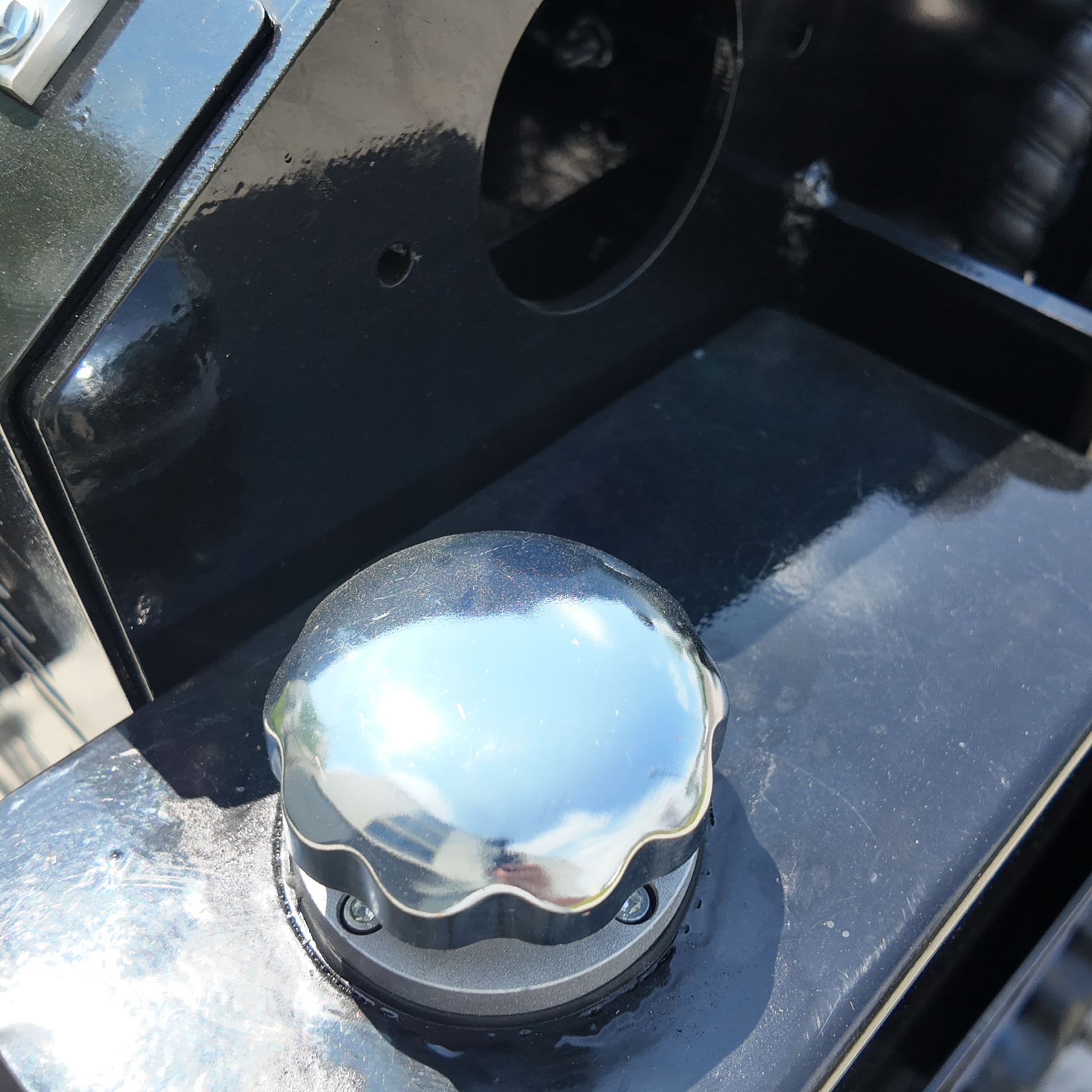

• Fuel Capacity: 33 L (8.7 gal) for extended shift operation
• Emissions: Fully EPA and EU Stage V compliant

Advanced Hydraulic Architecture The V900 separates itself from competitors with a high-efficiency 3-pump, 3-valve hydraulic system capable of 48 L/min (12.7 GPM) at 16 MPa (2,321 PSI).

• Dual Auxiliary System: Supports complex, multi-function hydraulic implements (e.g., swing, side-shift).
• Thermal Management: An independent hydraulic oil cooling system regulates temperatures during continuous, heavy-duty cycles.

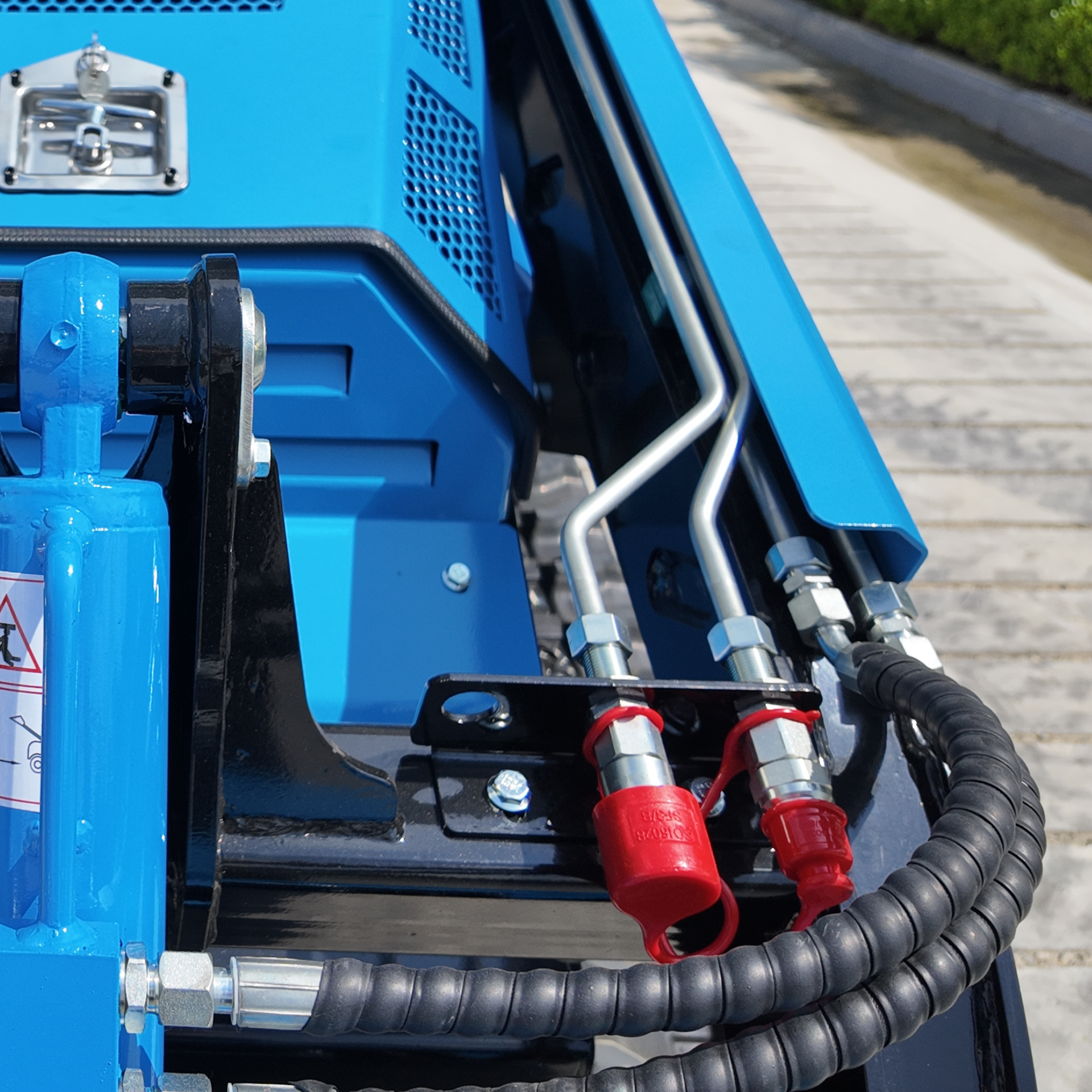

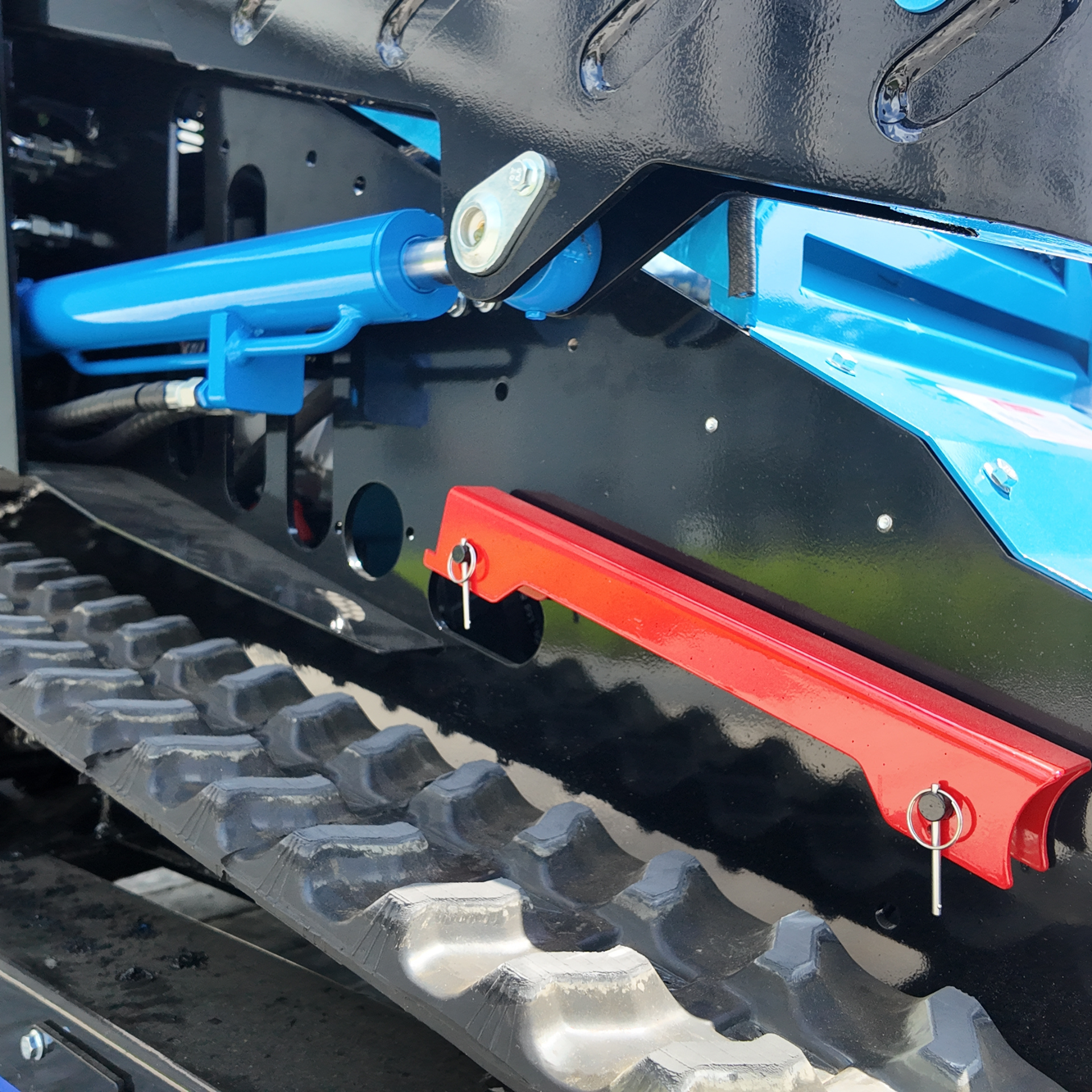

• Durability: Features protected hydraulic hose routing to mitigate debris impact and quick-connect couplers for efficient implement changes.

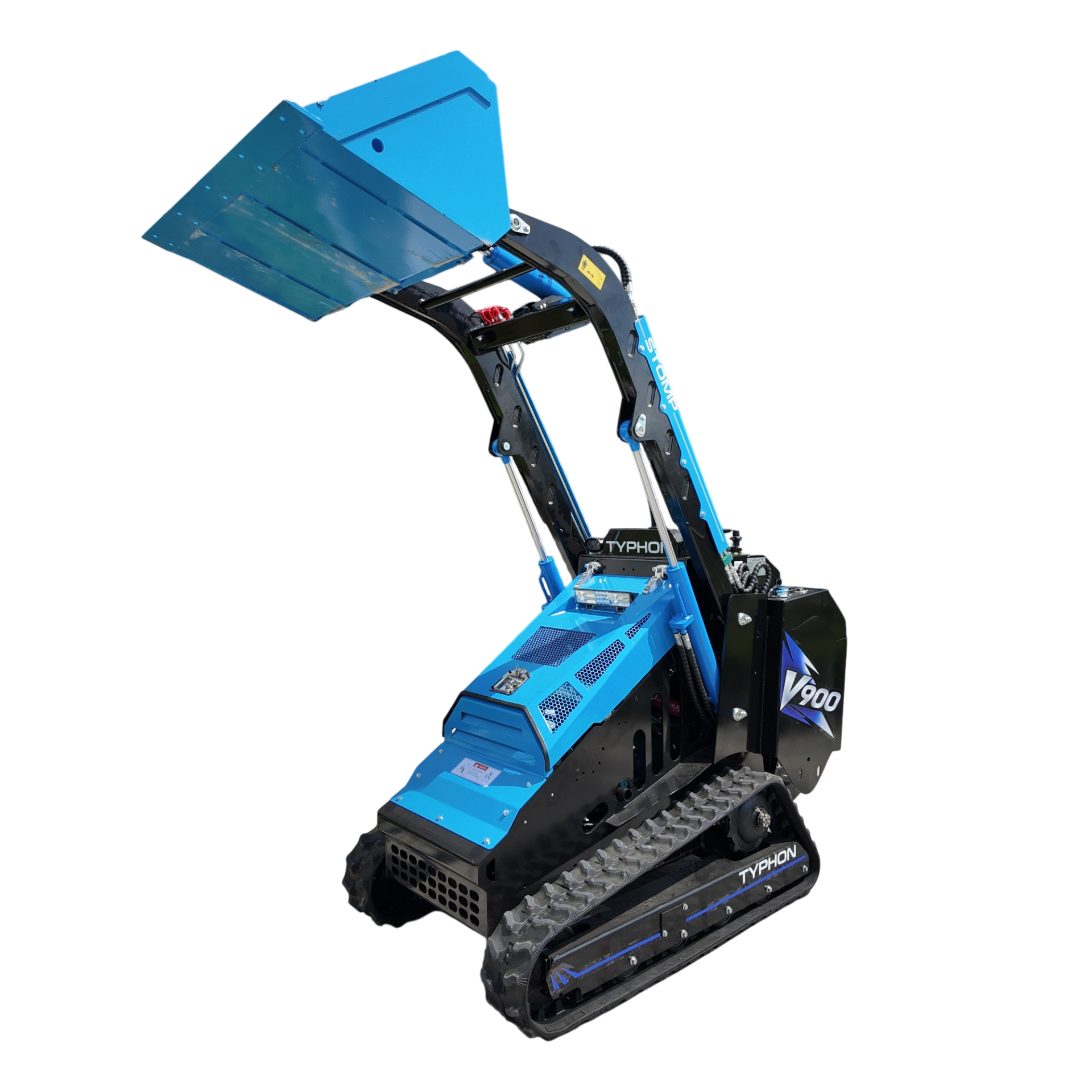

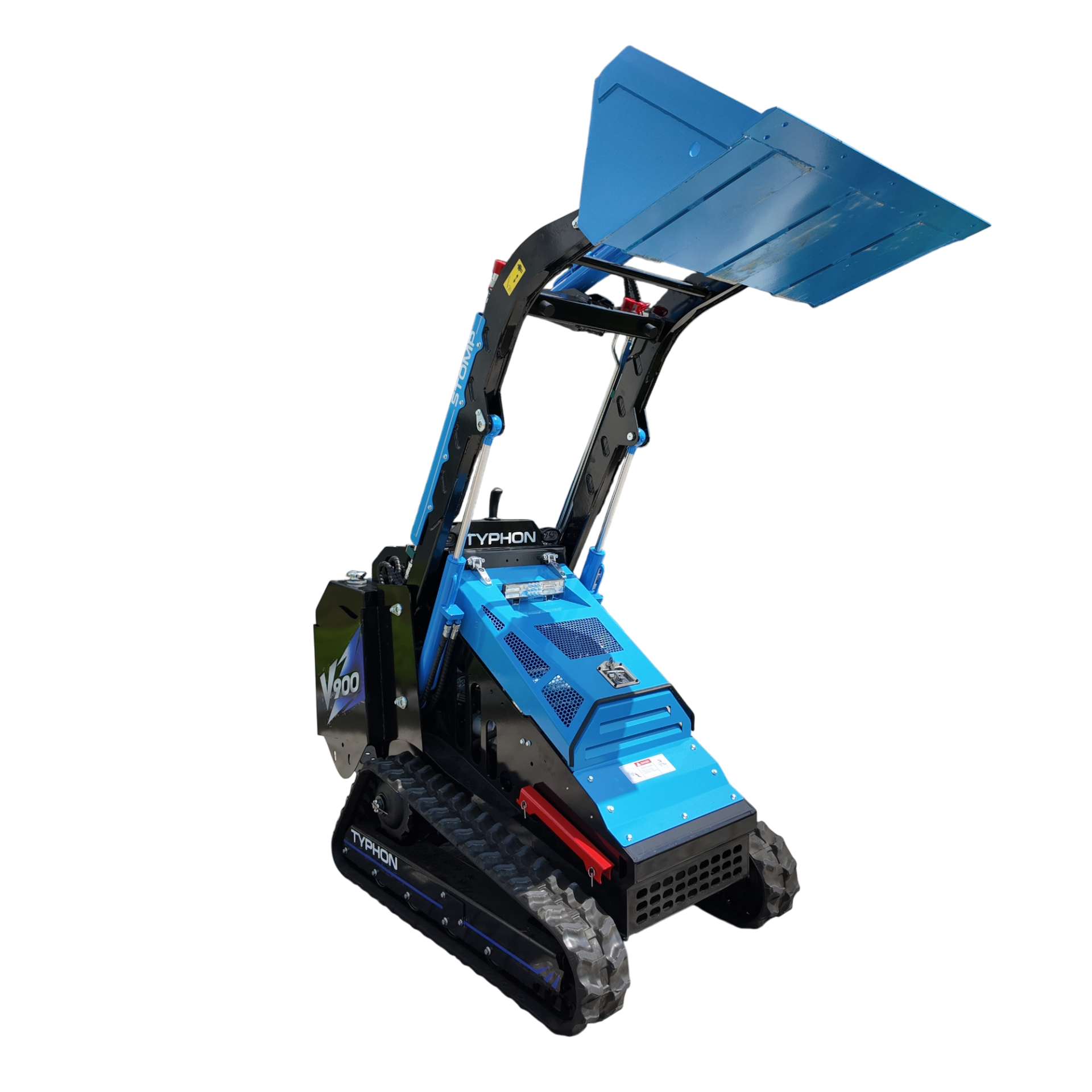

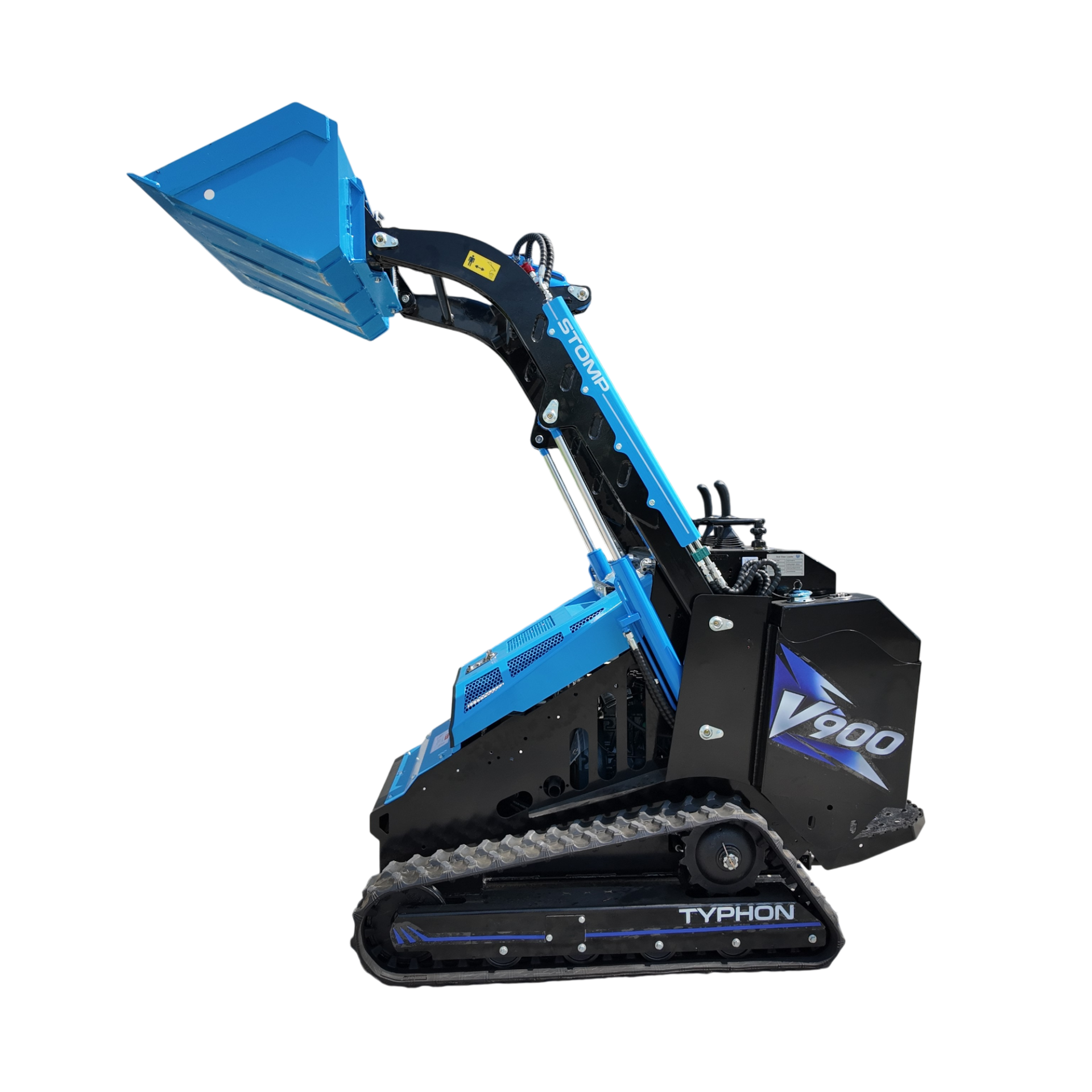

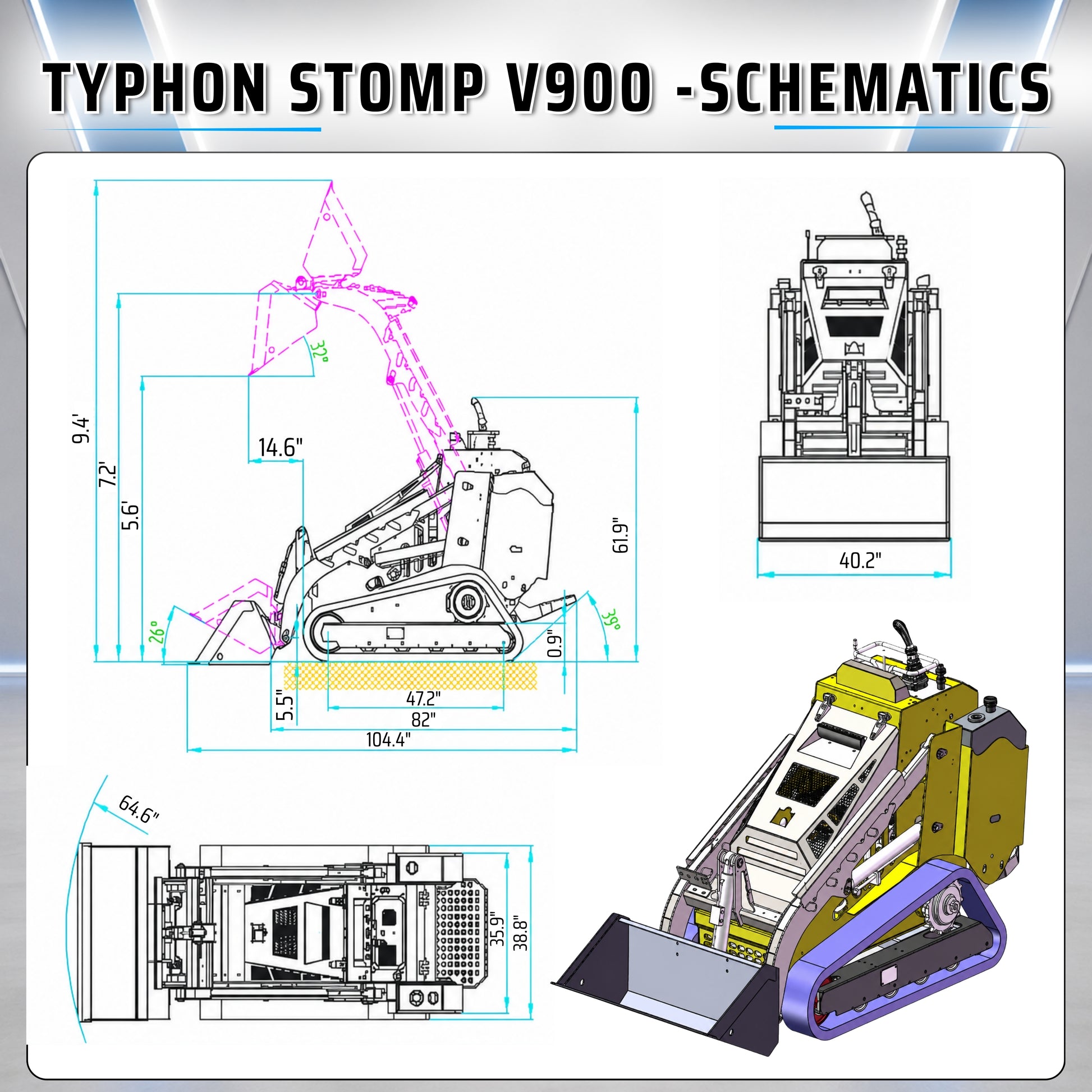

Structural Integrity & Lift Capabilities Built for demanding material handling, the V900 features an internally structured rectangular boom tube with a low-weld design to maximize rigidity.

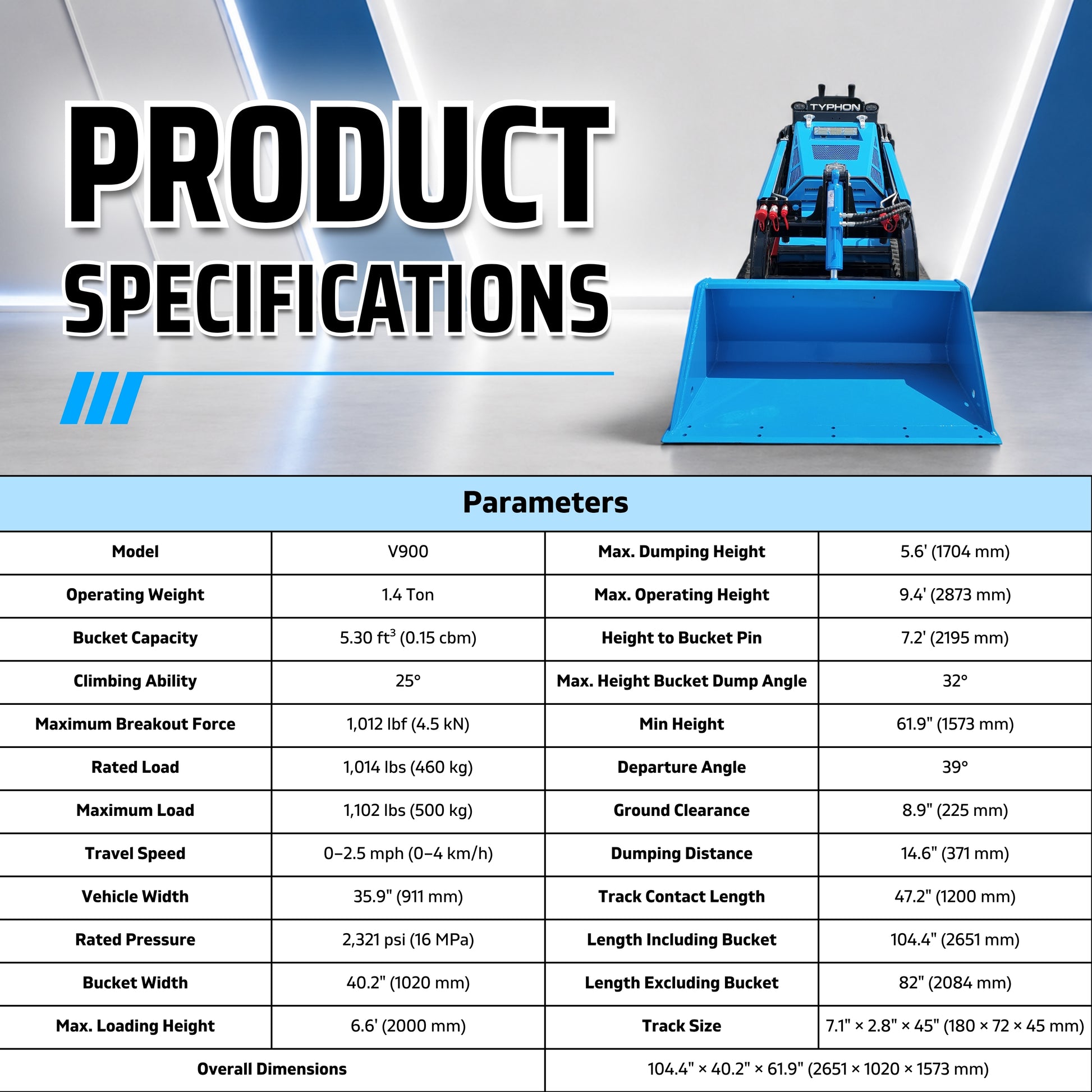

• Rated Operating Capacity: 1,014 lbs (460 kg)
• Maximum Load Capacity: 1,102 lbs (500 kg)

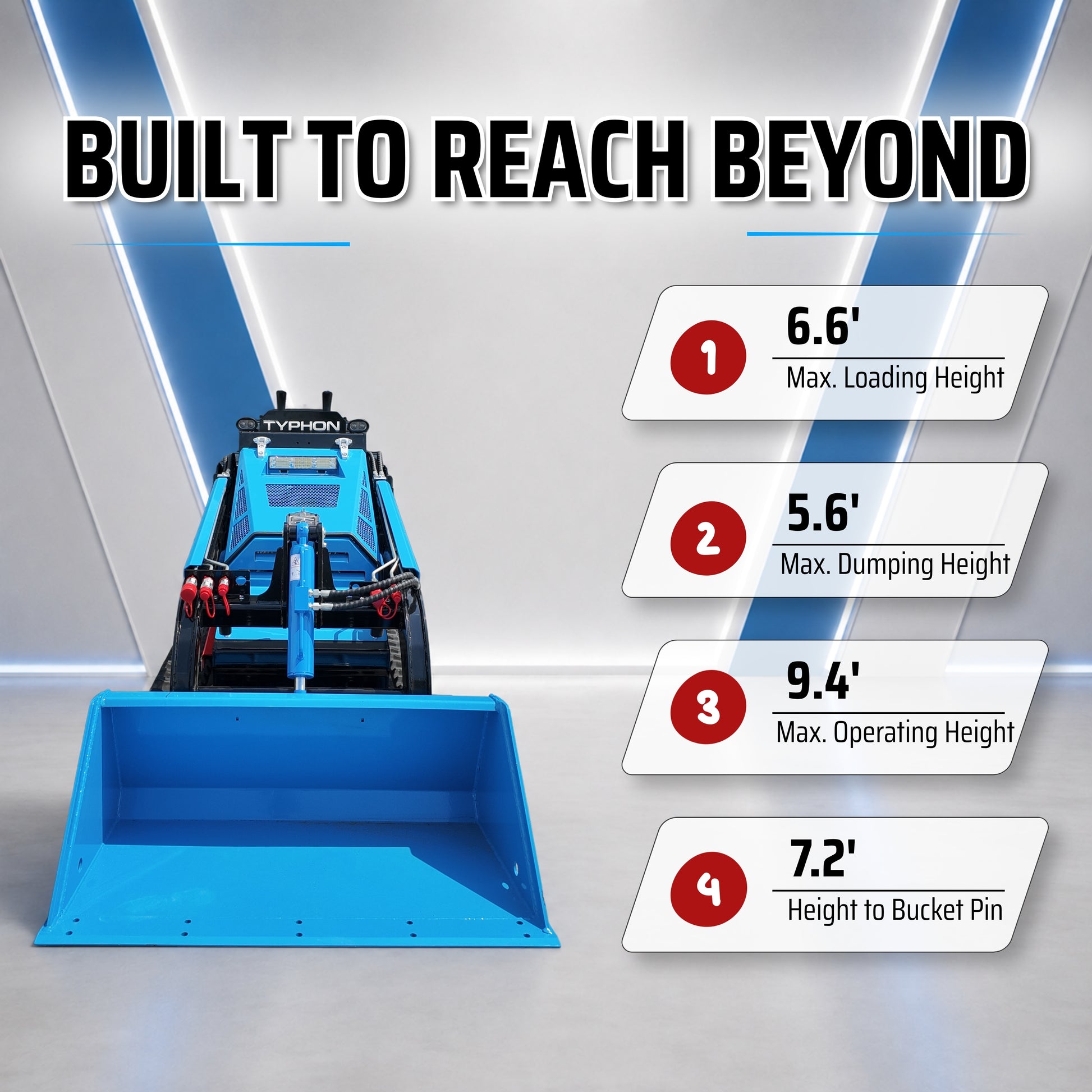

• Dumping Height: 5.6 ft (1,704 mm)
• Max Operating Height: 9.4 ft (2,873 mm)

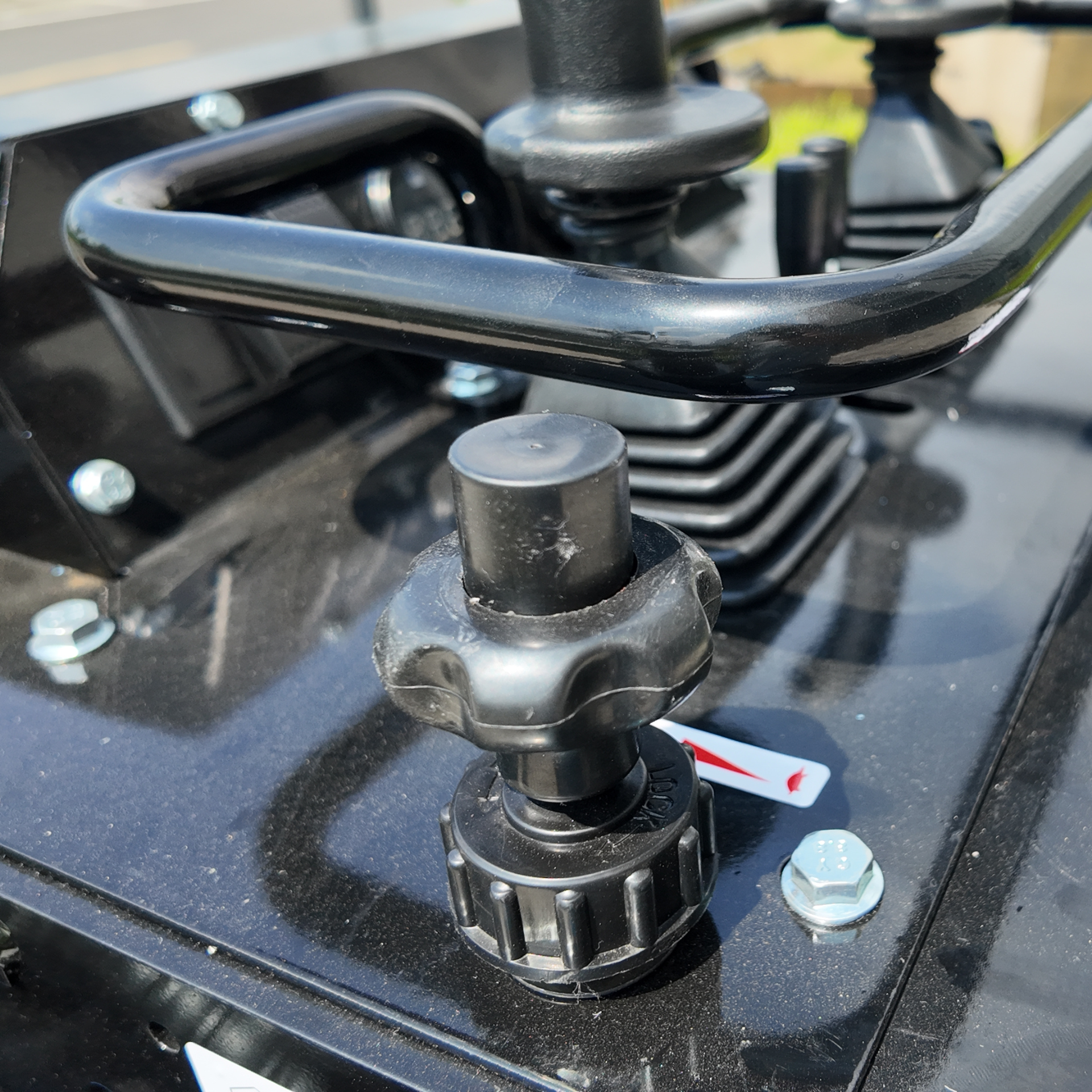

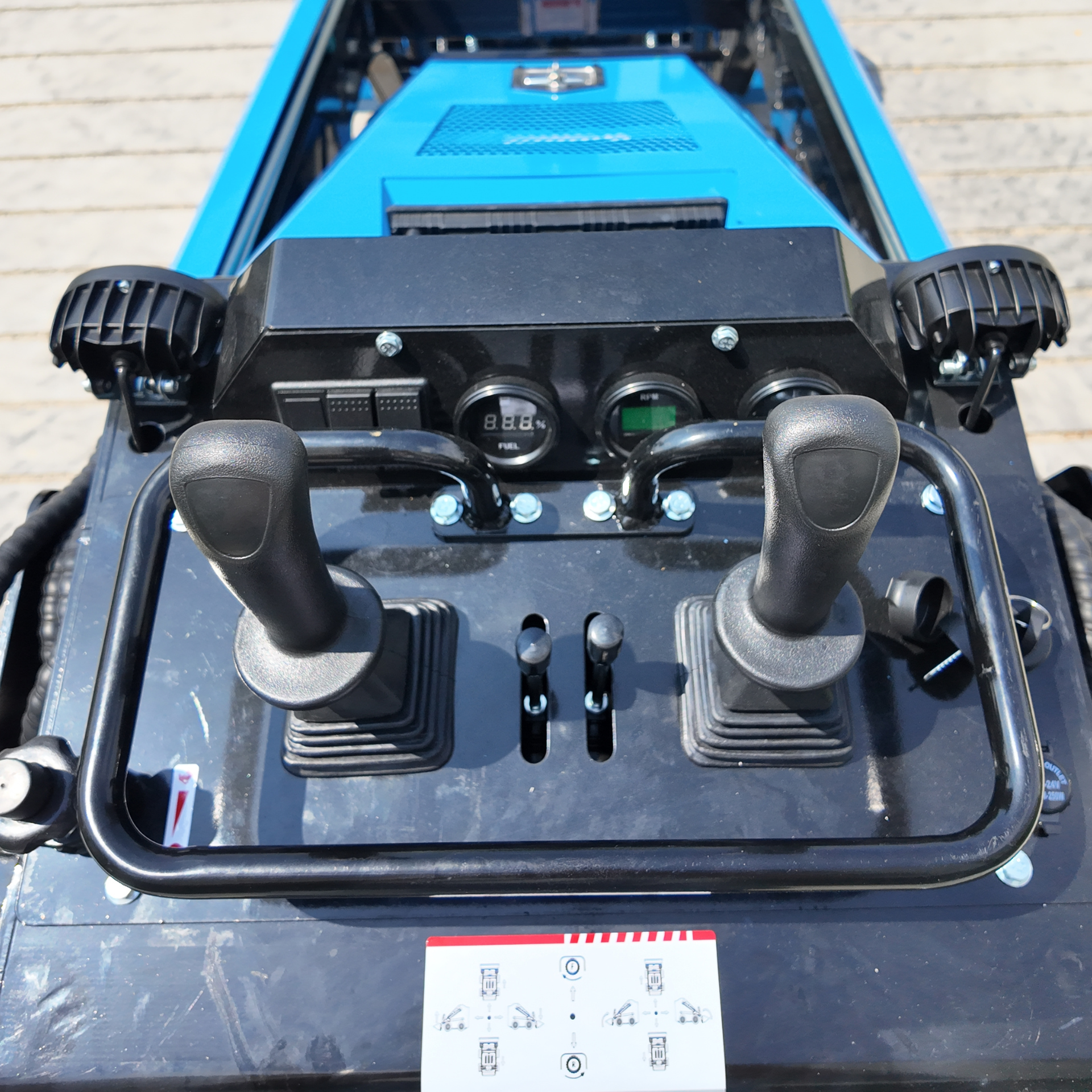

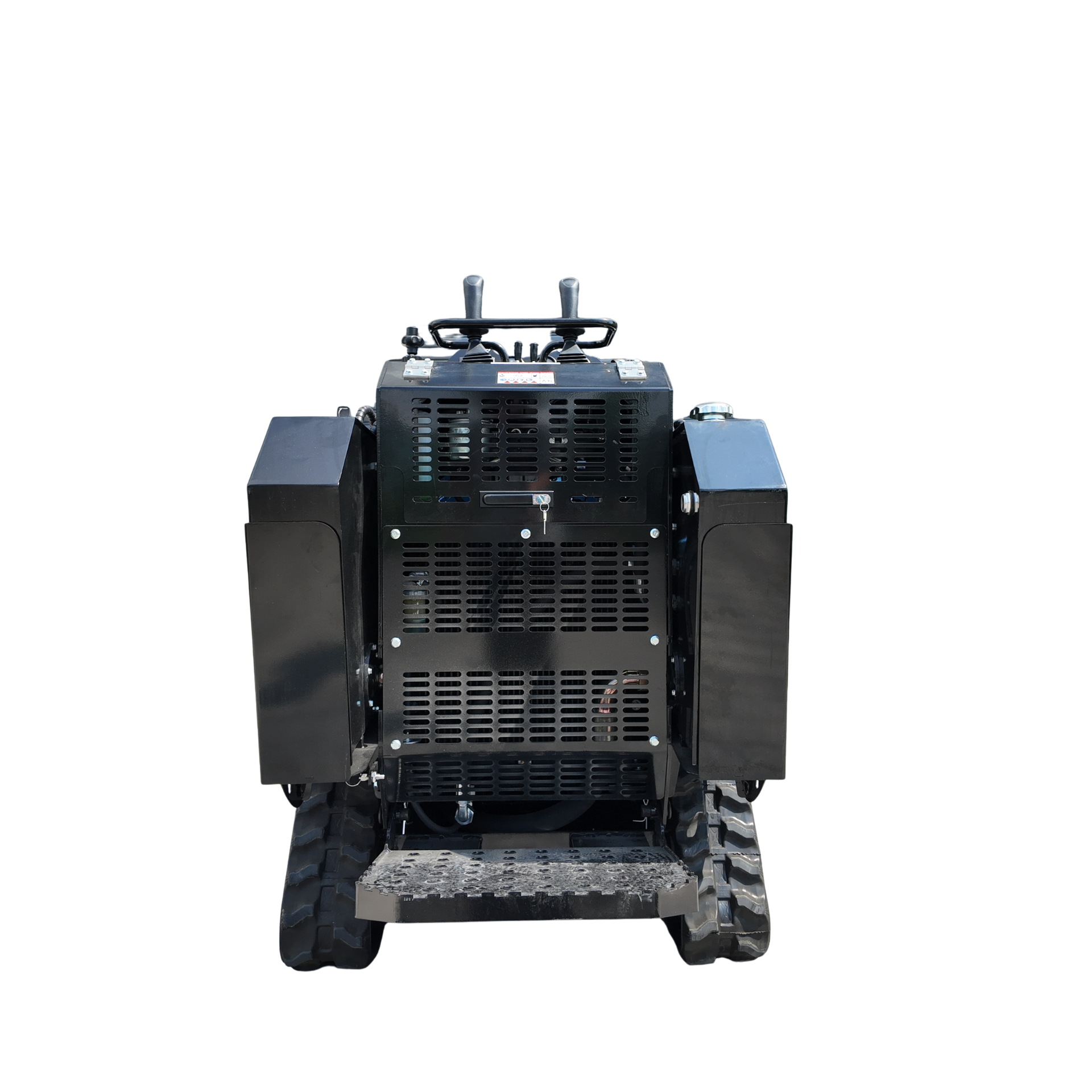

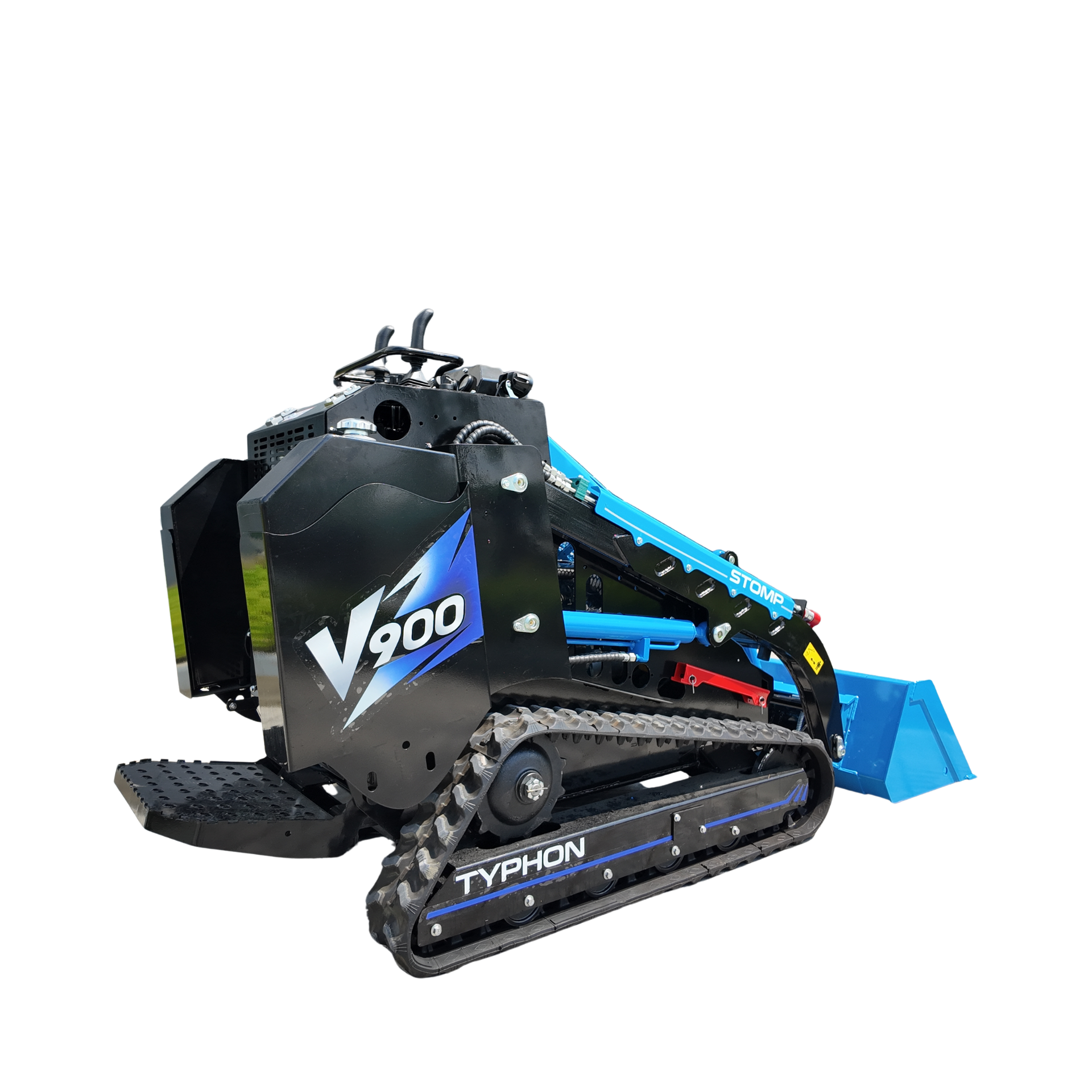

Operator Environment & Undercarriage The triangular track system offers superior traction, stability, and flotation across challenging terrains like soft soil and mud. The operator station prioritizes safety and control, featuring:

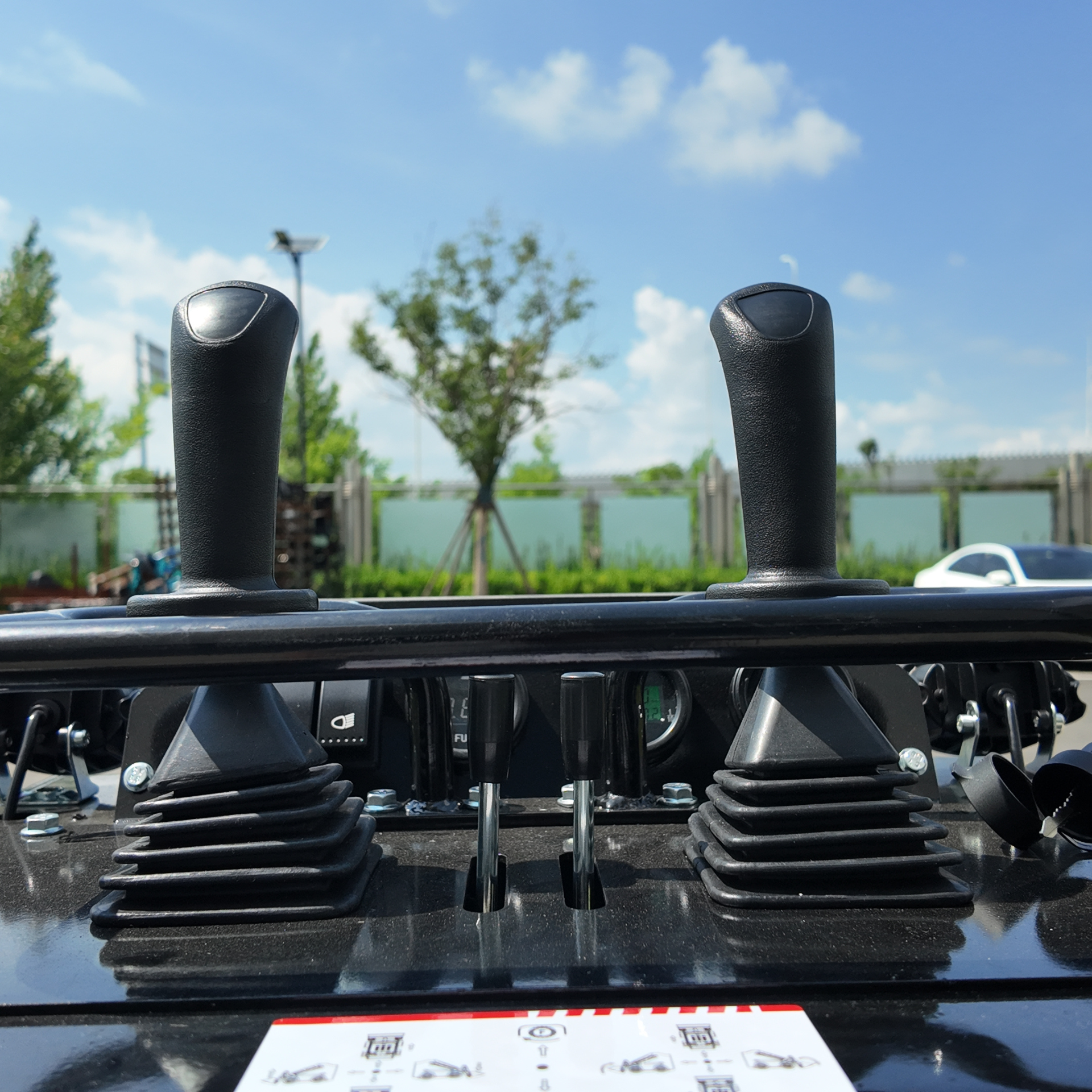

• Ergonomic dual joystick controls
• Digital dashboard (fuel level, system status)
• Fish-eye anti-slip pedals and protective side safety guards

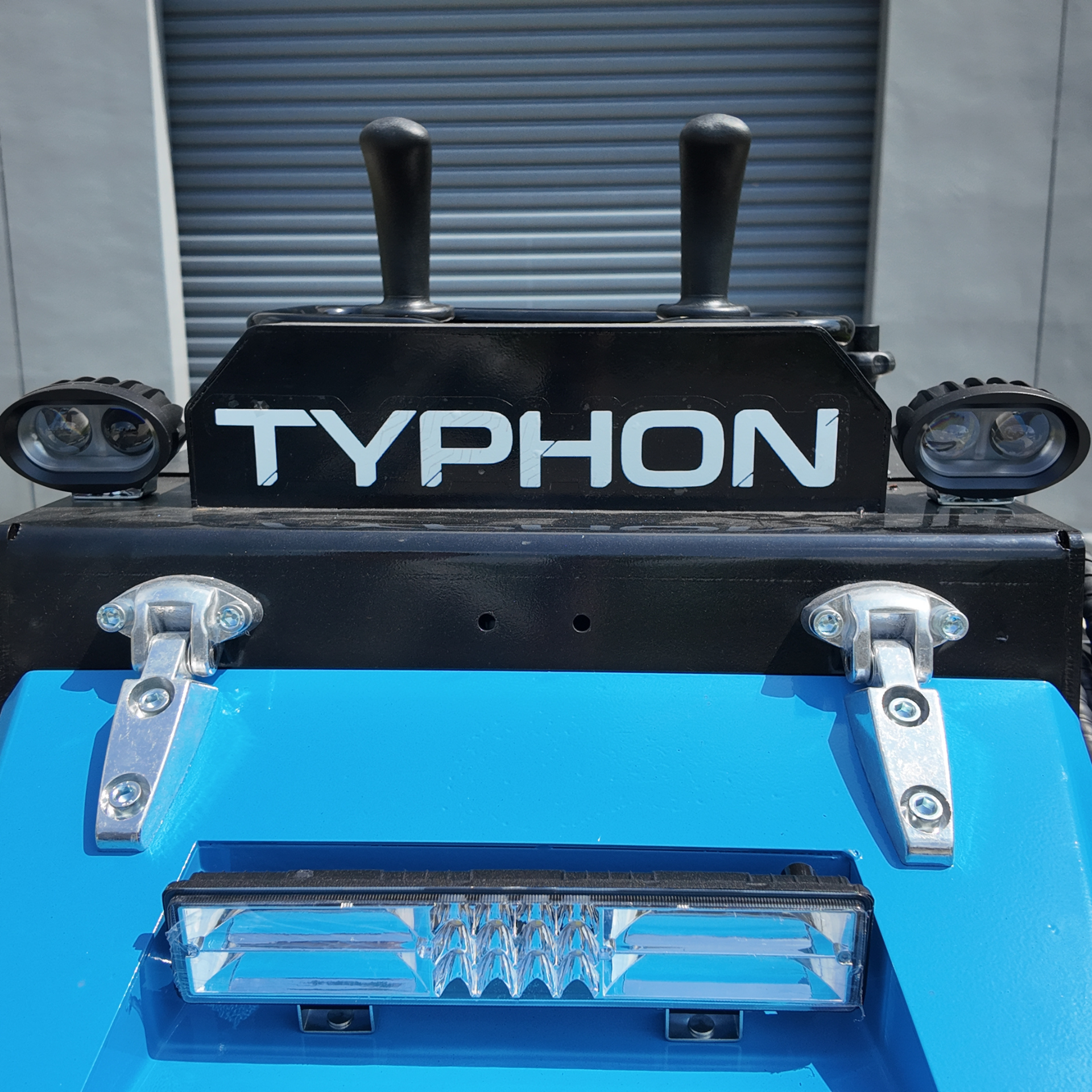

• Three-point LED lighting (dual work lights + front LED bar)

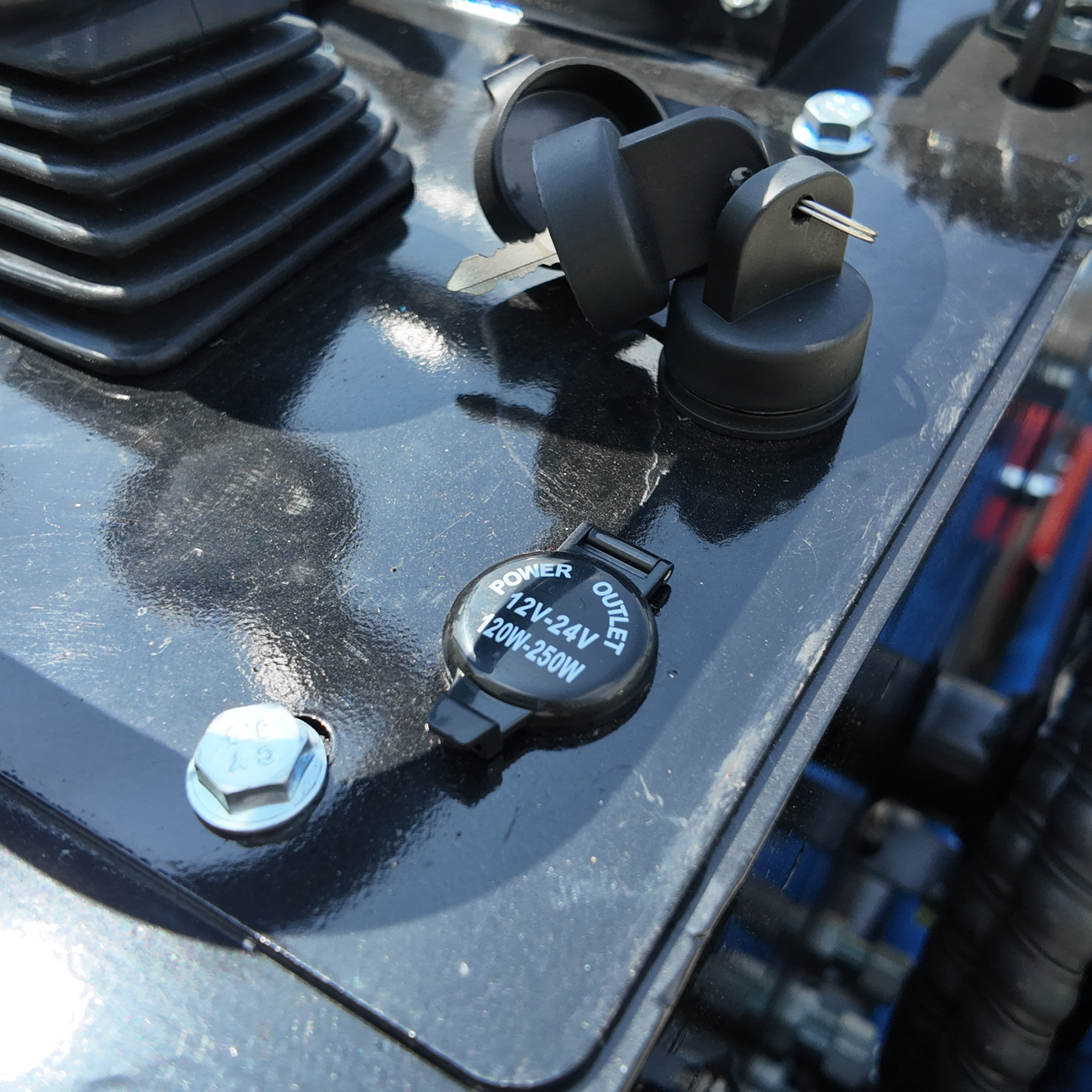

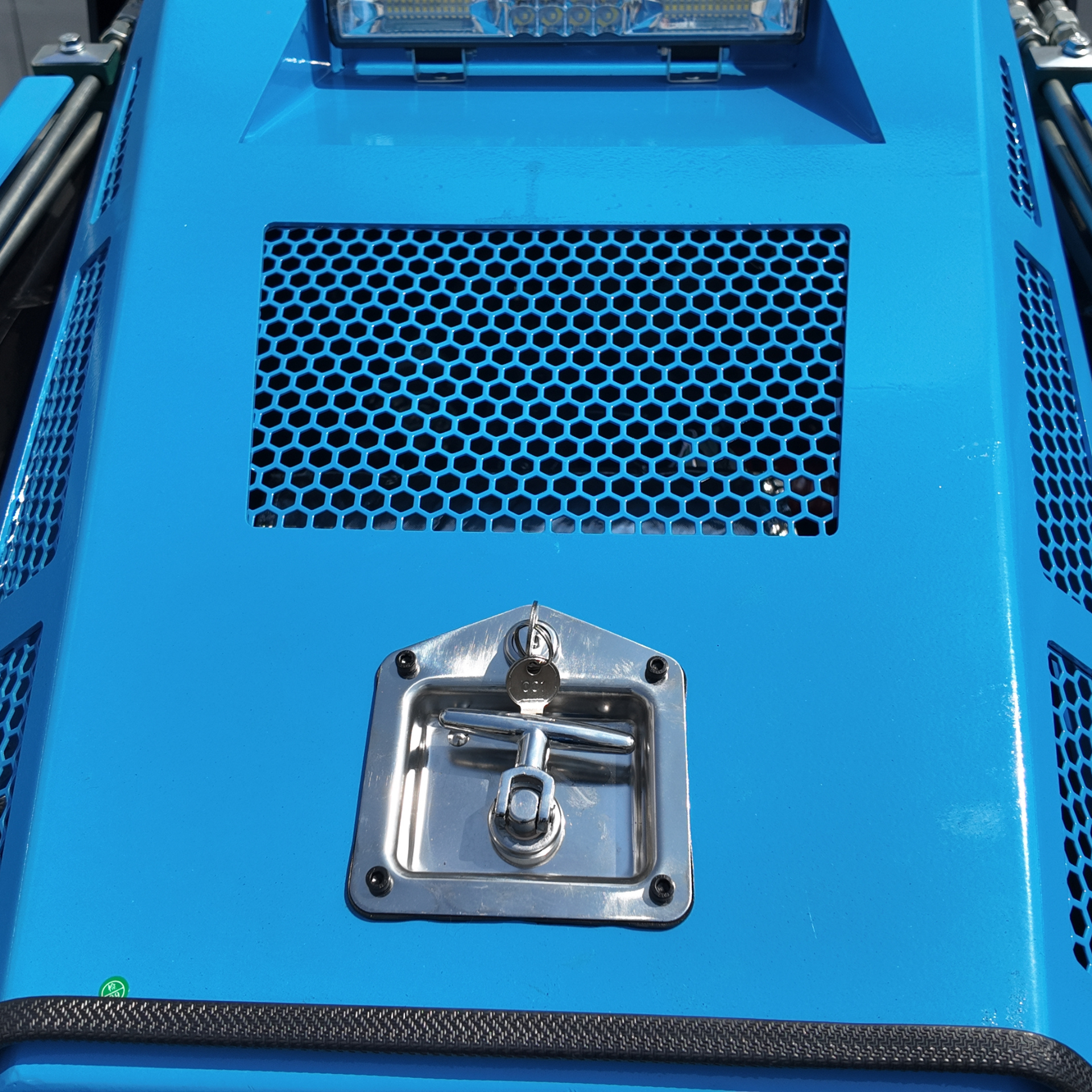

• T-style locking system with a simple one-touch key start

Why Choose TYPHON MACHINERY?

Customer Assurance: We provide responsive service and reliable parts support to ensure your machine runs smoothly for years.

Performance You Can Trust: Every TYPHON excavator is built with premium components for durability, performance, and operator safety.

Global Reliability: Trusted by contractors and builders across the USA and beyond for delivering consistent quality and efficiency.

Your construction projects will reach new heights with the TYPHON Stomp V900 Mini Skid Steer. Compact, tough, and efficient, this trench digger machine is your ideal companion for successful projects at a mini scale. Trust TYPHON Machinery for reliability, toughness, and performance that surpass expectations. Elevate your construction game with the TYPHON Stomp V900 - The ultimate solution for all your excavation needs!
