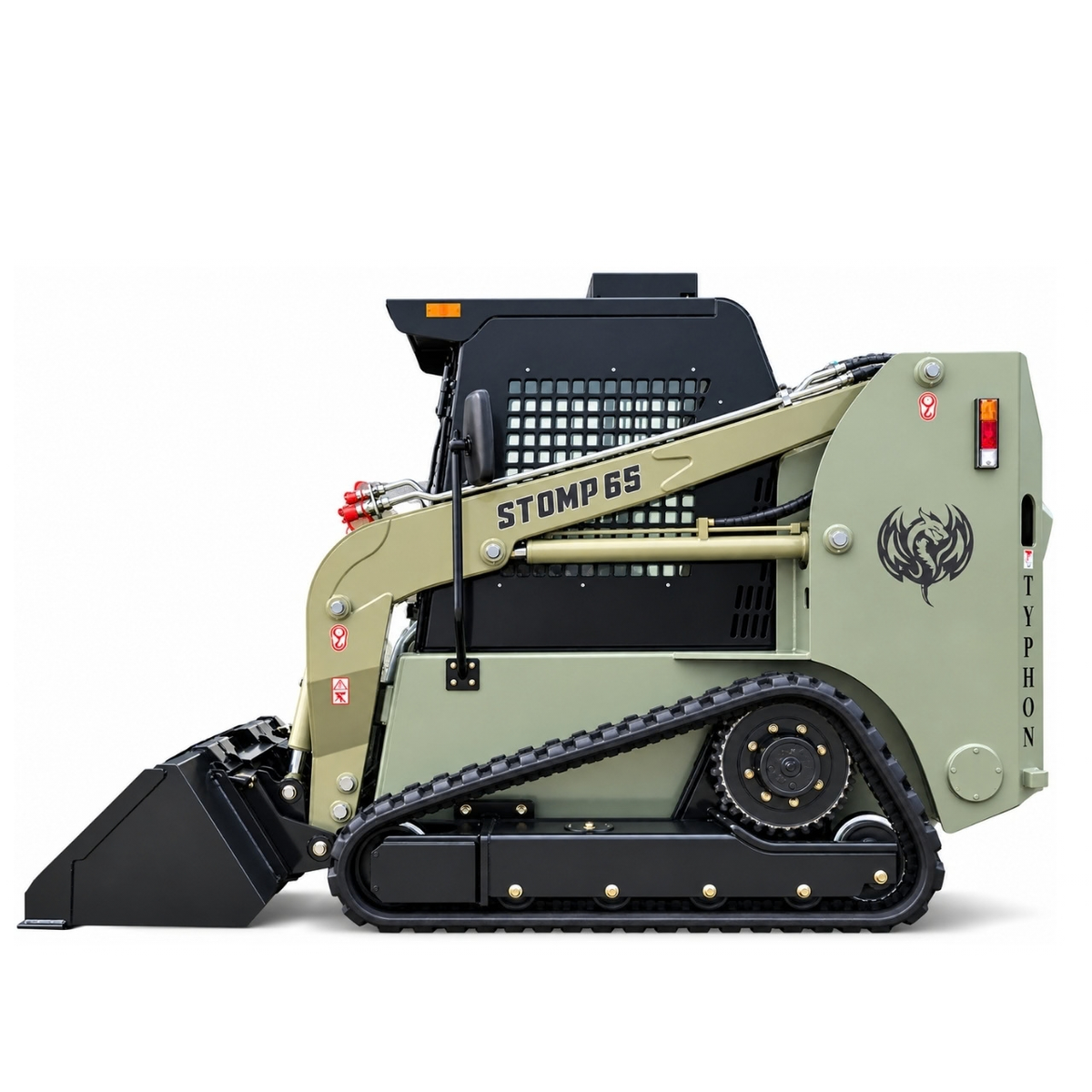

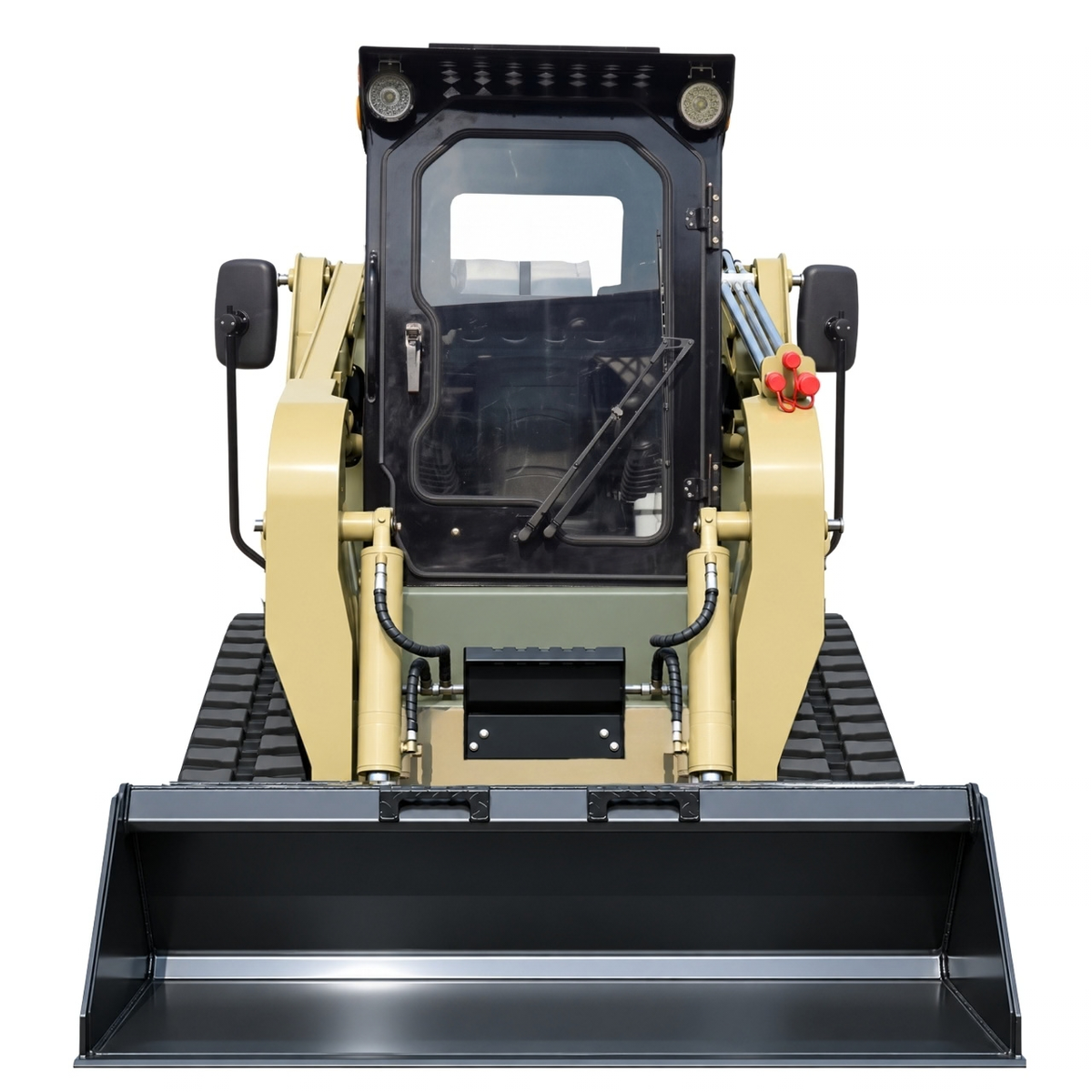

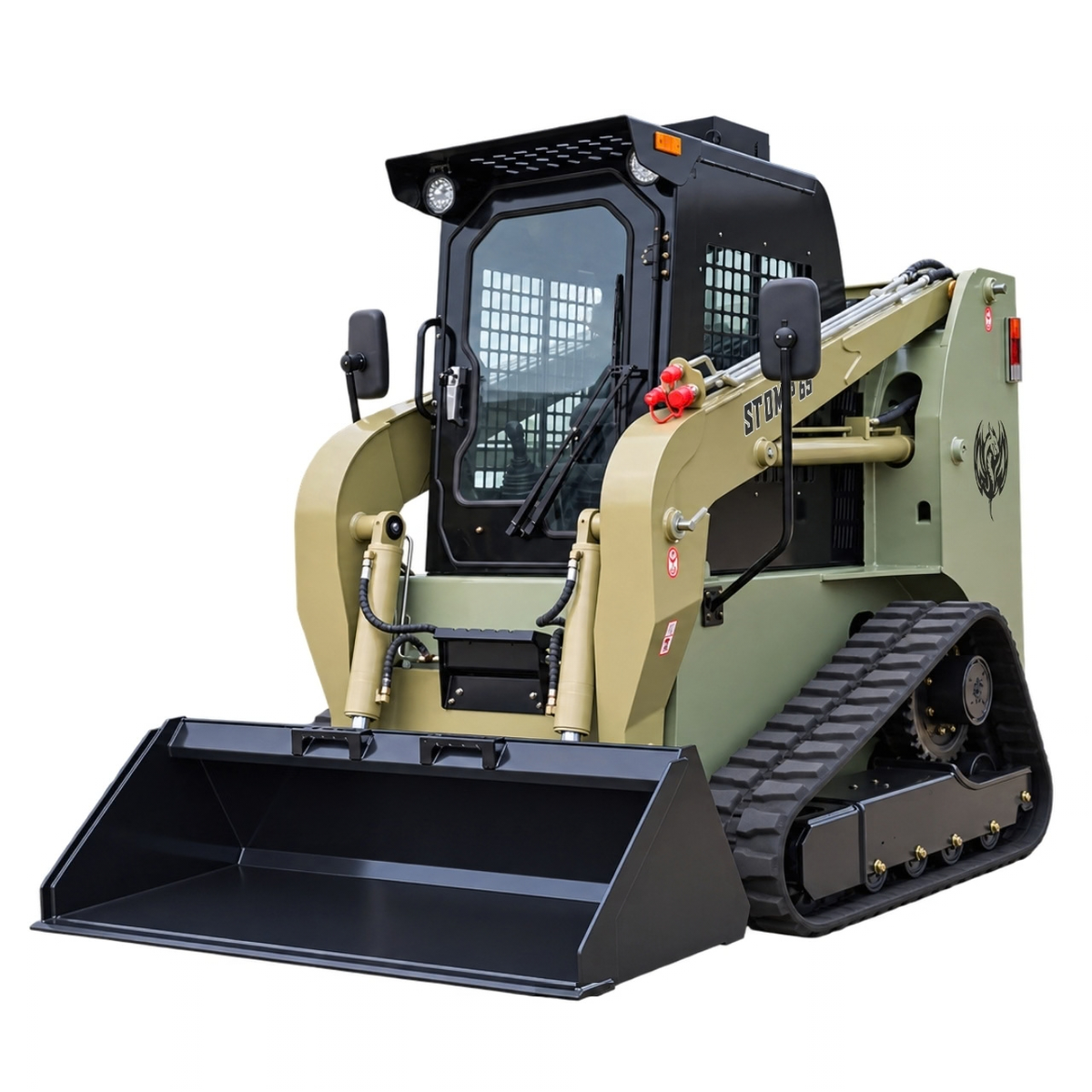

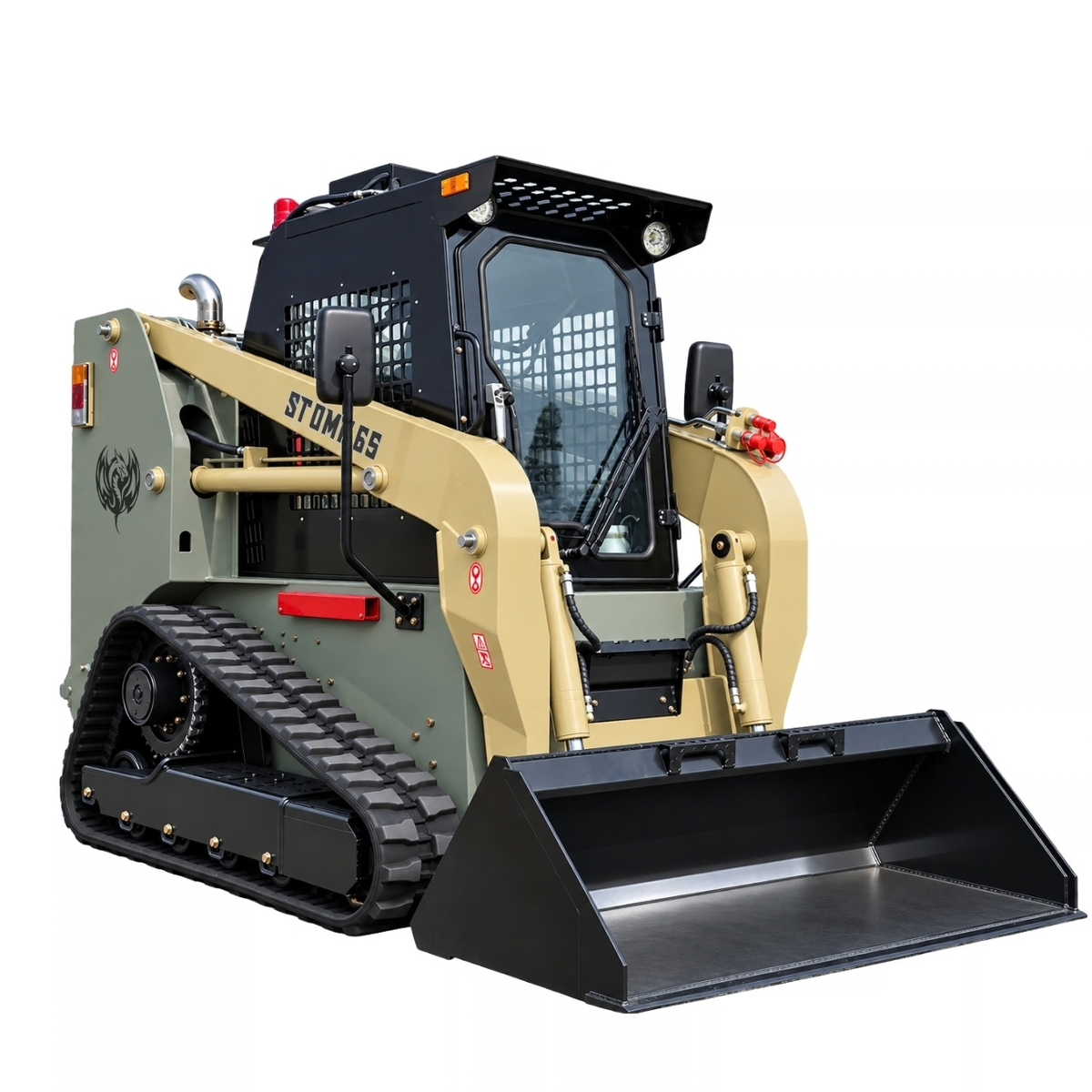

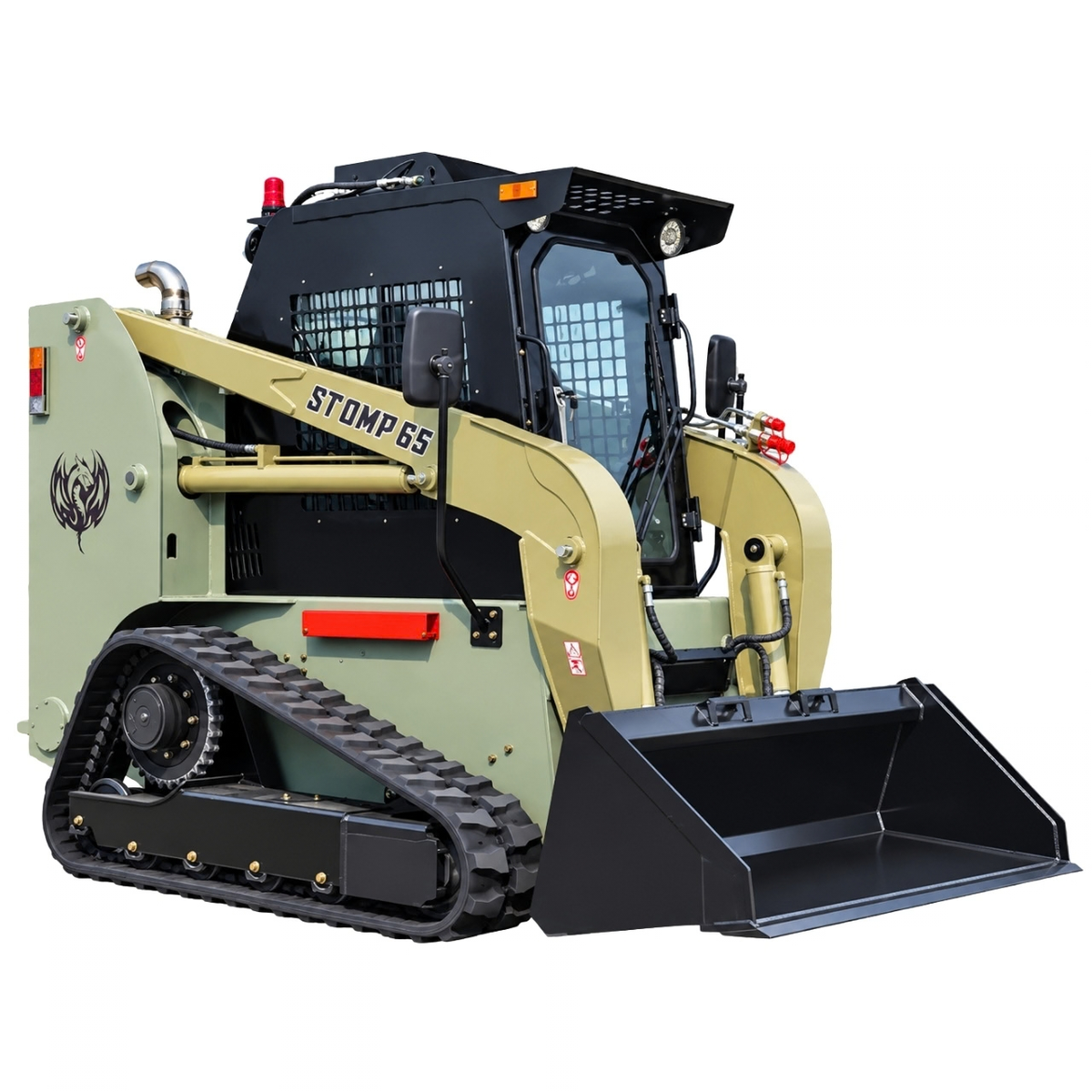

TYPHON STOMP 65 Mini Skid Steer Loader PROPACT Series 74 HP Cummins Diesel, Dual Hydraulics, A/C & Heater Cab

The TYPHON STOMP 65 PROPACT Series is a heavy-duty skid steer loader built for demanding material handling, construction, agriculture, landscaping, forestry, and property-maintenance work. Its 74 HP Cummins QSF2.8 diesel engine, Italian PWG dual-circuit hydraulic system, 2,400 lb rated load capacity, and 17.66 ft³ bucket provide the working capability needed to keep daily jobs moving.

With up to 23.5 GPM auxiliary hydraulic flow, the STOMP 65 PROPACT Series is designed for compatible high-flow attachments such as mulchers, trenchers, augers, and grapples. The fully enclosed cab adds air conditioning, heating, pilot controls, LED lighting, and practical safety equipment for long shifts in changing conditions.

01. 74 HP Cummins QSF2.8 Diesel Engine

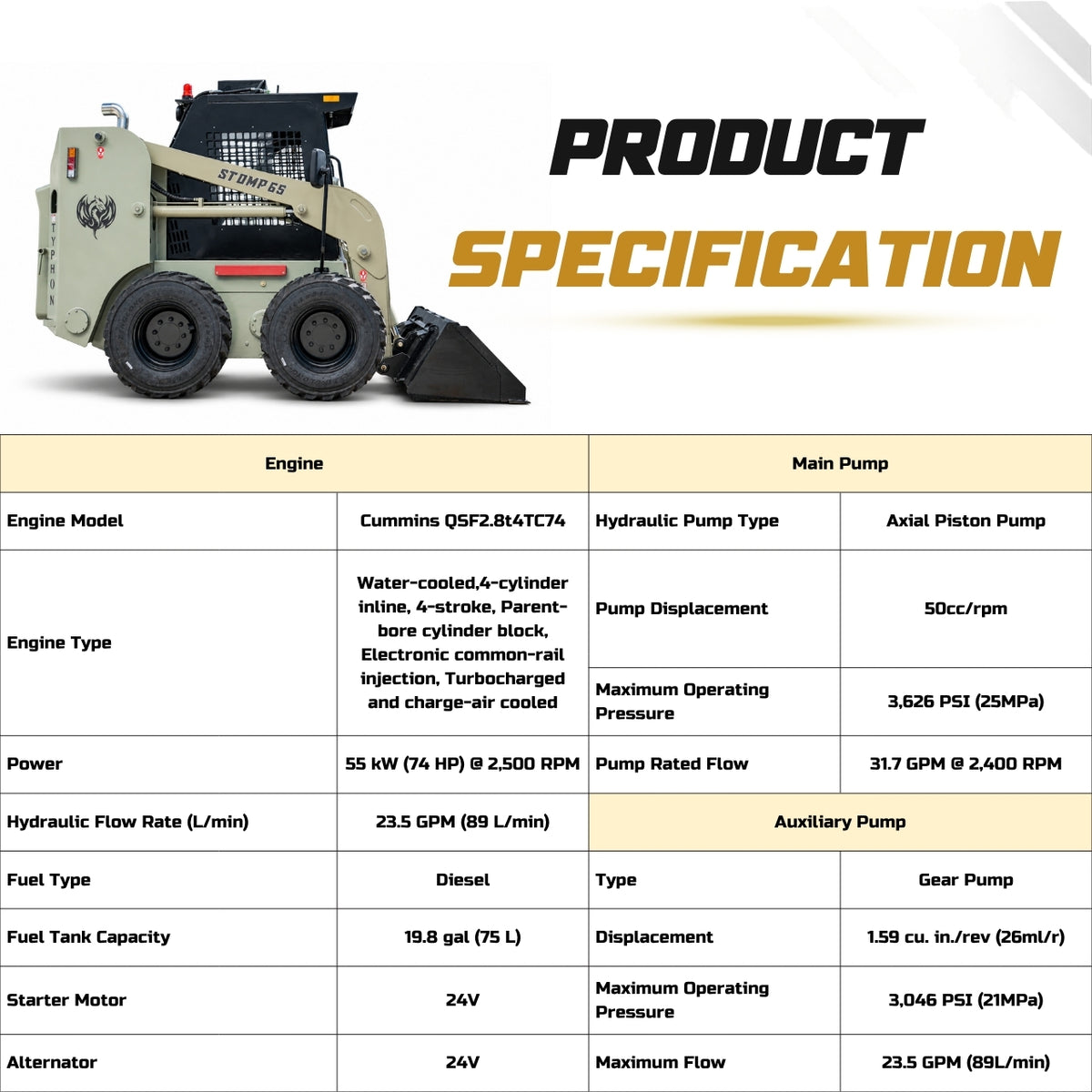

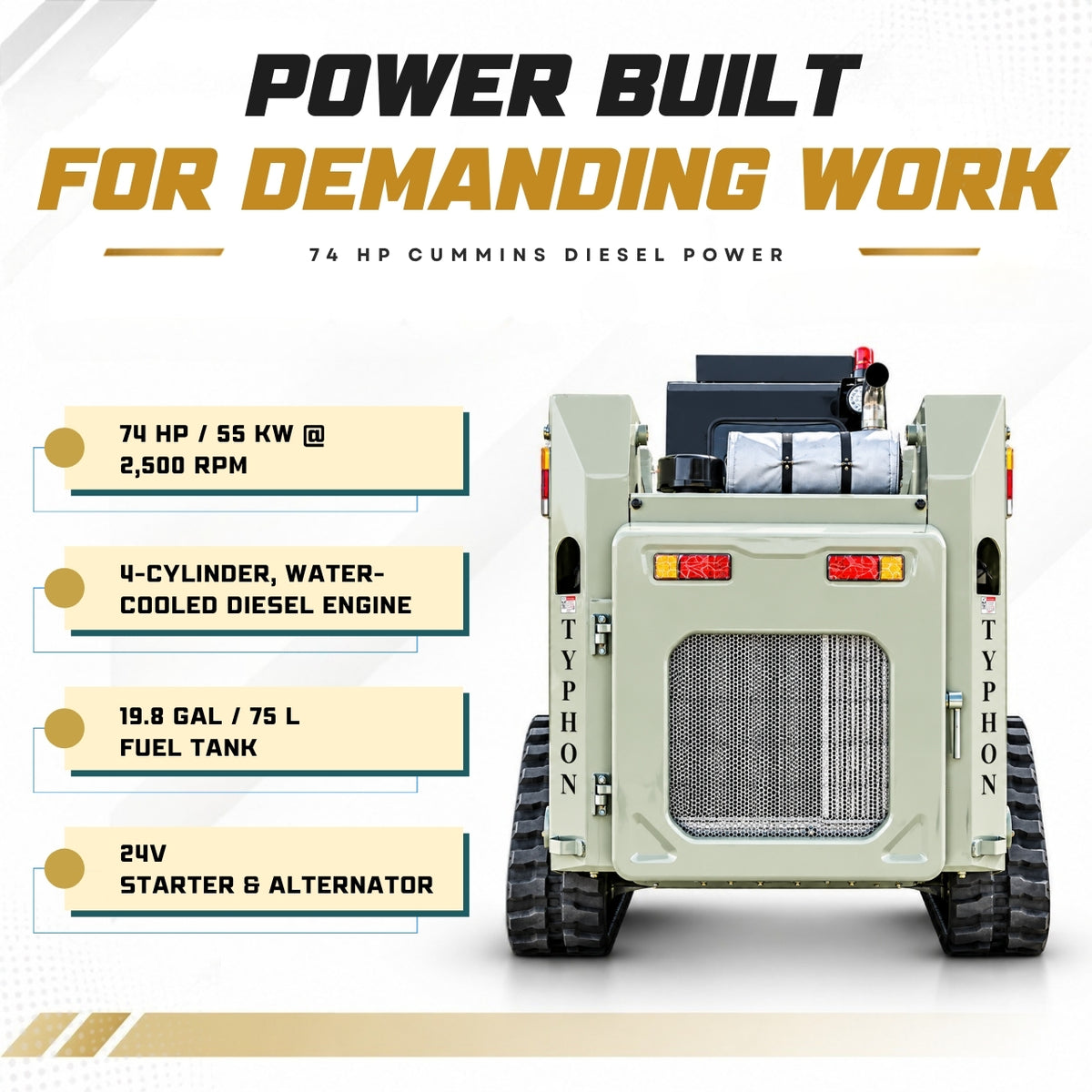

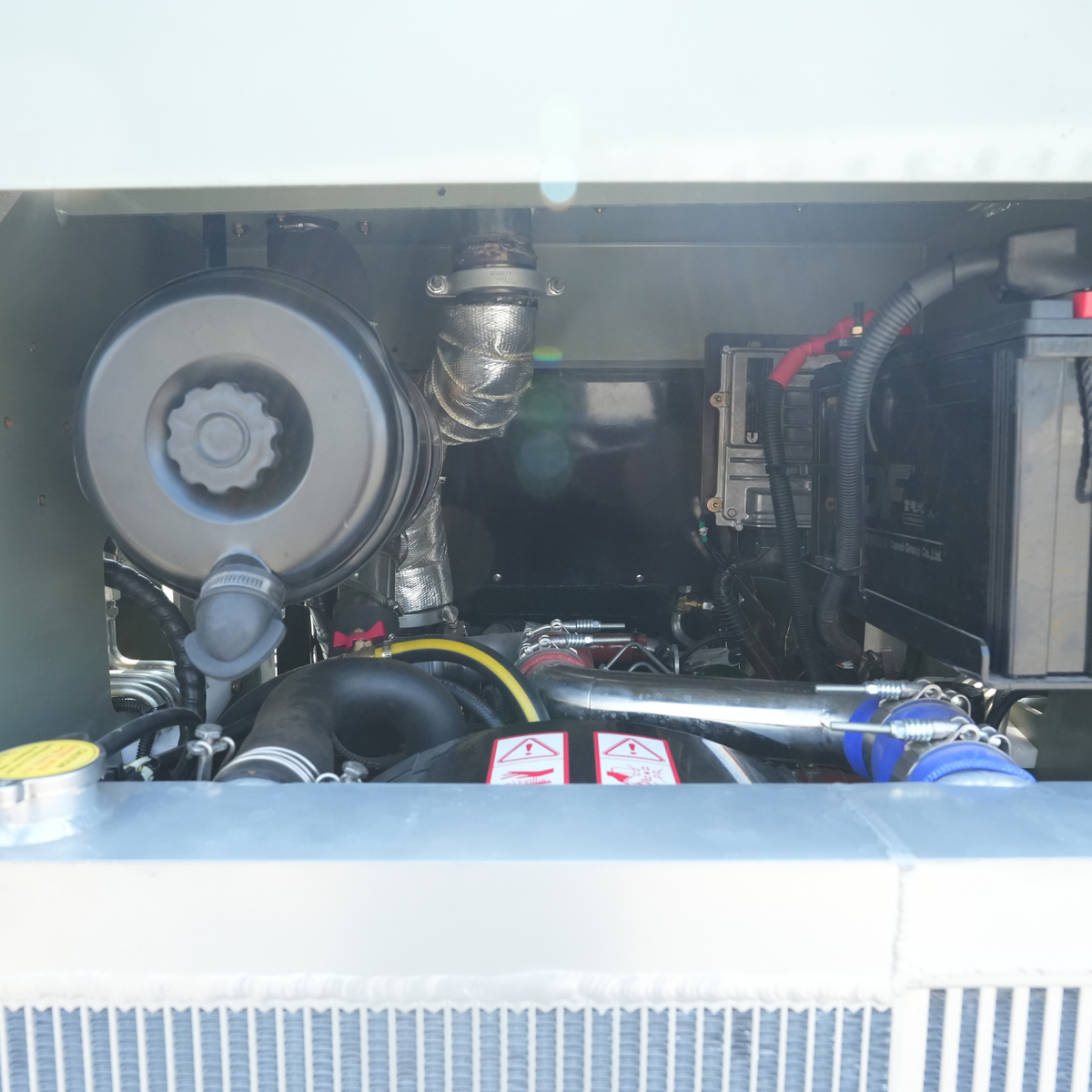

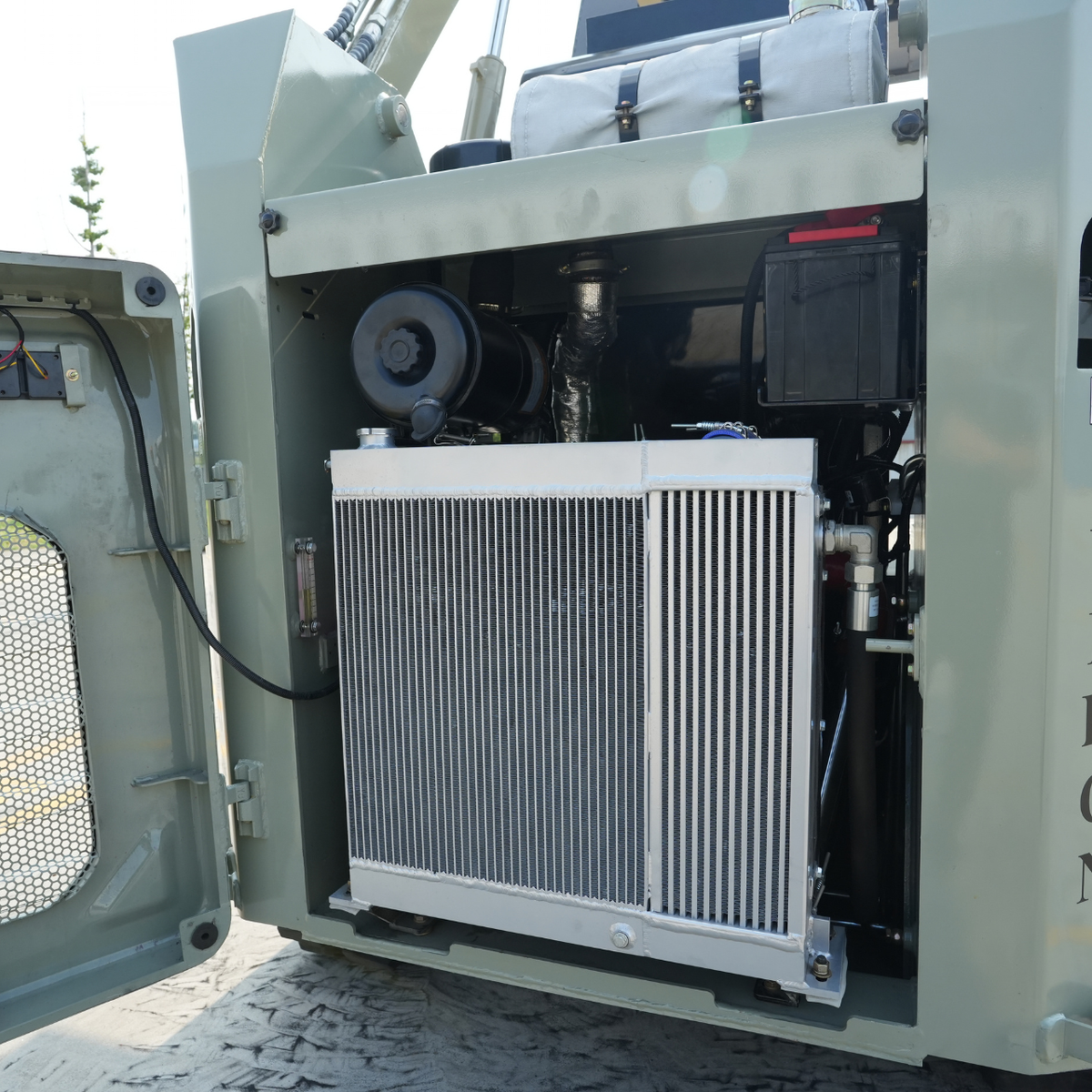

The TYPHON STOMP 65 PROPACT Series is powered by a Cummins QSF2.8 4-cylinder diesel engine rated at 74 HP at 2,500 RPM. Its water-cooled, turbocharged design and electronic common-rail fuel injection provide strong, responsive power during lifting, loading, grading, and attachment work.

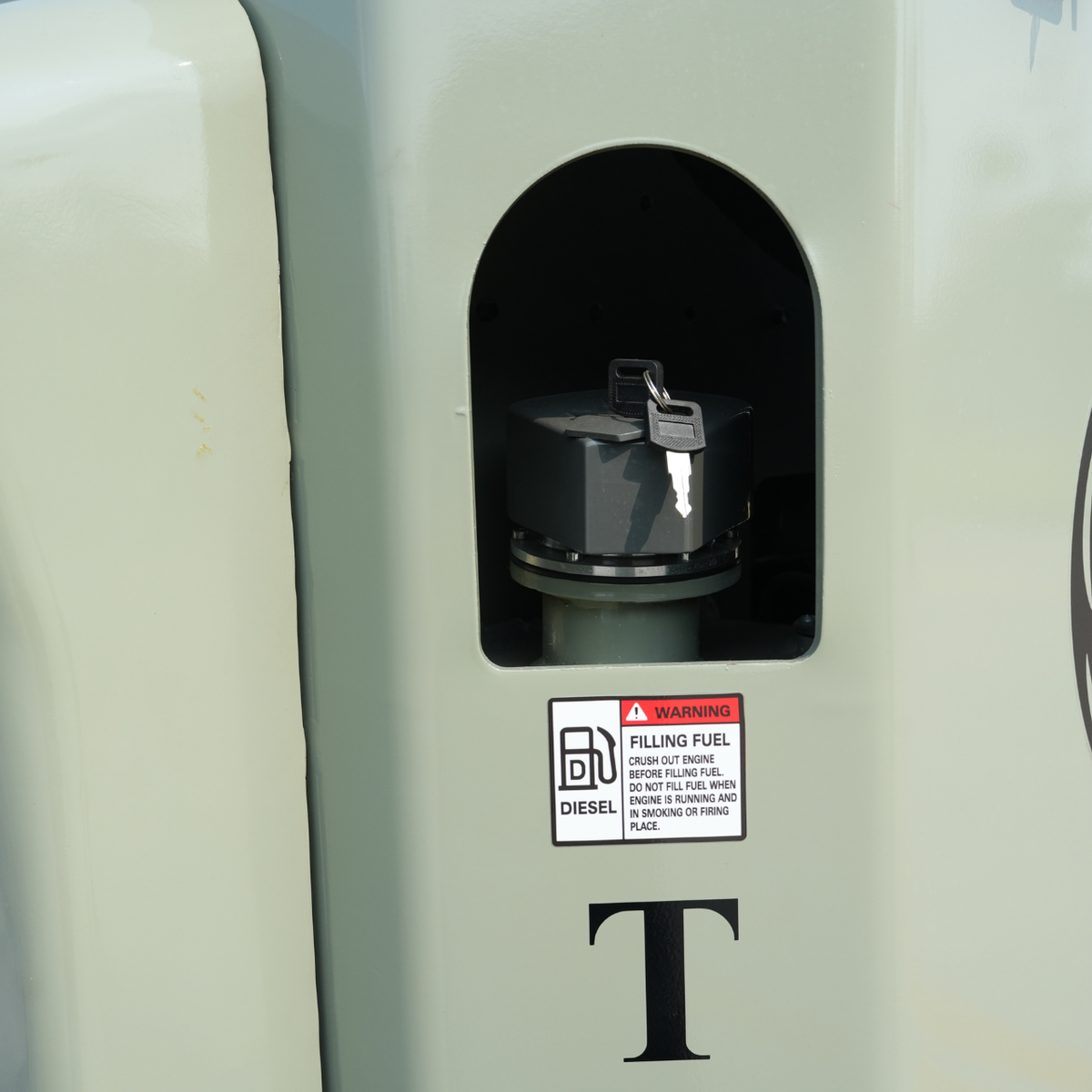

A 24V starter motor and alternator support dependable starting and steady electrical output. The 19.8-gallon fuel tank helps extend working time between refueling stops.

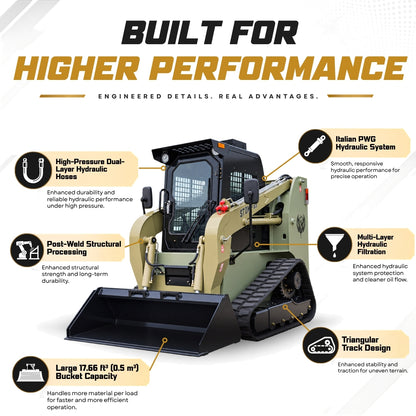

02. Italian PWG Dual-Circuit Hydraulics

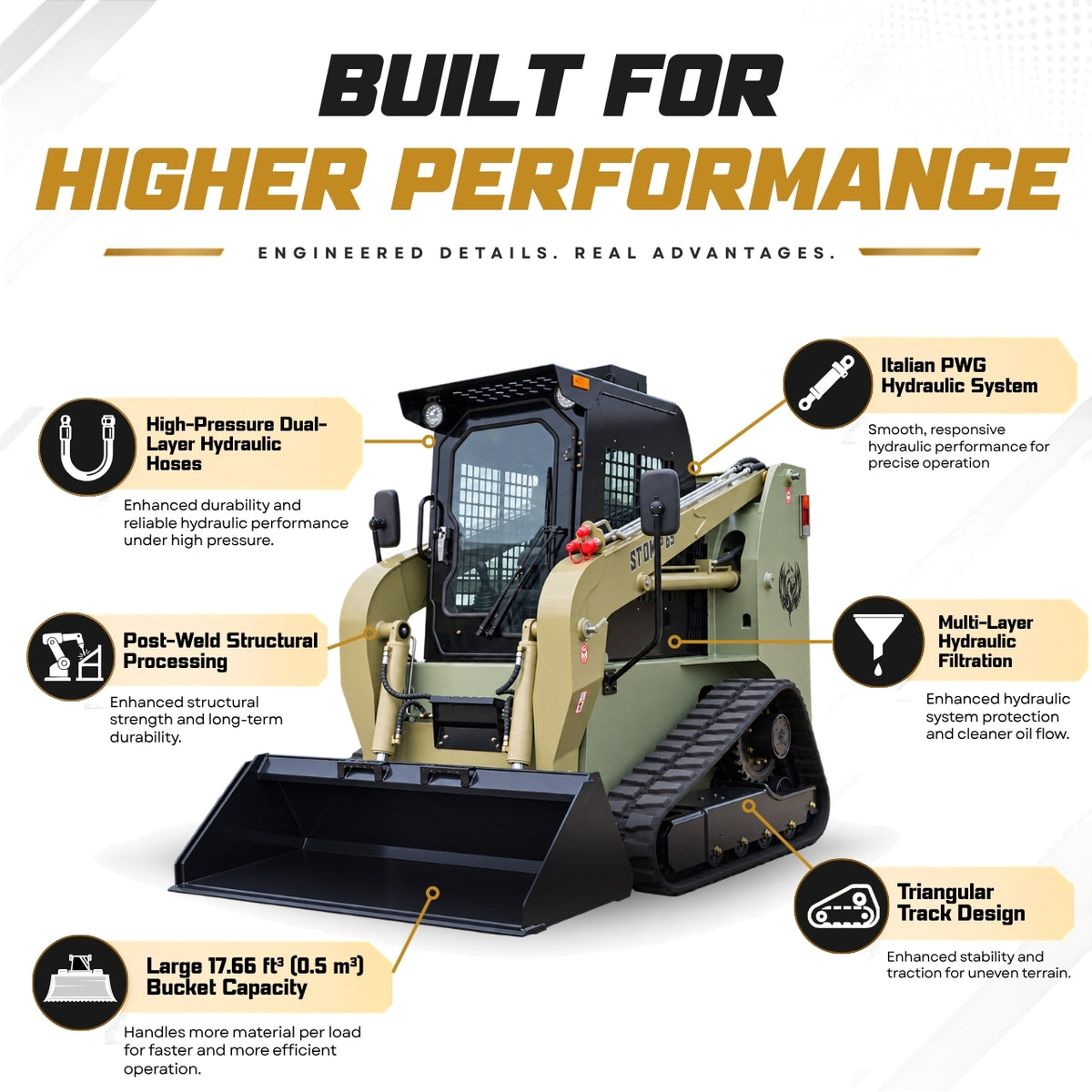

The STOMP 65 PROPACT Series uses two dedicated hydraulic circuits to separate loader functions from auxiliary attachment operation. This layout provides responsive control for everyday loading while supporting hydraulic tools that require higher auxiliary flow.

• Main hydraulic circuit: Axial piston pump with up to 31.7 GPM flow and 3,626 PSI pressure for lifting, bucket operation, and primary loader functions.
• Auxiliary hydraulic circuit: Gear pump with up to 23.5 GPM flow and 3,046 PSI pressure for compatible hydraulic attachments.
• Multi-layer hydraulic filtration: Helps remove contaminants from hydraulic oil to protect critical components and maintain consistent performance.
• High-pressure dual-layer hoses: Designed to withstand pressure spikes and abrasion during demanding operation.
• Attachment compatibility: Always confirm that an attachment's hydraulic-flow and pressure requirements are compatible with the machine before operation.

03. Loading, Lifting, and Material Handling

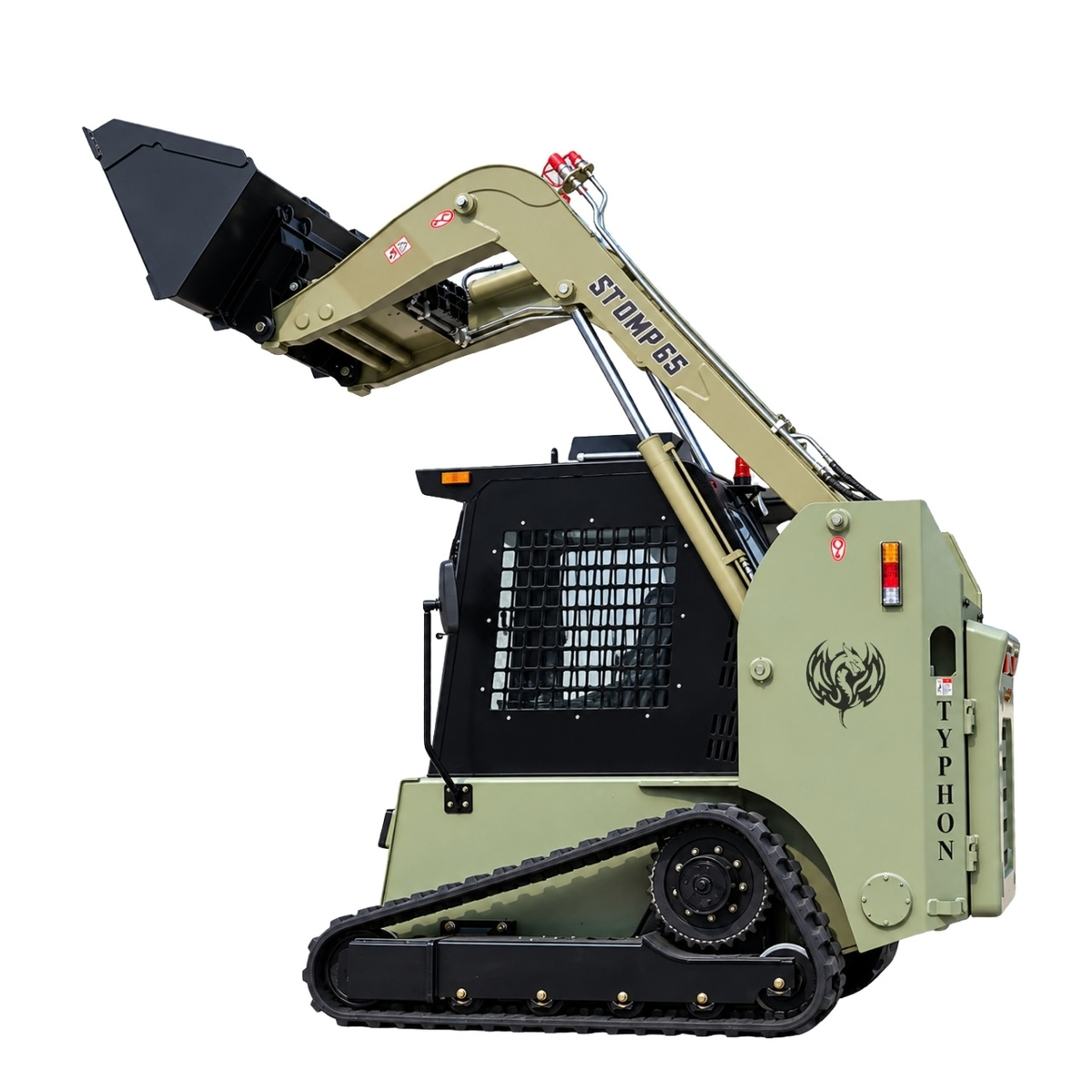

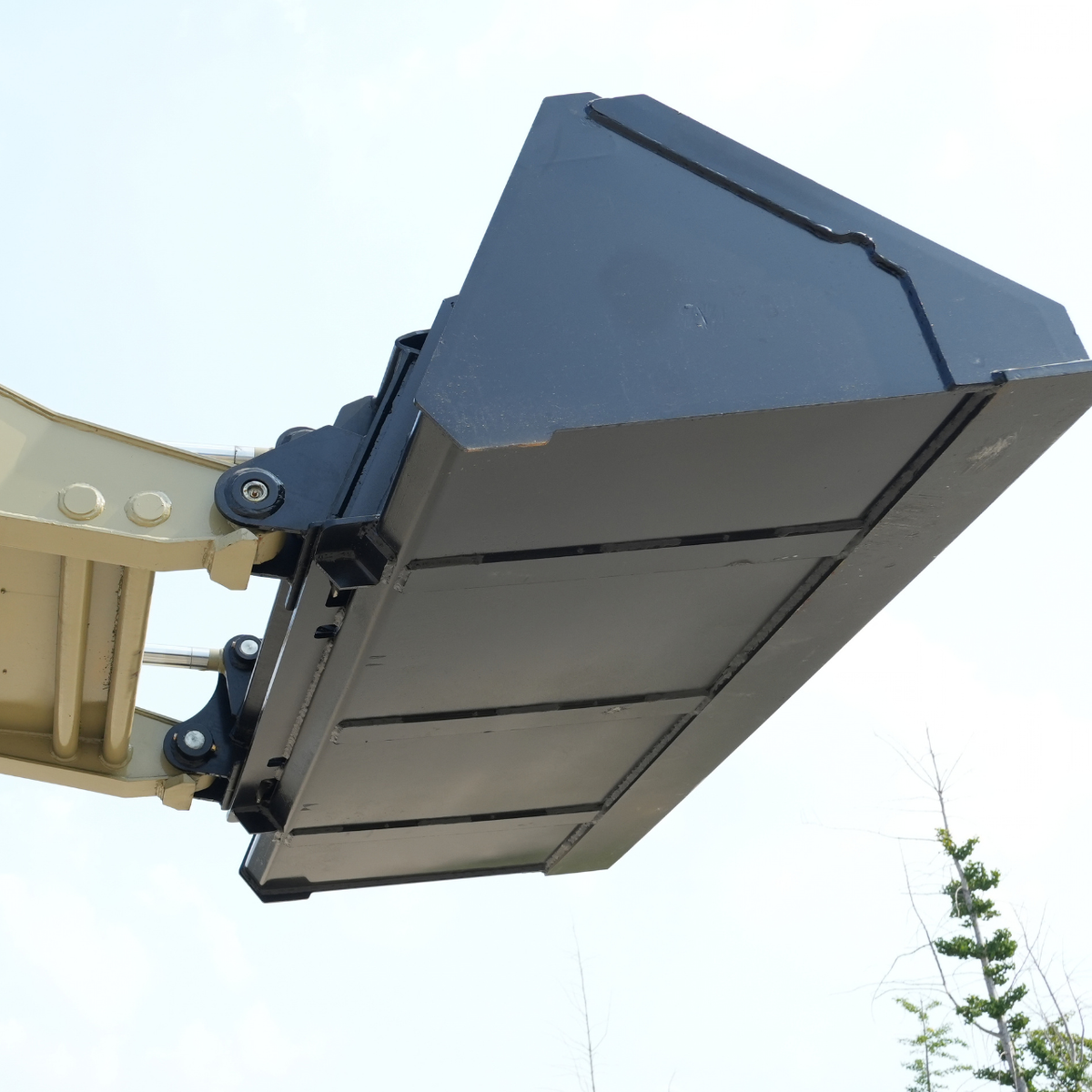

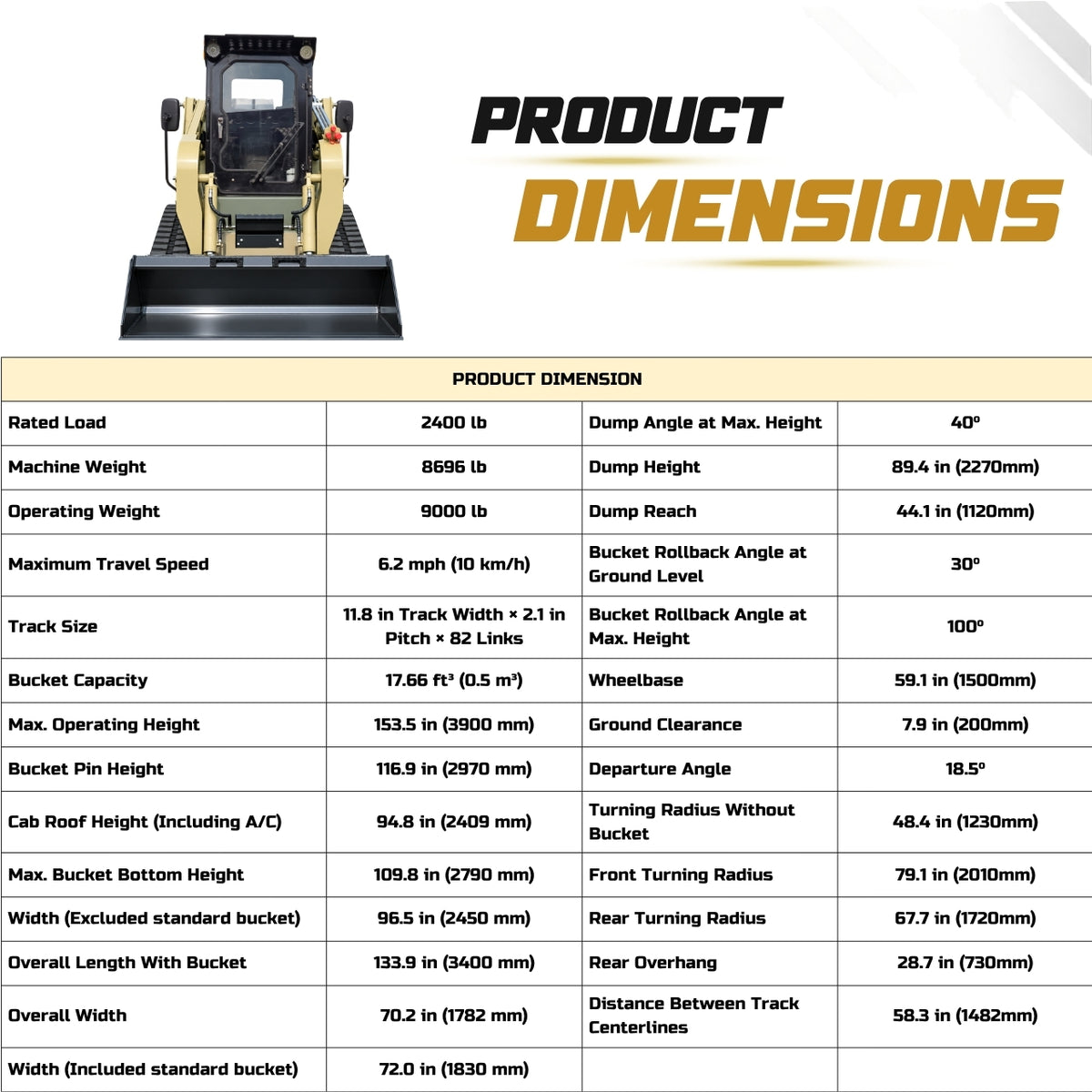

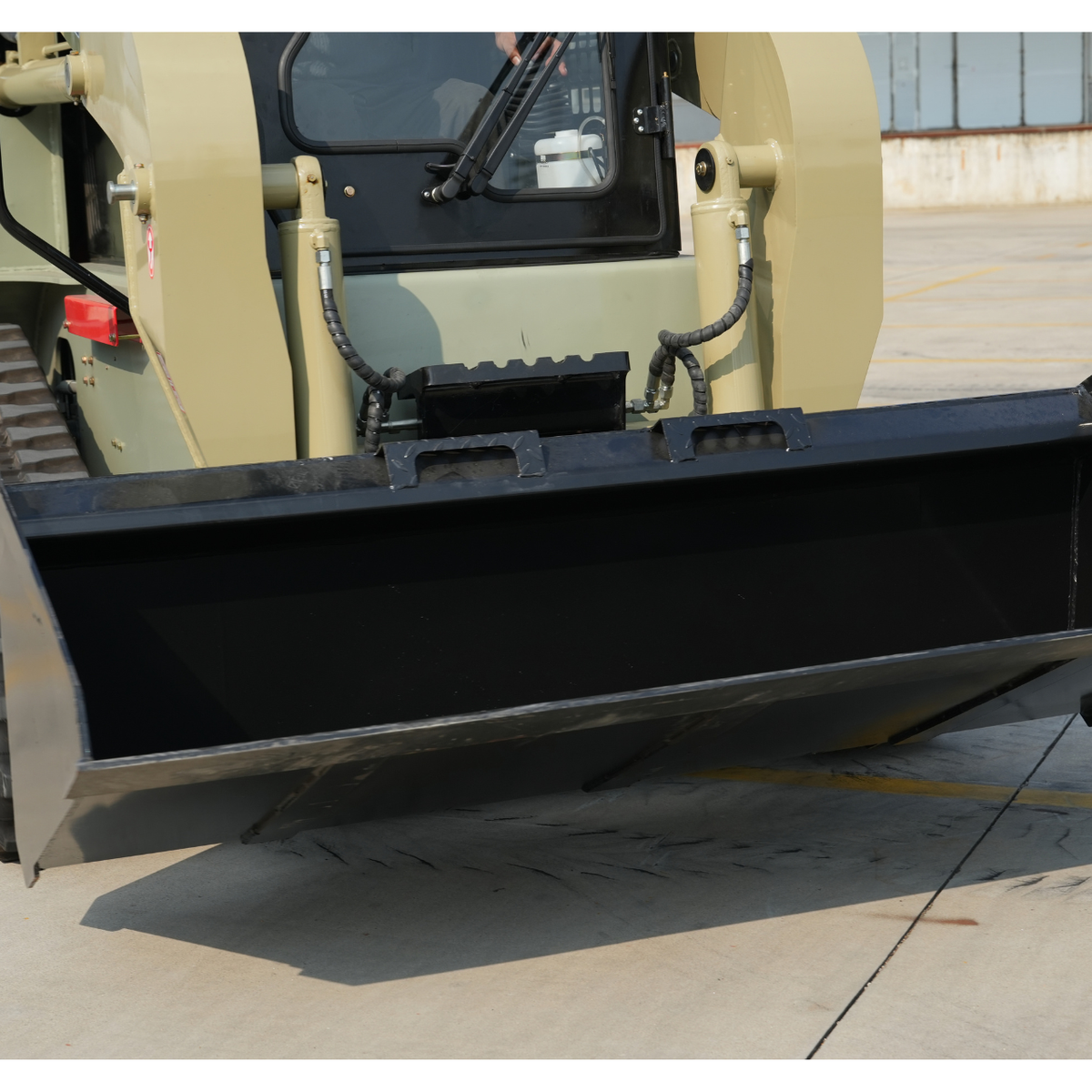

With a 9,000 lb operating weight, 2,400 lb rated load capacity, and 17.66 ft³ (0.5 m³) bucket, the STOMP 65 PROPACT Series is built for practical material-moving work. Load soil, gravel, aggregate, landscaping materials, construction debris, and similar materials with a machine sized for demanding daily applications.

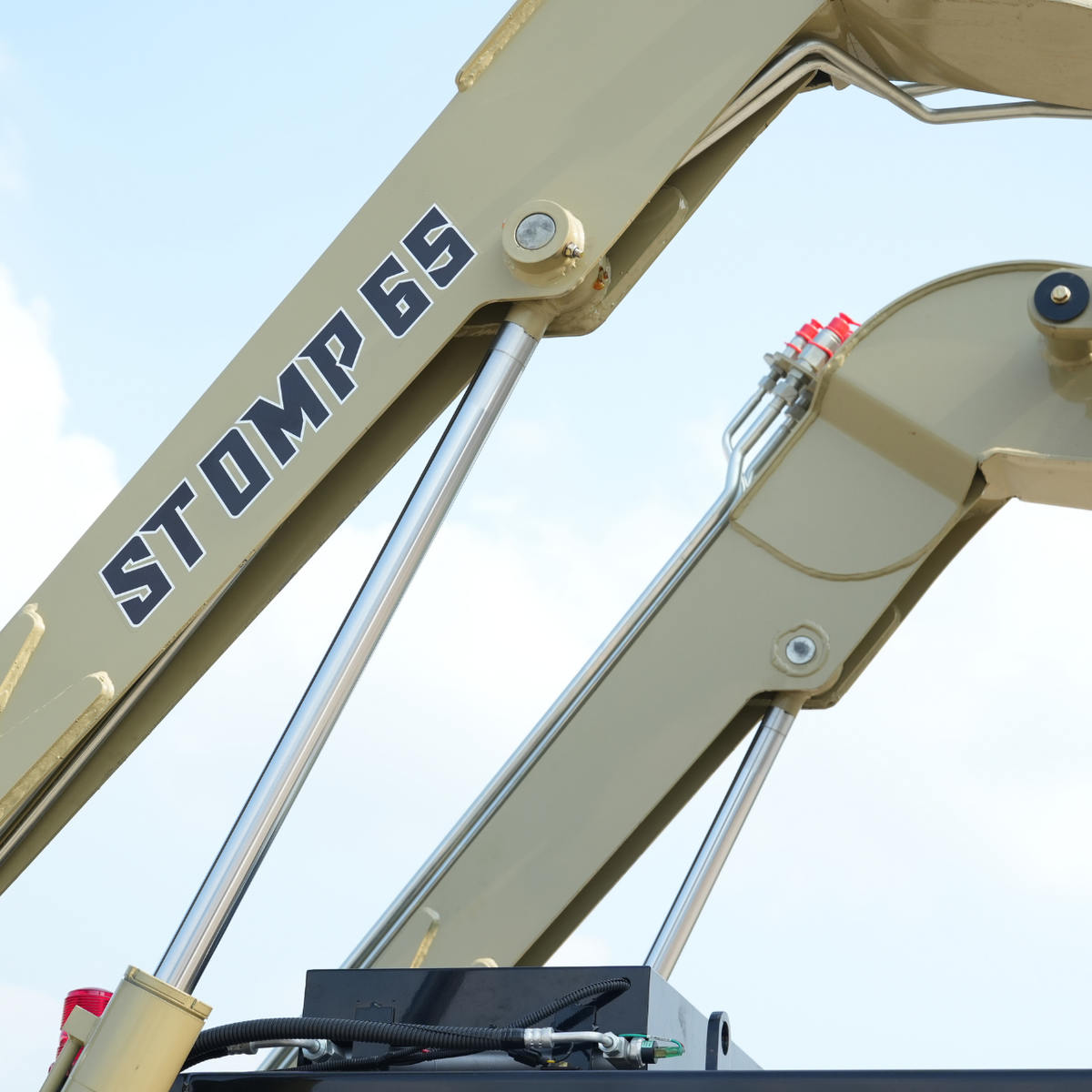

The automatic load leveling system helps keep the bucket steady as the lift arms rise. This helps reduce spills during lifting and can limit rework when moving material around the job site.

• Maximum operating height: 153.5 in
• Dump height: 89.4 in
• Maximum dump angle: 40°

04. Stability and Maneuverability in Tight Work Areas

At 70.2 inches wide, the TYPHON STOMP 65 PROPACT Series can be positioned around buildings, obstacles, material piles, and other confined work areas. A 48.4-inch turning radius without the bucket, 360-degree zero-turn capability, and travel speeds up to 6.2 MPH help operators reposition efficiently between tasks.

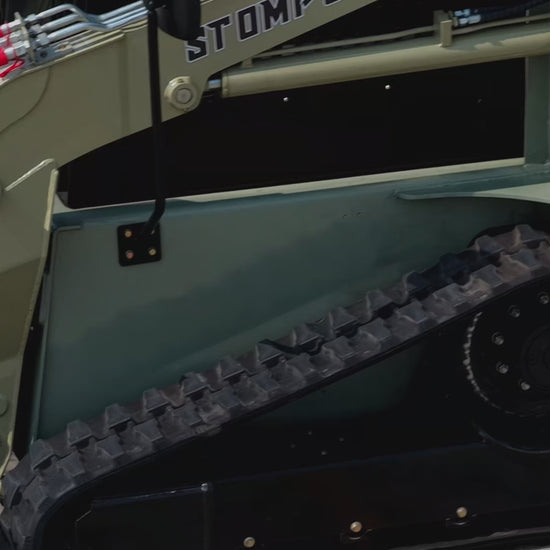

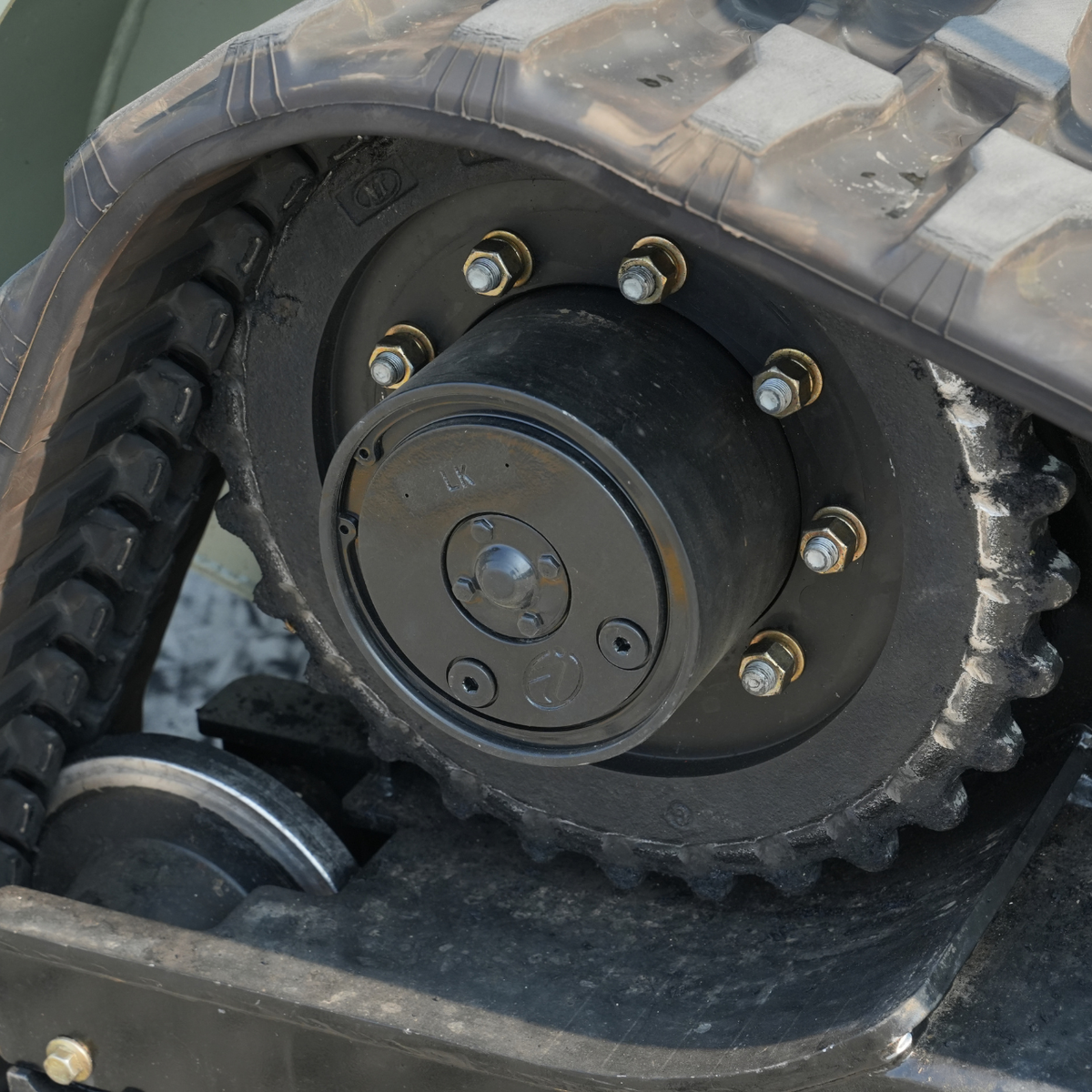

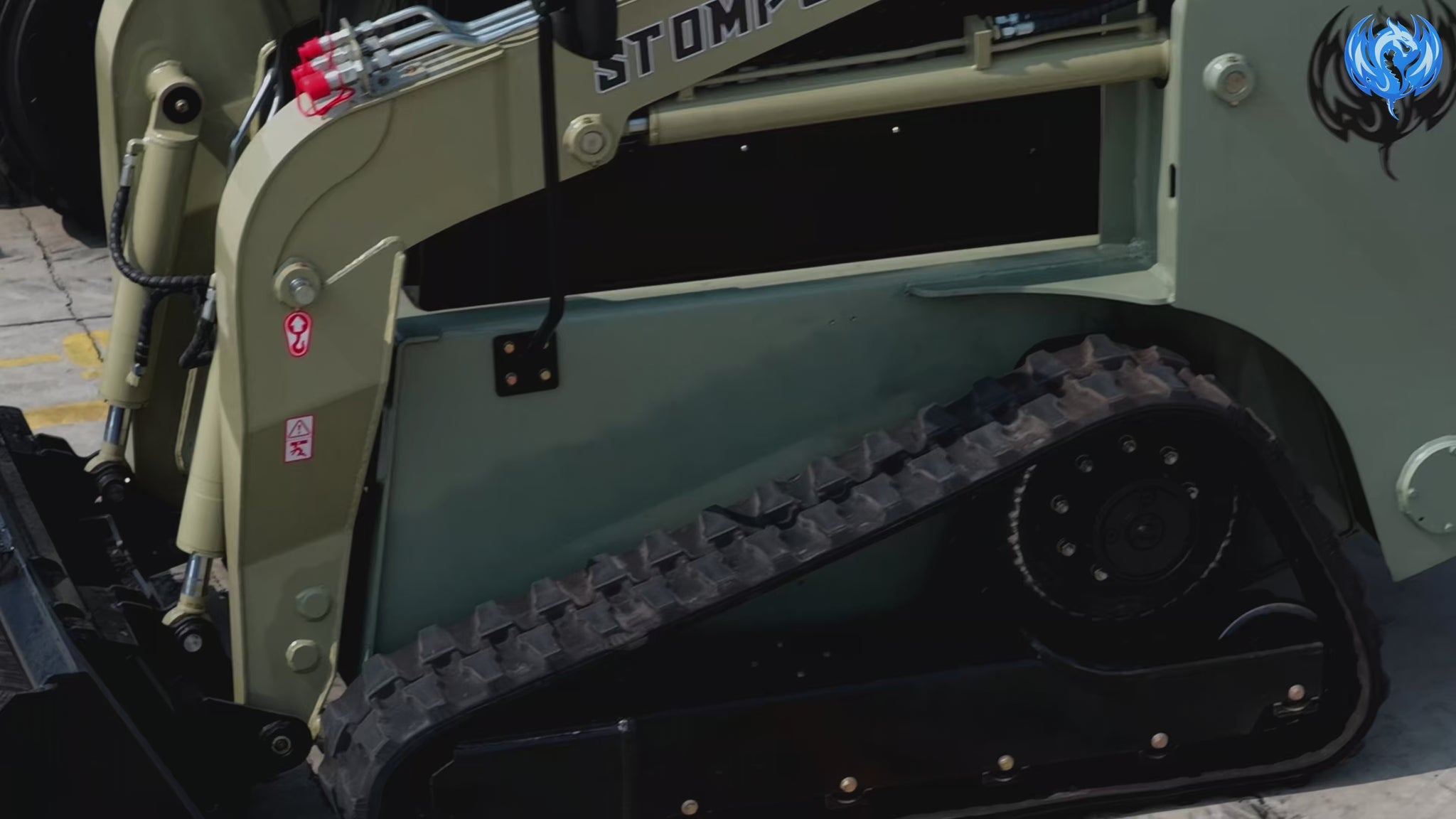

The heavy-duty triangle track system provides a stable working platform, while post-weld structural processing helps relieve internal stress in the welds and frame. The result is a rugged machine platform designed for repeated use on demanding job sites.

With compatible attachments, the STOMP 65 PROPACT Series can be configured for grading, digging, mulching, trenching, grappling, and other loader applications.

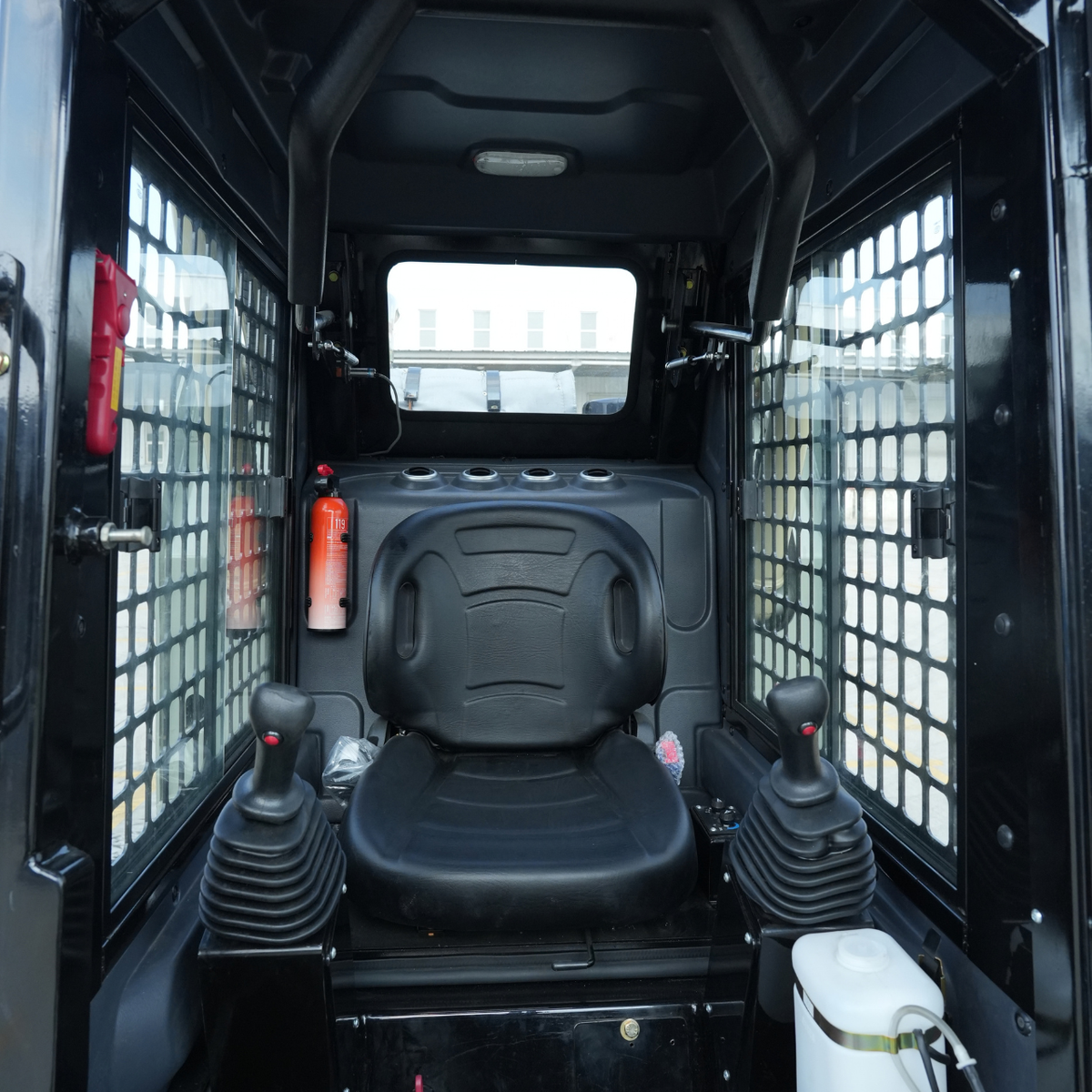

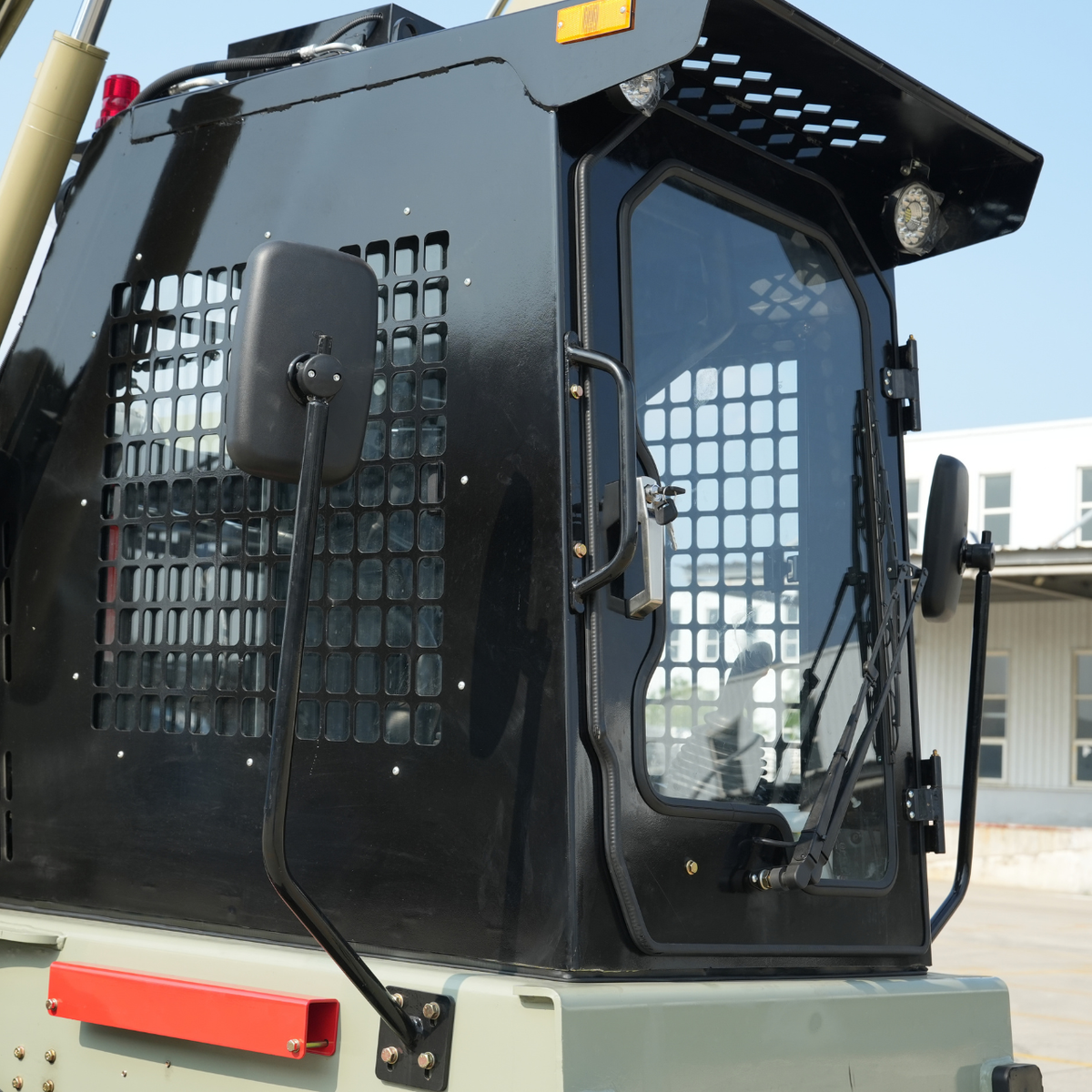

05. Fully Enclosed A/C and Heater Operator Cab

The fully enclosed cab gives operators a protected workspace with integrated air conditioning and heating. Pilot controls, clear visibility, and opening or sliding windows support practical operation during long shifts and changing weather conditions.

• Cab roof height: 94.8 in
• LED lighting: Improves visibility for low-light operation.
• Opening and sliding windows: Support ventilation and convenient access.
• Safety bar and grab handle: Provide added operator support.
• Fire extinguisher: Built-in emergency-preparedness equipment.
• Glass-break hammer: Provides emergency exit access.

Key Features

• 74 HP Cummins diesel engine: Turbocharged four-cylinder power for demanding work.
• Italian PWG dual hydraulic system: Separate circuits for loader functions and hydraulic attachments.
• 23.5 GPM auxiliary hydraulic flow: High-flow capability for compatible mulchers, trenchers, augers, and grapples.
• 2,400 lb rated load capacity: Supports lifting, loading, and material-handling applications.
• Enclosed A/C and heater cab: Climate control, pilot controls, visibility, and practical safety equipment.
• Heavy-duty triangle track system: Stable operation, 360° zero-turn maneuverability, and travel speeds up to 6.2 MPH.
