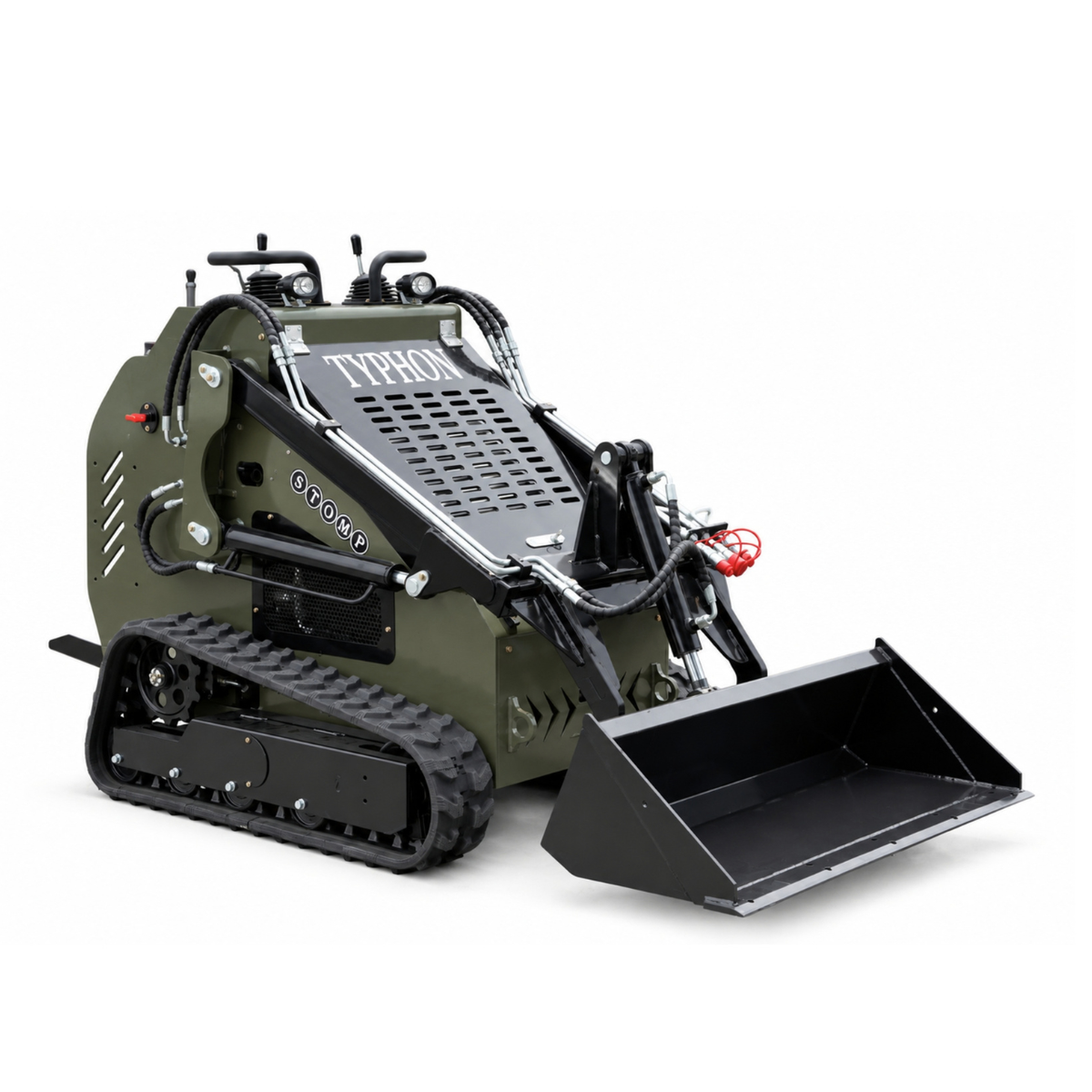

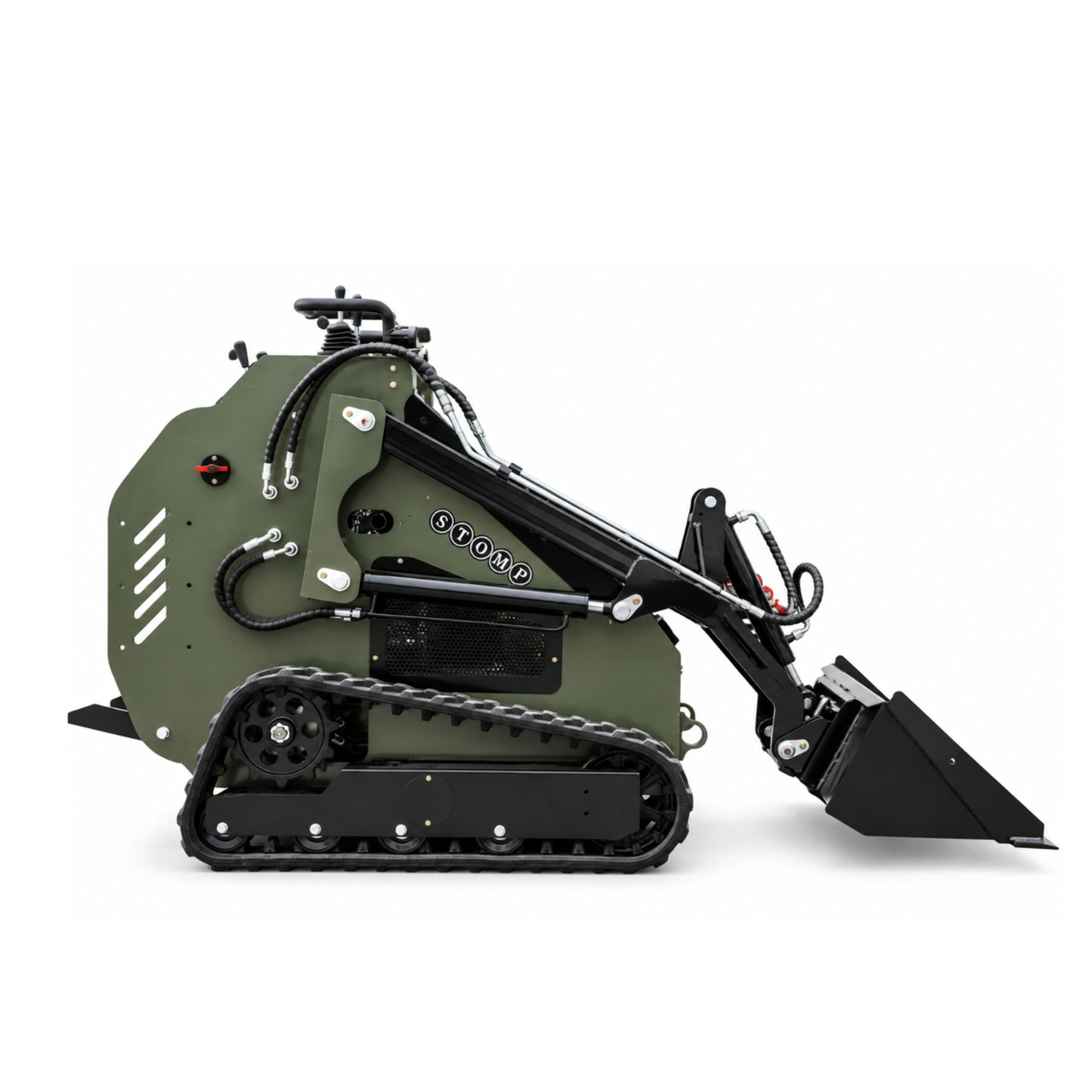

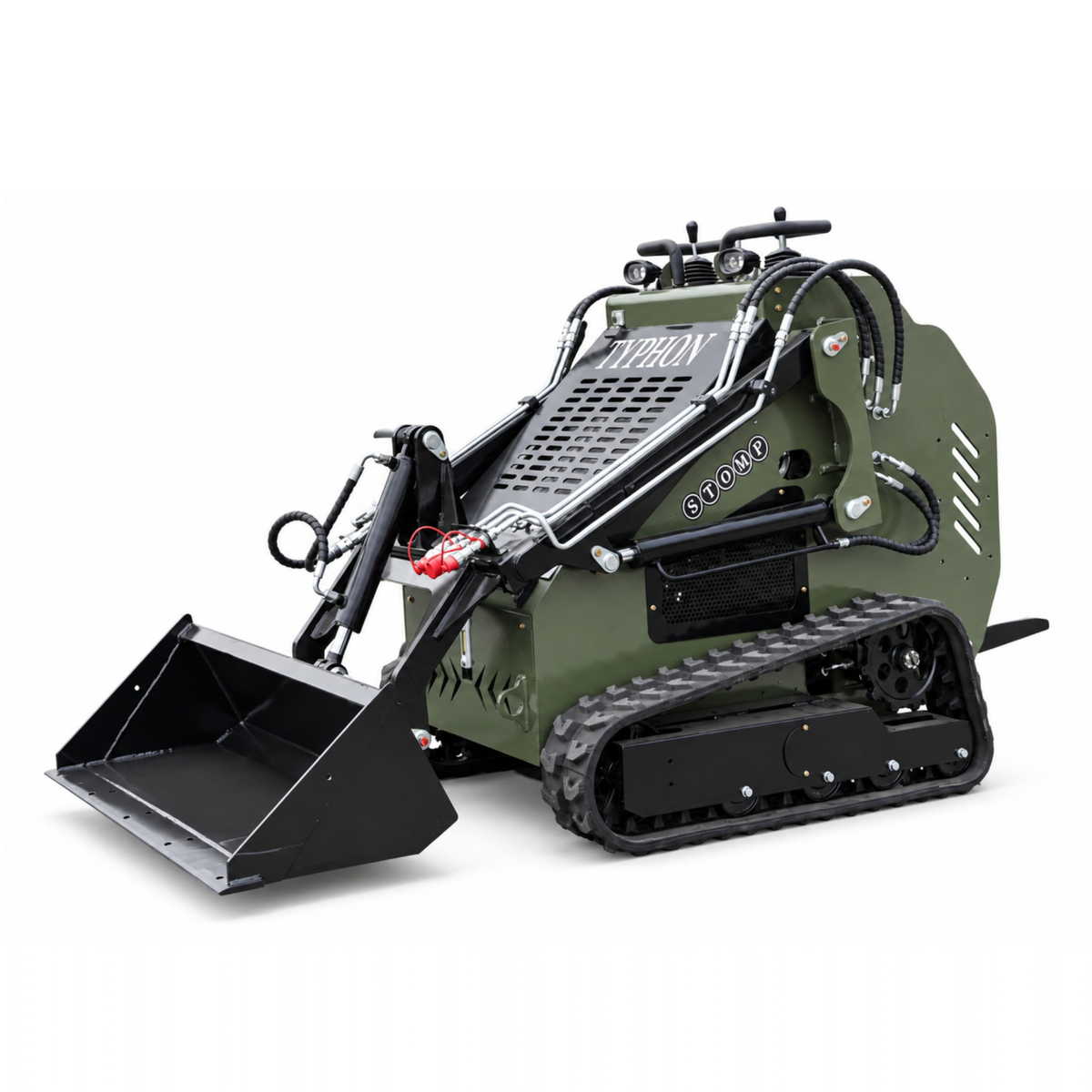

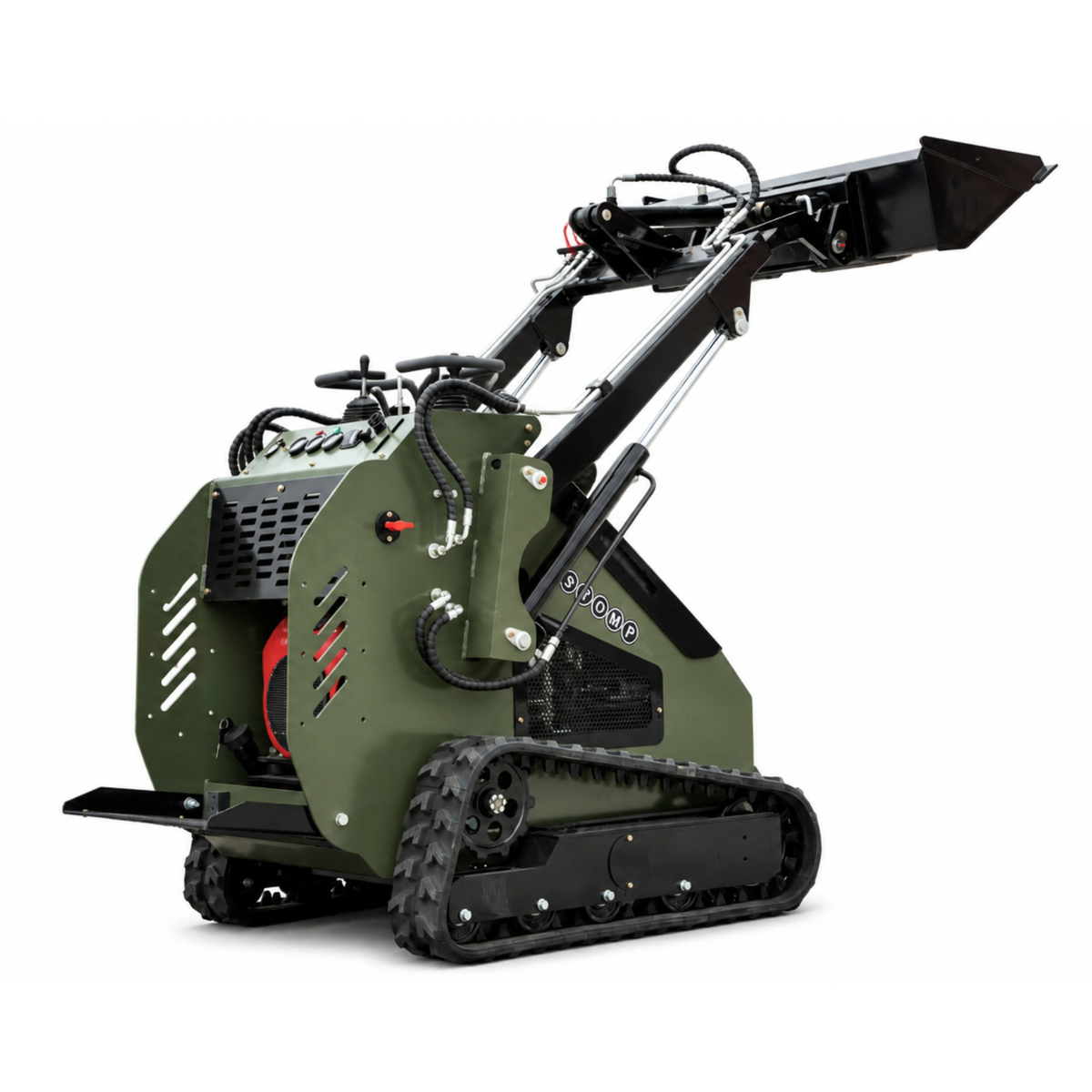

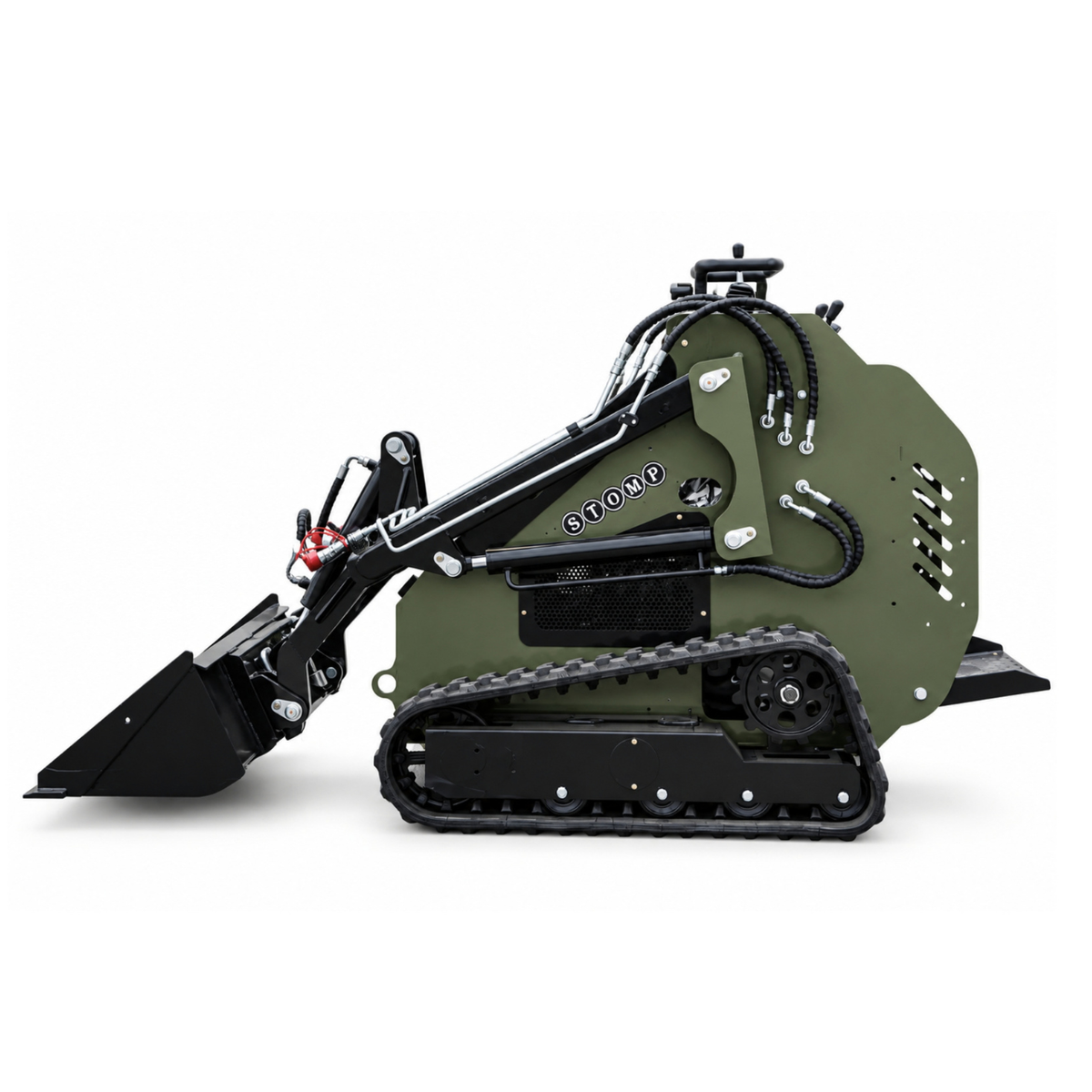

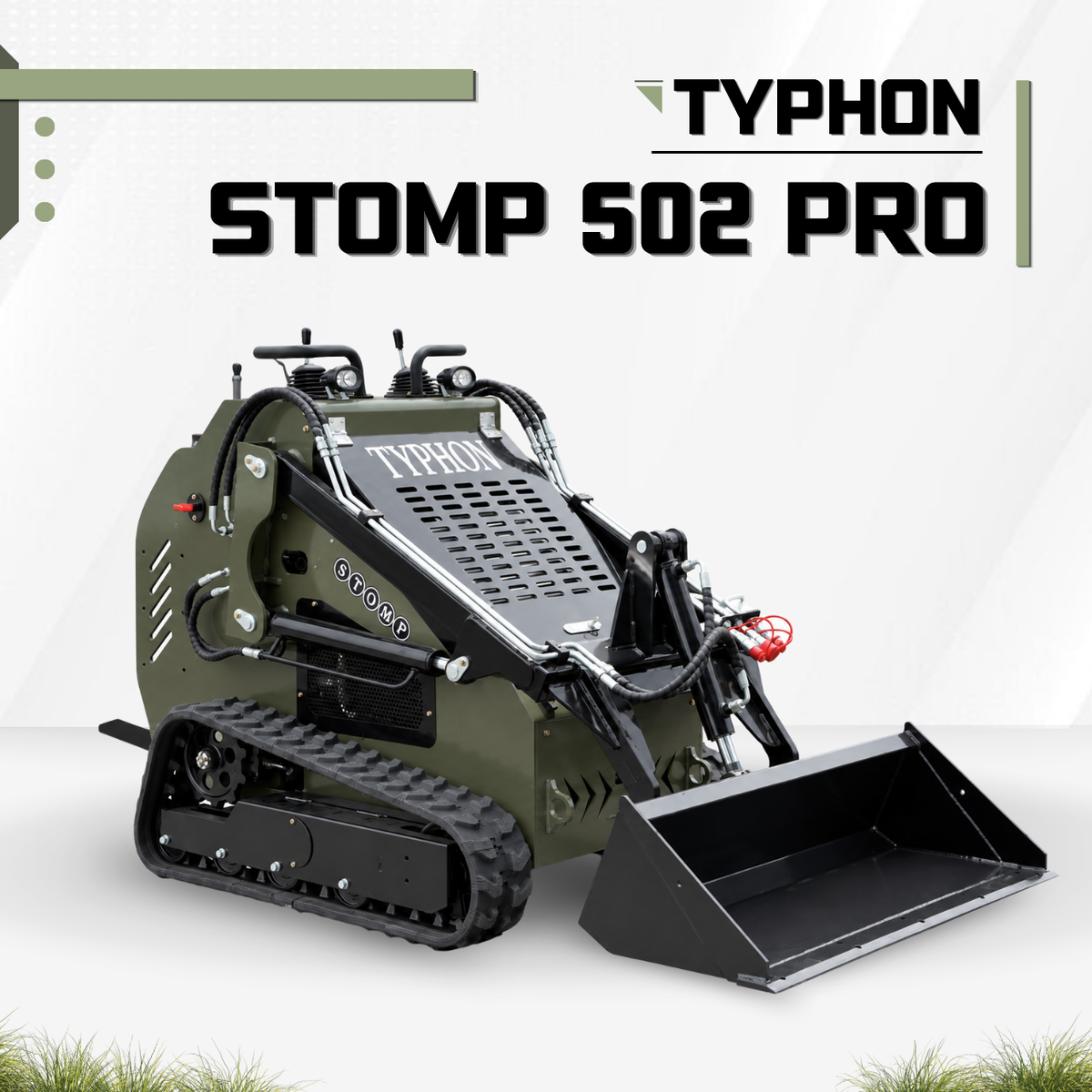

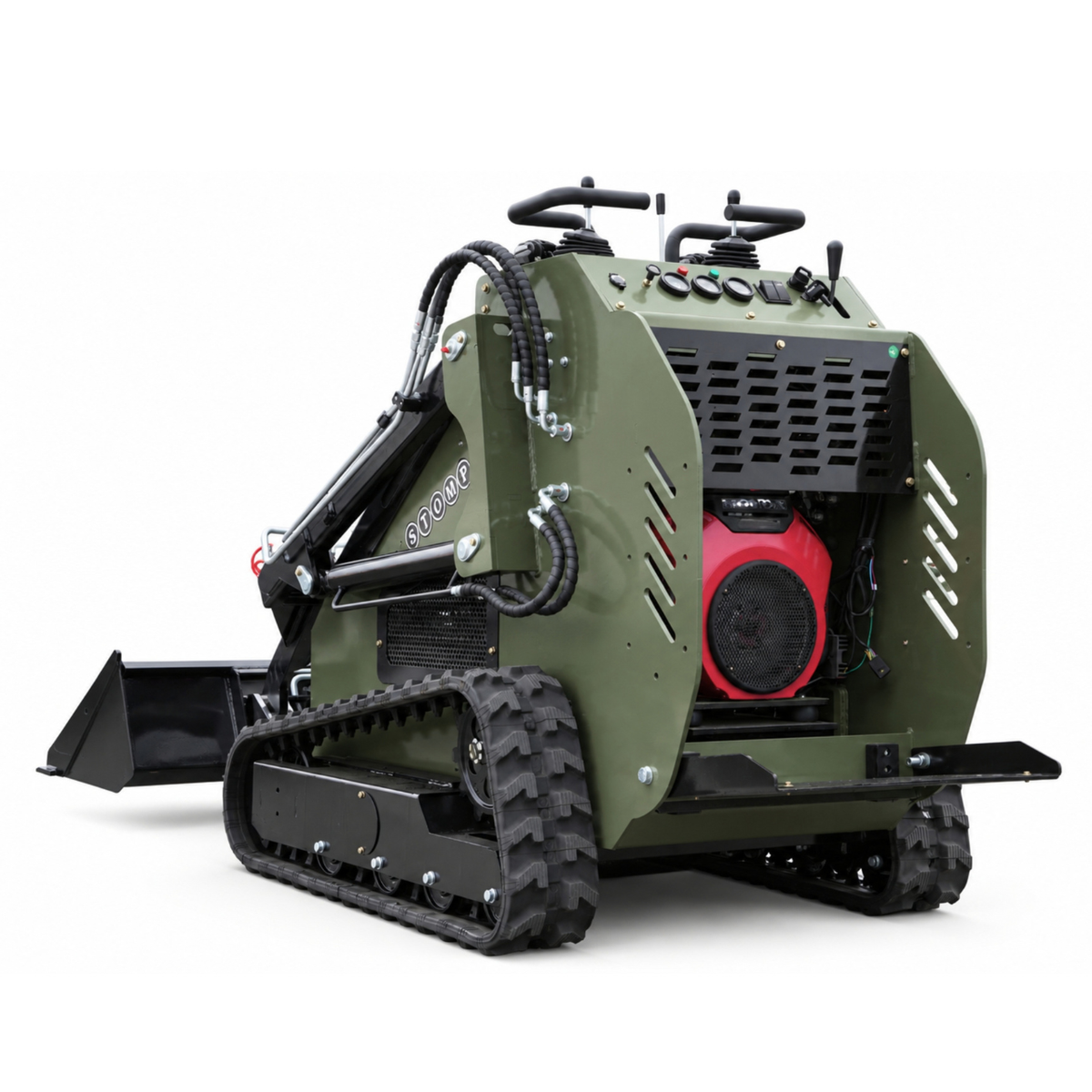

TYPHON STOMP 502 PRO Mini Skid Steer Loader - 22.1 HP Honda GX690, High-Flow Hydraulics, 992 lb Max Lift, Triangle Tracks

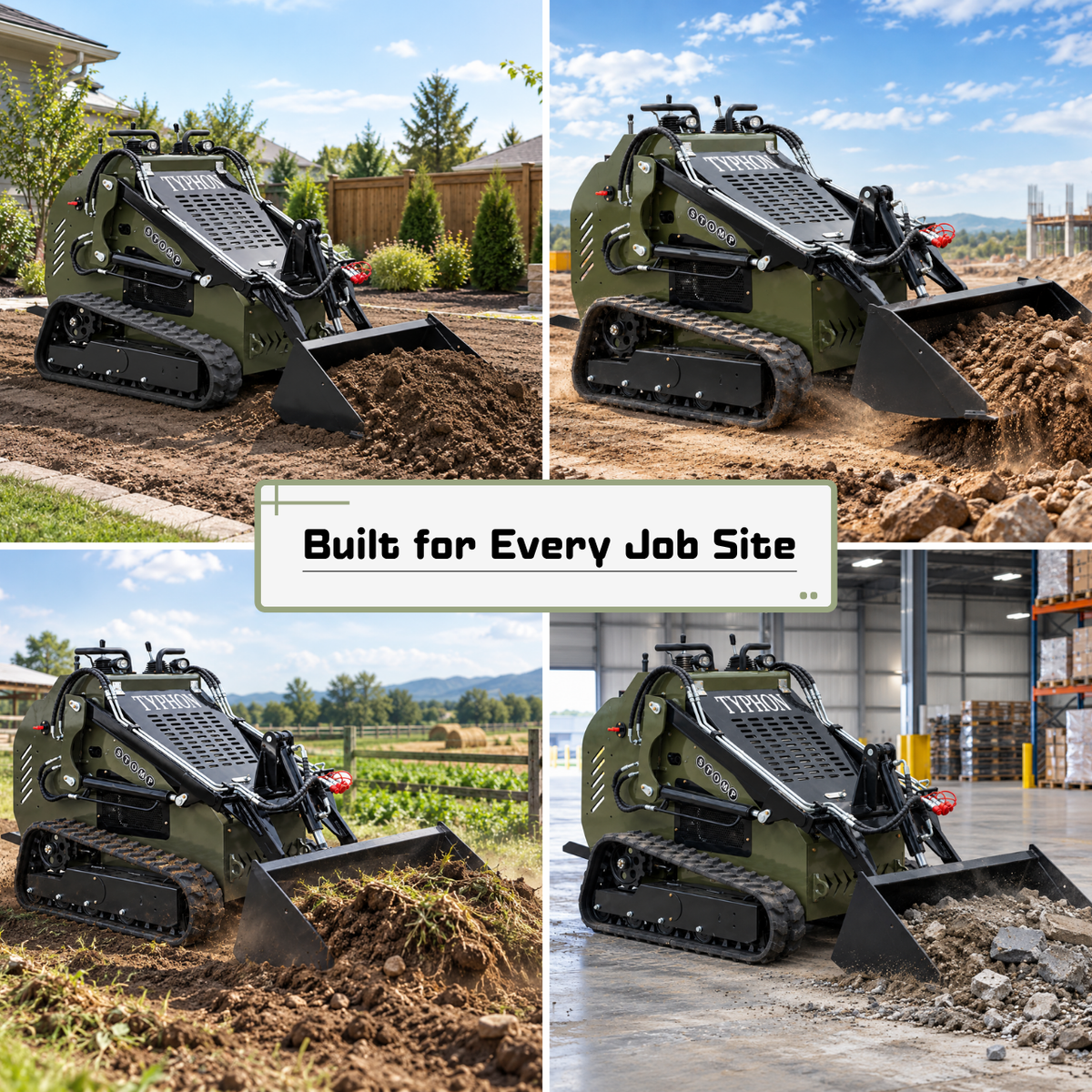

Take on demanding material-handling and landscaping jobs with the TYPHON STOMP 502 PRO Mini Skid Steer Loader. Designed for contractors, property owners, and construction professionals, this compact machine combines dependable Honda GX690 engine performance, versatile hydraulic power, and responsive stand-on controls. Its narrow profile and rubber Triangle tracks make it a practical choice for working in backyards, tight walkways, landscaping areas, and other restricted spaces.

Whether you're moving soil, loading materials, preparing ground, or operating compatible hydraulic attachments, the STOMP 502 PRO delivers practical performance in a compact, easy-to-maneuver package.

01. Reliable Honda GX690 Engine Performance

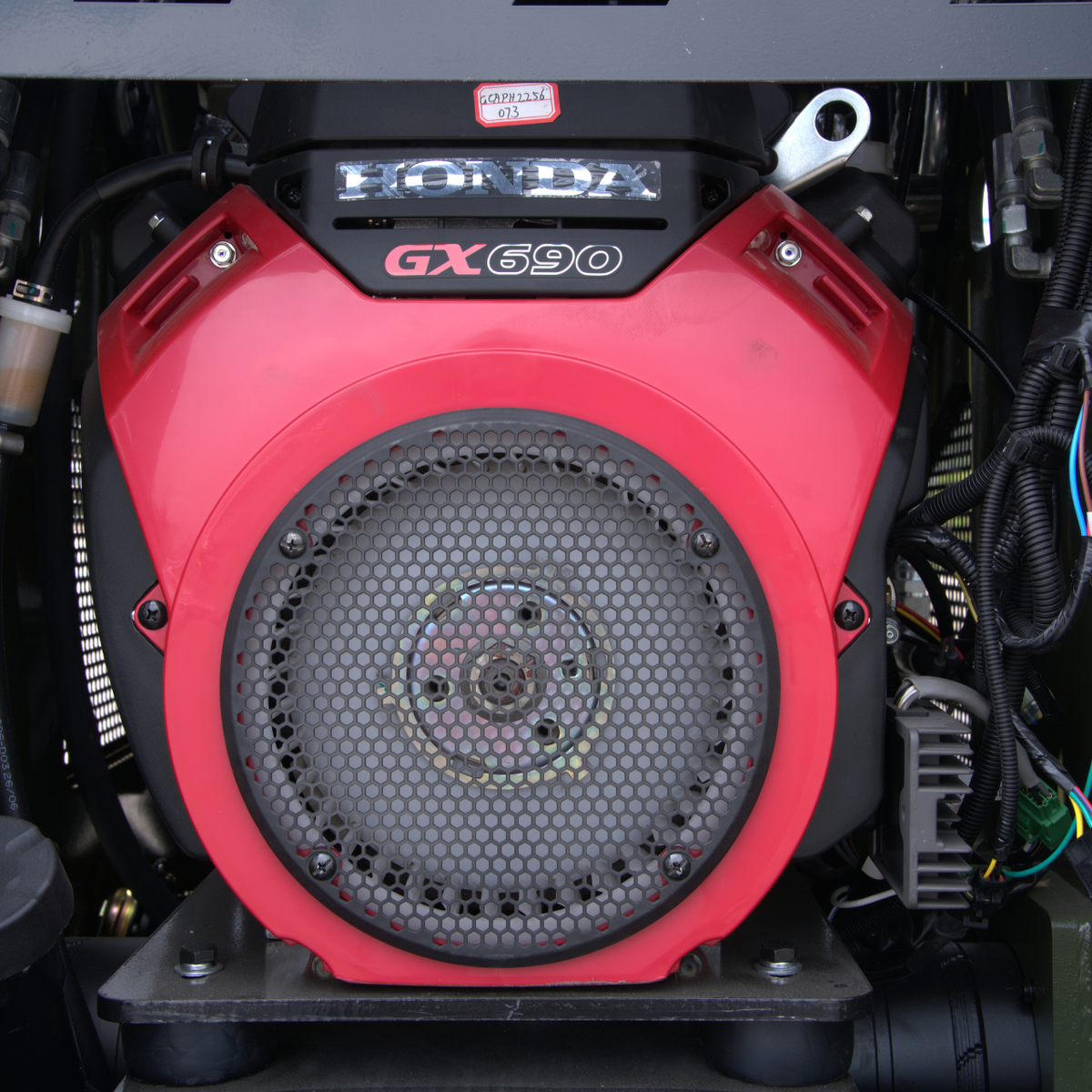

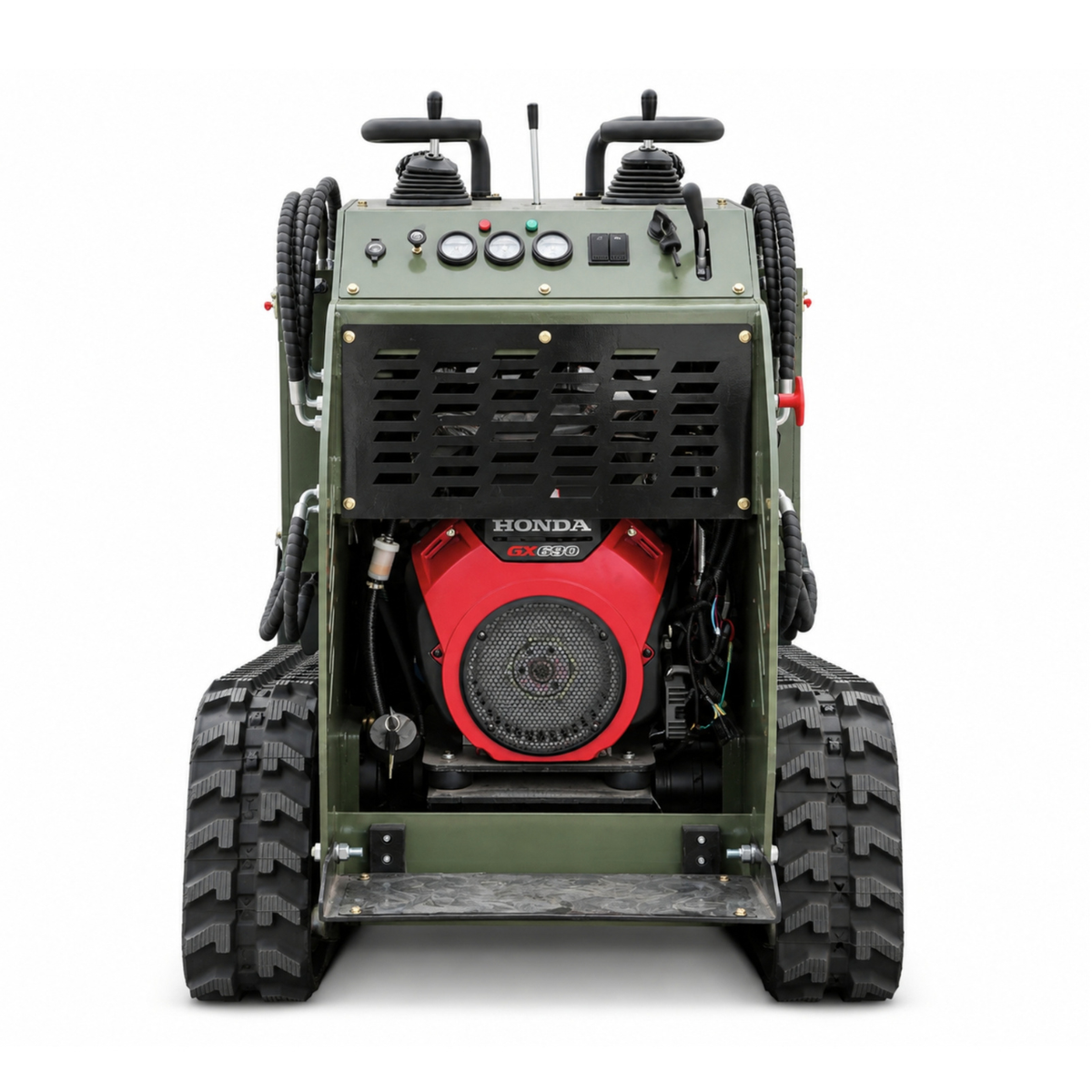

The STOMP 502 PRO is powered by a 22.1 HP Honda GX690 air-cooled V-Twin gasoline engine operating at 3,600 RPM. Built to support everyday material handling and demanding jobsite tasks, this engine provides dependable power for a variety of applications.

A 5.33-gallon fuel tank helps extend working time between refueling stops, allowing operators to maintain productivity throughout the day.

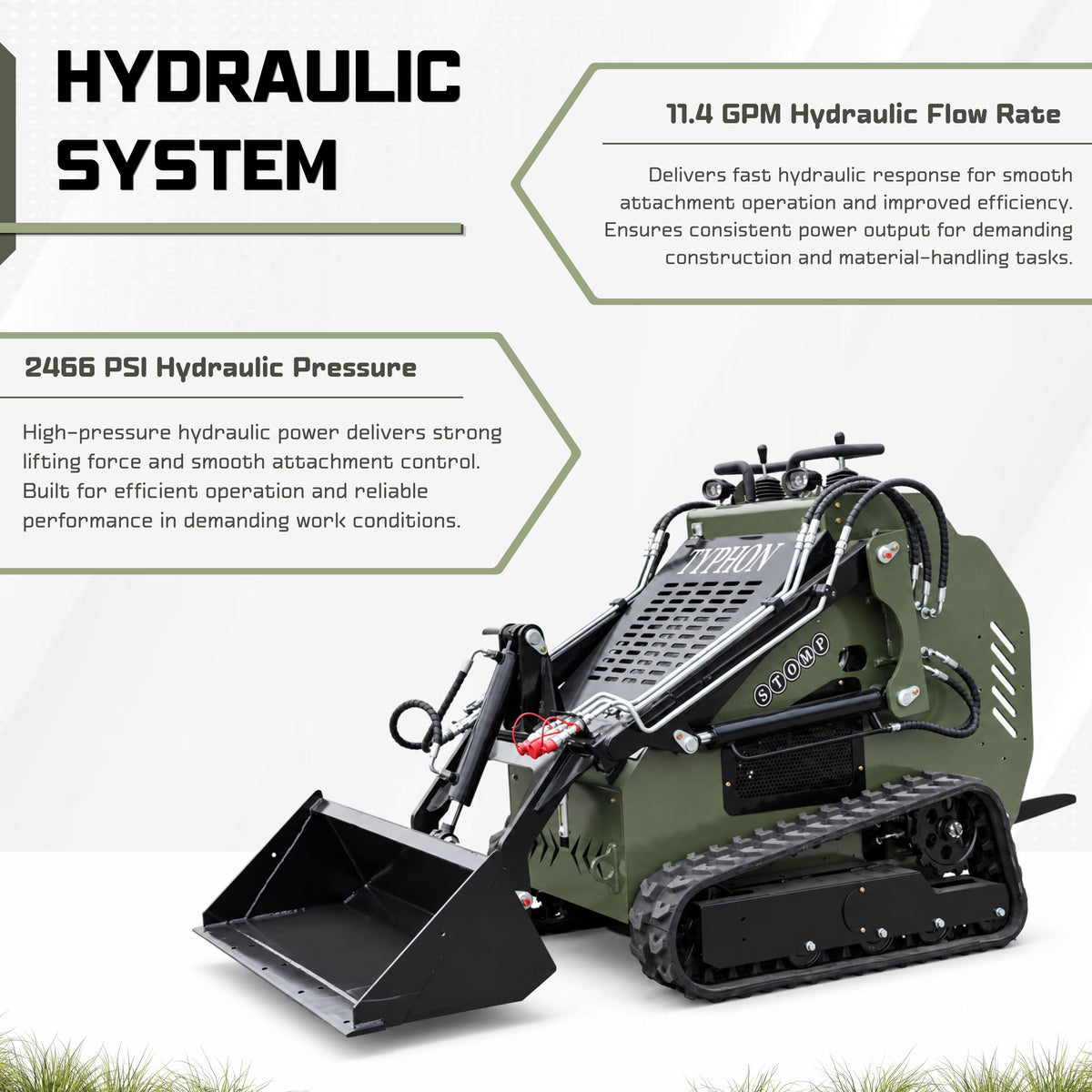

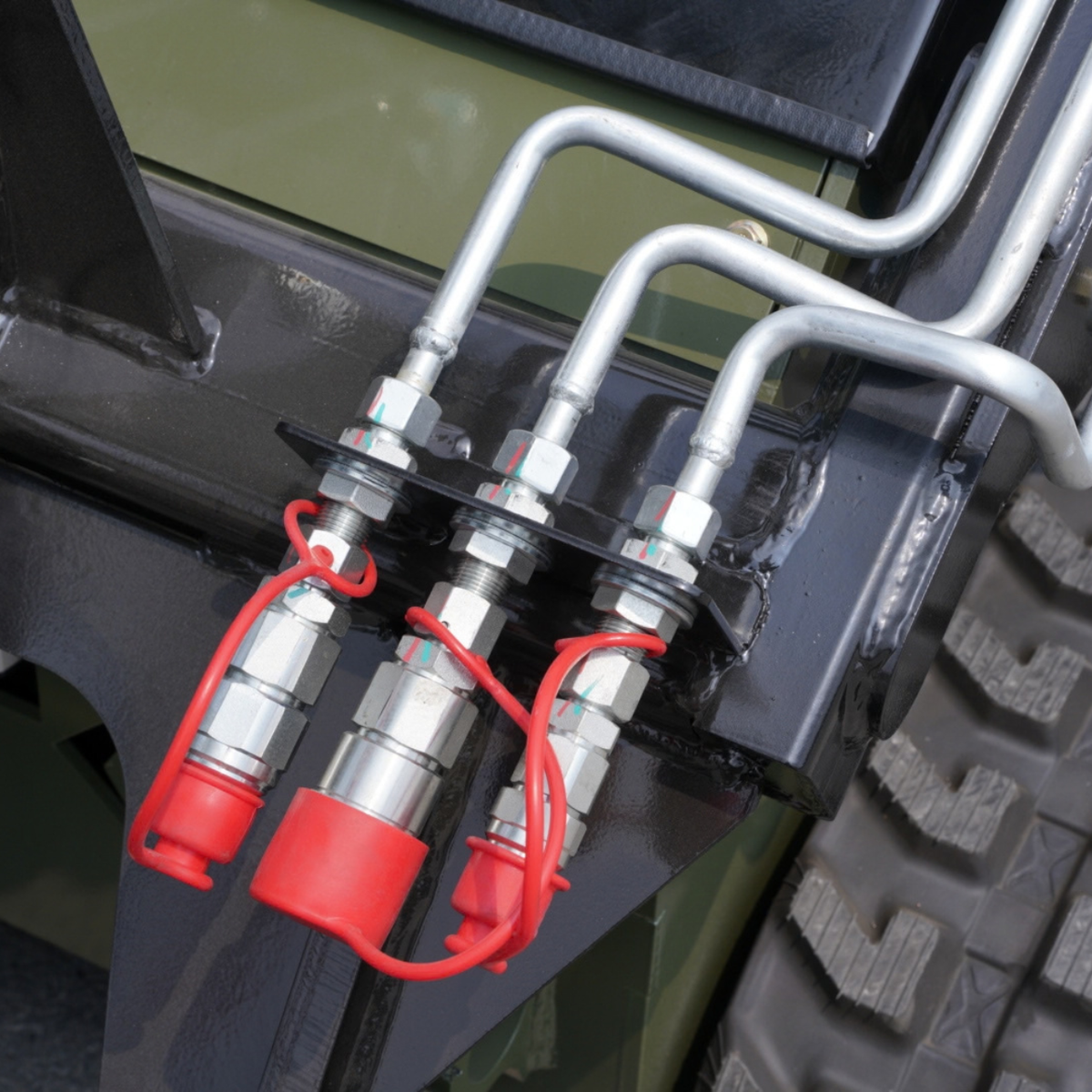

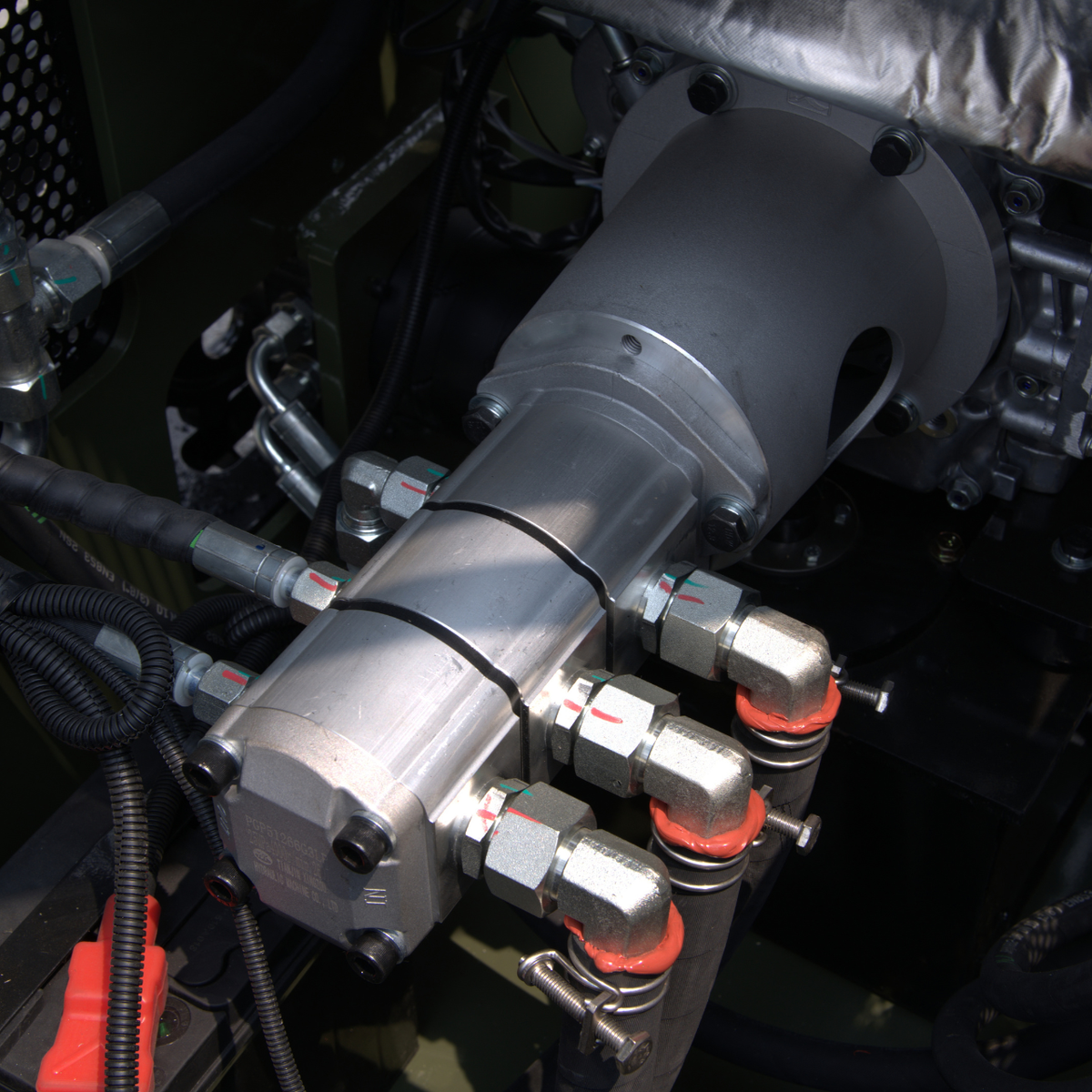

02. Versatile Three-Pump Hydraulic System

A 3-pump, 3-valve hydraulic configuration supports the loader's working functions and compatible hydraulic attachments. The system delivers 11.4 GPM main hydraulic flow, two additional 5.7 GPM flows, and hydraulic pressure up to 2,465.64 PSI.

With a 9.2-gallon hydraulic oil tank, the STOMP 502 PRO is designed for consistent operation across a range of material-handling and attachment-driven tasks. Depending on hydraulic requirements and compatibility, it can support equipment such as trenchers, augers, and hydraulic grapples.

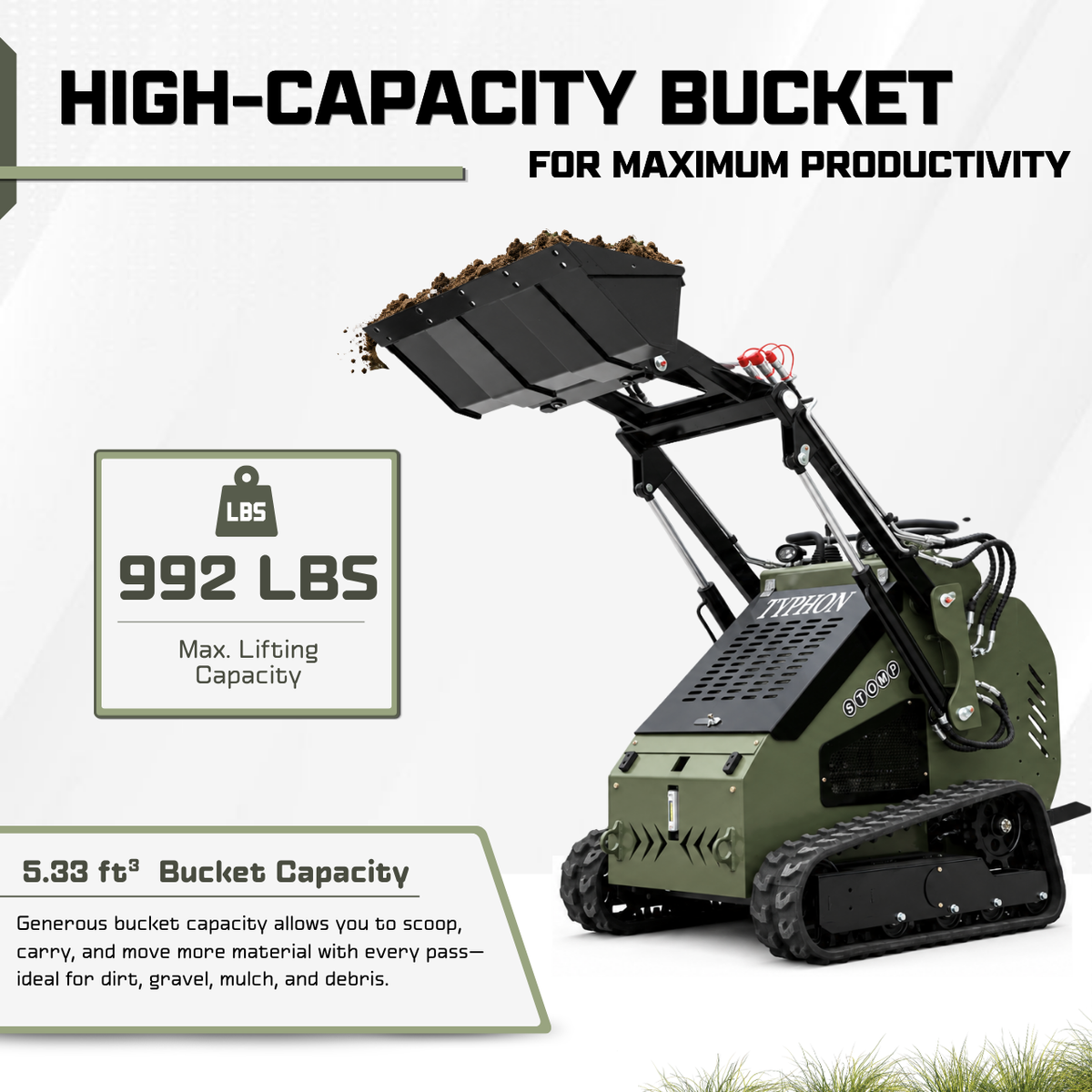

03. Productive Lifting and Loading

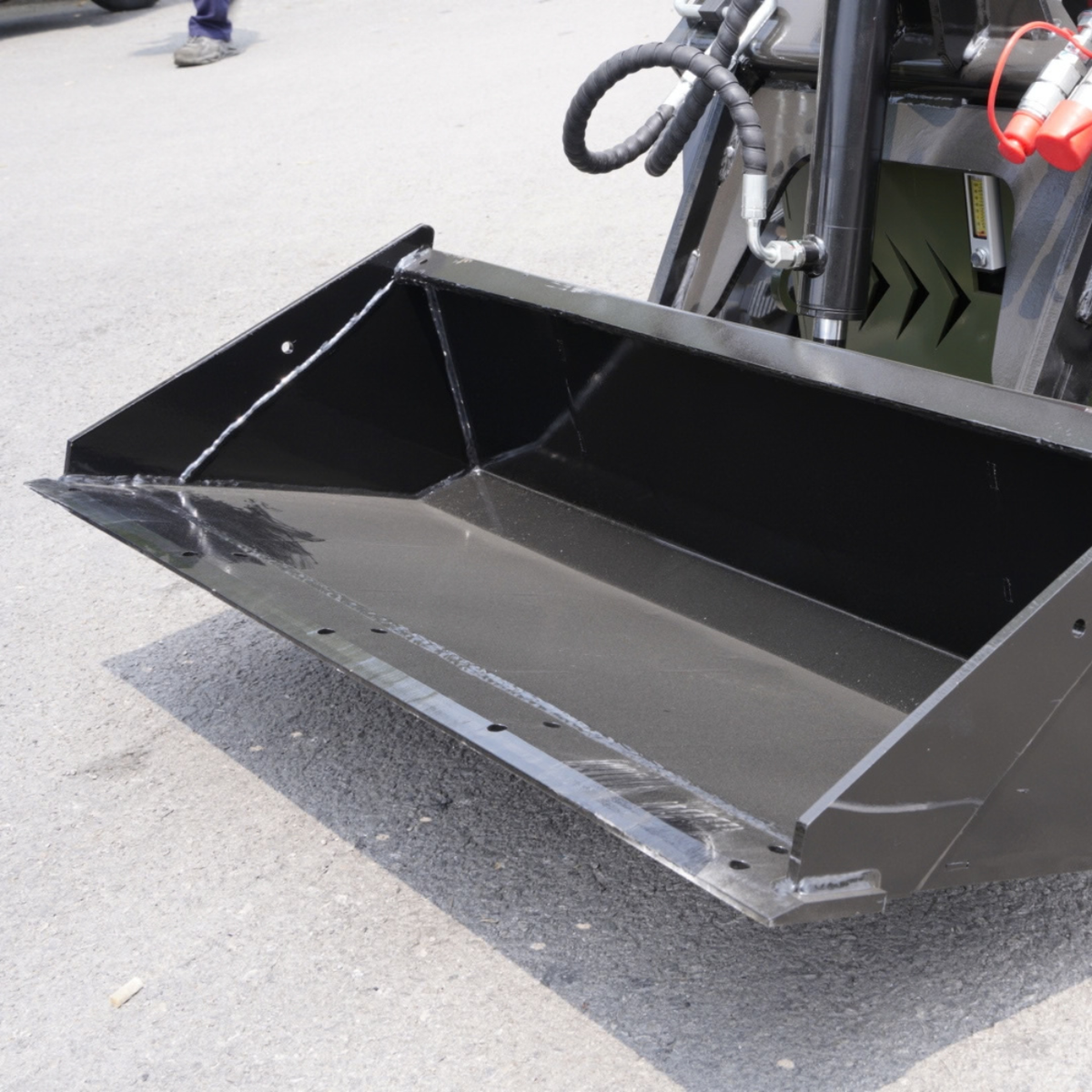

Get more work done with a 992 lb maximum lifting capacity and an 838 lb operating load. The bucket holds approximately 5.33 cubic feet, helping operators move soil, gravel, mulch, and other jobsite materials efficiently.

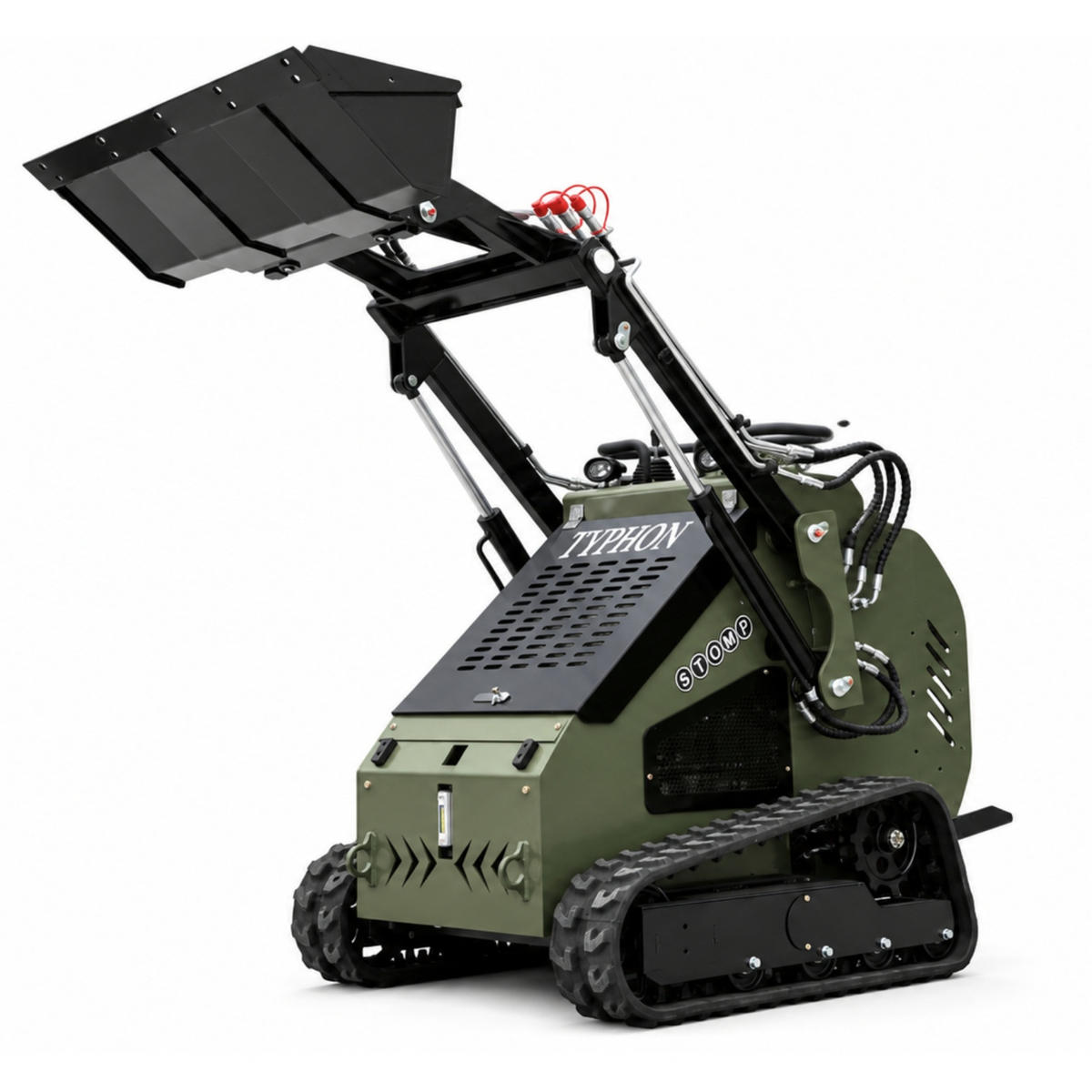

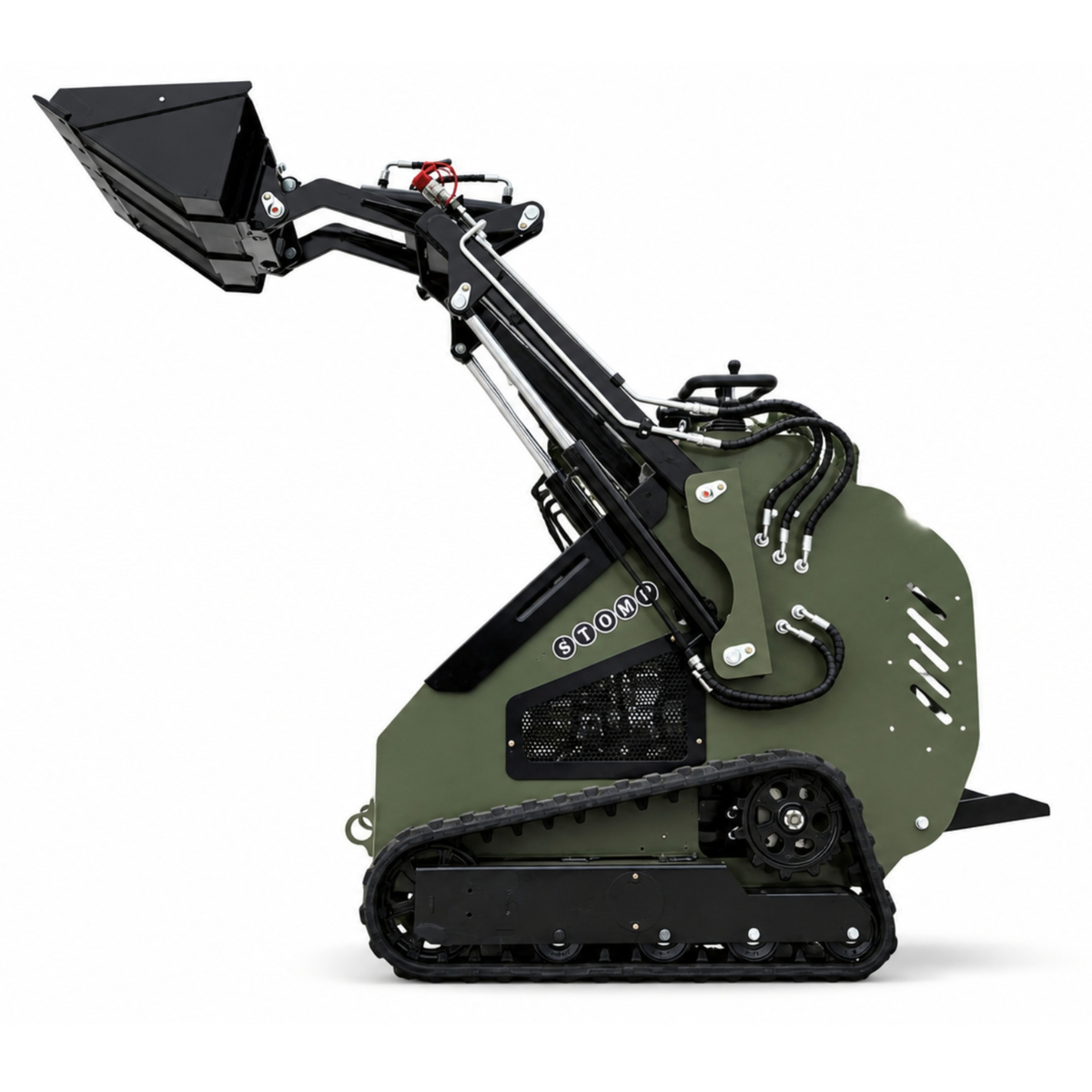

A maximum working height of 83.3 inches and a dump height of 54.7 inches provide practical clearance for transferring material into trailers, containers, and designated loading areas.

04. Intuitive Stand-On Operation

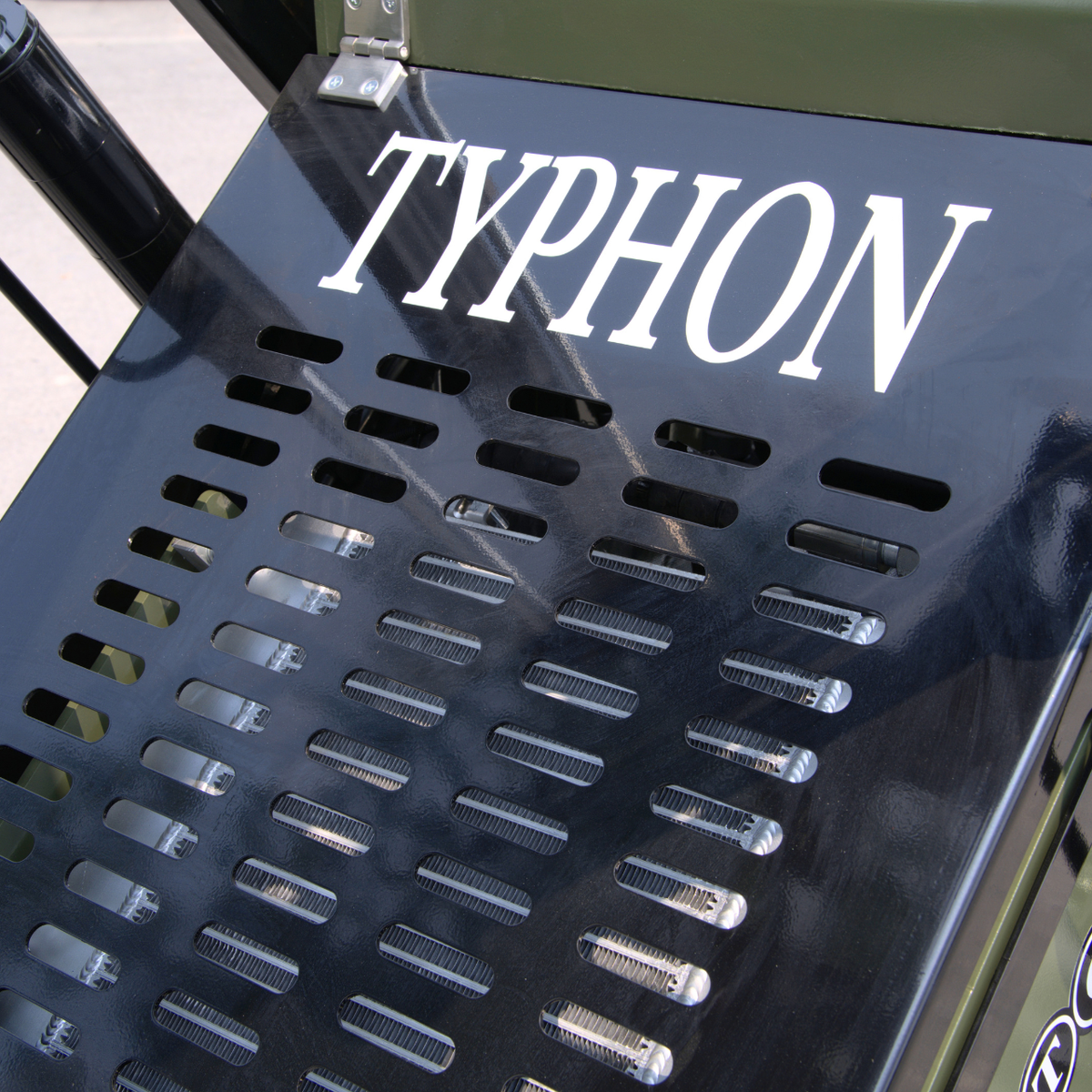

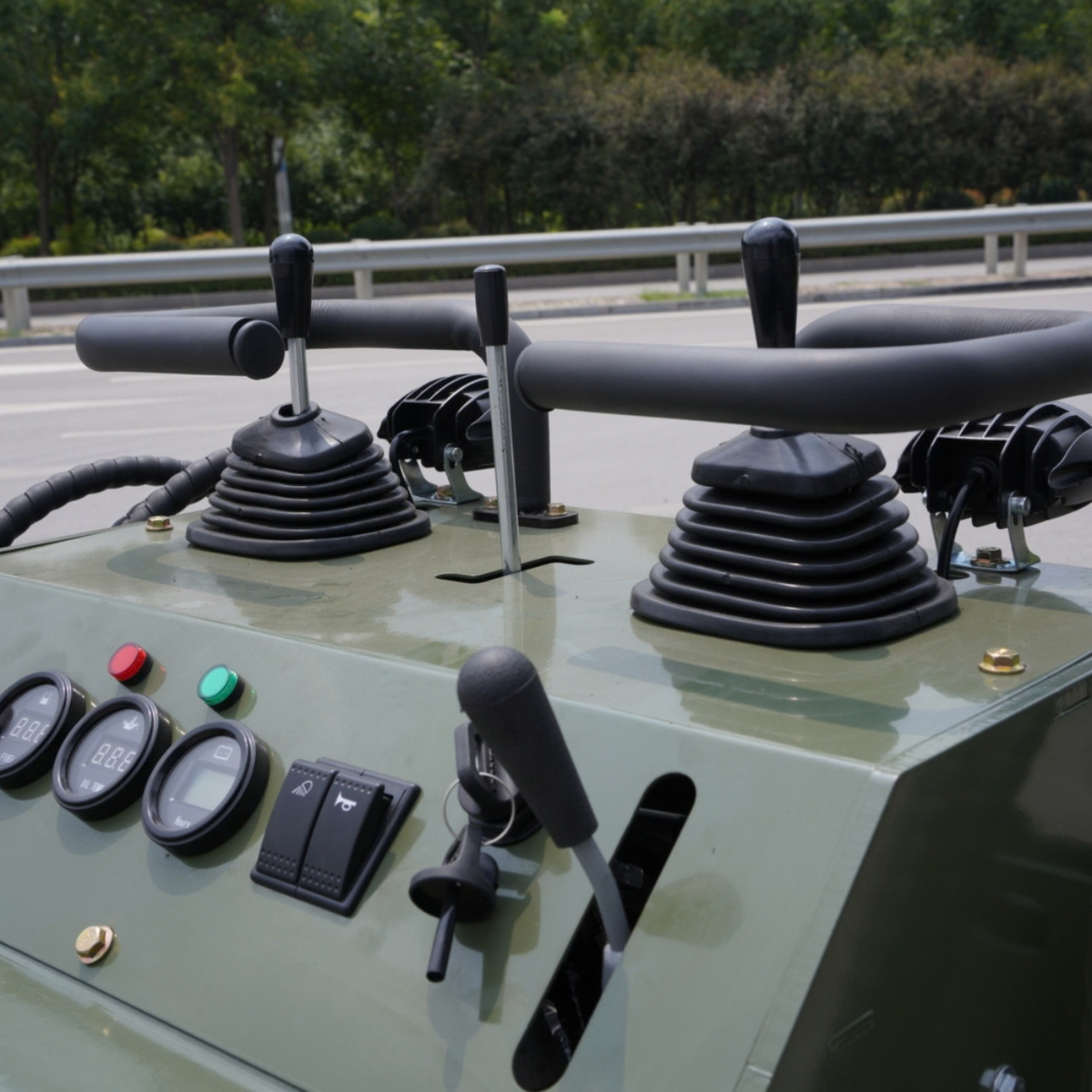

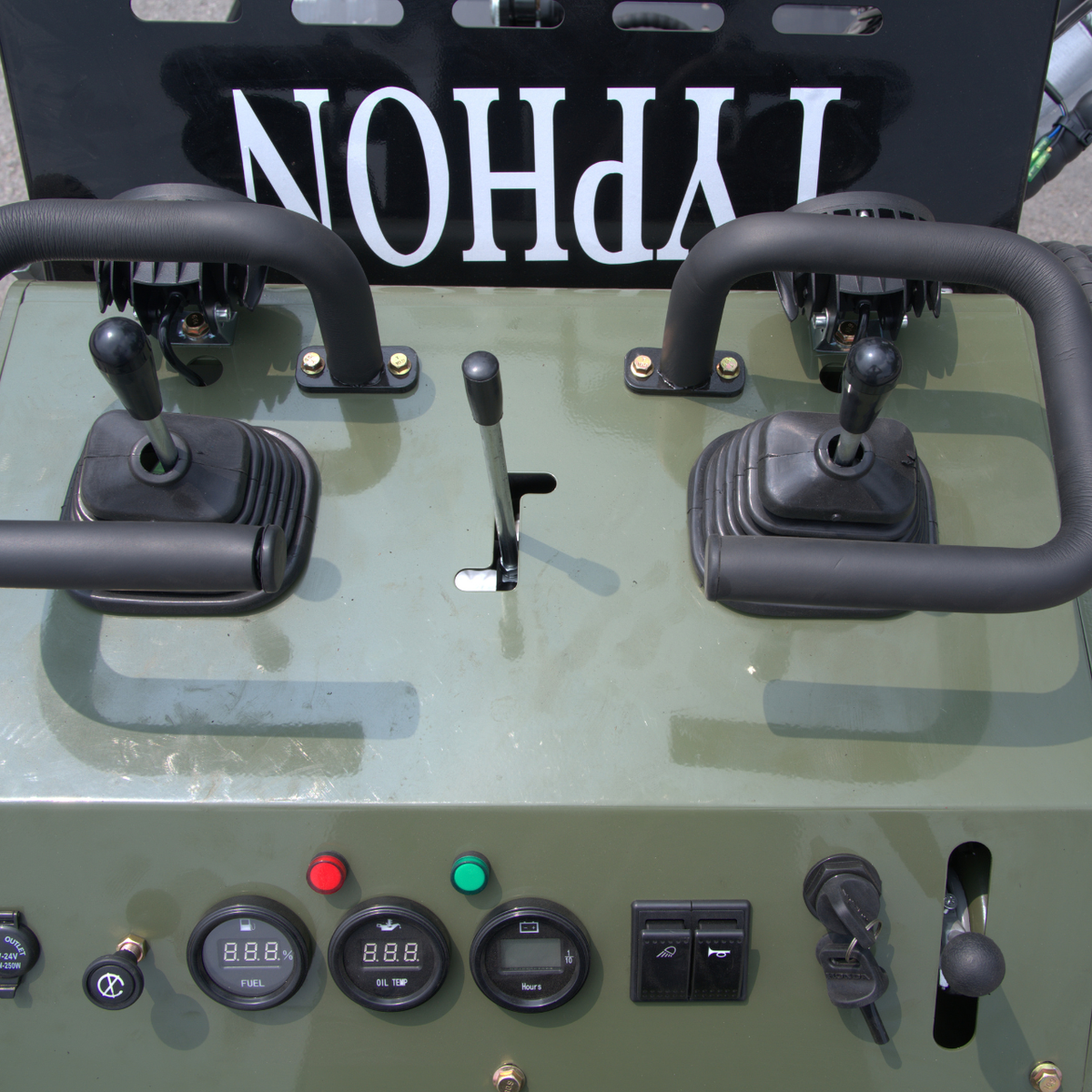

The stand-on operator platform offers direct access to dual joystick controls, allowing responsive handling and precise movement during loading, positioning, and maneuvering. The open operating layout supports visibility around the machine, while an integrated digital display helps keep important operating information within view.

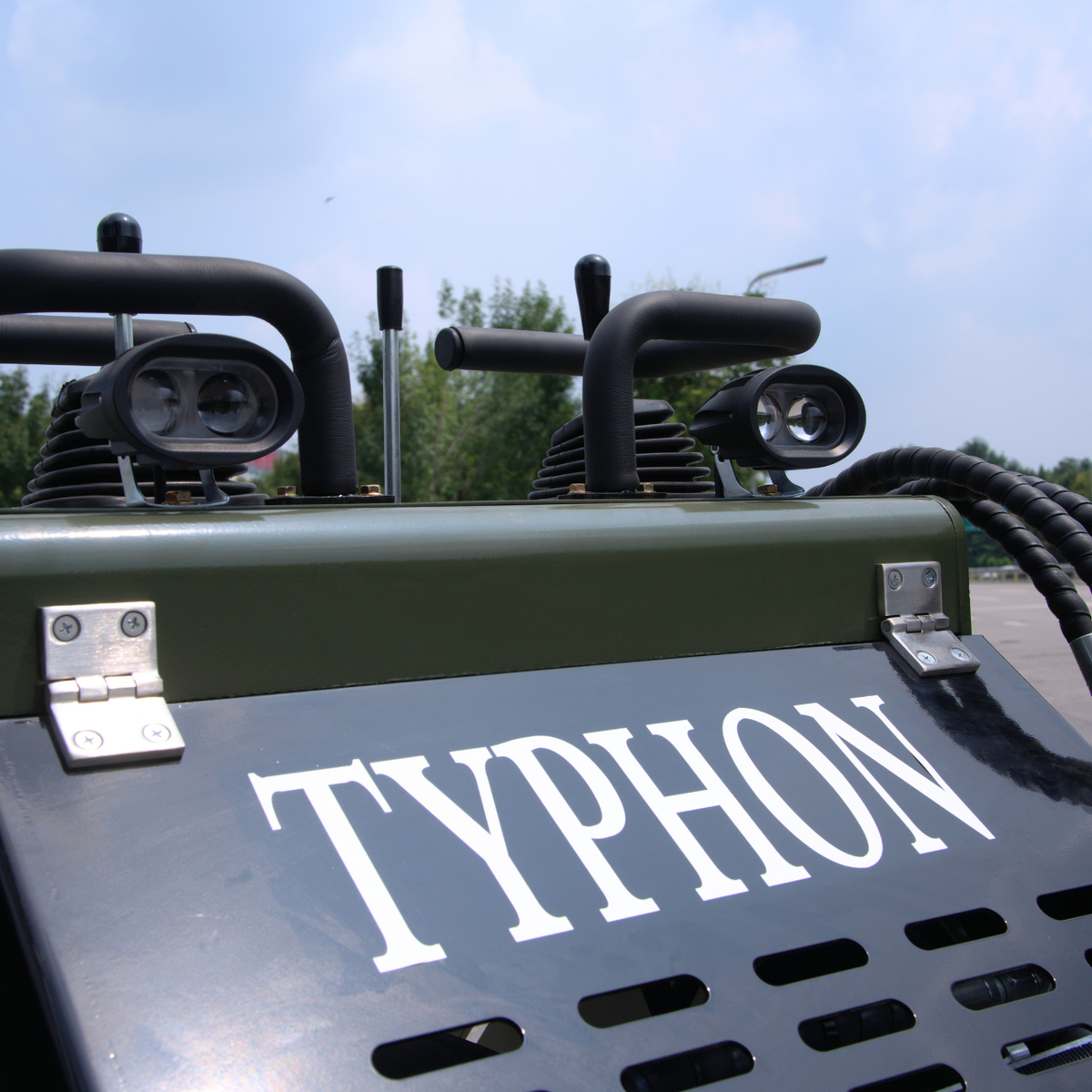

Front LED work lights provide additional illumination for working in low-light conditions, helping operators manage tasks during early starts and late finishes.

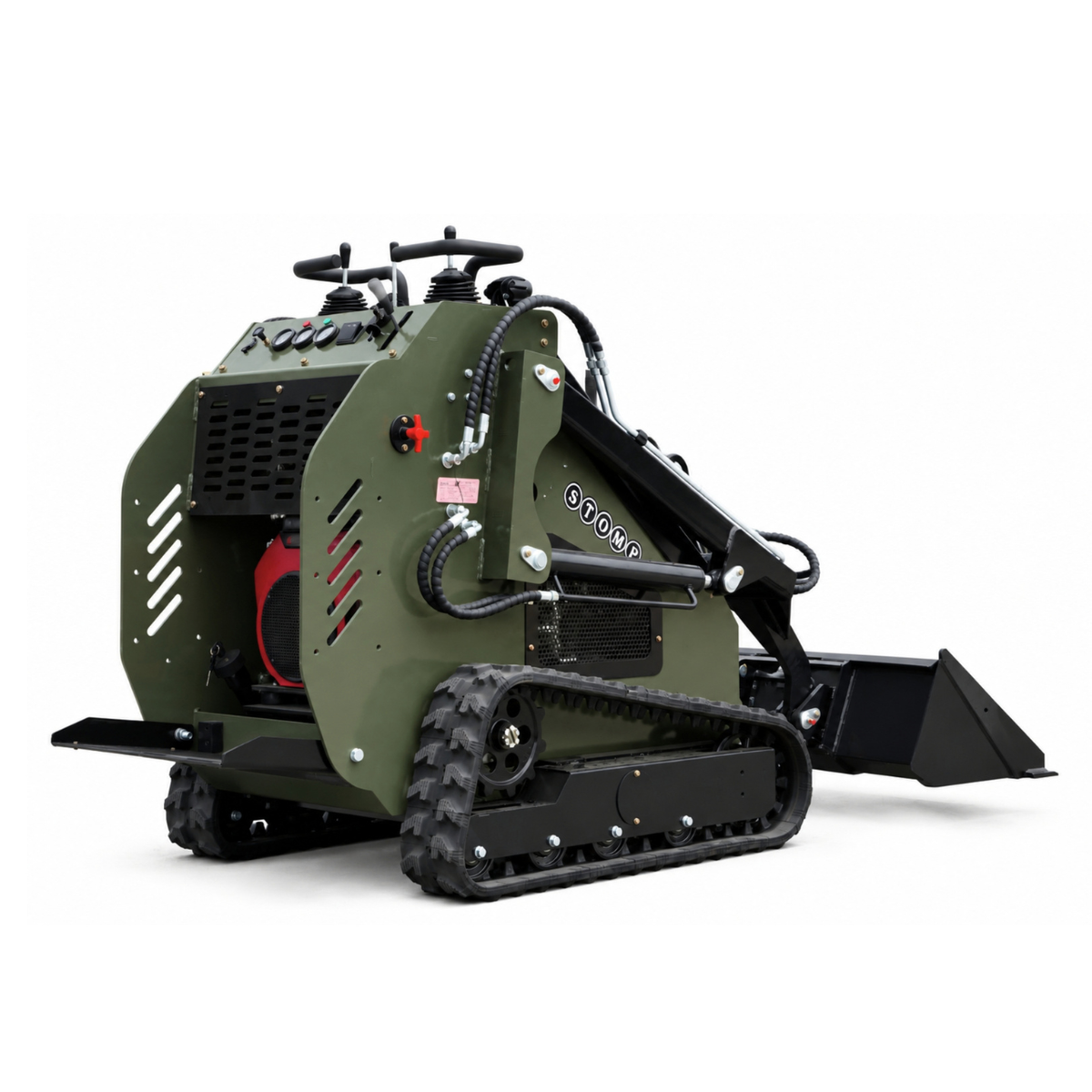

05. Compact Design for Restricted Access

With an overall width of just 40.7 inches, the STOMP 502 PRO is designed to navigate narrow passages, garden gates, and confined work areas where larger equipment may struggle.

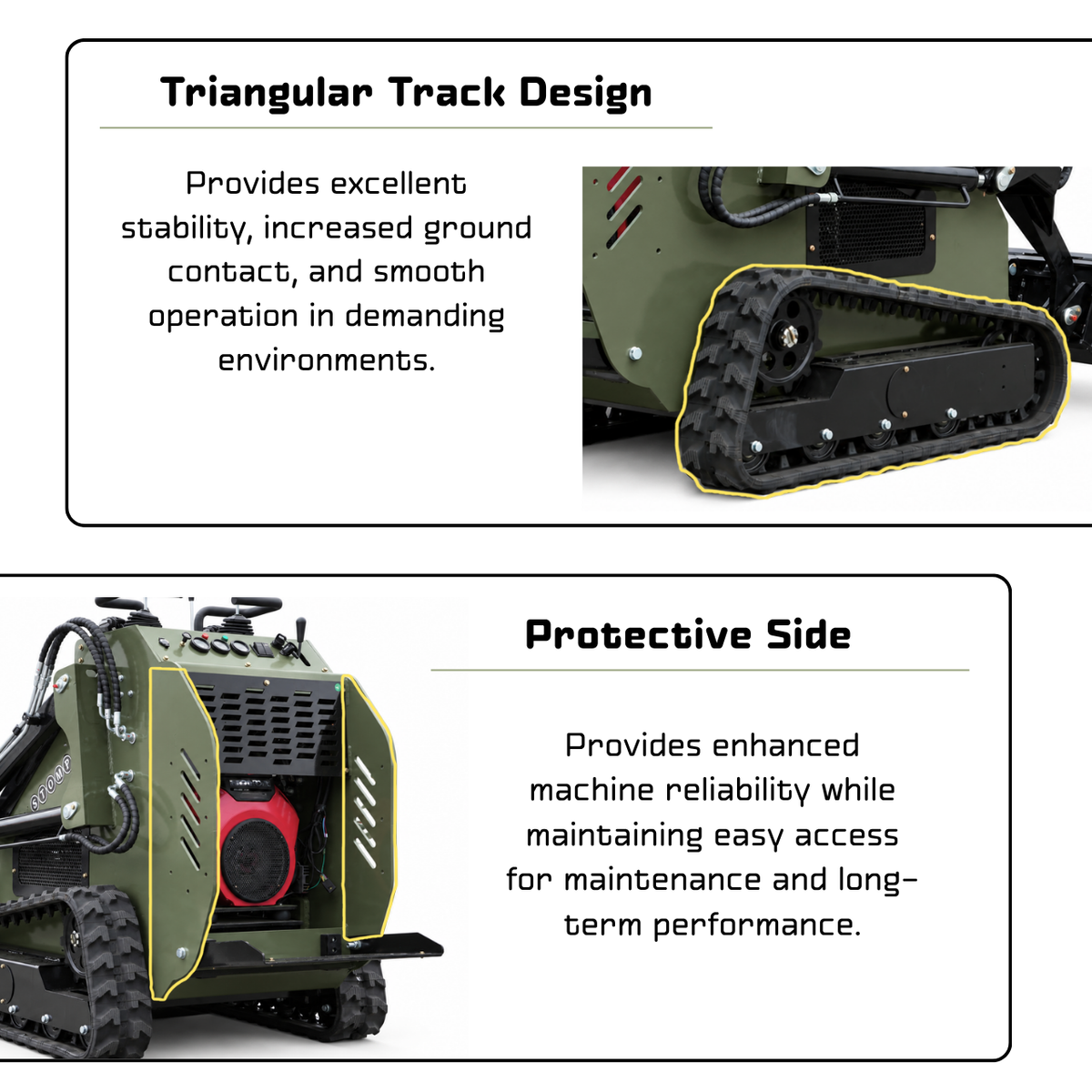

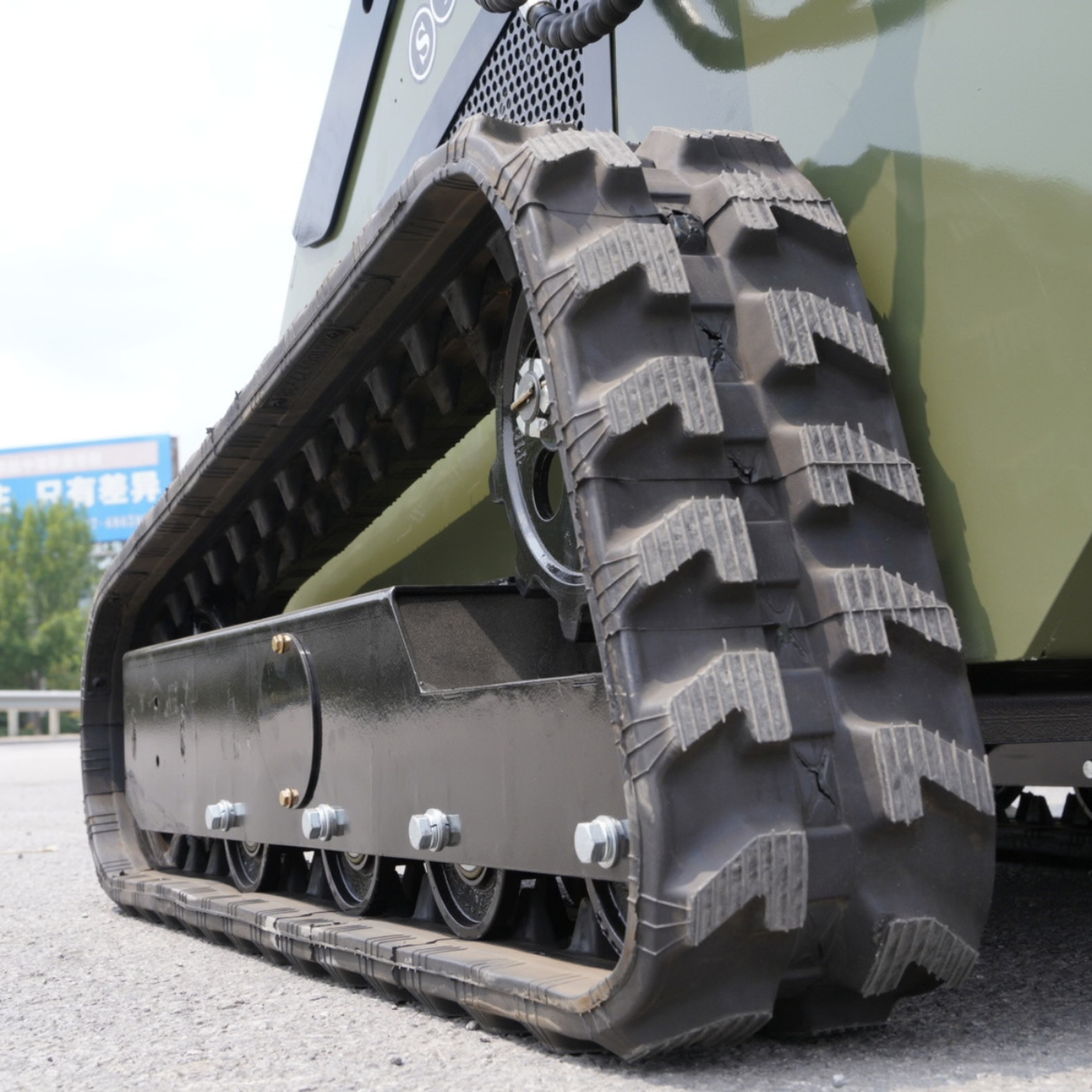

Its rubber Triangle track system provides traction across a variety of jobsite surfaces while helping reduce ground disturbance when operated appropriately. At an operating weight of approximately 1,962 lb, this mini loader balances compact dimensions with practical working stability.

A travel speed of up to 3.4 MPH also helps operators move between nearby work areas with less unnecessary downtime.

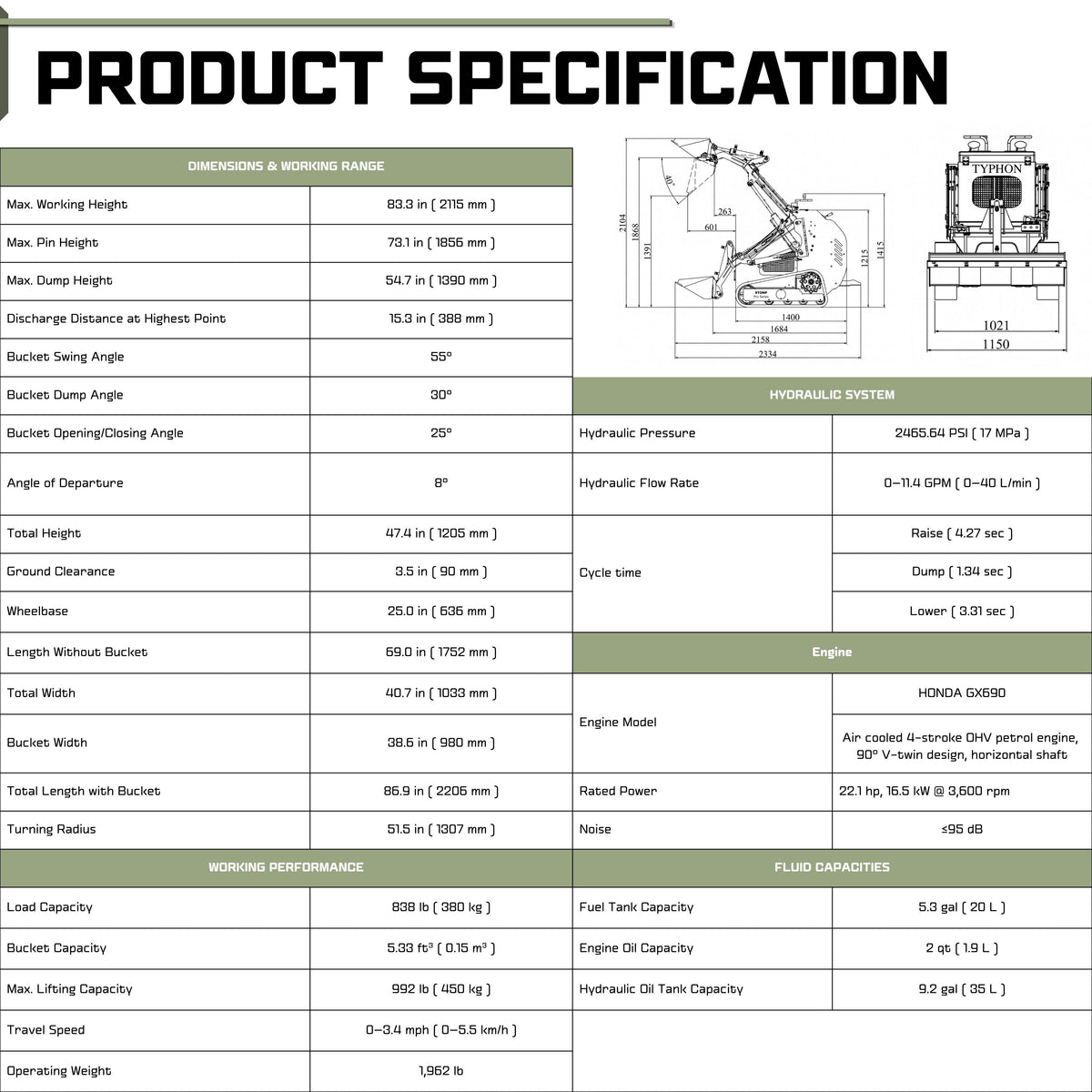

Key Features & Specifications

• Engine: 22.1 HP Honda GX690 air-cooled V-Twin gasoline engine
• Engine Speed: 3,600 RPM
• Main Hydraulic Flow: 11.4 GPM
• Additional Hydraulic Flows: Two 5.7 GPM flows
• Maximum Hydraulic Pressure: 2,465.64 PSI
• Hydraulic System: 3-pump / 3-valve configuration
• Hydraulic Oil Tank: 9.2 gallons
• Fuel Tank: 5.33 gallons
• Maximum Lifting Capacity: 992 lb
• Operating Load: 838 lb
• Bucket Capacity: 5.33 ft³
• Maximum Working Height: 83.3 inches
• Dump Height: 54.7 inches
• Operating Weight: 1,962 lb
• Overall Width: 40.7 inches
• Travel Speed: Up to 3.4 MPH
• Track System: Rubber Triangle tracks
• Operator Controls: Stand-on platform with dual joysticks
• Lighting: Front LED work lights
• Attachment Compatibility: Compatible with suitable hydraulic attachments, subject to flow, pressure, and mounting requirements
