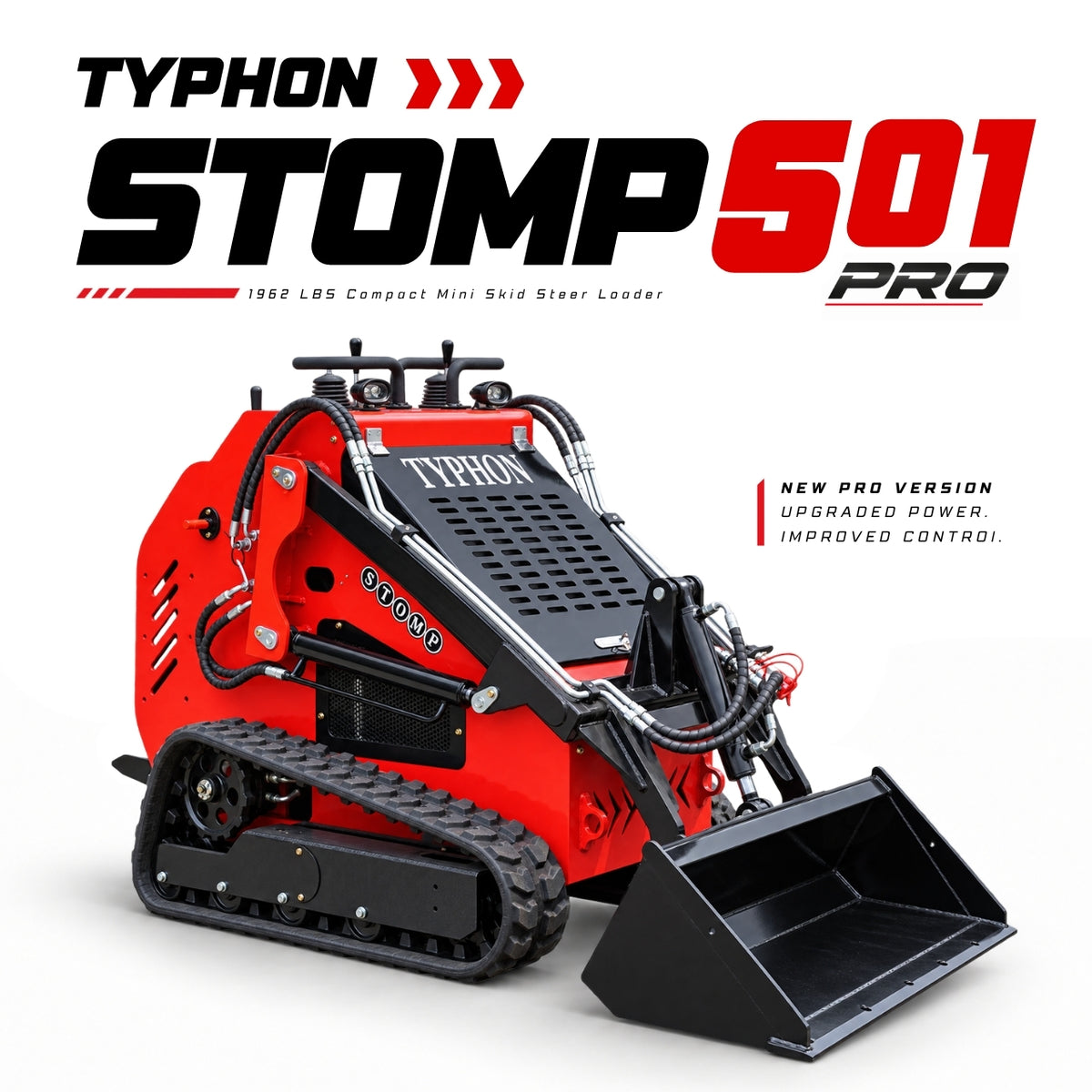

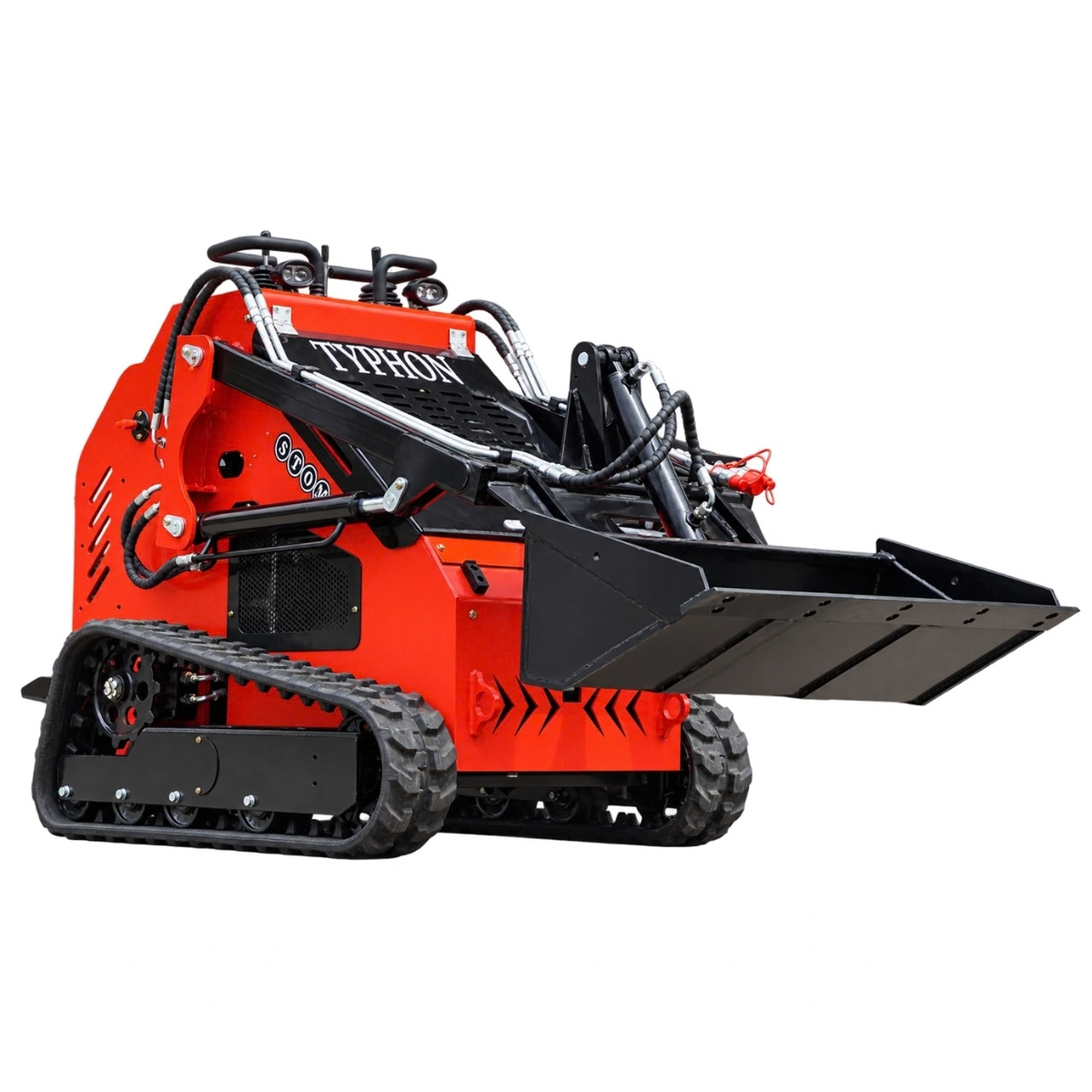

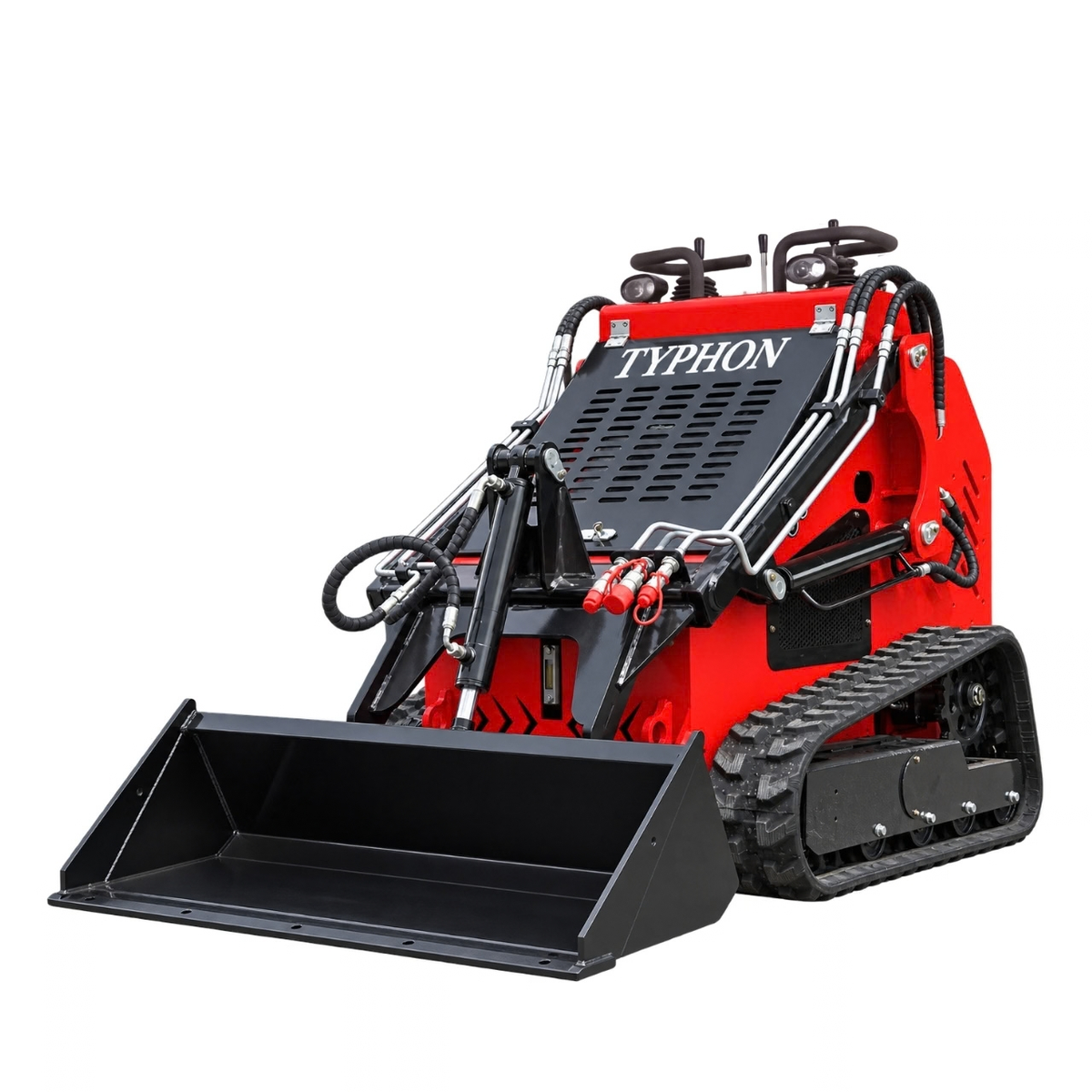

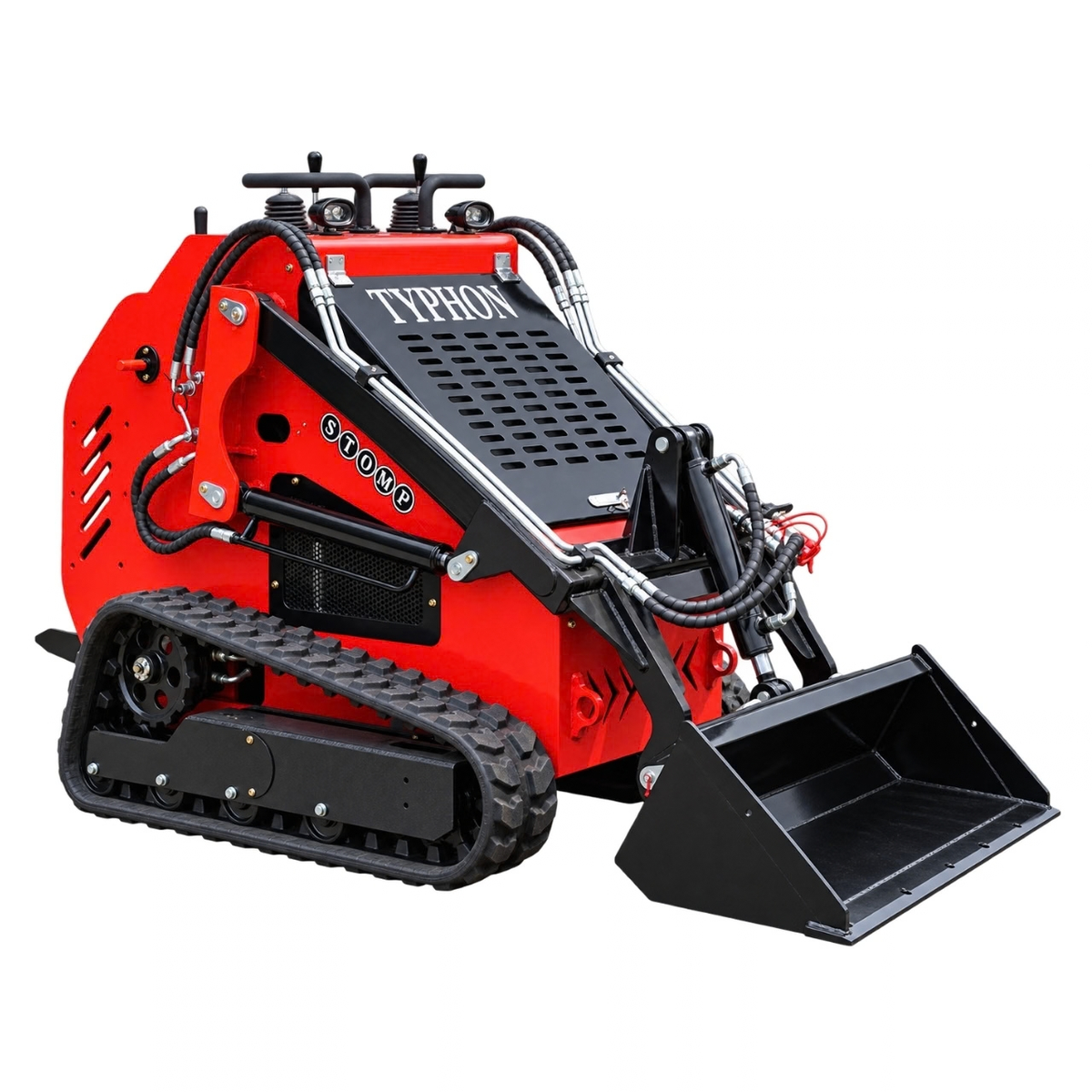

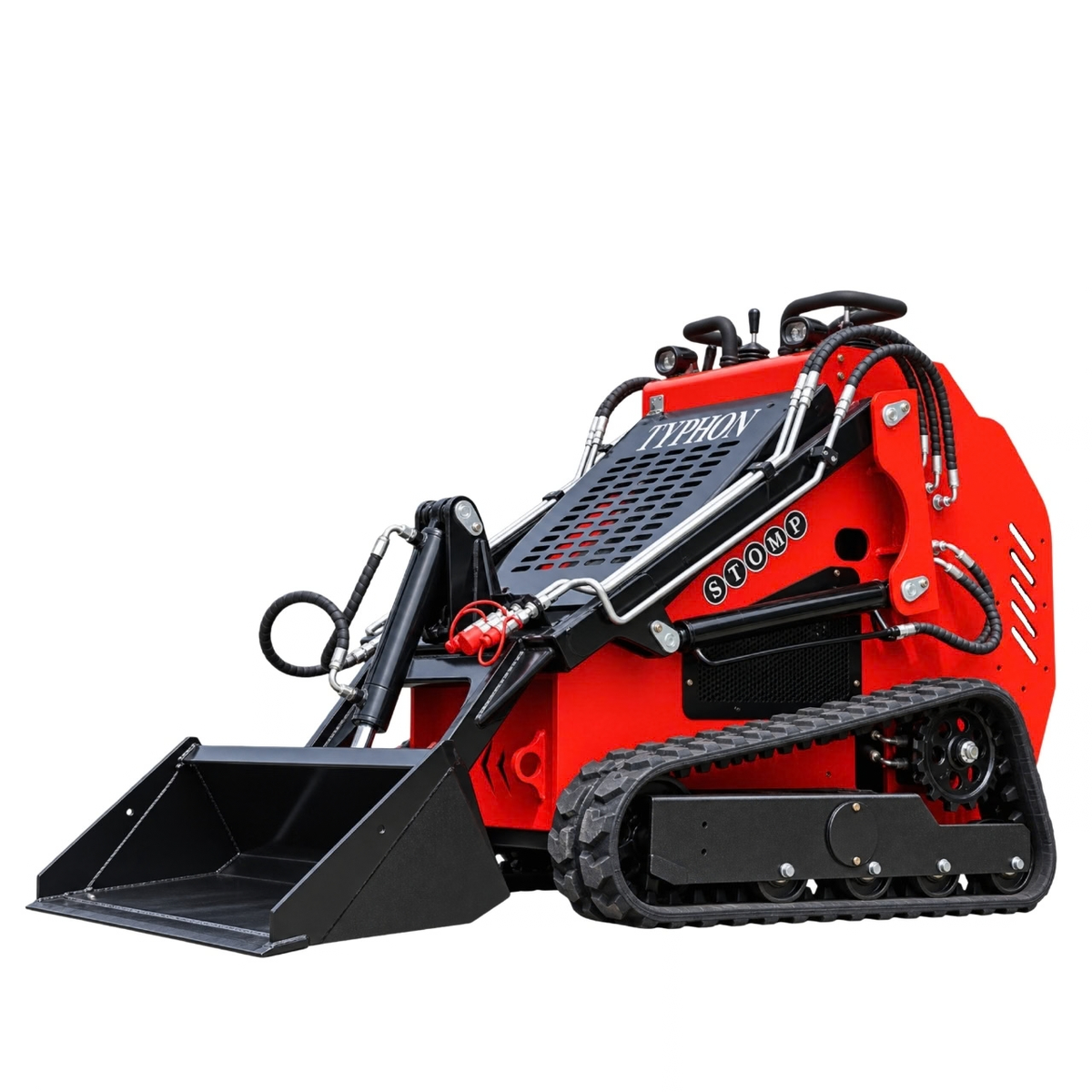

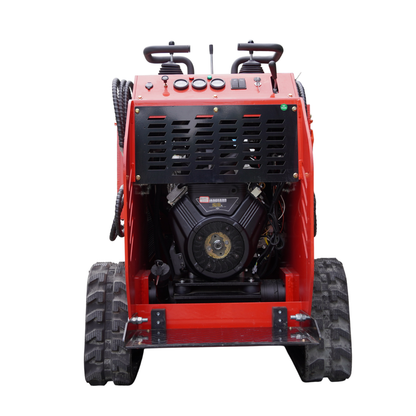

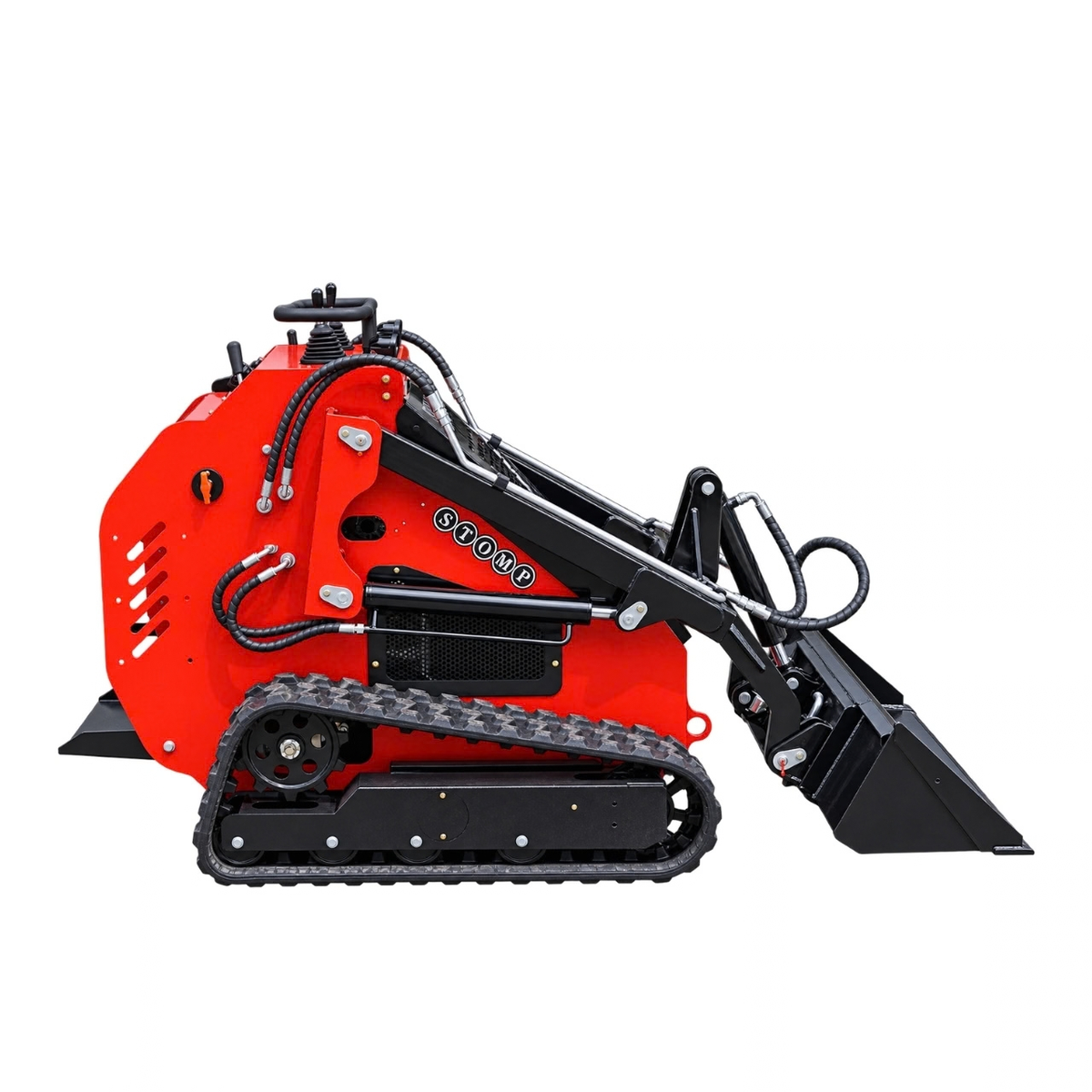

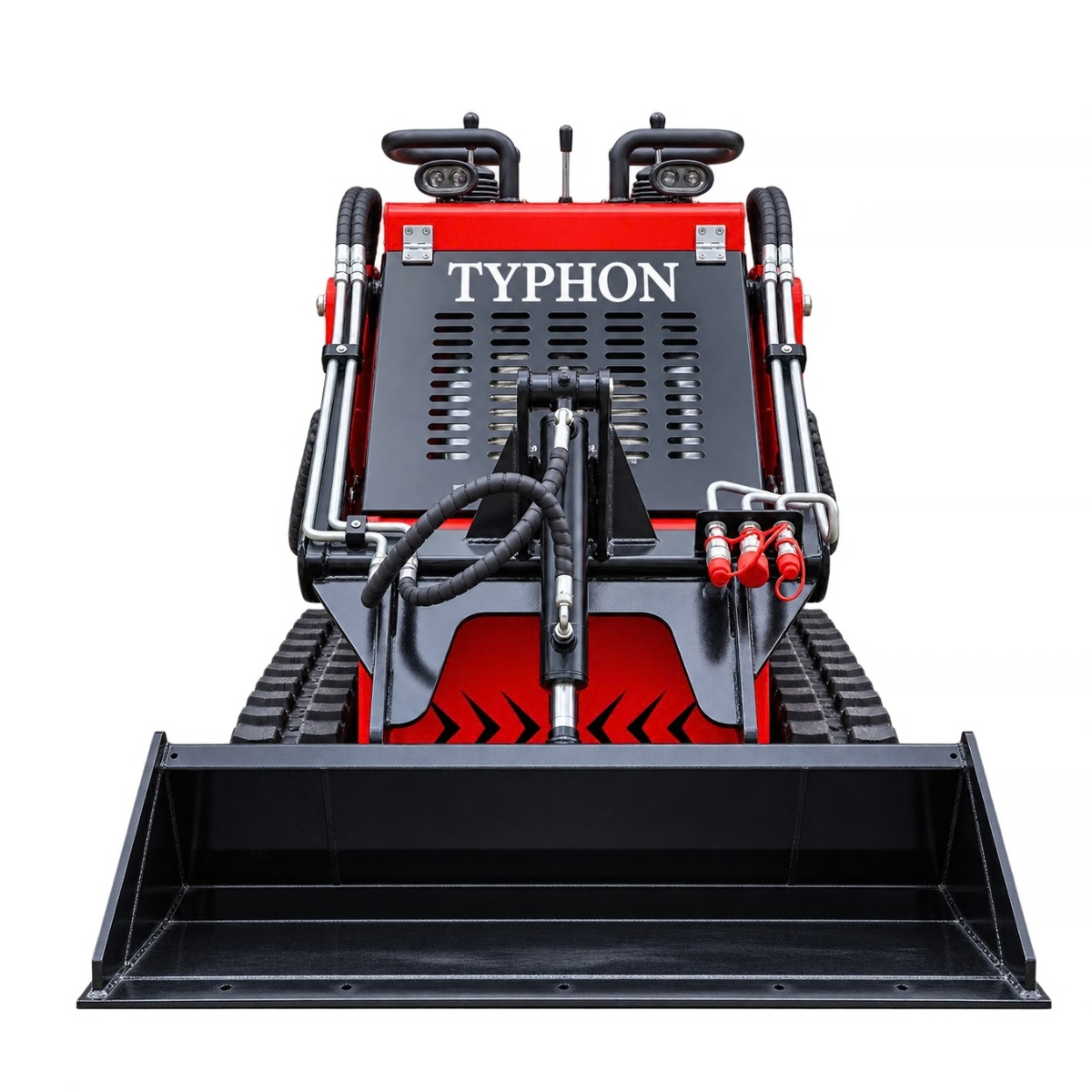

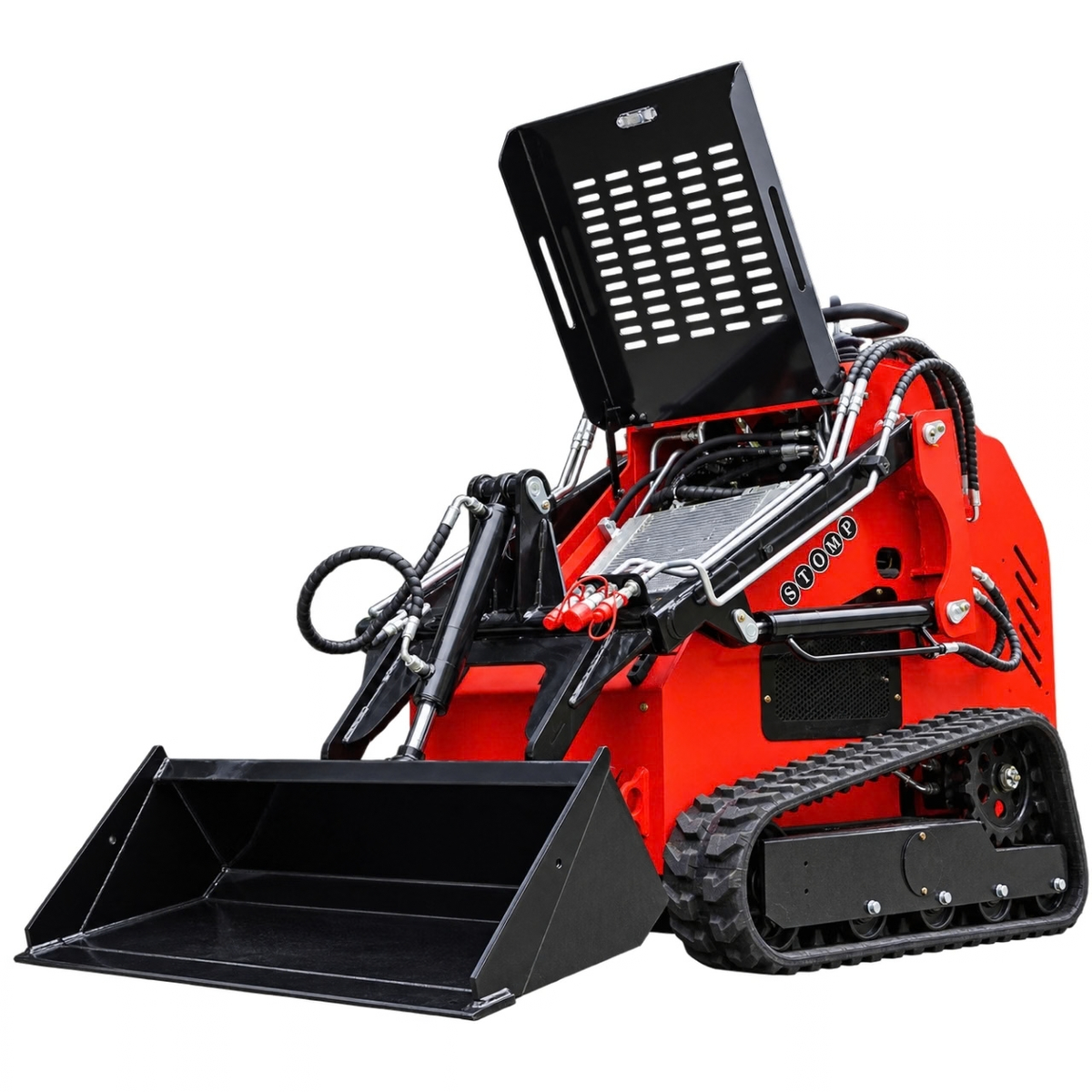

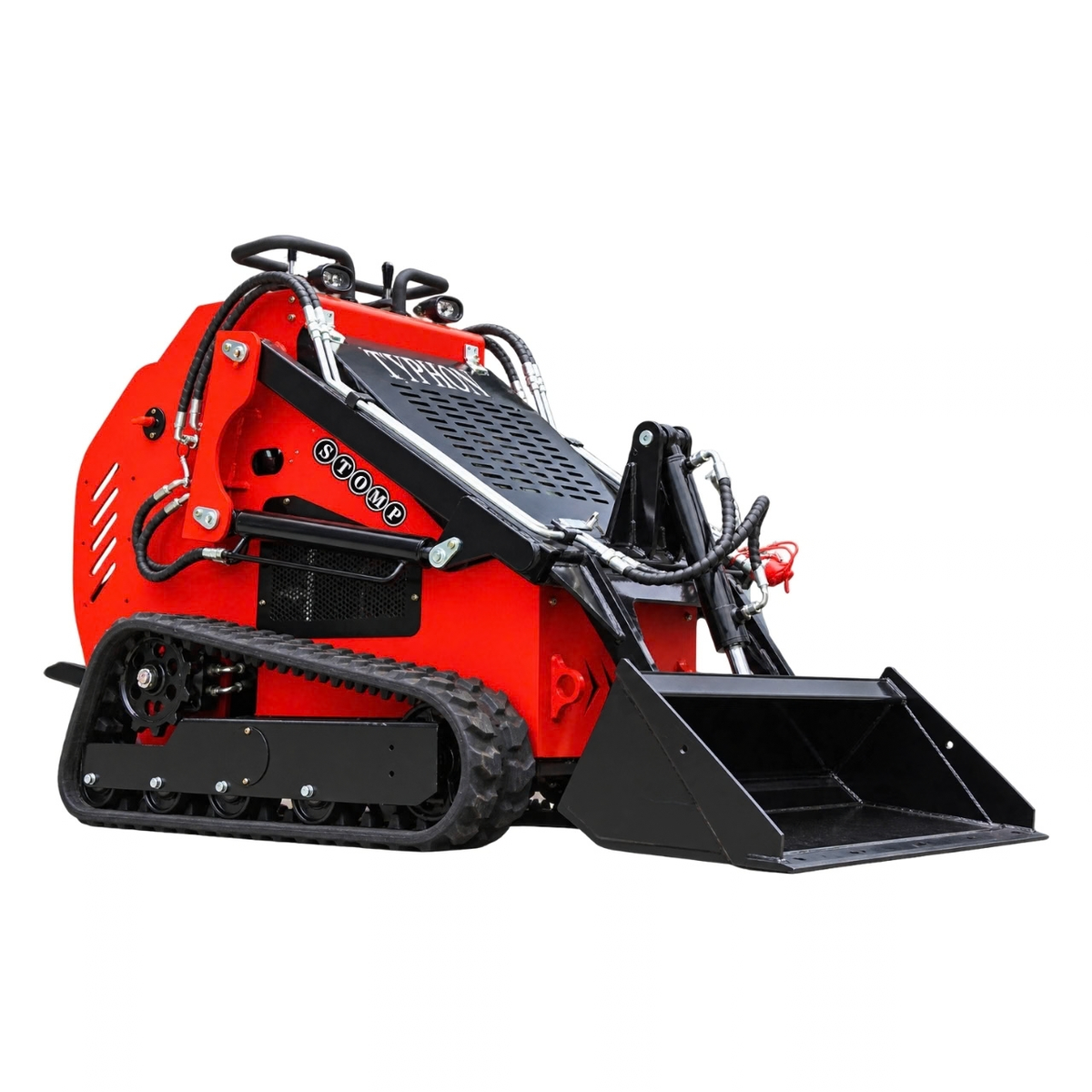

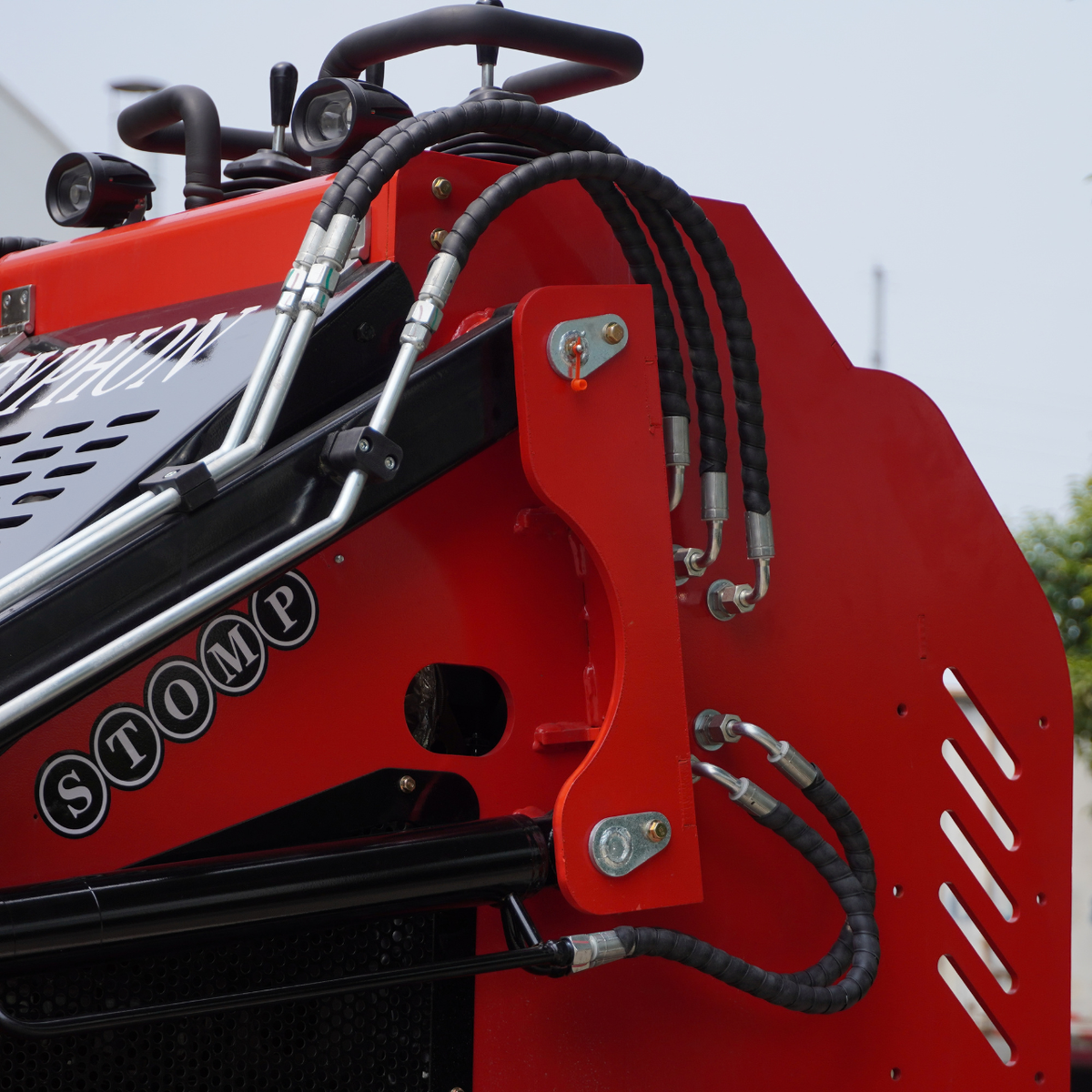

TYPHON STOMP 501 PRO Mini Track Loader 23 HP V-Twin, Hydraulics, EPA Certified

The TYPHON STOMP 501 PRO is a high-performance utility powerhouse designed for construction, demolition, landscaping, and commercial site prep. EPA Certified and powered by a 23 HP Briggs & Stratton Vanguard V-Twin engine, this machine combines dependable performance with narrow-access versatility. Dressed in high-visibility Impact Red, the STOMP 501 PRO features a rugged Triangle rubber track system and an operating weight of 1,962 lb, bridging the gap between manual labor and heavy machinery.

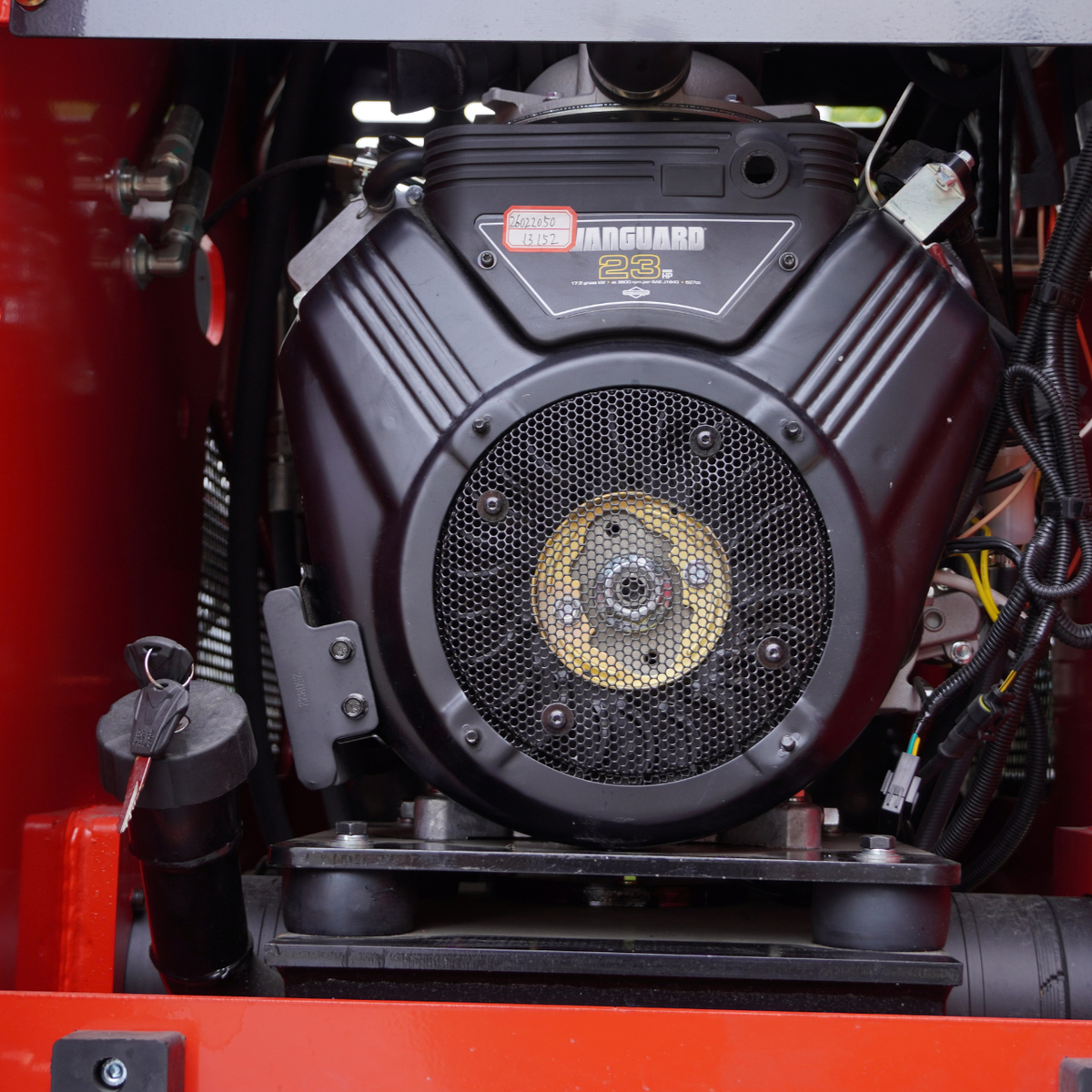

1. EPA Certified V-Twin Industrial Power - 23 HP

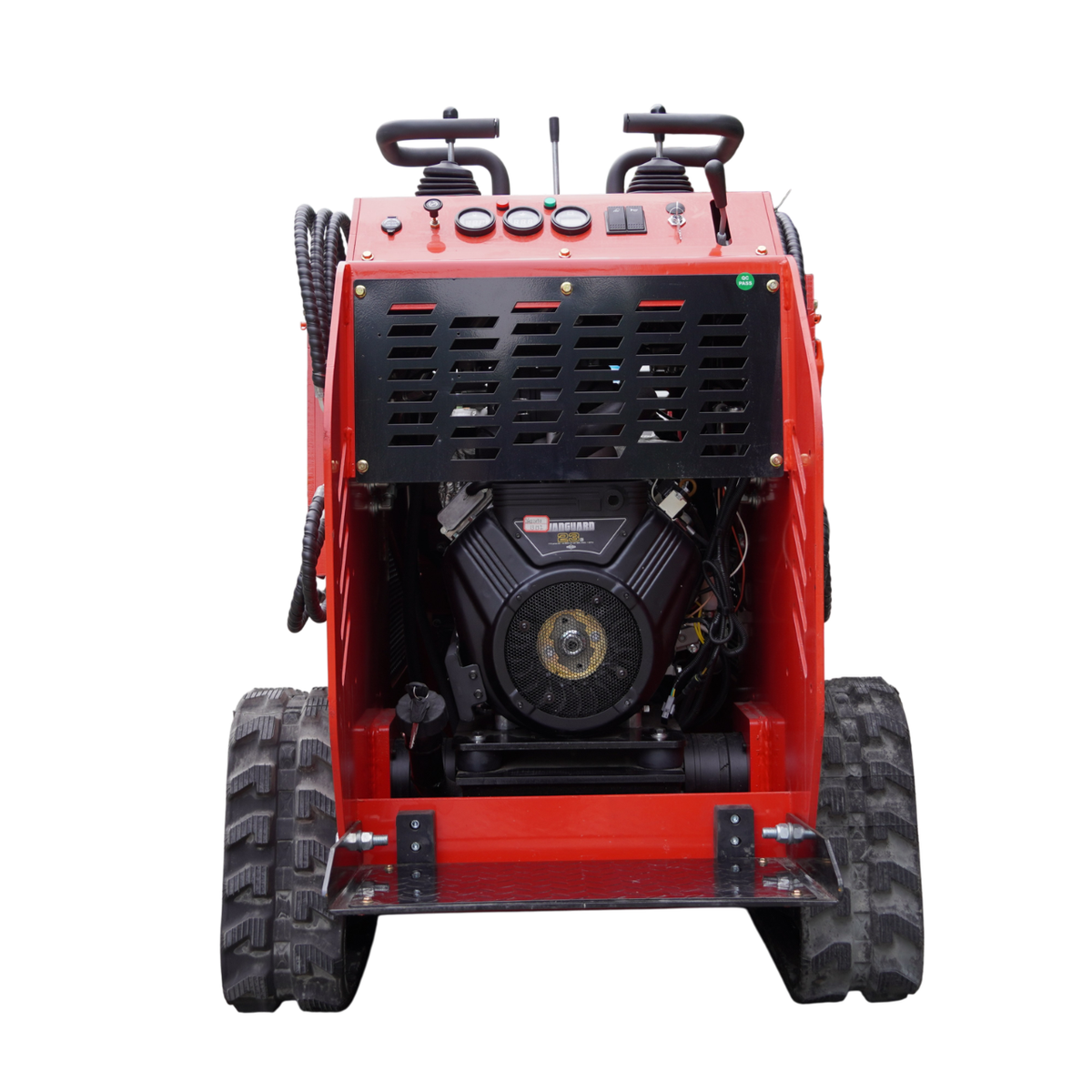

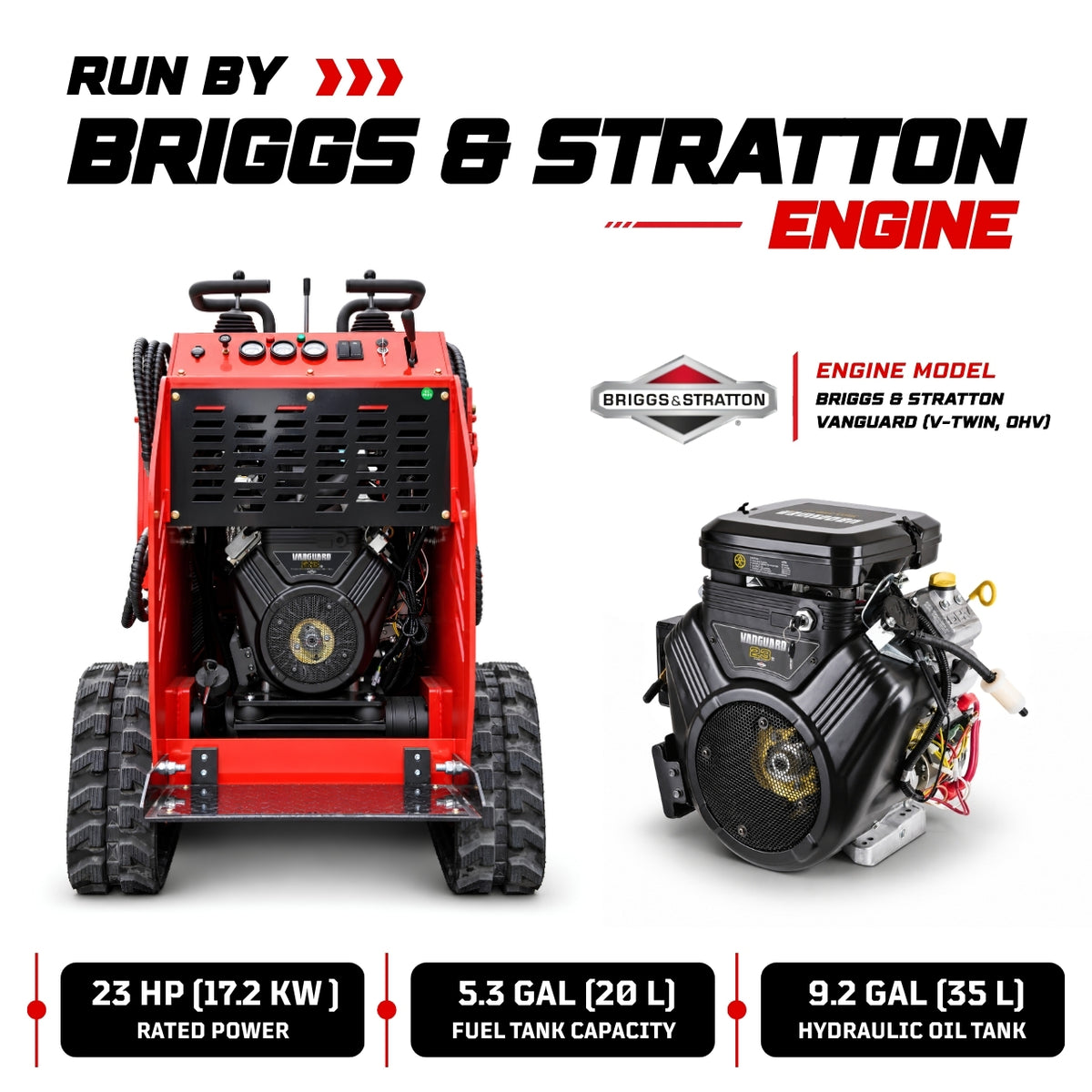

Powered by a 23 HP Briggs & Stratton Vanguard V-Twin gasoline engine, the STOMP 501 PRO delivers dependable power for demanding residential and commercial jobsites. EPA Certified for compliant operation, the air-cooled engine and 5.33-gallon fuel tank support extended work sessions with reliable performance.

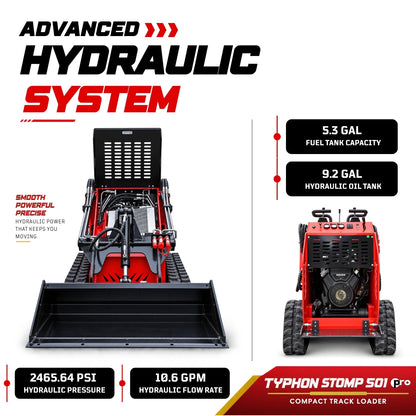

2. High-Flow Hydraulic Capability

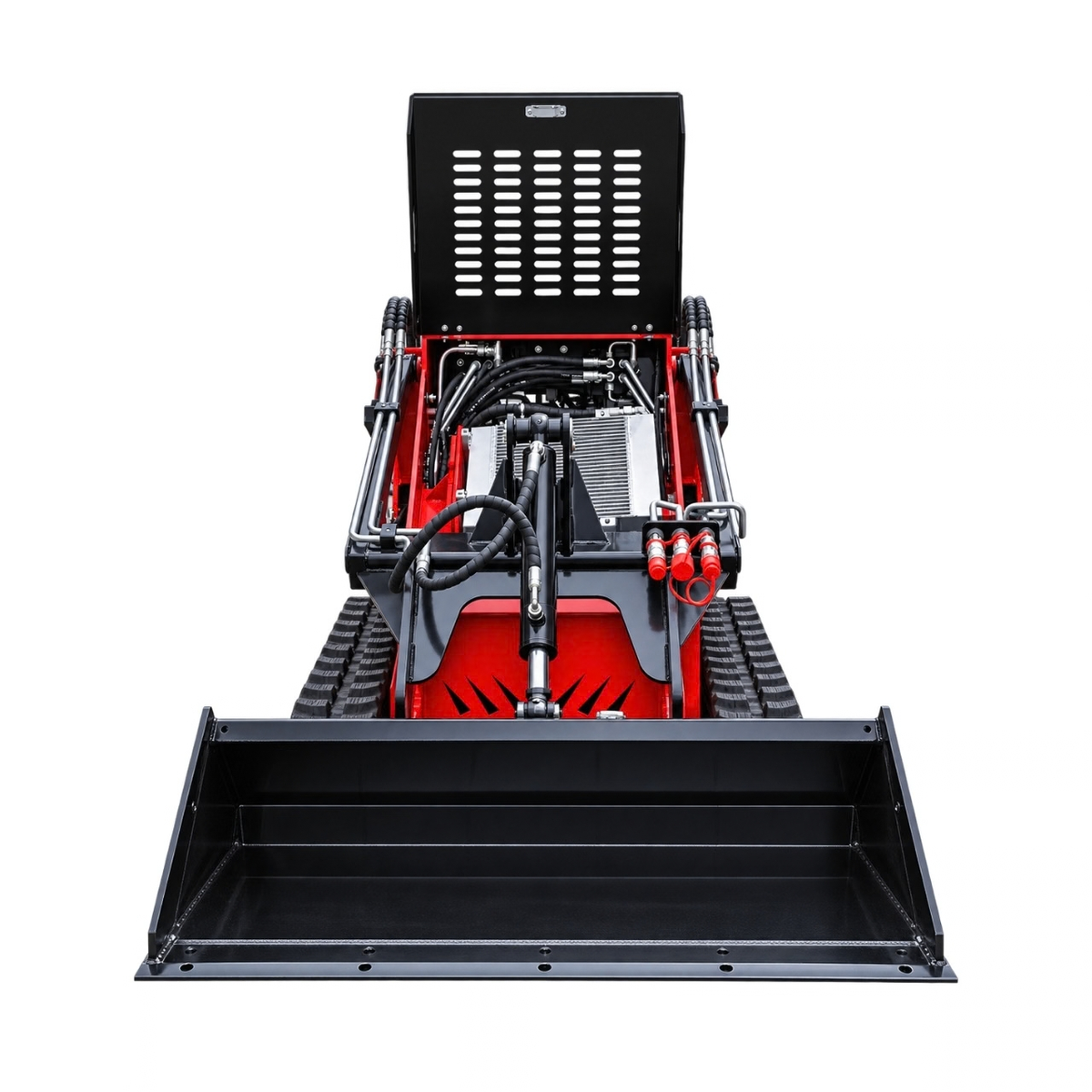

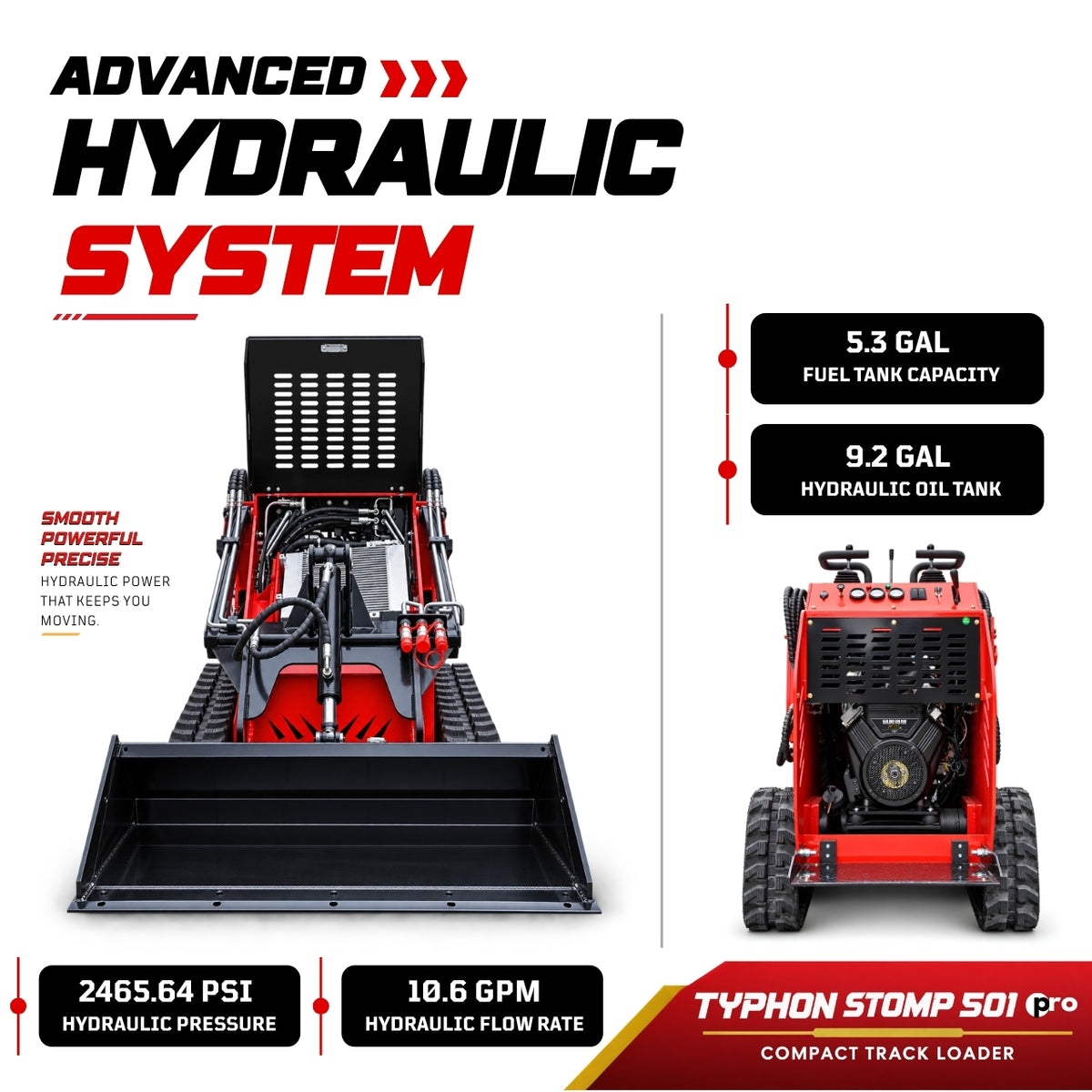

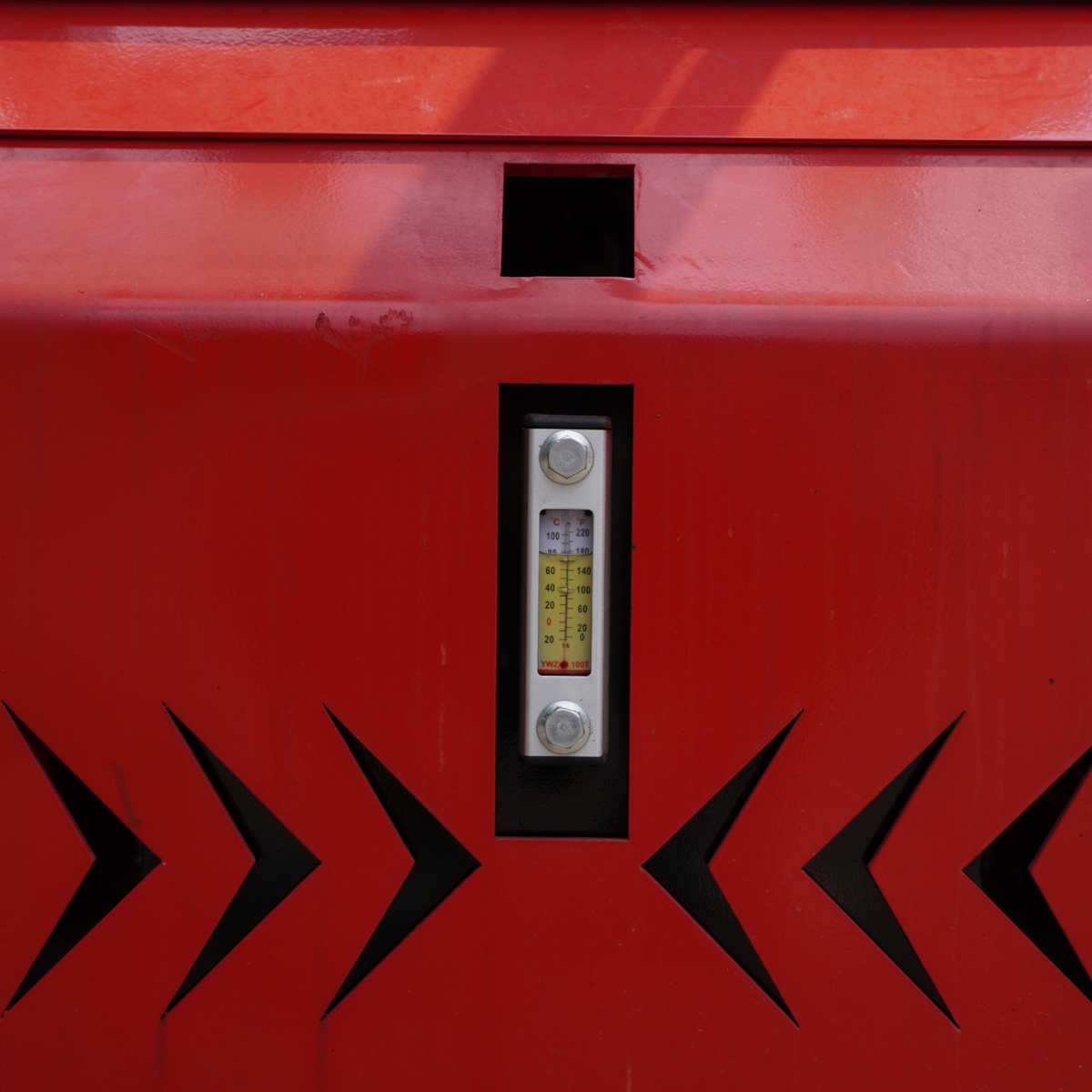

The 10.6 GPM high-flow hydraulic system delivers up to 2,465.6 PSI and is designed for professional-grade attachments. Whether running a hydraulic hammer, trencher, or high-torque auger, the 3-pump / 3-valve configuration provides responsive hydraulic power for precision work. A 9.2-gallon hydraulic oil tank provides ample fluid capacity for demanding attachment operation.

3. Compact Mobility & Narrow Gate Access

With an overall width of only 40.7 inches and an operating weight of 1,962 lb, the STOMP 501 PRO is built for confined spaces where larger equipment cannot easily operate. It maneuvers through restricted access points that block traditional skid steers, making it ideal for urban demolition, landscaping, construction, and precision excavation.

The 360° pivot steering, Triangle rubber tracks, and compact footprint provide the maneuverability and traction needed to work efficiently in tight and challenging environments.

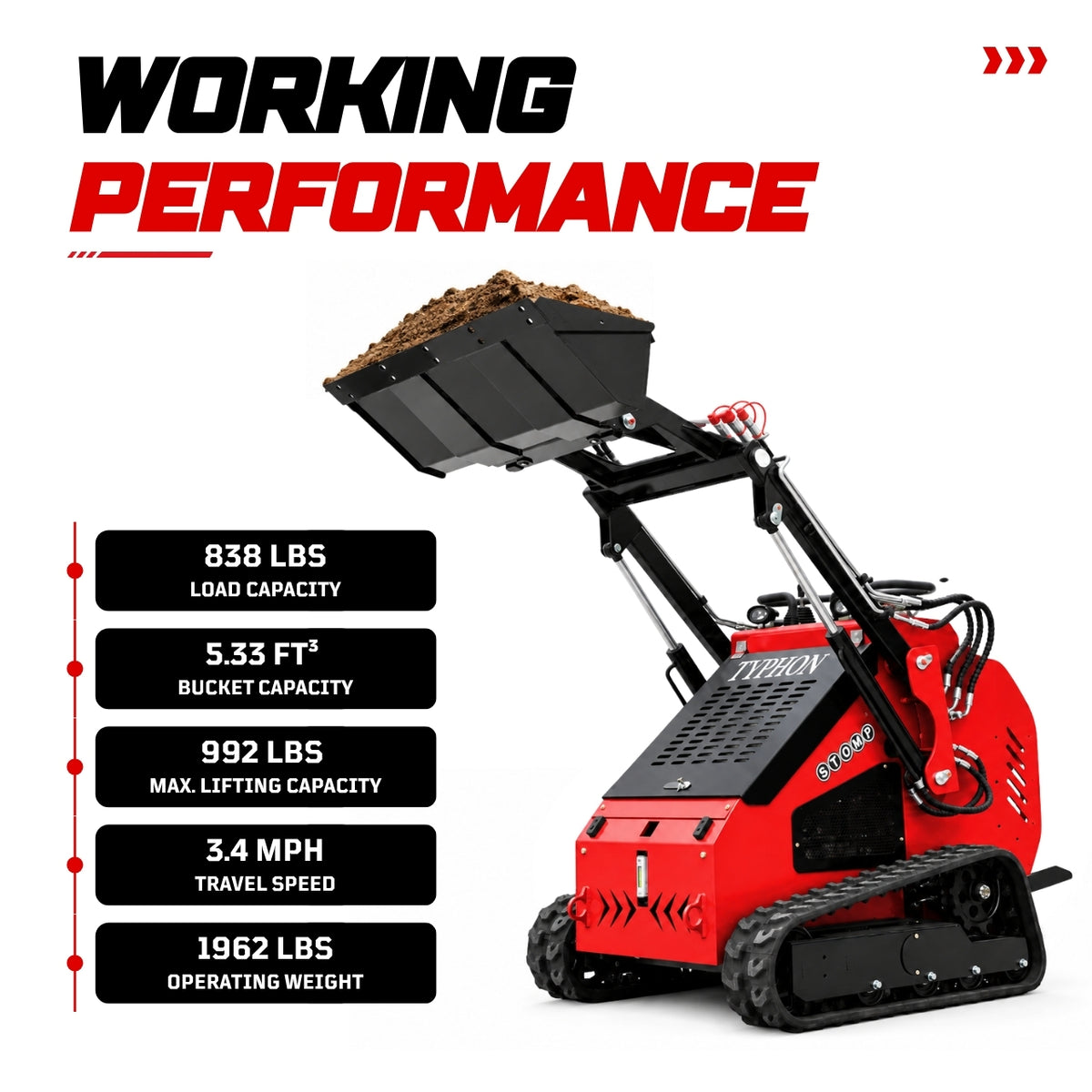

4. Heavy-Duty Lifting Performance

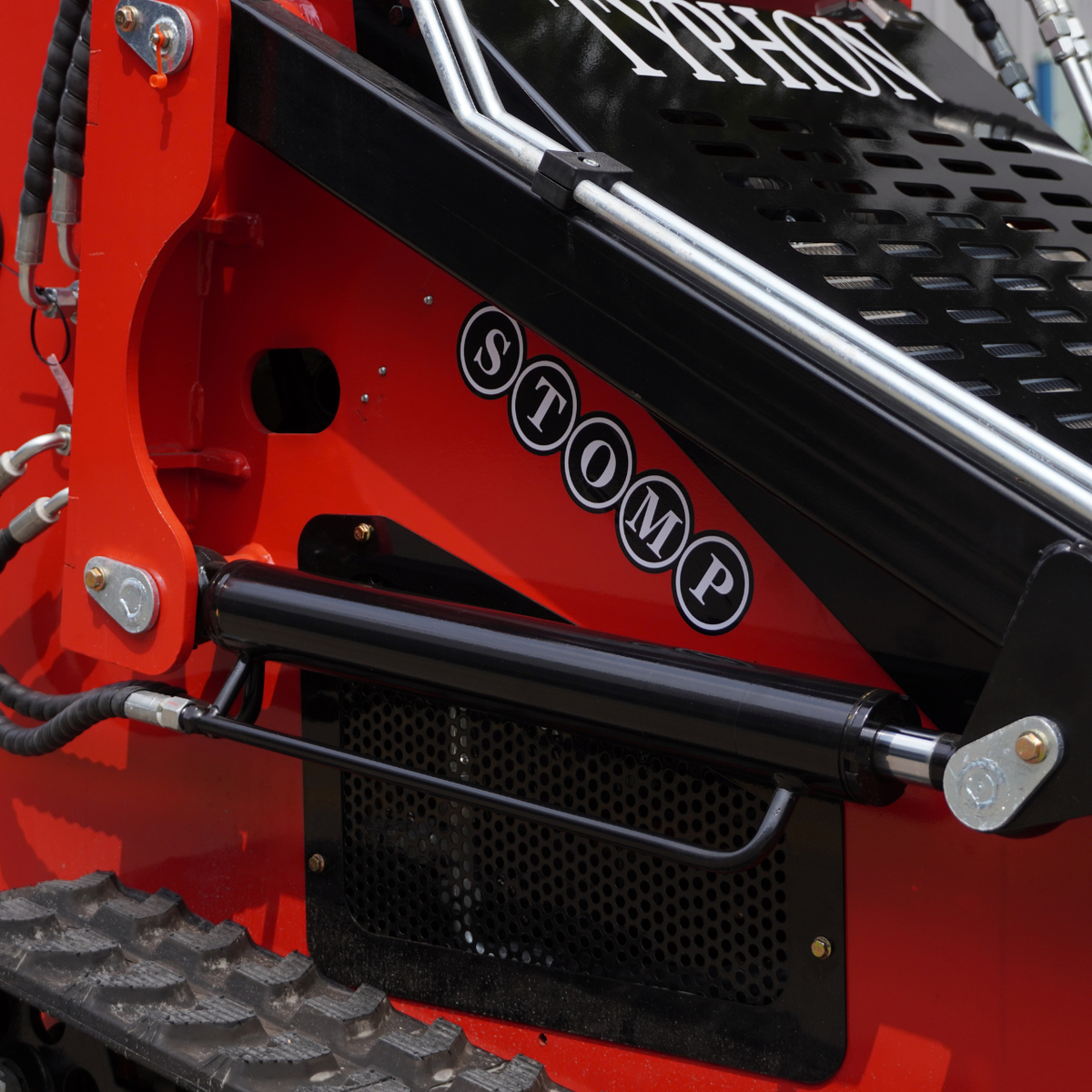

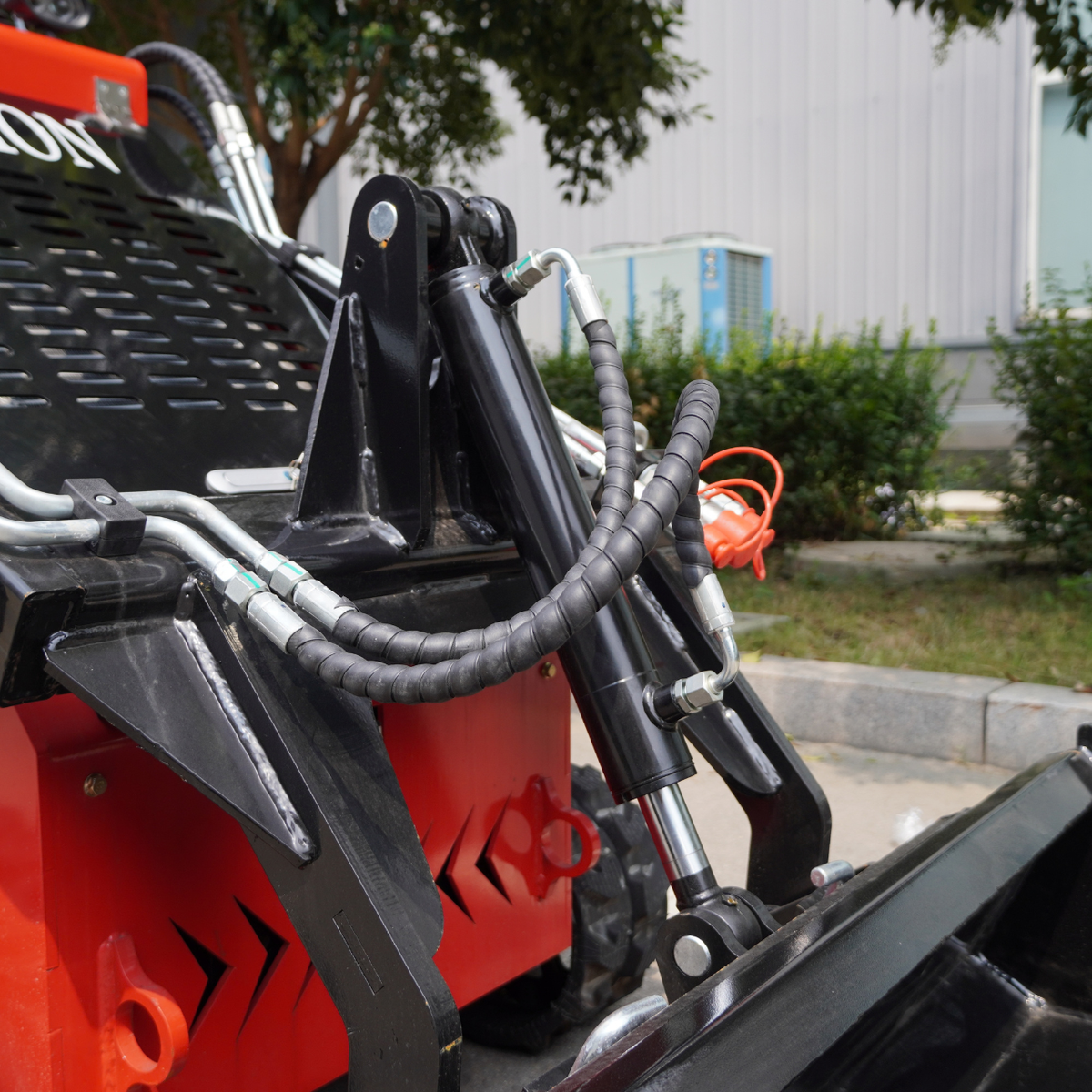

• 992 lb Maximum Lift: Robust hydraulic lifting capability for moving landscaping boulders, pallets, debris, and other materials.
• 838 lb Operating Load: Balanced capacity for stable material handling and travel.
• 83.3-Inch Working Height: Excellent reach for dumping into trailers or stacking materials.
• 54.7-Inch Dump Height: Provides practical clearance for material placement on construction and landscaping jobsites.

5. Advanced Operator Platform

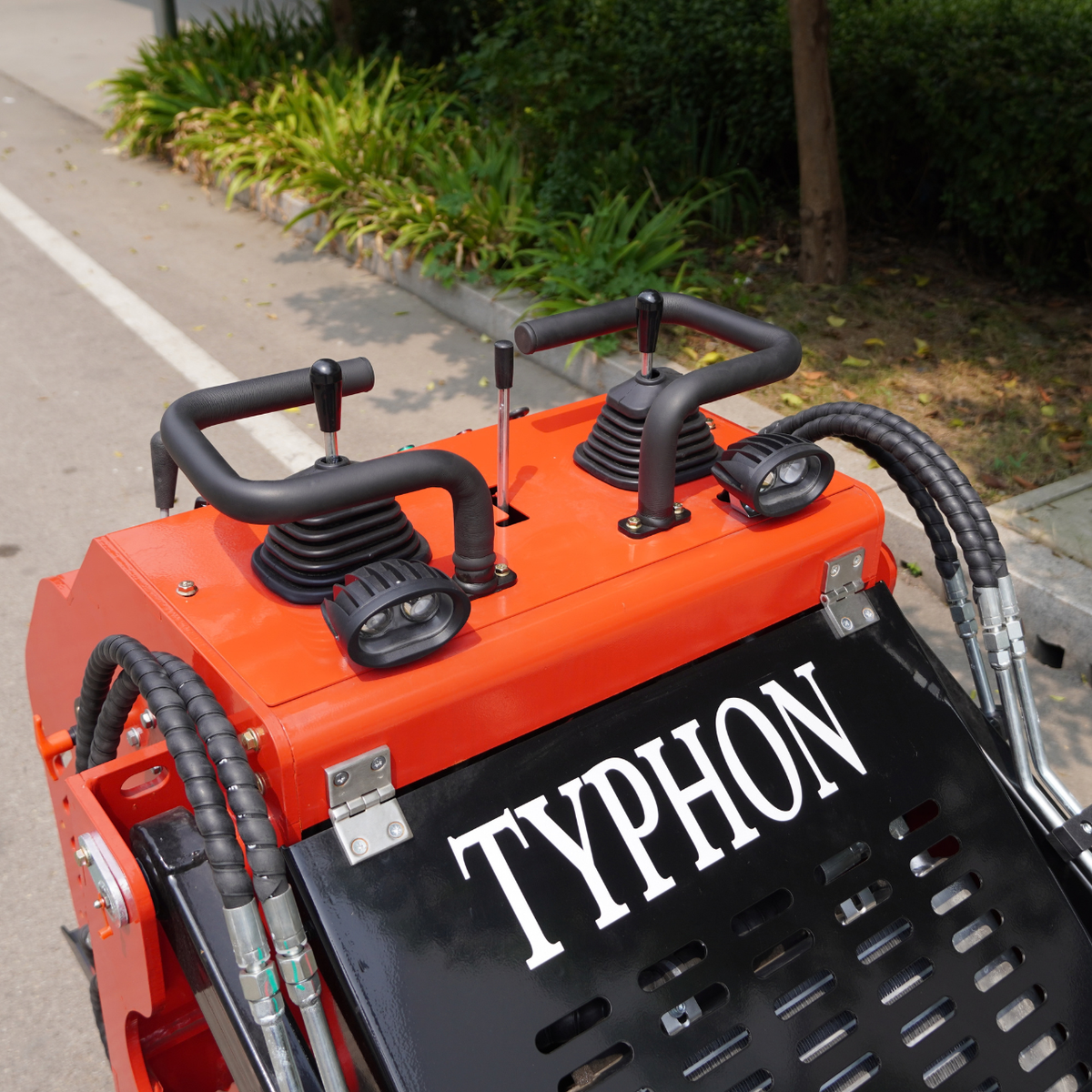

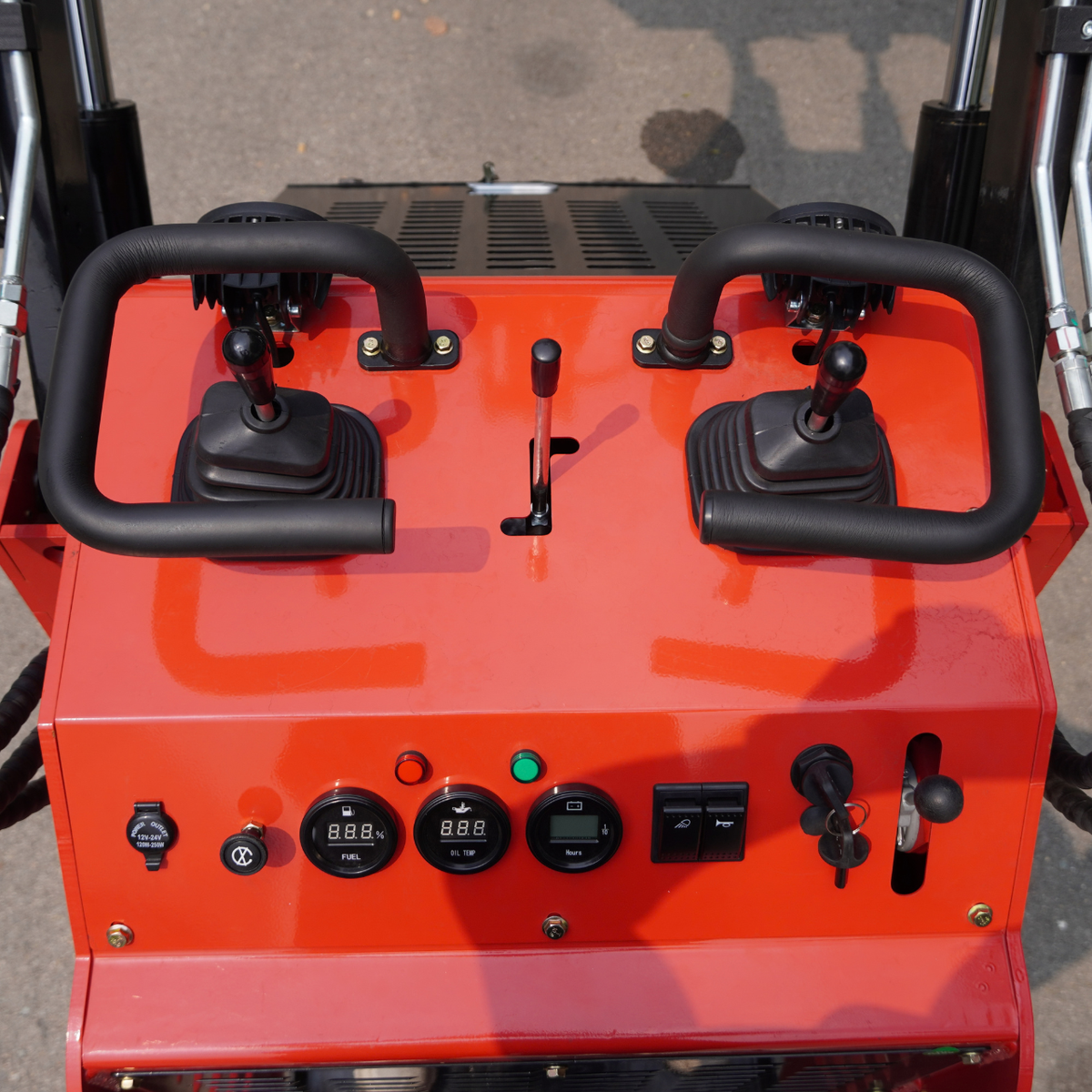

• Precision Dual Joysticks: Ergonomically positioned for precise control of tracks and attachments.

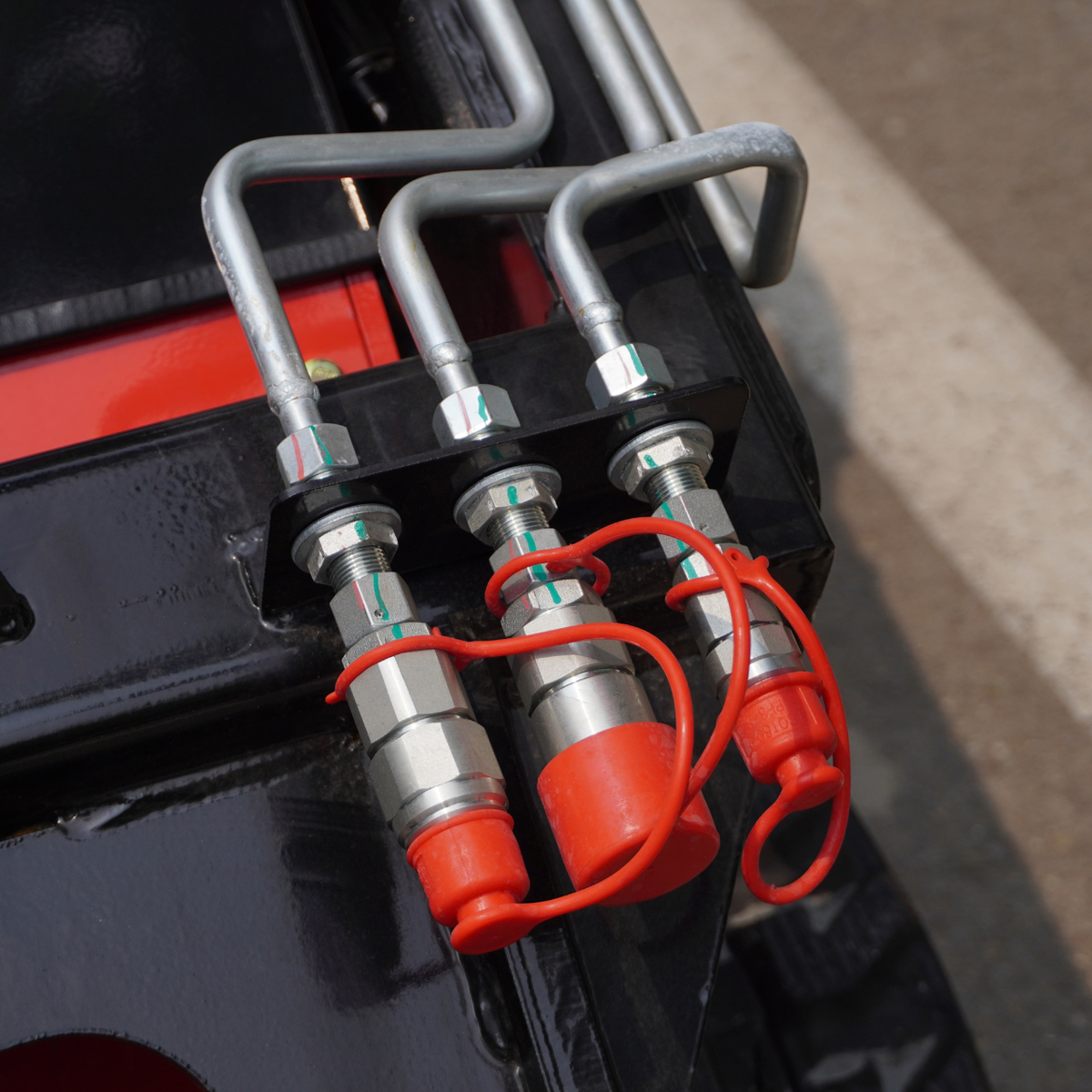

• Quick-Coupler Attachment System: Quickly switch between buckets, forks, and hydraulic tools.

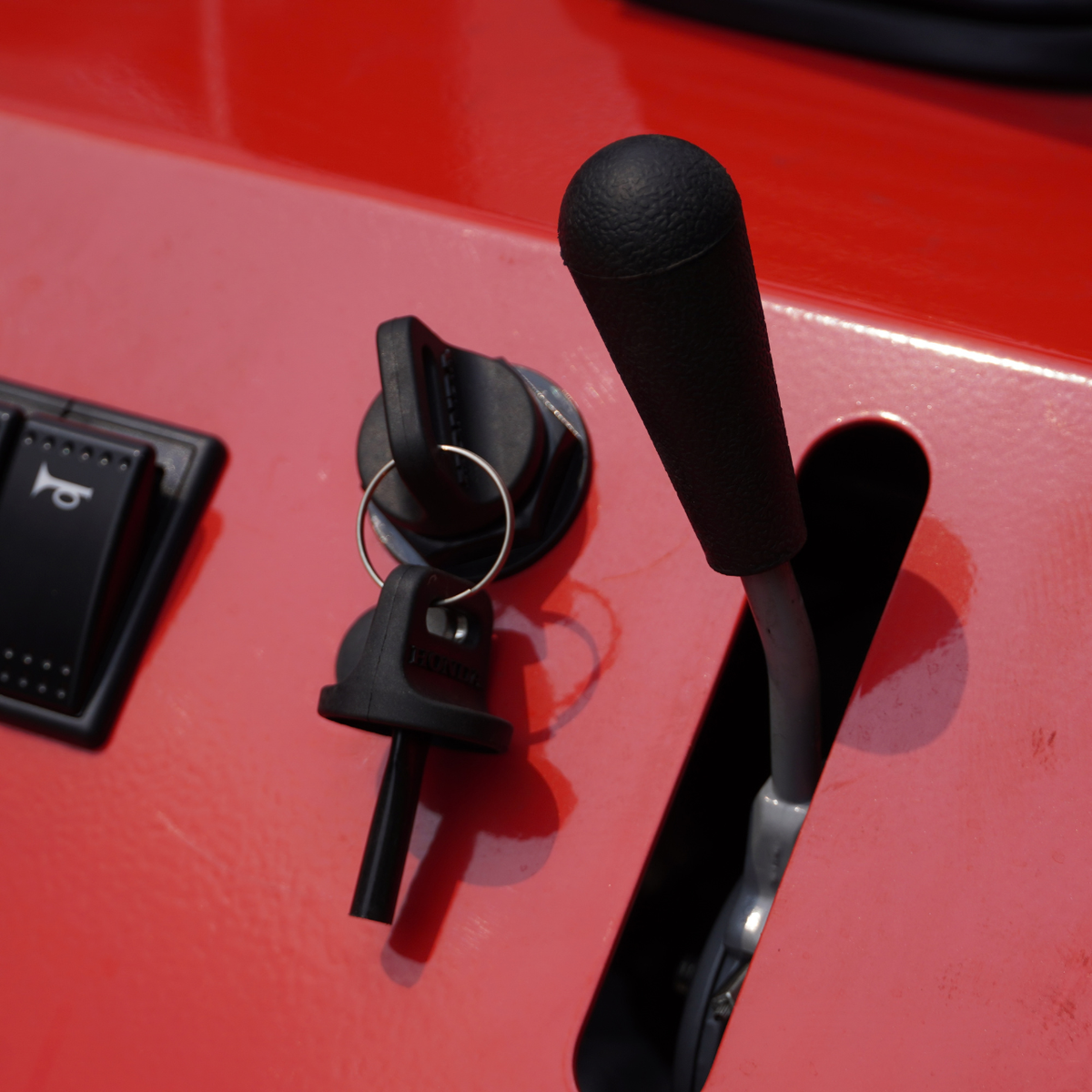

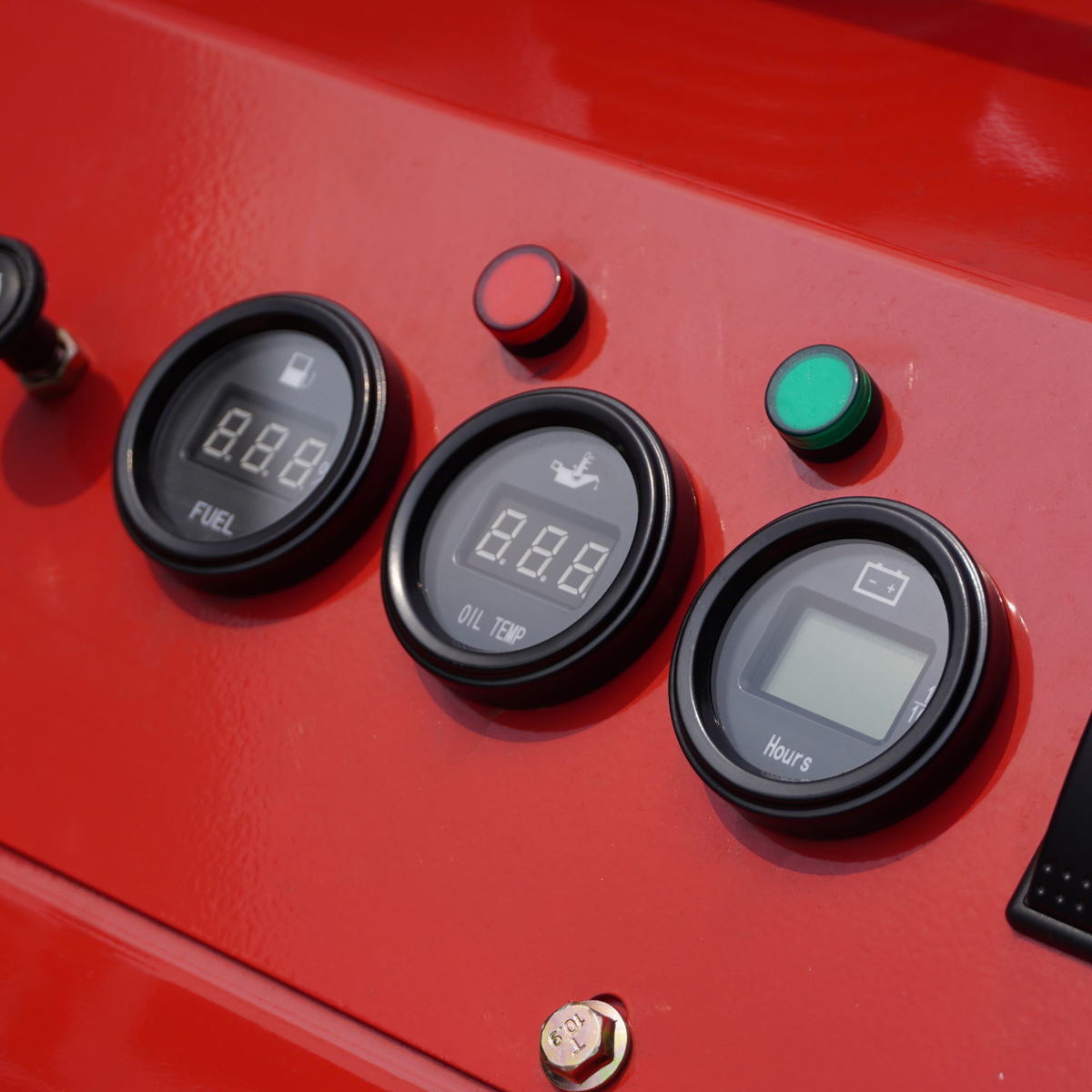

• Heavy-Duty Console: Digital gauges monitor ignition, lighting, and engine status.

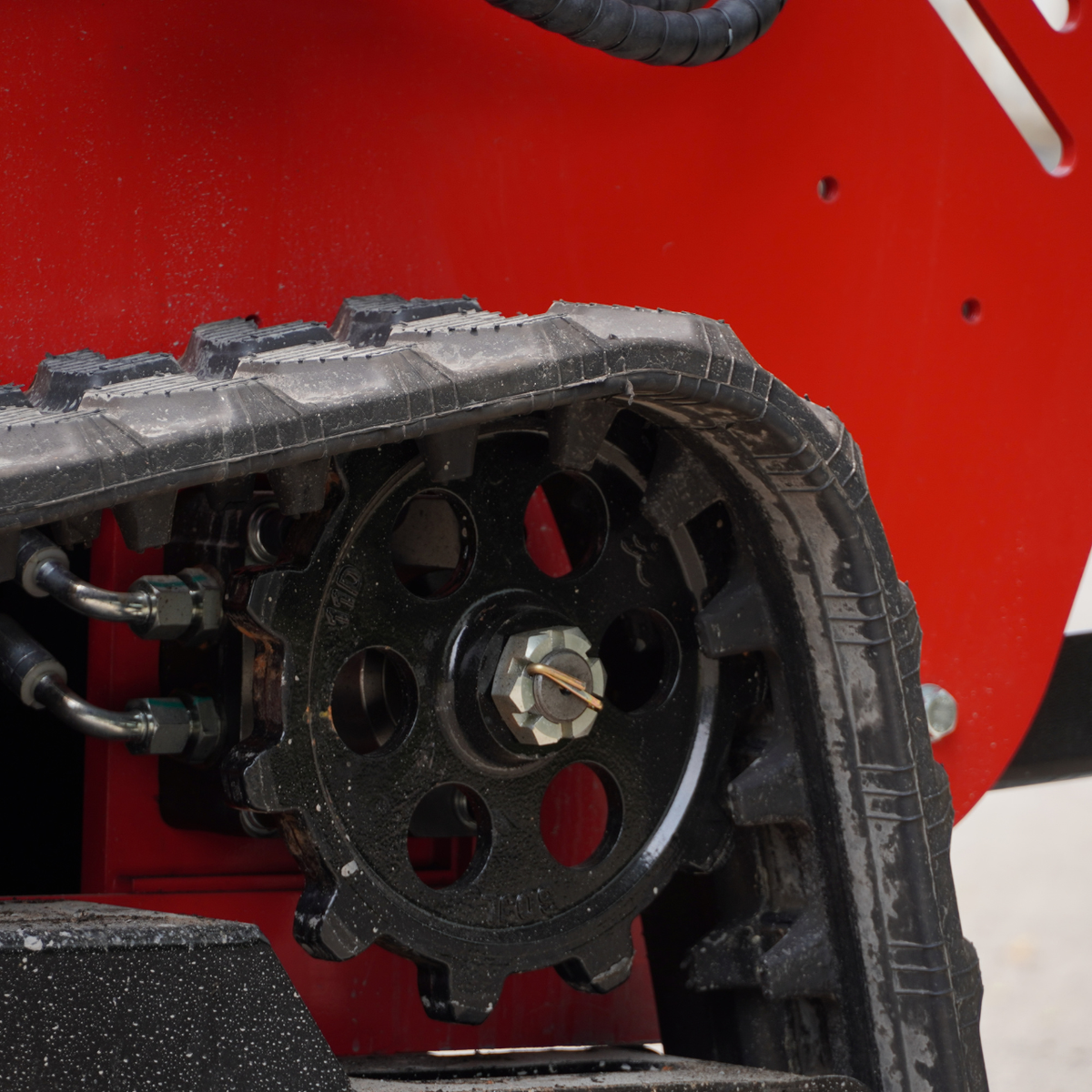

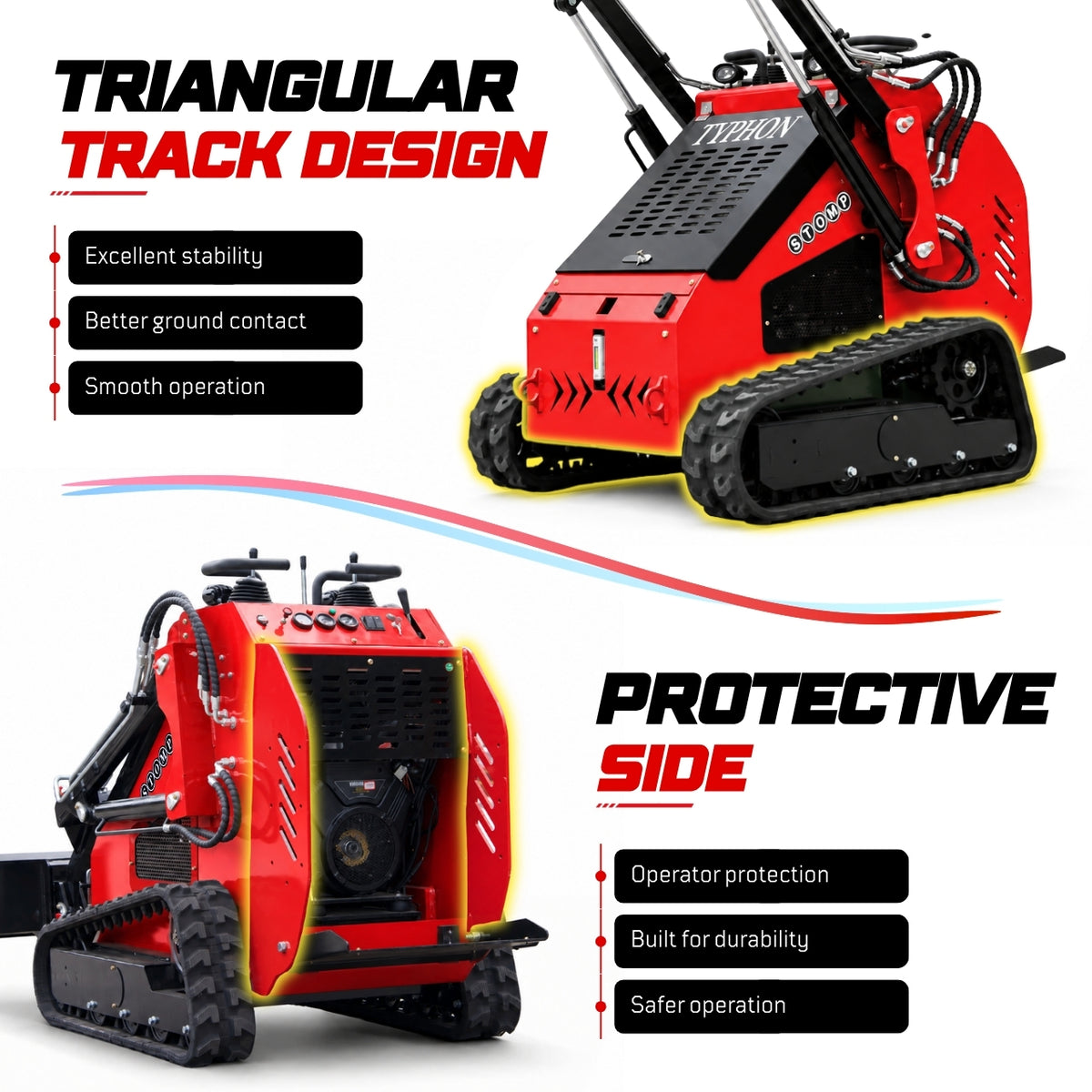

• Triangle Rubber Tracks: Provide traction and flotation across mud, sand, gravel, and uneven terrain.
• Front LED Work Lights: Improve visibility during early-morning, evening, or low-light operations.

The TYPHON STOMP 501 PRO in Impact Red combines EPA Certified power, hydraulic performance, and narrow-access agility in a compact track loader built for serious work.

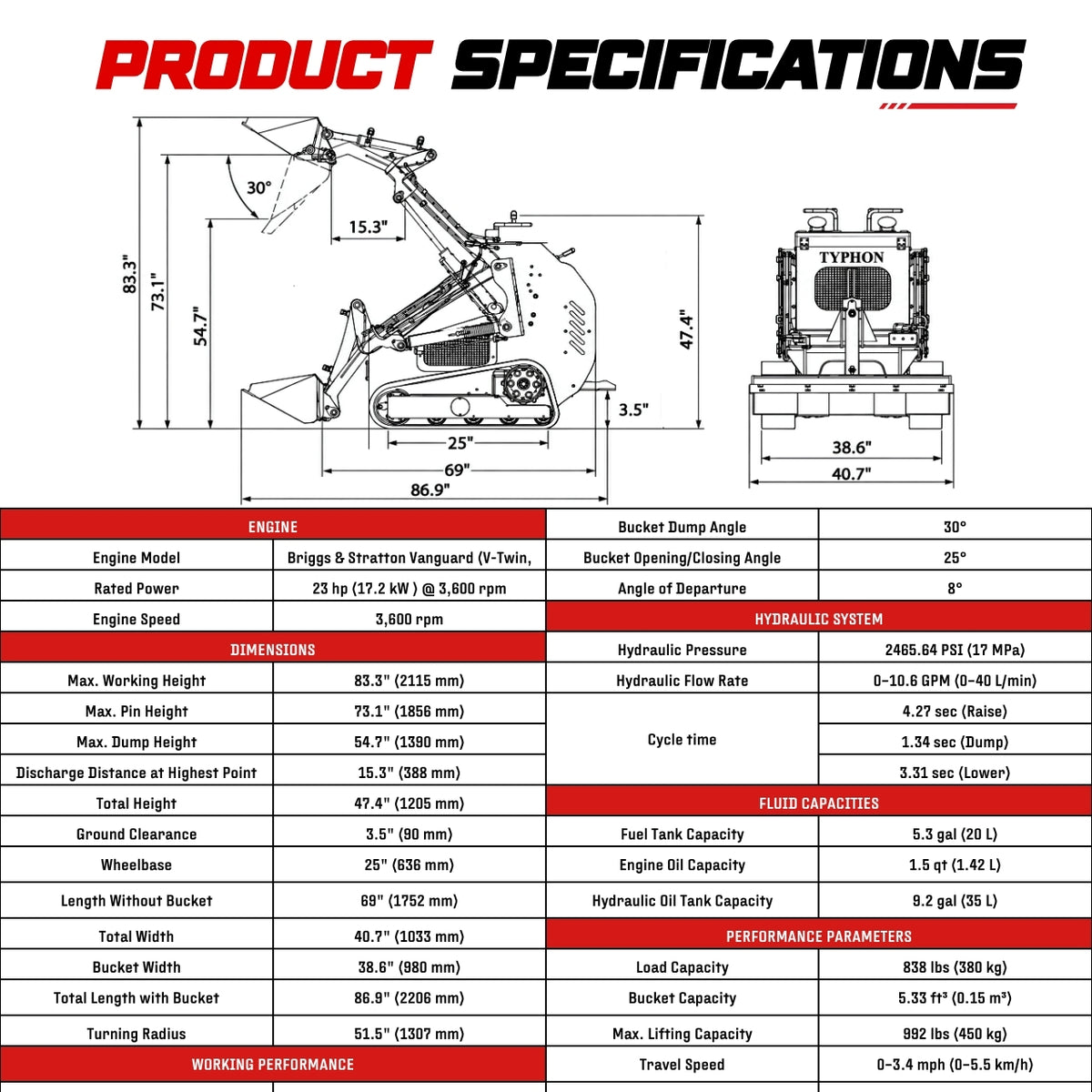

Key Features

• EPA Certified
• 23 HP Briggs & Stratton Vanguard V-Twin
• 10.6 GPM High-Flow Hydraulics
• Up to 2,465.6 PSI Hydraulic Pressure
• 992 lb Maximum Lift
• 838 lb Operating Load
• 40.7" Compact Width
• 360° Pivot Steering & Triangle Rubber Tracks
• 3.4 MPH Travel Speed

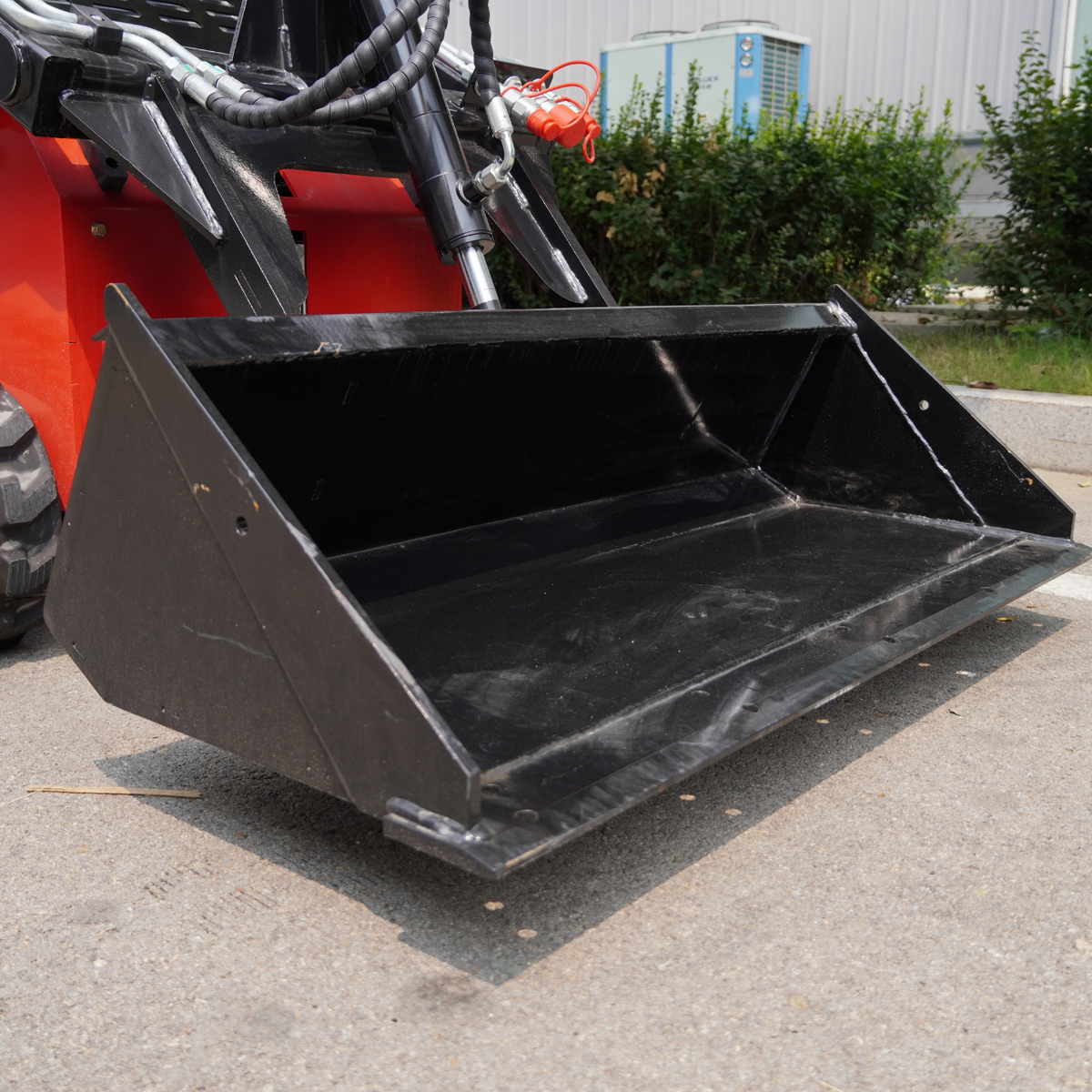

• 5.33 ft³ Bucket Capacity
• 83.3" Maximum Working Height
• Stand-On Platform & Dual Joysticks
• Quick-Hitch Attachment System
• Front LED Work Lights
