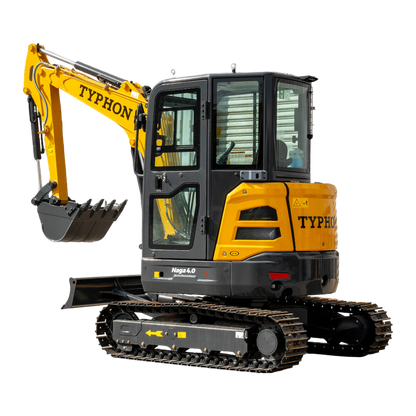

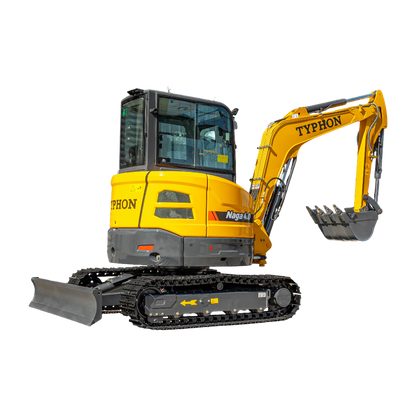

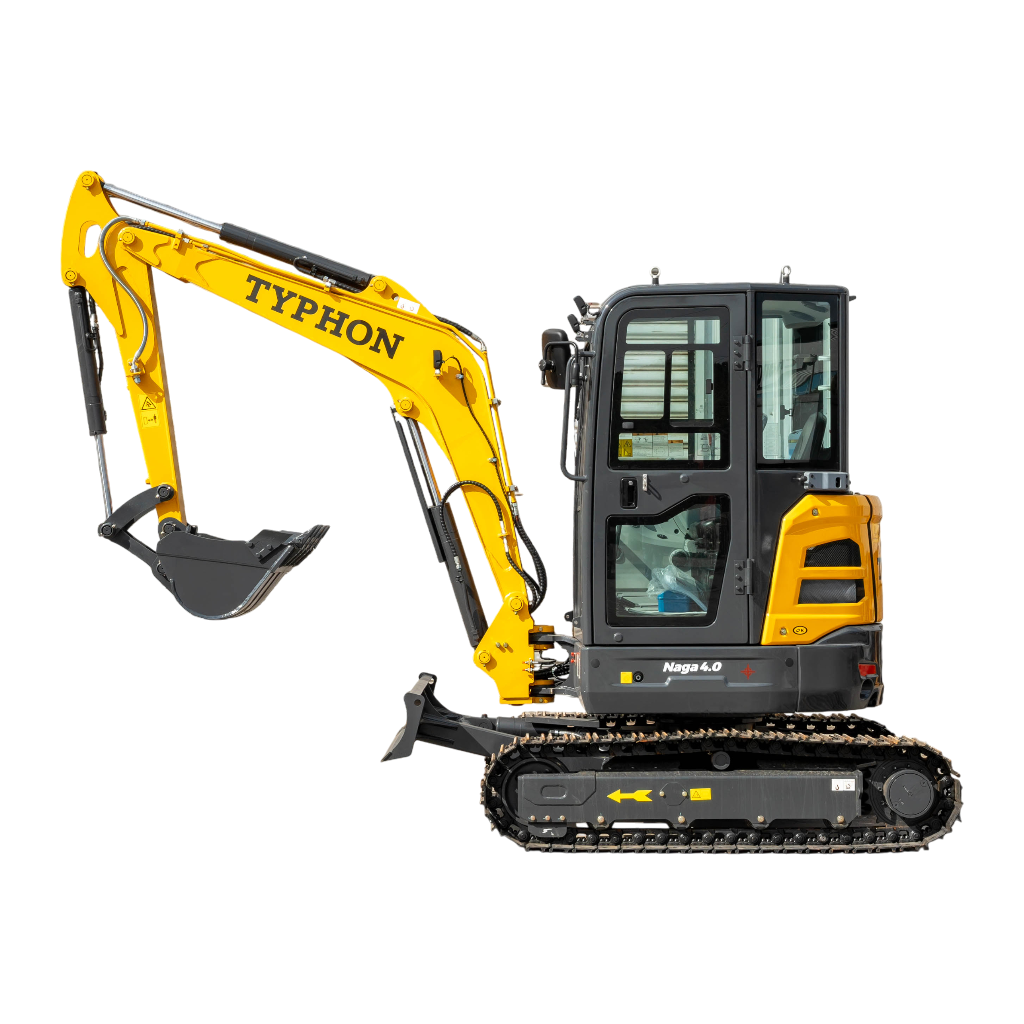

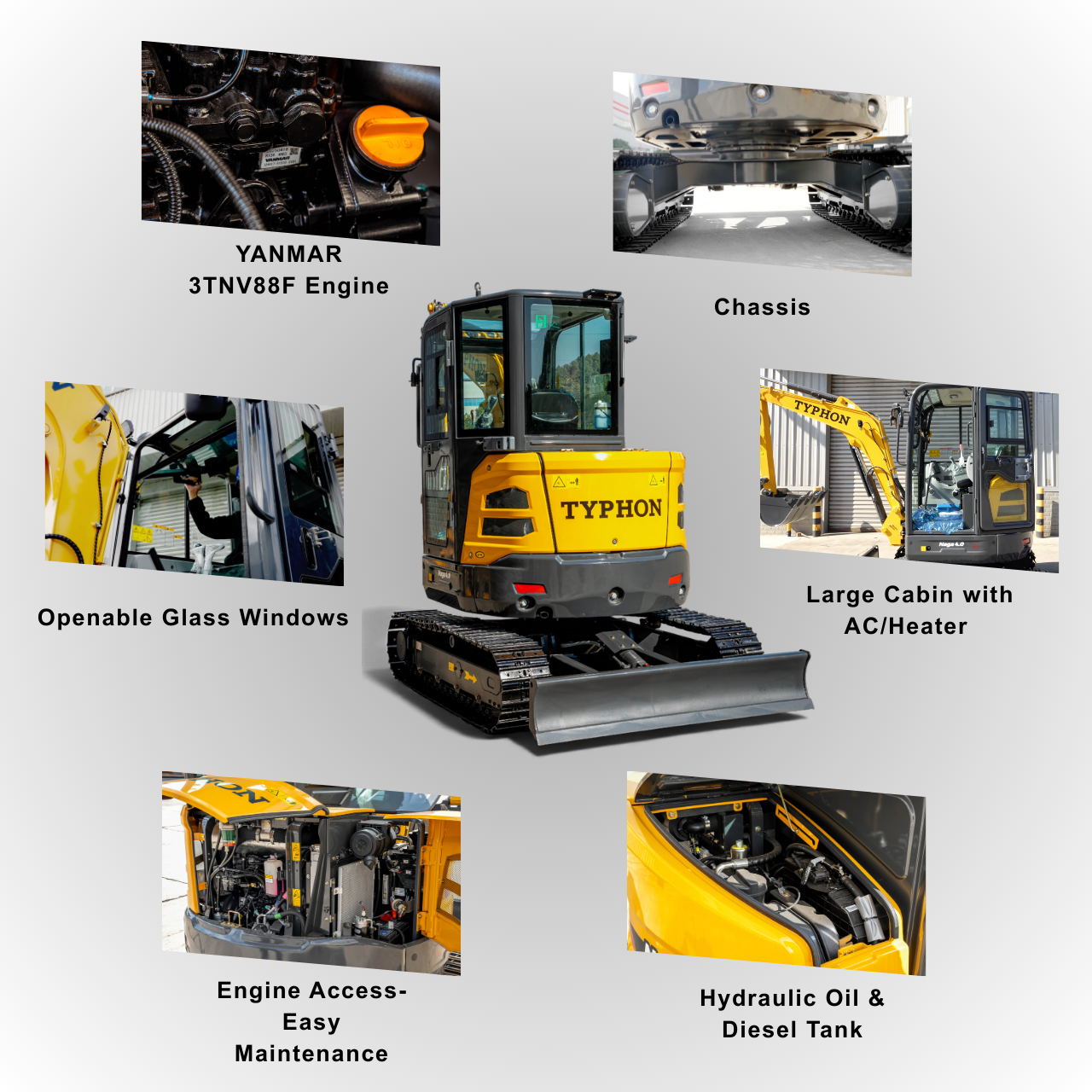

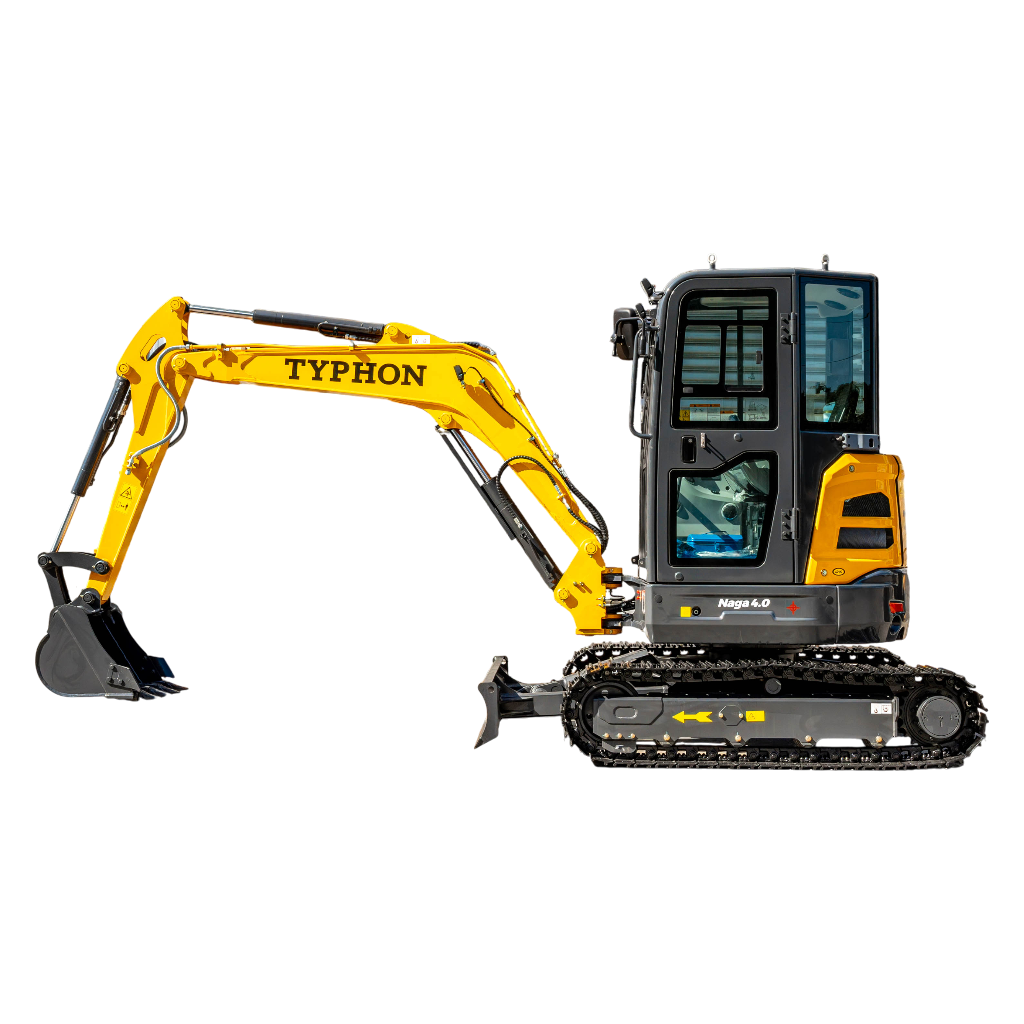

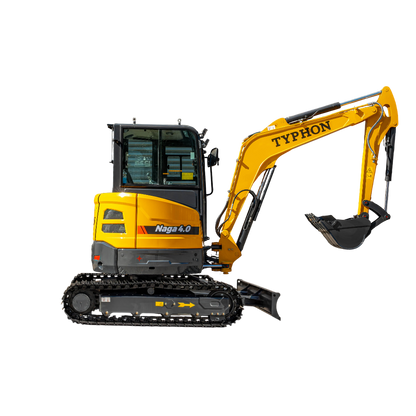

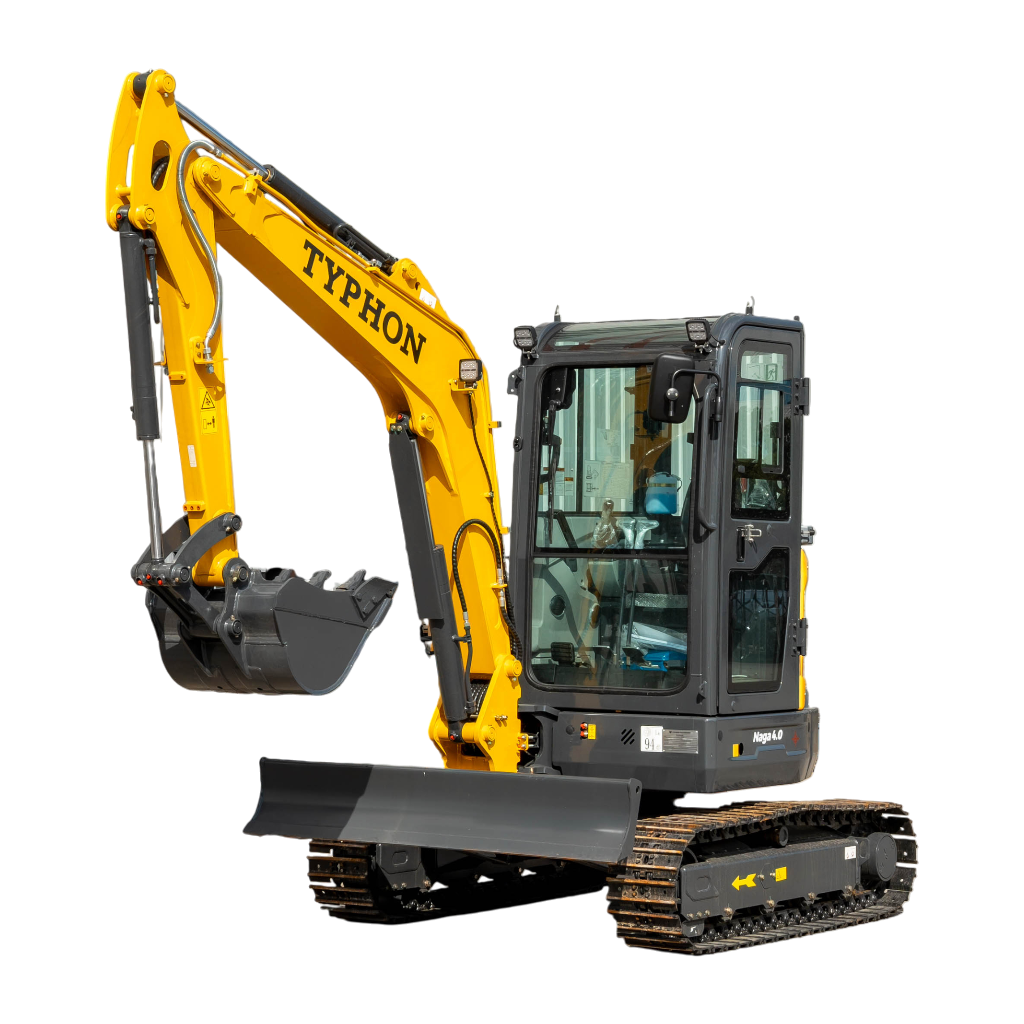

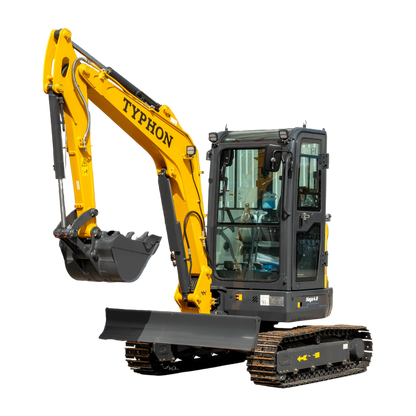

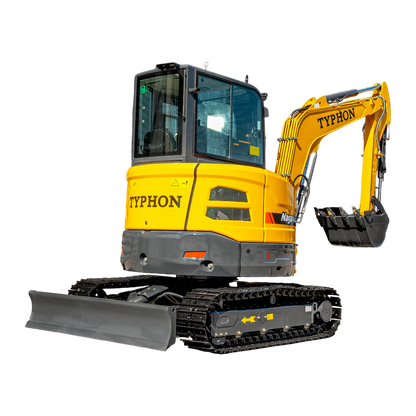

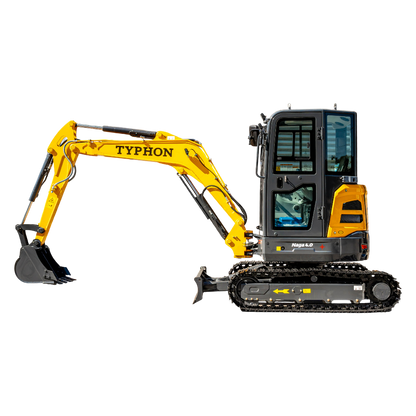

TYPHON NAGA 4.0 Mini Excavator 4-Ton Class with YANMAR 3TNV88F Engine, Zero Tail Swing, High Breakout Force, Advanced Hydraulics & Operator-Friendly Cabin

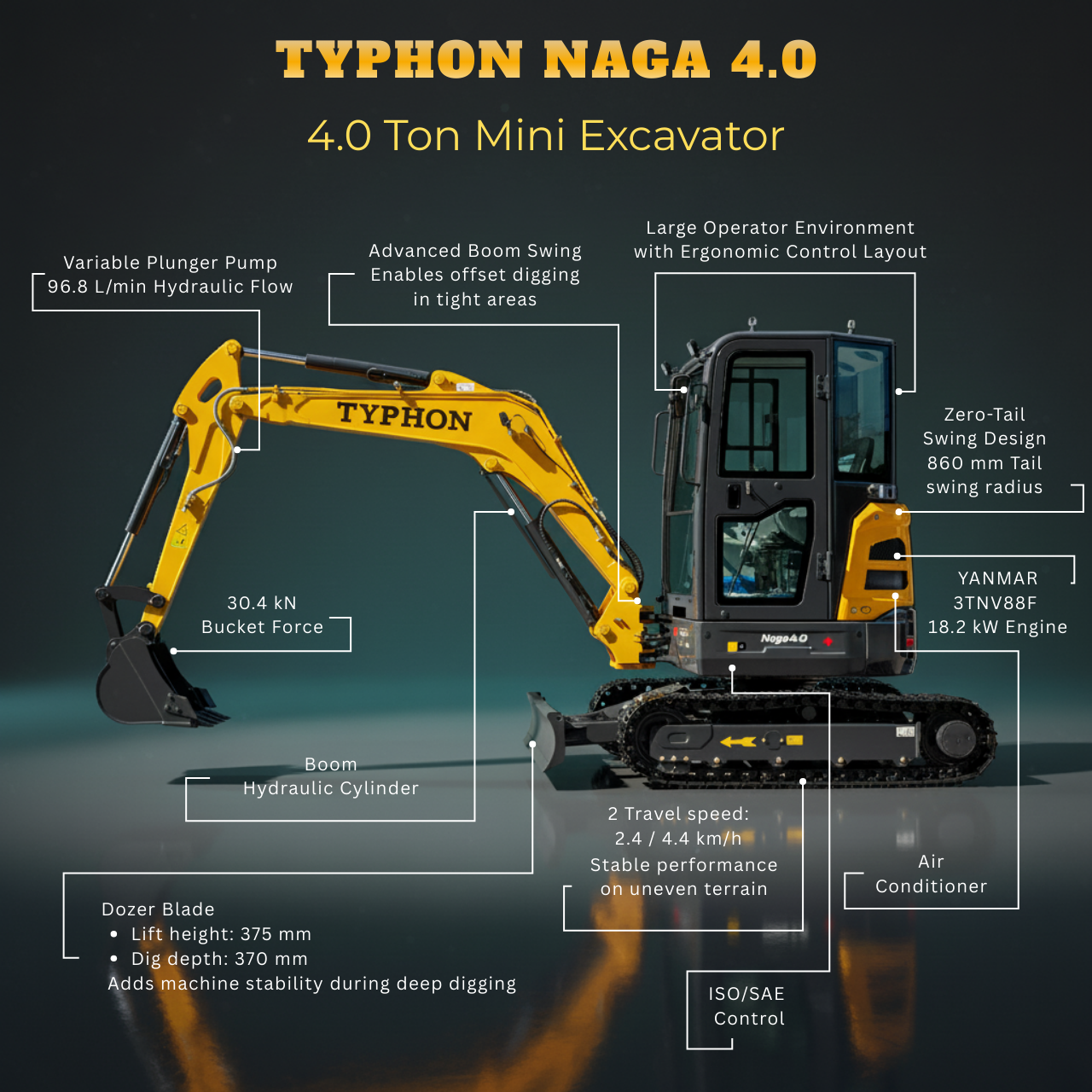

The TYPHON NAGA 4.0 mini excavator is built to deliver strong performance in compact and urban work environments where maneuverability is critical. With a zero-tail swing configuration, full 360° upper structure rotation, and a compact 860 mm tail swing radius, it allows confident operation in restricted spaces. Its reinforced undercarriage, 30° climbing capability, and 55° left and right boom swing ensure stability, accuracy, and smooth machine response on a wide range of excavation tasks.

Although compact in size, the NAGA 4.0 offers outstanding digging power, producing a 30.4 kN bucket breakout force and 18.2 kN arm digging force. This makes it highly effective for trenching, foundation preparation, and challenging ground conditions. The machine is powered by the dependable YANMAR 3TNV88F diesel engine, delivering consistent output, optimized fuel consumption, and full compliance with EPA Tier 4 Final and EU Stage V emissions regulations.

Operator comfort and efficiency are enhanced through a well-designed cabin featuring ISO/SAE switchable control patterns, a 7-inch touchscreen interface for machine diagnostics and settings, an adjustable suspension seat, and high-visibility LED working lights. Together, these features support precise operation, reduced fatigue, and high productivity during extended working hours.

TYPHON NAGA 4.0 Key Feature:

1. Designed for small project :

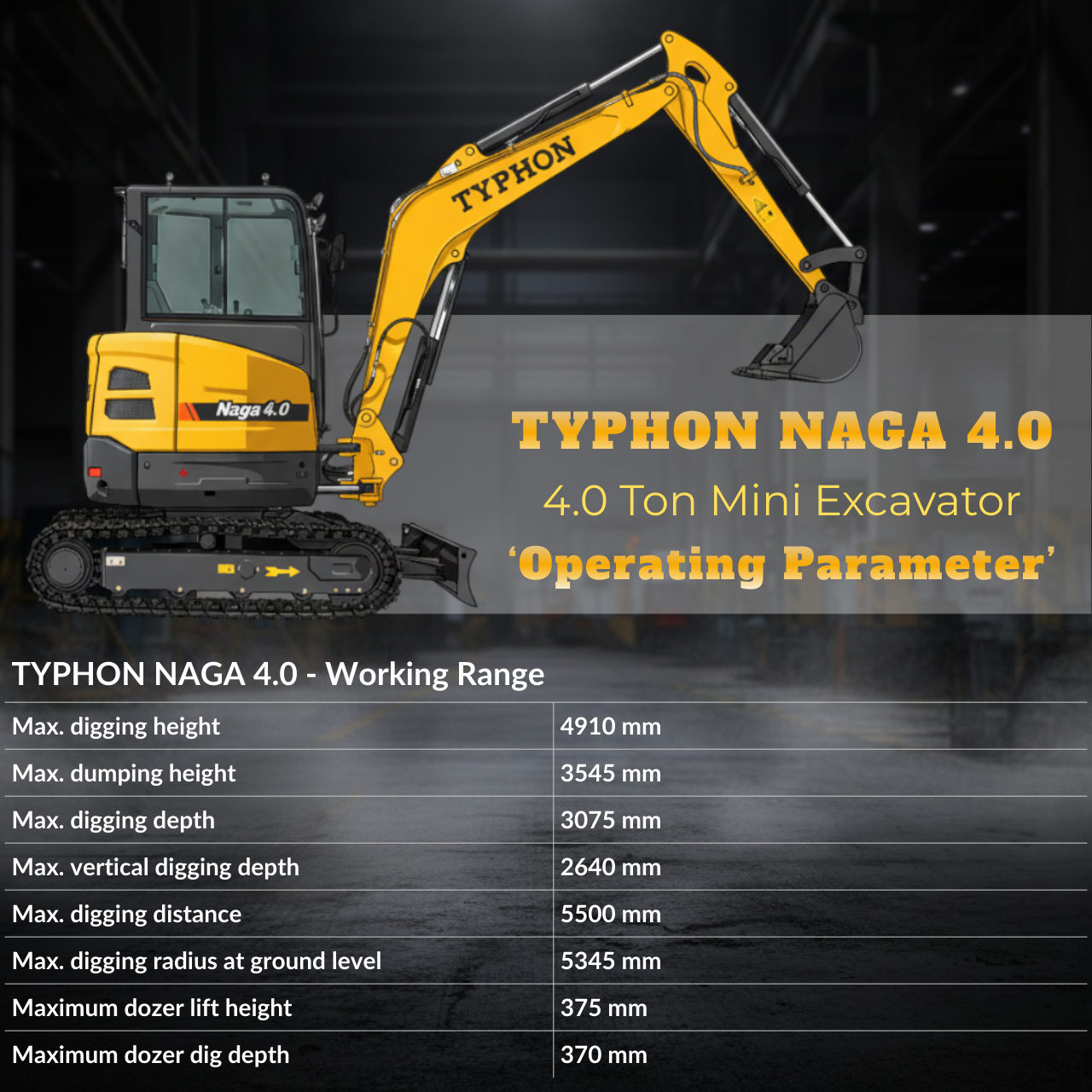

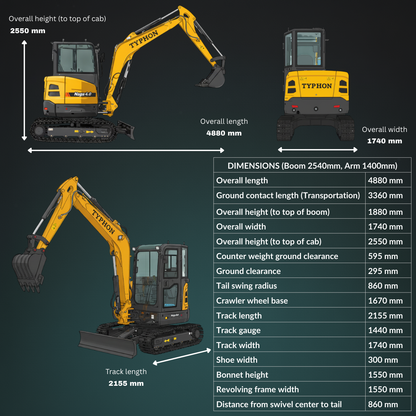

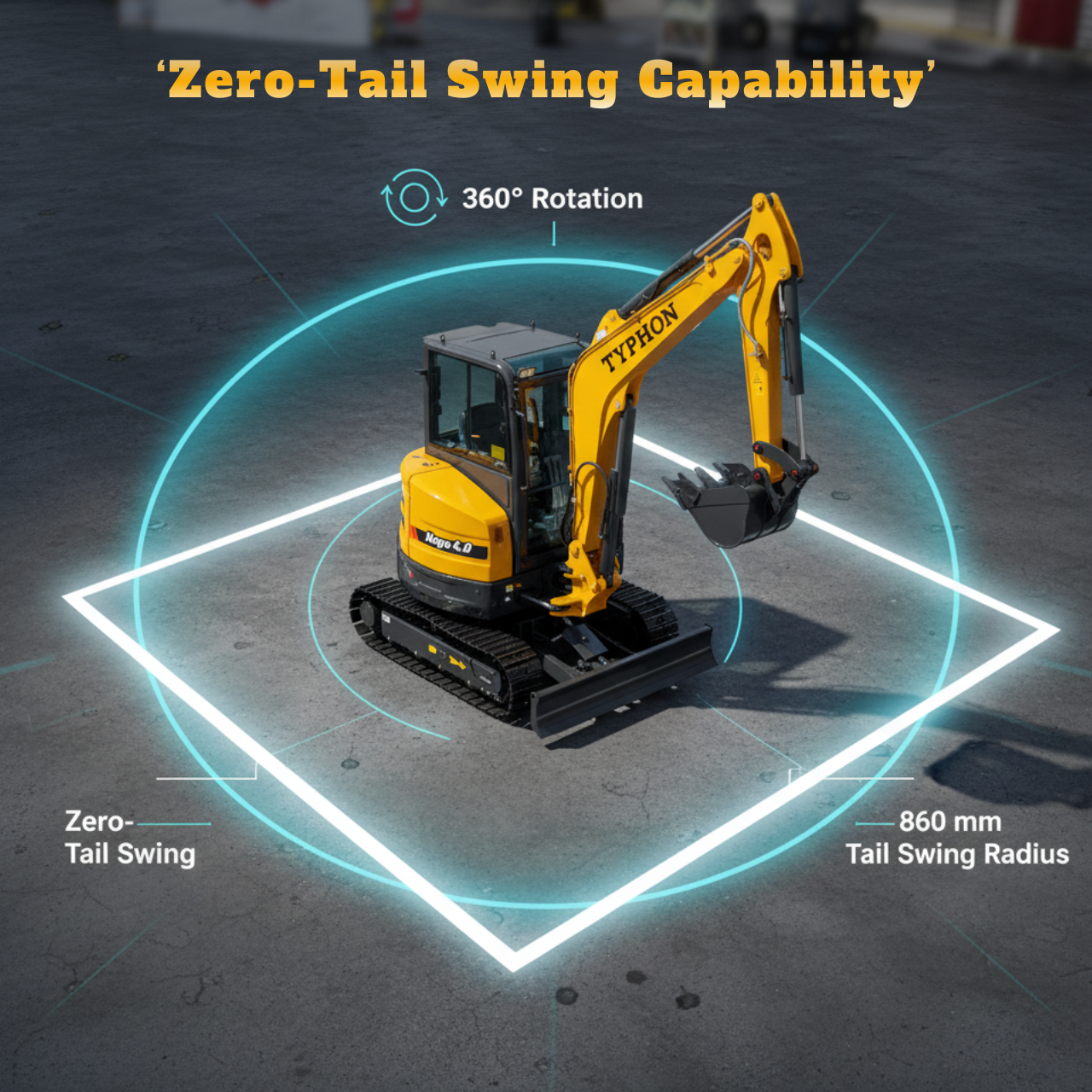

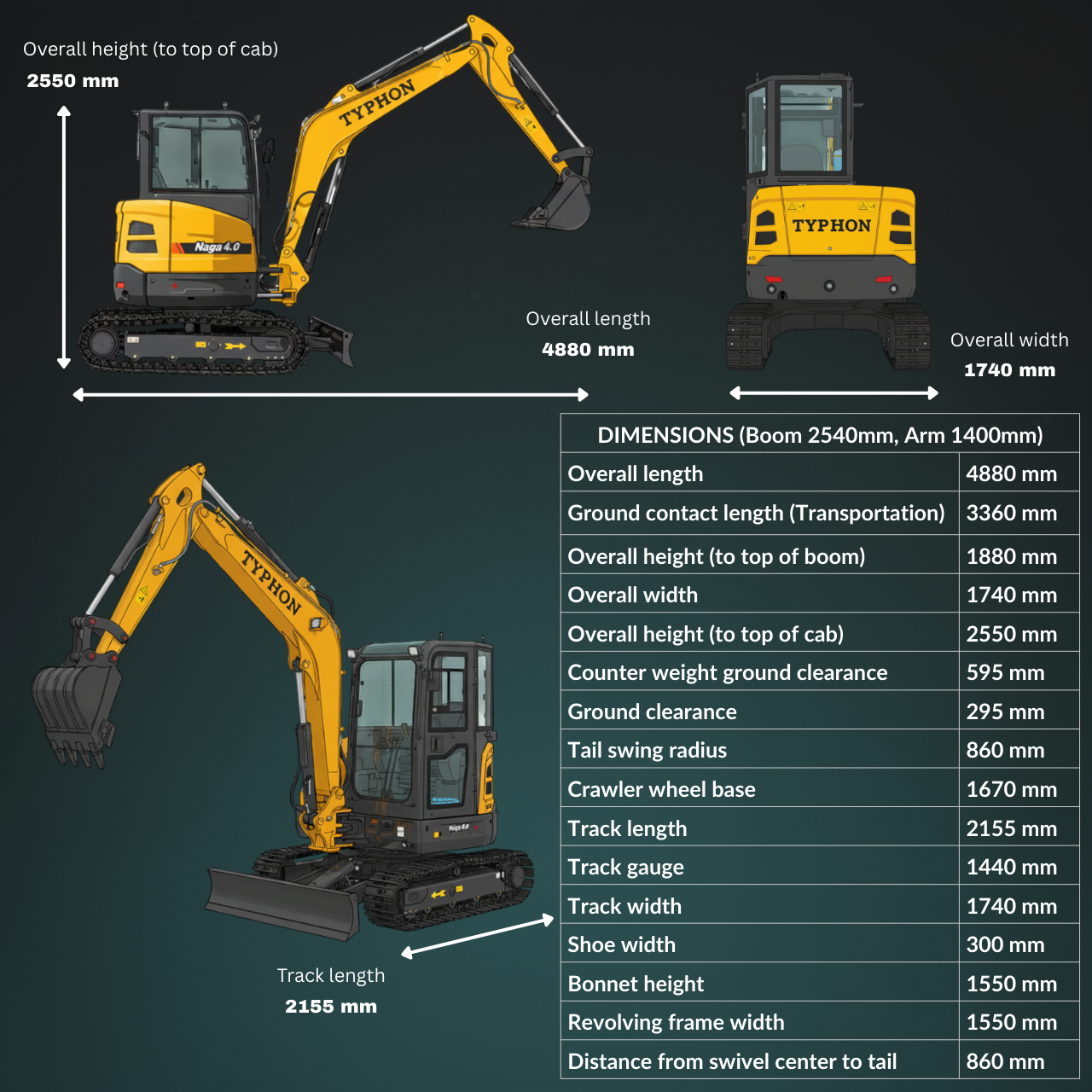

Engineered for small-scale and urban applications, this compact machine delivers reliable performance in confined work environments. Its zero-tail swing design, 360° upper structure rotation, and 860 mm tail swing radius enable safe, efficient operation where space is limited. With an overall length of 4,880 mm, a width of 1,740 mm, and a height of 2,550 mm (to the top of the cap), it provides an excellent balance between compact dimensions and working capability.

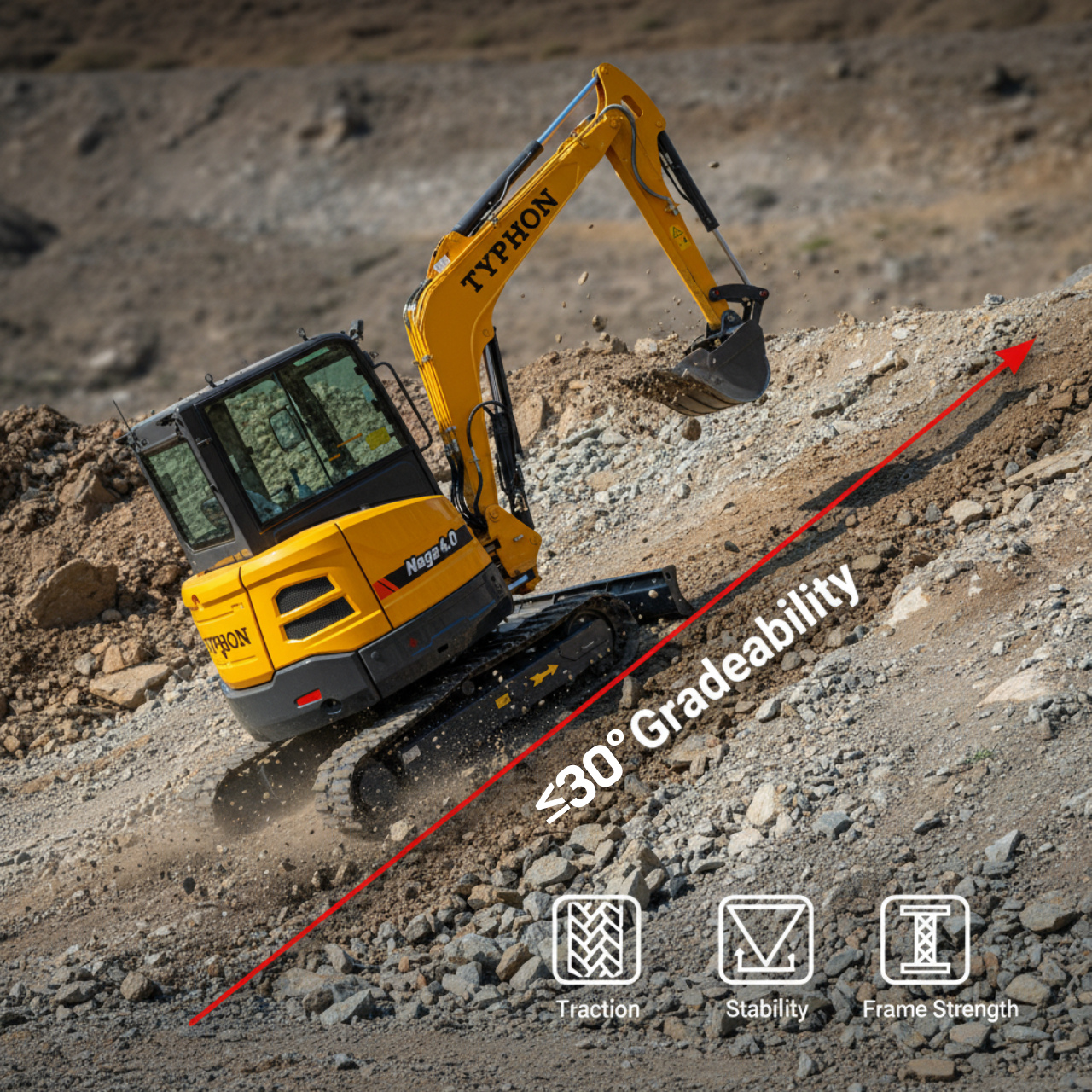

A 2,155 mm track length, 1,440 mm track gauge, and 30° climbing ability ensure solid stability on uneven or sloped ground. The 55° left and right boom swing, combined with a 0–9 rpm swing speed, allows for smooth and accurate movements, ensuring consistent productivity during daily excavation tasks.

2. Wide range of use :

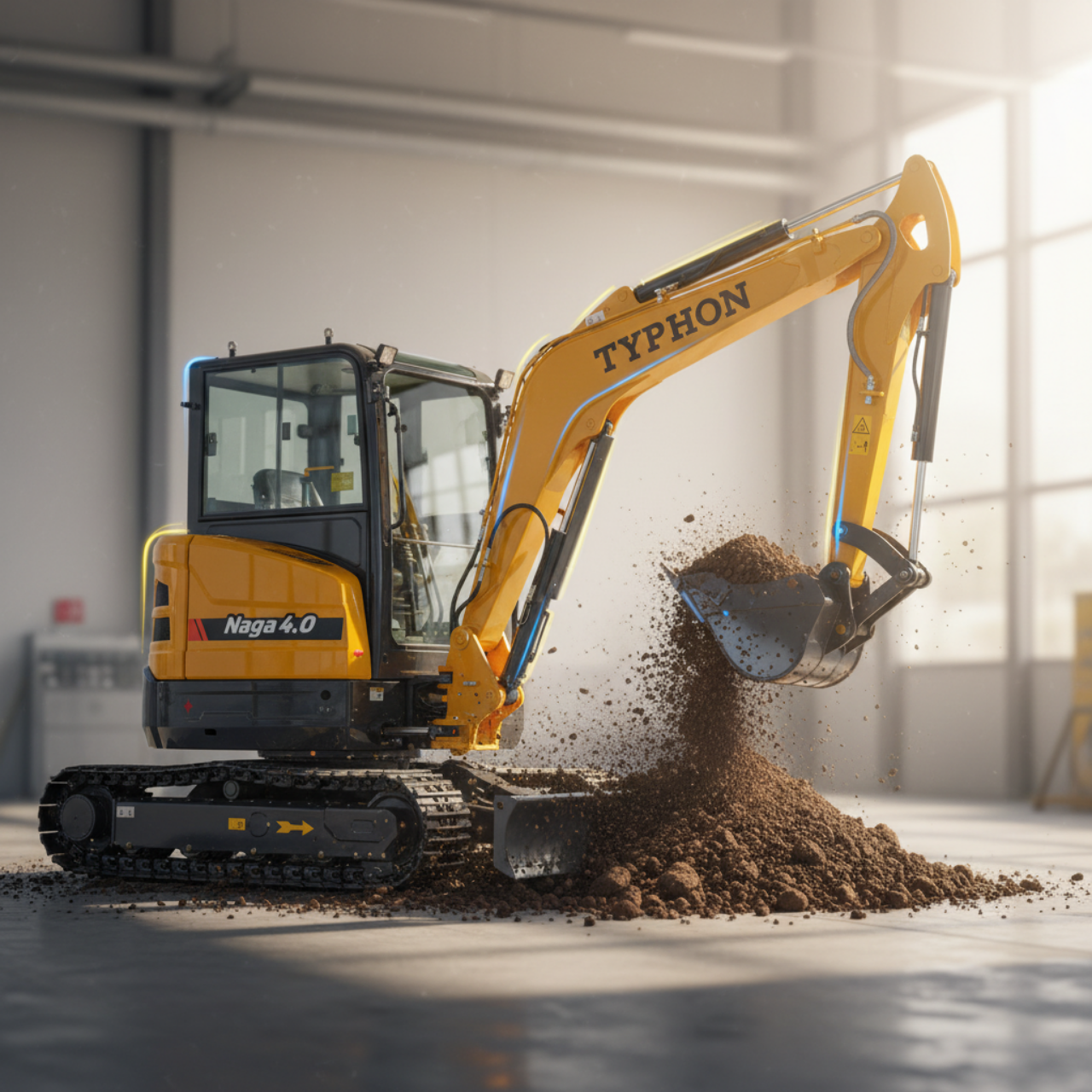

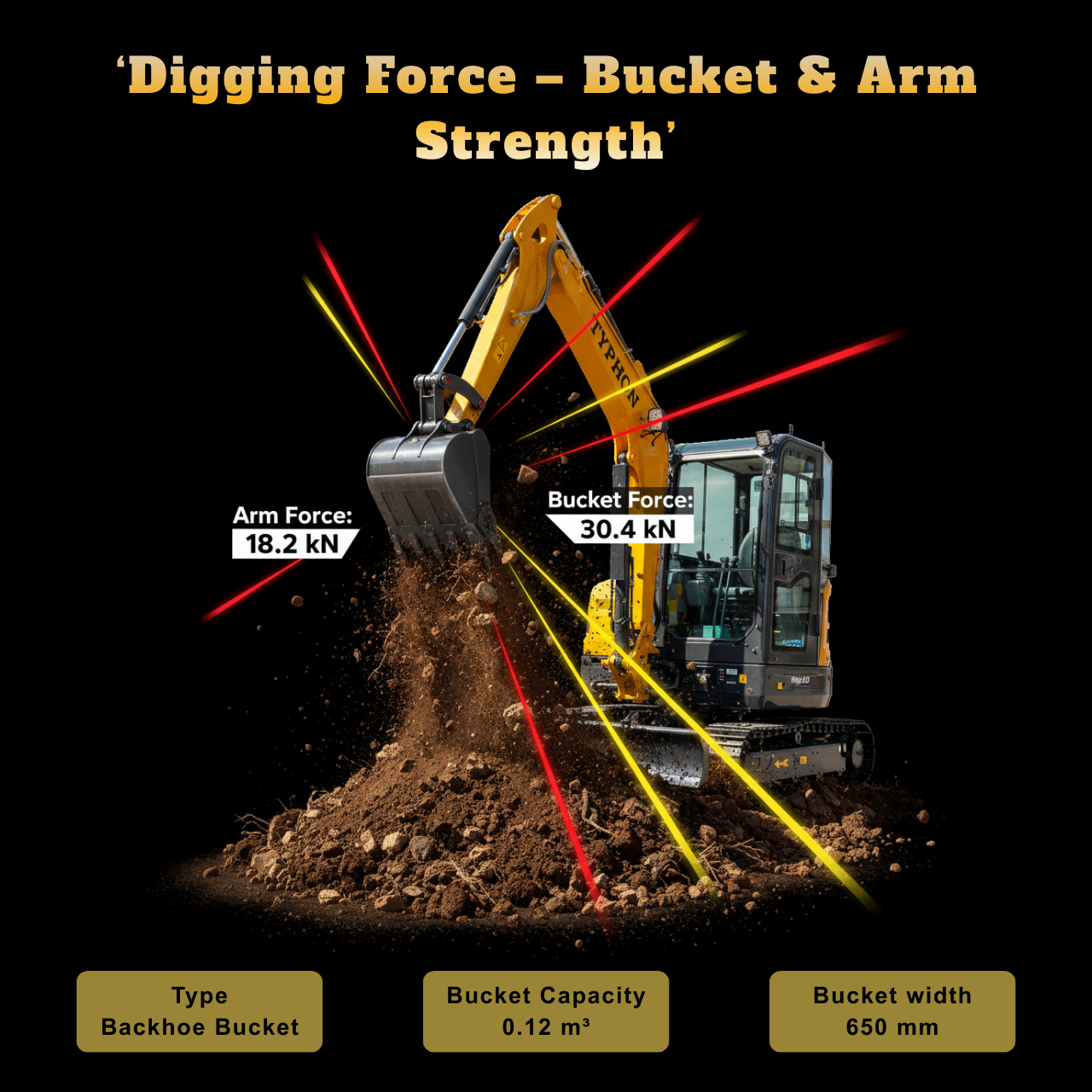

The TYPHON NAGA 4.0 delivers exceptional digging power that far exceeds expectations for a machine of its size. Engineered to tackle demanding ground conditions, it generates an impressive 30.4 kN bucket digging force and 18.2 kN arm digging force, allowing it to break through compacted clay and rocky soil with confidence.

With a 0.12 m³ bucket capacity and 650 mm bucket width, the machine is optimized for fast material handling and heavy-duty trenching applications. The addition of a three-way stop valve, combined with high-torque hydraulic performance and a reinforced digging structure, ensures smooth control and maximum efficiency. This powerful combination delivers the dependable, “unstoppable” breakout force required for commercial projects where productivity, speed, and strength are critical.

3. Compact tough :

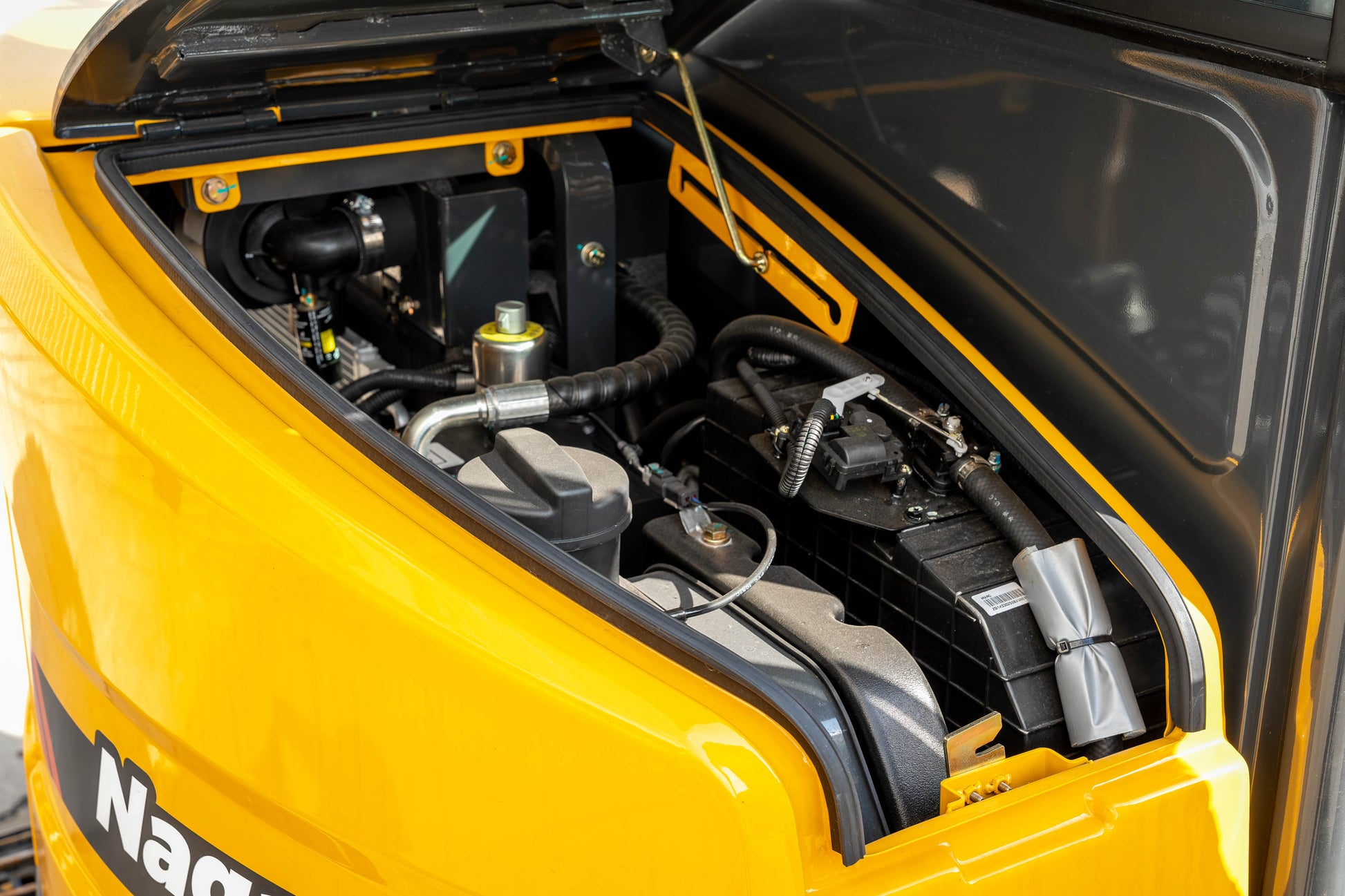

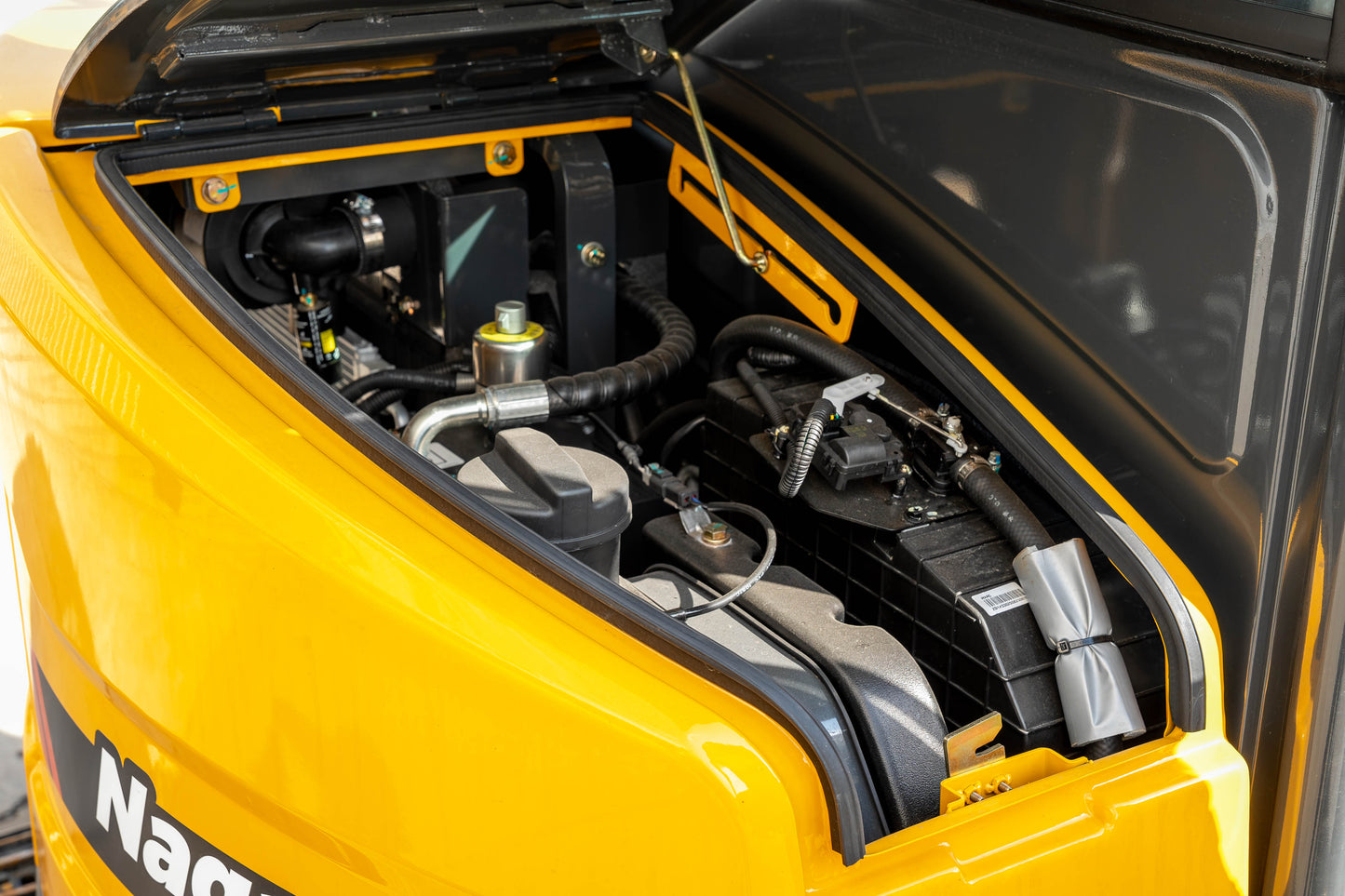

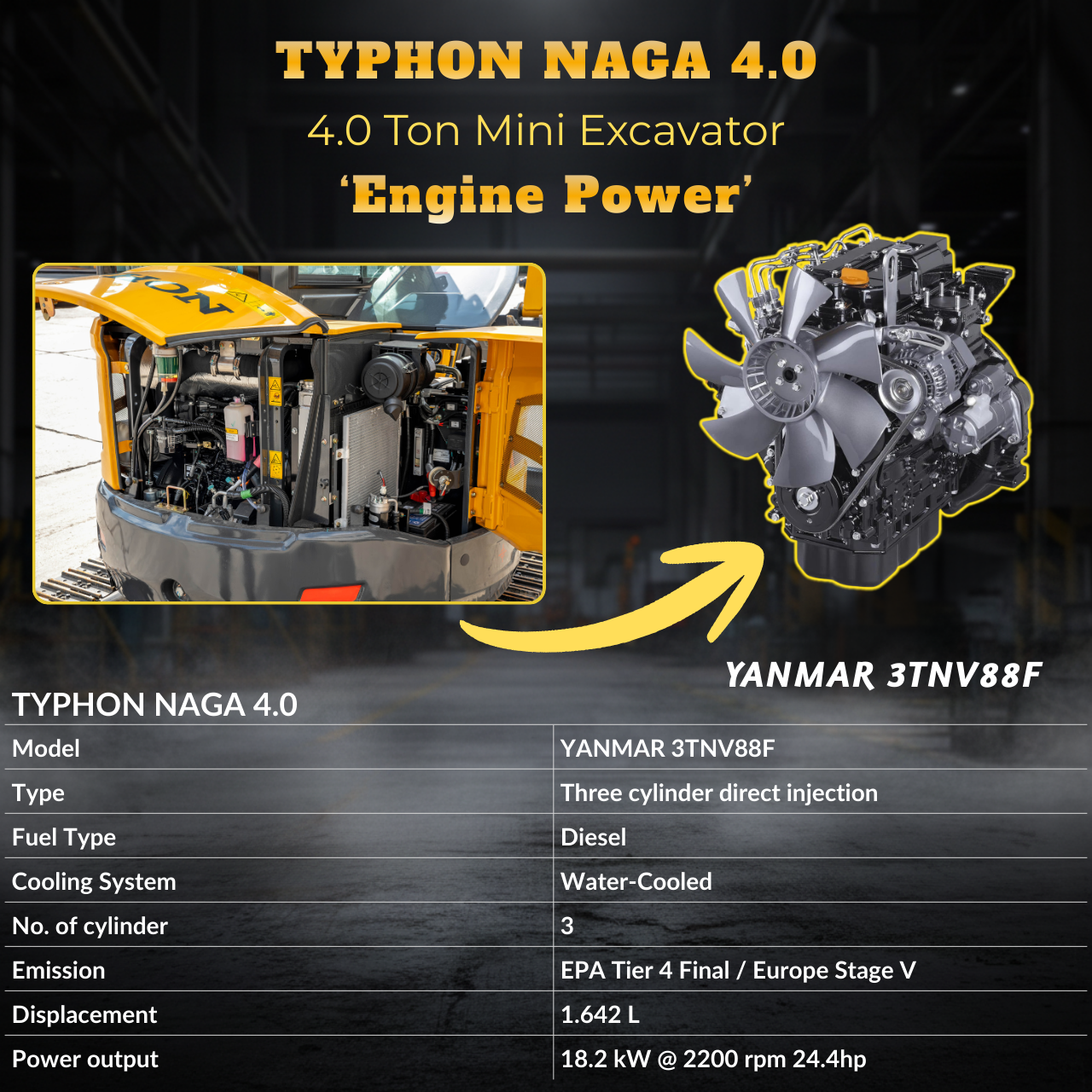

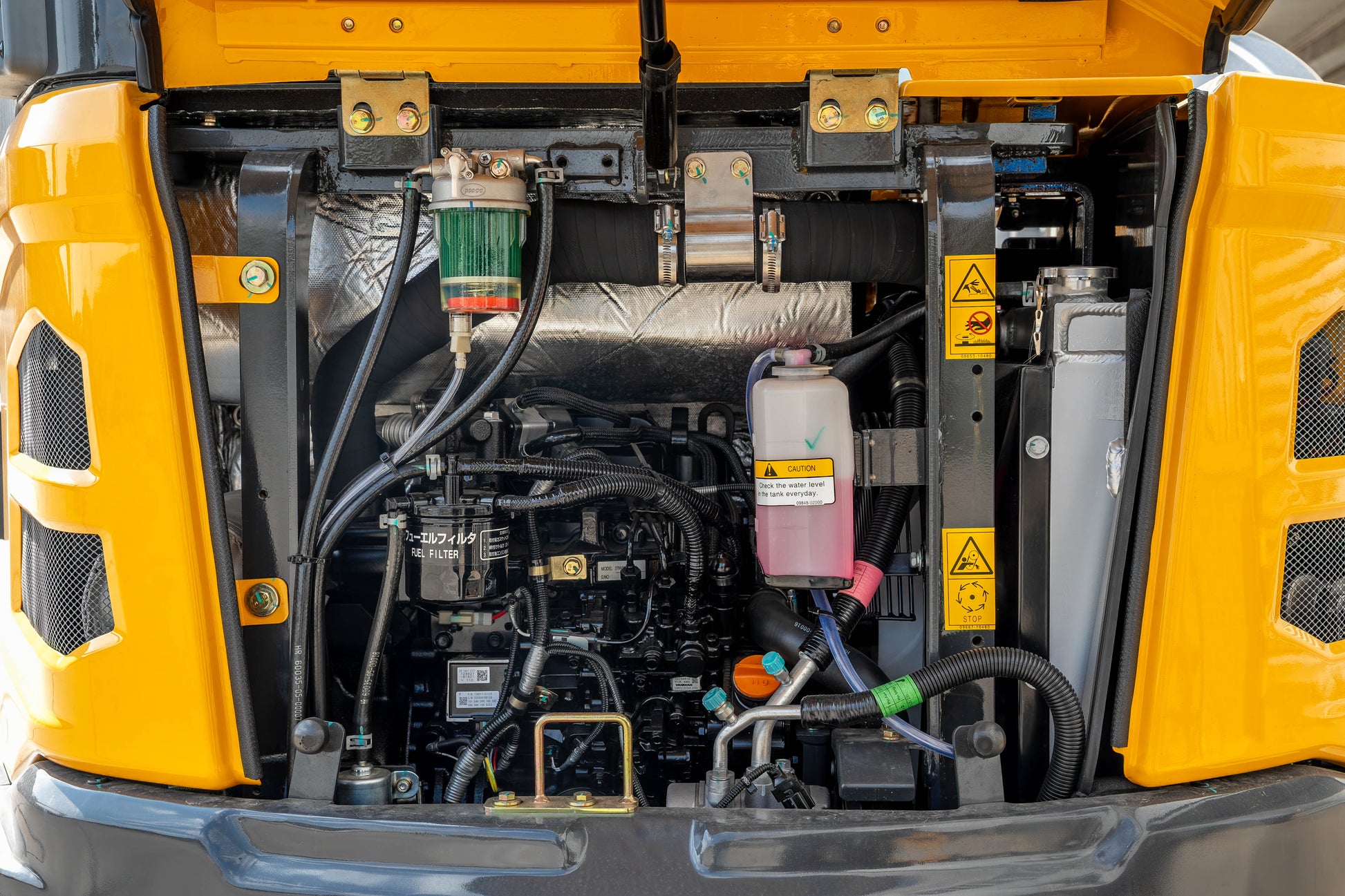

At the core of this 4-ton class machine is the proven YANMAR 3TNV88F diesel engine, globally recognized for reliability and performance. This three-cylinder, direct-injection engine produces 18.2 kW (24.4 hp) at 2200 rpm and fully complies with EPA Tier 4 Final and EU Stage V emissions standards. With a 1.642 L displacement, it delivers strong, consistent output for demanding daily operations while maintaining excellent fuel efficiency.

Built for long-term durability, the machine is equipped with a 50 L fuel tank and a 40 L hydraulic oil tank, reducing refueling and service interruptions. An advanced cooling system, paired with a 6.7 L engine oil capacity, ensures stable performance under sustained heavy loads. Whether traveling across the job site at a two-speed travel of 2.4–4.4 km/h or executing precise low- and high-power excavation tasks, this Yanmar-powered system provides relentless strength, smooth hydraulic flow, and dependable efficiency required for modern industrial applications.

4. User-friendly Design :

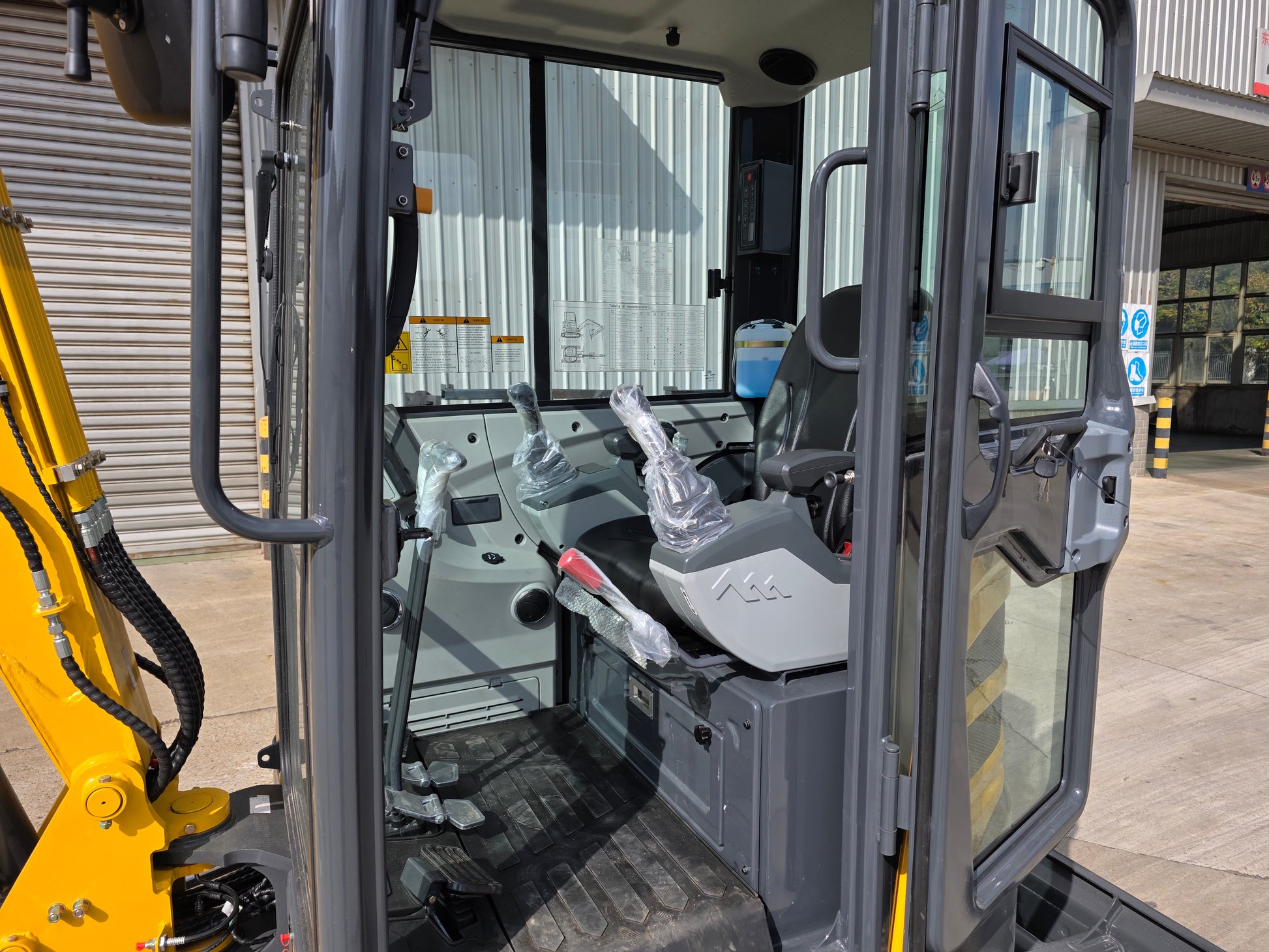

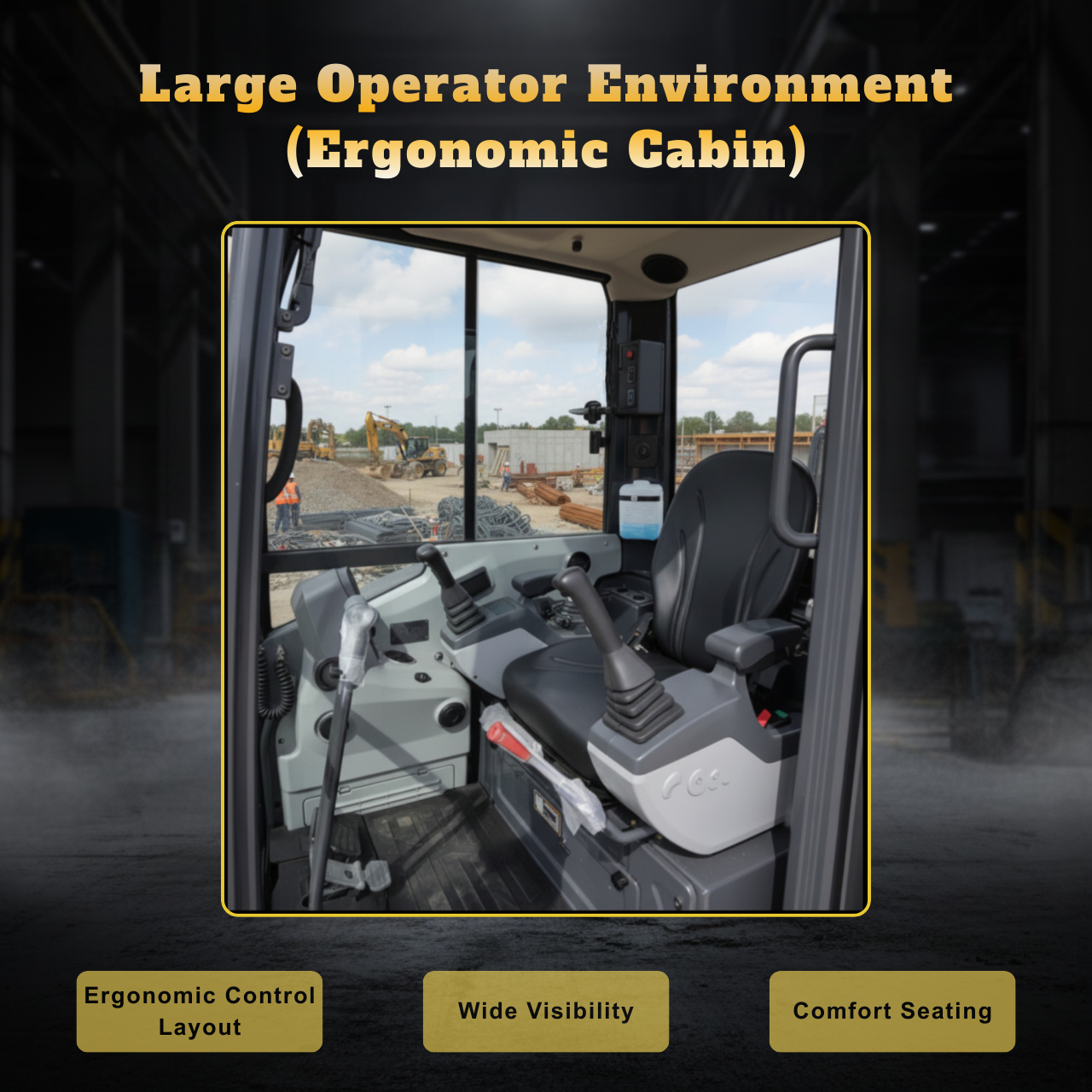

The TYPHON NAGA 4.0 mini excavator is engineered to maximize operator comfort, control, and efficiency throughout long working hours. Its ergonomic control layout features intuitive, low-effort joysticks and ISO/SAE selectable control patterns, enabling precise, fatigue-reducing operation in a wide range of applications.

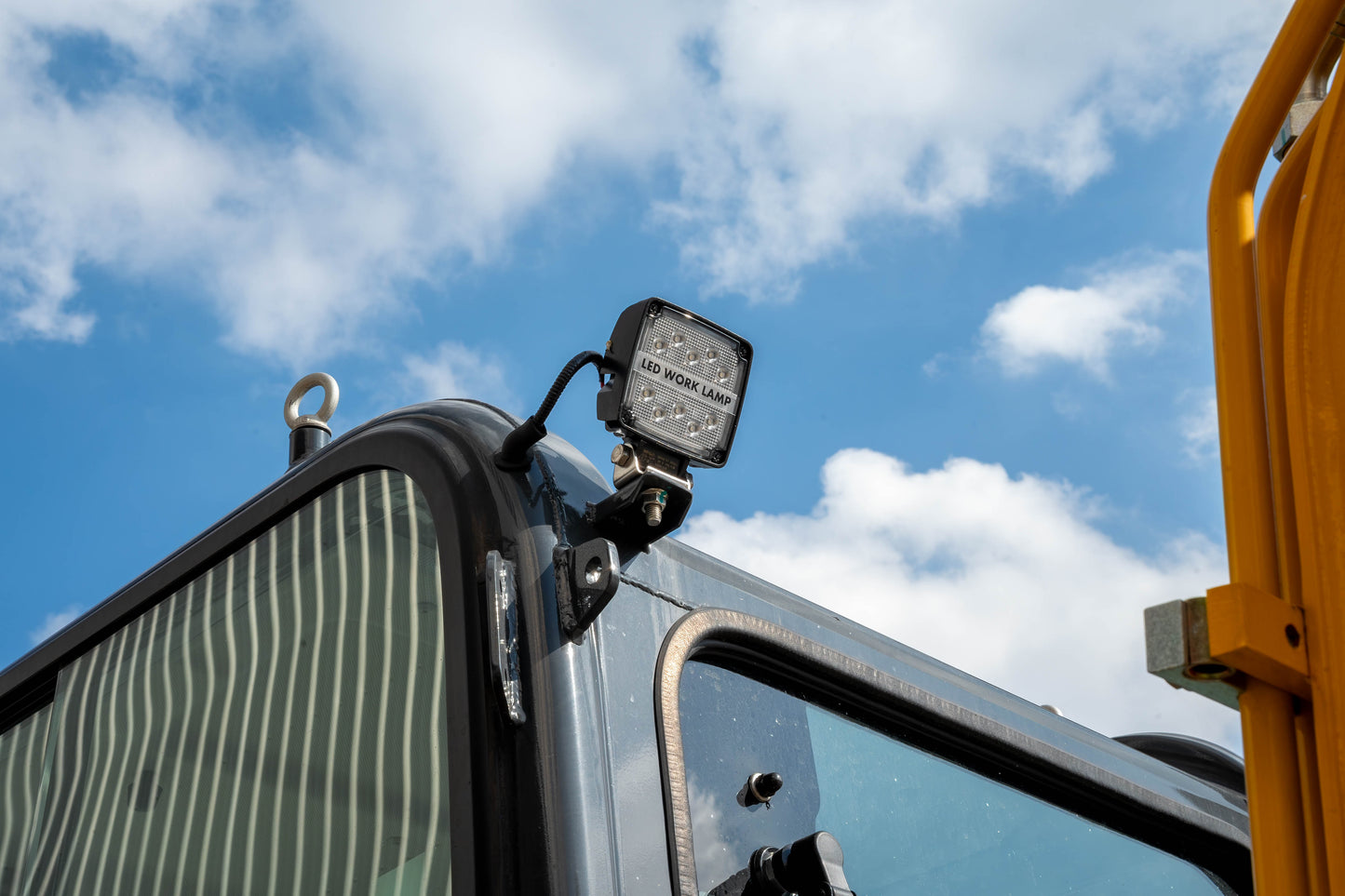

Operators benefit from a high-visibility working environment, with an optional enclosed cabin equipped with air conditioning and heating, as well as an openable front glass window for improved airflow when needed. A 7-inch touchscreen display provides straightforward access to machine settings, control mode selection, and real-time performance monitoring. In addition, LED warning alarms and high-intensity LED work lights enhance safety and visibility across the entire working radius.

Together, these features create a safe, comfortable, and highly productive operating experience even during demanding excavation tasks.

5. Included Accessories :

The TYPHON NAGA 4.0 mini excavator machine includes 1 x regular digging excavator Bucket, one tool box, 1 x Fire extinguisher, 1 x Breaking Windows & Cutting Seatbelts and a digital manual with complete instructions.

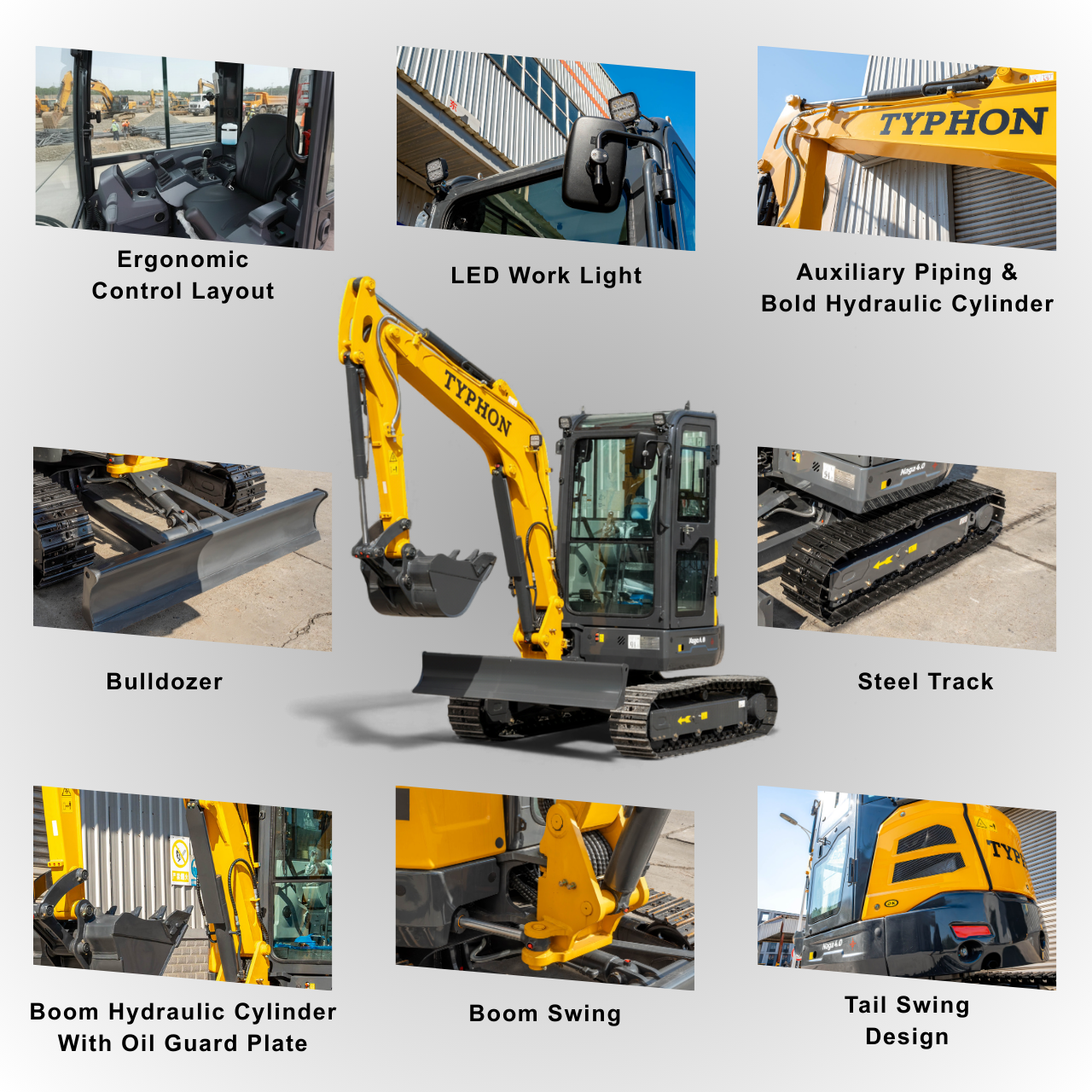

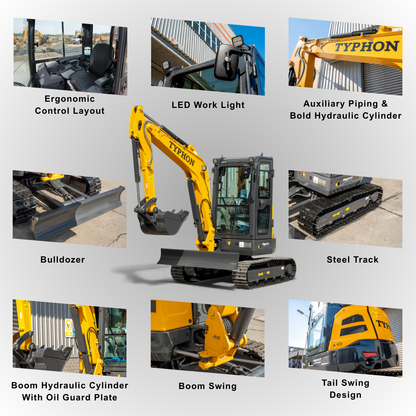

6. Premium Components :

+ The ISO / SAE control selection allows the operator to choose the joystick pattern that matches their operating experience.

• ISO pattern (excavator standard):

Left joystick controls boom up/down and upper structure swing, right joystick controls arm (stick) and bucket.

• SAE pattern (backhoe pattern):

Left joystick controls swing and arm (stick), right joystick controls boom and bucket.

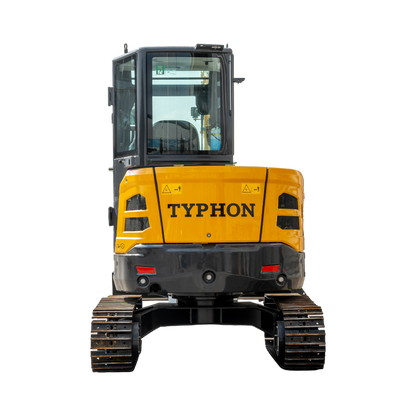

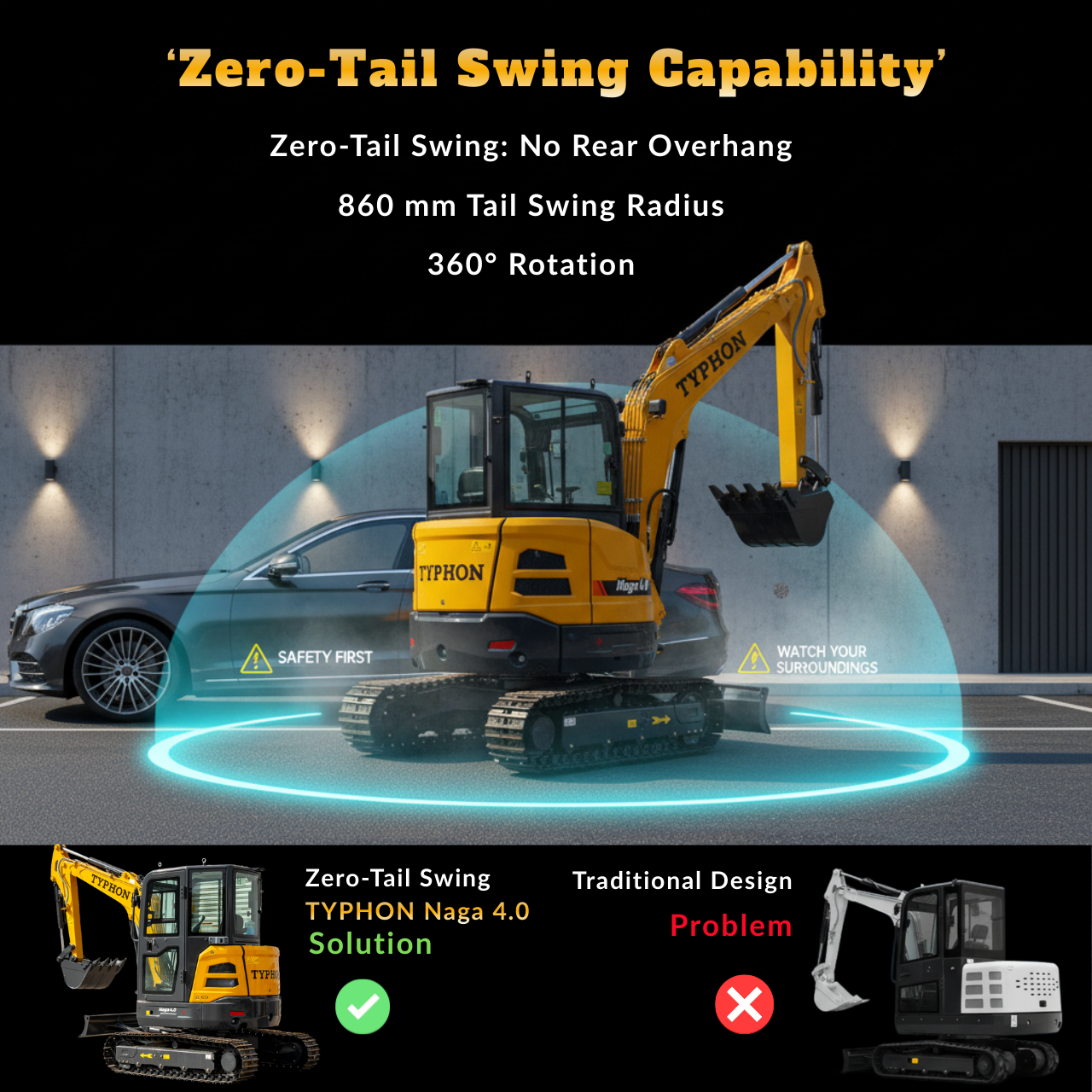

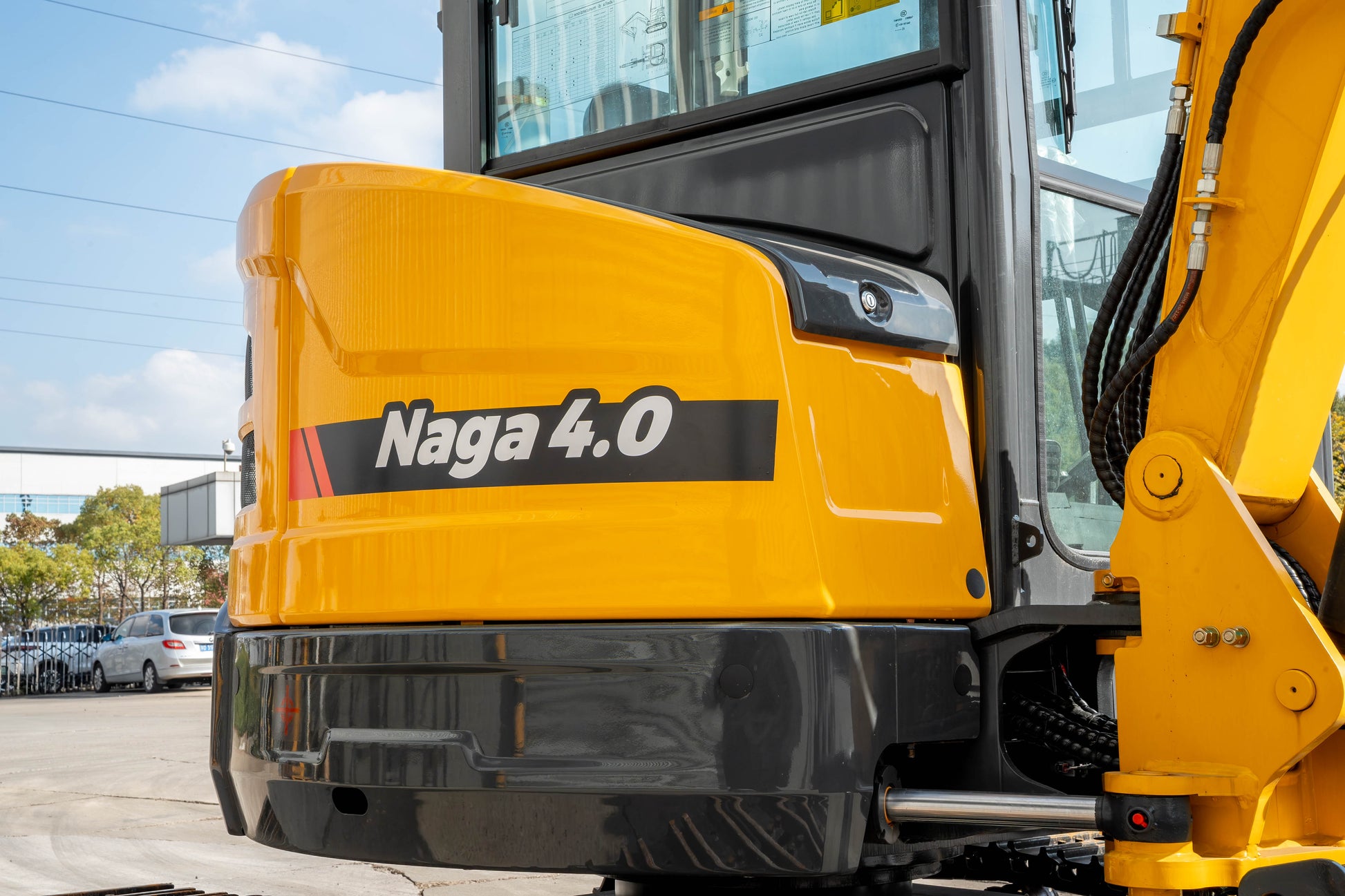

+ Zero Tail Swing: Rear structure stays within track width during rotation, allowing safe operation in confined and urban spaces.

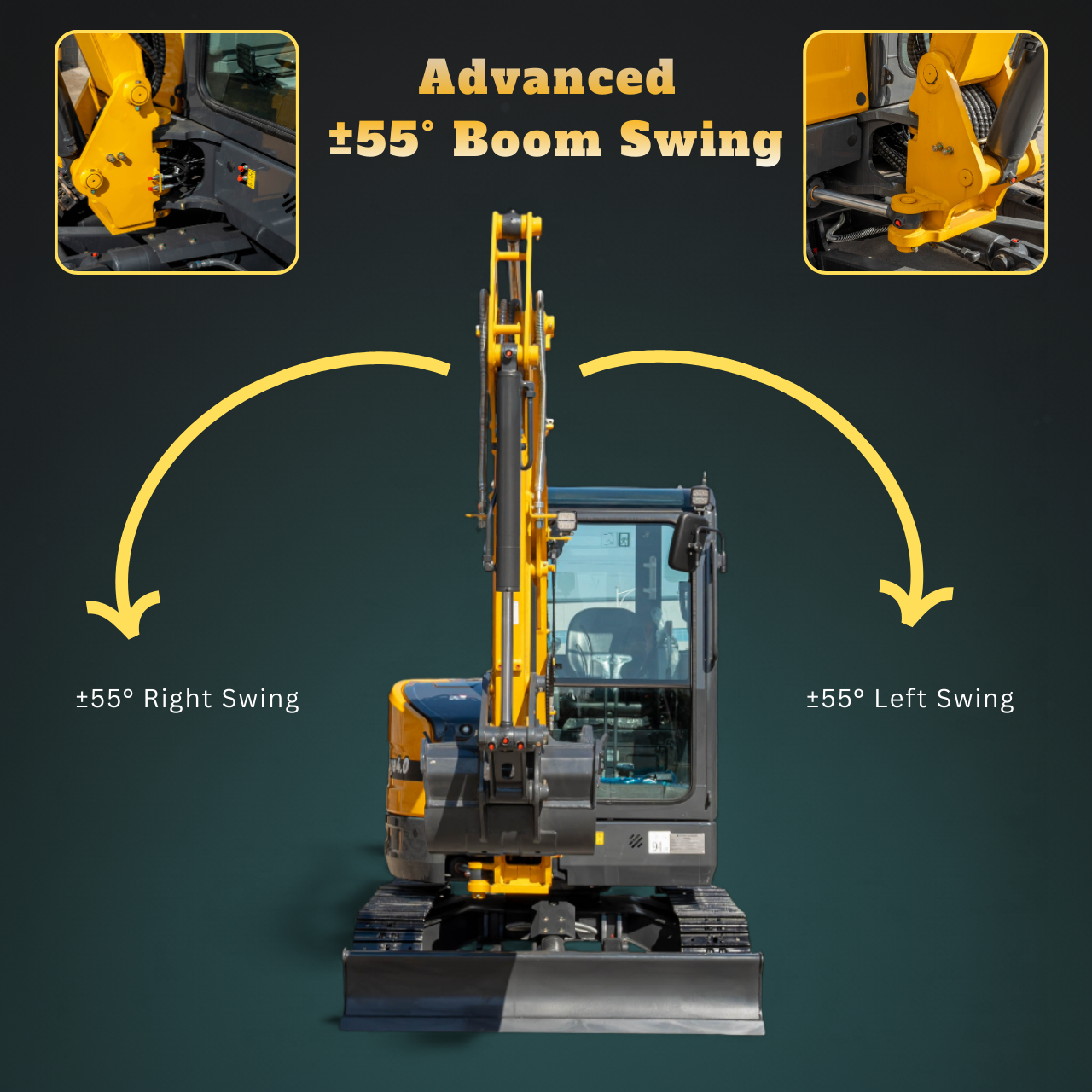

+ Left & Right Boom Swing (55° / 55°): Allows offset digging along walls, foundations, and road edges without repositioning the machine.

+ 360° Upper Structure Swing: Full rotation improves digging and loading efficiency while reducing machine movement.

+ Two-Speed Travel: Low speed 2.4 km/h provides high torque for digging and slopes high speed 4.4 km/h enables faster site travel.

+ Plunger Pump: Standard auxiliary 96.8 L/min Hydraulic flow circuit supports breakers and multiple attachments.

+ Smart Digital Dashboard: 7-inch touchscreen displays engine data, hydraulic status, working hours, fault codes, maintenance reminders, and control pattern selection.

+ Three-way stop valve: These valves are used to add a hydraulic function, such as an auger or thumb clip attachment, by rerouting the flow from an existing hydraulic line.

+ Cabin Operation: Enclosed cabin with air conditioning and heater, openable front glass window for ventilation and communication.

+ Metal Tracks: highly durable, sturdy machines designed for harsh conditions like demolition and rocky terrain, offering better traction and longevity than their rubber-tracked counterparts.

+Summary:

The TYPHON NAGA 4.0 mini excavator combines compact dimensions with powerful performance, making it ideal for urban and confined job sites. With strong breakout force, smooth and reliable hydraulic flow, and a fuel-efficient YANMAR engine compliant with modern emission standards, it handles demanding excavation tasks with ease. Operator-focused features—including intuitive controls, a touchscreen display, excellent visibility, and enhanced lighting—ensure comfort, safety, and consistent productivity throughout long working hours.
