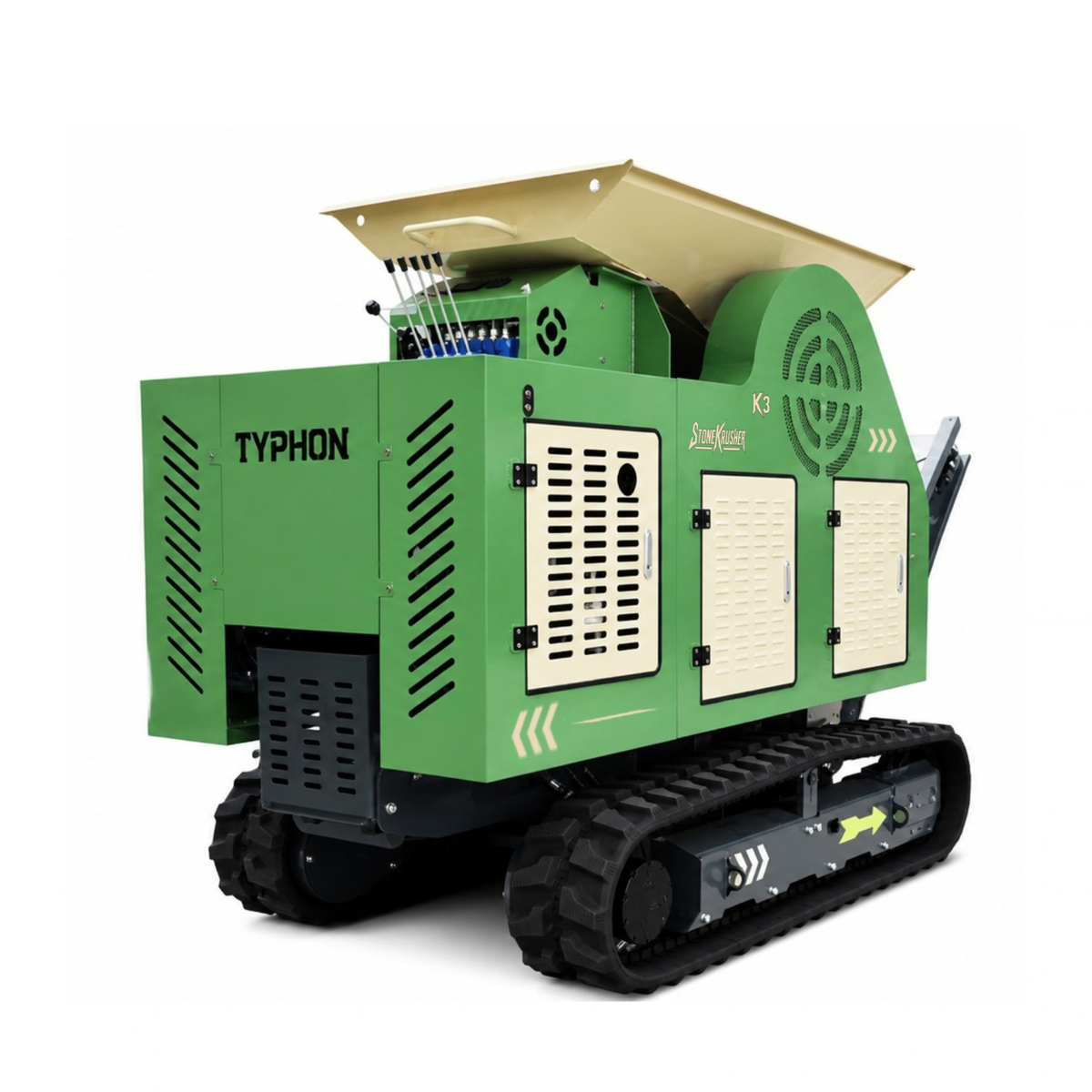

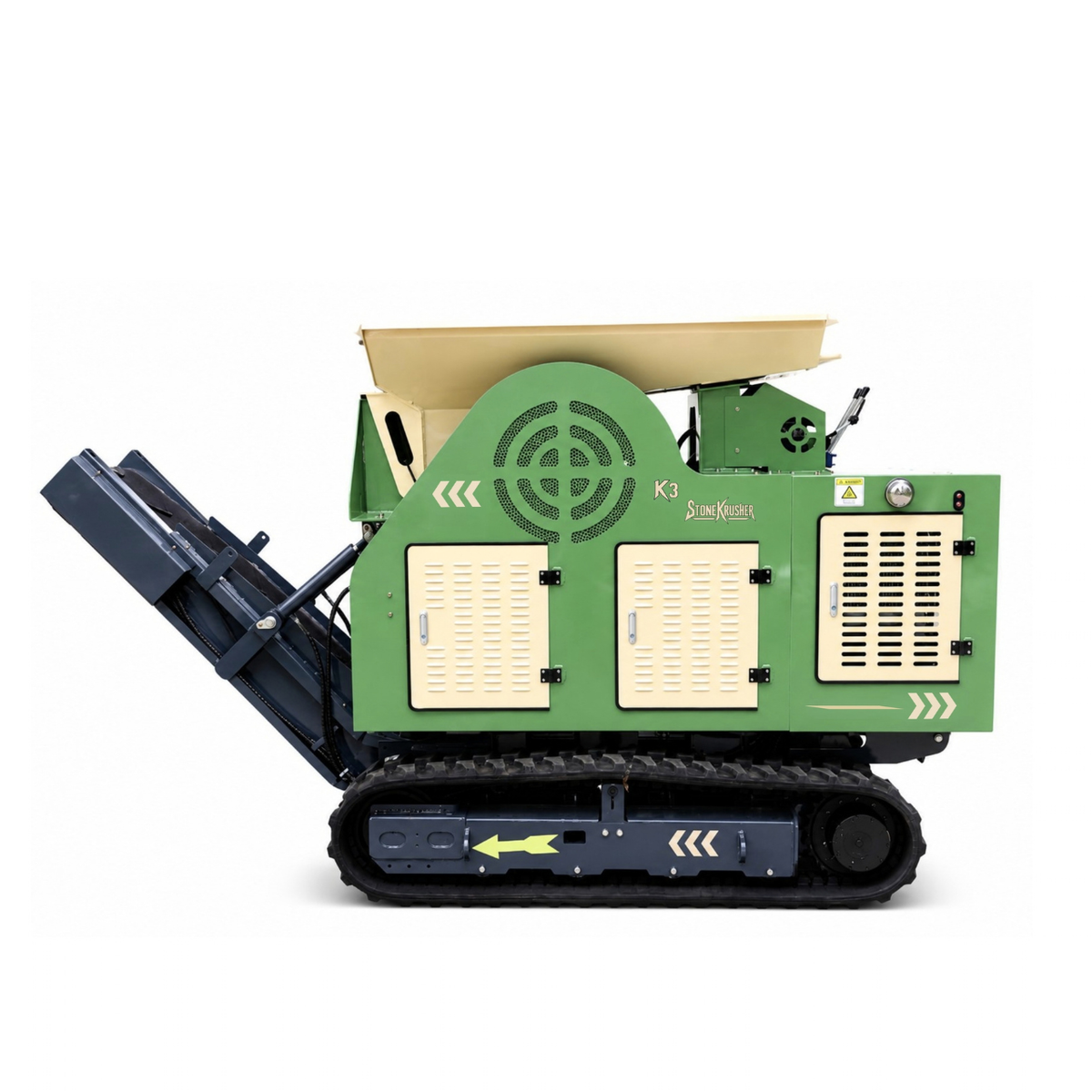

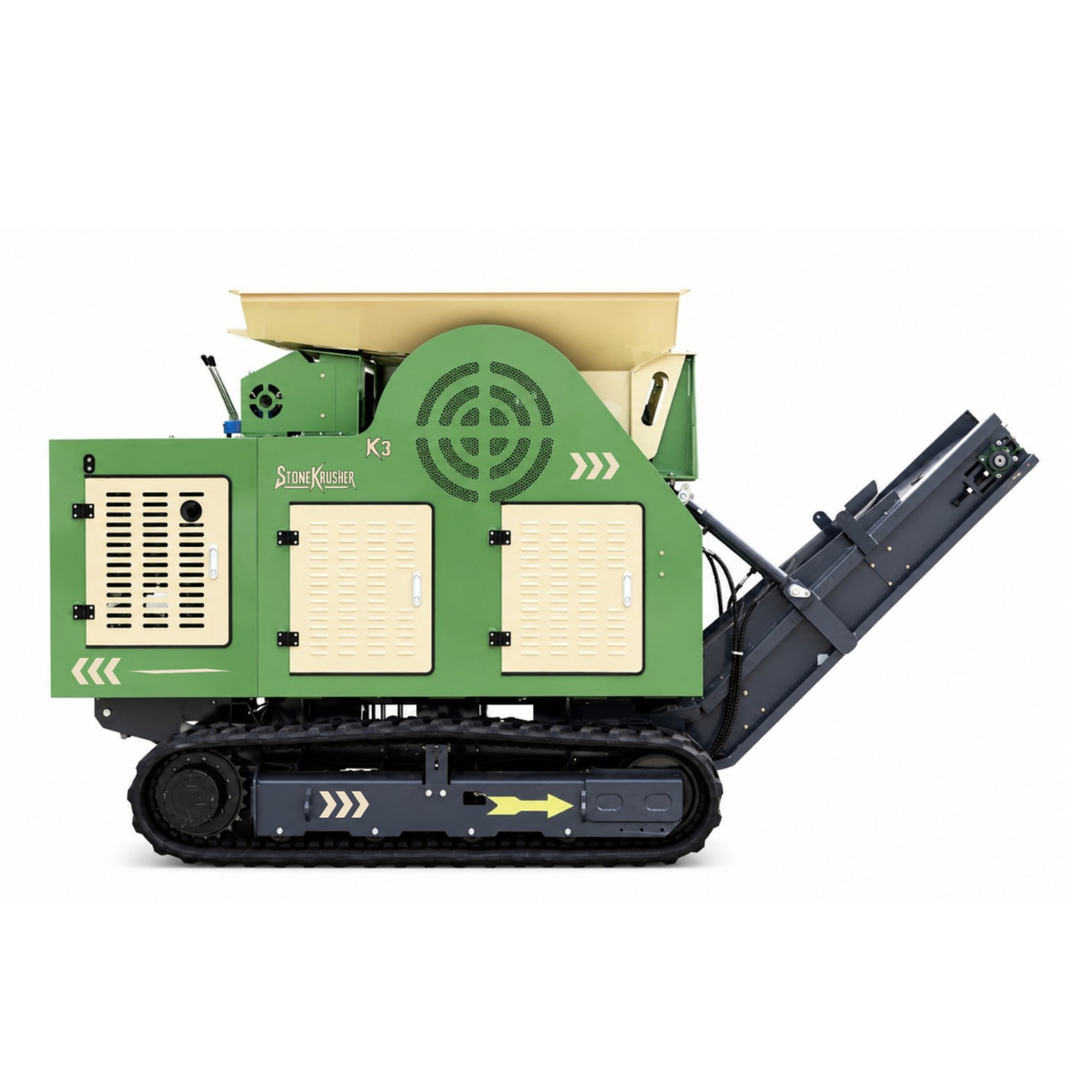

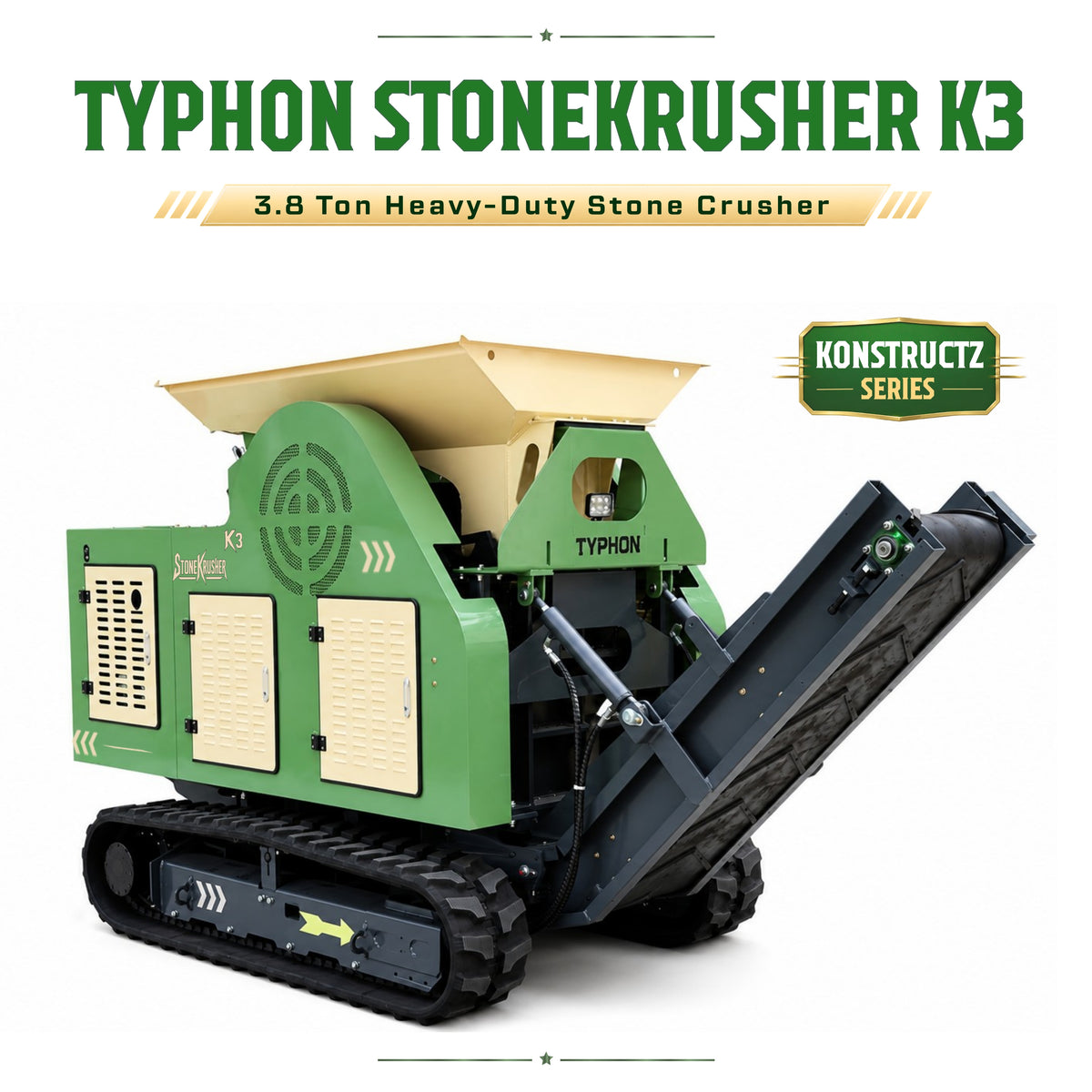

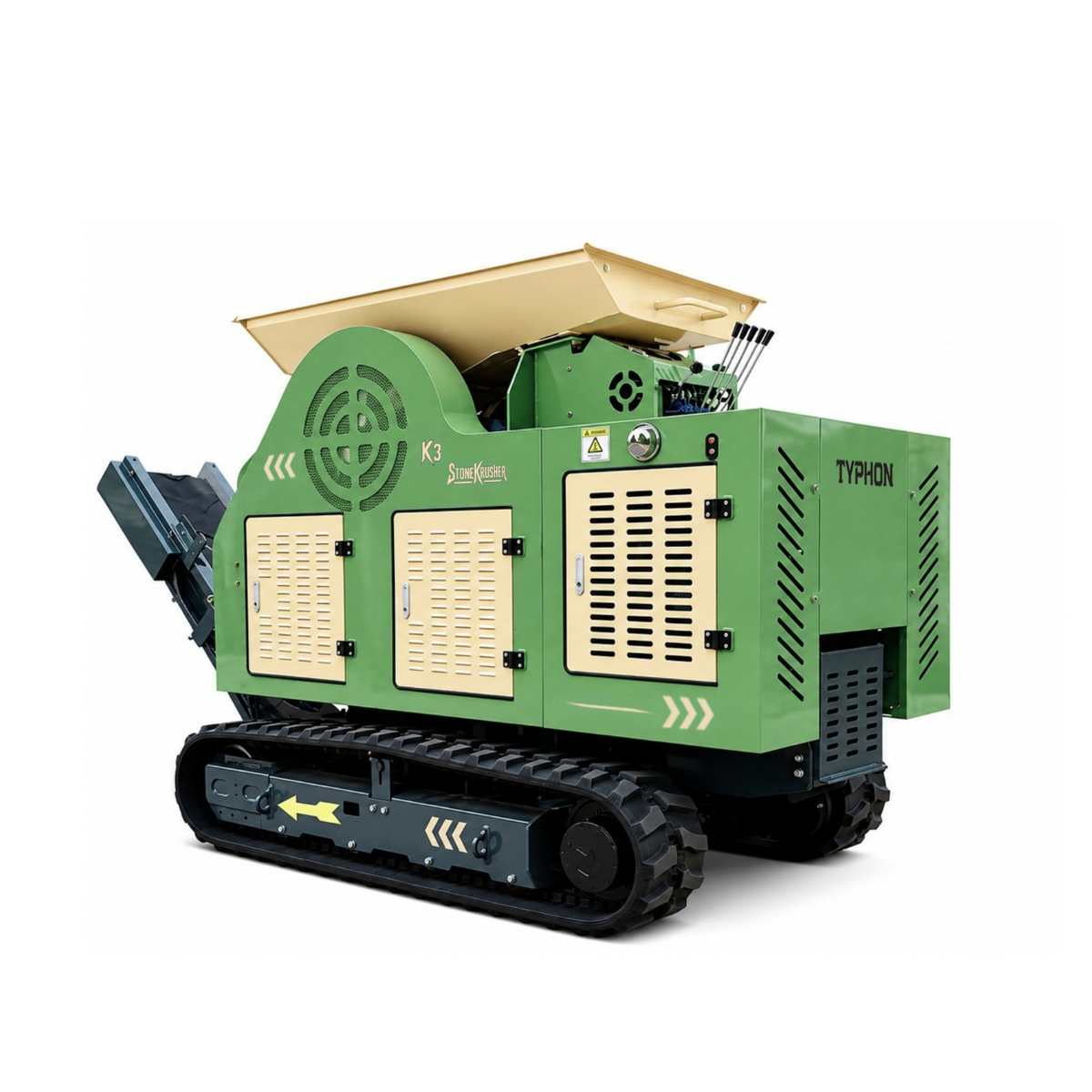

TYPHON STONEKRUSHER K3 Compact Tracked Jaw Crusher – 24.8HP Kubota Diesel KONSTRUCTZ Series

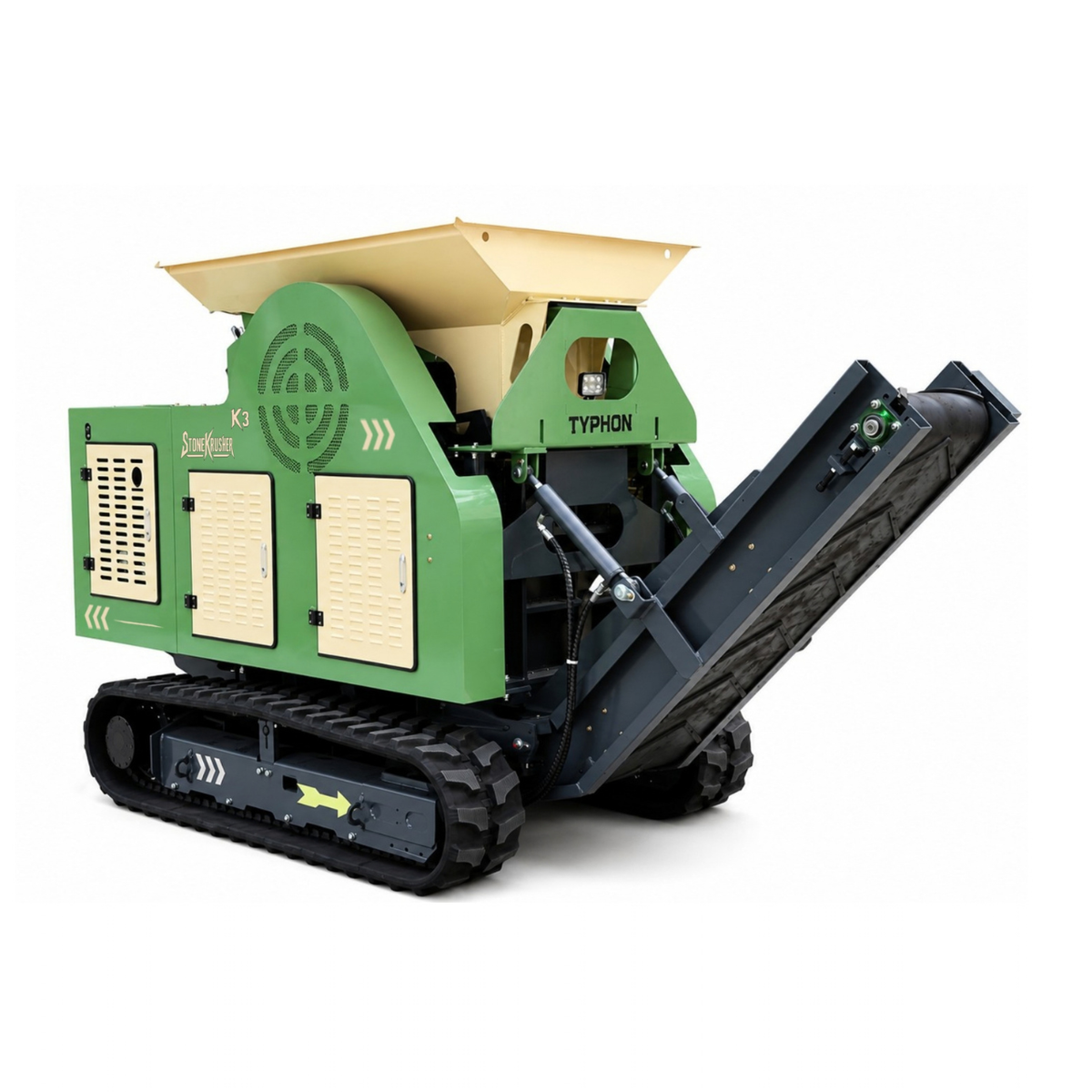

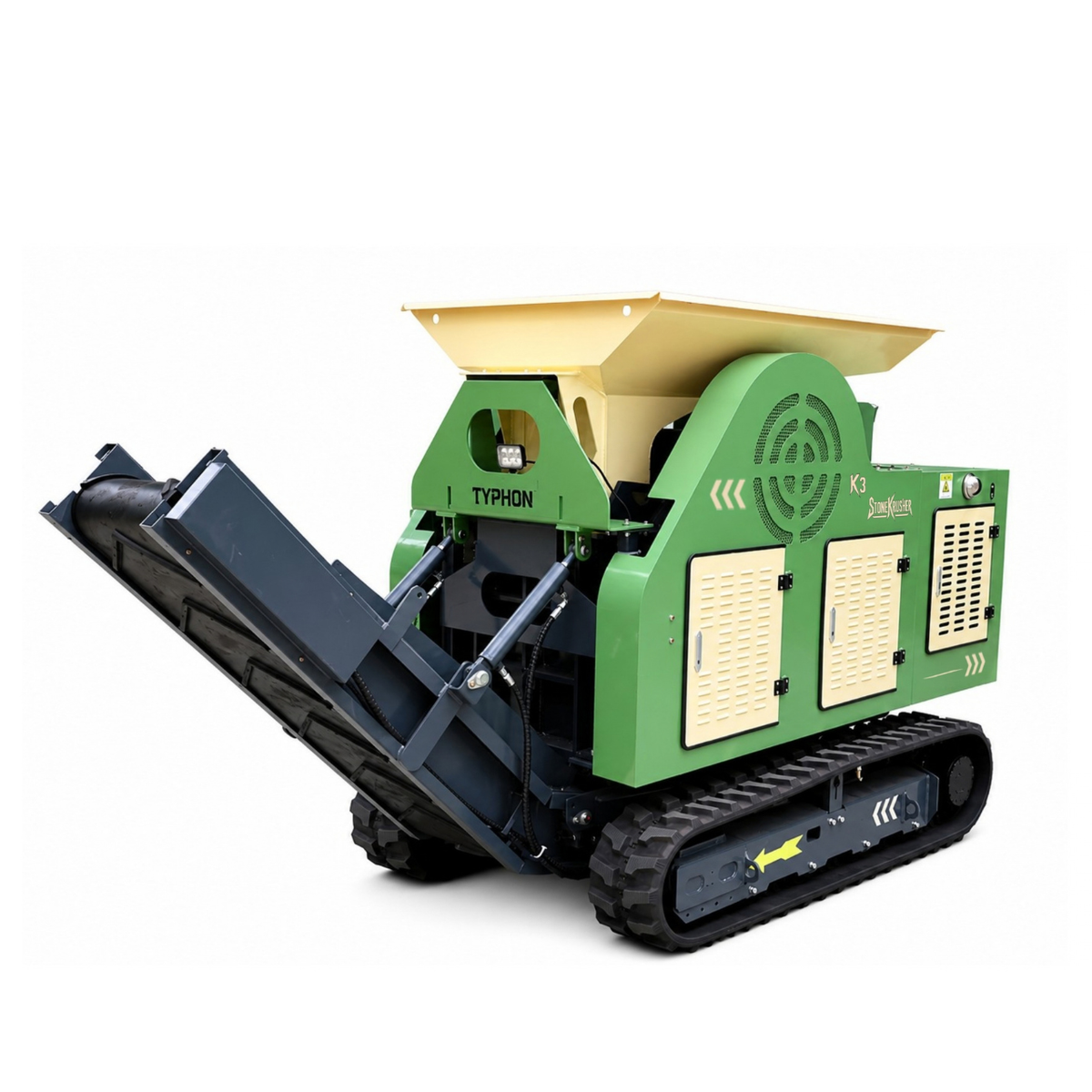

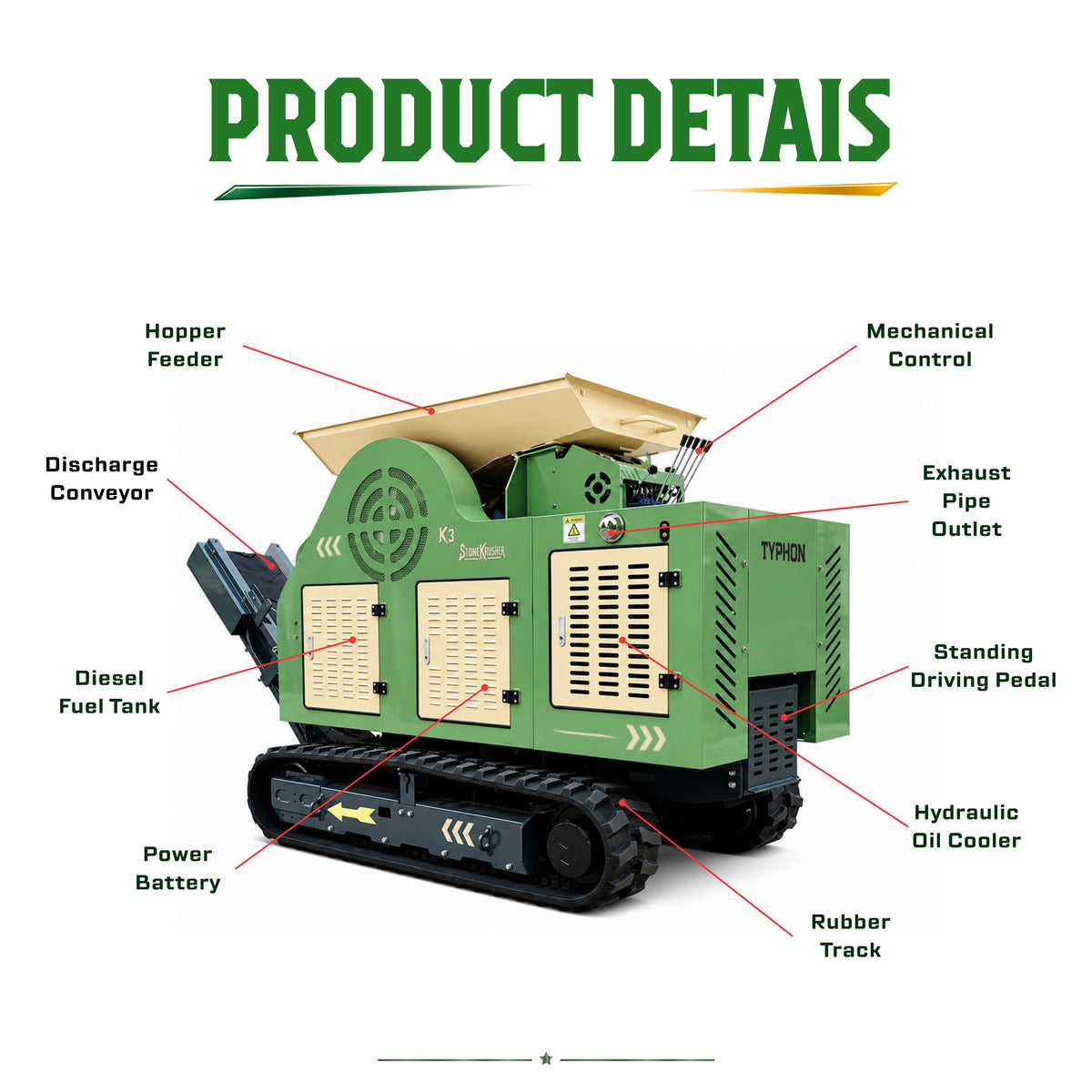

Turn raw rock into usable aggregate right where the work happens. The TYPHON STONEKRUSHER K3 is a compact, self-propelled tracked jaw crusher built for construction, landscaping, demolition, recycling, and other demanding jobsites.

Powered by a Kubota D1105 diesel engine and equipped with a hydraulic-driven crushing system, the K3 combines serious crushing capability with the mobility to work in areas where larger equipment can be difficult to position.

01. Compact Size. Built to Move.

At approximately 4 tons, the K3 delivers substantial crushing performance without taking up unnecessary jobsite space.

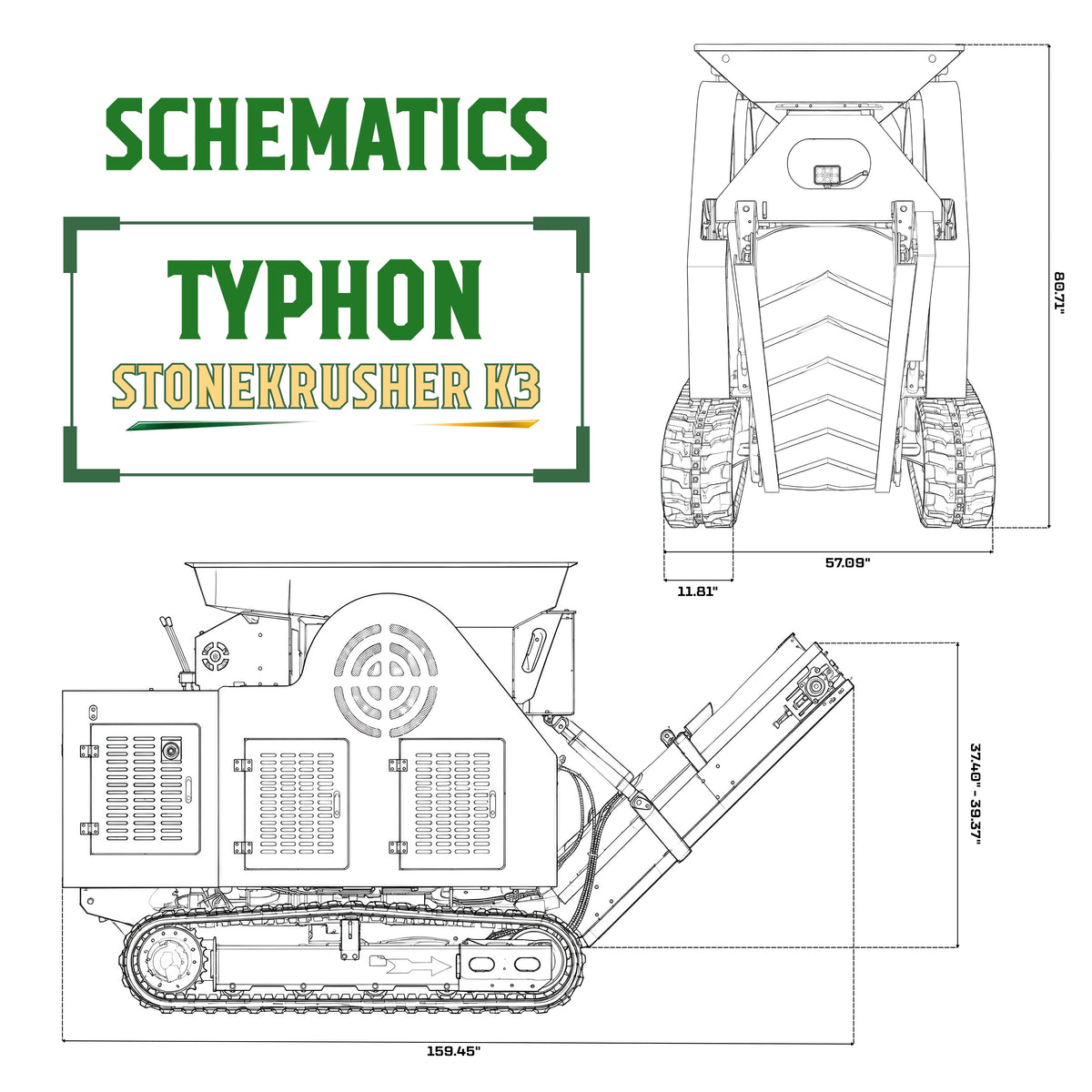

Its compact transport dimensions of 108.3 × 57.1 × 80.7 in and rubber crawler tracks make it easy to maneuver across uneven terrain. Because it is self-propelled, the machine can move between work areas without needing to be towed.

Key Mobility Benefits

• 0–2.5 mph travel speed
• Rubber crawler tracks
• 2-speed travel system
• Hydraulic-powered track drive for controlled maneuvering

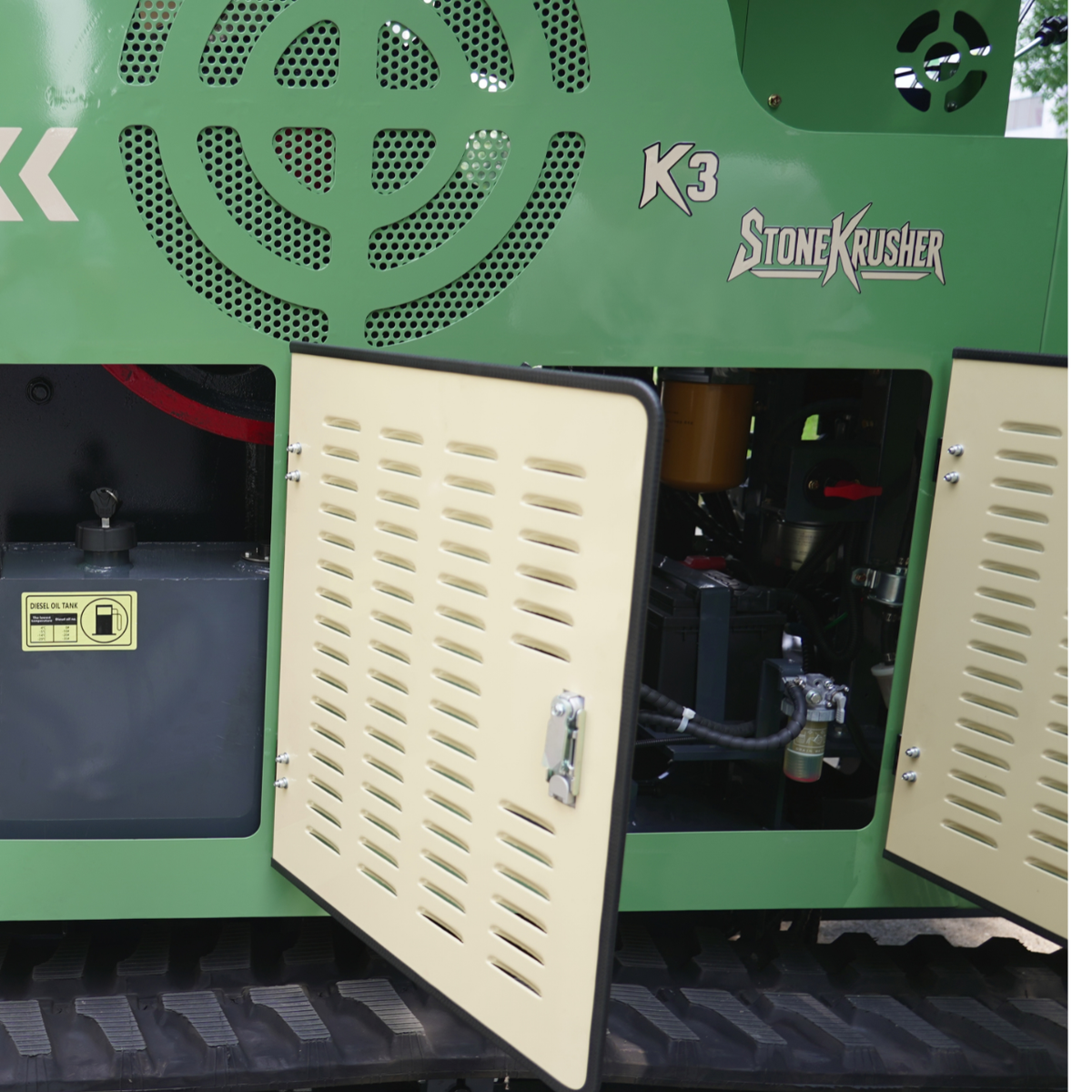

02. Kubota Diesel Power

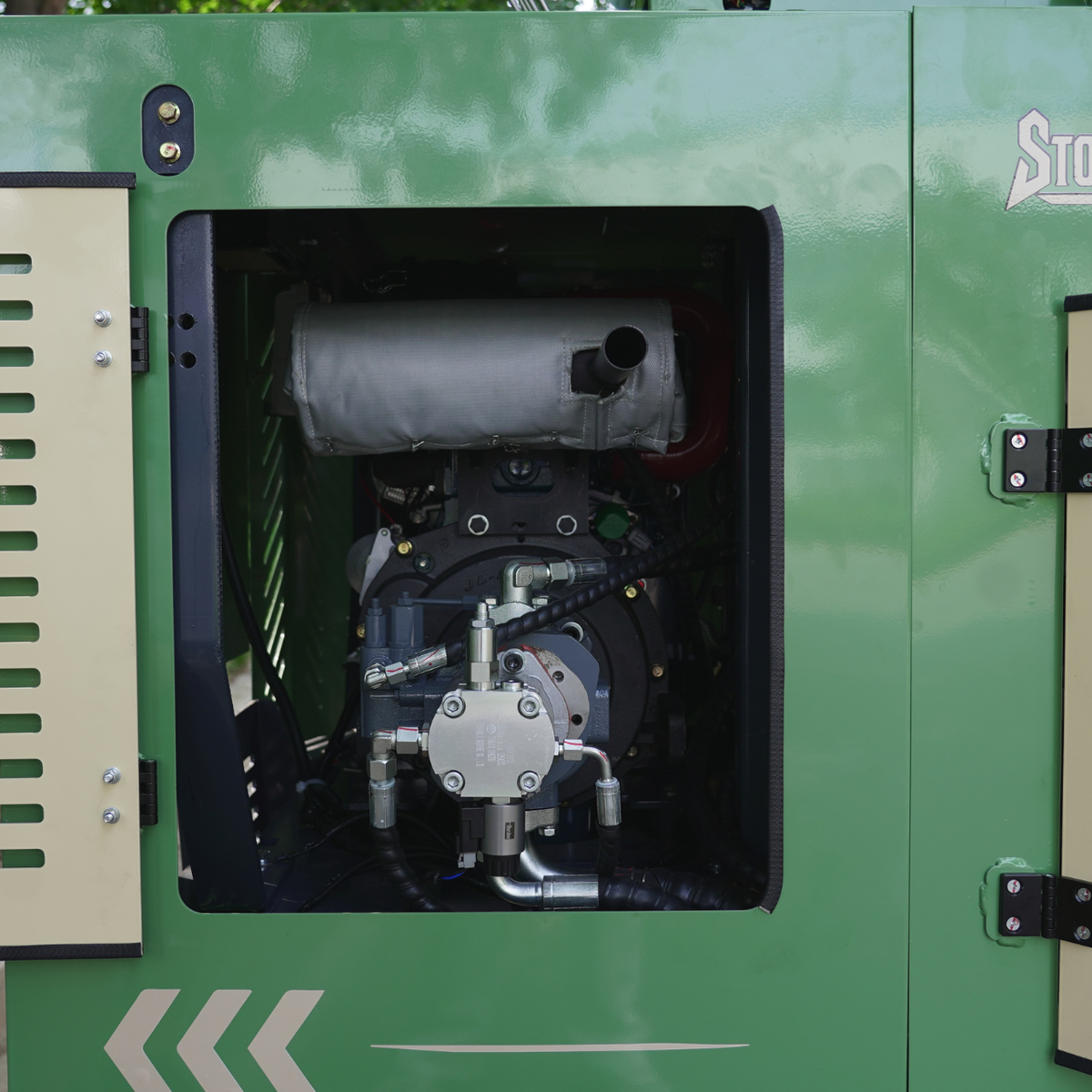

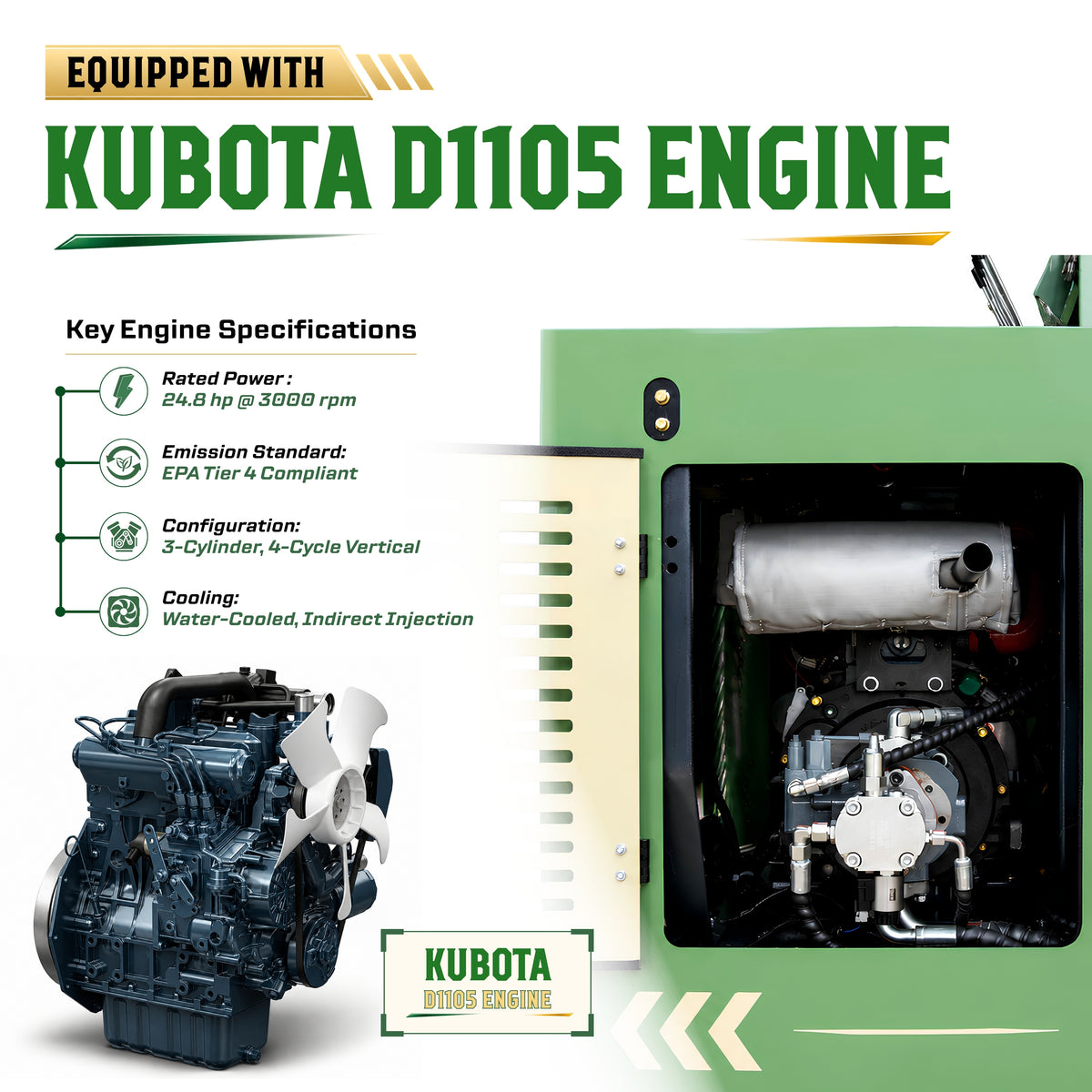

The K3 is equipped with a Kubota D1105 diesel engine producing 24.8 HP at 3,000 RPM. Its diesel powertrain provides dependable performance for extended crushing operations.

The hydraulic system powers the crawler, jaw crusher, and conveyor, giving operators controlled movement and efficient material processing from one compact machine.

03. Powerful Jaw Crushing Performance

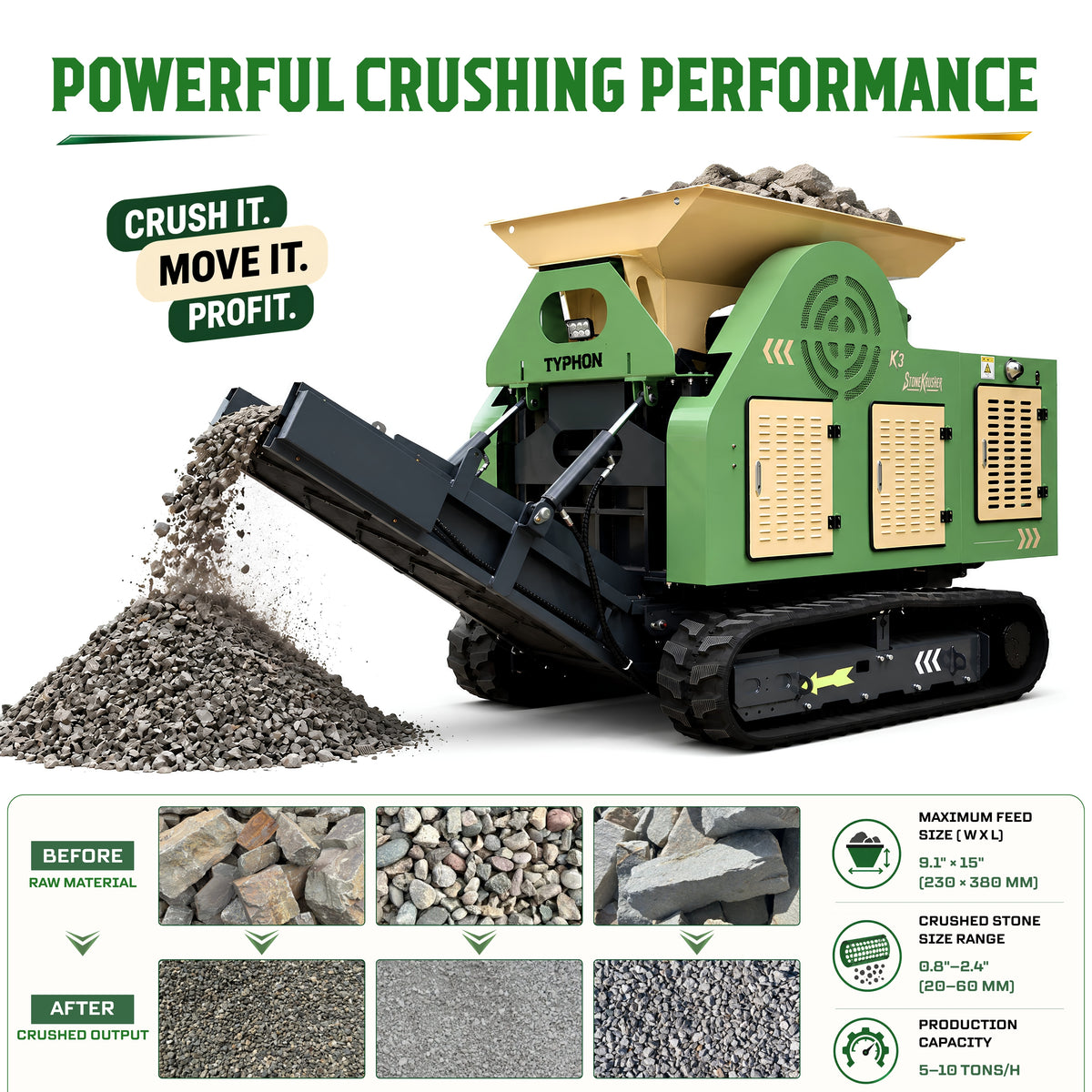

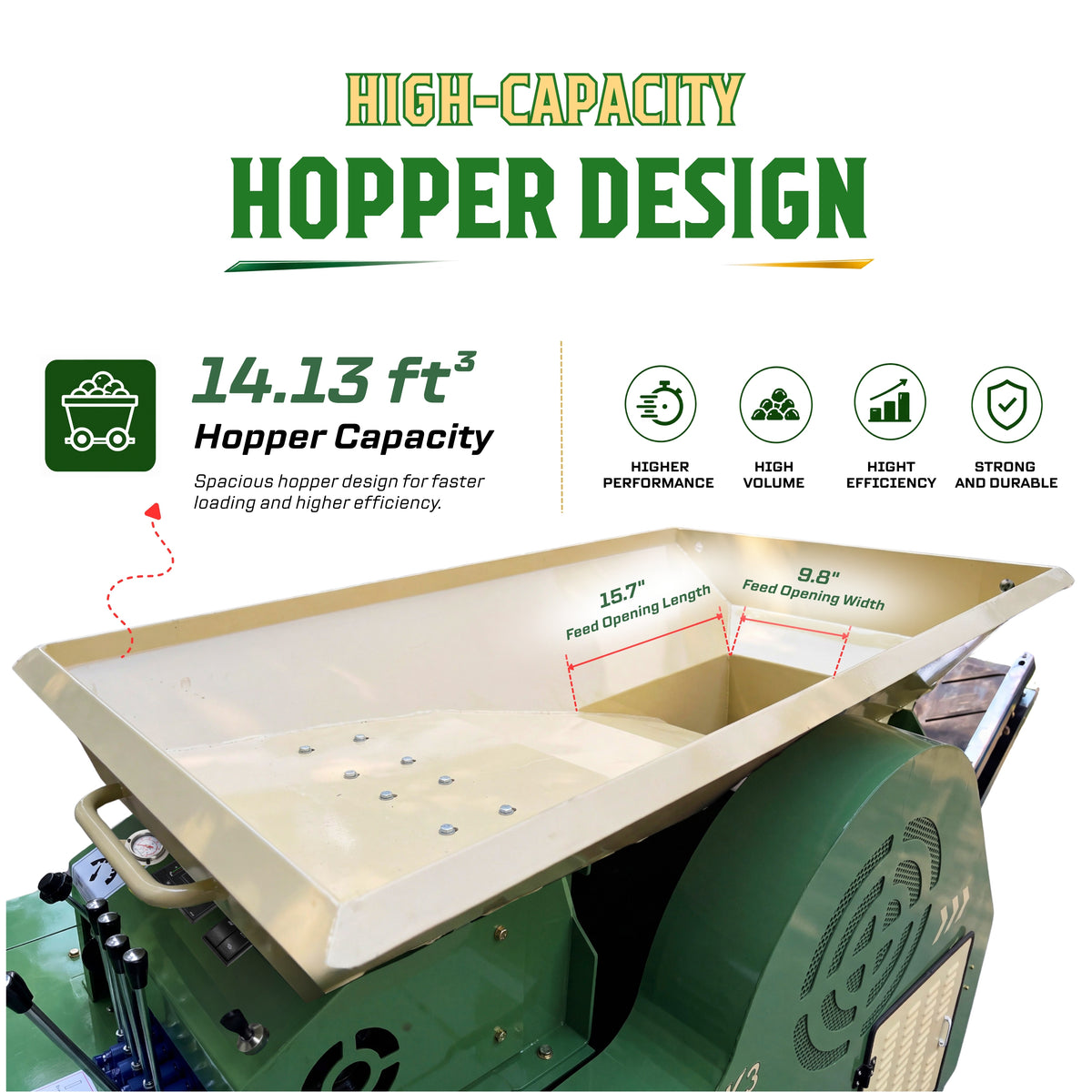

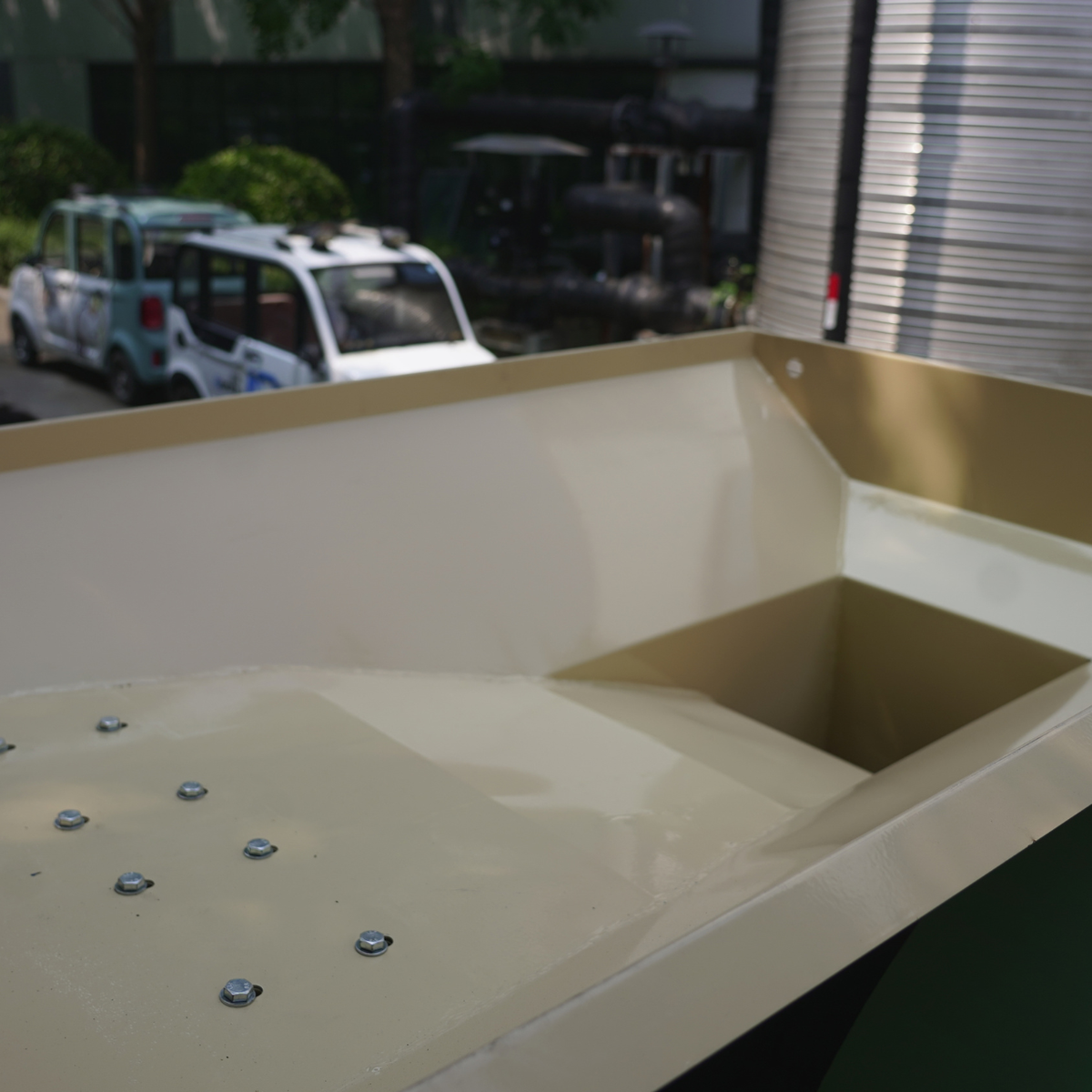

Designed to process larger material efficiently, the K3 accepts feed sizes up to 9.1 × 15.0 in and produces crushed material in a 0.8–2.4 in range.

With a production capacity of approximately 5–10 tons per hour, the K3 keeps material moving while reducing the need to transport raw rock away from the jobsite.

Crushing & Material Handling

• Conveyor width: 15.7 in

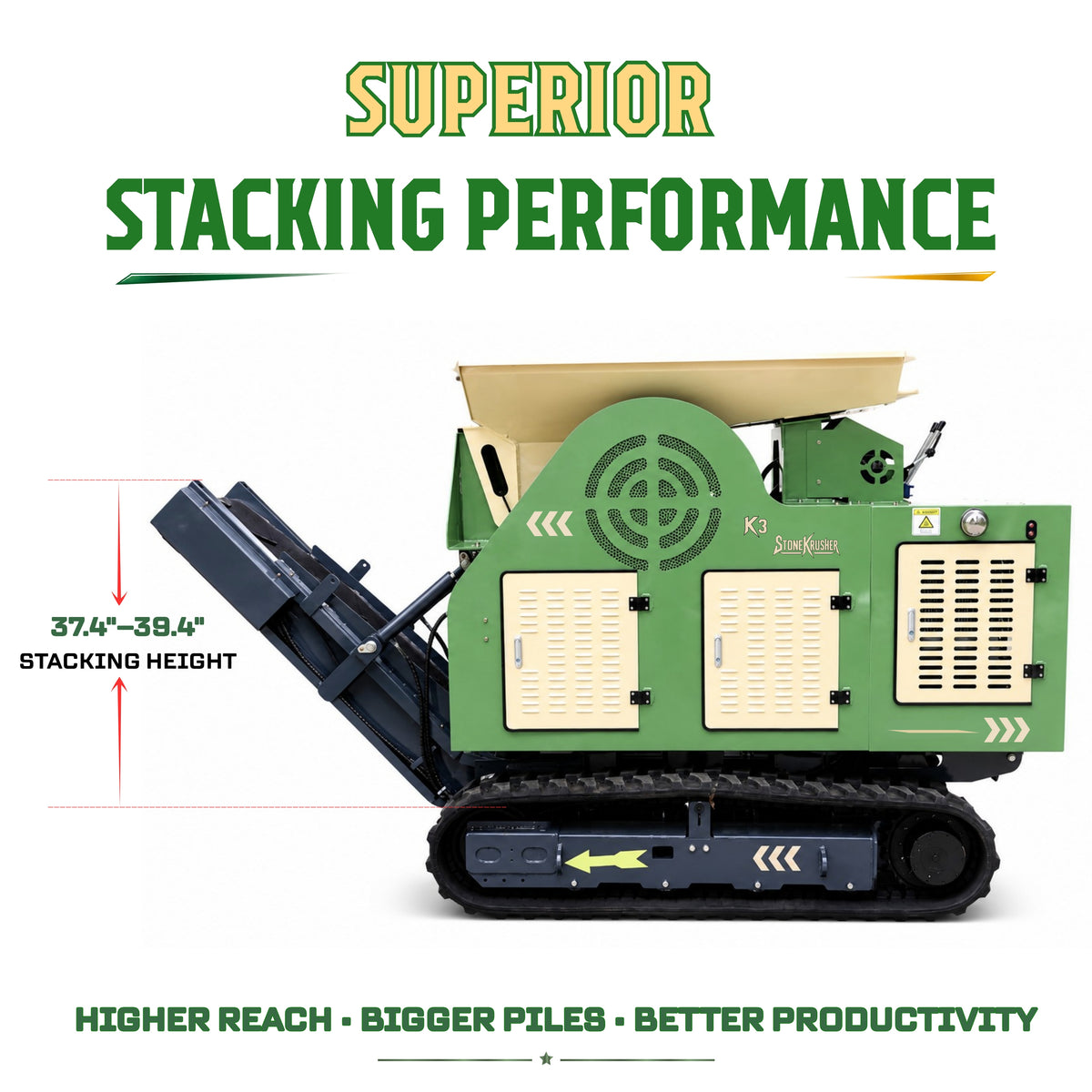

• Stacking height: 37.4–39.4 in

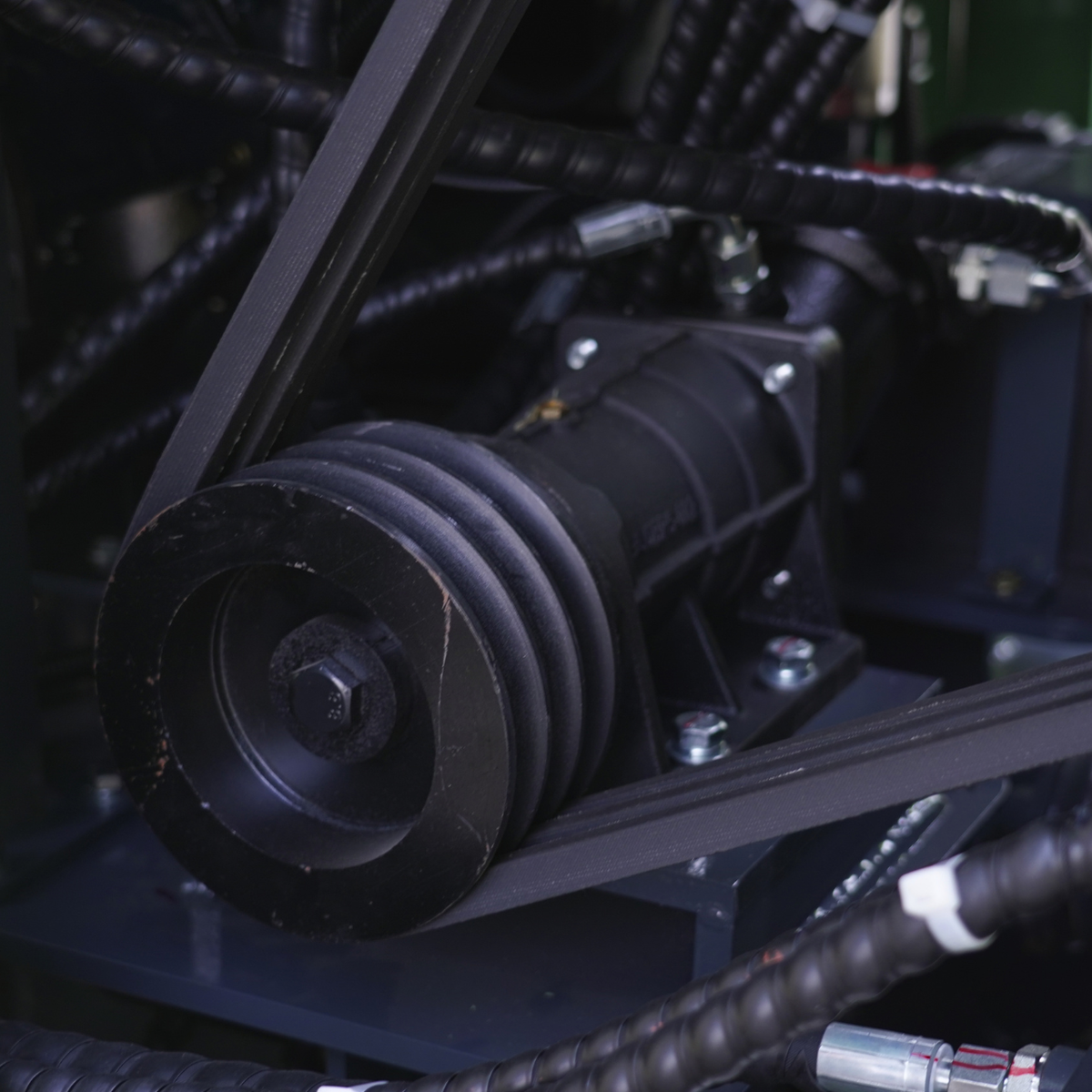

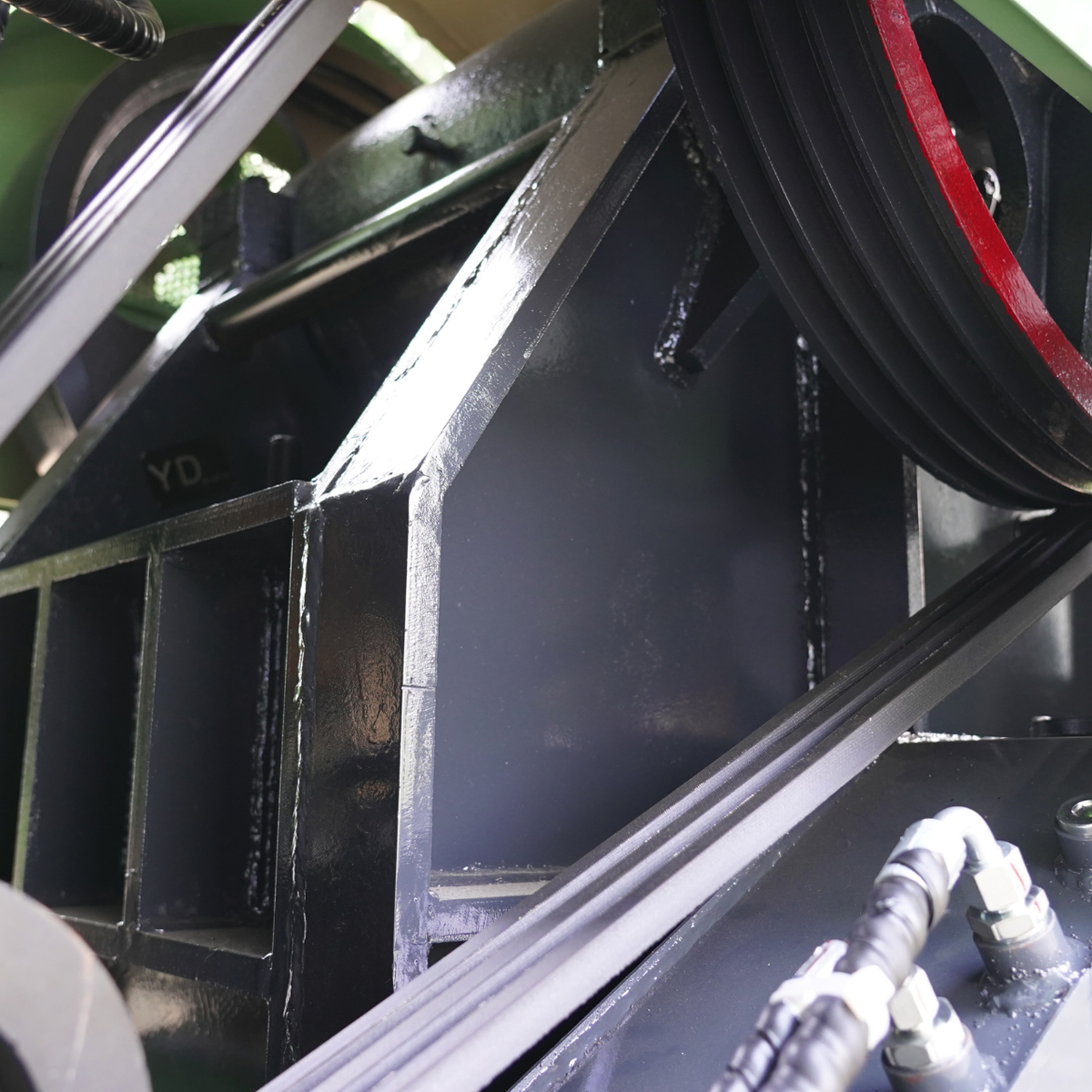

• Hydraulic-driven jaw crusher
• Hydraulic-powered discharge conveyor

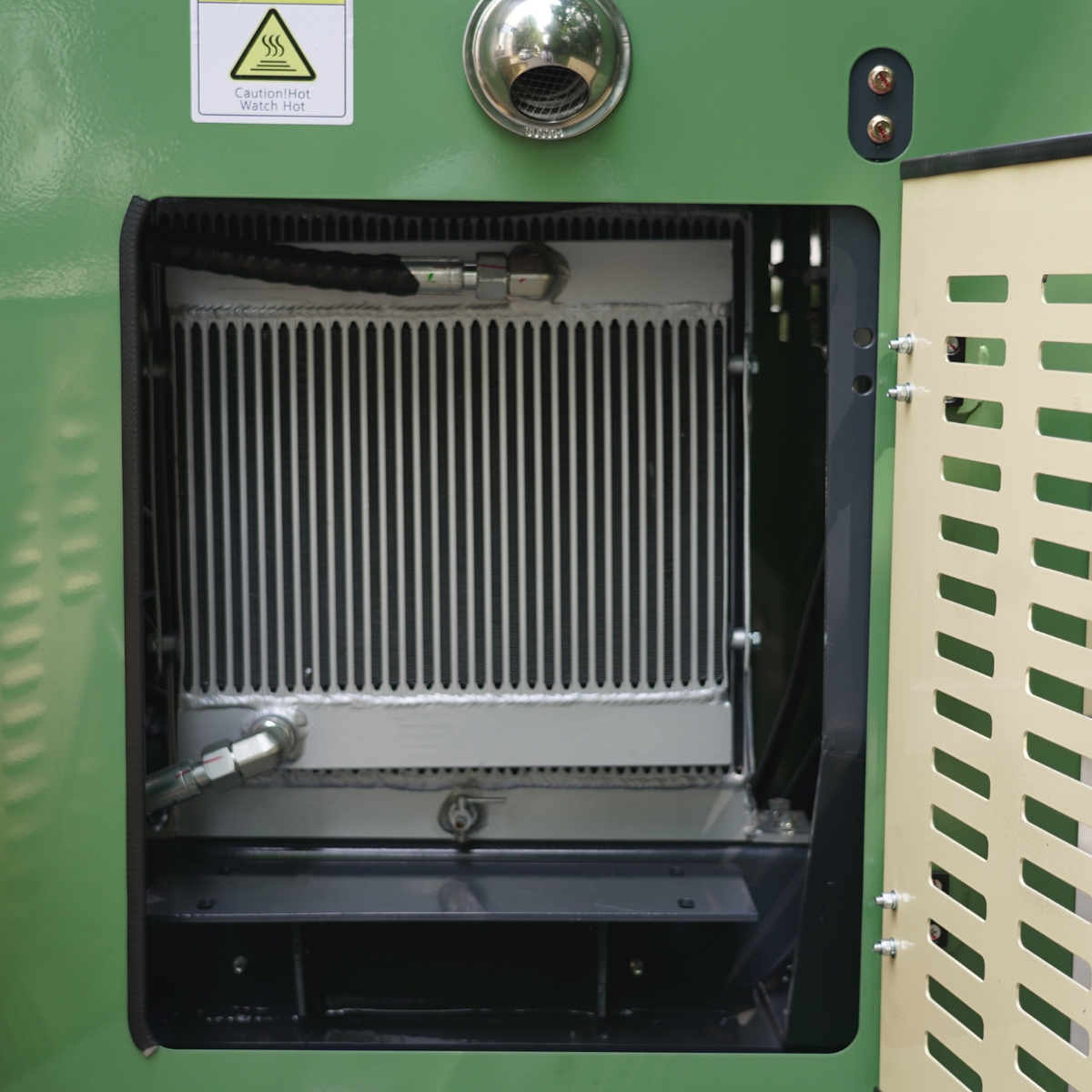

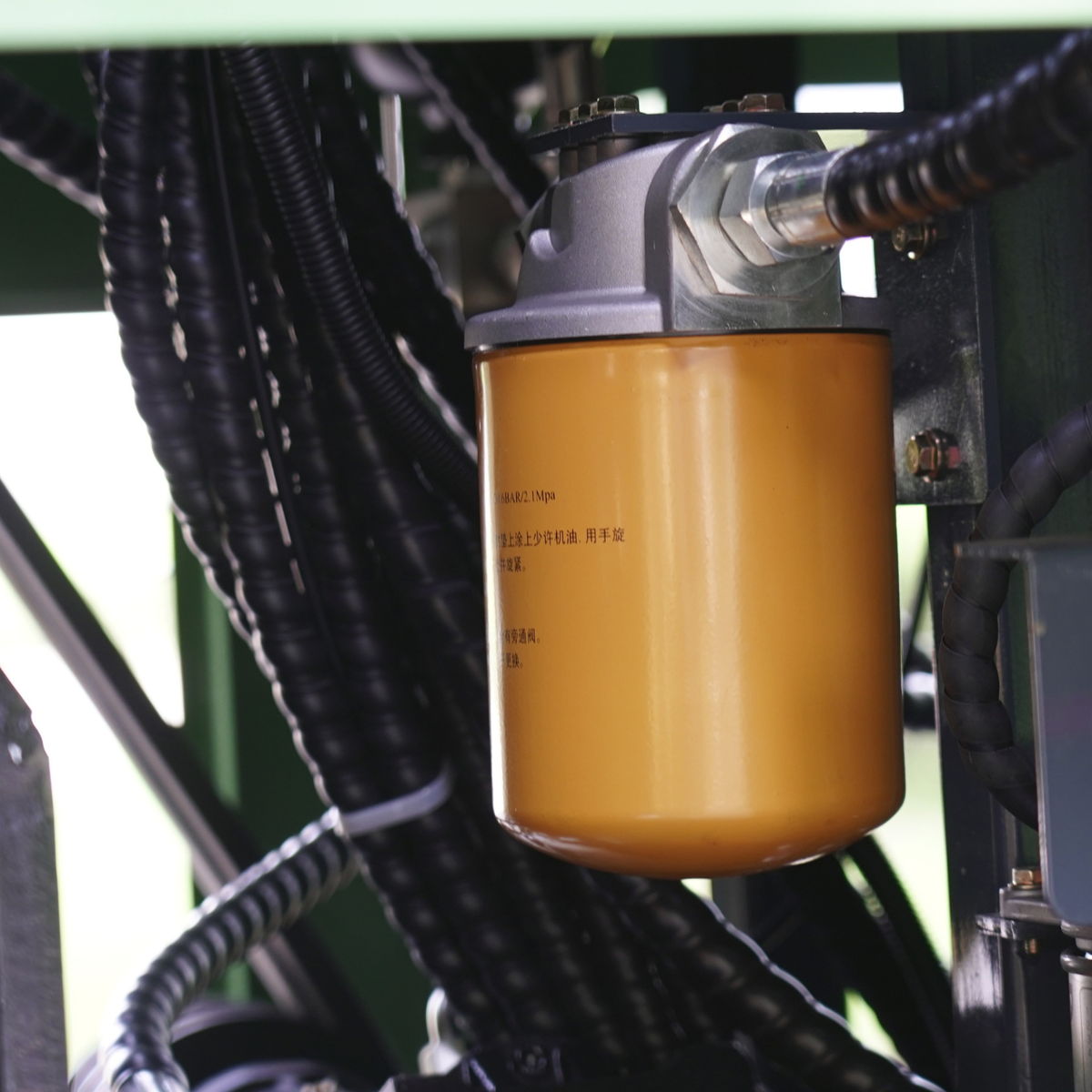

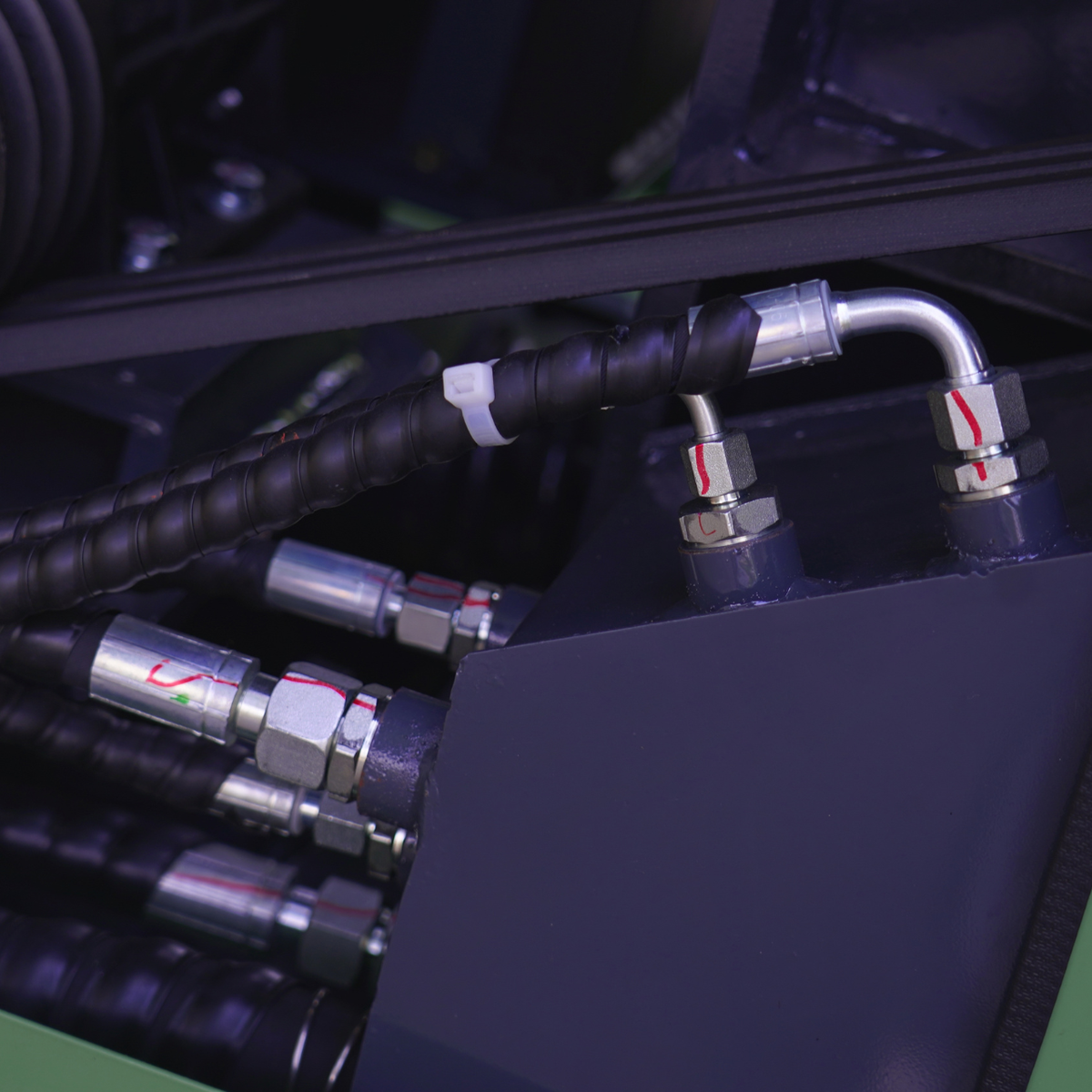

04. Hydraulic System Built for Productivity

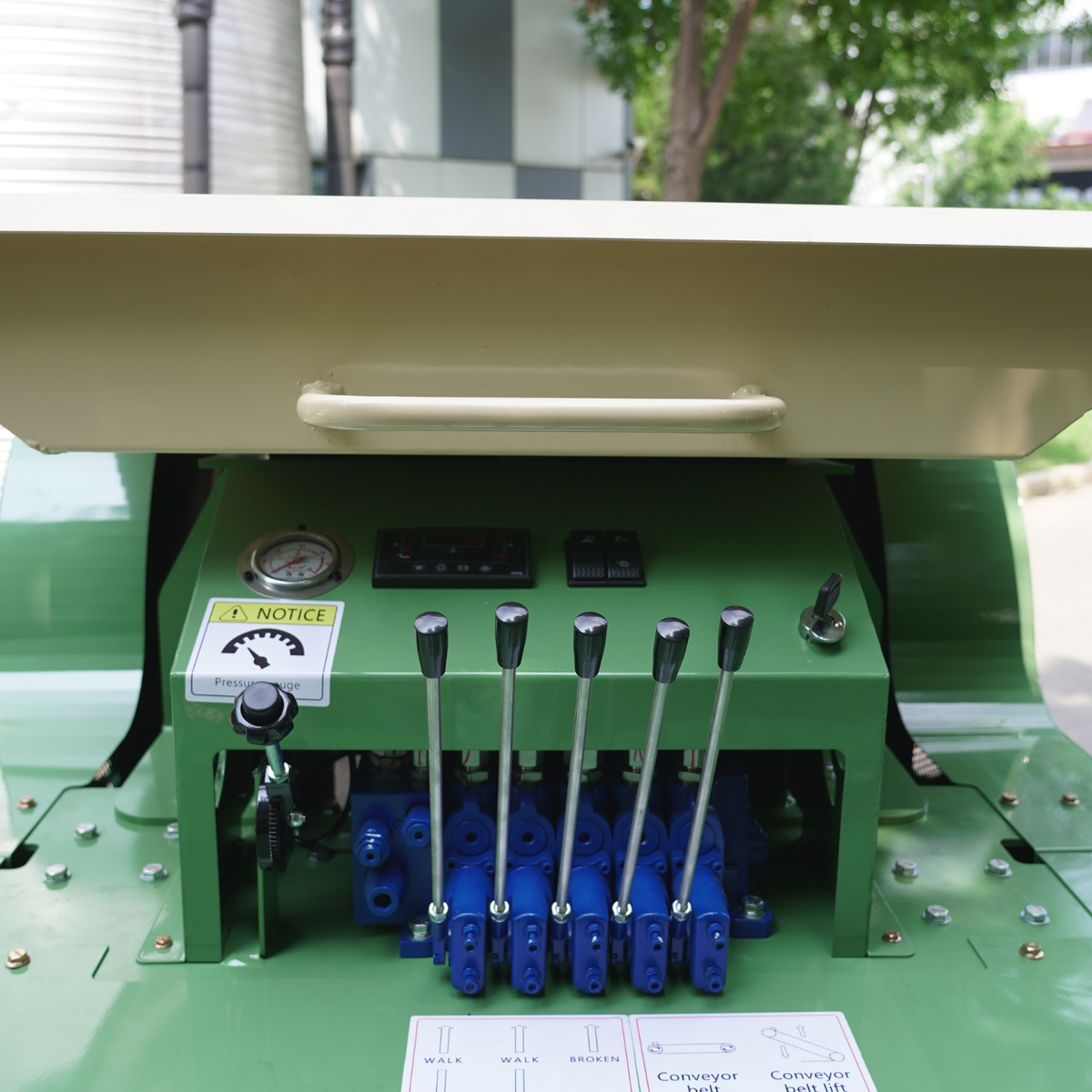

A hydraulic-driven layout powers the K3's major working systems, providing smooth control and practical jobsite mobility.

Hydraulic Features Include:

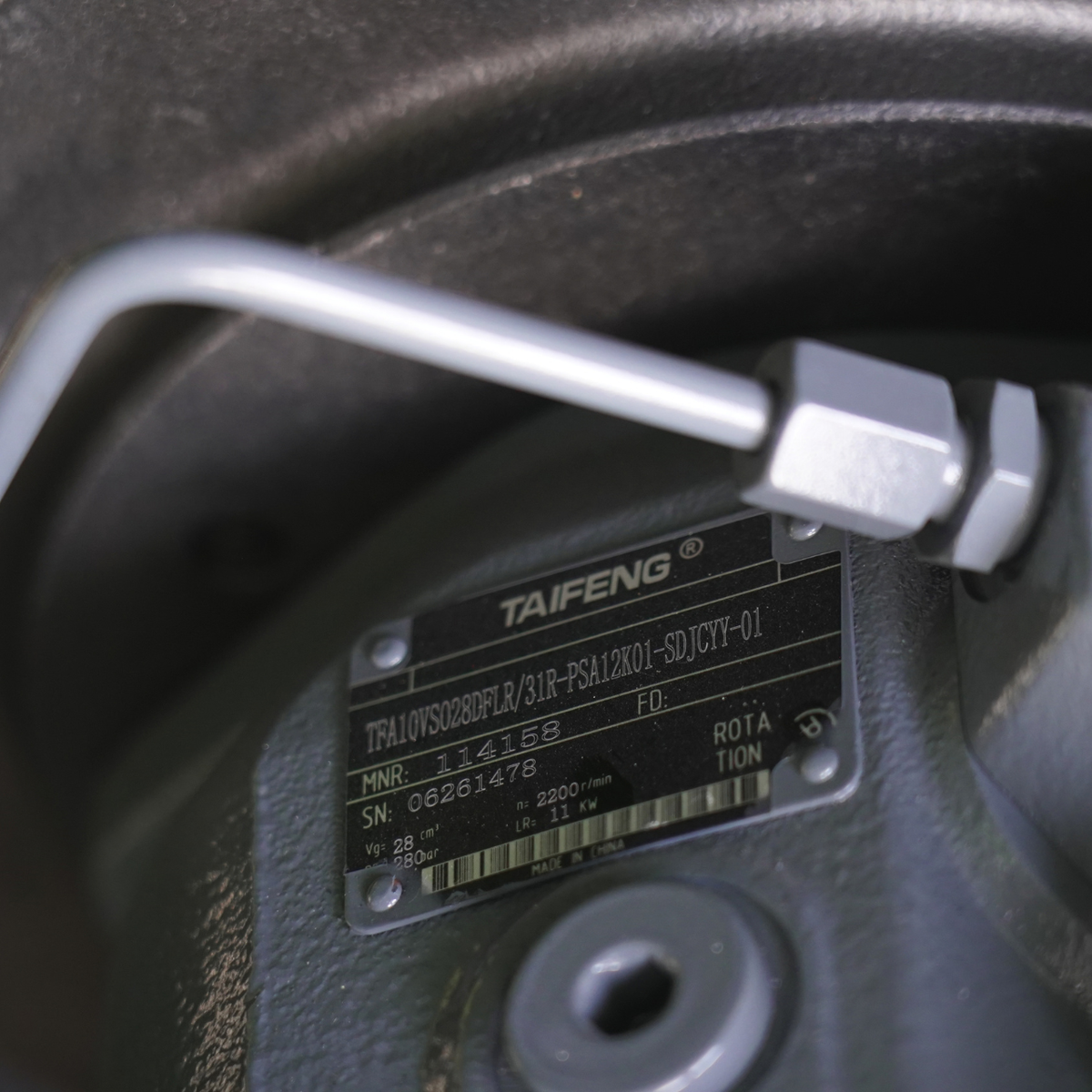

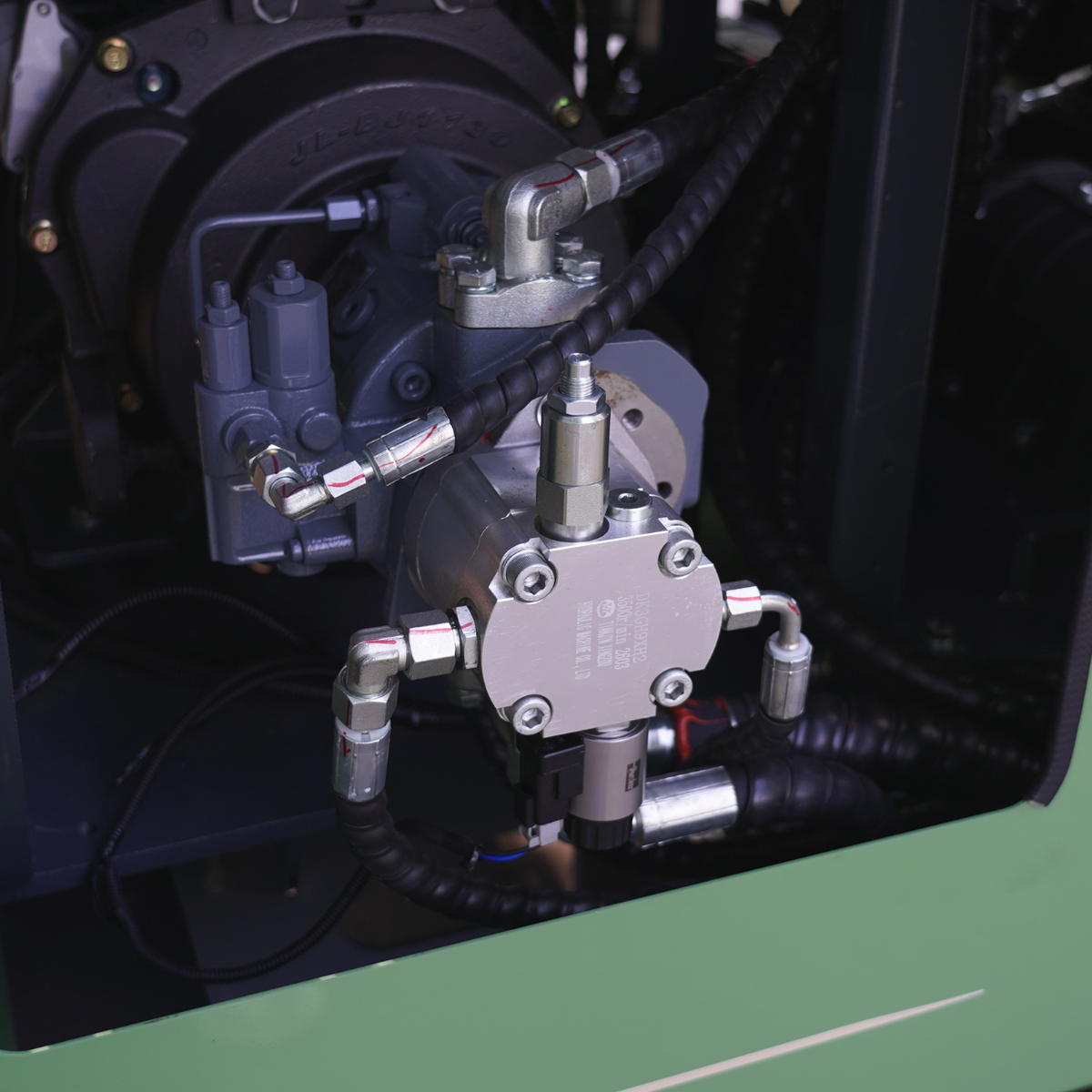

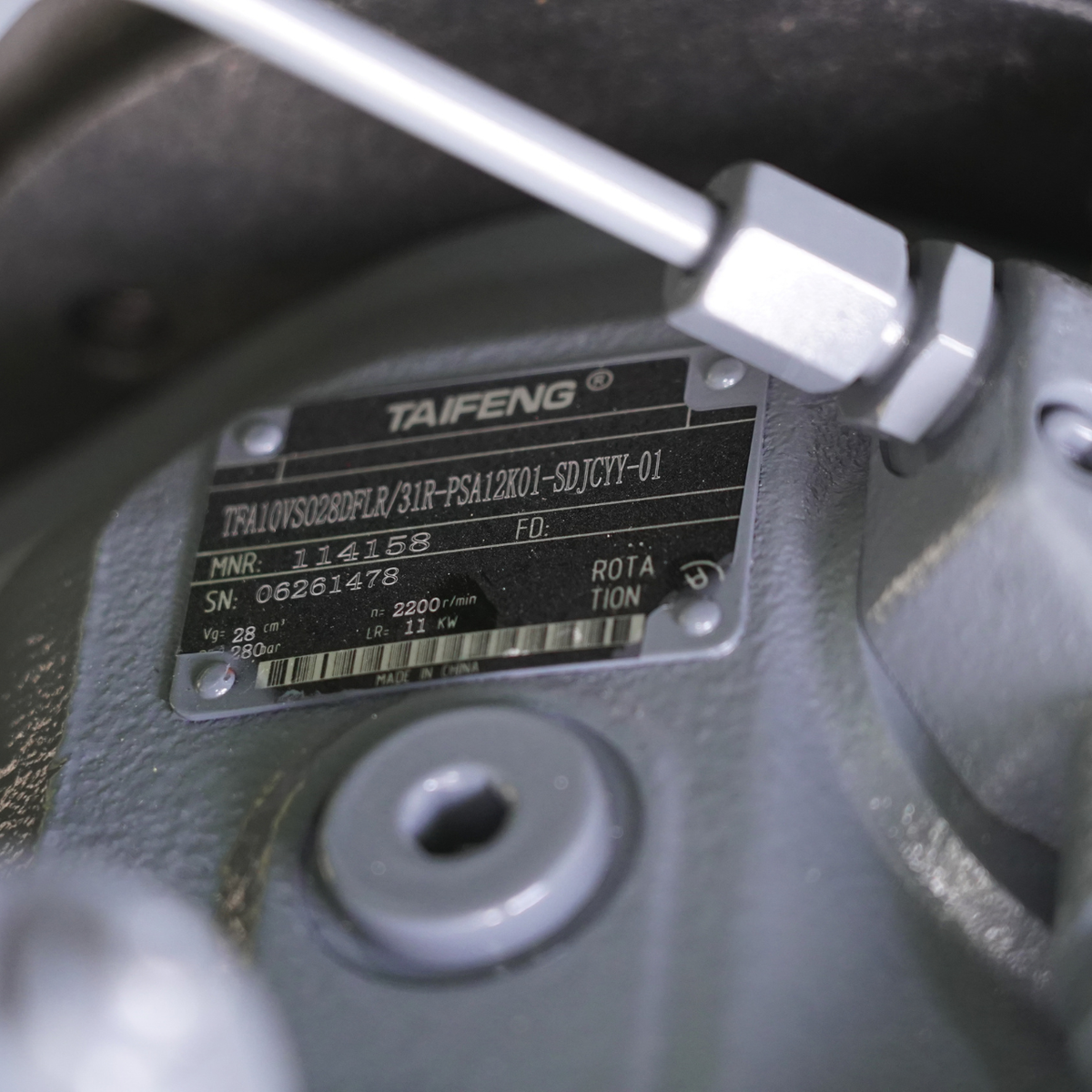

• Piston hydraulic pump
• Hydraulic jaw crusher drive
• Hydraulic orbital conveyor motor

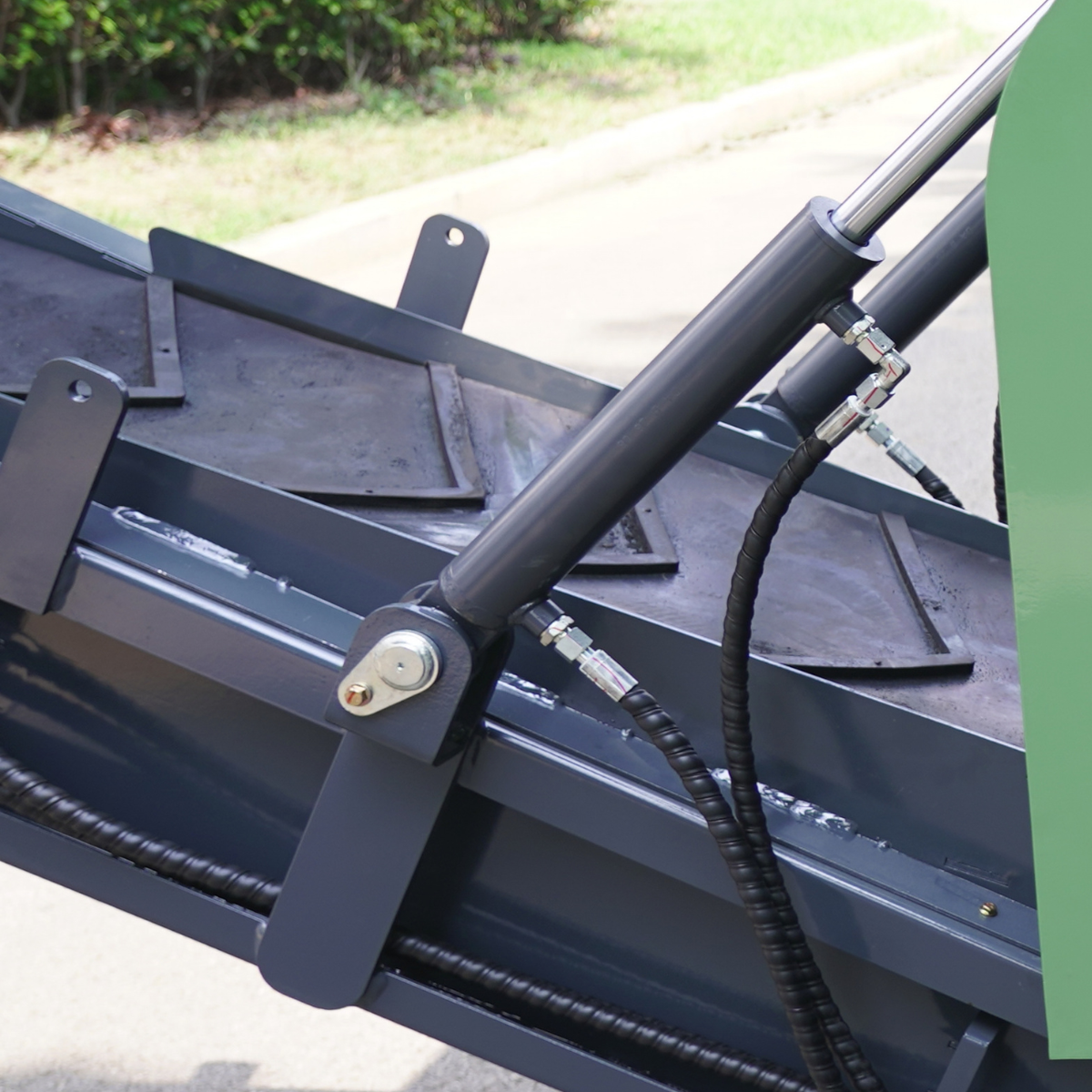

• Hydraulic conveyor lift cylinder
• Hydraulic-powered crawler system

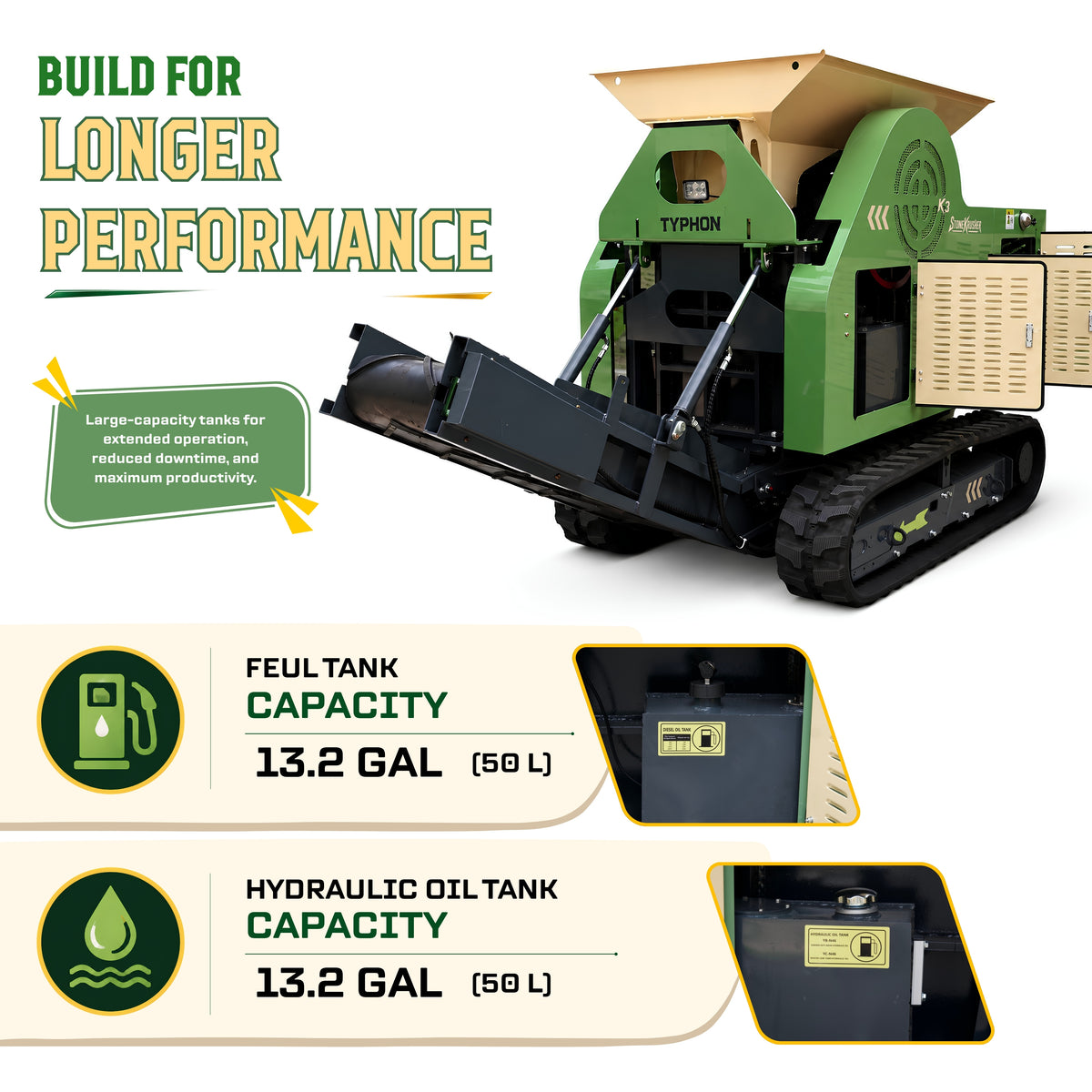

• 13.2-gal hydraulic oil capacity
• Two-speed travel control

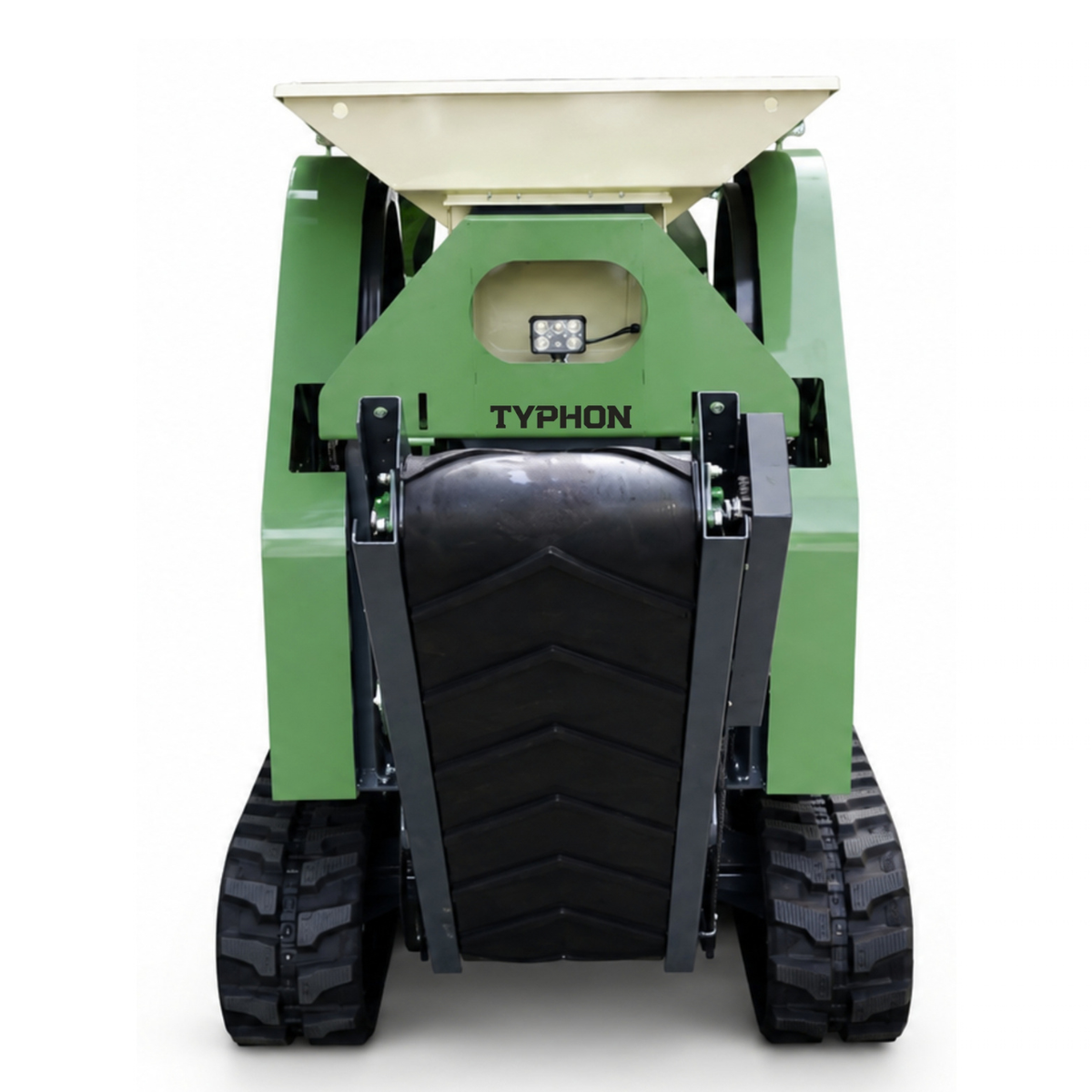

The hydraulic conveyor helps move crushed material away from the jaw and creates a convenient stockpile for reuse or loading.
