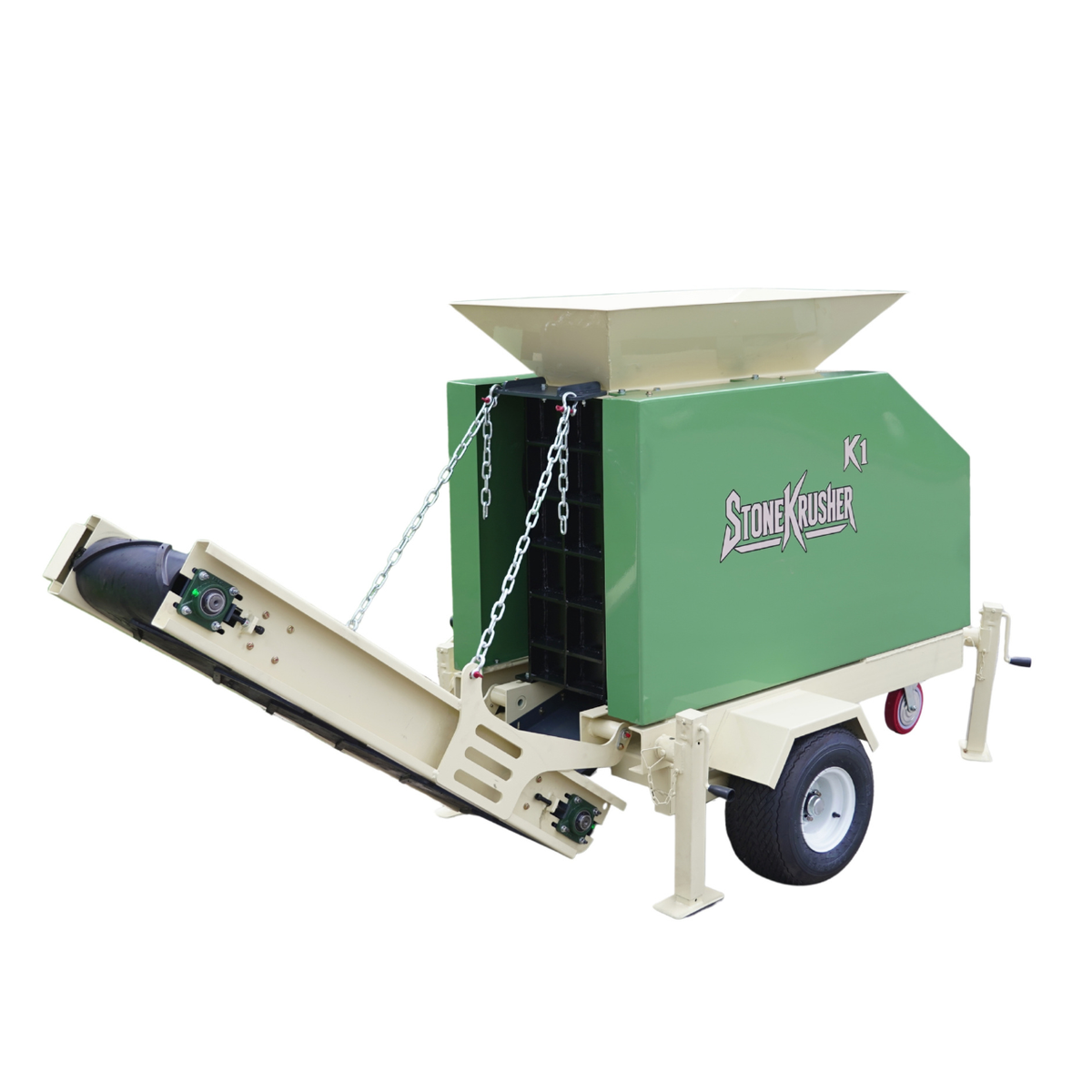

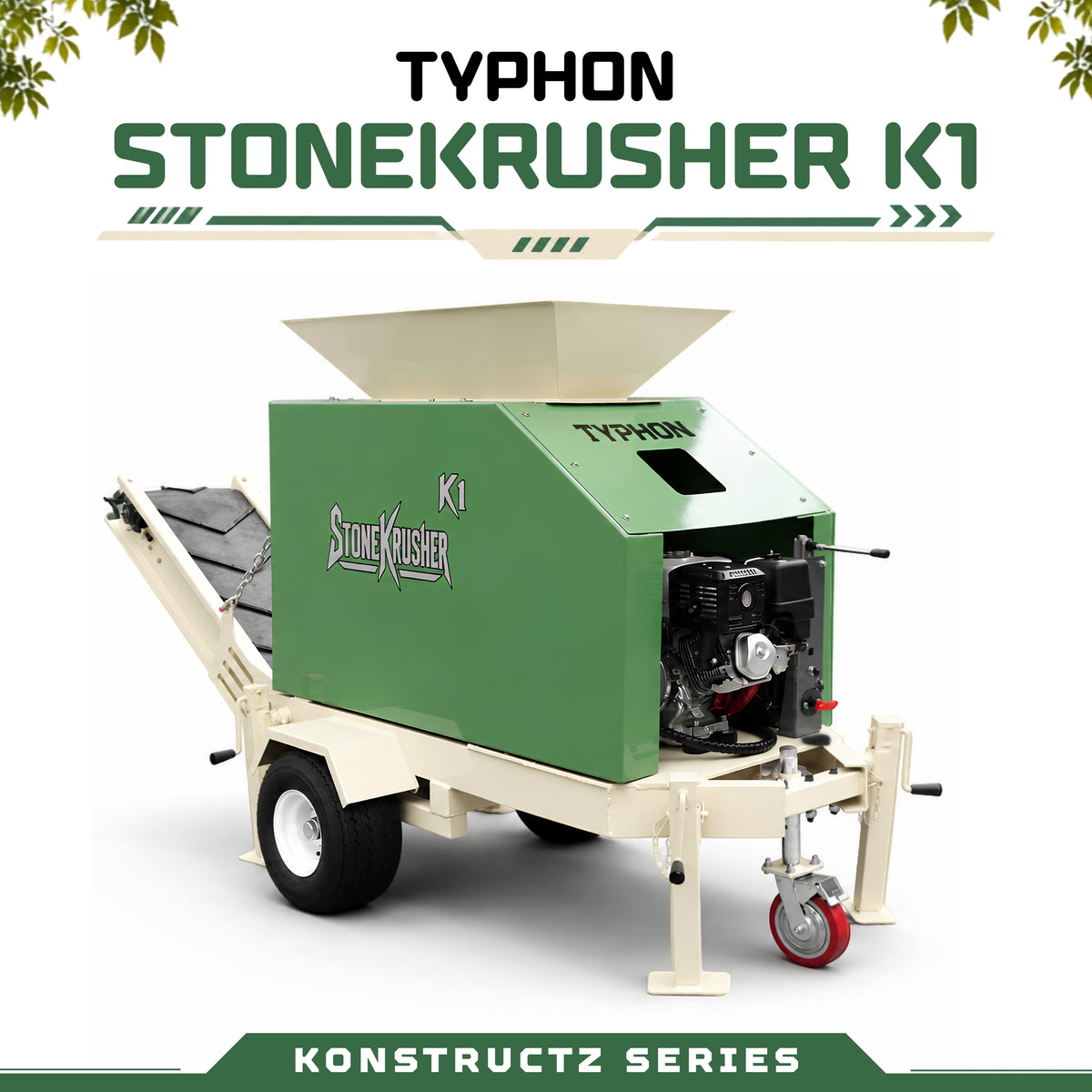

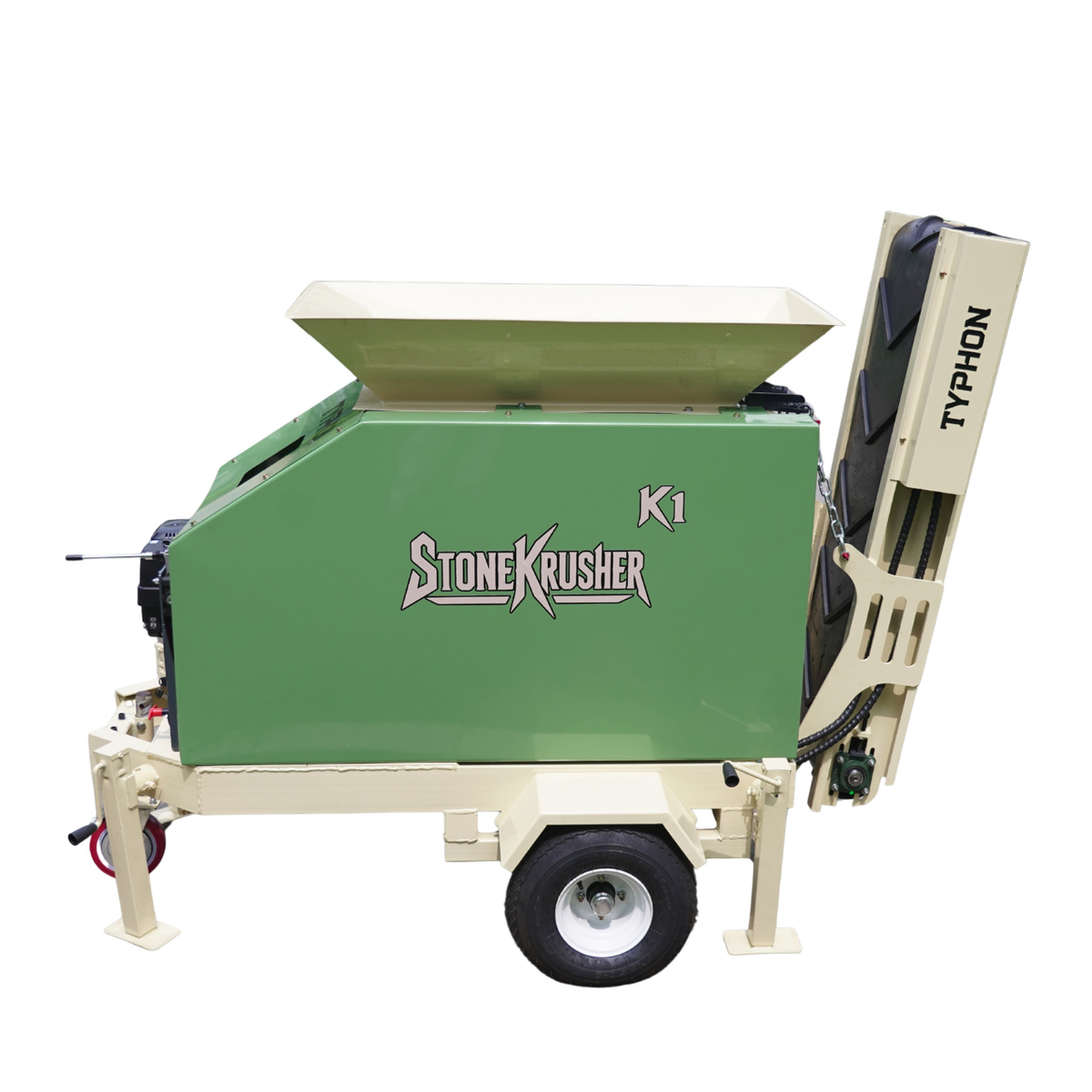

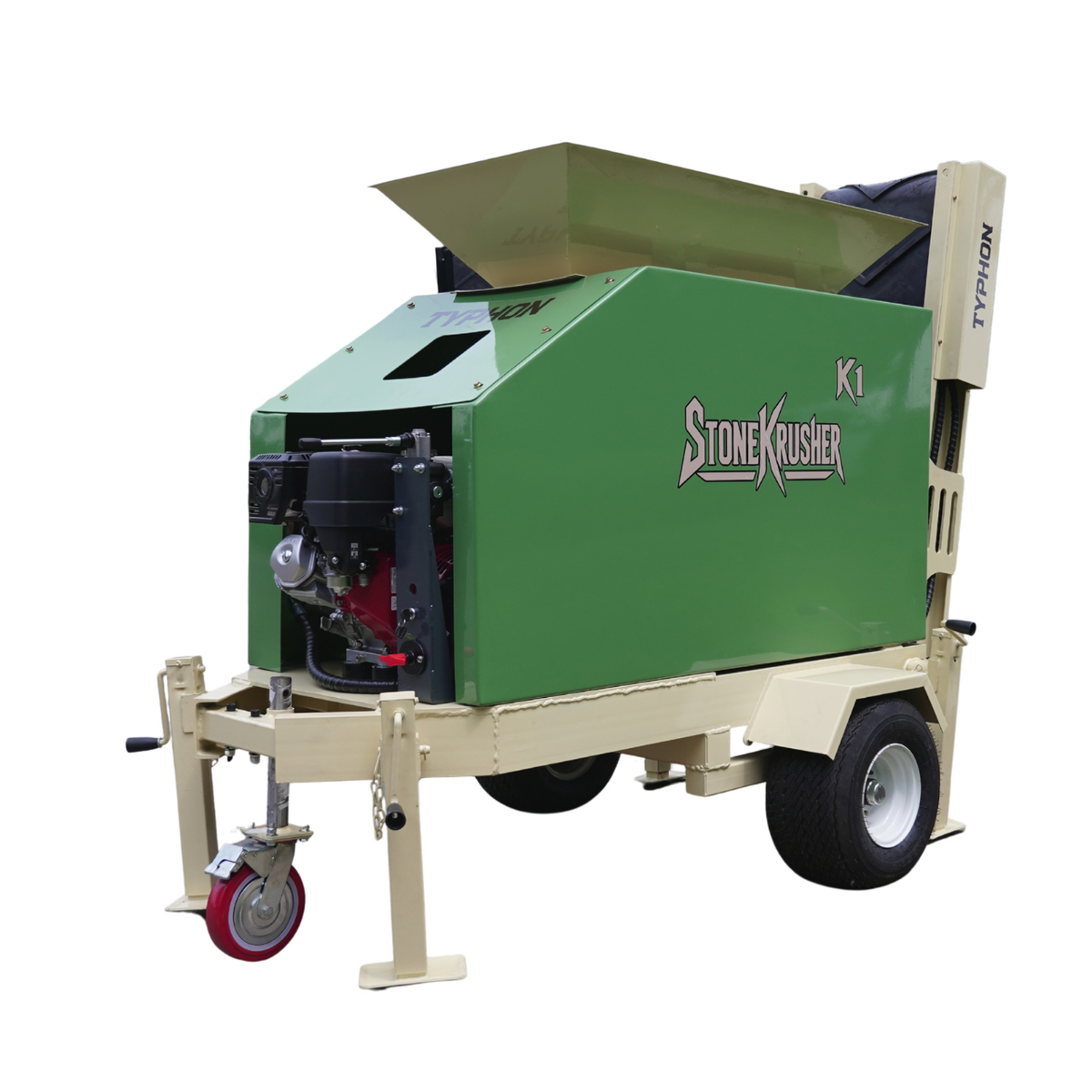

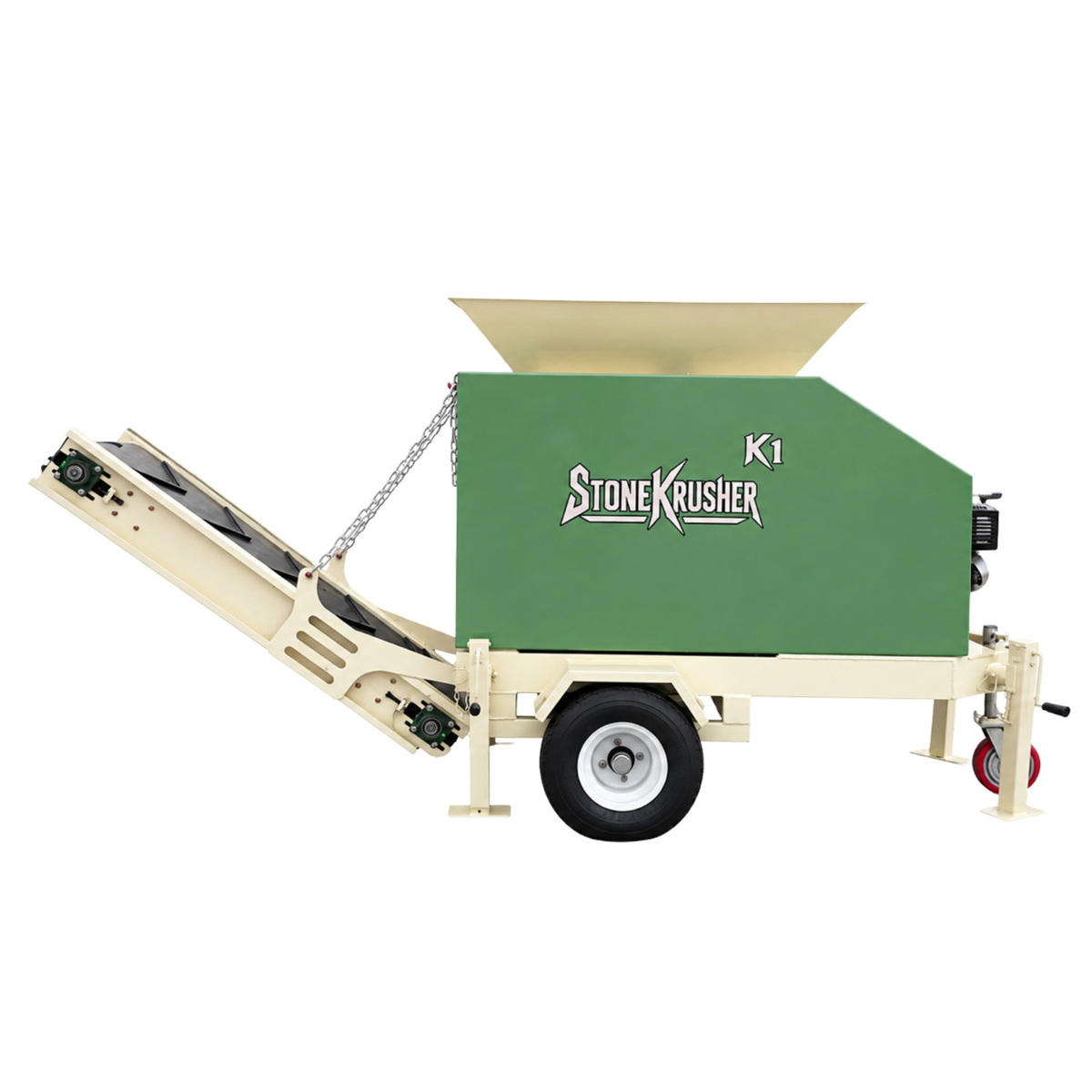

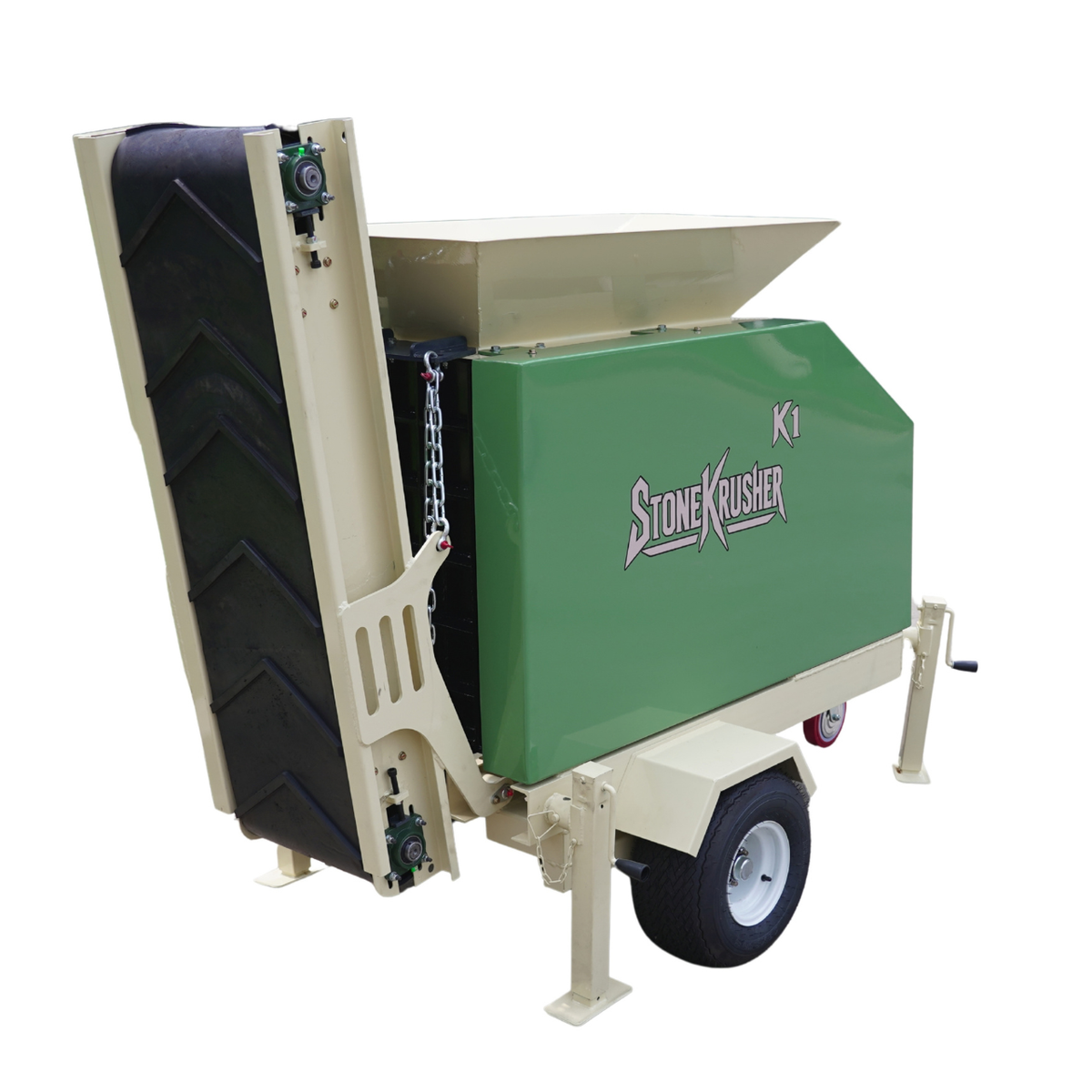

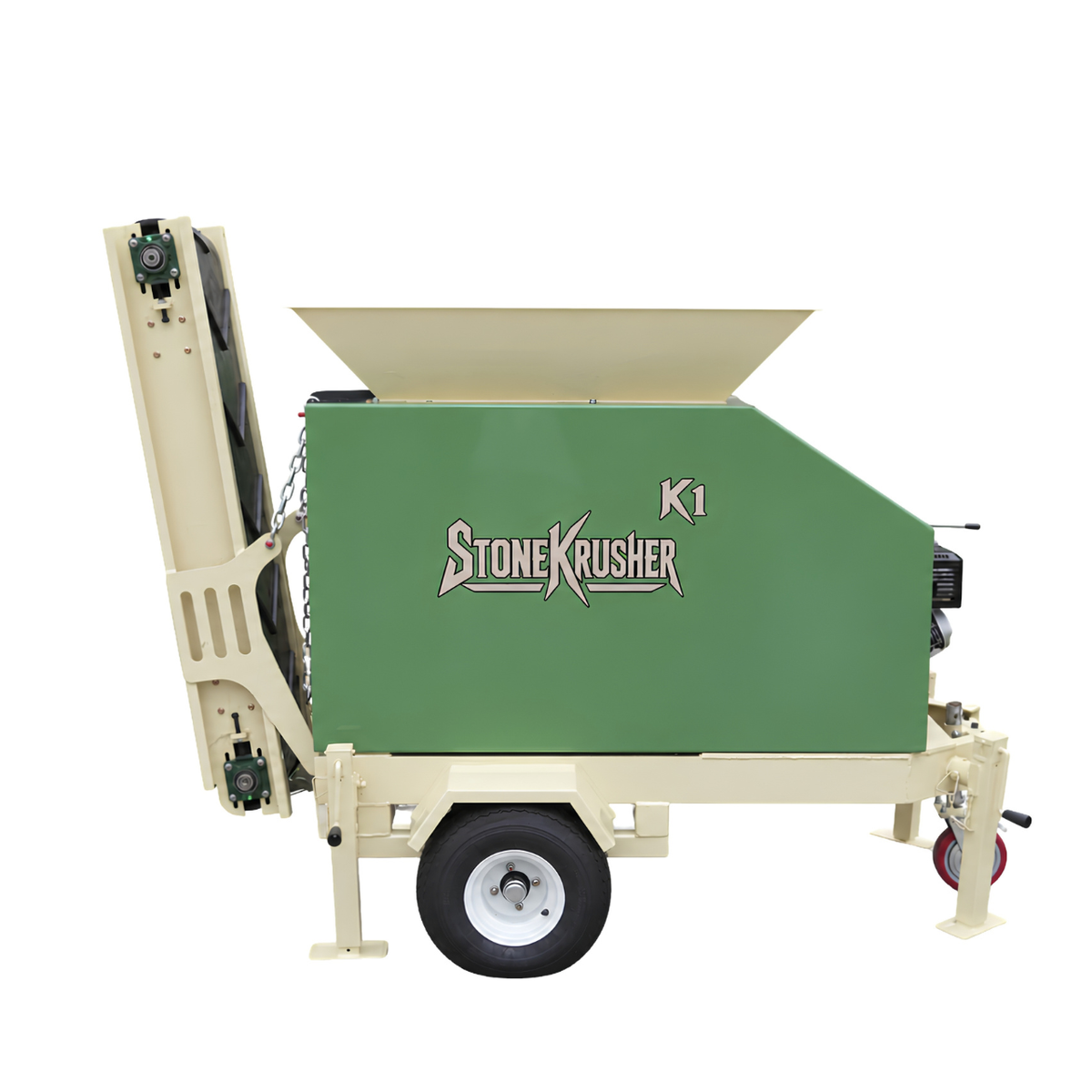

TYPHON STONEKRUSHER K1 Compact Rock Crusher 11.7 HP Honda GX390 KONSTRUCTZ SERIES

Turn suitable rock into usable aggregate right where the work happens. The TYPHON STONEKRUSHER K1 is a compact, towable rock crusher built for landscaping, construction, property development, agriculture, and other applications where hauling material off-site can add time and cost.

Powered by an 11.7 HP Honda GX390 engine and equipped with an integrated discharge conveyor, the K1 delivers practical crushing performance in a compact package. Its 2–4 tons-per-hour capacity, large feed opening, and 5–25 mm adjustable output range give crews a straightforward solution for processing rock and producing usable material on demand.

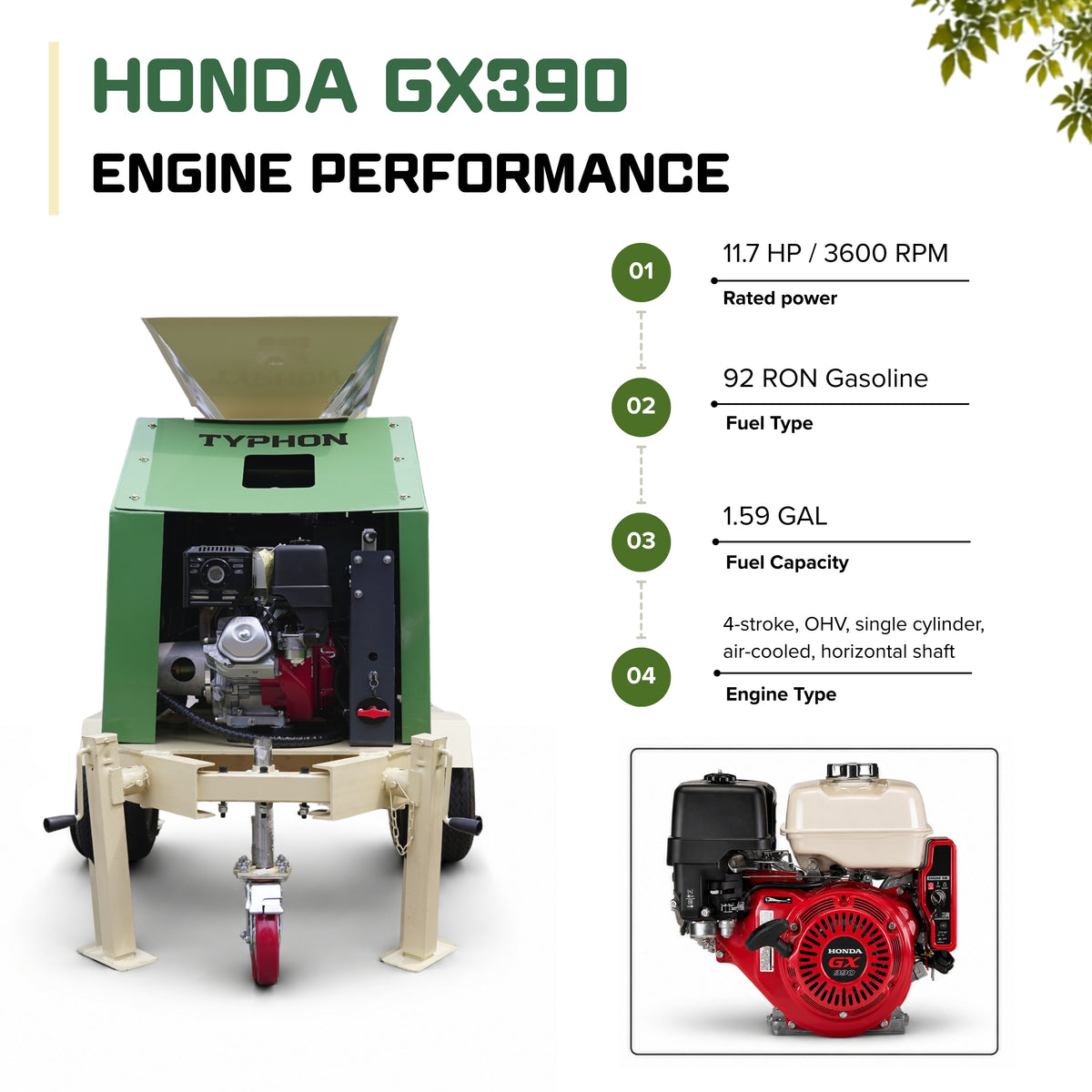

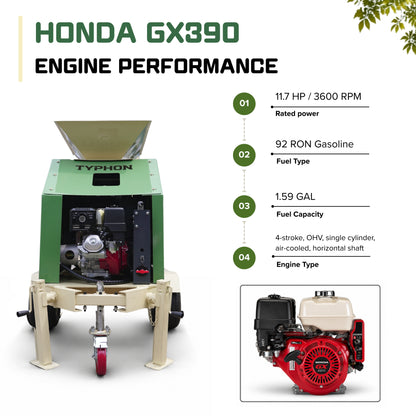

01. Honda GX390 Power

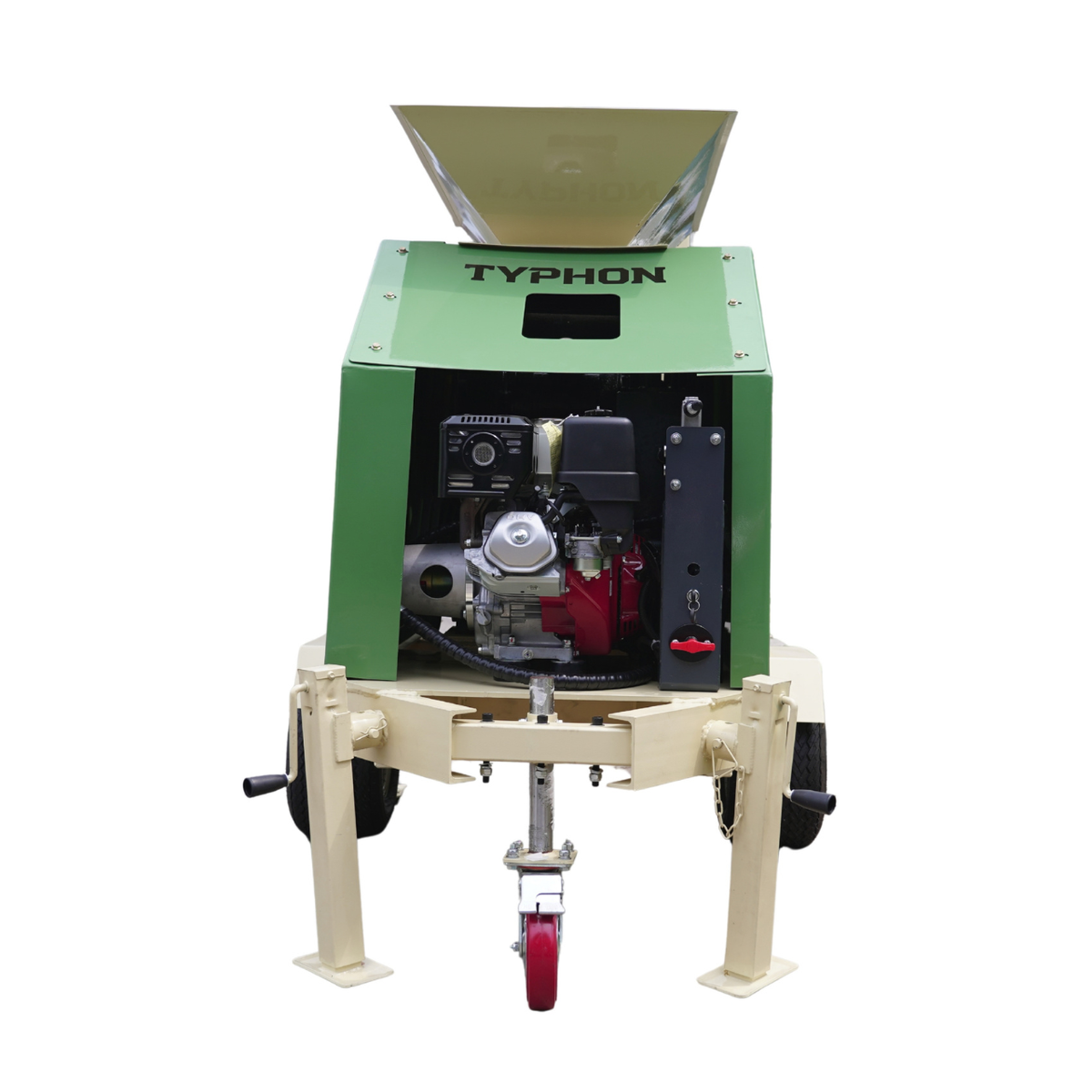

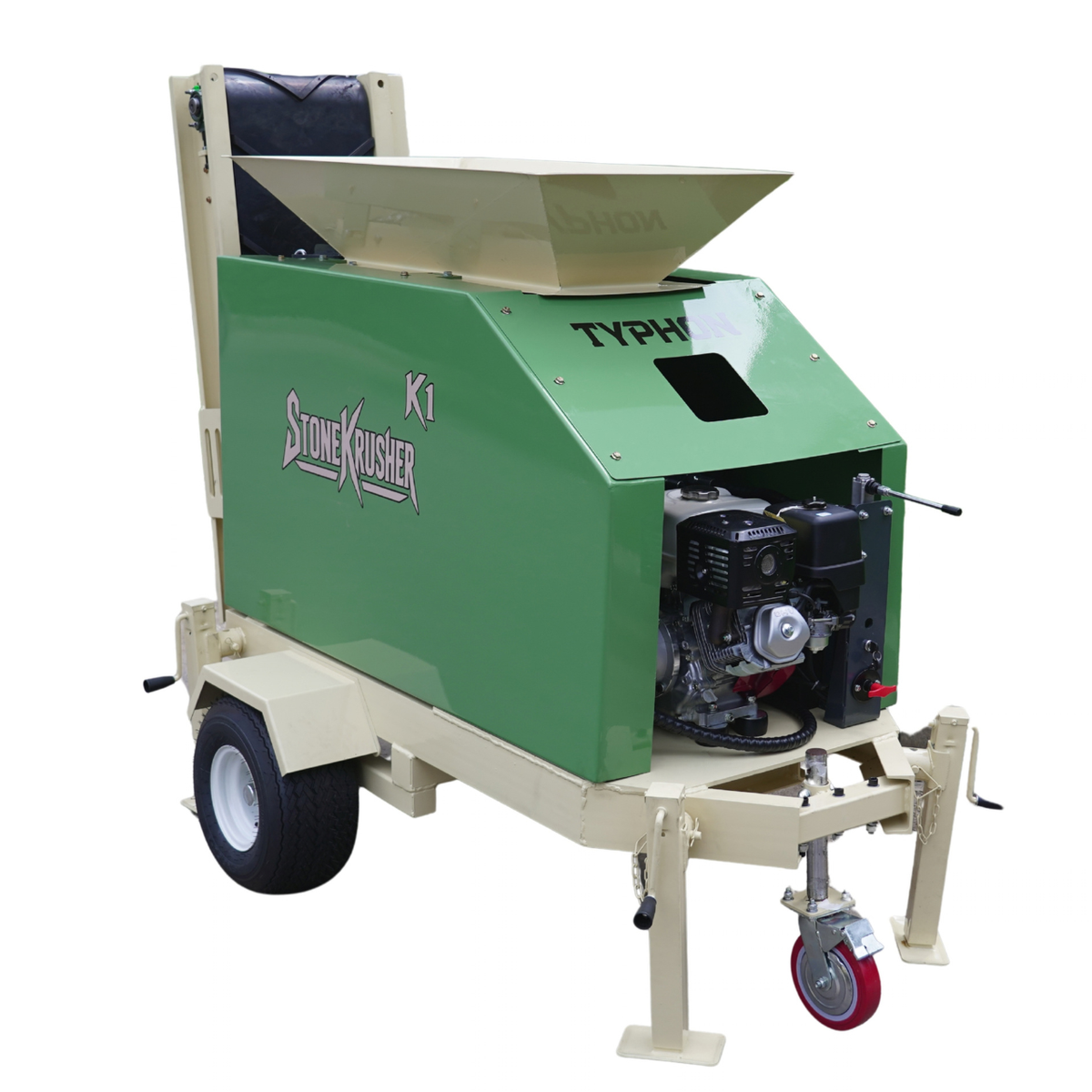

At the heart of the K1 is a Honda GX390 4-stroke OHV single-cylinder gasoline engine producing 11.7 HP at 3,600 RPM. The air-cooled design delivers dependable power for daily crushing work while keeping the power system simple and easy to maintain.

A 1.59-gallon fuel tank provides practical operating capacity, while the familiar gasoline engine layout makes routine service straightforward.

02. Compact Crusher. Serious Material Processing.

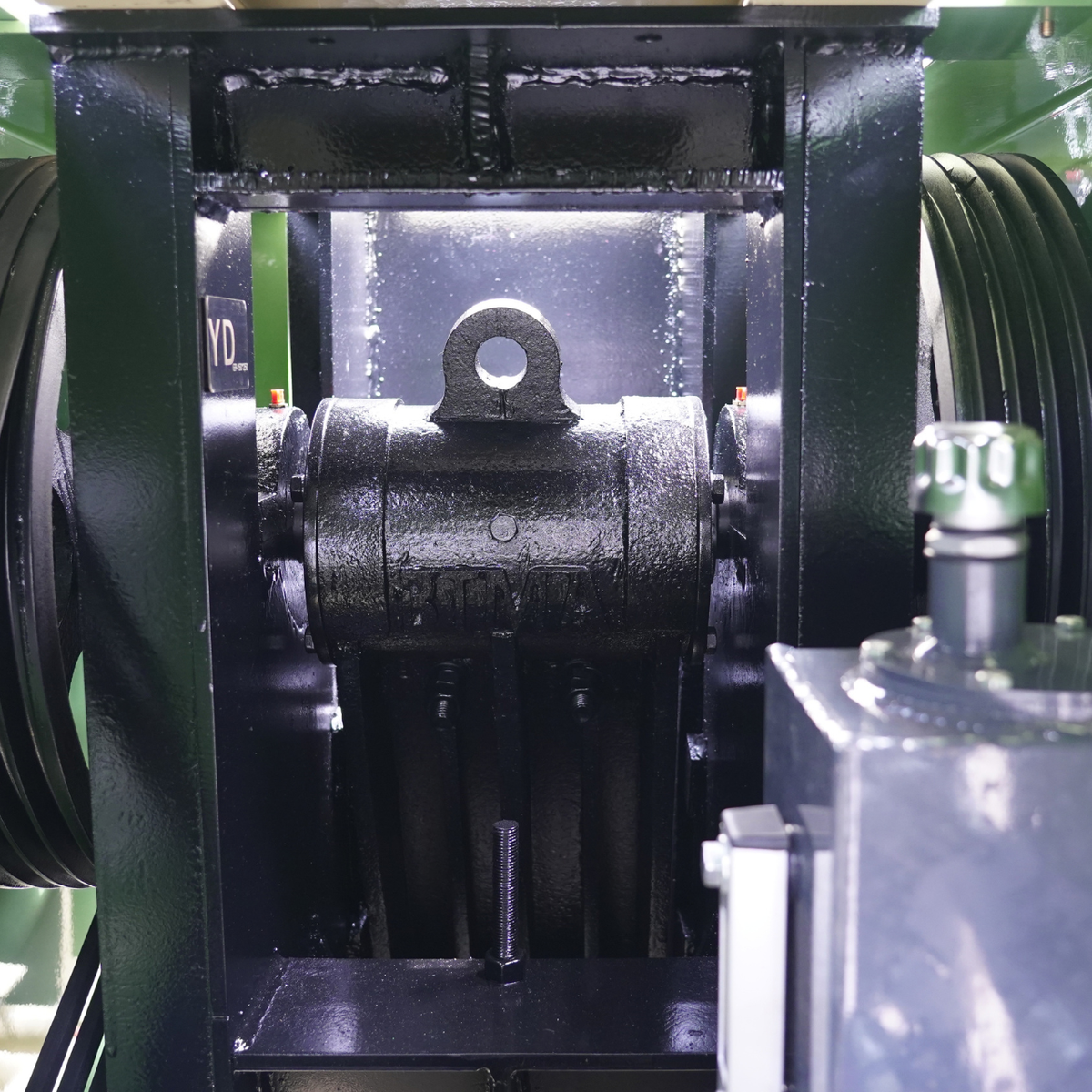

The K1 is designed to accept suitable rock efficiently and process it into a controlled finished size.

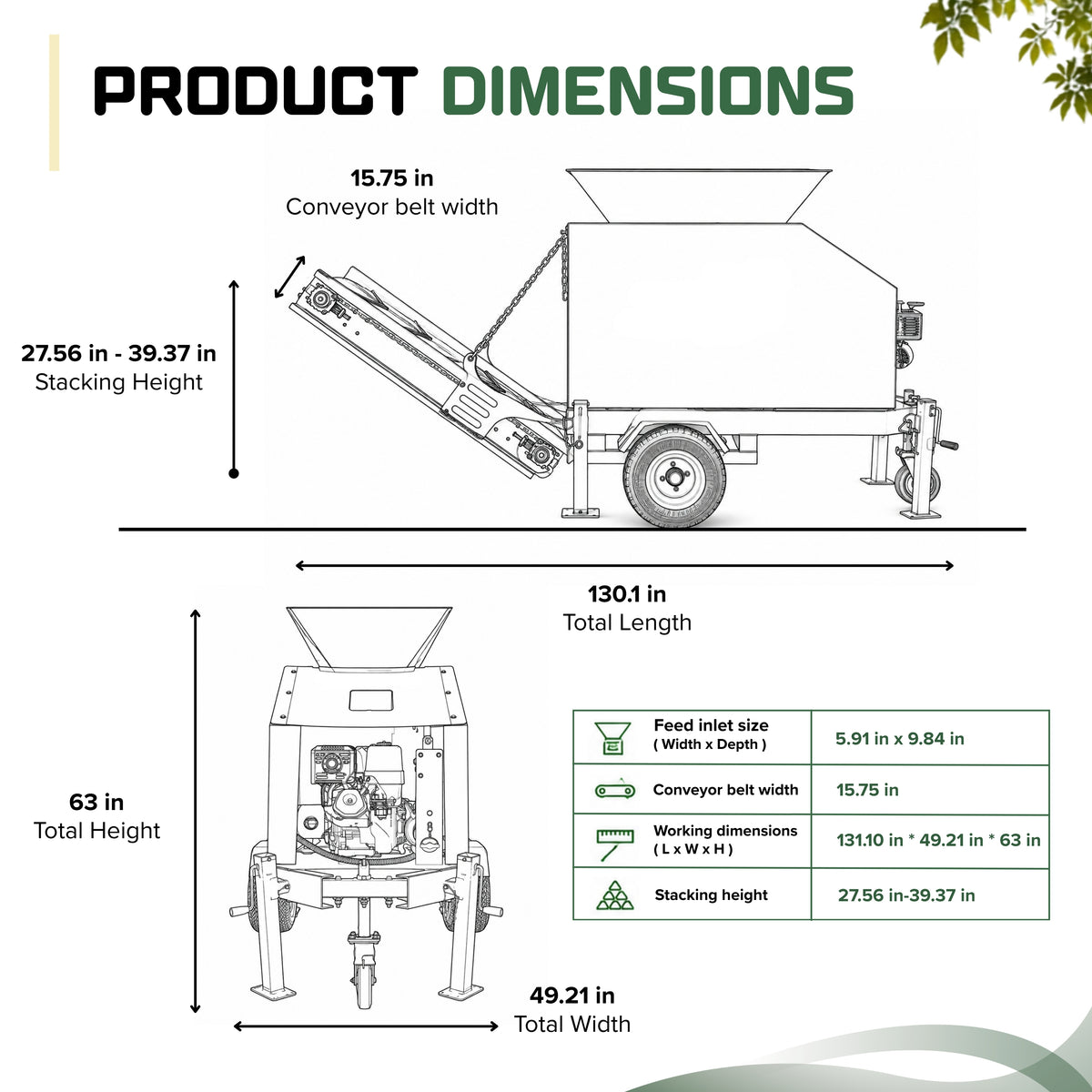

• Feed Opening: 5.91 × 9.84 in
• Crushing Capacity: 2–4 tons per hour

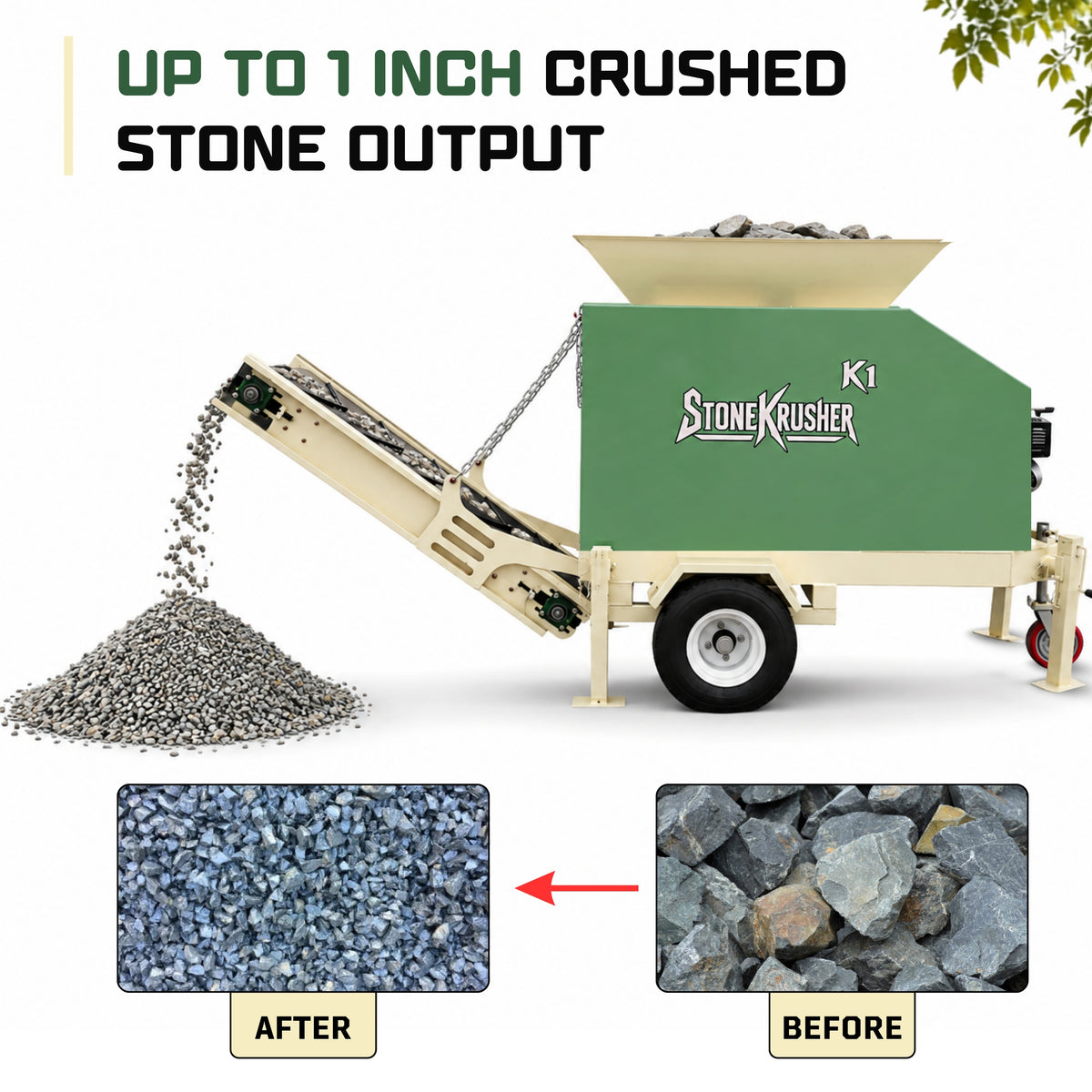

• Output Size: 0.20–1 in (5–25 mm)

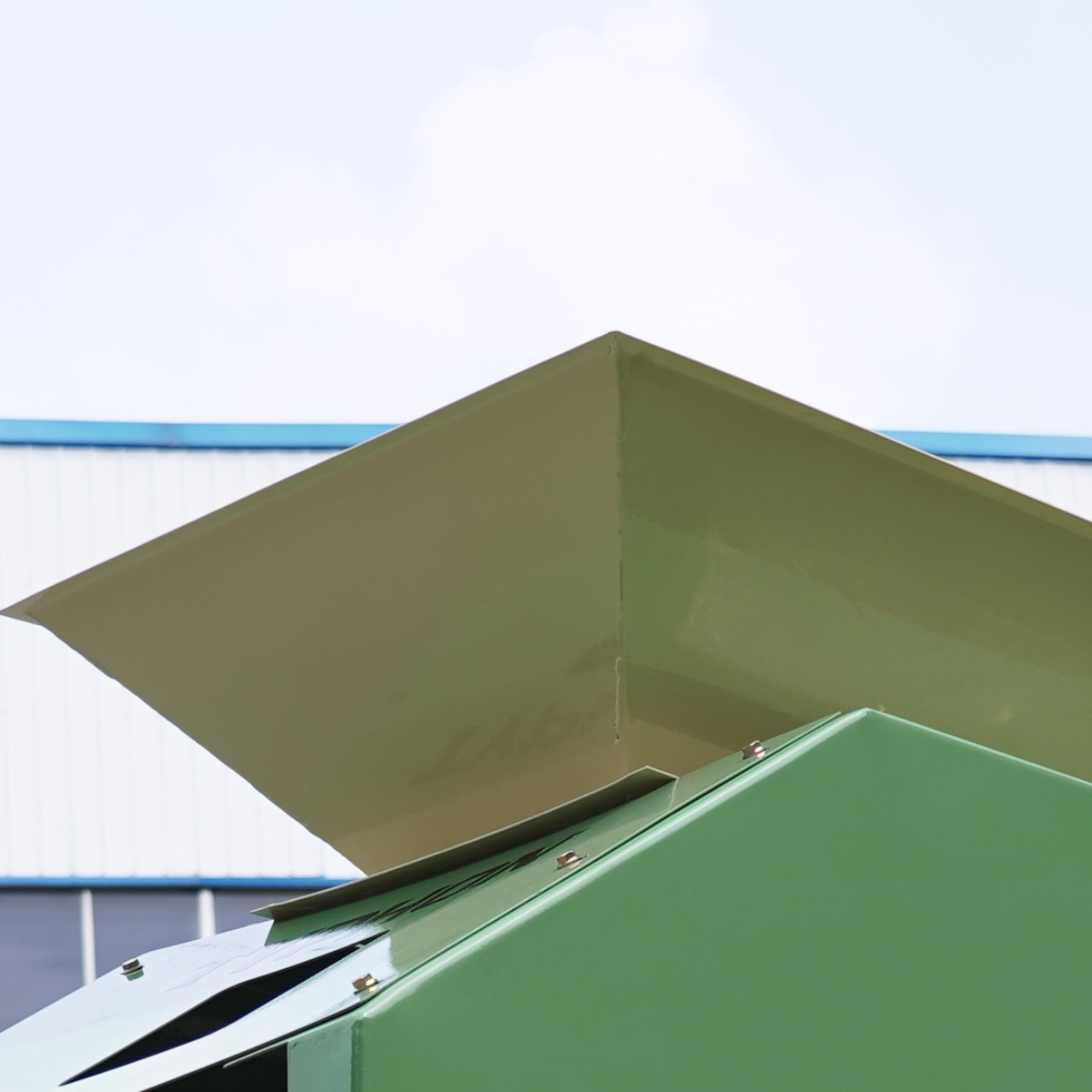

The generous feed opening helps reduce unnecessary pre-breaking, while the adjustable output range provides flexibility for different aggregate applications.

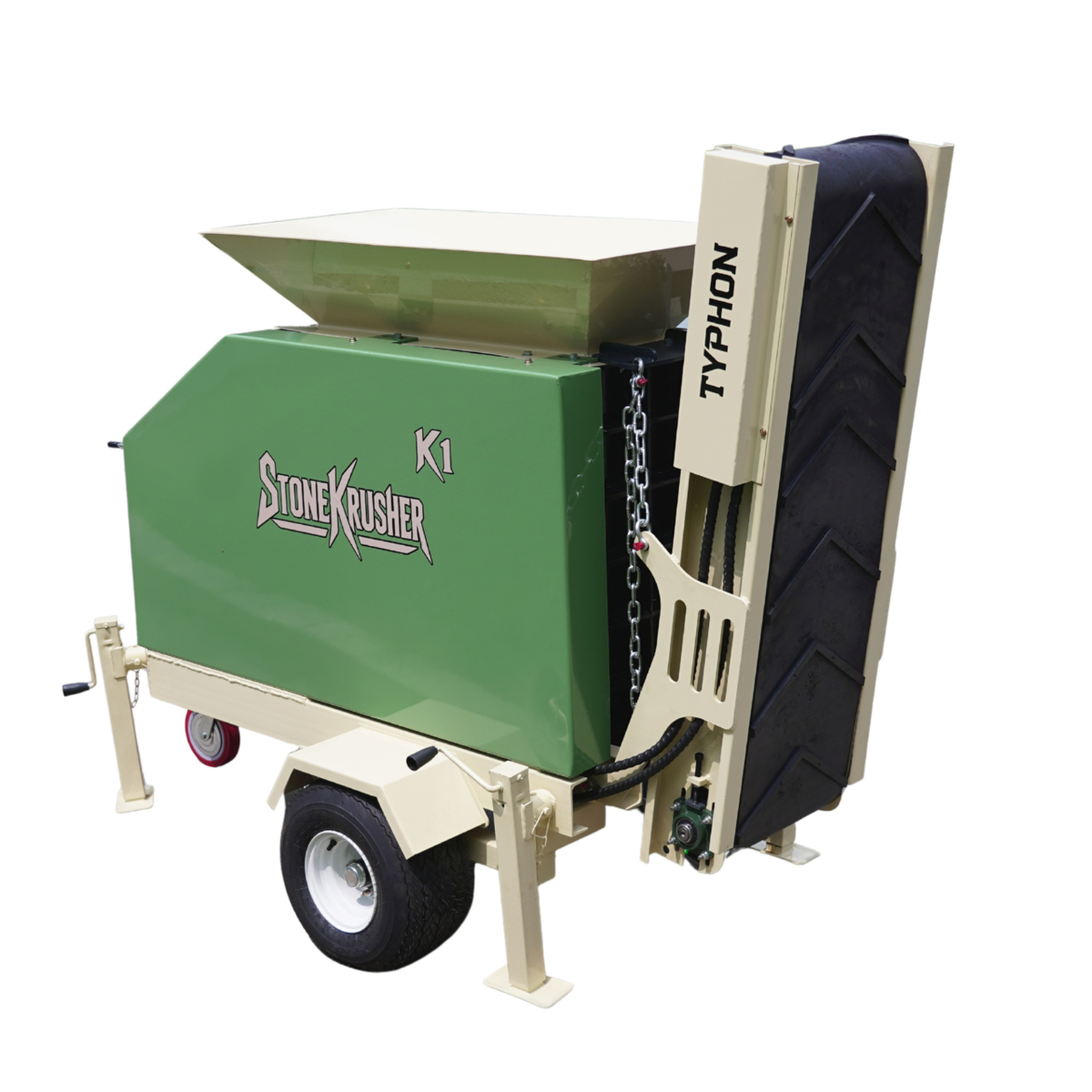

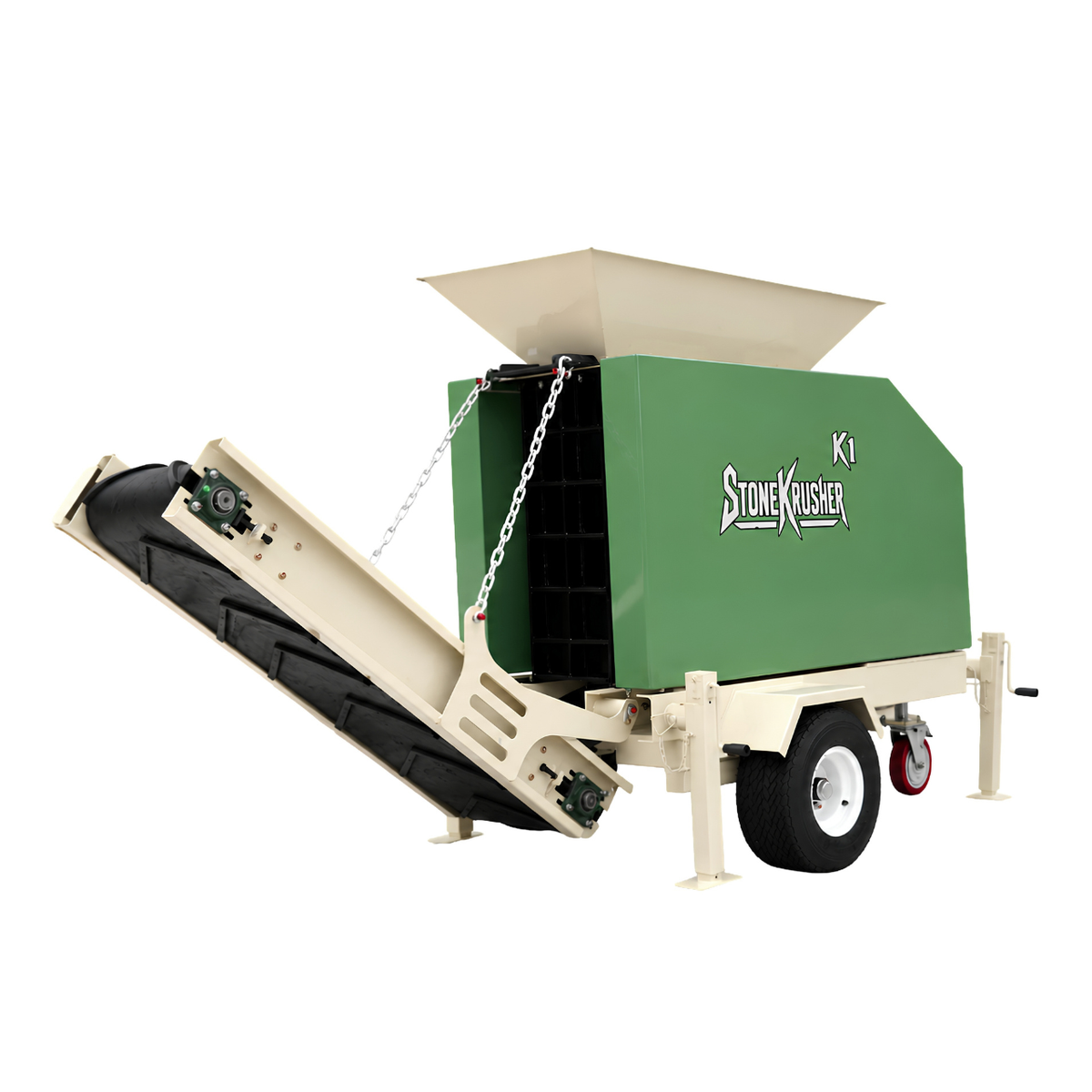

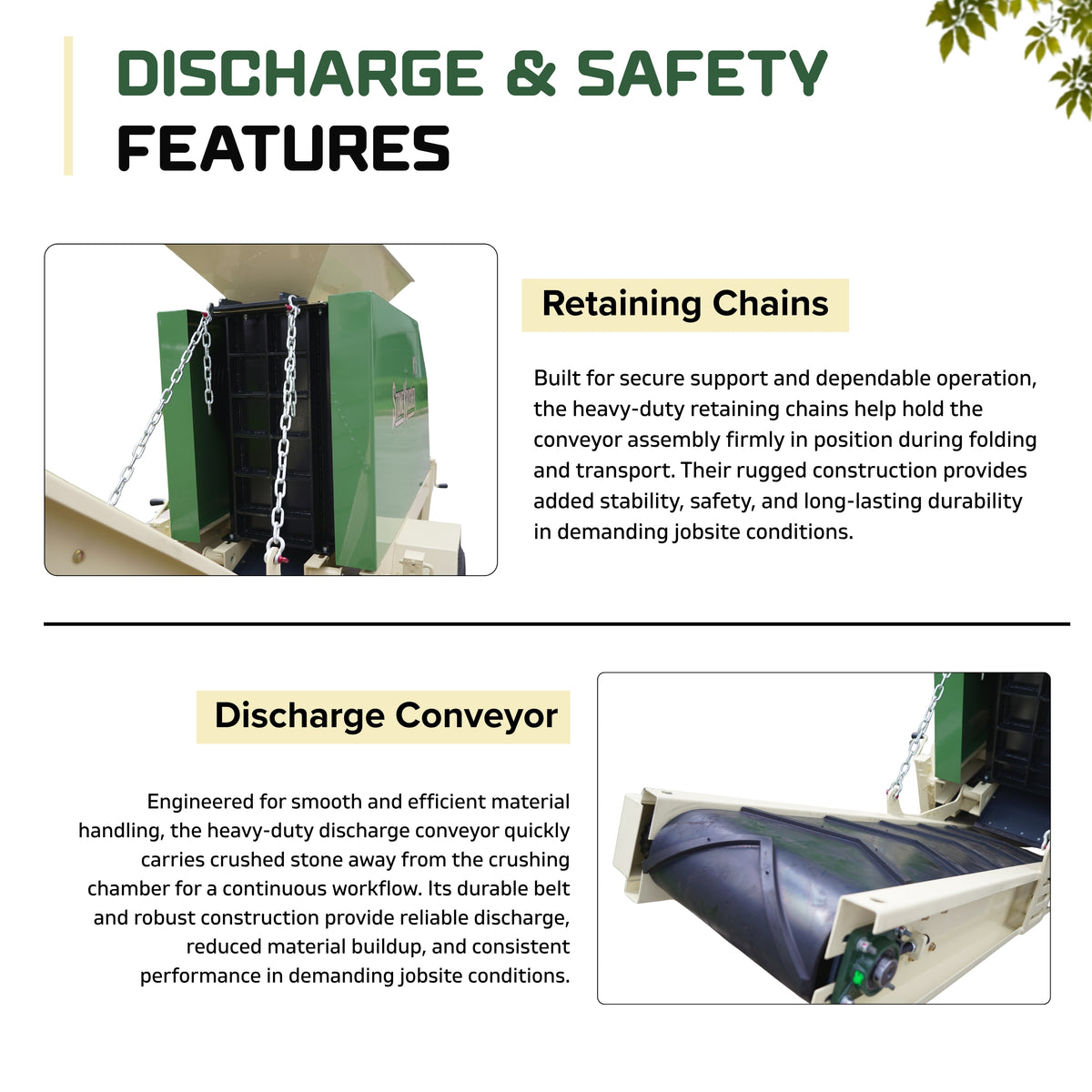

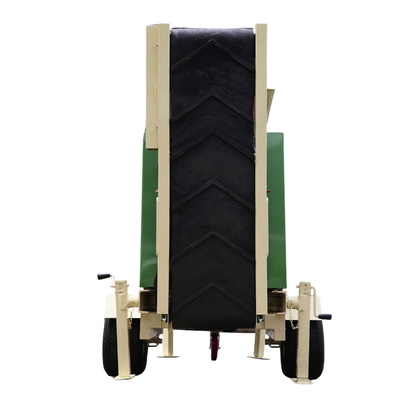

03. Integrated Conveyor for Continuous Discharge

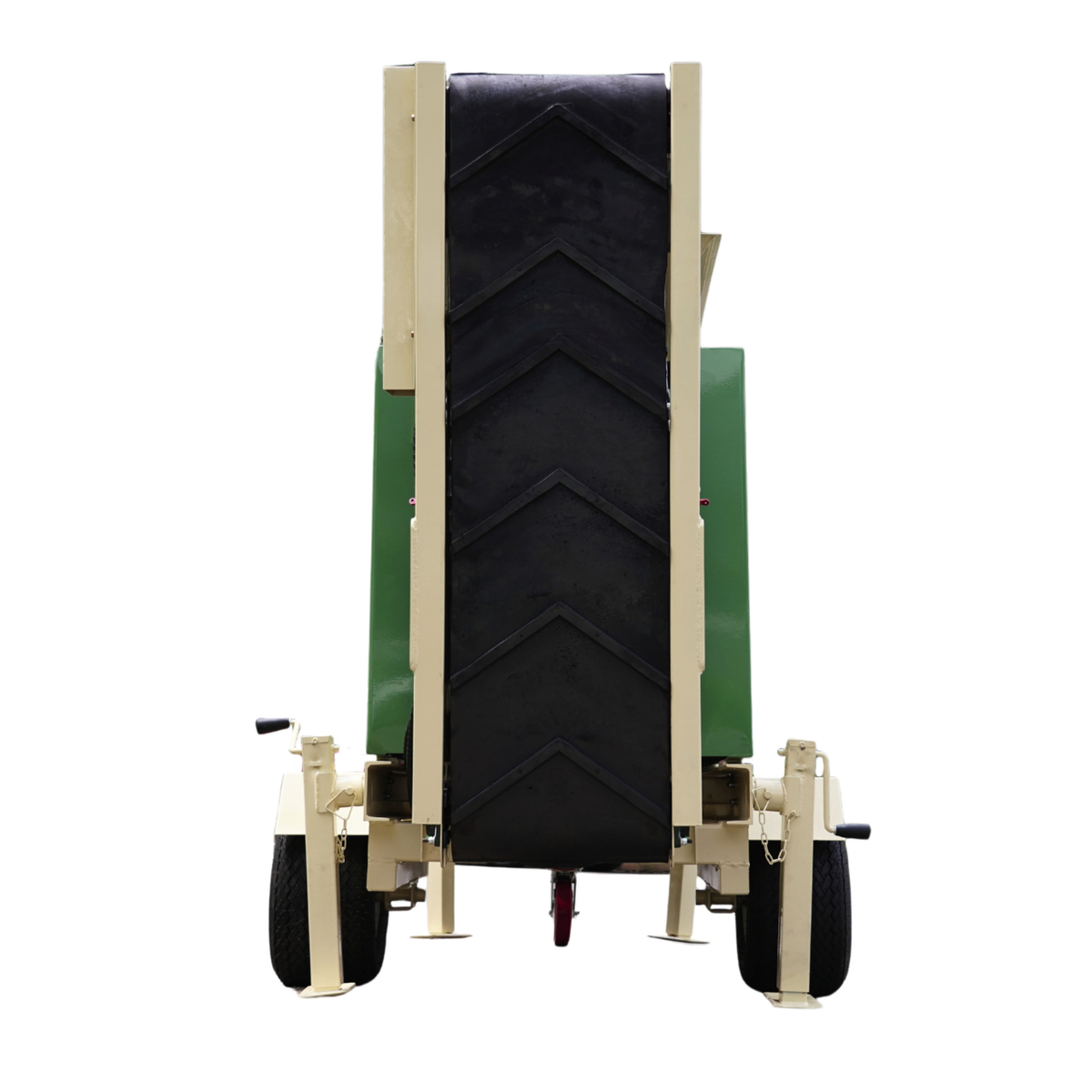

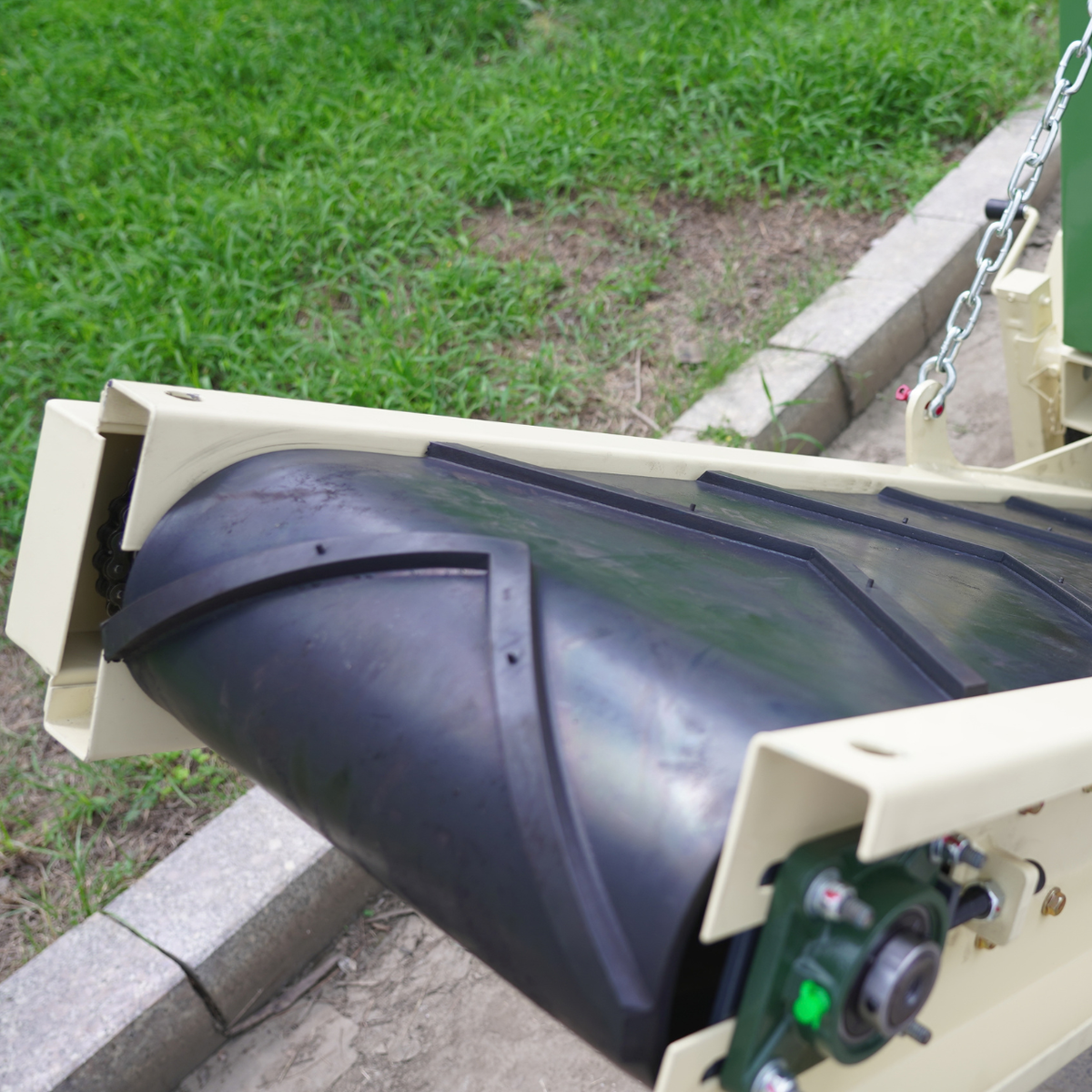

Processed material moves directly from the crusher onto the integrated 15.75-inch-wide conveyor belt, helping keep the discharge area clear and improving material handling.

With a discharge height of 27.56–39.37 inches, the conveyor supports organized stockpiling and efficient transfer of crushed material.

Key conveyor benefits:

• Continuous material transfer
• Helps reduce material buildup around the crusher outlet
• Supports more organized stockpiling

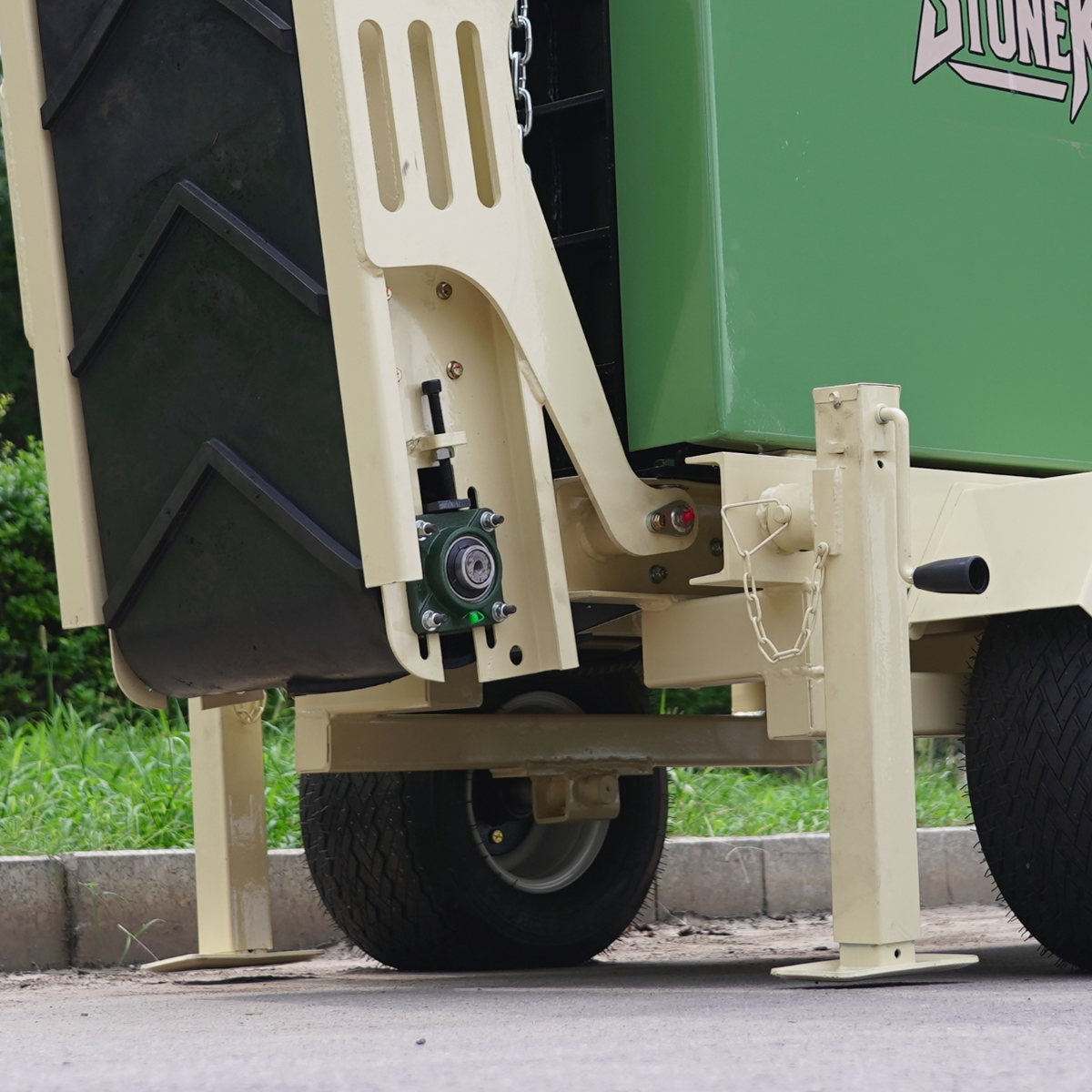

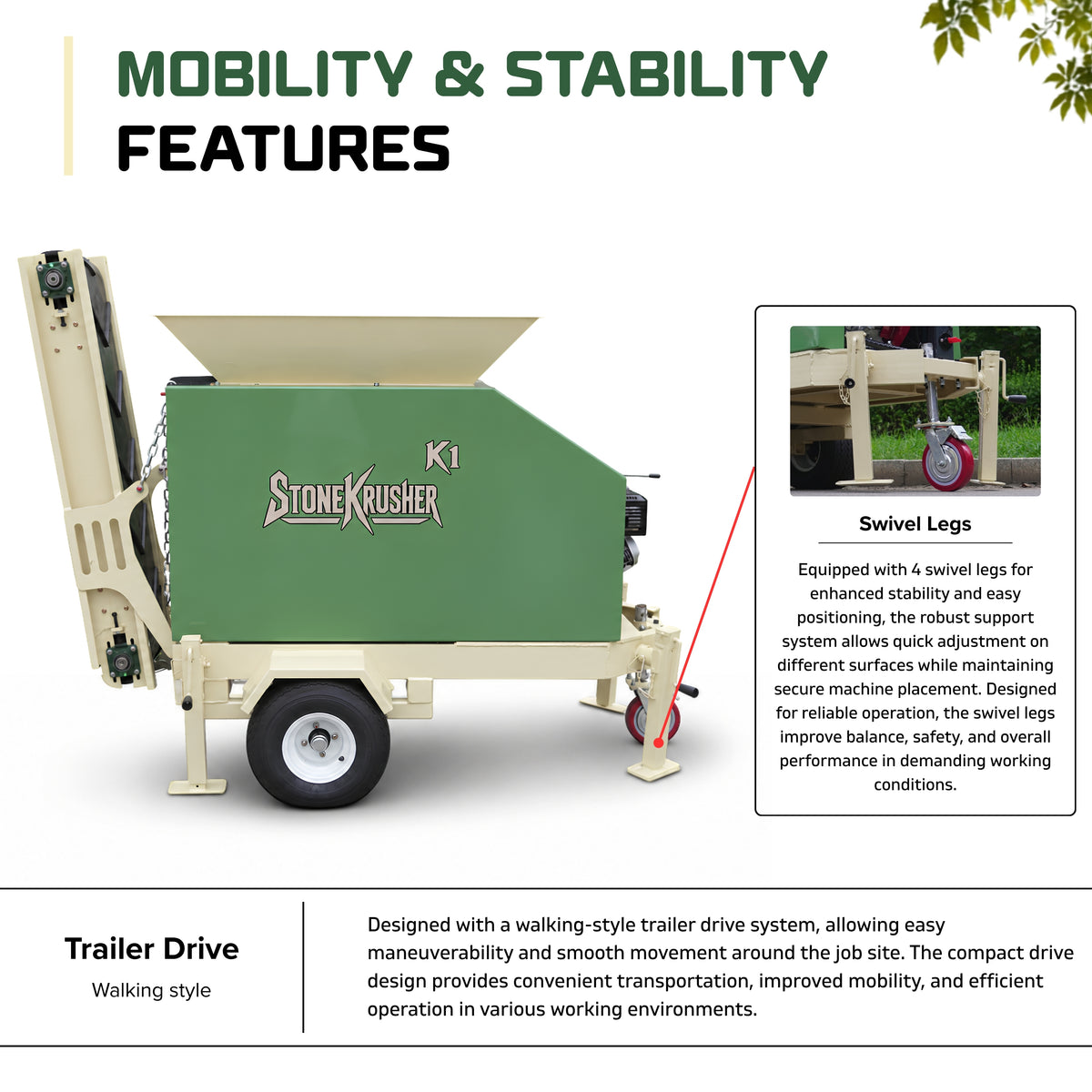

04. Stable Setup for Confident Crushing

Crushing generates vibration and force, so the K1 uses a practical stabilization system to help keep the machine firmly positioned during operation.

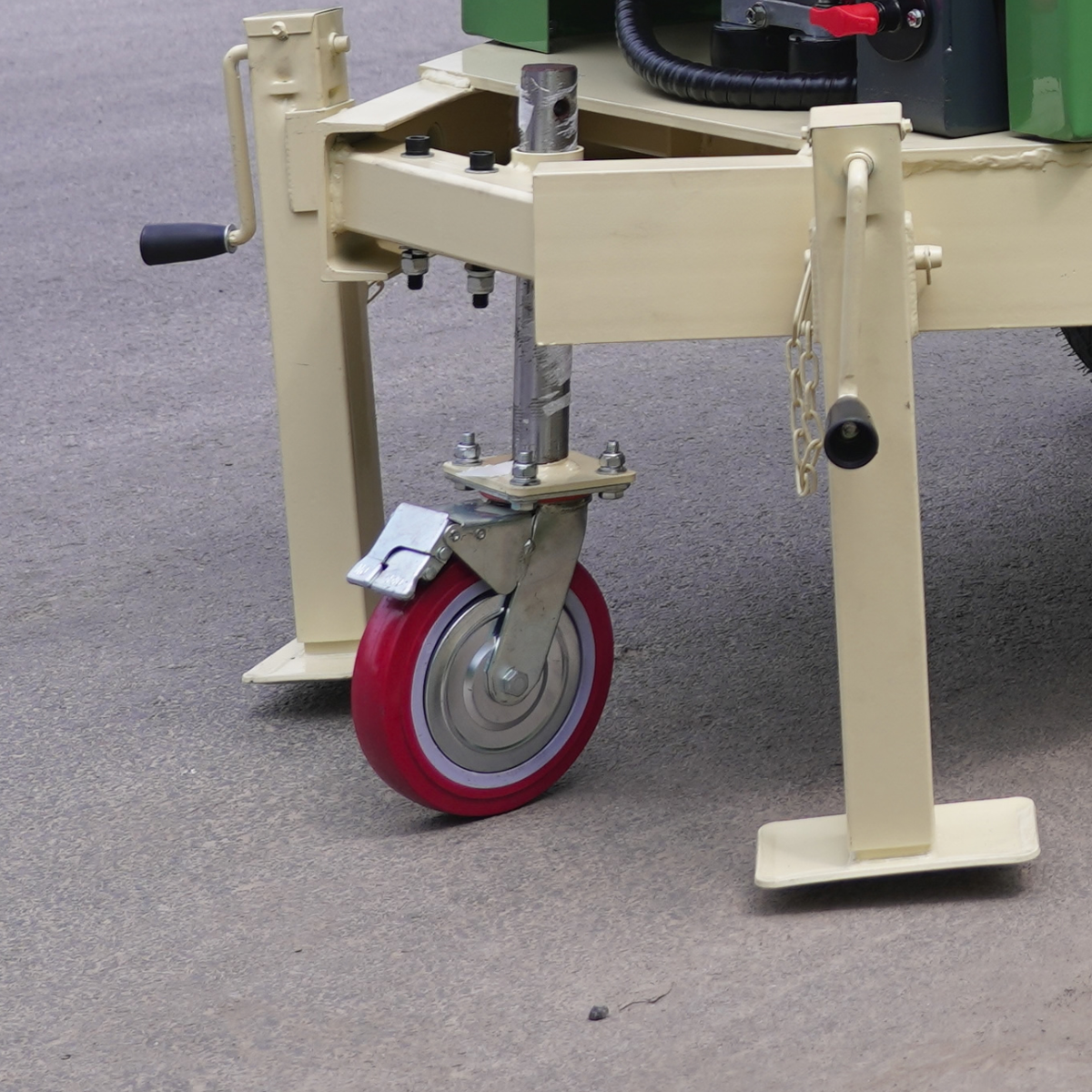

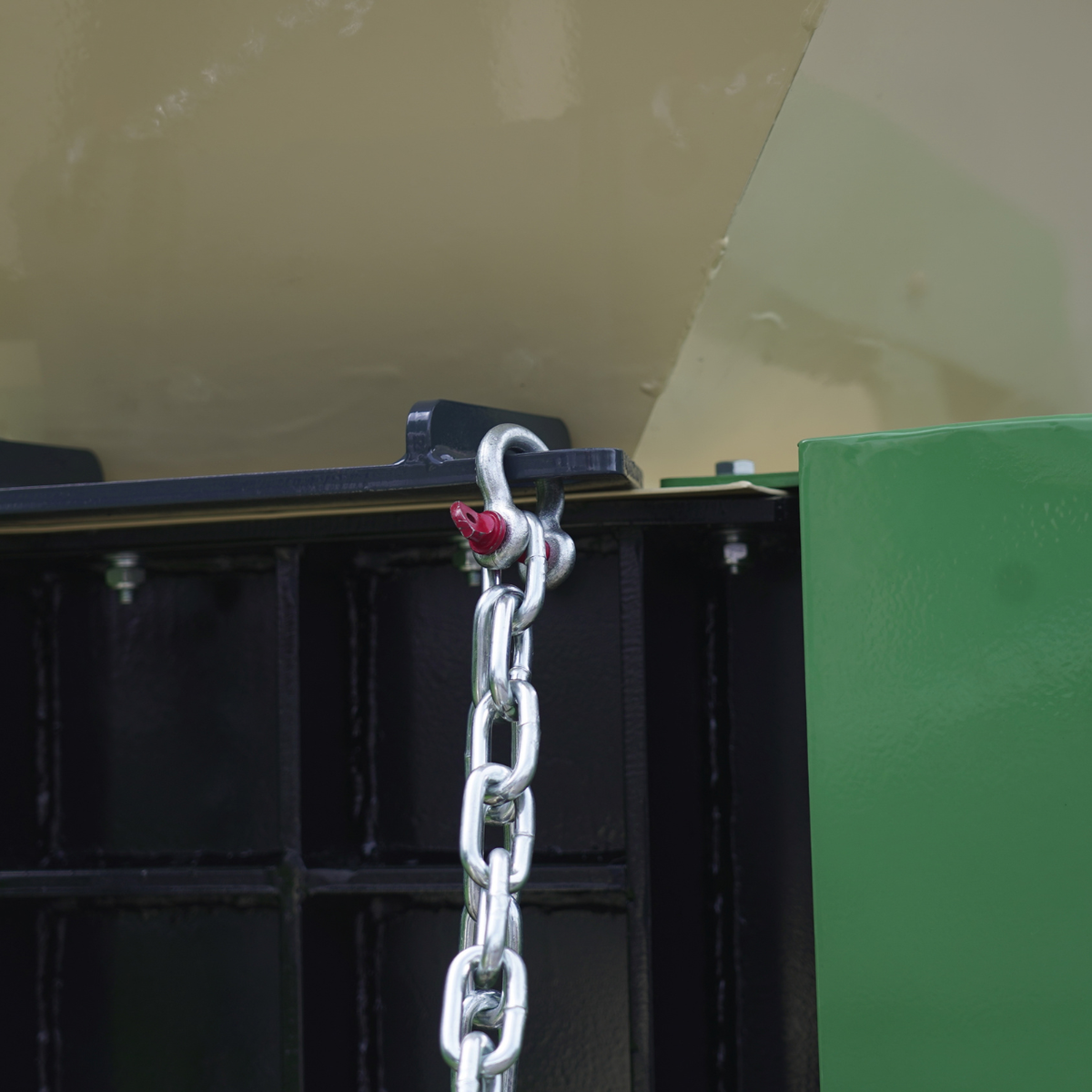

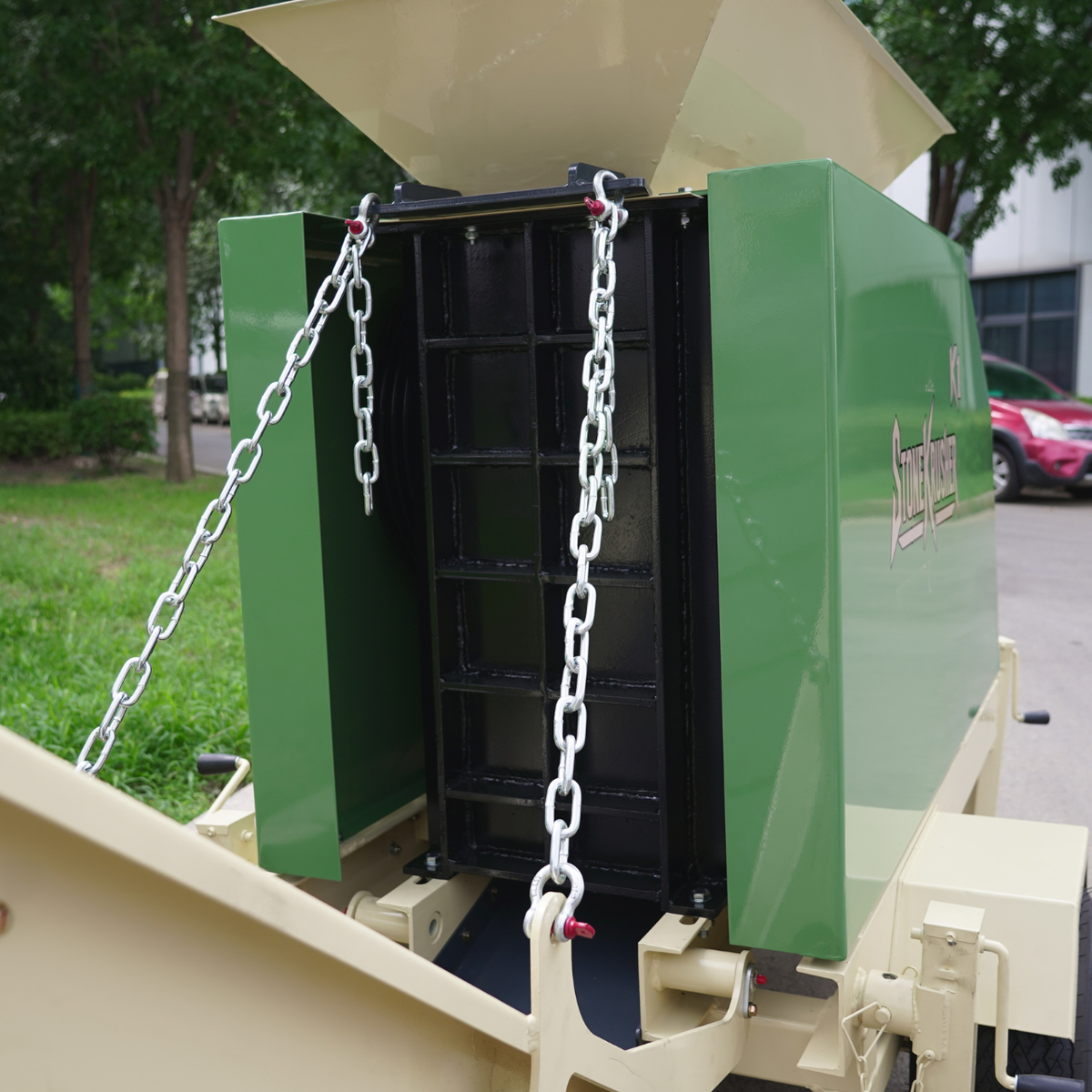

Four manual rear stabilizing legs provide additional ground contact and help reduce unwanted movement during crushing. The dual-chain conveyor support system helps secure the conveyor while maintaining a practical working position.

Together, these features provide a stable foundation for consistent material processing.

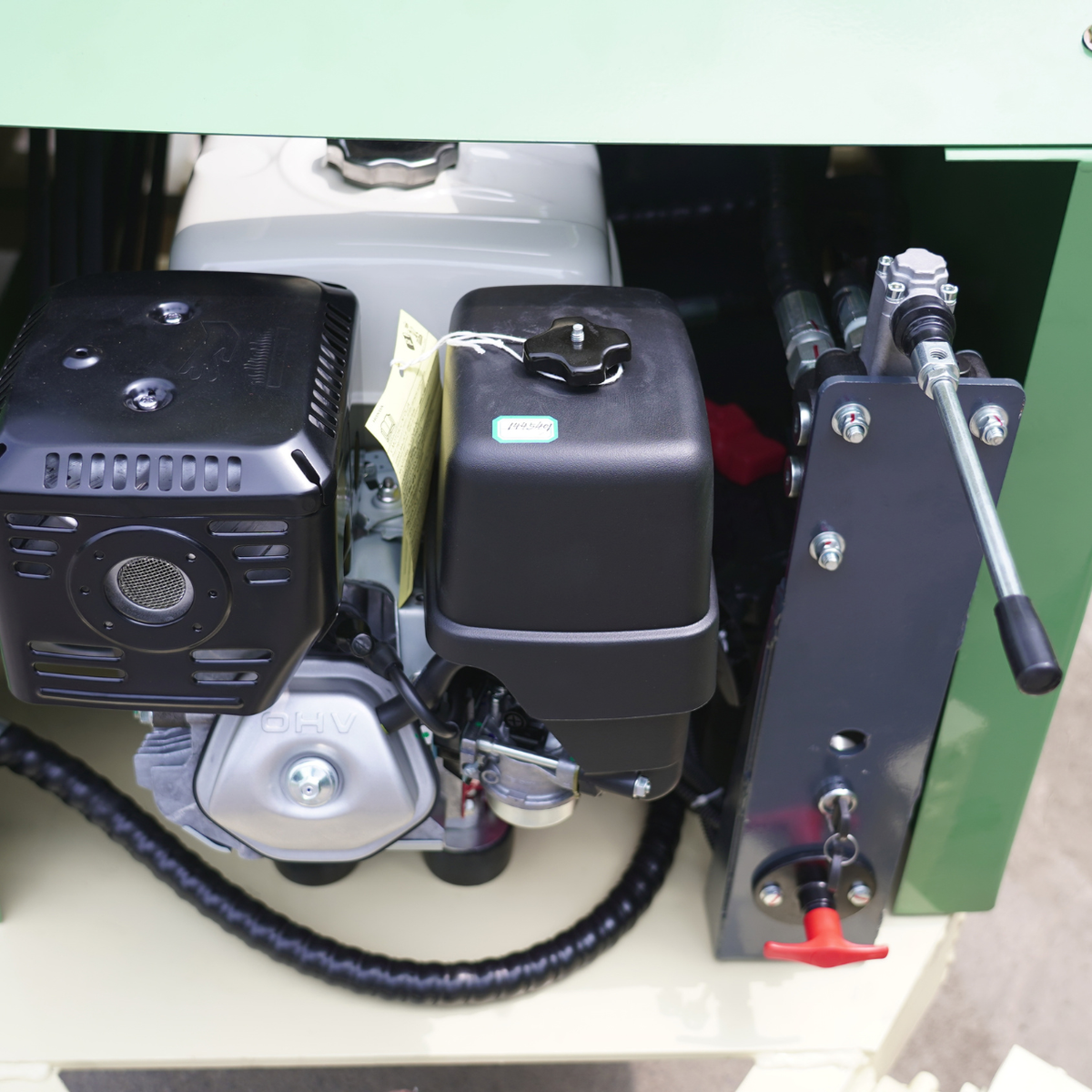

05. Simple Mechanical Operation

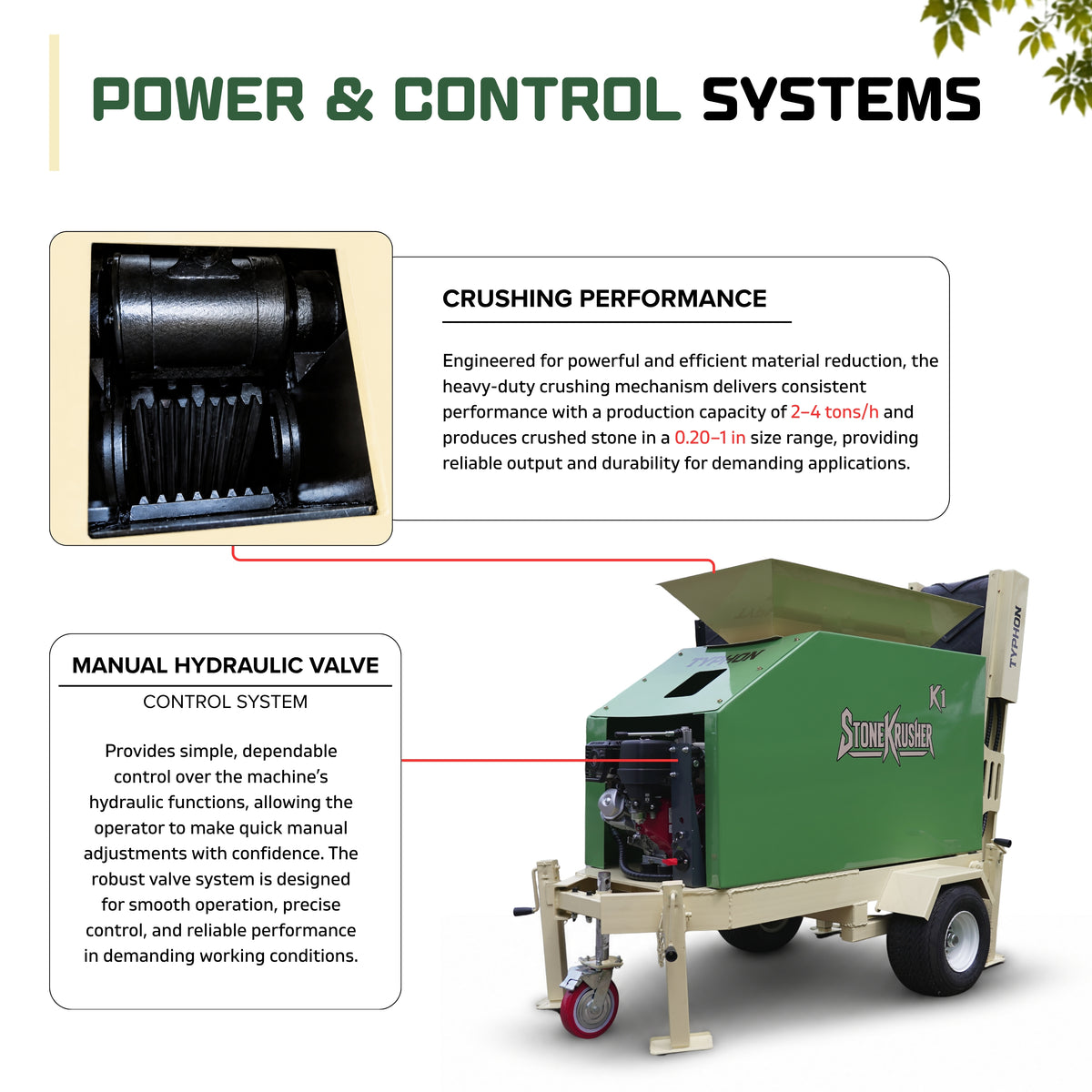

The K1 is designed around straightforward mechanical operation rather than unnecessary complexity. Manual hydraulic valve controls provide direct control of key hydraulic functions, while the simple machine layout makes the equipment easy to understand and practical for everyday jobsite use.

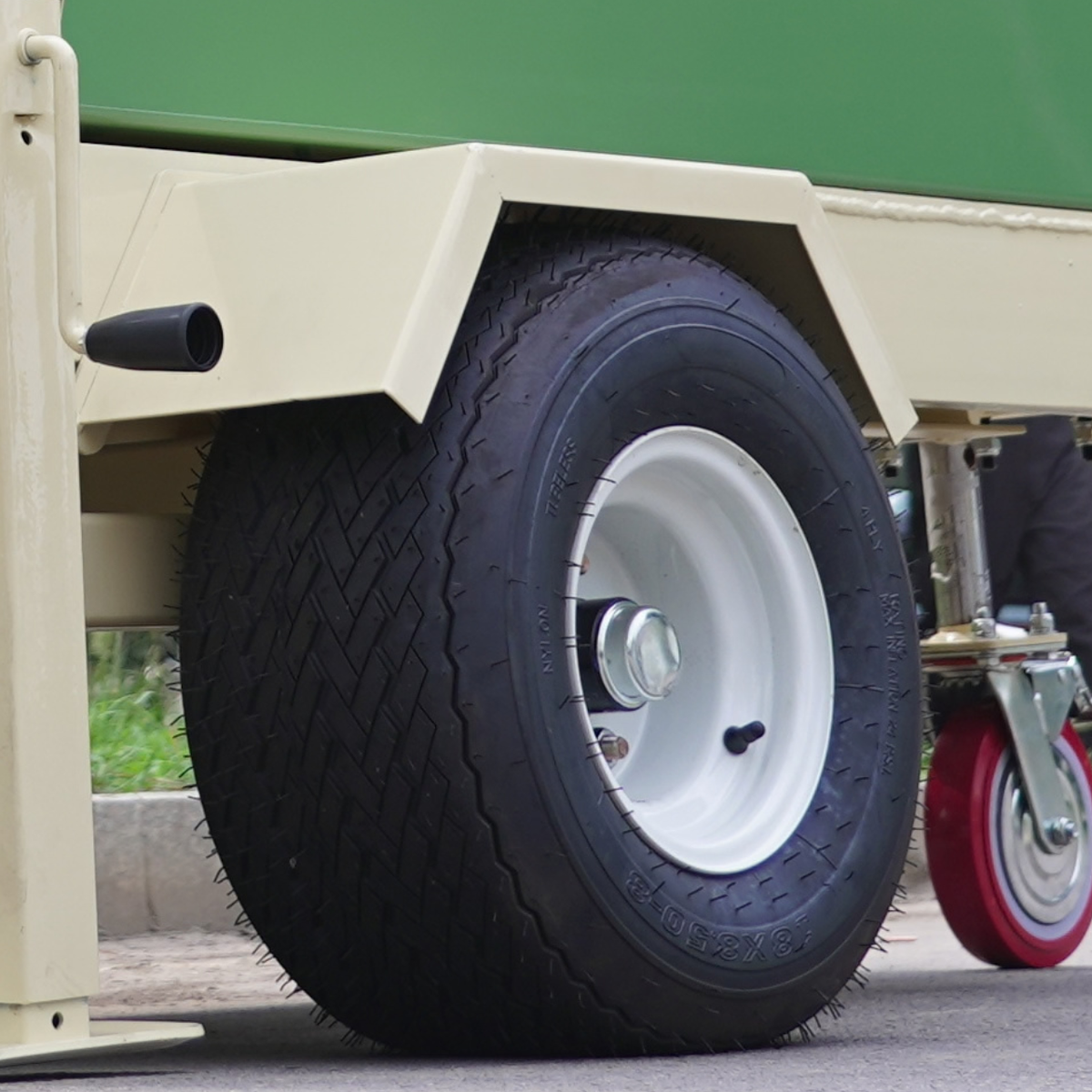

Its towable frame design also makes it convenient to move between crushing locations, allowing crews to bring the crusher closer to where material is being excavated.

06. Built for On-Site Crushing

Instead of moving every load of rock away from the jobsite, the STONEKRUSHER K1 allows suitable material to be processed where it is needed.

That means you can:

• Crush excavated rock on site
• Produce usable aggregate as needed
• Reduce unnecessary material hauling
• Minimize handling between work areas
• Create organized material stockpiles
• Move the crusher between jobsites with its towable design

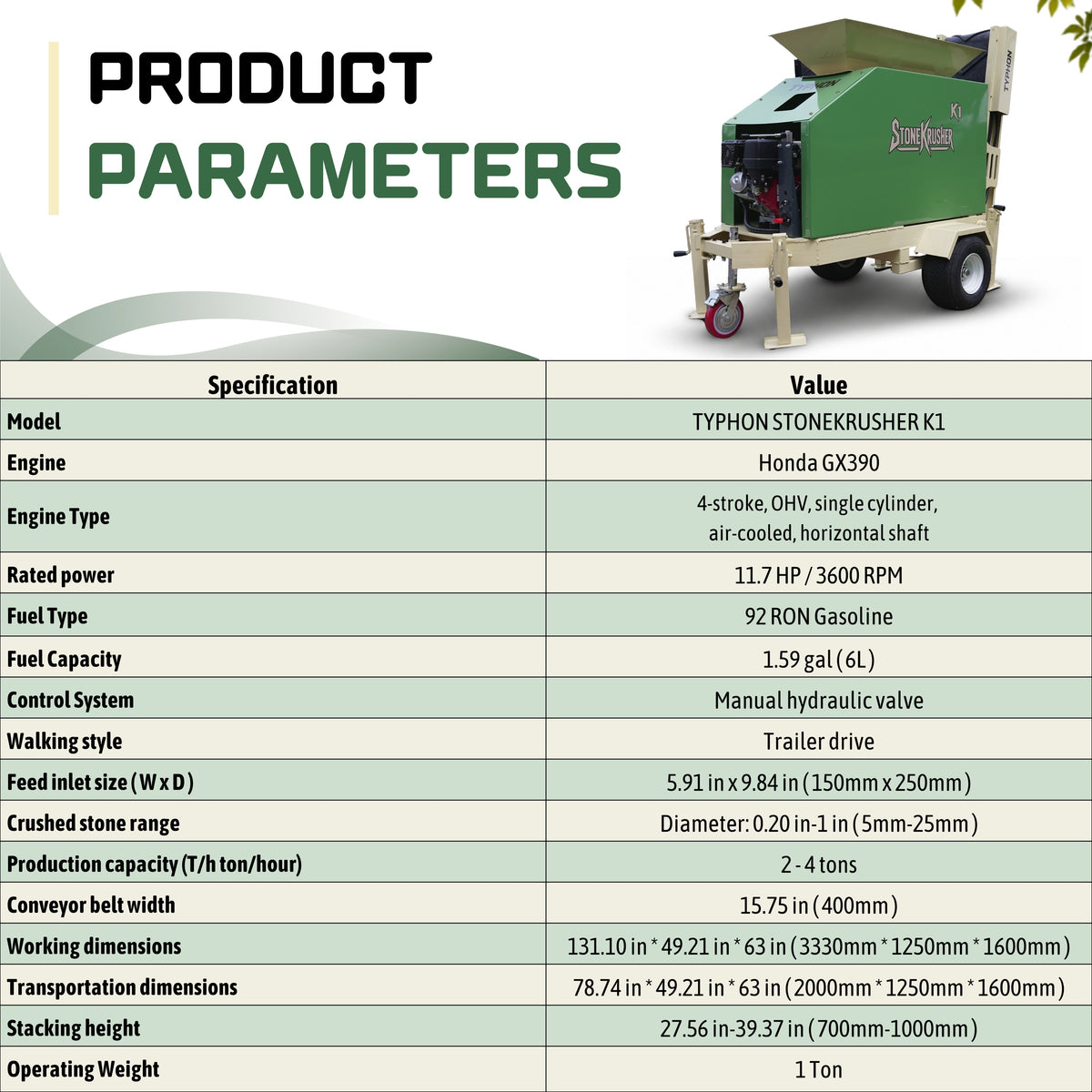

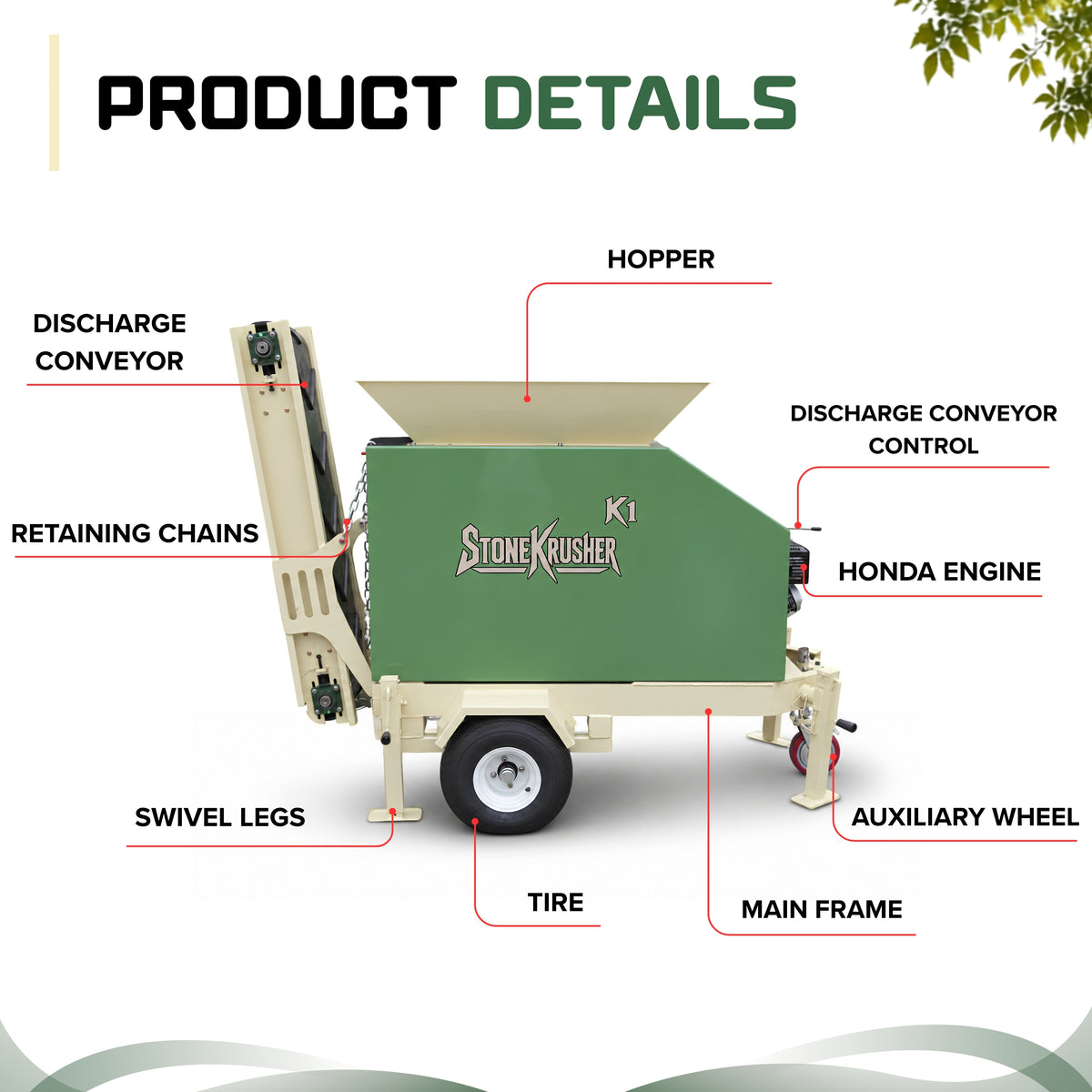

Key Features

• 11.7 HP Honda GX390 Engine – Reliable gasoline power for daily crushing applications.
• 2–4 Tons/Hour Crushing Capacity – Keeps material processing moving on small and mid-sized jobs.
• 5.91 × 9.84 in Feed Opening – Accepts suitable rock with less pre-breaking.
• 5–25 mm Output Range – Produces a practical range of finished aggregate sizes.
• 15.75 in Integrated Conveyor – Continuously transfers crushed material away from the crusher.
• 27.56–39.37 in Discharge Height – Supports efficient material discharge and stockpiling.
• Four Rear Stabilizing Legs – Improve ground contact and help minimize machine movement.
• Dual-Chain Conveyor Support – Helps secure the conveyor during operation.
• Manual Hydraulic Controls – Direct, straightforward control of key machine functions.
• Towable Frame – Makes relocation between jobsite locations more convenient.
